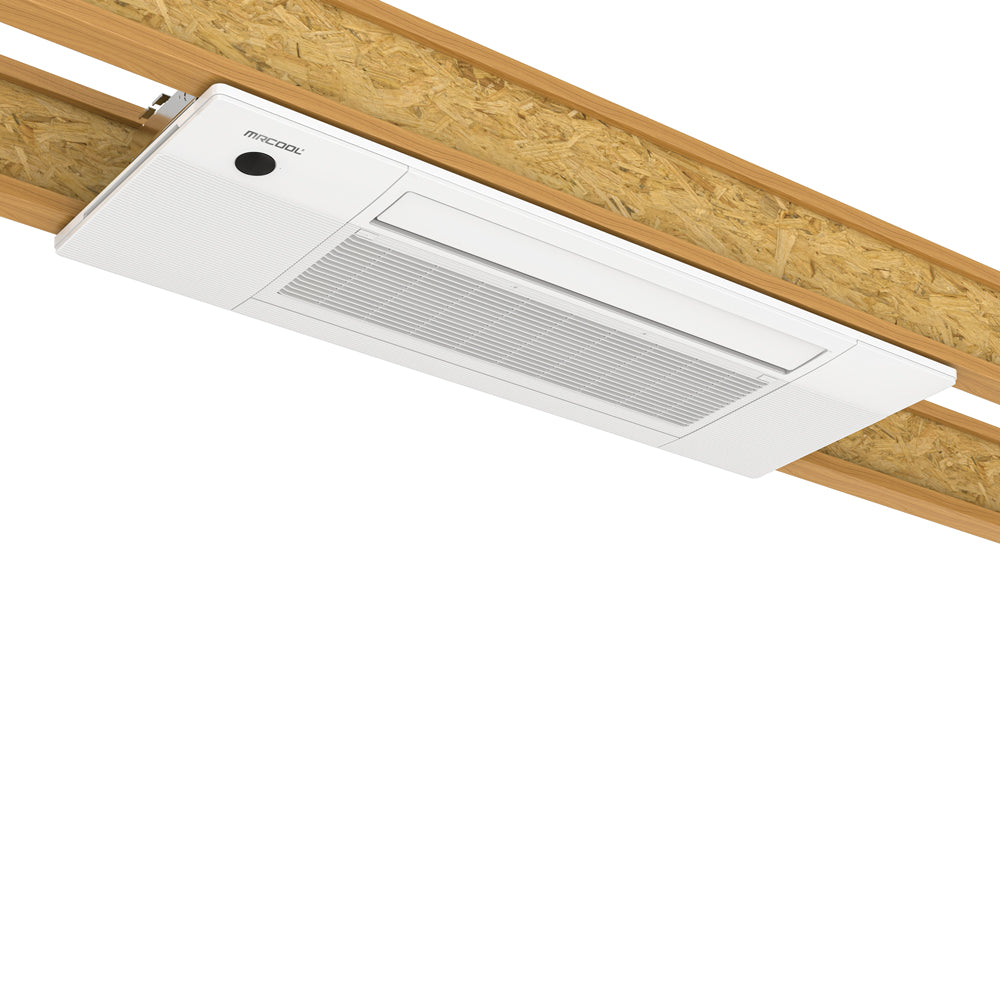

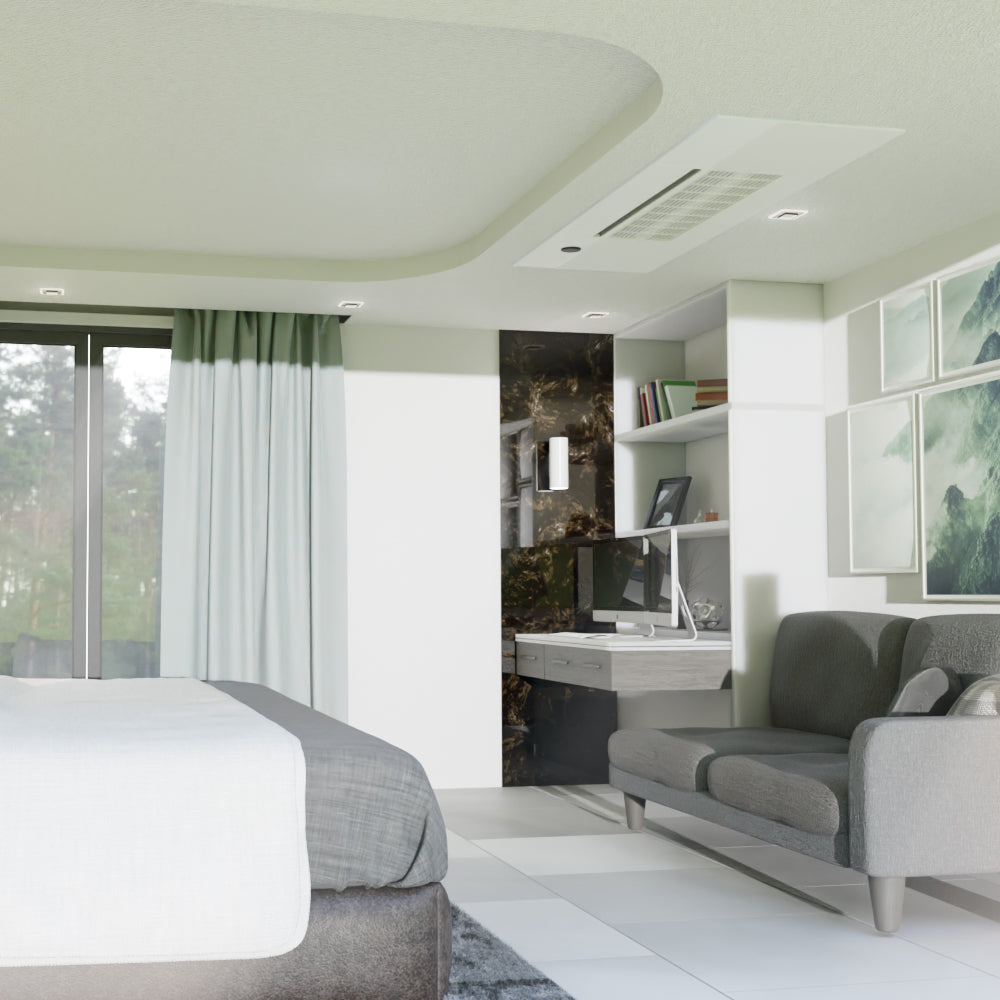

The MrCool® DIY® Series 9k BTU Ceiling Cassette is perfect for any space and provide discreet and out of sight heating and cooling. It is available in and multi-zone options and is easy to install, fitting between 16” ceiling joists. The cassette is designed to work with both current and future joist standards and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Other ceiling cassettes have strict installation requirements in less ideal locations, but the MrCool® cassette doesn't require ductwork or wall space and is perfect for new constructions or retrofits.

The cassette works with the MrCool® DIY® Quick Connect® line set which makes installation even easier since it is precharged with refrigerant, eliminating the need for vacuuming. The No-Vac® Coupler can be used to increase length. With advanced filtration, each cassette offers an Elevation function that lowers the filter panel for easy filter maintenance. Not only does this cassette feature quiet operation and multiple operating modes, but also provided is a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty, so you can feel confident in your investment.

Key Features

  • Fits between 16" Ceiling Joists

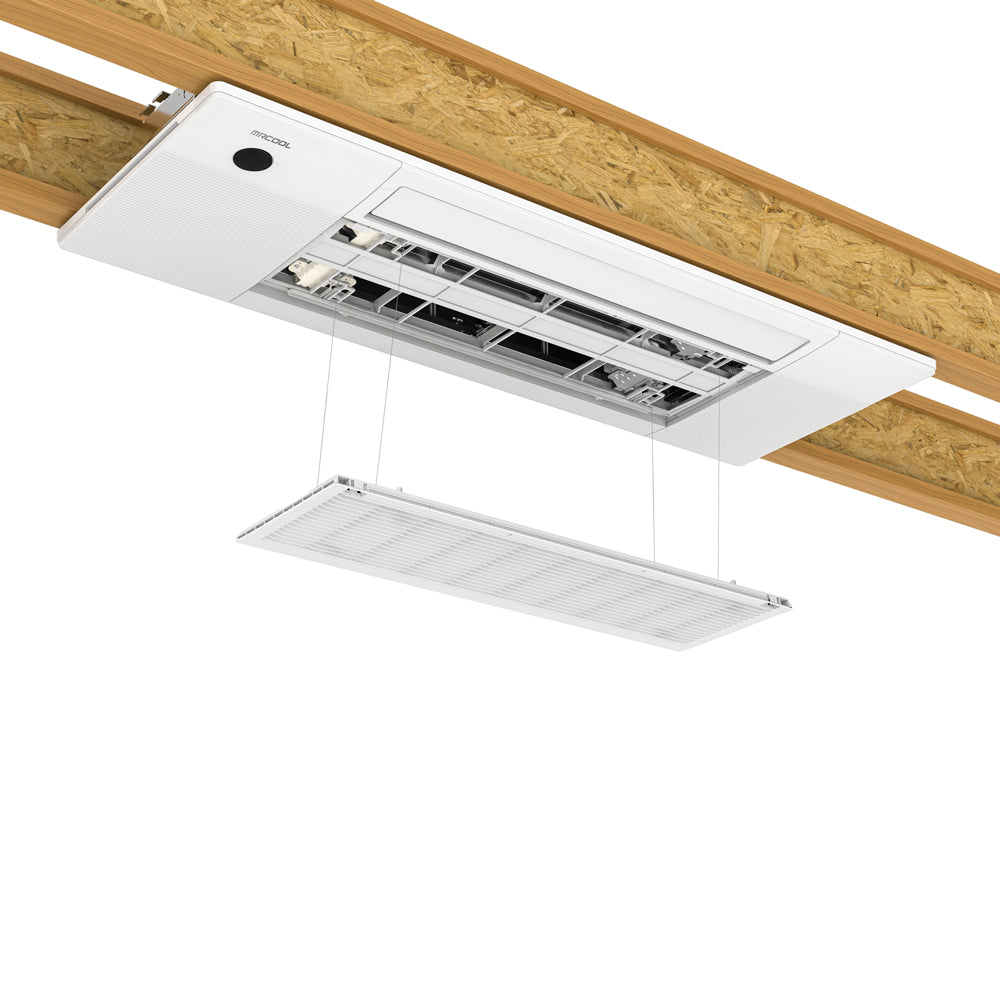

  • Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
  • Low Profile Installation
  • Pair with your DIY 4th gen Multi-Zone system

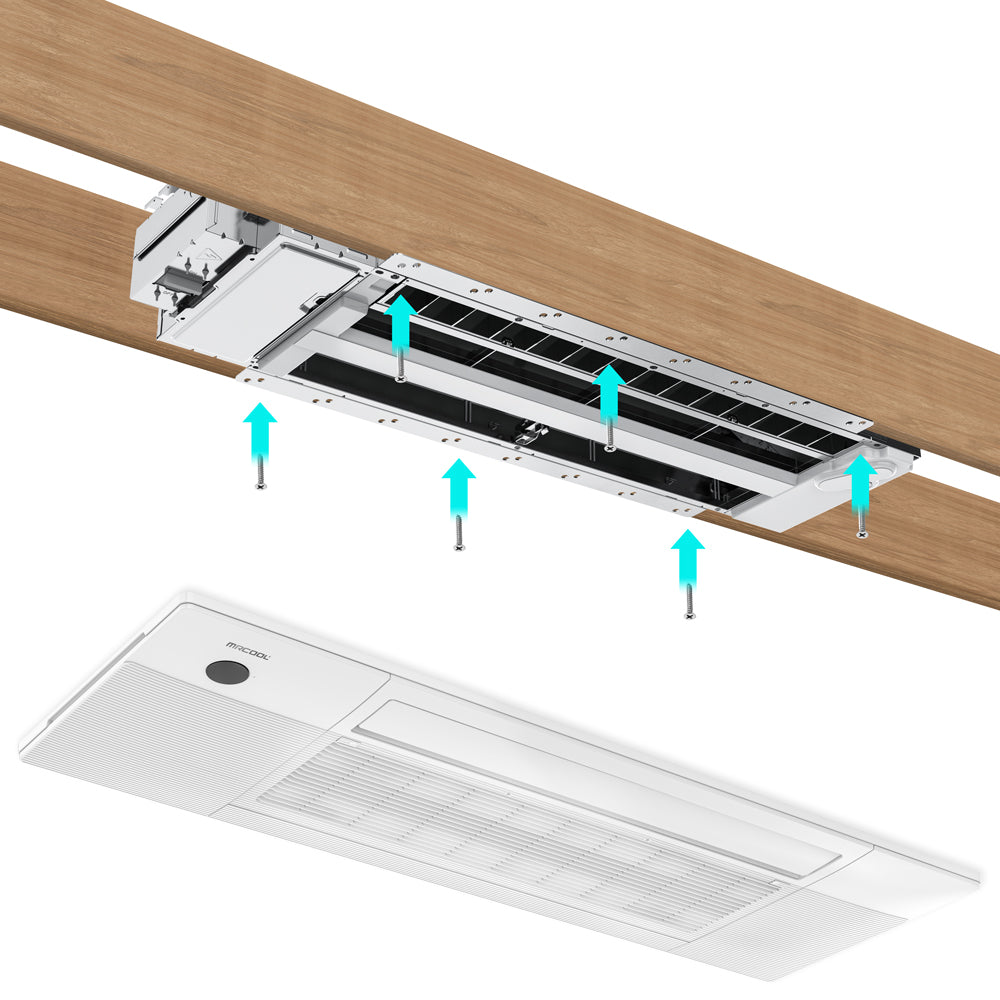

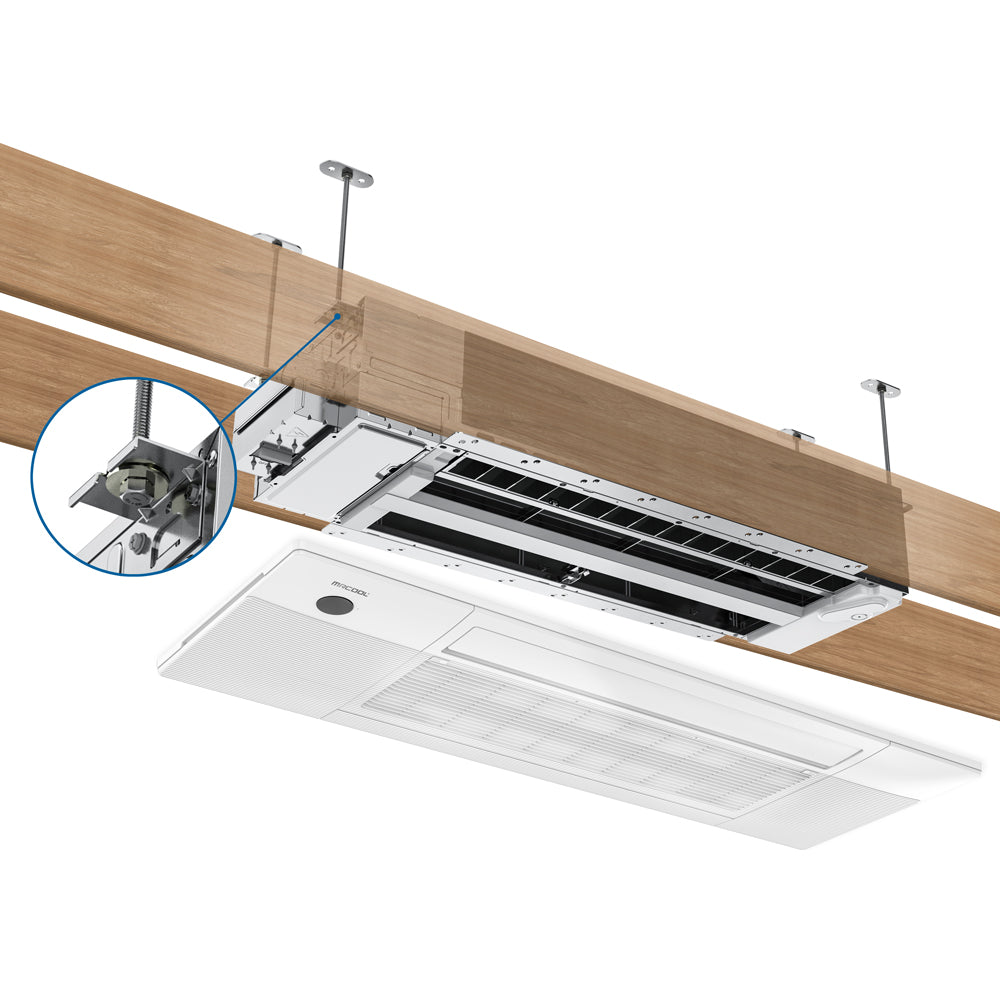

  • Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.

Product Dimensions 50.31"W x 13.19"D x 8.98"H
Product Weight 44.31 lbs
SEER Up to 20.75
EER Up to 12.5
HSPF hsph4/hspf5: 11/8.6
Coverage Area 375 square feet
Cooling Capacity 9,000 BTU
Heating Capacity 9,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Rate Load 1.5A
Decibel Rating 40/35.5
Decibel Rating Low 24.5 dBA
Decibel Rating High 42 dBA
Decibel Rating 52/45/34
Blower Motor HP 570/537/488/350
Blower Motor Speeds 4
Blower Motor RPM 1024/944/864
Filter Type Reusable
Modes Auto (Auto selects Cool, Heat or Fan-Only)
Cool
Heat
Dry
Fan Only
Sleep
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI
