MRCOOL DIY Series 12K BTU Ceiling Cassette, DIYCASSETTE12HP-230C25

See more from MRCOOL Model: DIYCASSETTE12HP-230C25

Model: DIYCASSETTE12HP-230C25

$1,186.00

$1,599.00

Save 26%

Financing:

Total BTUs

This item is in stock! Estimated Arrival: Feb 19 to Feb 23

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More
Contact Us

Have a question or want to build your own package?

Talk with one of our trusted appliance experts today!

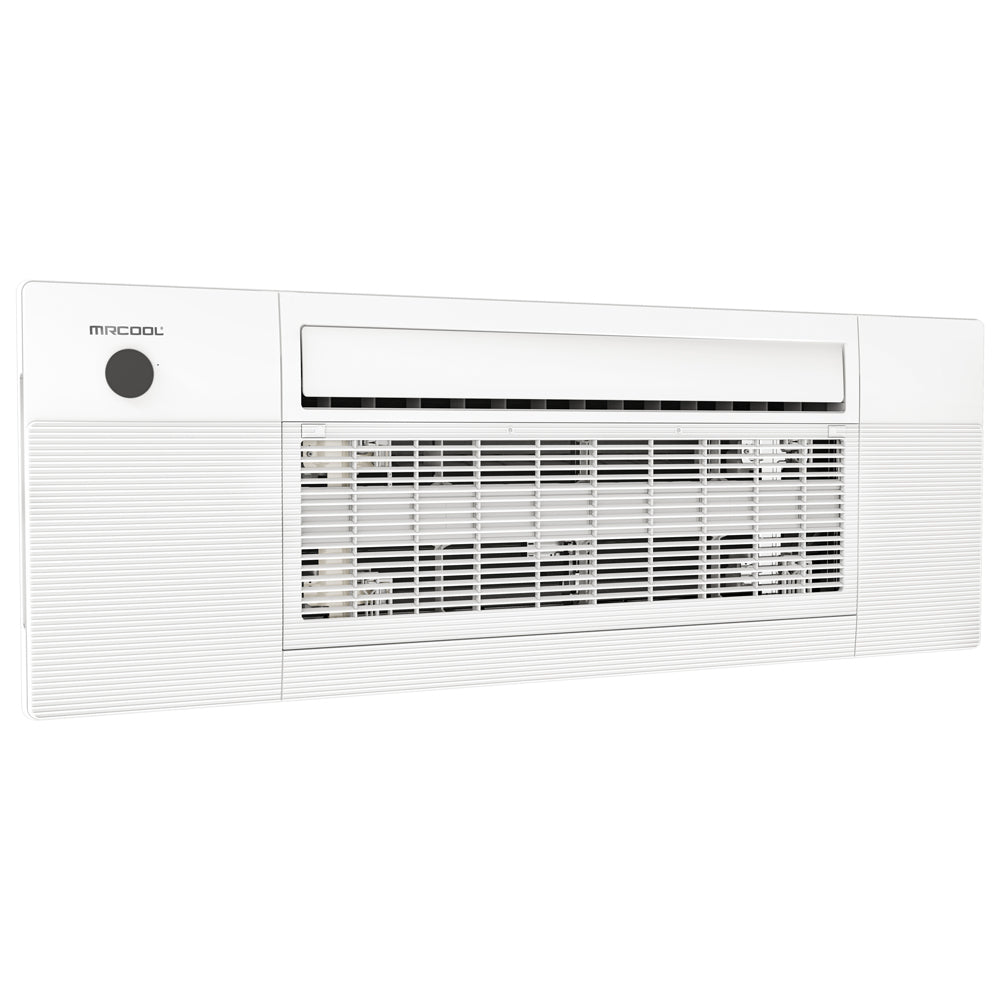

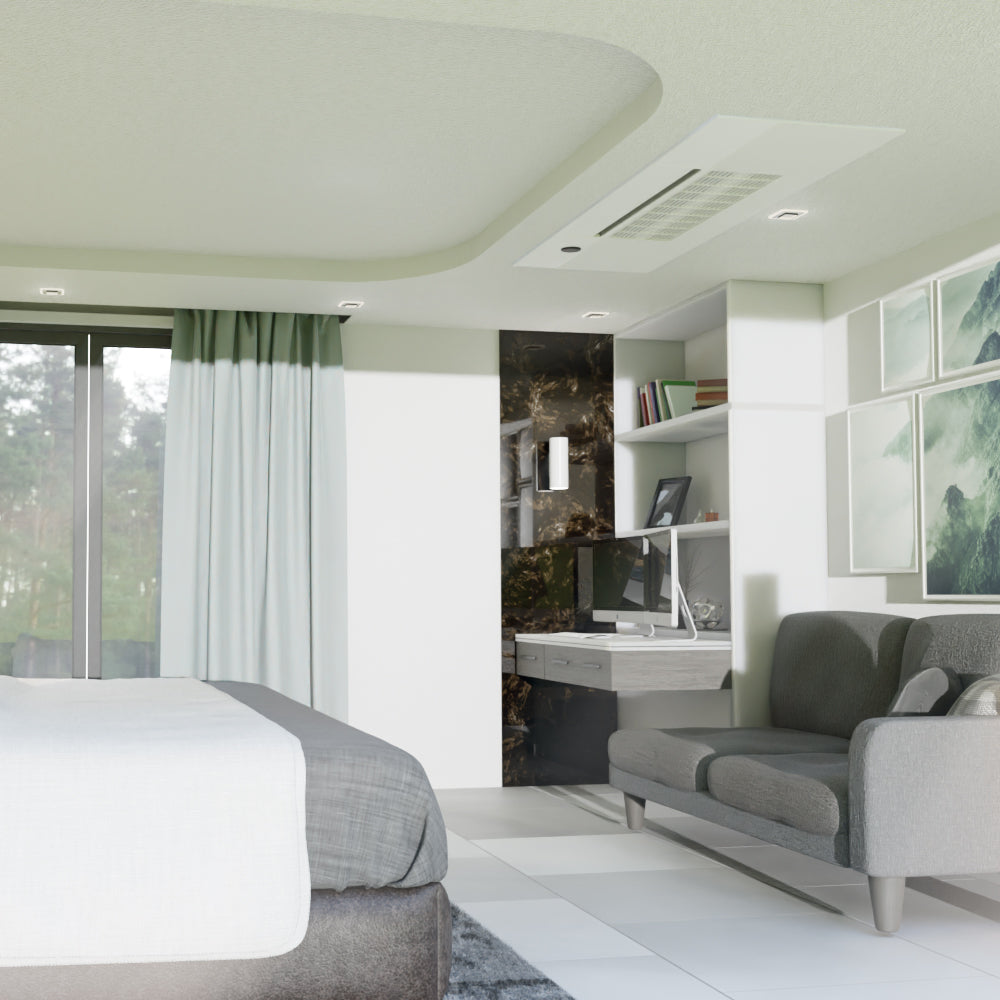

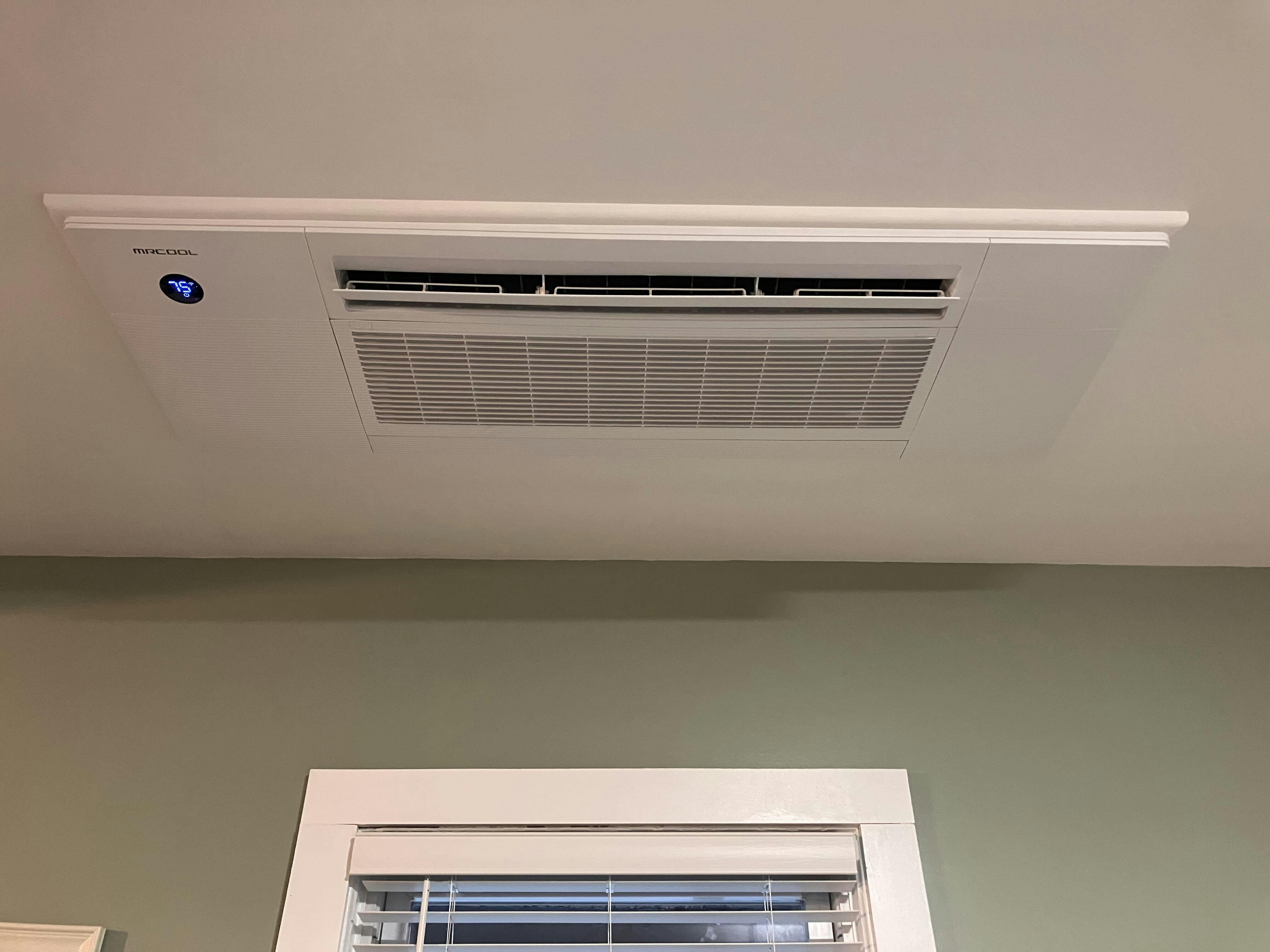

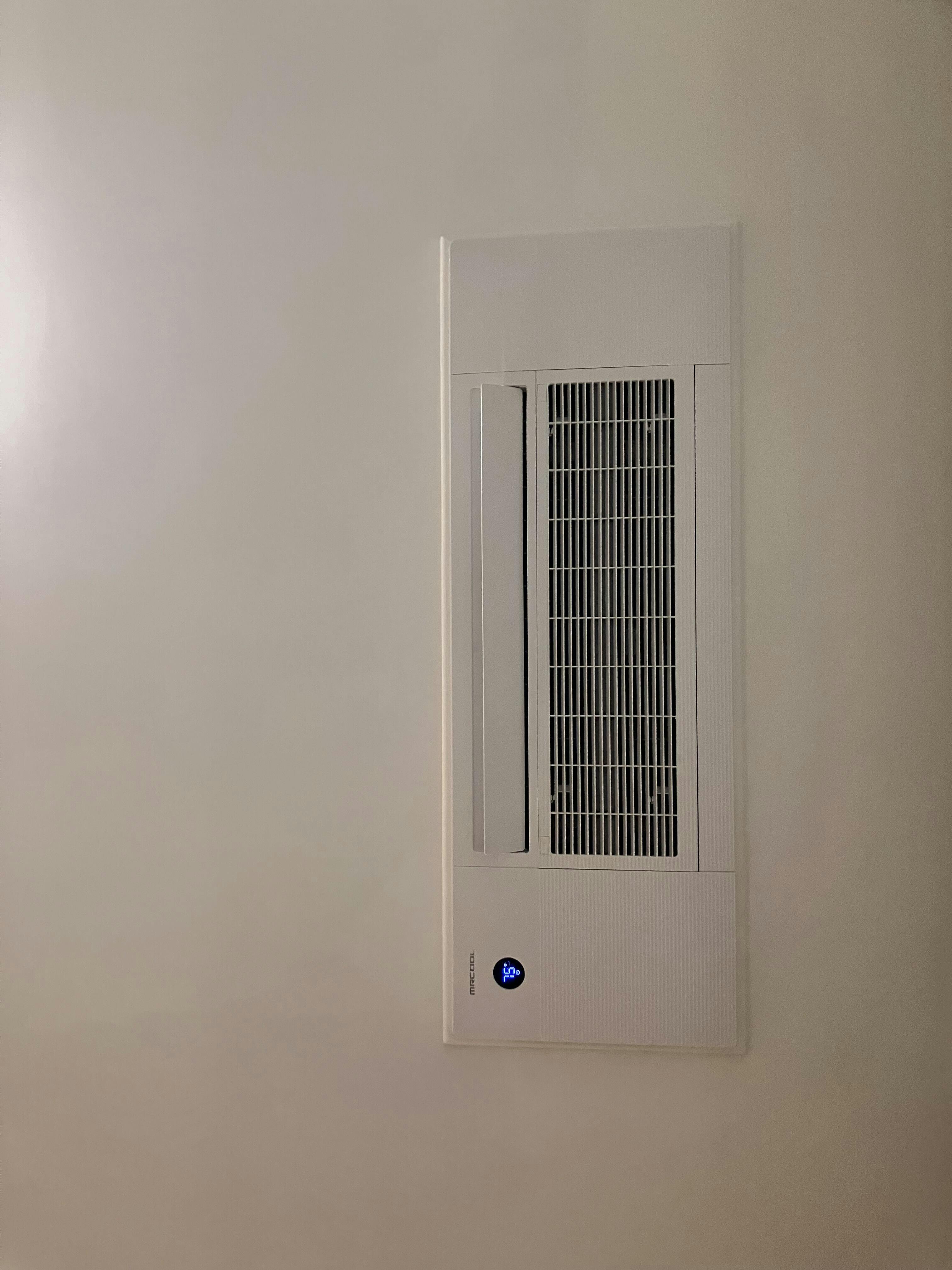

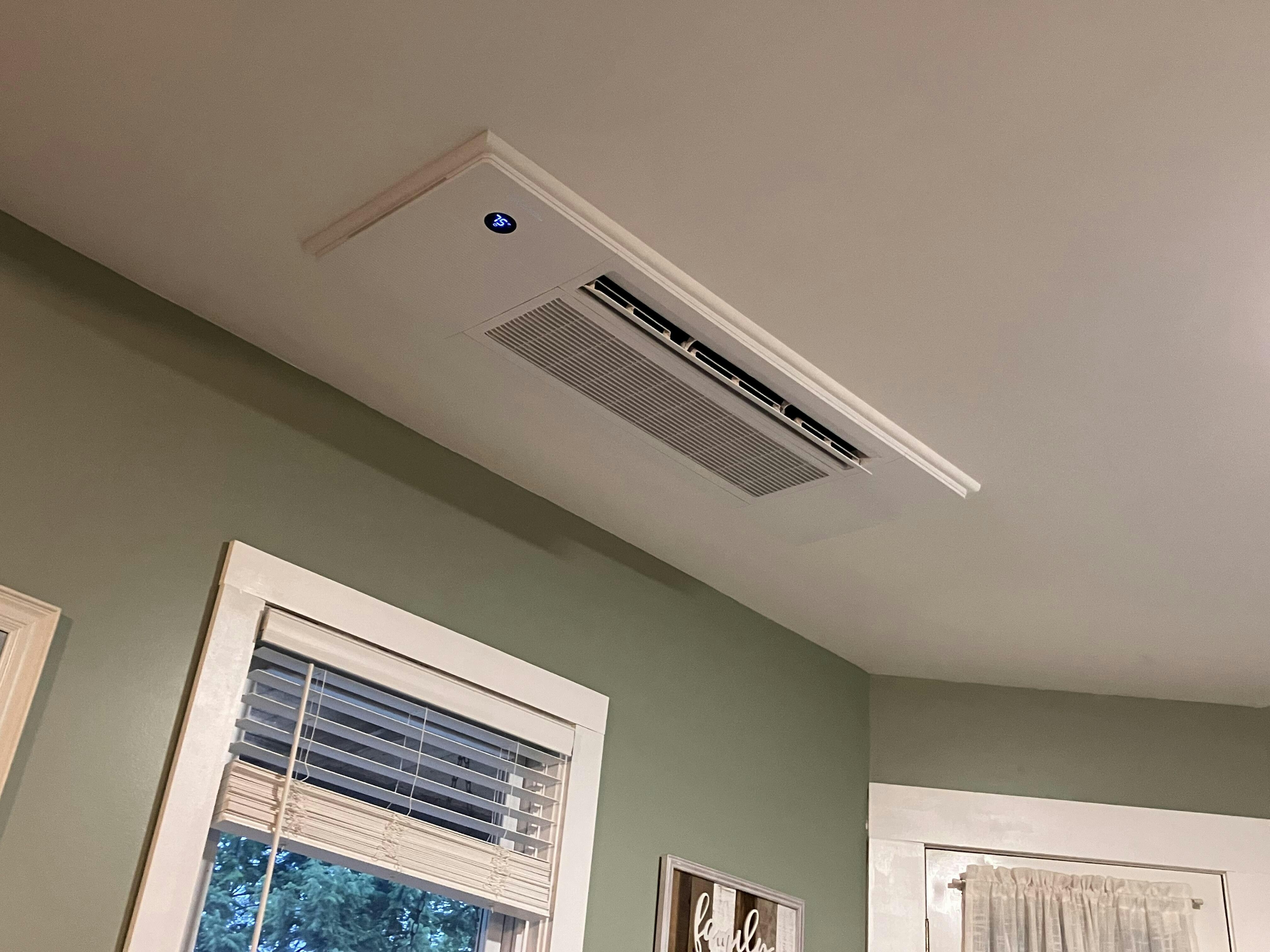

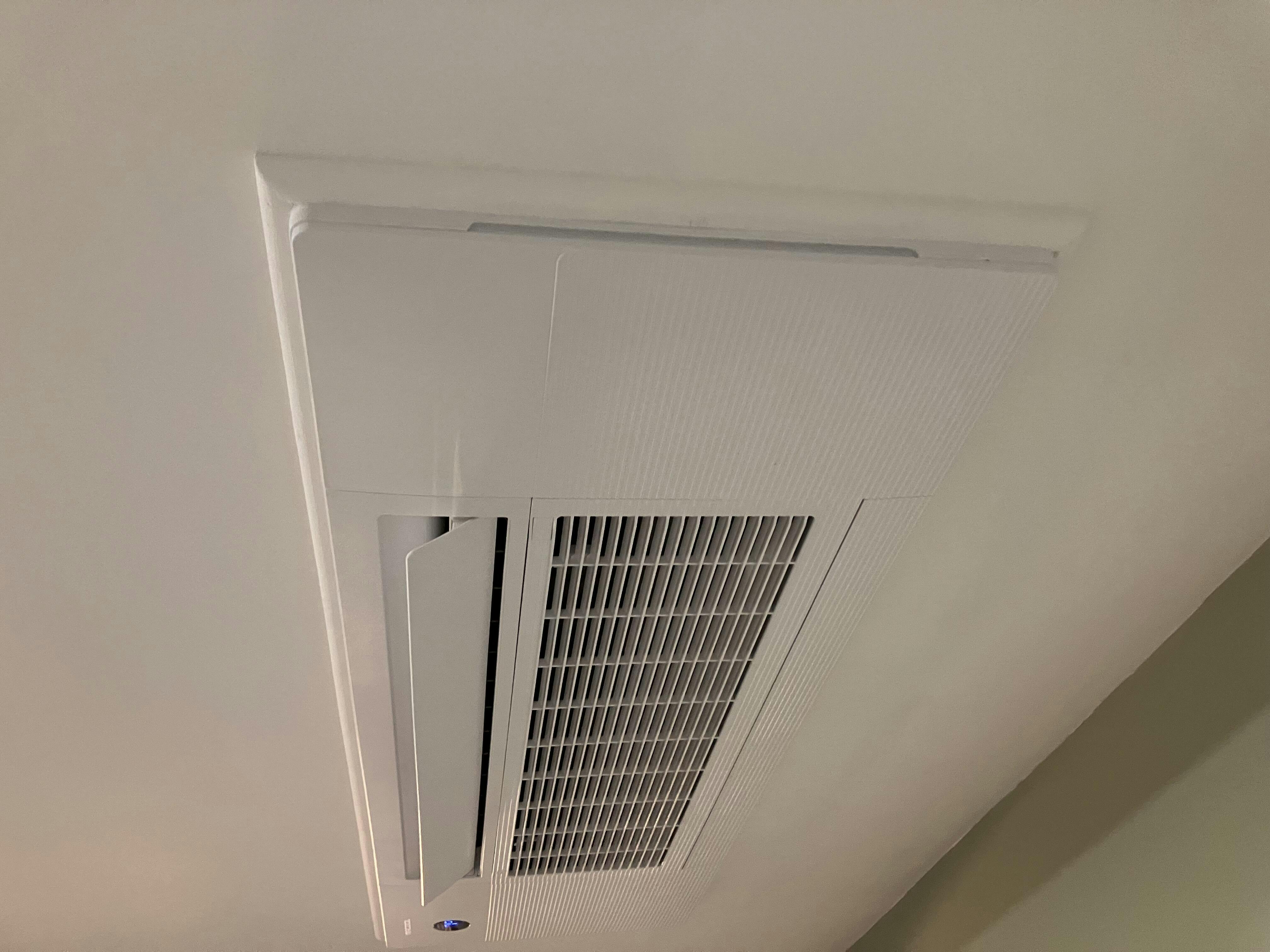

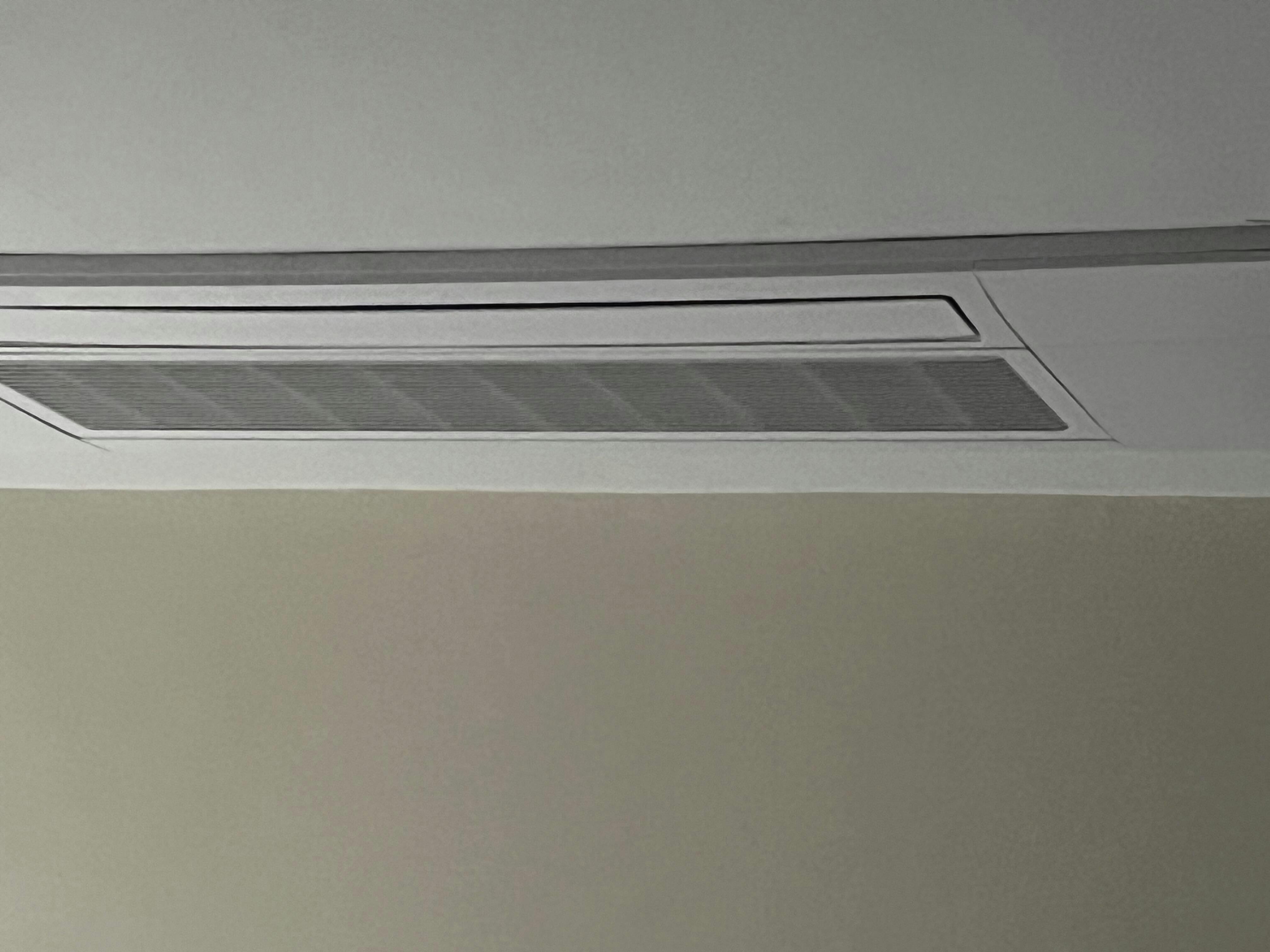

With an easy, low profile installation, the MrCool® DIY® Series 12k BTU Ceiling Cassette provides efficient heating and cooling that is perfect for any space, making it one of the most versatile ceiling units ever. The cassette is offered in multi-zone options. Unlike other ceiling cassettes, the MrCool® DIY® Series 12k BTU Ceiling Cassette doesn’t have strict installation requirements in less than ideal locations and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Since it doesn’t require ductwork or wall space, it is perfect for both new construction or retrofits.

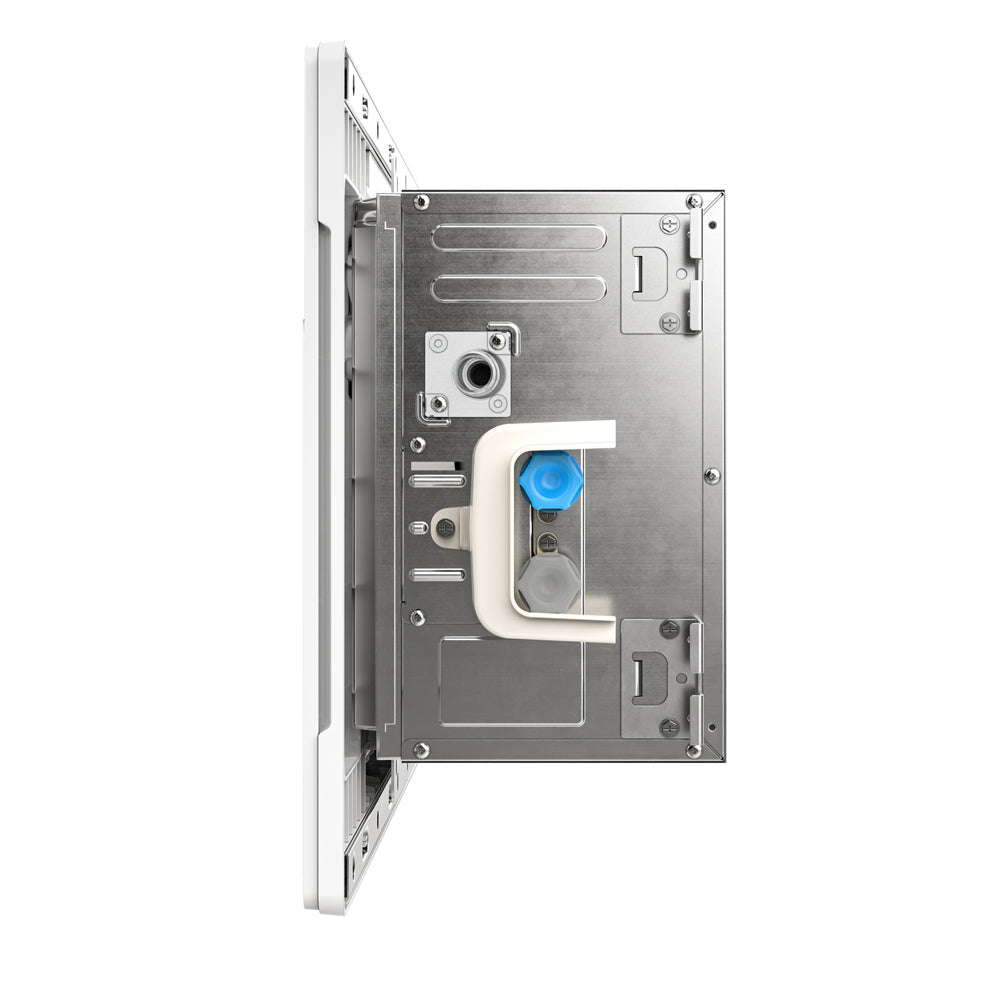

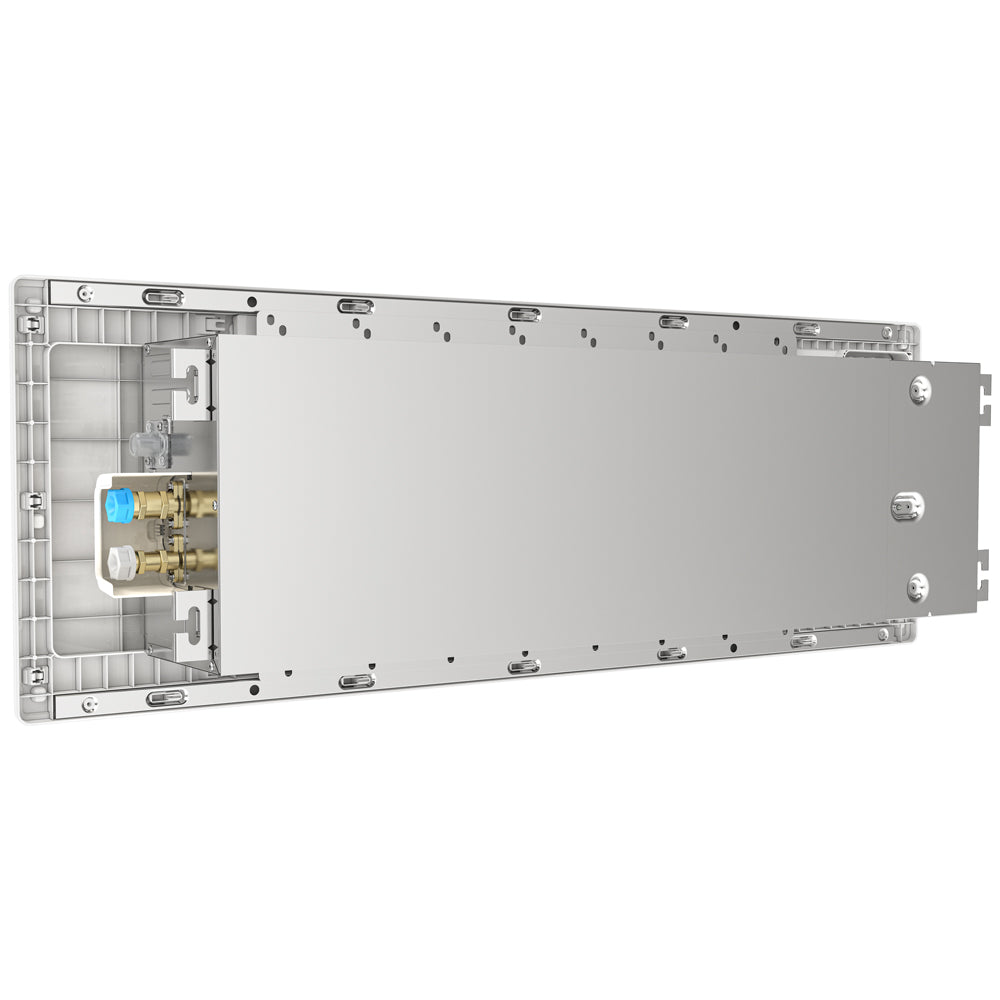

The cassette works with the MrCool® DIY® Quick Connect® line set which comes precharged with R-410A refrigerant. The No-Vac® Coupler can be used to increase the length of the line set if needed. In addition to the many operational modes and quiet operation, the cassette features swing technology and an Elevation function that lowers the filter panel for easy maintenance of the air filter. All of these features can be controlled with the included remote. For peace of mind, the cassette offers a limited lifetime warranty along with a 7-year compressor warranty and 5-year parts warranty.

Key Features

  • Fits between 16" Ceiling Joists

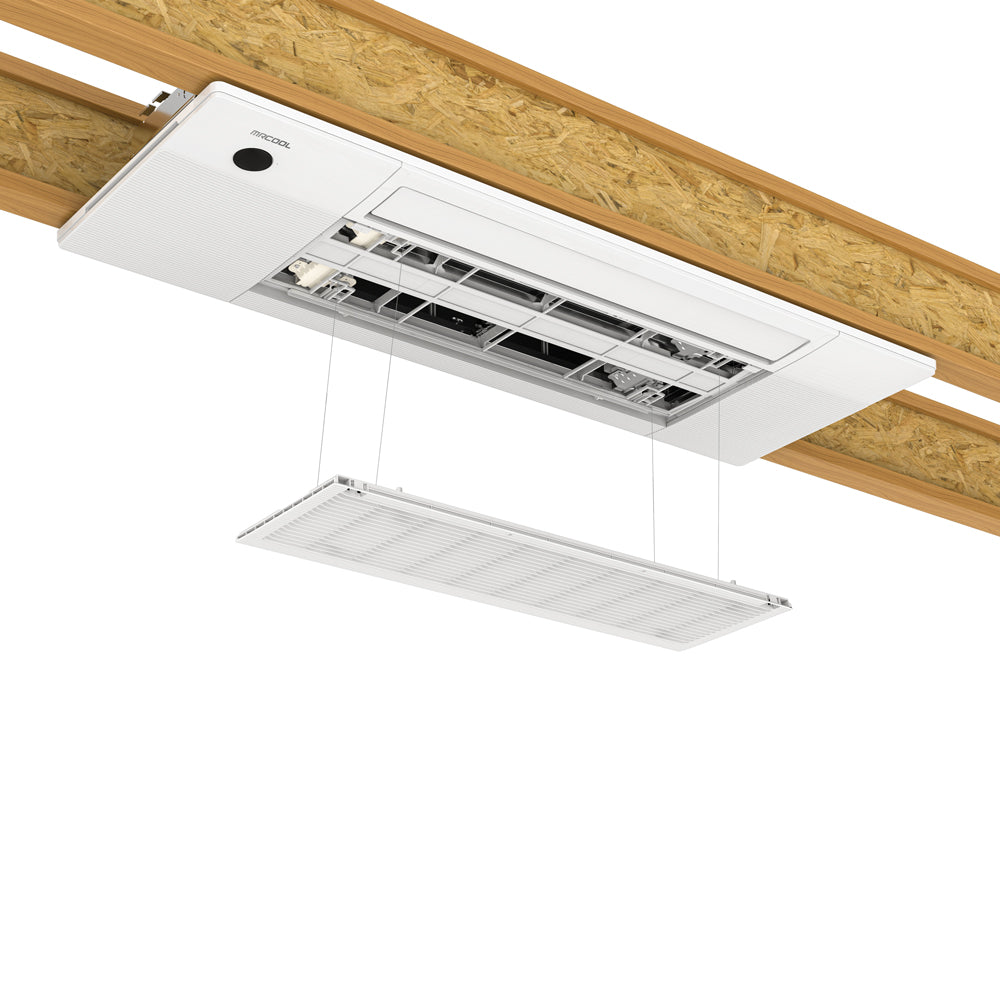

  • Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
  • Low Profile Installation
  • Pair with your DIY 4th gen Multi-Zone system

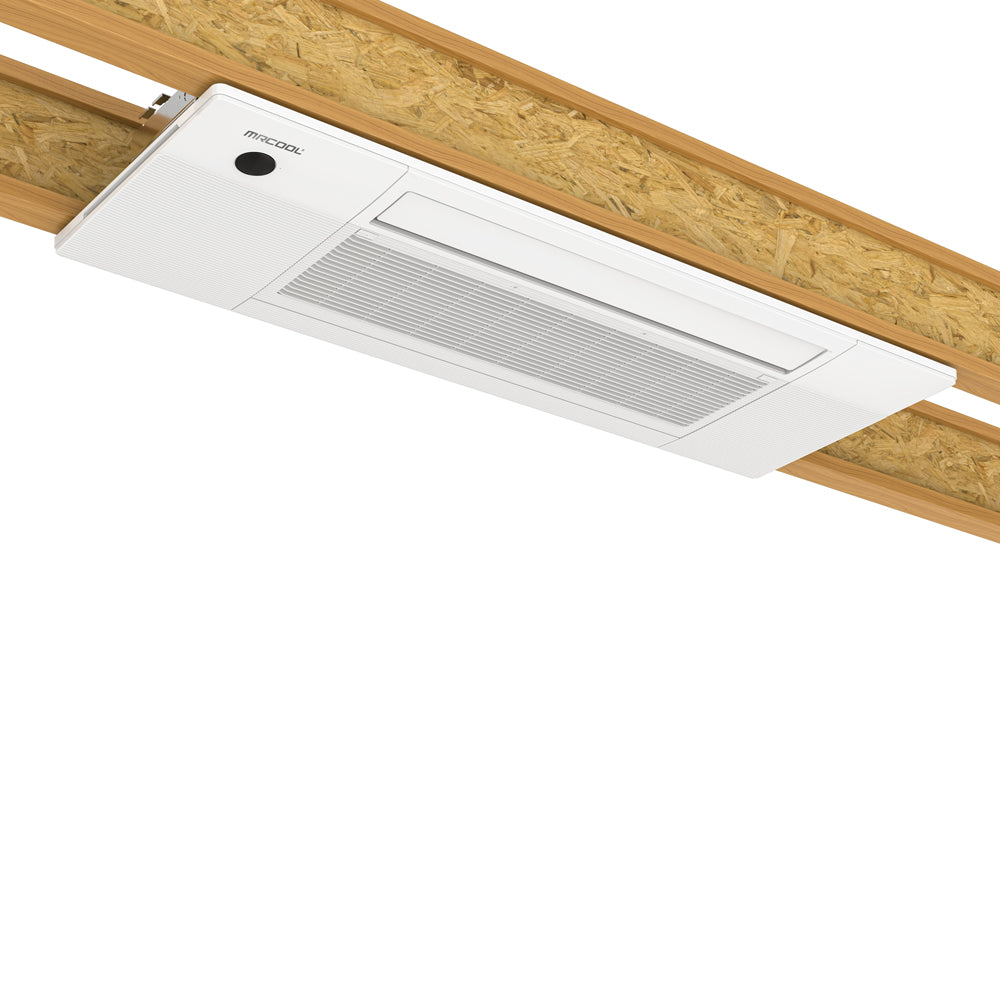

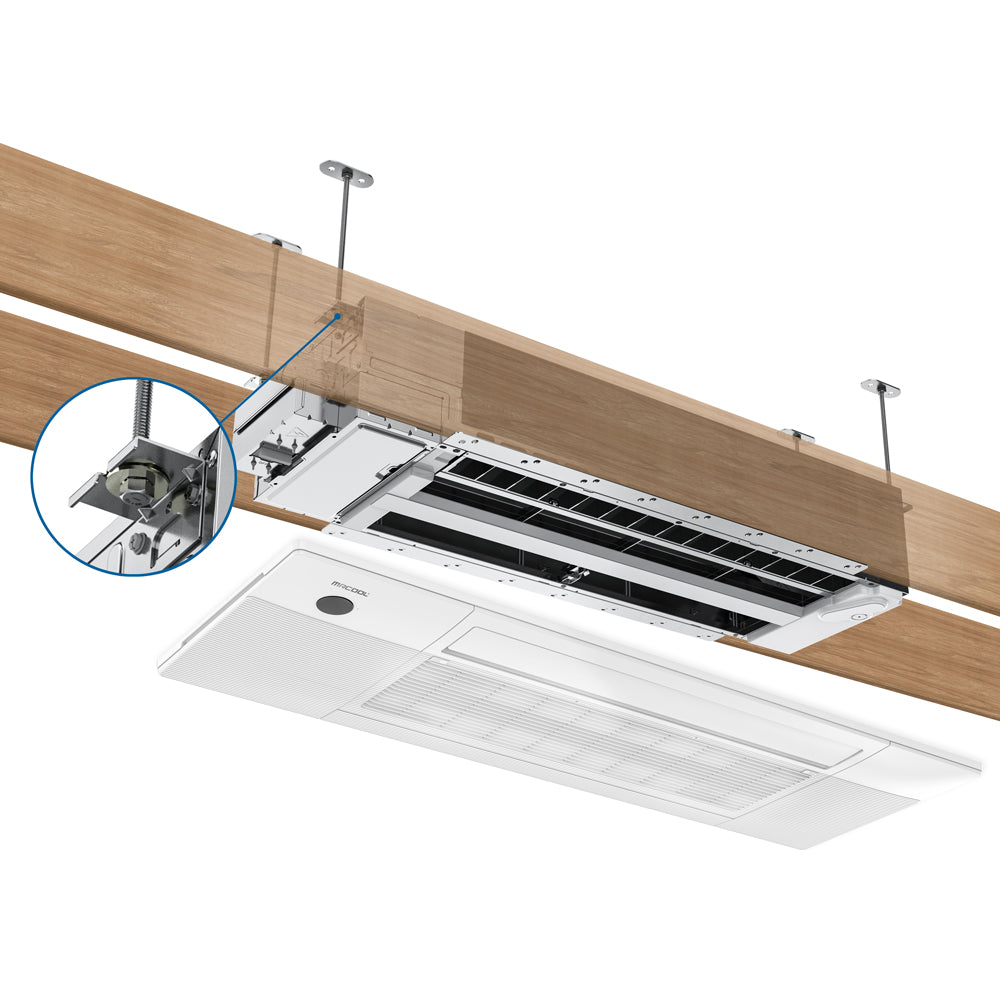

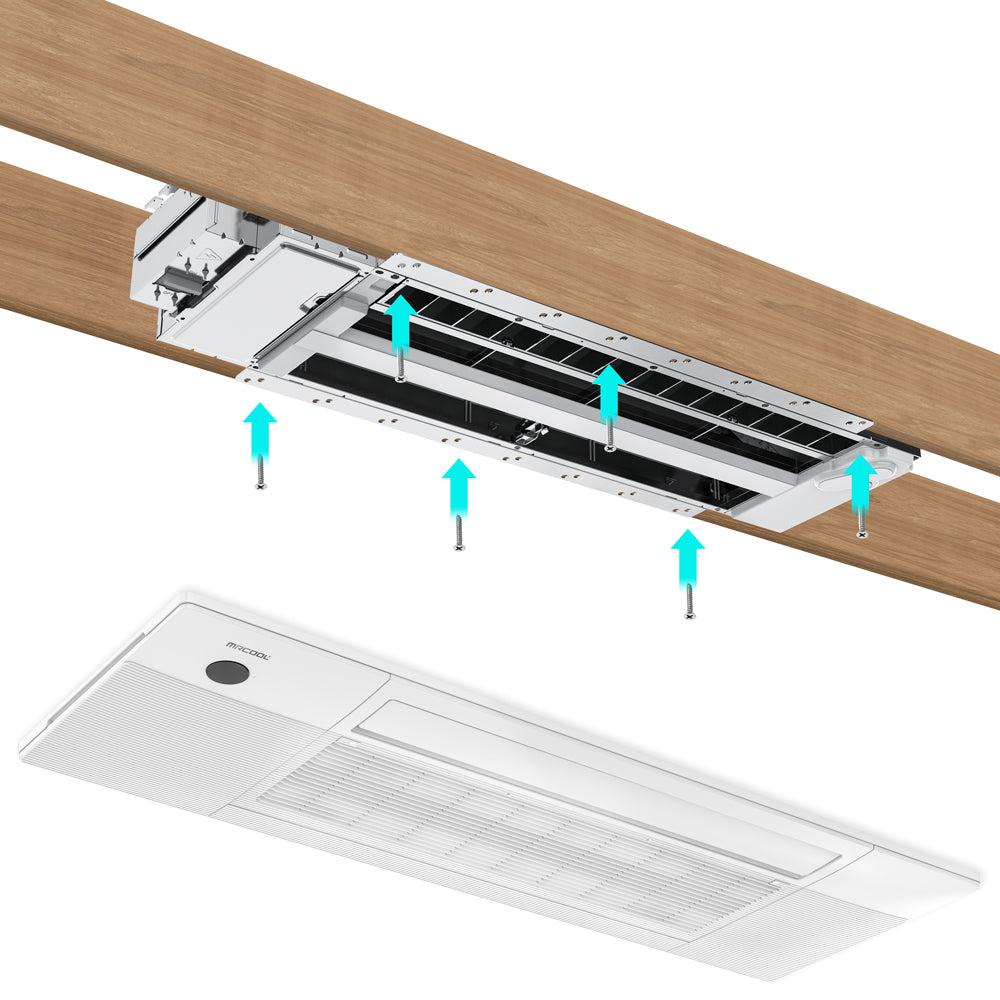

  • Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.

Product Dimensions 50.31"W x 13.19"D x 8.98"H
Product Weight 45.42 lbs
SEER Up to 20.75
EER Up to 12.5
HSPF hsph4/hspf5: 11/8.6
Coverage Area 500 square feet
Cooling Capacity 12,000 BTU
Heating Capacity 12,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Rate Load 1.5A
Decibel Rating 41/35
Decibel Rating Low 26 dBA
Decibel Rating High 43 dBA
Decibel Rating 52/45/34
Blower Motor HP 620/560/450/350
Blower Motor Speeds 4
Blower Motor RPM 1064/974/884
Filter Type Reusable
Modes Auto (Auto selects Cool, Heat or Fan-Only)
Cool
Heat
Dry
Fan Only
Sleep
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI
