  3. MRCOOL DIY 24K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-24-HP-WM-230C25

4th Gen DIY® E Star

MRCOOL DIY 24K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-24-HP-WM-230C25

4.8 27 reviews
Model: DIY-24-HP-WM-230C25
$2,502.00
$2,502.00 $3,336.00
-25%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 24,000
24,000
12,000 (Sold out)
18,000 (Sold out)
24,000
36,000

This item is in stock! Estimated Arrival: May 01 to May 07

$2,502.00
$2,502.00 $3,336.00

Product Overview

  • Zones: 1

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): -13°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

  • ENERGY STAR Certified

What's Included

Better Together

System Details

DESCRIPTION

The MRCOOL 4th Generation DIY 24K BTU, 20.5 SEER2 Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This powerful single-zone system has the capability of heating and cooling an area up to 1,000 sq. ft. It comes complete with a 24K condenser, 24K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.

This system can offer a 20.5 SEER2 efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MRCOOL Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.

The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.

Key Features

  • Up to 20.5 SEER2
  • Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor and 5-year parts warranty

SPECIFICATIONS & DIMENSIONS

  • Condenser Dimensions: 37.24"W x 16.14"D x 31.89"H
  • Condenser Weight: 125.22 lbs
  • Air Handler Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Air Handler Weight: 35.27
  • SEER2: 20.50
  • EER2: 12.50
  • SEER: 20.5
  • EER: 12.5
  • COP 47: 3.15
  • HSPF: hspf4/hspf5 : 10.5/9
  • HSPF2: 9.20
  • CFM: 605.88/505.88/364.71
  • Tonnage: 2
  • Cooling Capacity: 23,000BTU
  • Heating Capacity: 25,000 BTU
  • Voltage: Requires a minimum of 208-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase)
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 35 A
  • Min Circuit Ampacity: 22 A
  • Color: White
  • Rate Load: 0.45 A
  • Max Coverage Area: Up to 1000 sqft
  • Zone Capacity: 1
  • Refrigerant Type: R-410A
  • Refrigerant Volume: 81.13 oz
  • Decibel Rating: 48.5/43.5/33
  • Decibel Rating Low: 33 dBA
  • Decibel Rating High: 48.5 dBA
  • Oscillation: 4-W
  • Inverter: Yes
  • Min Ambient Cool: -13F - 122F
  • Min Ambient Heat: -13F - 75F
  • Line Set Length: 25ft
  • Max Lineset Length: 98.42 ft
  • Liquid Line Size: 3/8 in
  • Suction Line Size: 5/8 in
  • Compressor Motor Type: Twin-Rotary
  • Condenser Fan Motor RPM: 850/750/700
  • Blower Motor RPM: 1200/1000/700
  • Auxiliary Heater Available: No
  • Modes: Fan Only // Quiet Mode // Auto Cool
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Compatible with: IOS // Android
  • Includes: Remote // Batteries
  • Certifications: UL Listed // Energy Star // AHRI
  • Registered Warranty: 7 Years Replacement on Condenser, 5 Years Parts
  • Restricted States: GU;PR;VI

INSTALLATION & GUIDES

Installation Manual
Product Brochure
Performance Specifications
Service Manual
Remote Control
Warranty

Energy Guide
AHRI Certificate

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.

SHIPPING POLICY

Free Curbside Delivery
MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Please note, a 35% restocking fee will be applied to all approved returns.

See our full Return Policy here.

Accessories
See more from MRCOOL

Customer Reviews

Based on 27 reviews
89%
(24)
7%
(2)
0%
(0)
4%
(1)
0%
(0)
100.0
100.0
R
Rick G
We love this!

I contacted premium home source about what size I needed, I got a response within a hour which I would assume was after hours and they recommended the 18k. Well I up sized to the 24k 4th gen just because I figured up sizing couldn’t hurt. I was impressed on how easy it was to install. My father in law and I had this up and going in less than 2 hrs on and a Friday. Super quiet and cool the house down quickly. Wish I would have bought it sooner! Thanks

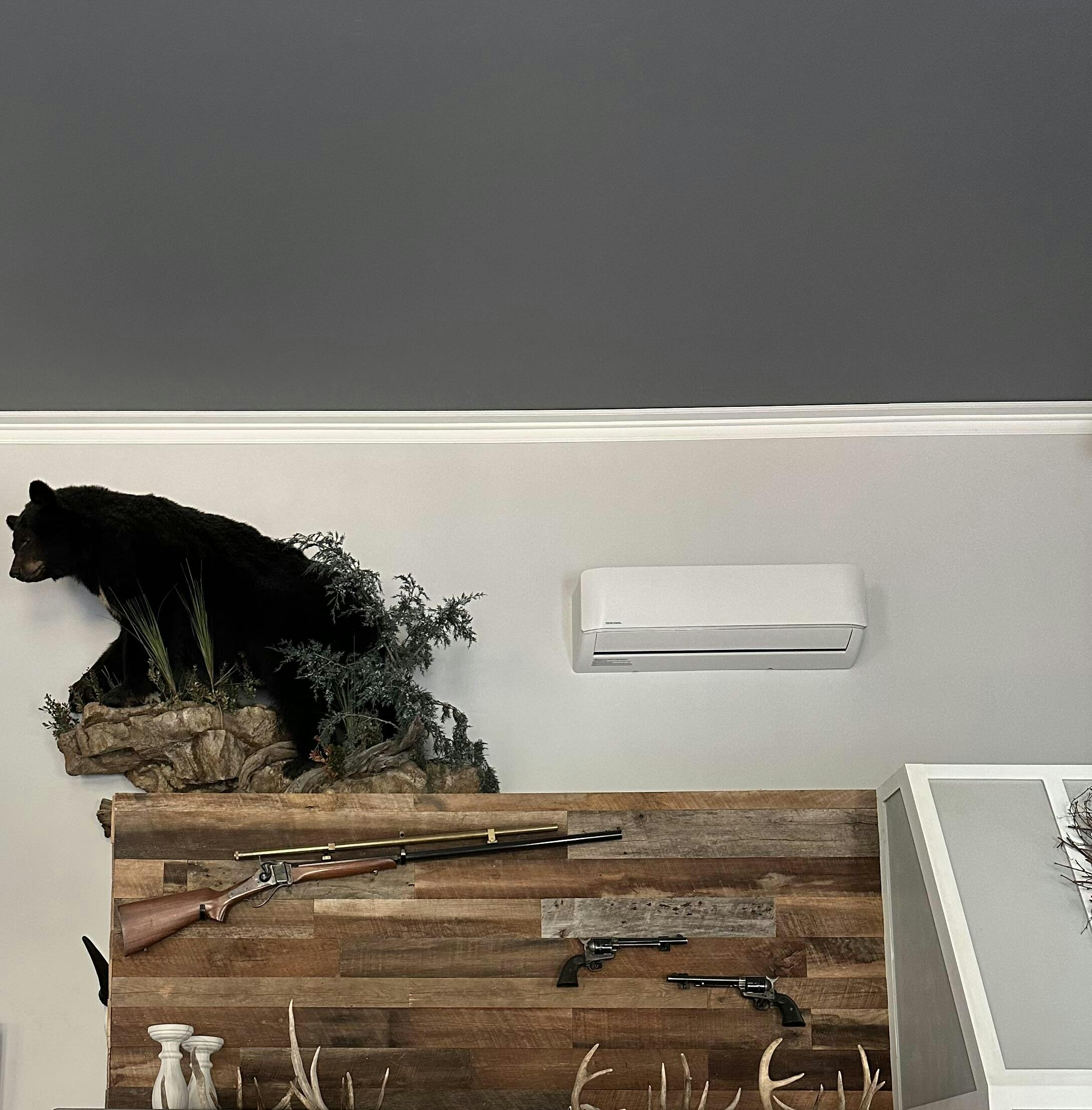

User picture
