  3. MRCOOL DIY 36K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-36-HP-WM-230C25

4th Gen New Release!

MRCOOL DIY 36K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-36-HP-WM-230C25

4.8 26 reviews
Model: DIY-36-HP-WM-230C25
$2,888.00
$2,888.00 $3,295.00
-12%
Shipping calculated at checkout.

Financing Options

Mount type: Wall
Condenser BTU: 36,000

This item is in stock! Estimated Arrival: Oct 16 to Oct 22

$2,888.00
$2,888.00 $3,295.00

Product Overview

  • Zones: 1

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): 5°F to 75.2°F

What's Included

BETTER TOGETHER

DESCRIPTION

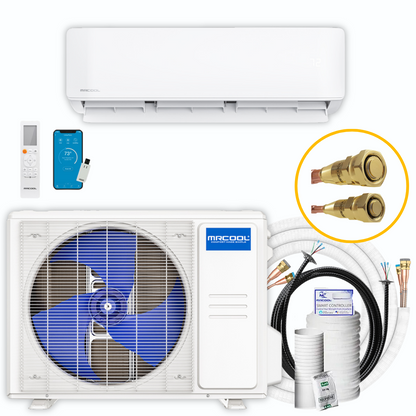

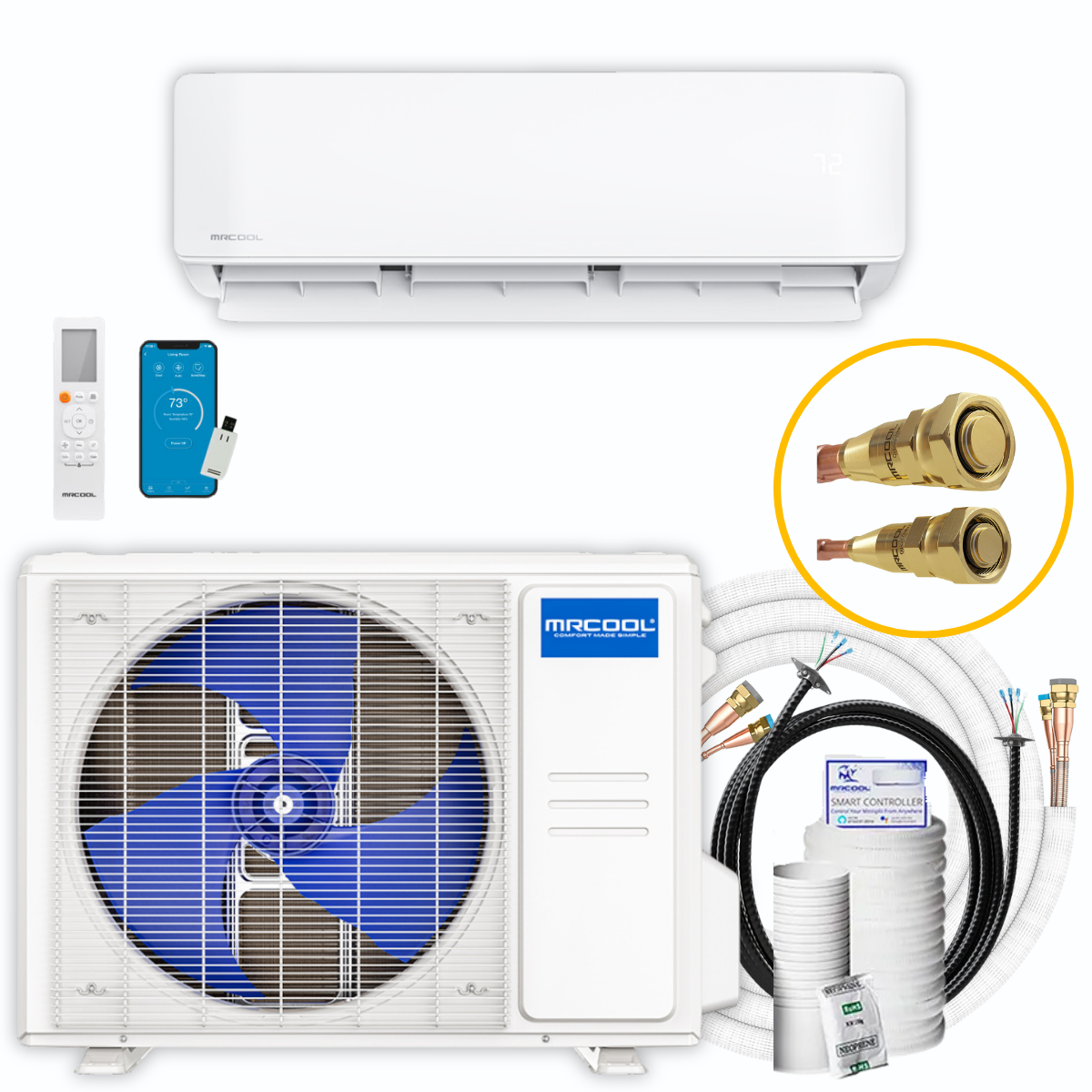

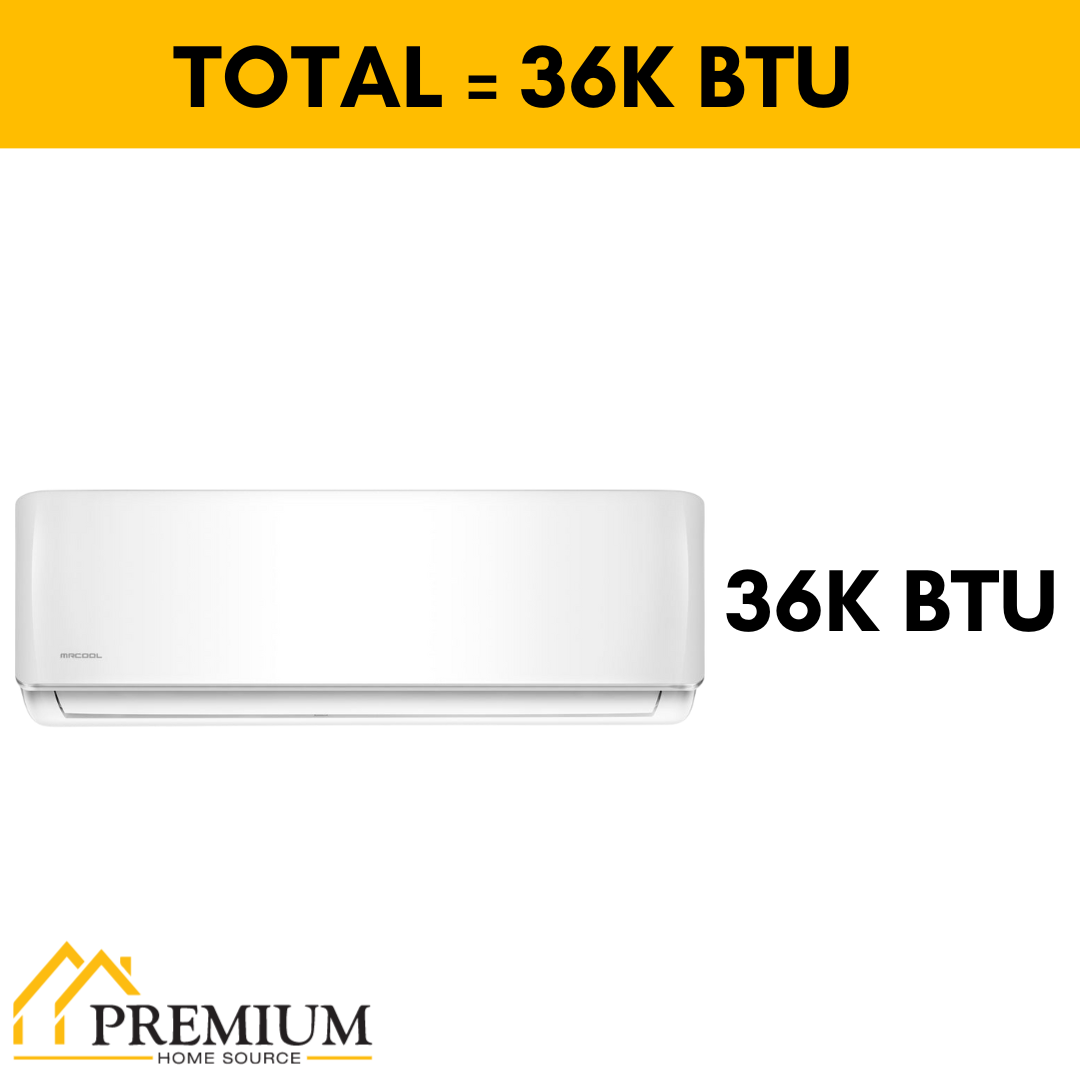

The MRCOOL 4th Generation DIY 36K BTU, 18.30 SEER2 Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series.This powerful single-zone system has the capability of heating and cooling an area up to 1,500 sq. ft. It comes complete with a 36K condenser, 36K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.

This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18.3 SEER2 efficiency rating. All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MRCOOL Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation.

This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. MRCOOL offers a limited lifetime compressor warranty on this system.

Key Features

  • Up to 18.5 SEER2
  • Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

SPECIFICATIONS & DIMENSIONS

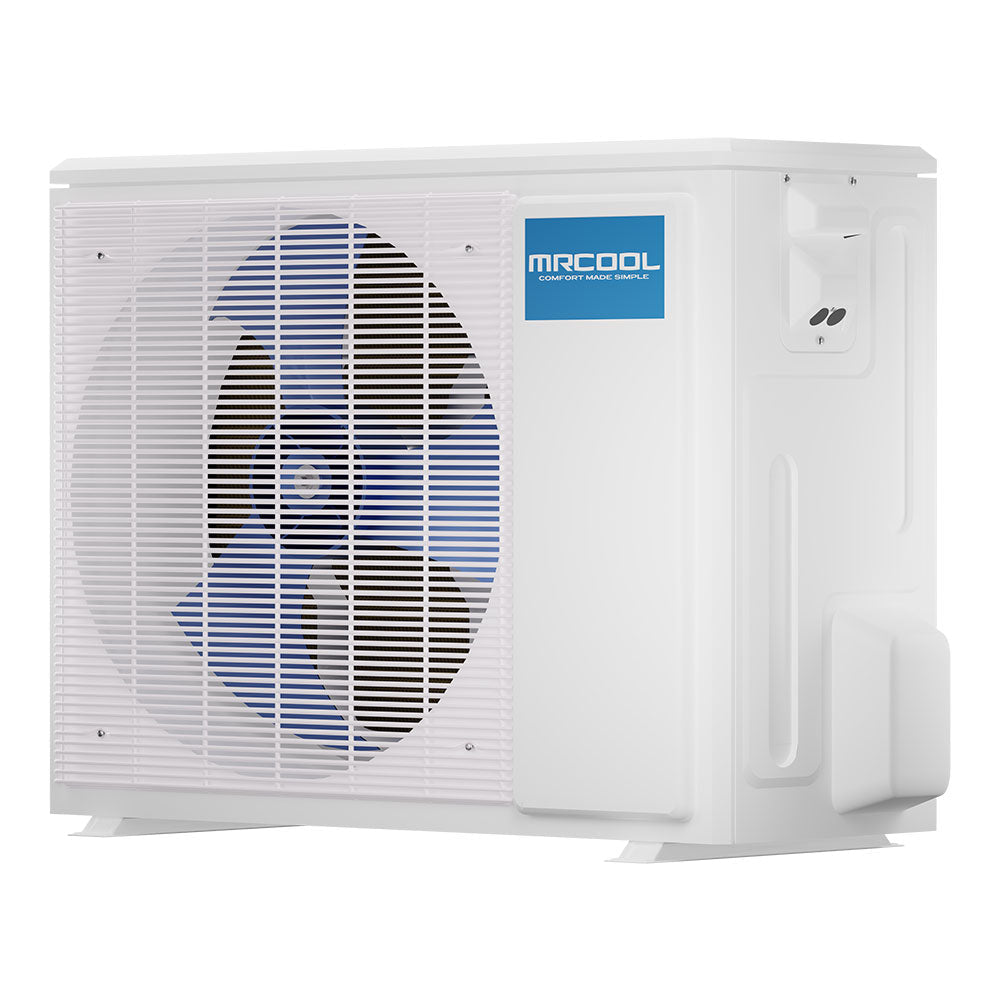

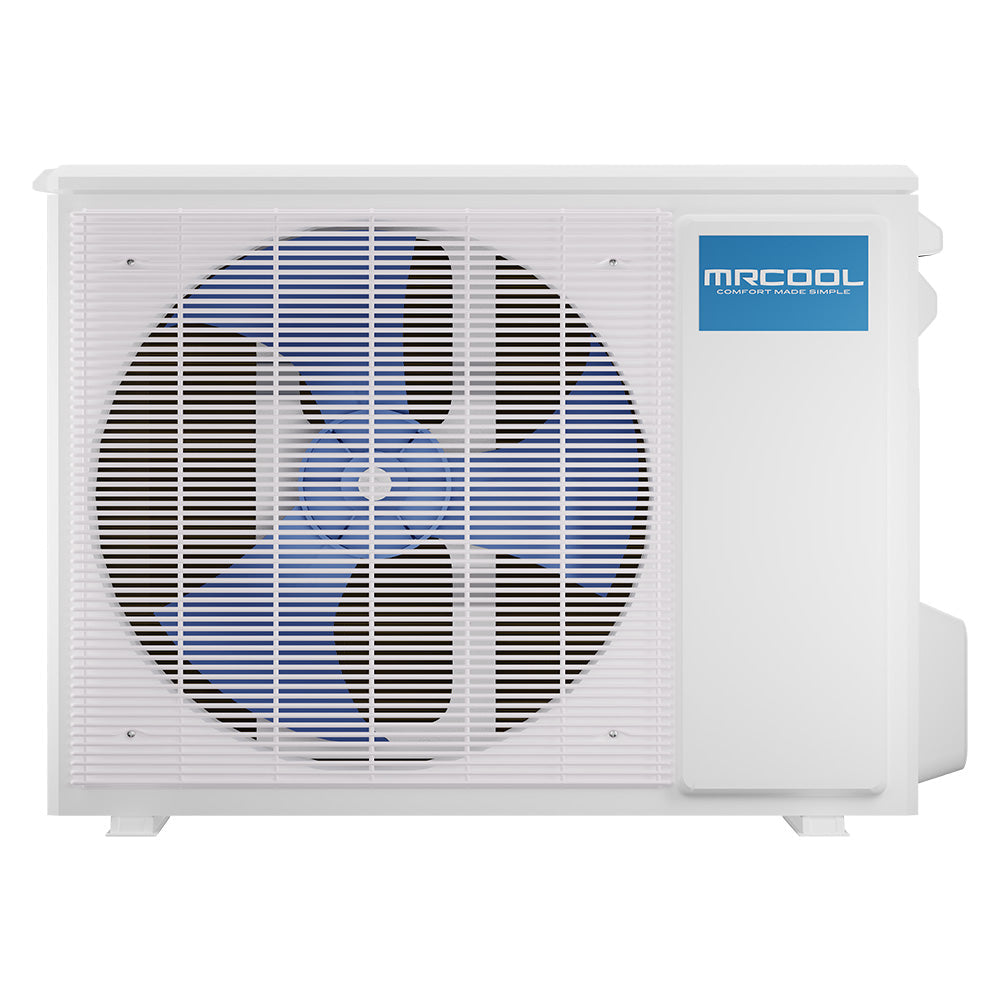

  • Condenser Dimensions: 37.24"W x 16.14"D x 31.89"H
  • Condenser Weight: 147.27 lbs
  • Air Handler Dimensions: 49.57"W x 11.10"D x 14.25"H
  • Air Handler Weight: 47.84 lbs
  • SEER2: 18.30
  • EER2: 8.7
  • SEER: 18
  • EER: 8.7
  • COP 47: 2.81
  • HSPF: hspf4/hspf5 : 12/9
  • HSPF2: 8
  • CFM: 673.53/502.94/367.65
  • Tonnage: 3
  • Cooling Capacity: 36,000 BTU
  • Heating Capacity: 36,000 BTU
  • Voltage: Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 35 A
  • Min Circuit Ampacity: 28 A
  • Color: White
  • Rate Load: 0.50 A
  • Max Coverage Area: Up to 1,500 sqft
  • Zone Capacity: 1
  • Refrigerant Type: R-410A
  • Refrigerant Volume: 111.1 oz
  • Decibel Rating: 52/45/34
  • Decibel Rating Low: 34 dBA
  • Decibel Rating High: 52 dBA
  • Oscillation: 4-W
  • Inverter: Yes
  • Min Ambient Cool: 5F - 122F
  • Min Ambient Heat: 5F - 75F
  • Line Set Length: 25ft
  • Max Lineset Length: 98.42 ft
  • Liquid Line Size: 3/8 in
  • Suction Line Size: 5/8 in
  • Compressor Motor Type: Rotary
  • Condenser Fan Motor RPM: 950/250
  • Blower Motor RPM: 1200/950/750
  • Auxiliary Heater Available: No
  • Modes: Fan Only // Quiet Mode // Auto Cool
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Compatible with: IOS // Android
  • Includes: Remote // Batteries
  • Certifications: UL Listed // AHRI
  • Registered Warranty: 7 Years Replacement on Condenser, 5 Years Parts
  • Restricted States: GU;PR;VI

INSTALLATION & GUIDES

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
