  3. MRCOOL DIY 18K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-18-HP-WM-230C25

4th Gen DIY® E Star

MRCOOL DIY 18K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-18-HP-WM-230C25

4.8 28 reviews
Model: DIY-18-HP-WM-230C25
$2,414.72
$2,414.72 $3,219.63
-25%
Shipping calculated at checkout.
BTU: 18,000
18,000
12,000 (Sold out)
18,000 (Sold out)
24,000
36,000

This item is out of stock. Please contact us for alternative.

$2,414.72
$2,414.72 $3,219.63

Product Overview

  • Zones: 1

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): -13°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

  • ENERGY STAR Certified

What's Included

Better Together

System Details

DESCRIPTION

The MRCOOL 4th Generation DIY 18K BTU, 22.70 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This powerful single-zone system has the capability of heating and cooling an area up to 750 sq. ft. It comes complete with a 18K condenser, 18K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.

This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22.70 SEER efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multie operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP.

It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MRCOOL system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MRCOOL stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

Key Features

  • Up to 22.70 SEER
  • Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor and 5-year parts warranty

SPECIFICATIONS & DIMENSIONS

  • Condenser Dimensions: 35.04"W x 13.46"D x 26.50"H
  • Condenser Weight: 94.36 lbs
  • Air Handler Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Air Handler Weight: 34.61 lbs
  • SEER2: 22.70
  • EER2: 12.60
  • SEER: 22
  • EER: 12.5
  • COP 47: 3.74
  • HSPF2: 9.80
  • HSPF: hspf4/hspf5 : 11.5/9
  • CFM: 465.29/361.76/304.12
  • Tonnage: 1.5
  • Cooling Capacity: 18,000 BTU
  • Heating Capacity: 18,000 BTU
  • Voltage: Requires a minimum of 208-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 30 A
  • Min Circuit Ampacity: 18 A
  • Color: White
  • Rate Load: 0.25 A
  • Max Coverage Area: Up to 750 sqft
  • Zone Capacity: 1
  • Refrigerant Type: R-410A
  • Refrigerant Volume: 56.44 oz
  • Decibel Rating: 44.5/37/31
  • Decibel Rating Low: 31 dBA
  • Decibel Rating High: 44.5 dBA
  • Oscillation: 4-W
  • Inverter: Yes
  • Min Ambient Cool: -13F - 122F
  • Min Ambient Heat: -13F - 75F
  • Line Set Length: 25ft
  • Max Lineset Length: 98.42 ft
  • Liquid Line Size: 1/4 in
  • Suction Line Size: 1/2 in
  • Compressor Motor Type: Rotary
  • Condenser Fan Motor RPM: 810/720
  • Blower Motor RPM: 1120/950/700
  • Auxiliary Heater Available: No
  • Modes: Fan Only // Quiet Mode // Auto Cool
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Compatible with: IOS // Android
  • Includes: Remote // Batteries
  • Certifications: UL Listed // Energy Star // AHRI
  • Warranty: 5-year Parts/7-year Compressor
  • Restricted States: GU;PR;VI

INSTALLATION & GUIDES

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.

SHIPPING POLICY

Free Curbside Delivery
MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Please note, a 35% restocking fee will be applied to all approved returns.

See our full Return Policy here.

Accessories
See more from MRCOOL

Customer Reviews

Based on 28 reviews
86%
(24)
11%
(3)
0%
(0)
4%
(1)
0%
(0)
100.0
100.0
V
Vanessa Walker
Wow!

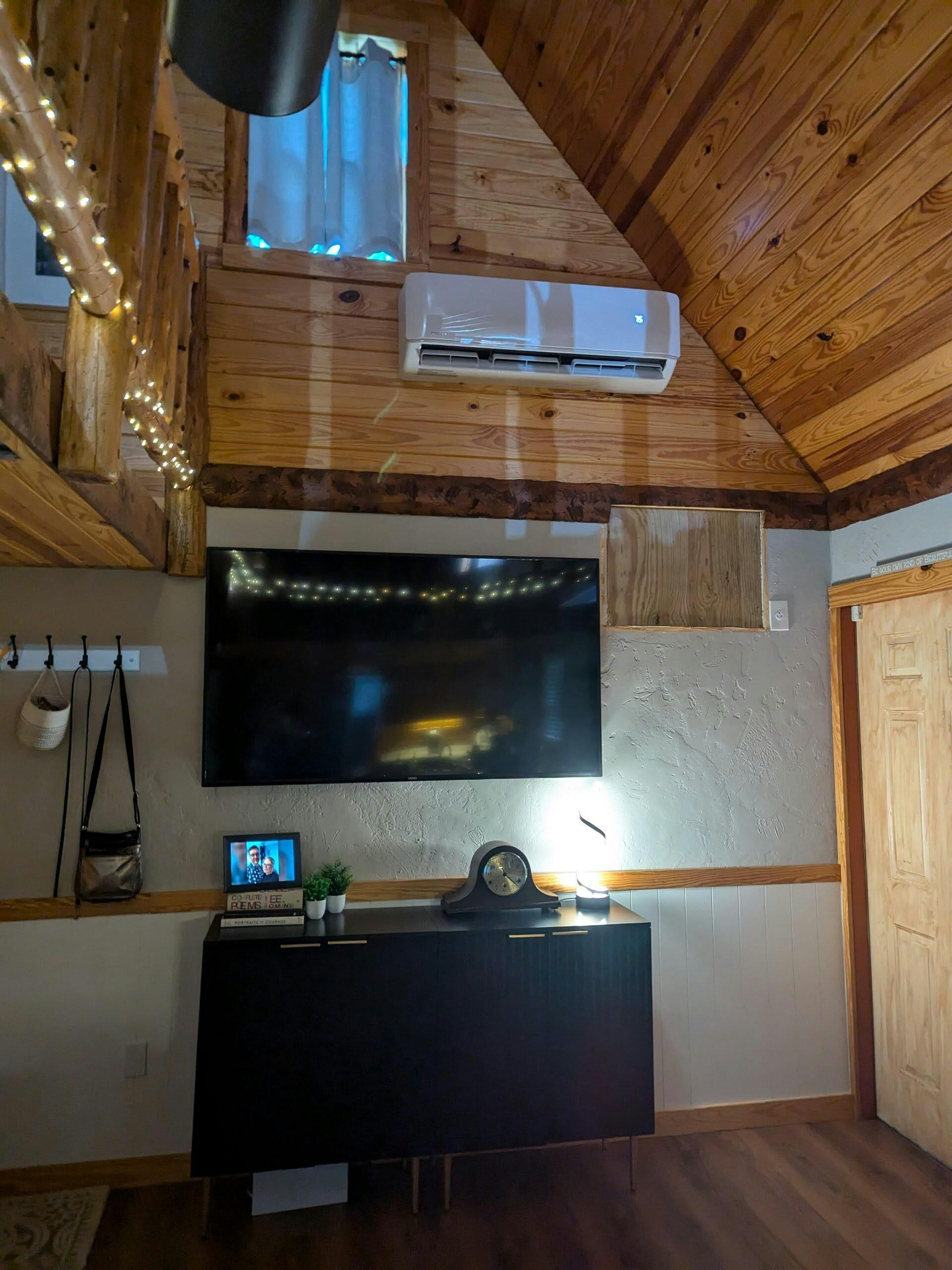

Our old AC went out suddenly in the height of summer, Mr Cool got our new 18000BTU unit to us in a matter of days! My husband, with NO experience whatsoever installed our unit within about 3 hours. It has worked seamlessly since purchased and our utility bill has dropped so far by at least 25%. Hoping as we go forward we will see more savings as we've only has for 4 weeks. Don't hesitate. These units are fantastic and the shopping and delivery experience was excellent. We live in a very rural area and the semi truck couldn't get down our gravel roads. The driver called us and arranged to meet us nearby to deliver onto our tailgate. Our cabin has never been so chilly!!
Excellent experience!

User picture User picture
D
Debralee Chowning
"Mr Cool Mini Split: Unmatched Comfort and Efficiency!"

I recently purchased the Mr Cool Mini Split System, and I'm thrilled with its performance! Premium Home Source was excellent with communication and delivery. The installation was a breeze, and the system quickly transformed my space into a comfortable oasis. The sleek design and quiet operation exceeded my expectations. It's energy-efficient and provides precise temperature control. I highly recommend the Mr Cool Mini Split for anyone looking for a reliable and efficient heating/cooling solution.

User picture
B
Brian Sharpe
Mr Cool DIY 18k Heat Pump 4th Gen

Ordered the system off the website, spoke to a couple agents on the phone with some questions to make sure I was getting the correct system for my needs, everyone was very nice and helpful. System arrived in about a week and everything was packaged up nicely on a pallet. My dad and myself installed this system with minimal issues. Was a super easy setup and within about 2 hours we had it up and running. Warms the house nicely and we are about to buy another system for our Airbnb.

Brian

User picture User picture
L
Lyndy Little
The order/delivery process

Premium Home Source coordinated our purchase and delivery perfectly.

T
Timothy Fry
Professional

Purchasing my MR COOL from Premium Home Source was a great experience, very little thing was handle quickly and professionally. The system was so easy to install and it runs like a champ. I would recommend Premium Home Source to everyone! Great Job!
