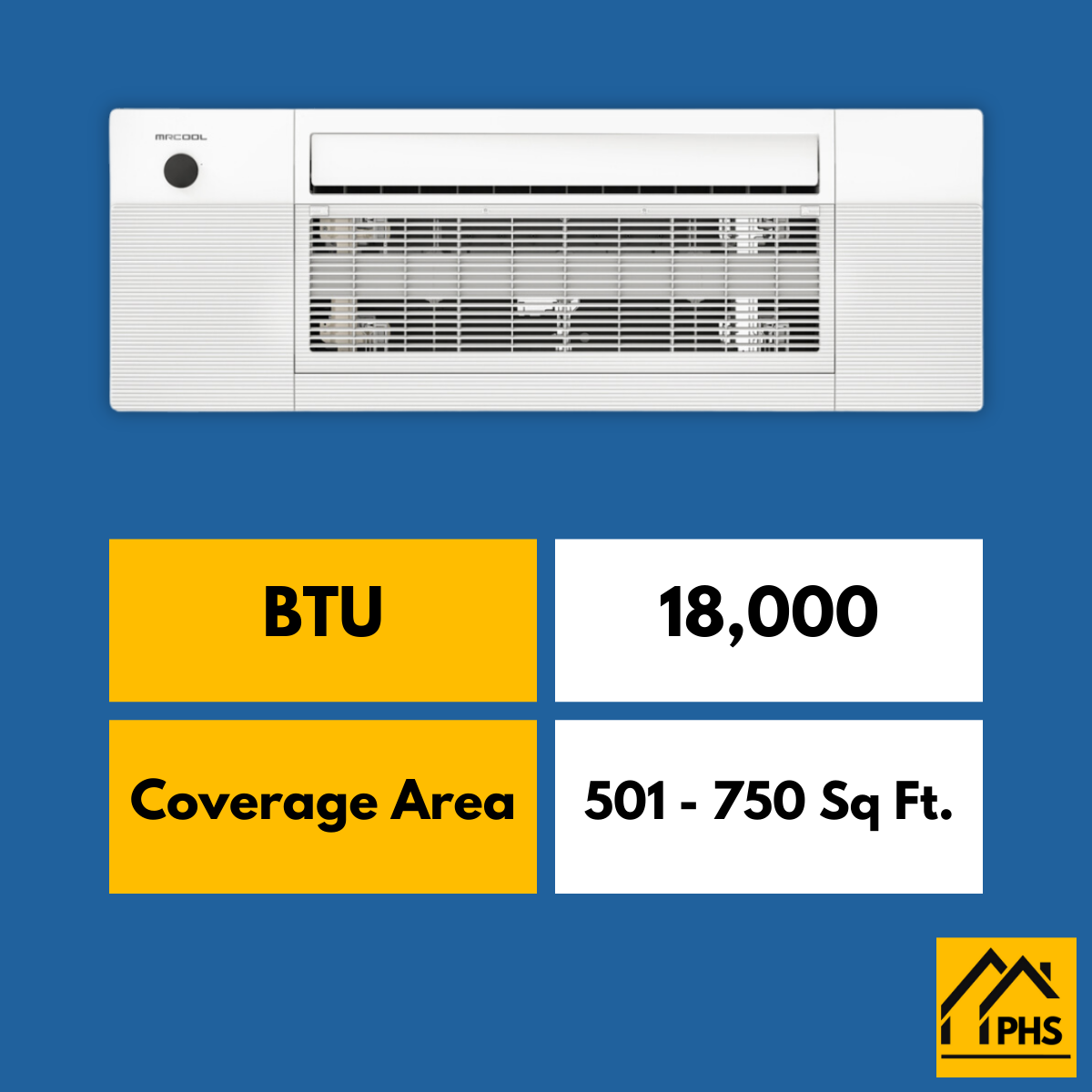

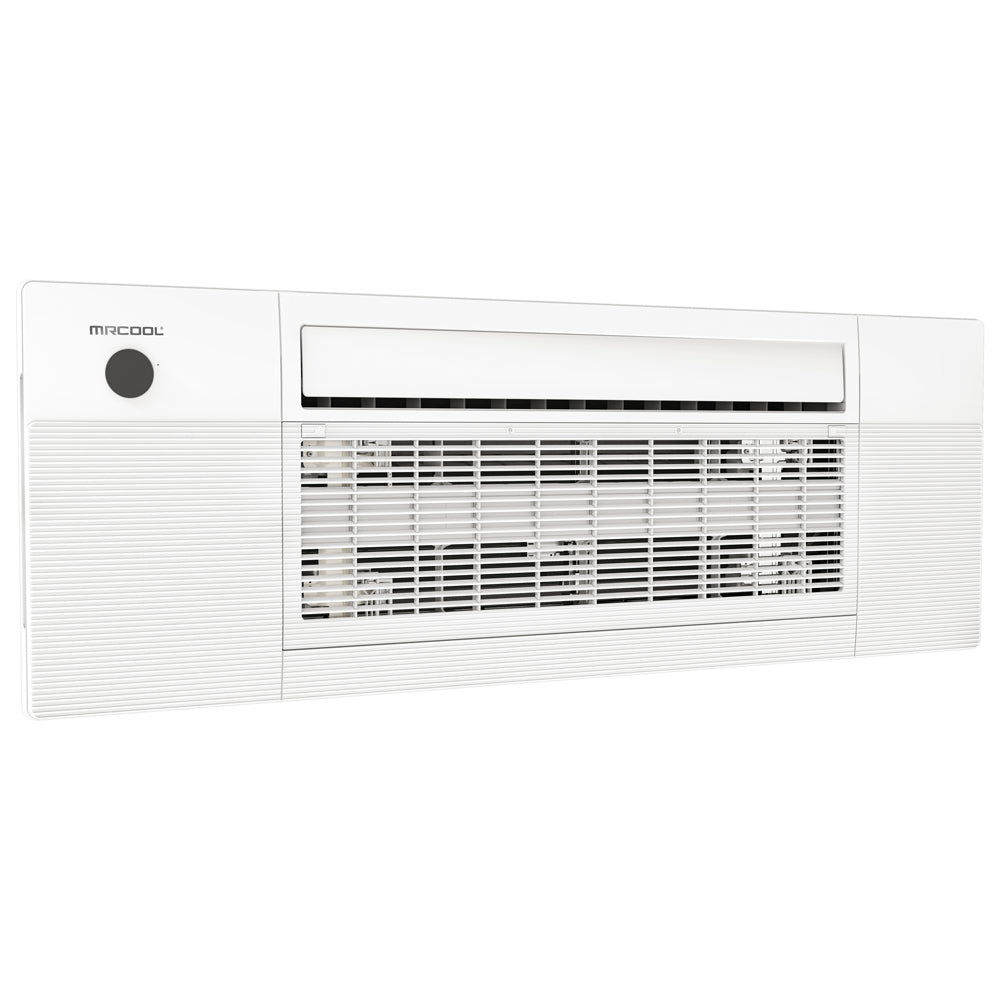

MRCOOL DIY Series 18K BTU Ceiling Cassette, DIYCASSETTE18HP-230C25

See more from MRCOOL Model: DIYCASSETTE18HP-230C25

Model: DIYCASSETTE18HP-230C25

$1,199.00

$1,795.00

Save 33%

Financing:

Total BTUs

This item is in stock! Estimated Arrival: Feb 19 to Feb 23

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More
Contact Us

Have a question or want to build your own package?

Talk with one of our trusted appliance experts today!

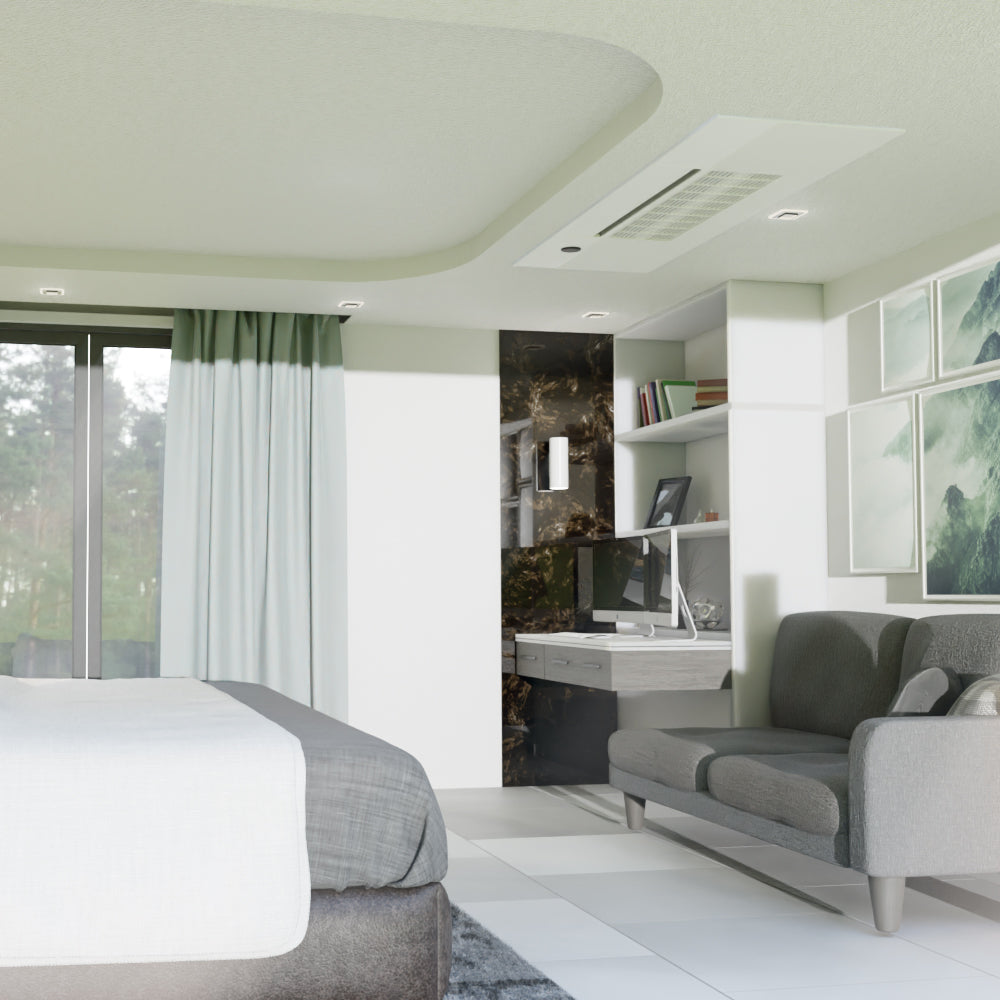

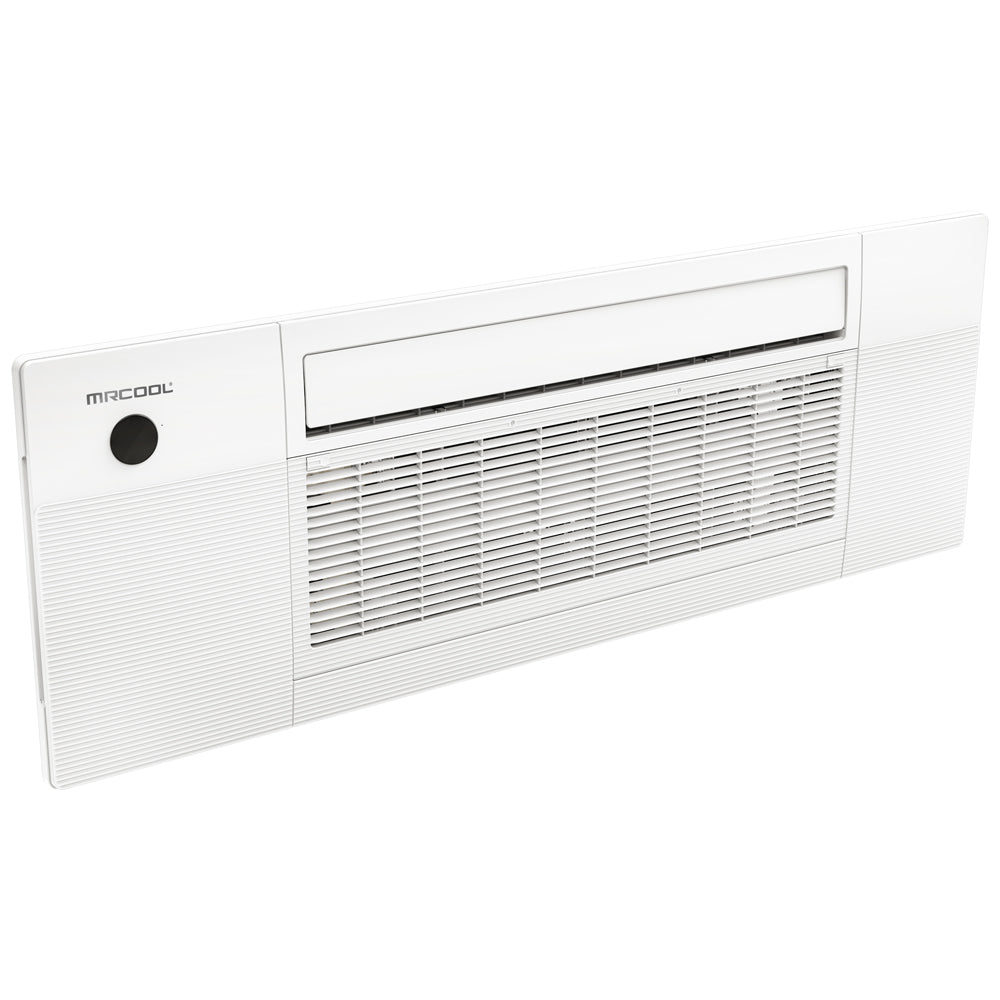

The MrCool® DIY® Series 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space. This easy to install and easy to maintain unit is offered in both single-zone and multi-zone options and can provide coverage for large and small spaces. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space.

The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series 18k BTU Ceiling Cassette are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.

Key Features

  • Fits between 16" Ceiling Joists

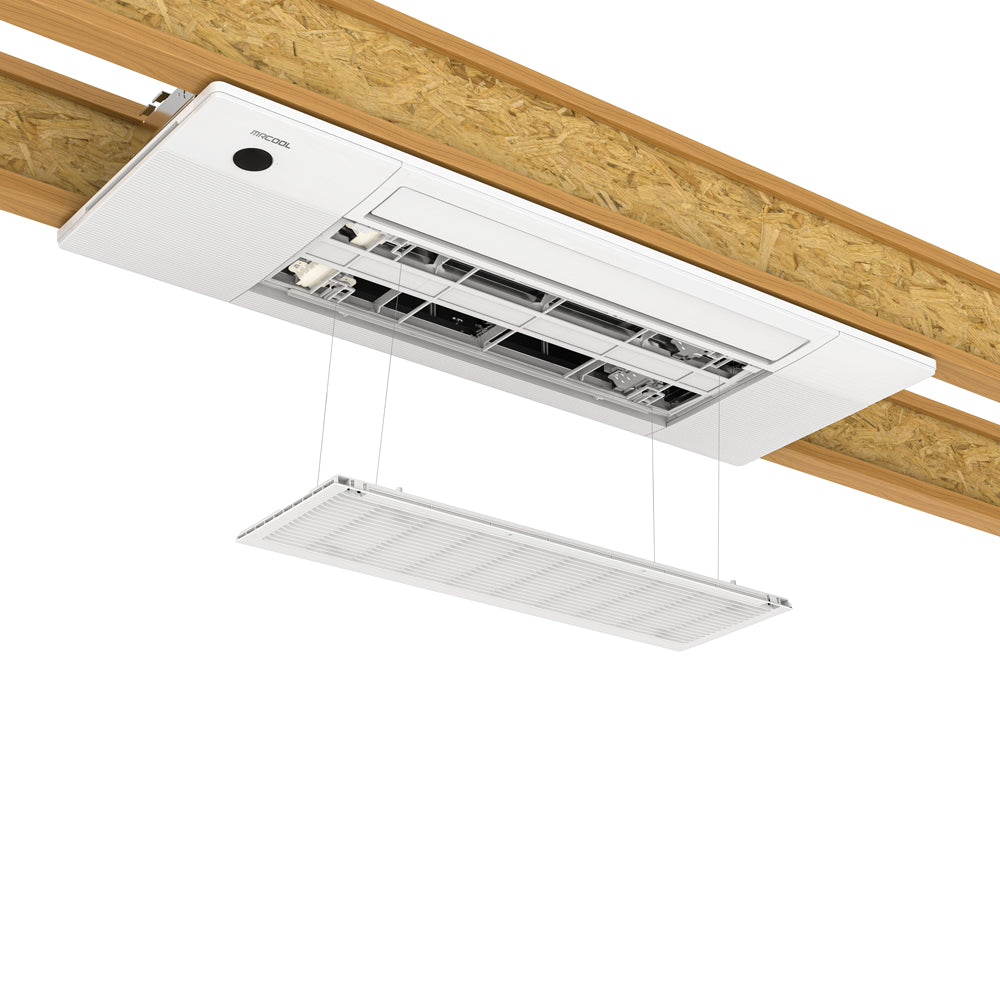

  • Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
  • Low Profile Installation
  • Pair with your DIY 4th gen Multi and Single Zone system

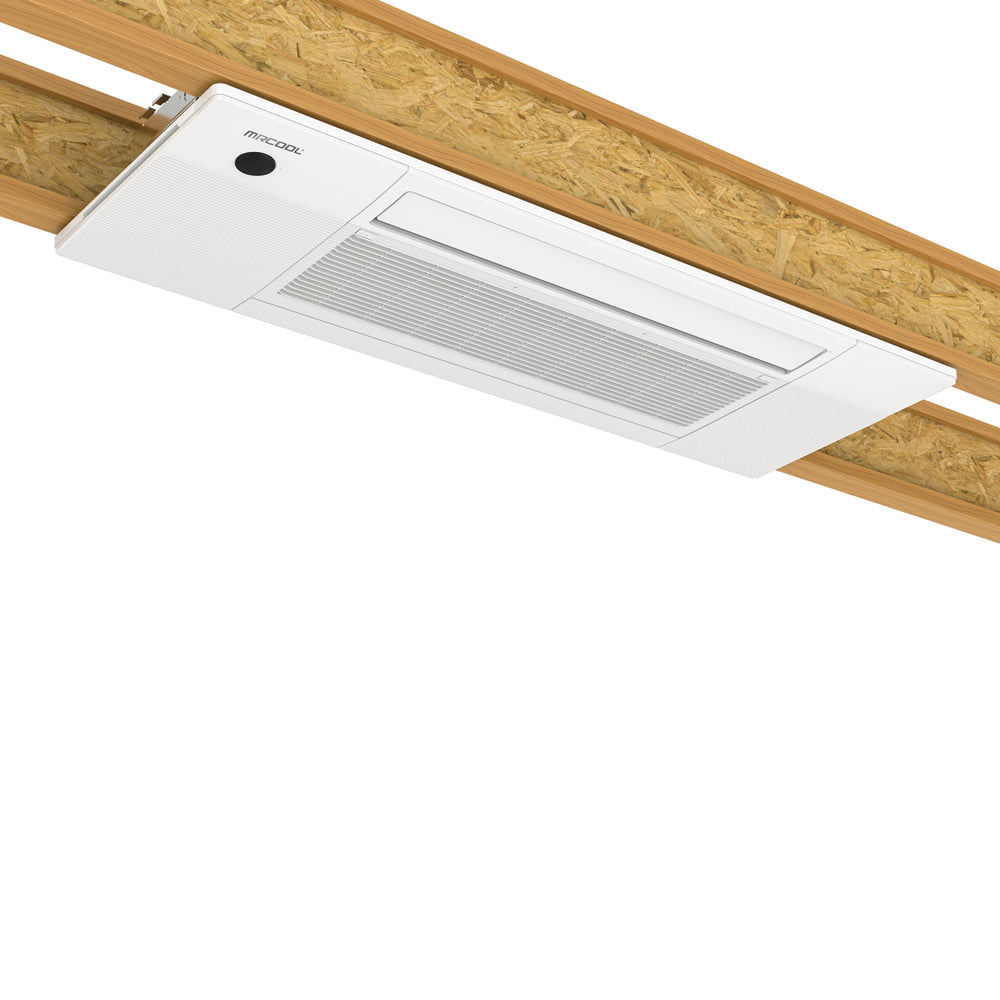

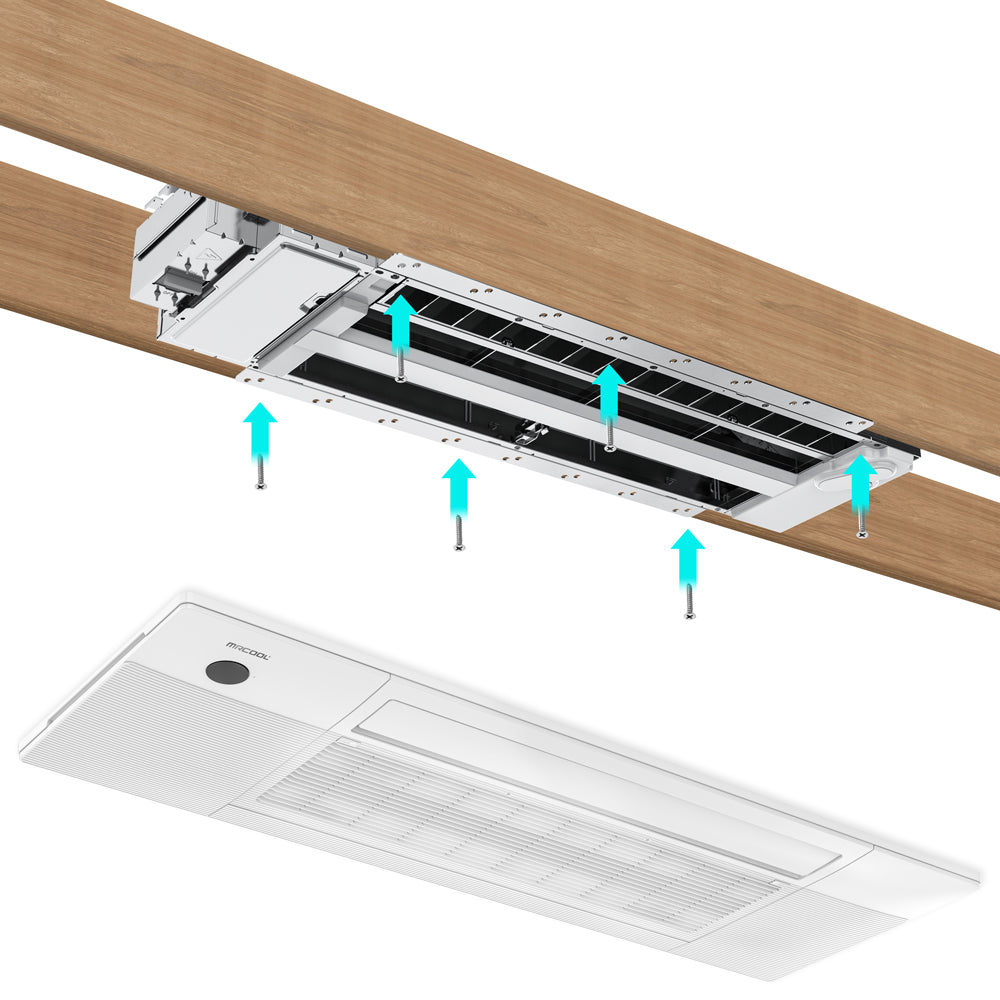

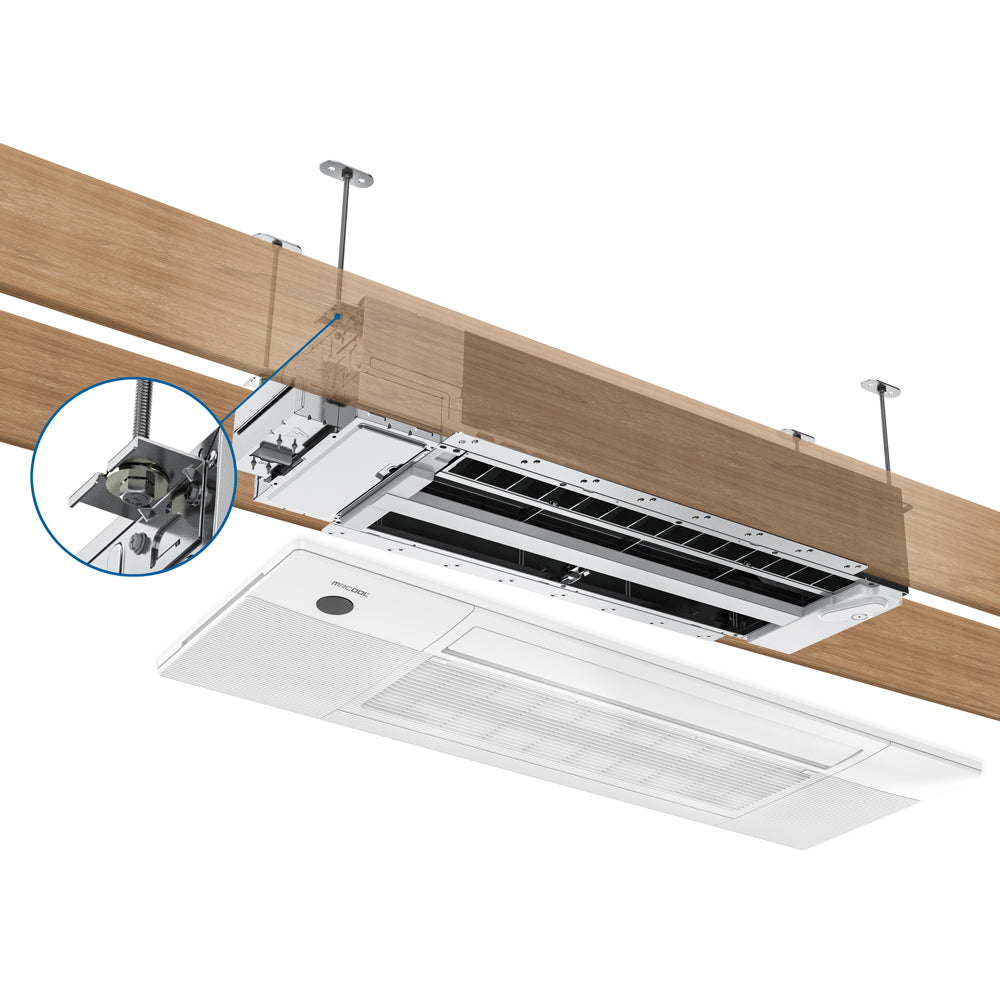

  • Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.

Product Dimensions 50.31"W x 13.19"D x 8.98"H
Product Weight 44.97 lbs
SEER Up to 21.8
EER Up to 12.5
HSPF hsph4/hspf5: 11.6/9.7
Coverage Area 750 square feet
Cooling Capacity 17,000 BTU
Heating Capacity 19,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Rate Load 1.5A
Decibel Rating 40/28
Decibel Rating Low 21 dBA
Decibel Rating High 44 dBA
Min Ambient Cool 60F ~ 90F
Min Ambient  Heat 32F ~ 86F
Liquid Line Size 1/4in
Suction Line Size 1/2in
Blower Motor HP 598/510/352
Blower Motor Speeds 4
Blower Motor RPM 1344/1184/1024
Filter Type Reusable
Modes Auto (Auto selects Cool, Heat or Fan-Only)
Cool
Heat
Dry
Fan Only
Sleep
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI
