MRCOOL Advantage 4th Gen 36K BTU Ductless Single Zone Mini Split (HVAC Technician Required), A-36-HP-230C
$2,256.00
$3,295.00
32% Off
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Thumbtack: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
HVAC Technician Required
MRCOOL Advantage 4th Gen 36K BTU Ductless Single Zone Mini Split (HVAC Technician Required), A-36-HP-230C
This item is in stock! Estimated Arrival: Sep 30 to Oct 06
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Thumbtack: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Need help with choosing a Mini Split system or have other questions?
Talk with one of our trusted HVAC professionals today!
Product Overview
- Covers 1500 sq. ft.
- HVAC Technician Required
- Wall Mounted
- Number of Zones: 1
- Voltage: 208 to 230
Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. Immediately upon installation, this quality mini-split system provides high quality comfort with a price point that’s hard to beat. This combination air handler and condenser is great for those looking for quality, efficiency, quiet operation, and affordability. The high performance compressor features the eco-friendly refrigerant R-410A that is chlorine-free.
This MRCOOL Advantage system incorporates both quality and superior technological control with its WiFi control module. It aids in easier setup and you’re able to control it with the SmartHVAC app, or your Amazon Alexa or Google Assistant
Key Features

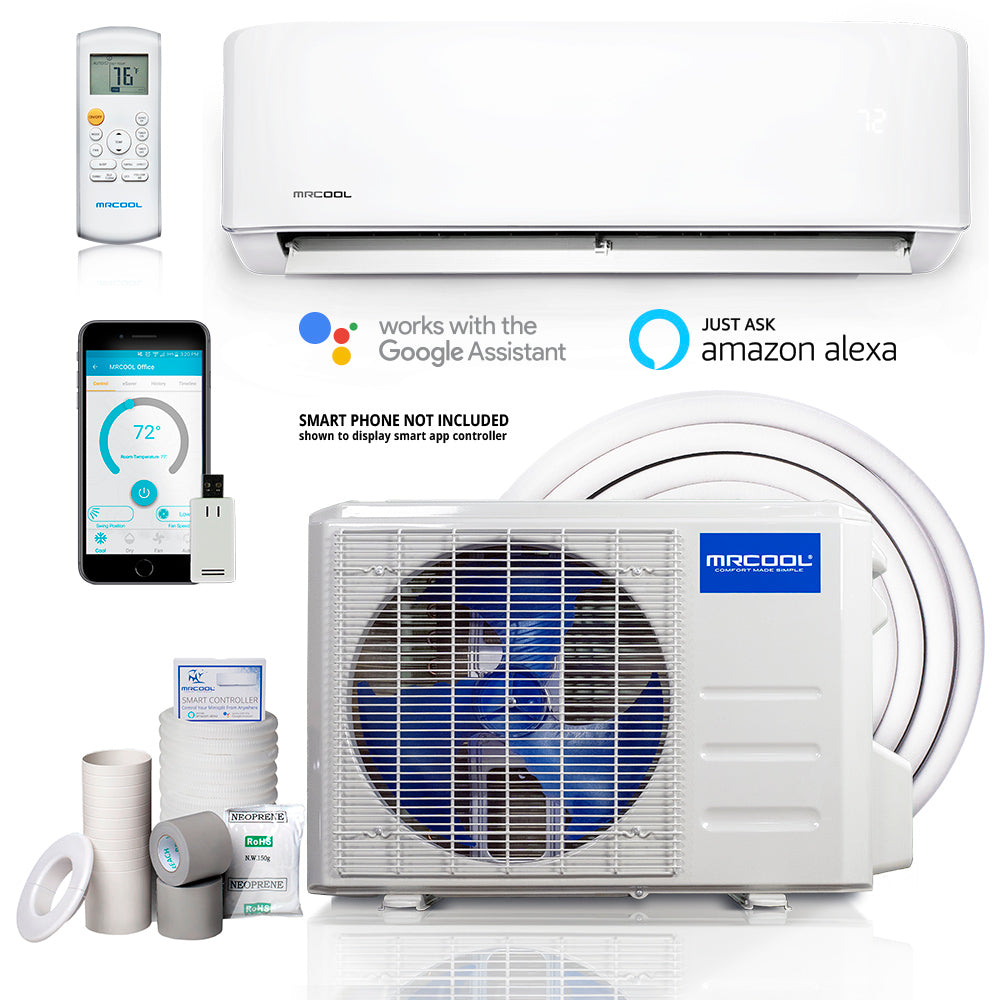

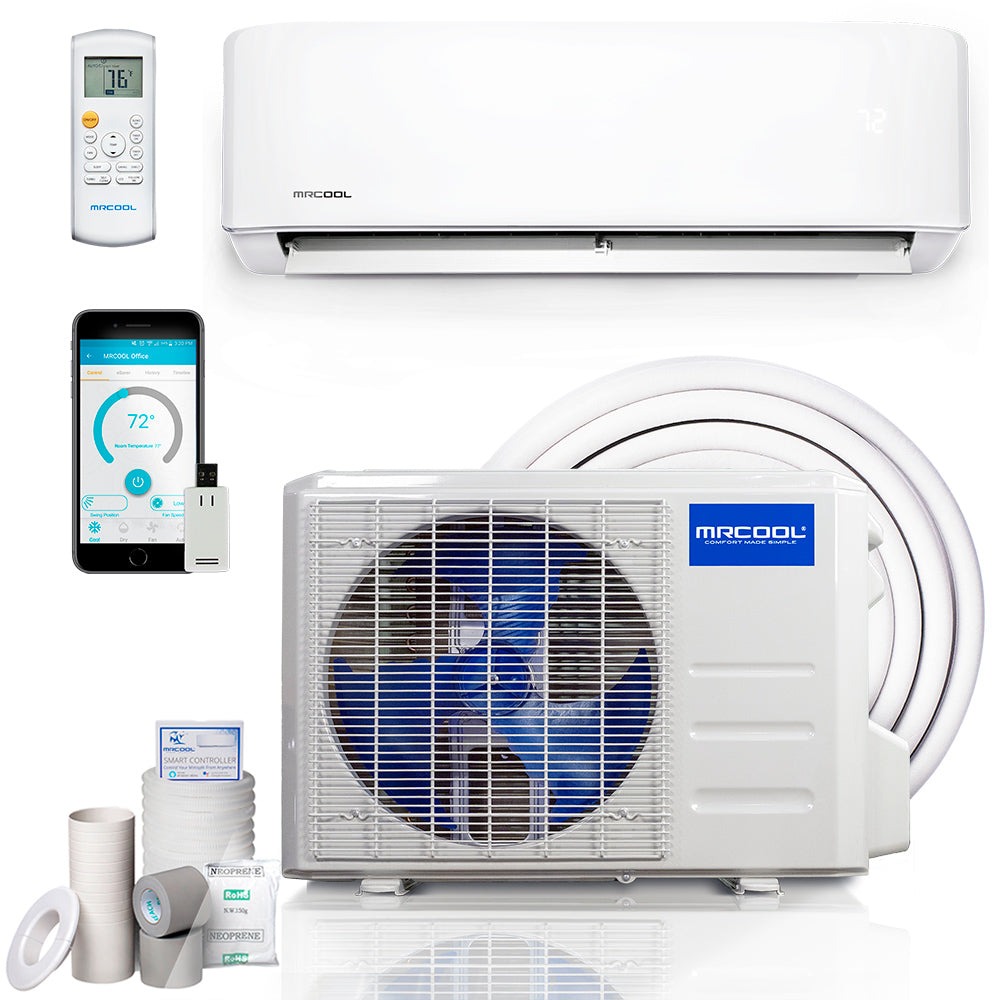

- Installation kit included
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant
- Installation by a licensed professional required where applicable
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, and auto restart functions
- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

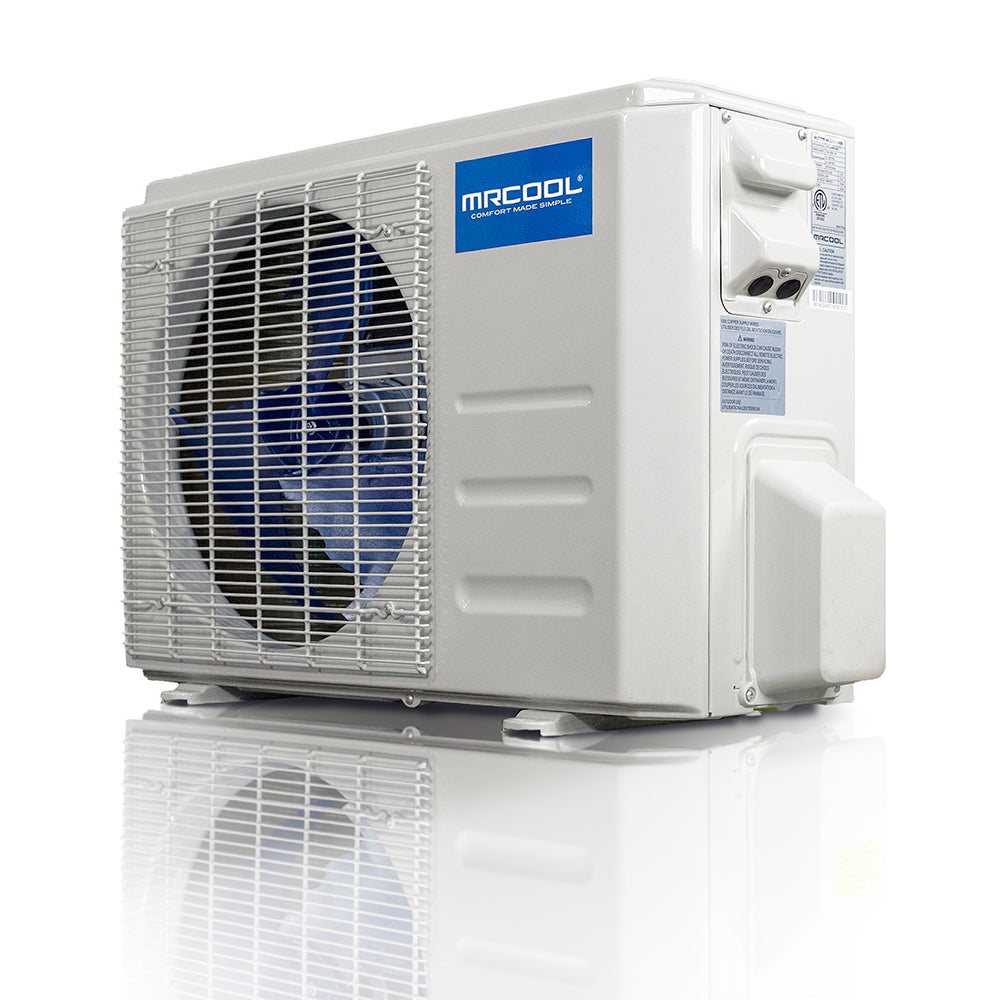

| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 150.13 lbs |

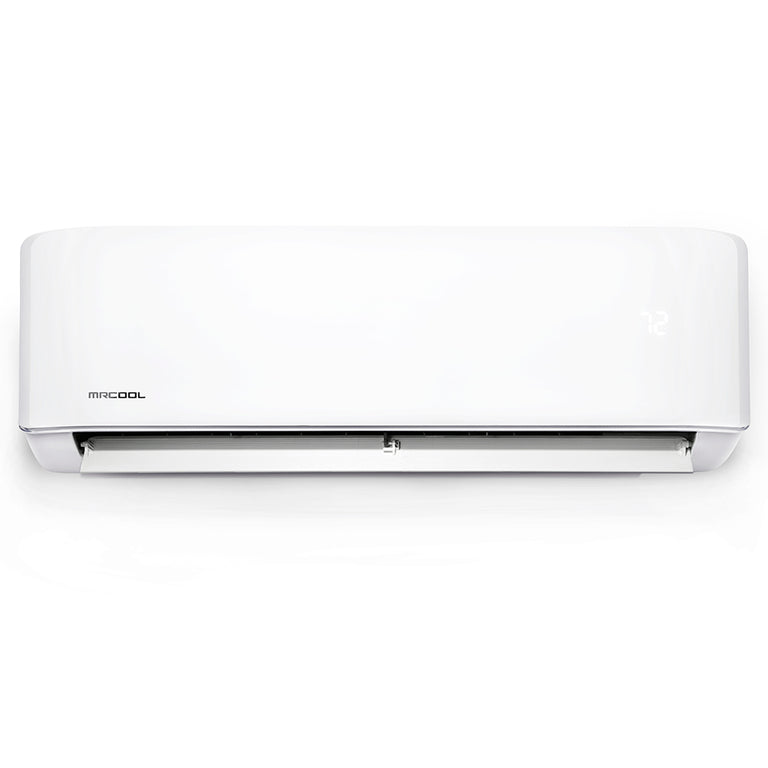

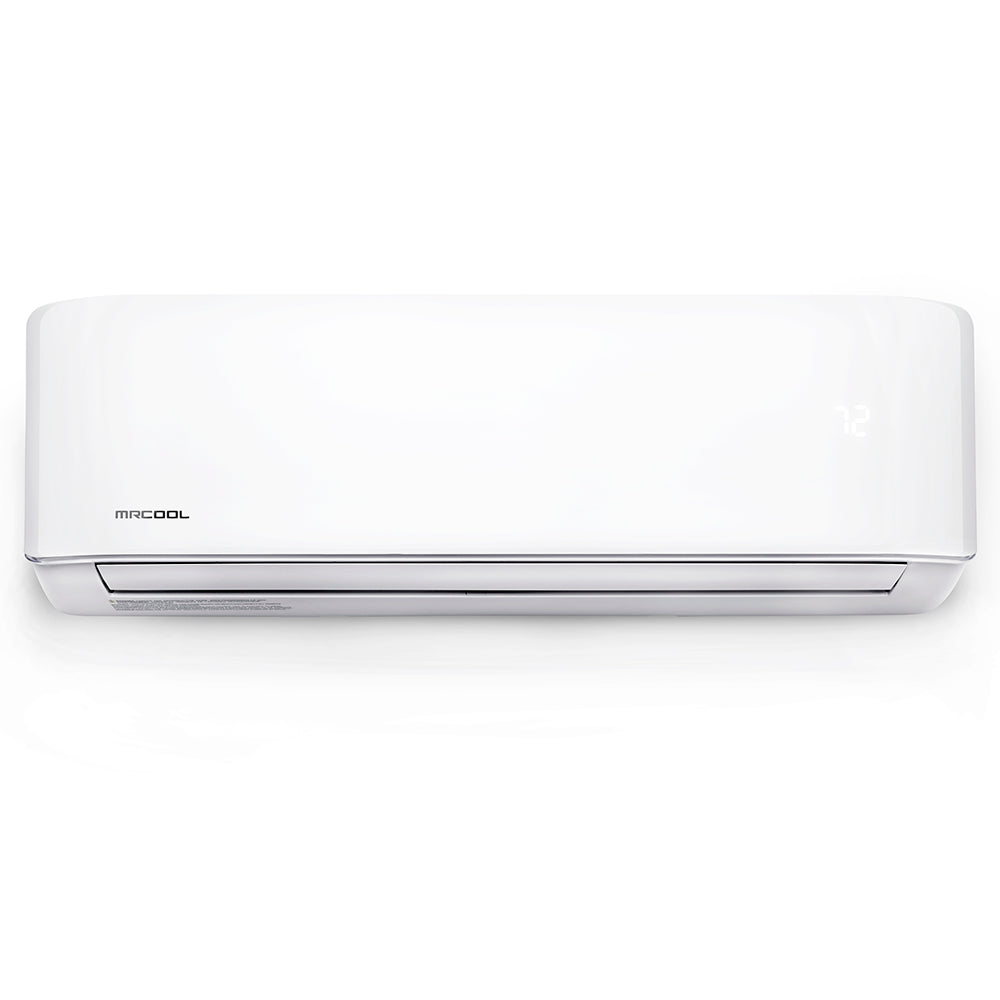

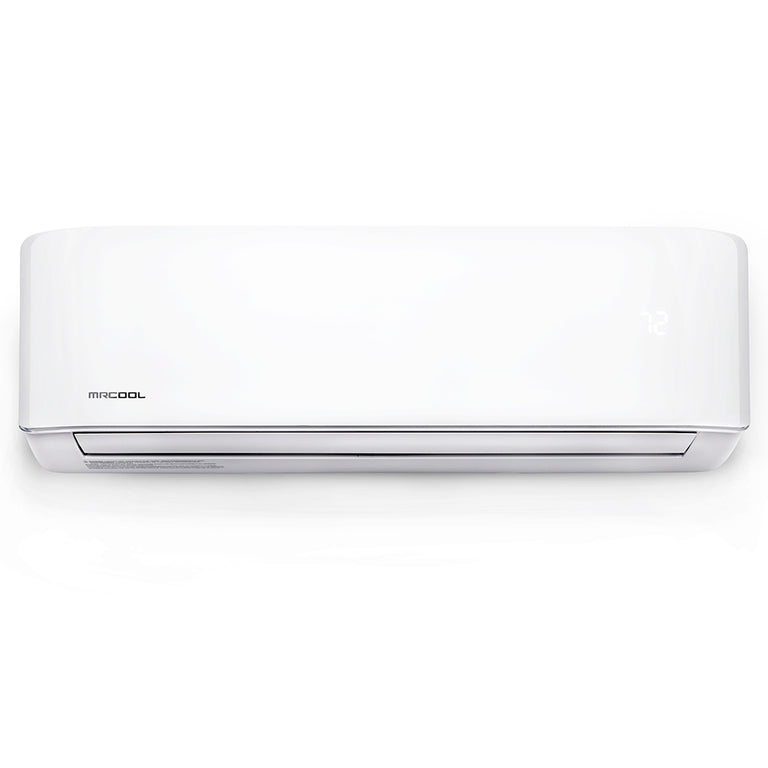

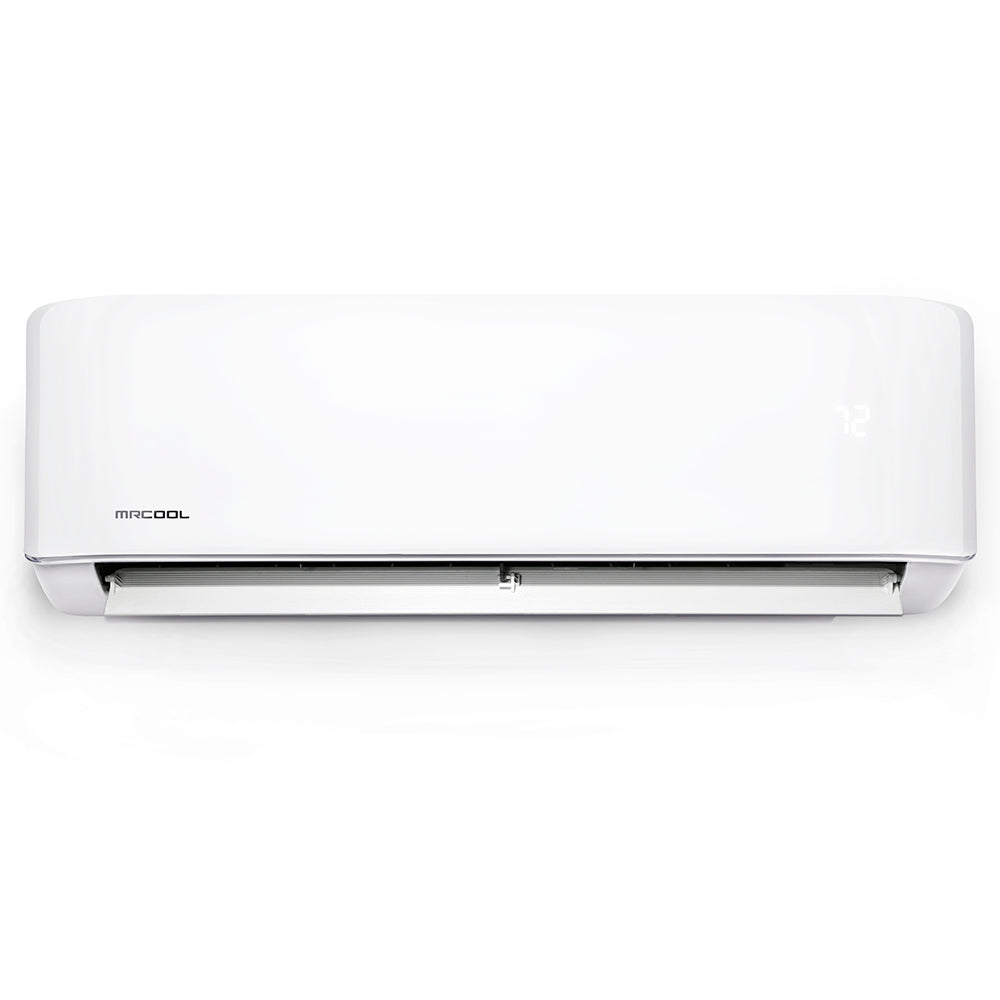

| Air Handler Dimensions | 49.57"W x 11.10"D x 14.25"H |
| Air Handler Weight | 40.34 lbs |
| SEER | 17.5 |
| SEER2 | 17.5 |
| EER2 |
8.5 |
| COP 47 |
2.81 |
| HSPF | hspf4/hspf5 : 12/8 |
| HSPF2 | hspf4-2/hspf5-2: 8.7/6.8 |
| Tonnage | 3 |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Voltage |
Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker |
35 A |
| Min Circuit Ampacity | 28 A |
| Color | White |
| Max Coverage Area | 1,500 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 119.9 oz |
| Decibel Rating | 40 to 54.5 dBA |
| Decibel Rating Low | 40 dBA |
| Decibel Rating High | 54.5 dBA |
| Inverter | Yes |
| Min Ambient Cool | 5F - 122F |
| Min Ambient Heat | 5F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 950/250 |
| Blower Motor RPM | 1200/950/750 |
| Auxiliary Heater Available | No |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Certifications | UL Listed CSA LIsted ETL Listed |
|
Registered Warranty |
1-Year Compressor, 2-Year Parts and 1-Year remote |
| Restricted States | GU;PR;VI |
Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
