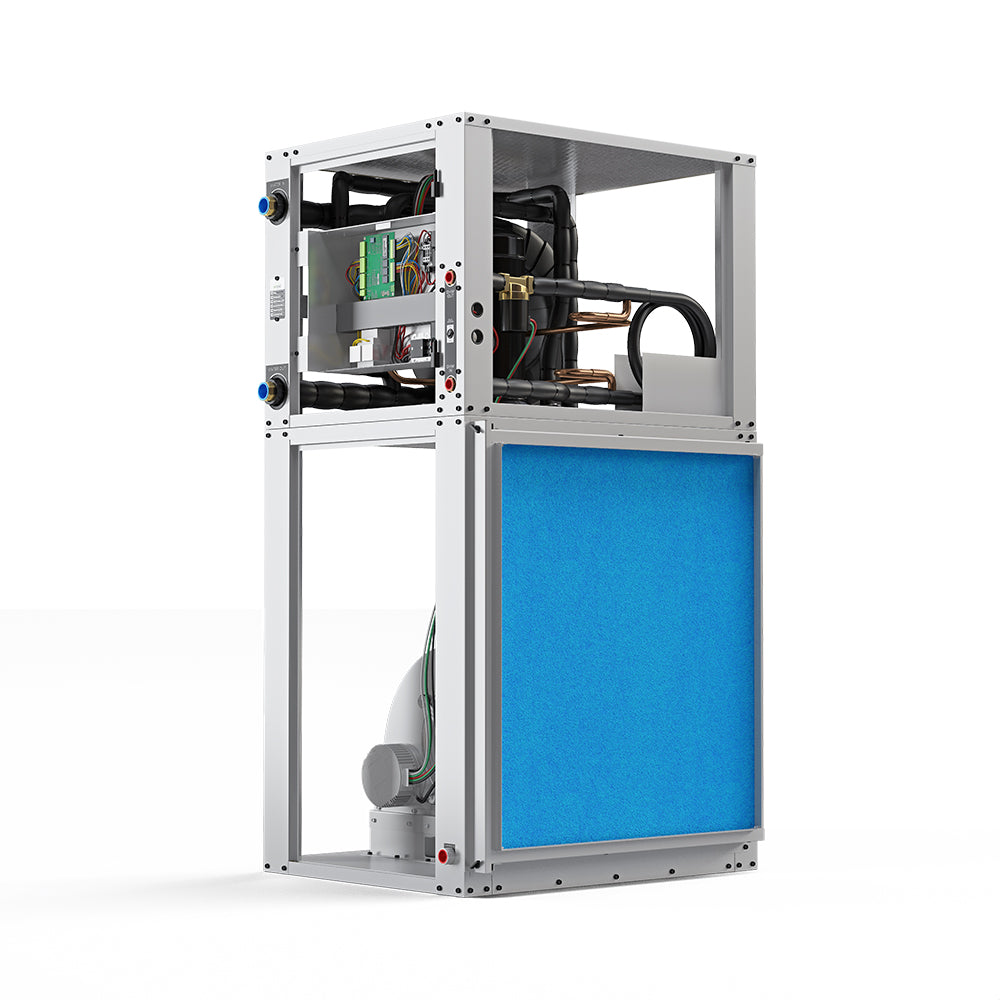

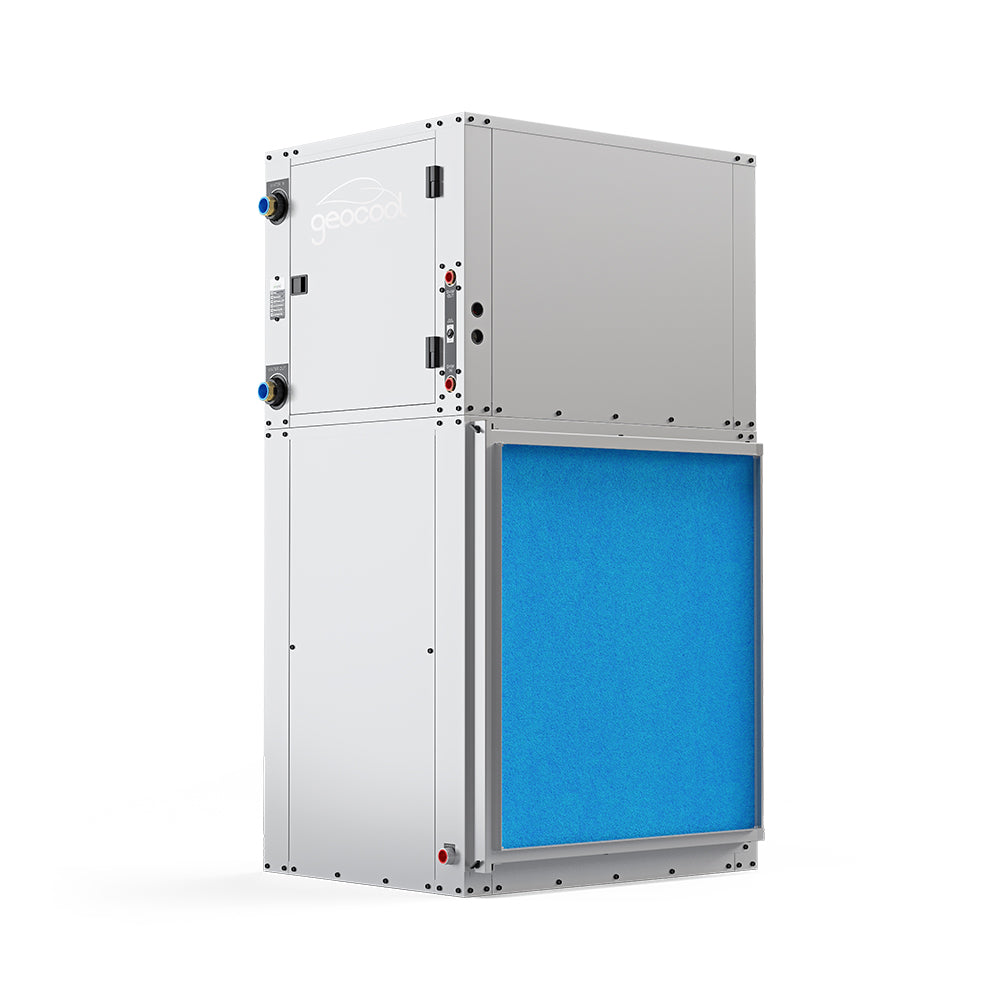

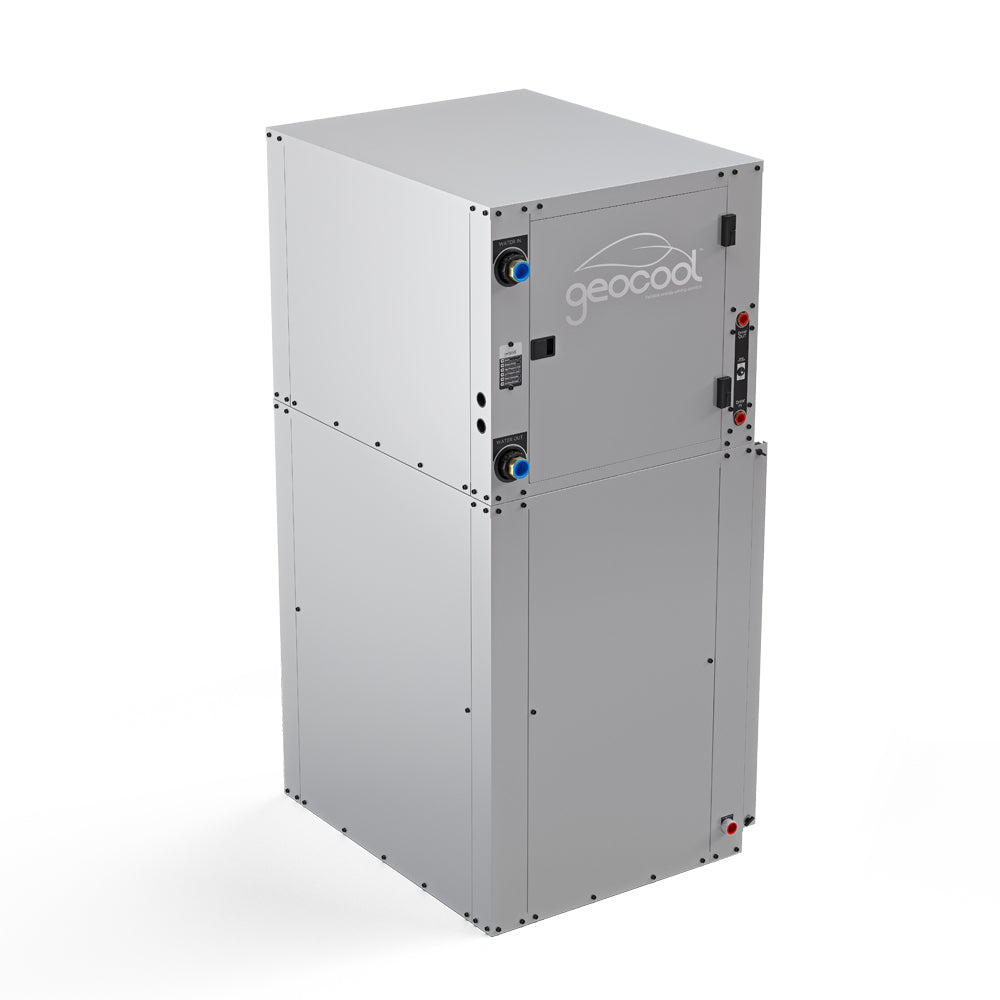

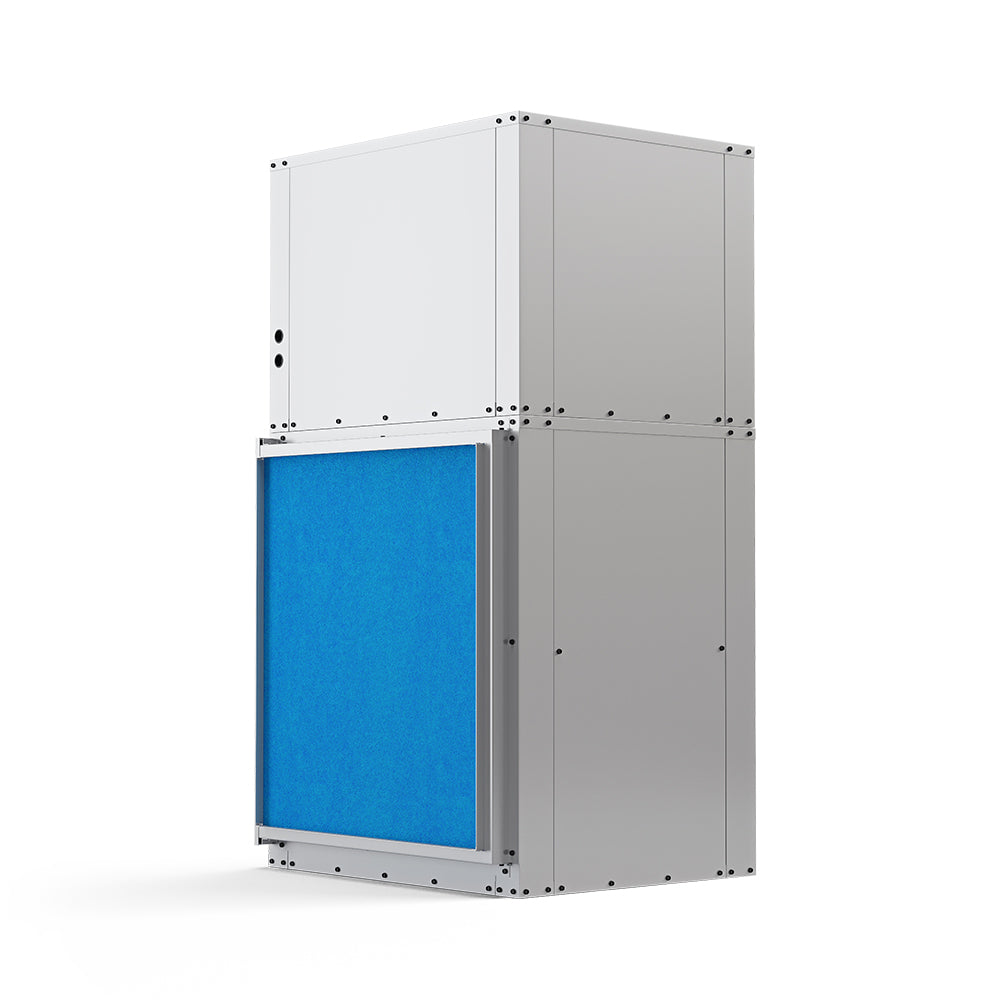

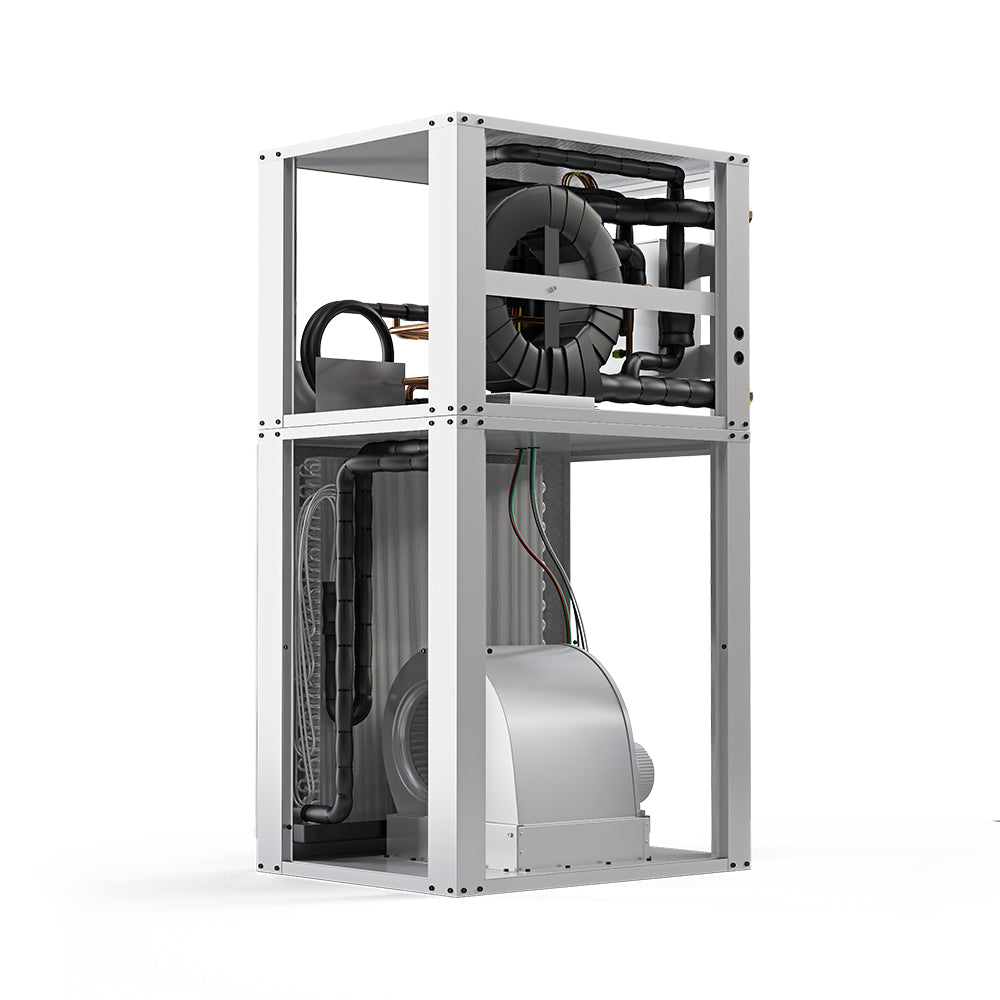

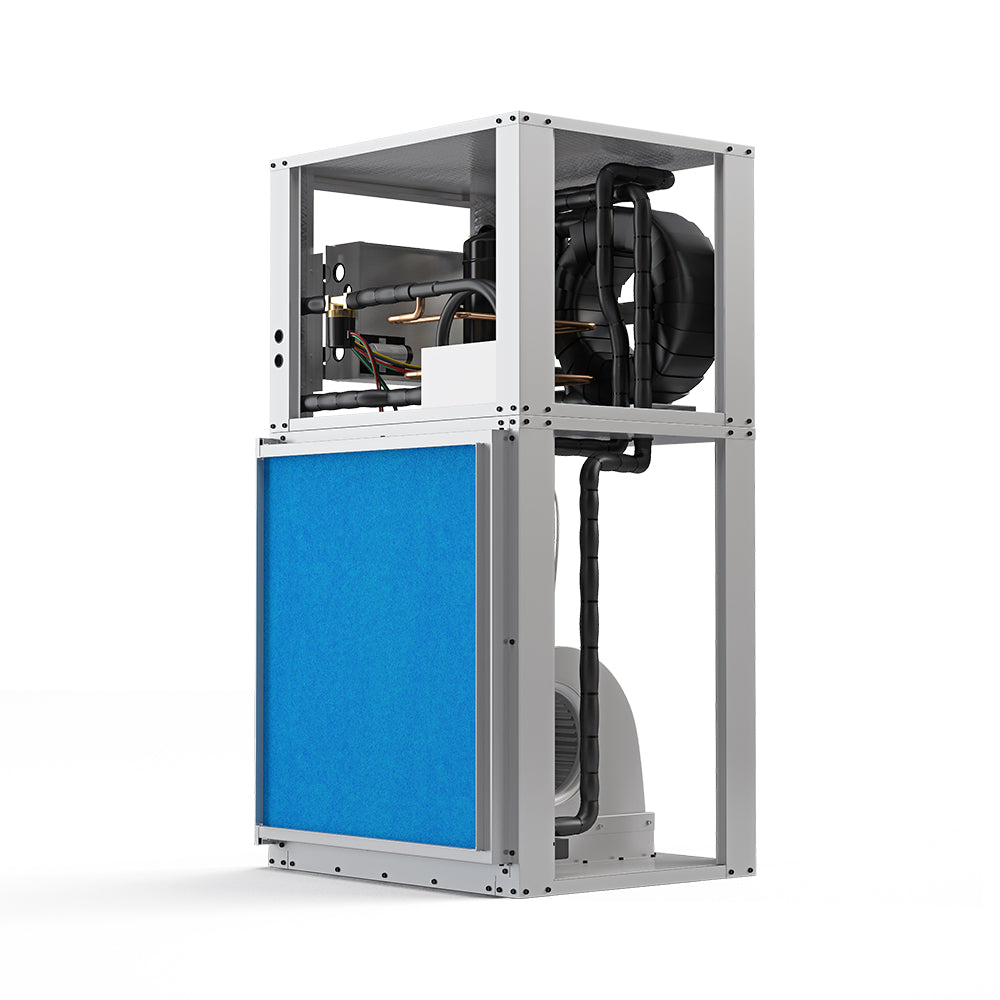

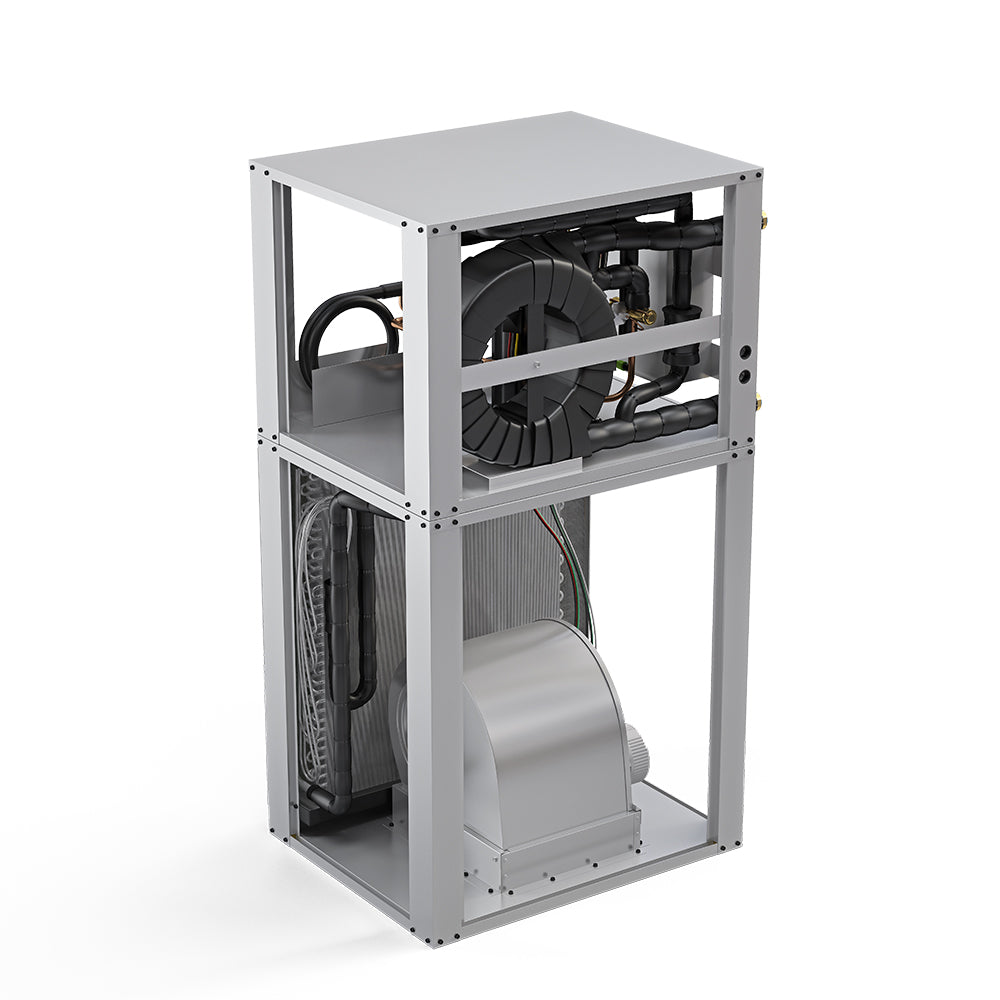

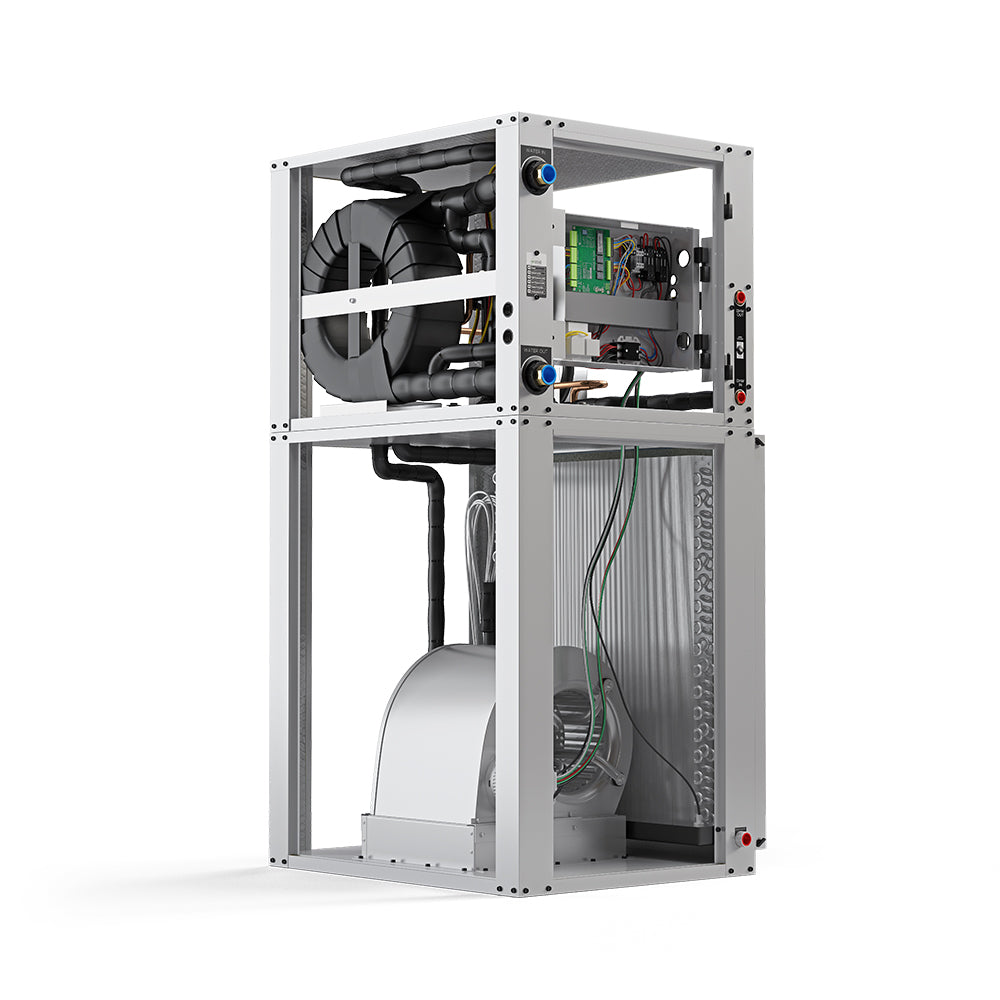

MRCOOL 48K BTU Downflow Two-Stage CuNi Coil - Right Return, GCHPD048TGTANXR

Model: GCHPD048TGTANXR
$6,241.00
$6,241.00 $7,595.00
-18%
Shipping calculated at checkout.

Buy Now, Pay Later

This item is in stock! Estimated Arrival: Apr 28 to May 04

$6,241.00
$6,241.00 $7,595.00

What's Included

BETTER TOGETHER

DESCRIPTION

48K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return

Features:

  • Qualifies for federal tax credit, and other incentives
  • Highest energy efficiency in its class
  • Safety high and low pressure switches
  • Quiet operation
  • Full featured sinusoidal eon motor control technology
  • Insulated sloped stainless steel drain pan
  • Advanced unit control board with diagnostic LEDs
  • Double O-ring water connections
  • Easy service access
  • Optional domestic water pre-heating
  • Made in the USA
  • 10 year compressor warranty

    SPECIFICATIONS & DIMENSIONS

    • Product Dimensions: 25.75"W x 32"D x 60"H
    • Product Weight: 380 lbs
    • EER: Ground Water (FULL) 26.00 / Ground Loop (FULL) 16.65
    • EER Part Load: Ground Water (PART) 33.00 / Ground Loop (PART) 24.06
    • COP 47: Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL)
    • COP 47 Part Load: Ground Water (PART) 5.00 / Ground Loop 4.50 (PART)
    • HSPF: Ground Water Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL)
    • AFUE: Ground Loop Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL)
    • CFM: COOLING (PART) 1550 - 1850 (FULL) / HEATING (PART) 1500 - 1750 (FULL)
    • Tonnage: 4
    • Cooling Capacity: Ground Water (PART) 41000 - 56000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL)
    • Heating Capacity: Ground Water (PART) 34500 - 50000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL)
    • Voltage: 230V/60Hz/42A
    • Phase: 1
    • Cycle: 60
    • Stage: Two-Stage
    • Max Fuse Breaker: 57.9(W/O Desupe
    • Min Circuit Ampacity: 35.2
    • Configuration: Right Return Downflow
    • Color: Gray
    • Max Coverage Area: 2,000 square feet
    • Refrigerant Type: R-410A
    • Compressor Motor Type: Scroll
    • Blower Motor Type: Axial Flux (No Shaft) BLA
    • Blower Motor HP: 3/4
    • Filter Type: Replaceable
    • Contains: Electronics // Chemicals // Aerosol // Compressed Gas
    • Proposition 65 Warning: Yes
    • Certifications: ETL Listed // Energy Star // AHRI
    • Warranty: Registered 10 Year Parts Warranty
