MRCOOL DIY Mini Split - 39,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIY348HPC091218-16

See more from MRCOOL Model: DIY348HPC091218-16

Model: DIY348HPC091218-16

$6,991.00

$9,437.85

26% Off

Indoor Unit Type: Ceiling Cassette

Line Set Length: 16 feet

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Mar 07 to Mar 13

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

Contact Us

Need help with choosing a Mini Split system or have other questions?

Talk with one of our trusted HVAC professionals today!

Product Overview

  • Ceiling Mounted

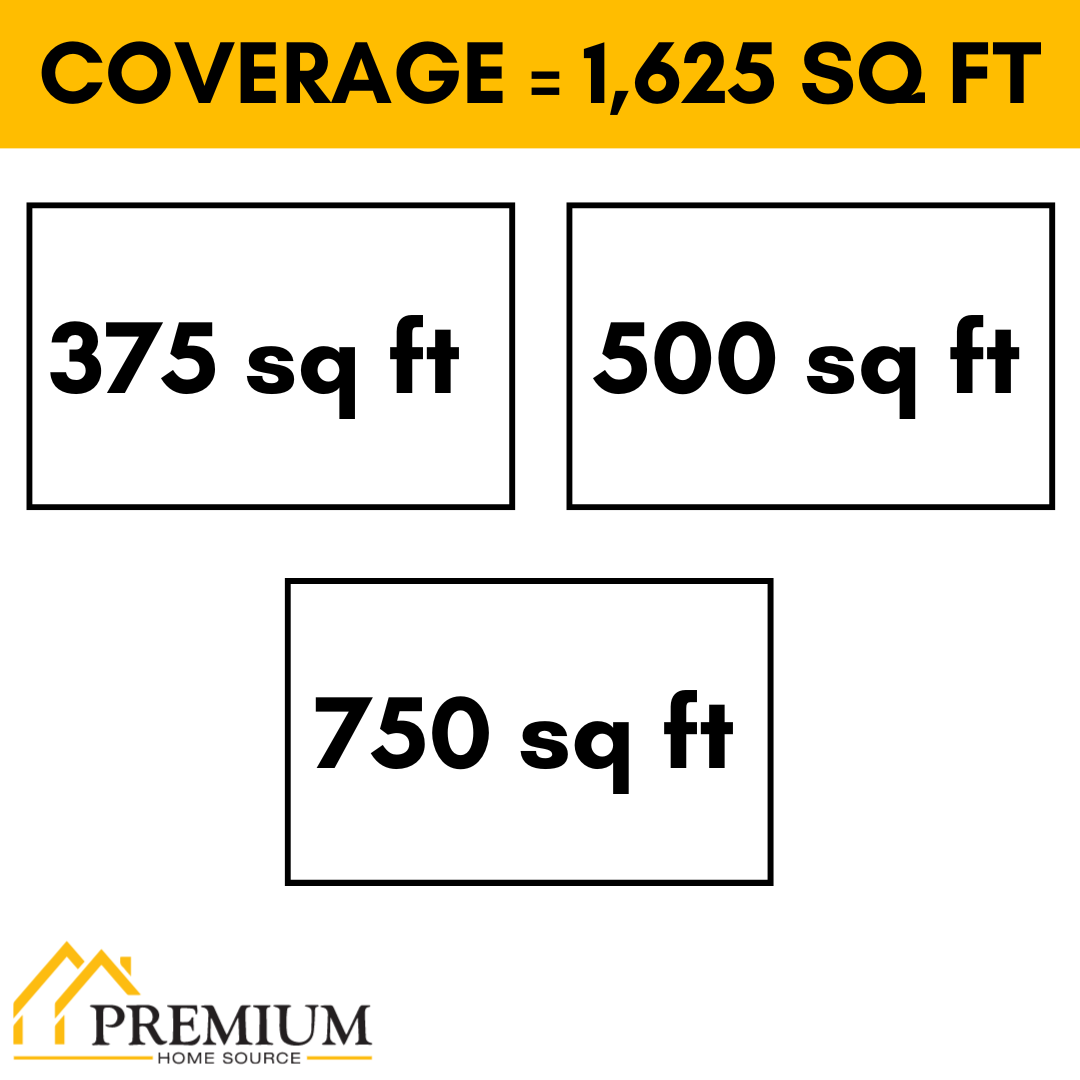

  • Covers 1625 sq. ft.
  • DIY Installation
  • Number of Zones: 3
  • voltage-240 Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): 5°F to 75.2°F

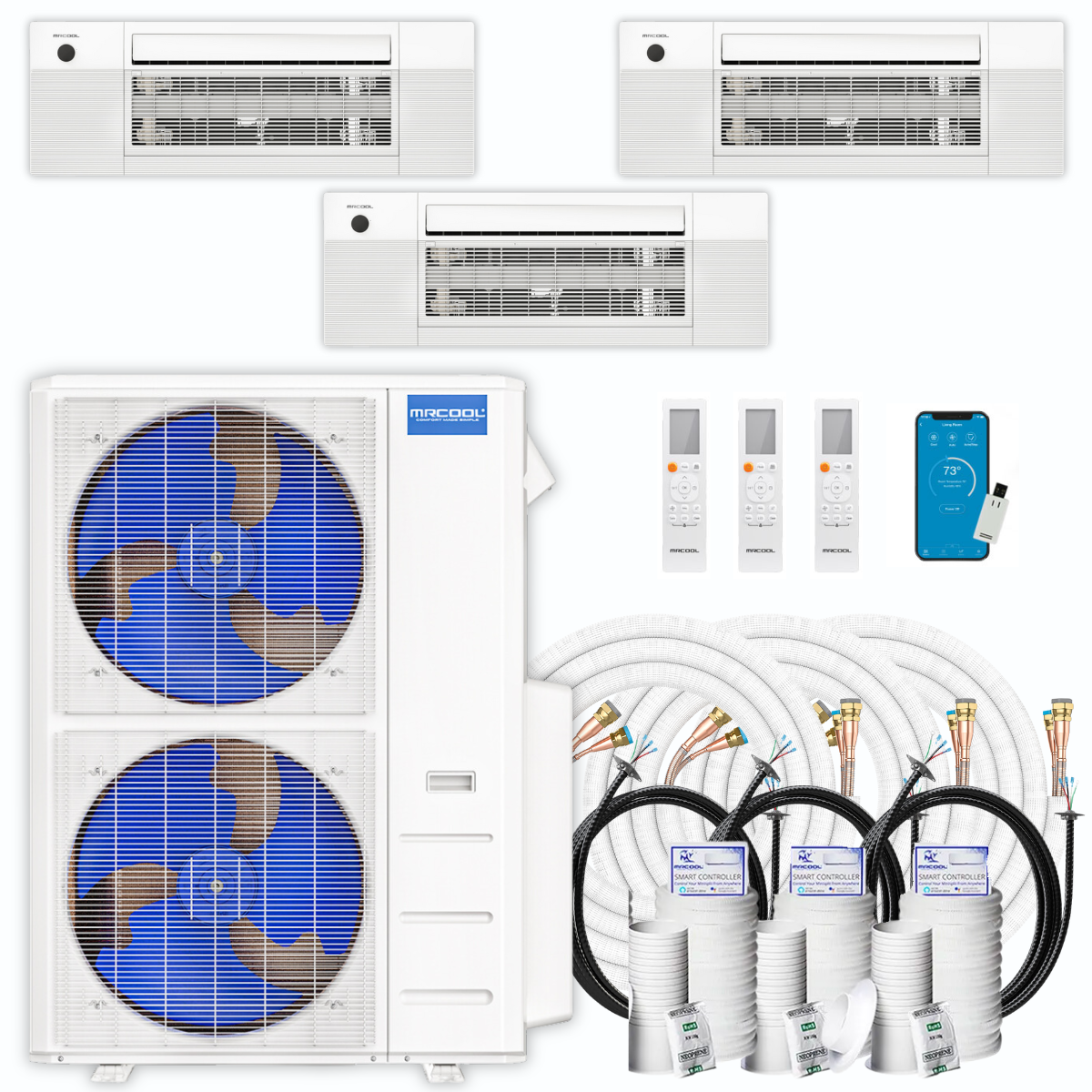

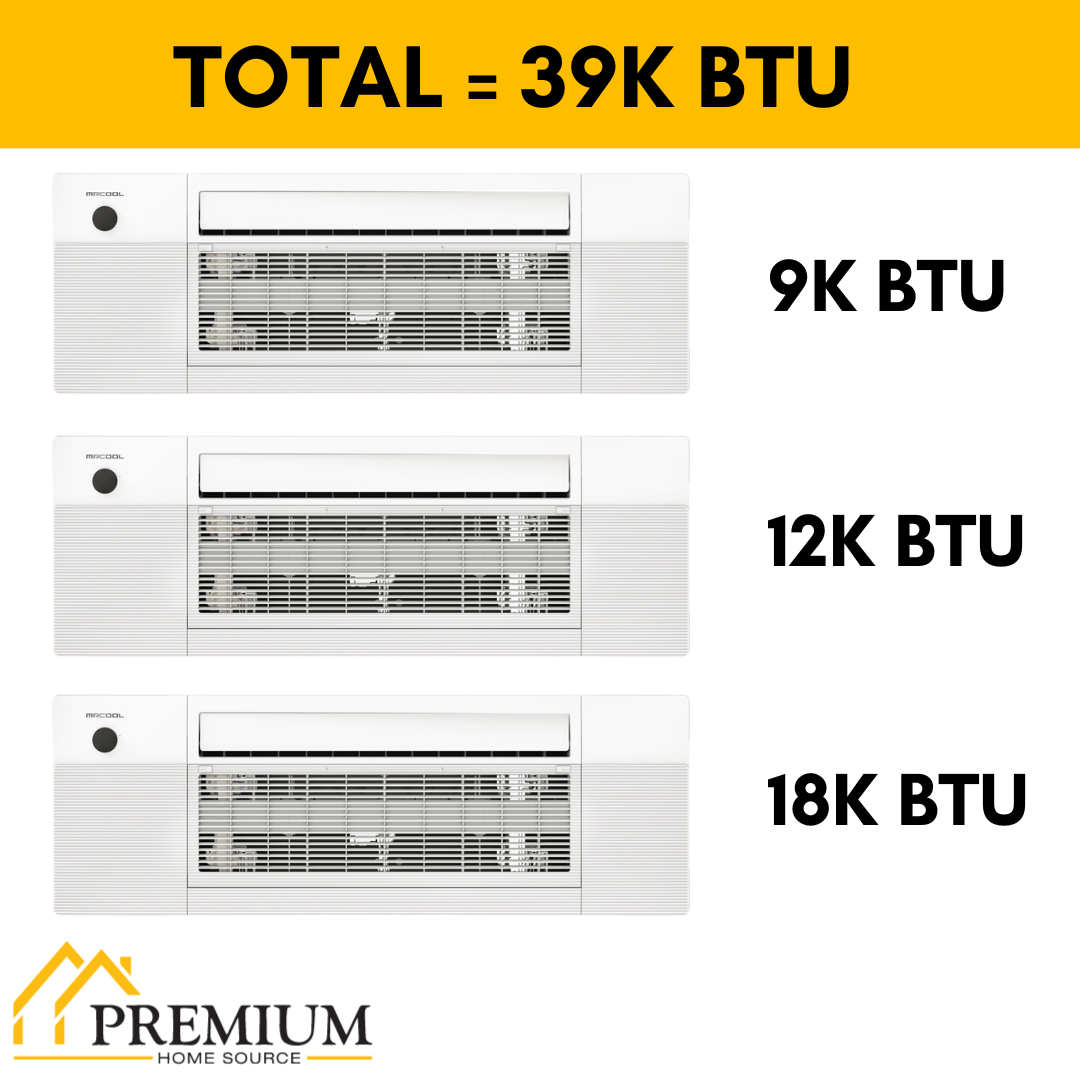

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, one 9,000 BTU Ceiling Cassette Air Handler, 12,000 BTU Ceiling Cassette Air Handler, 18,000 BTU Ceiling Cassette Air Handler, 16' Linesets, and three Remotes. The best part about all of this is that you can install it yourself!

Package Includes

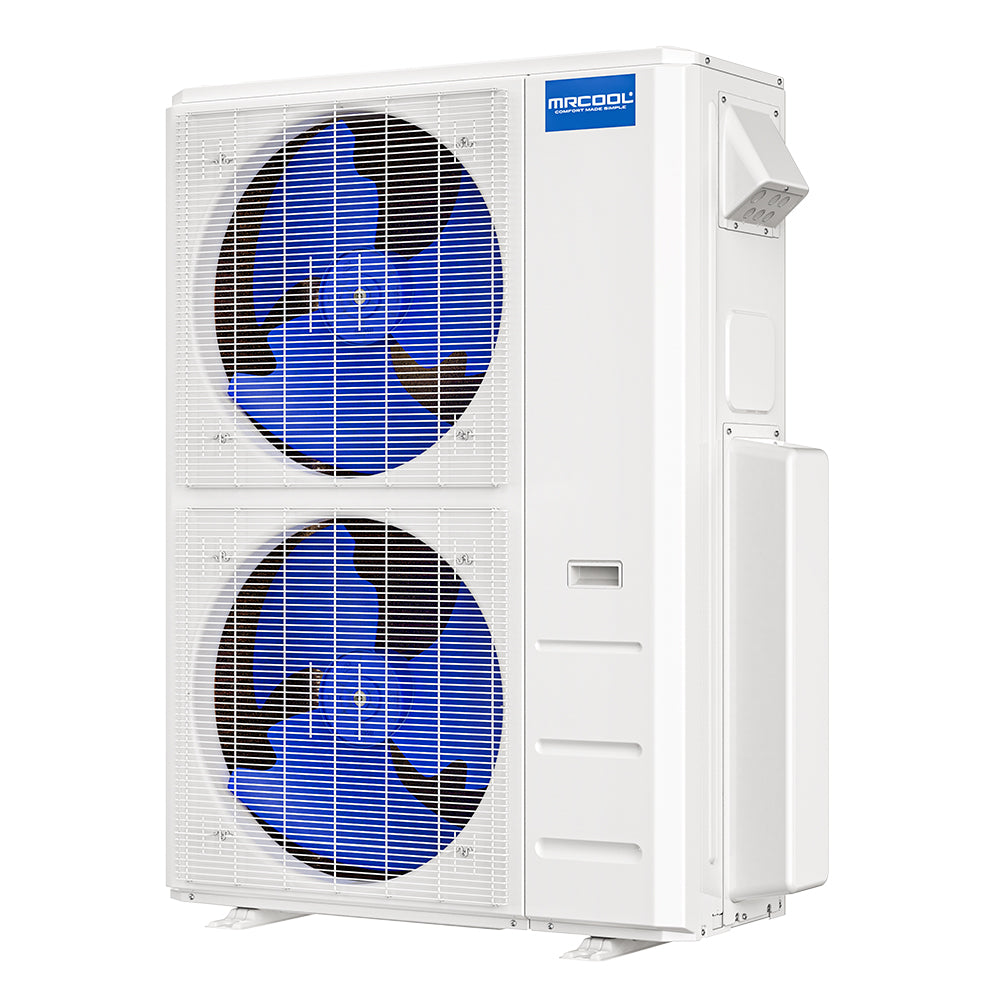

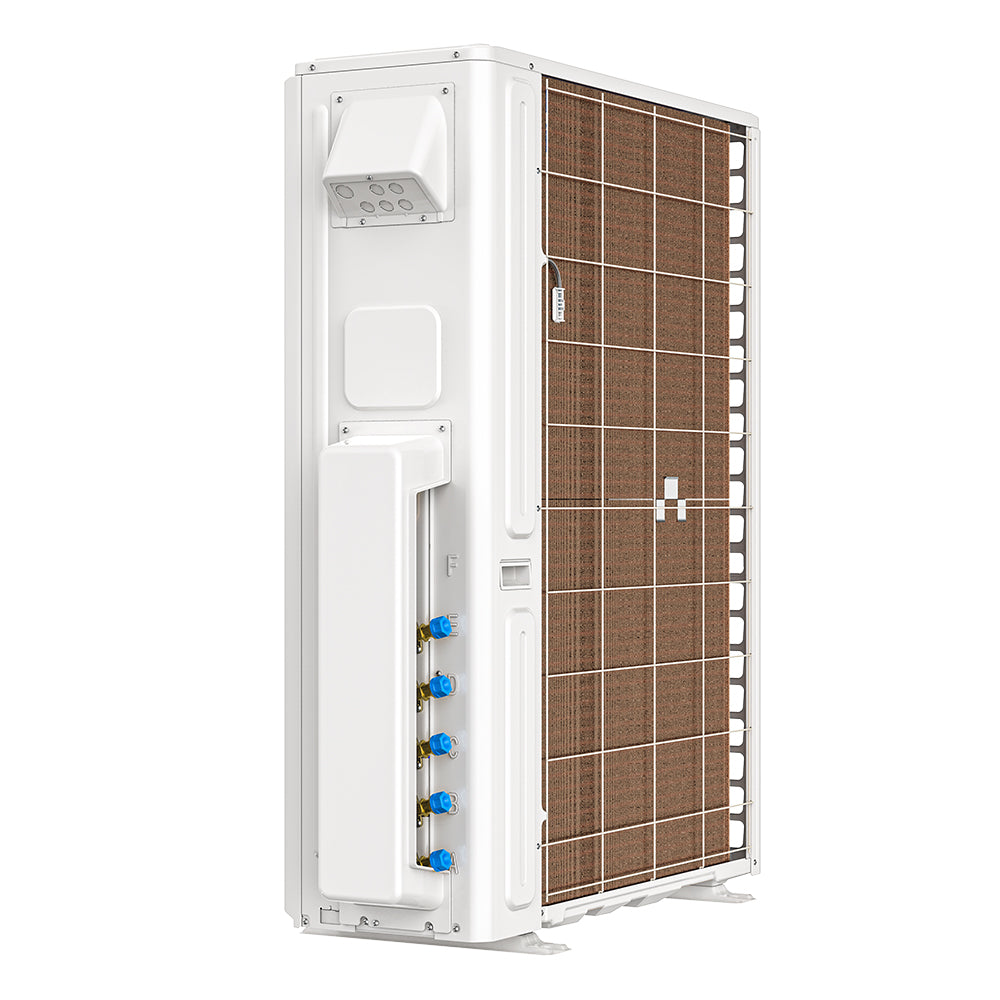

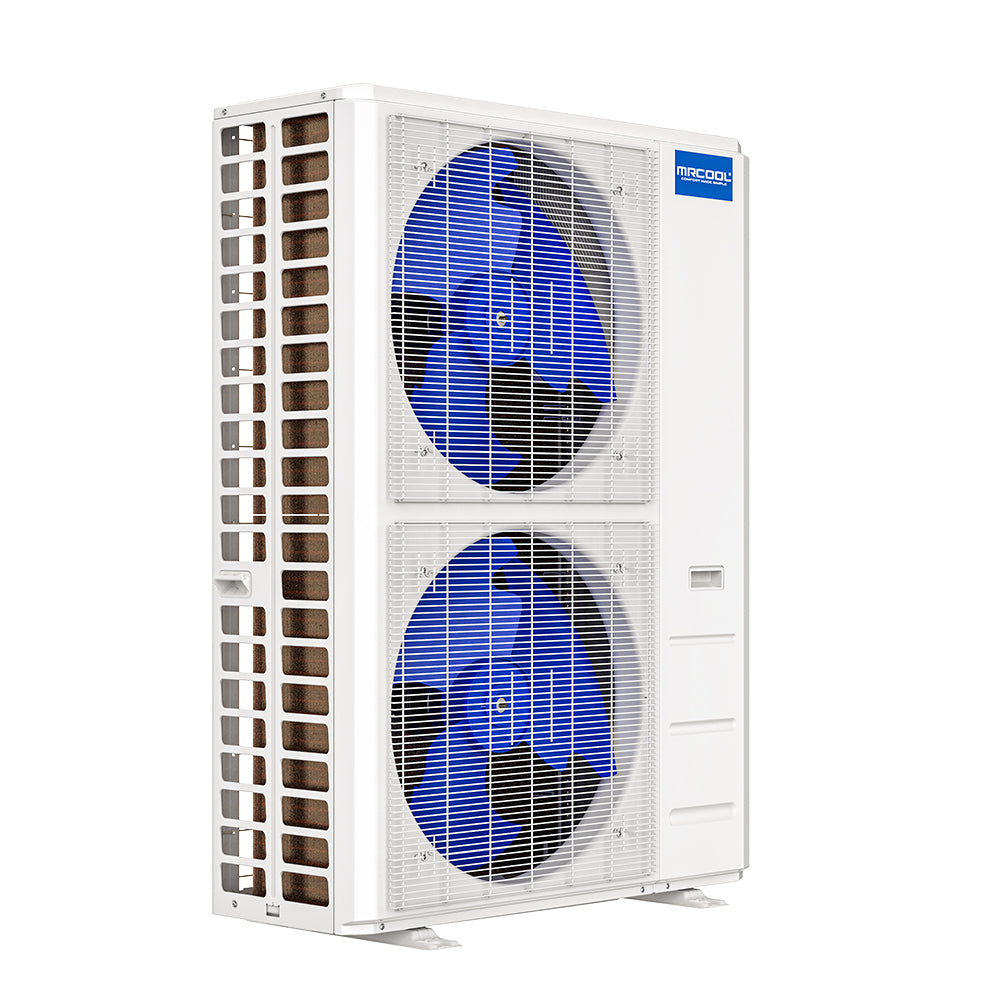

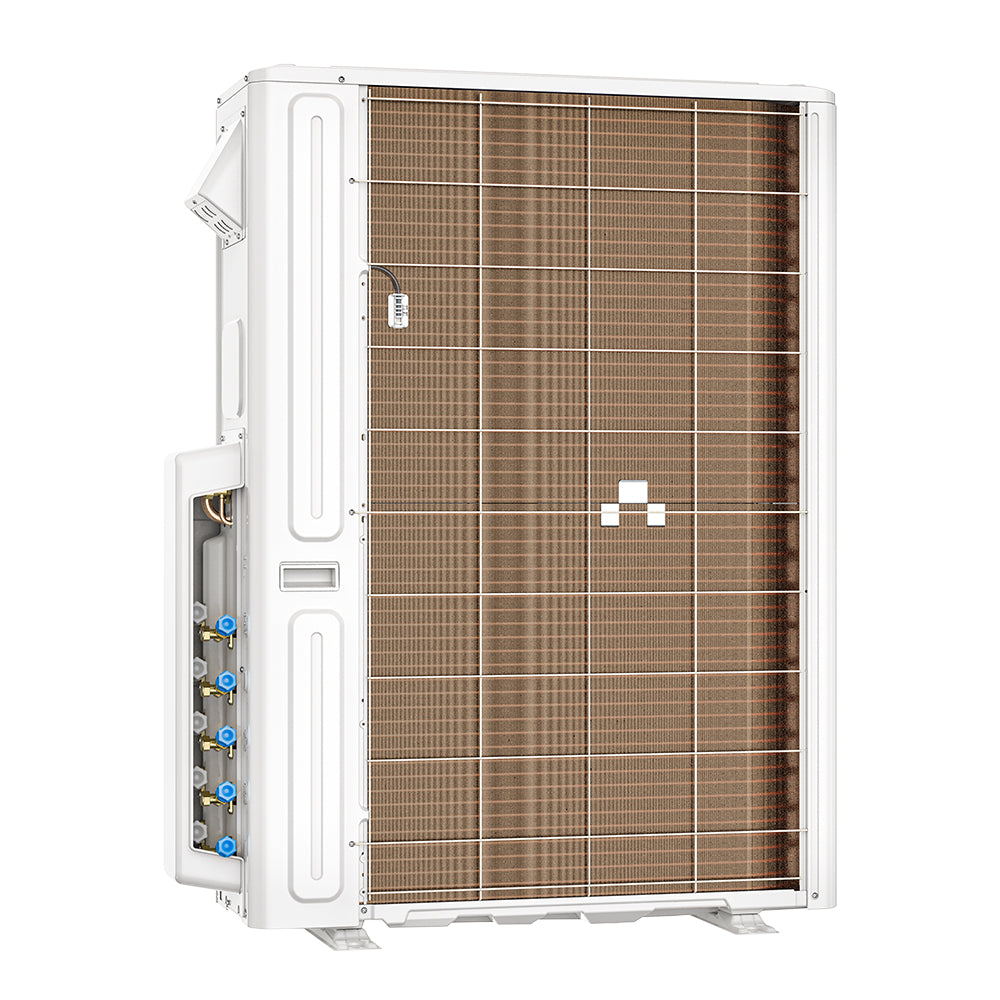

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

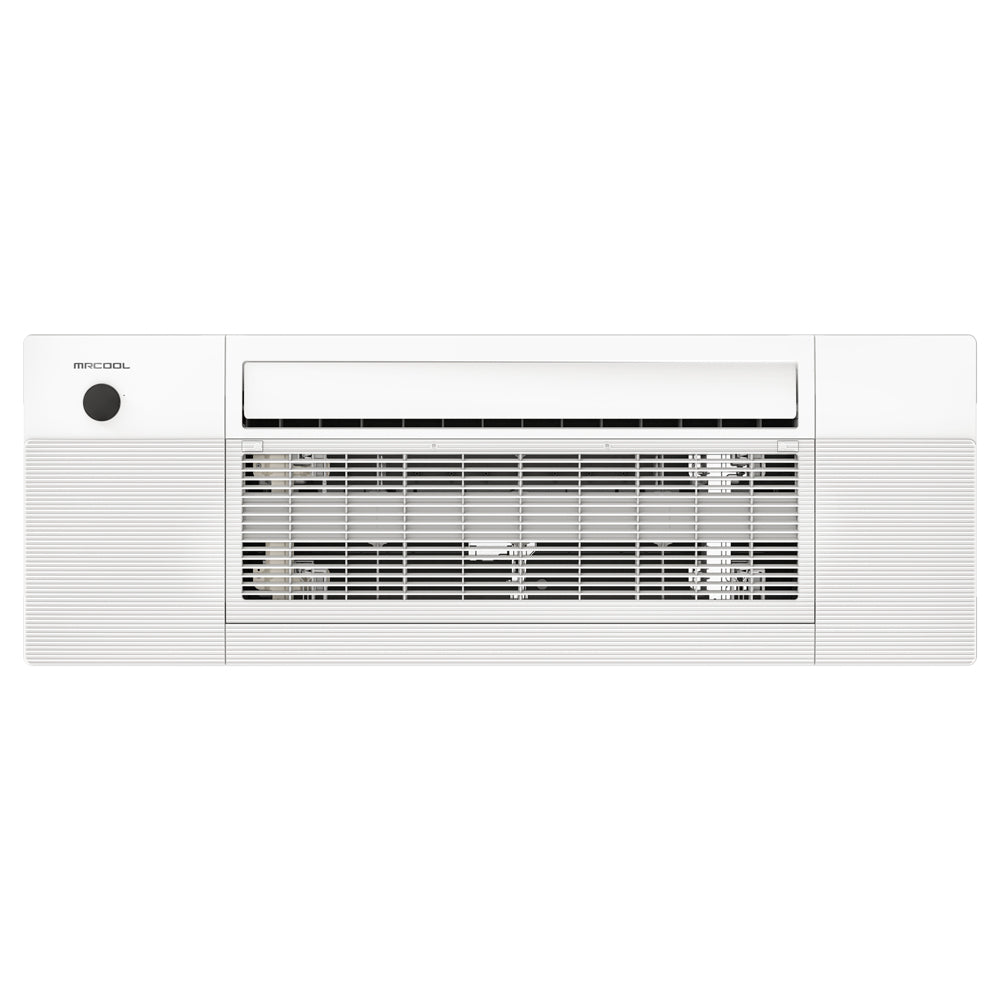

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

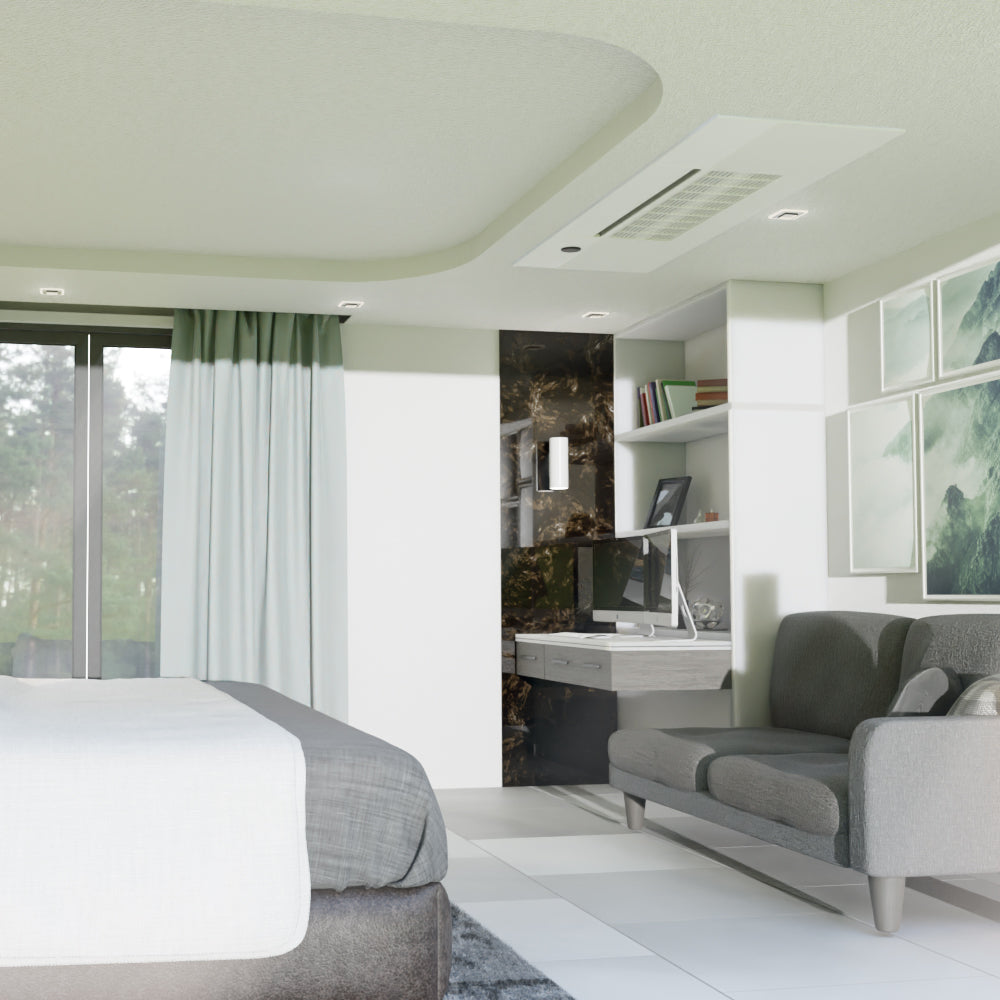

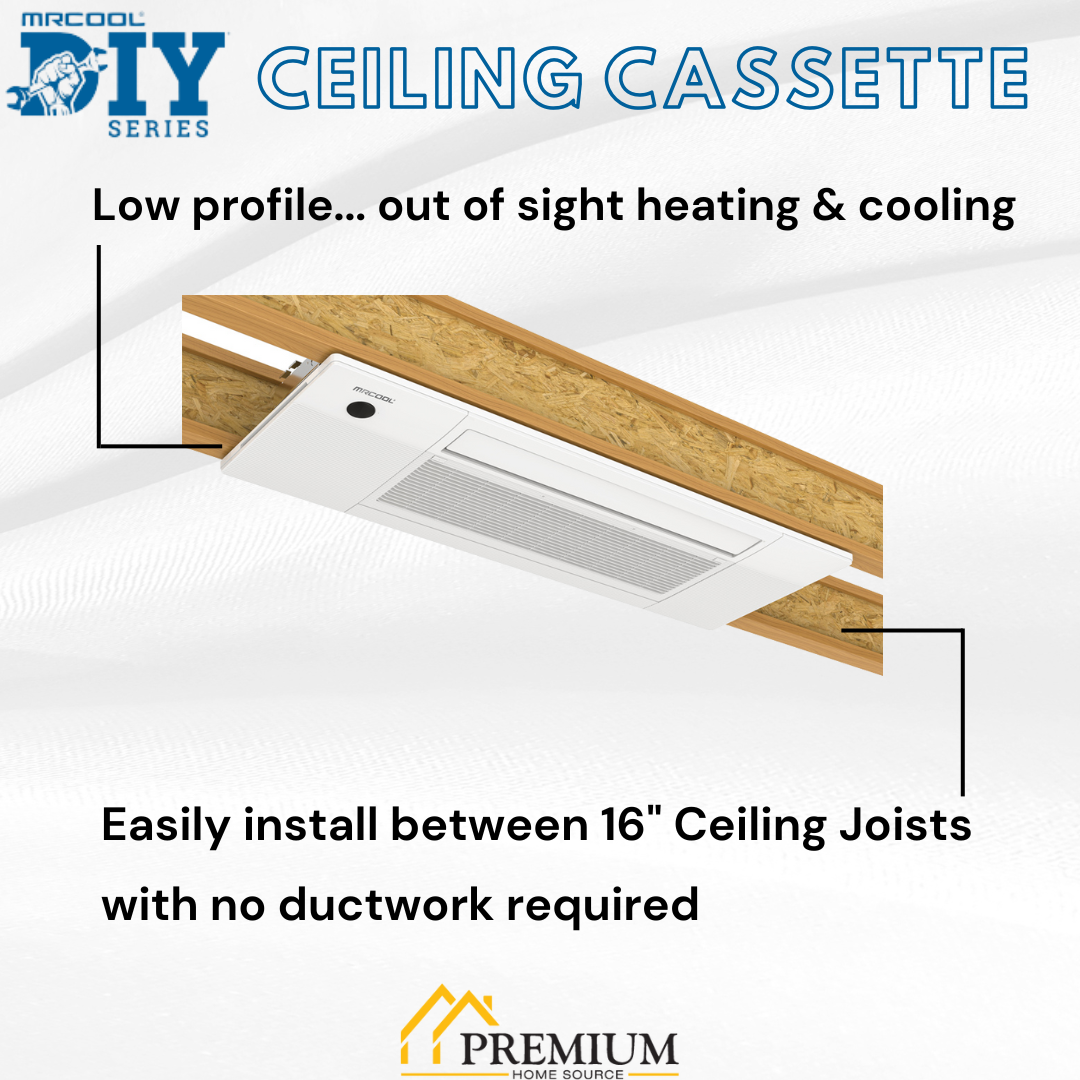

    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

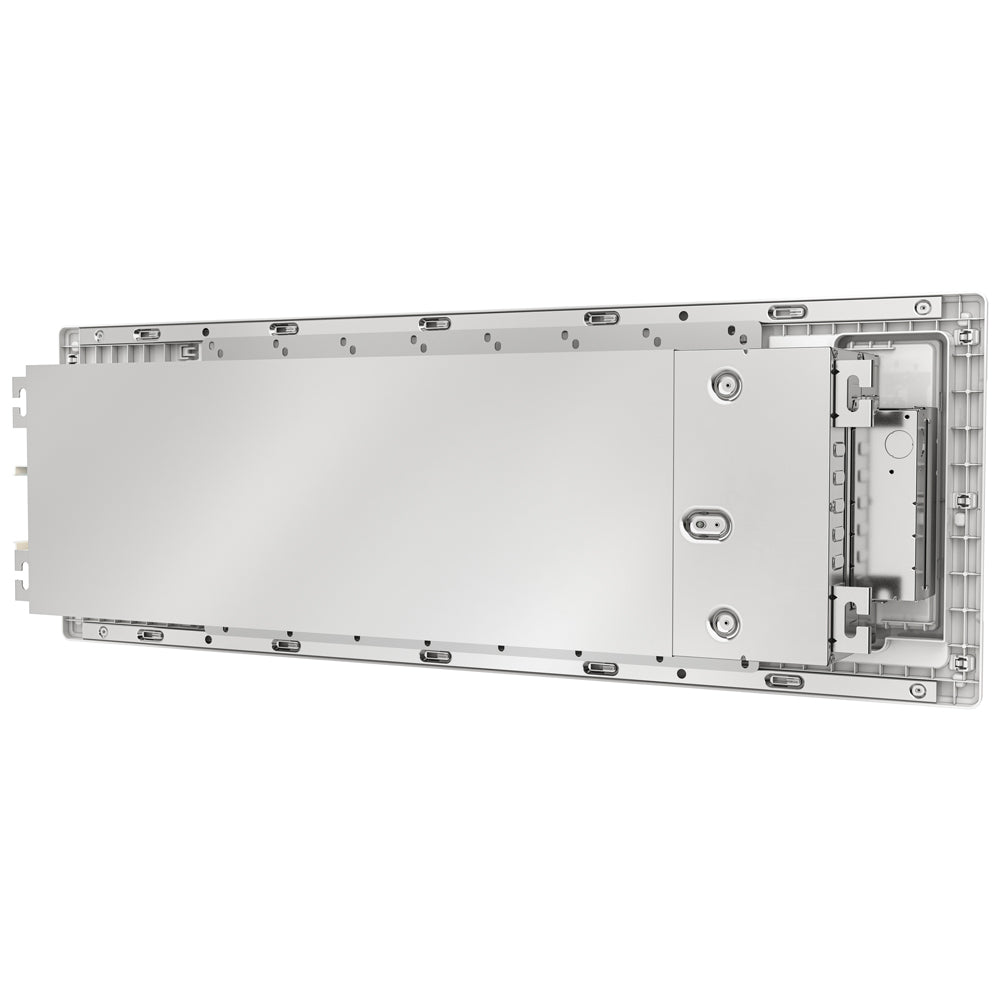

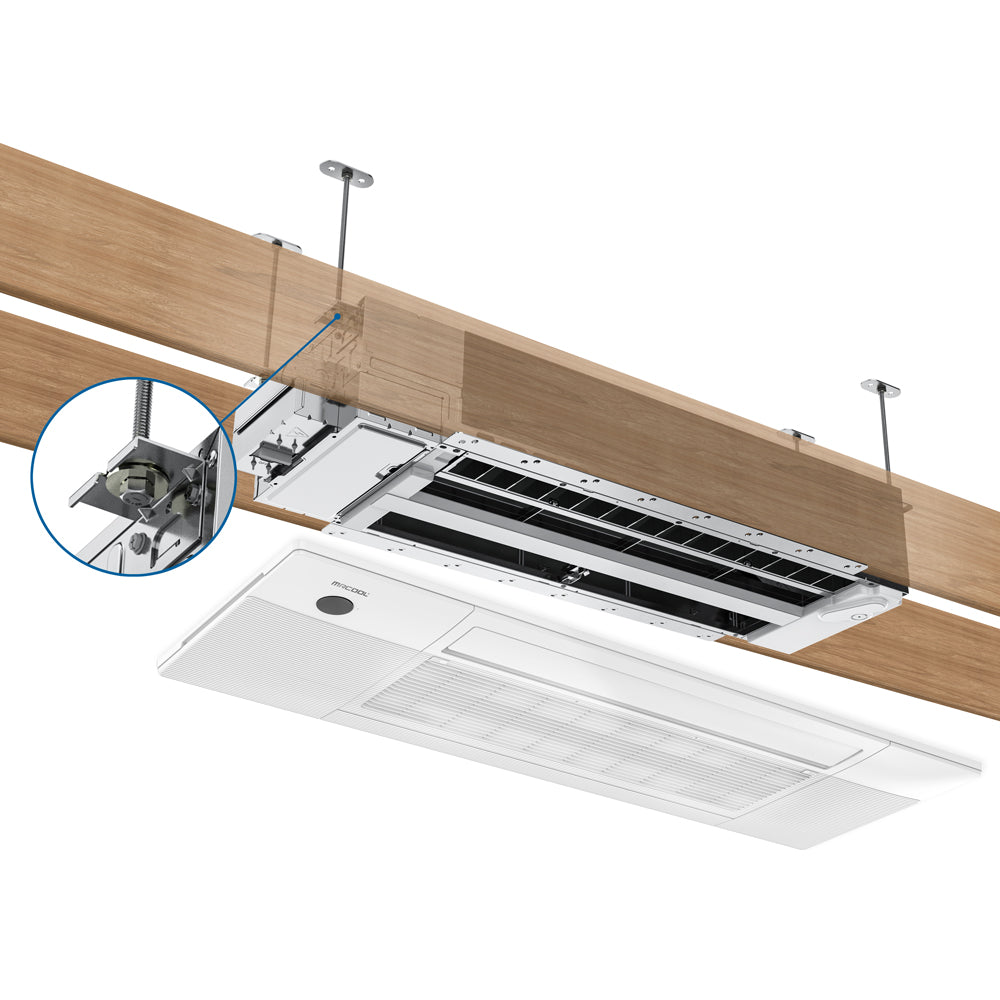

    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

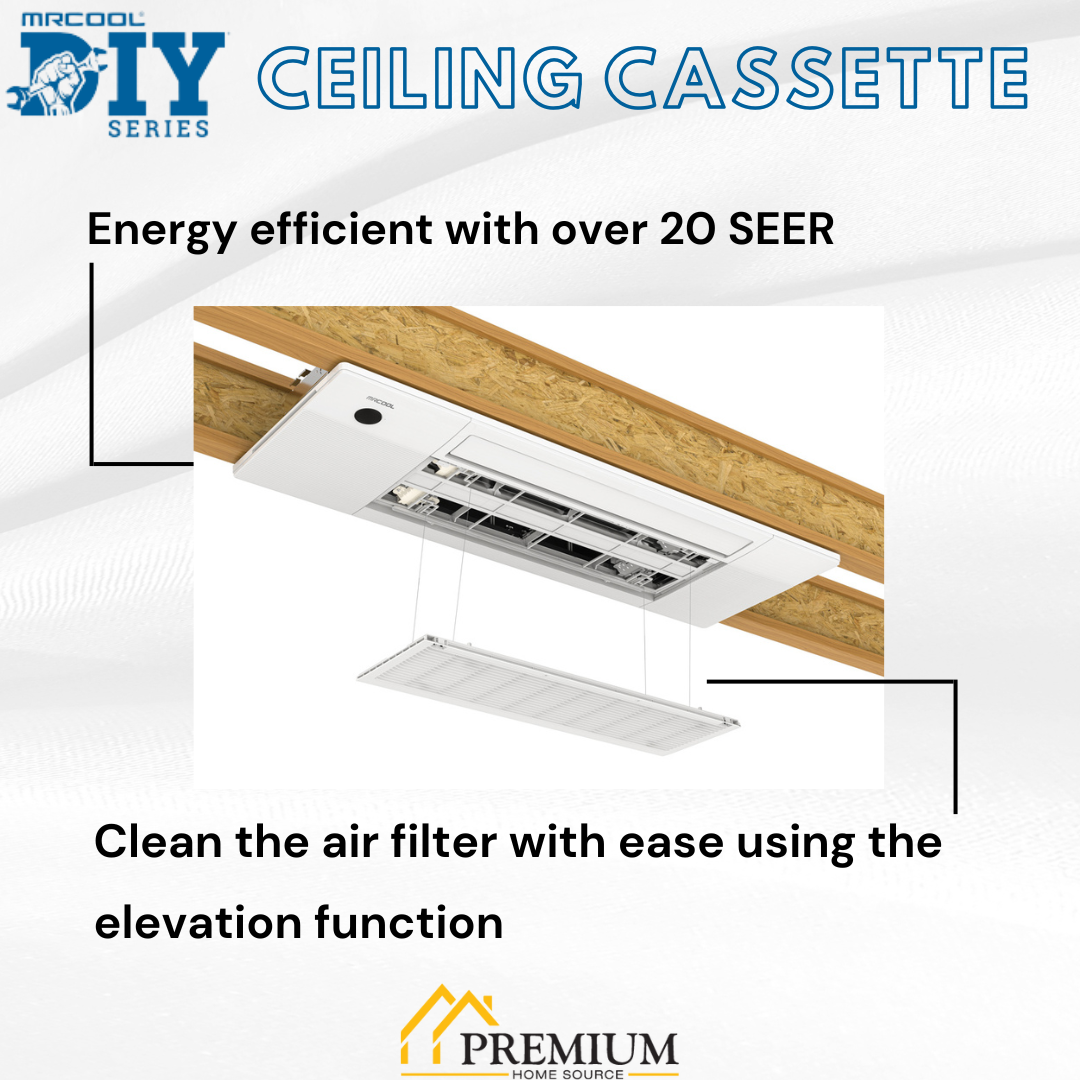

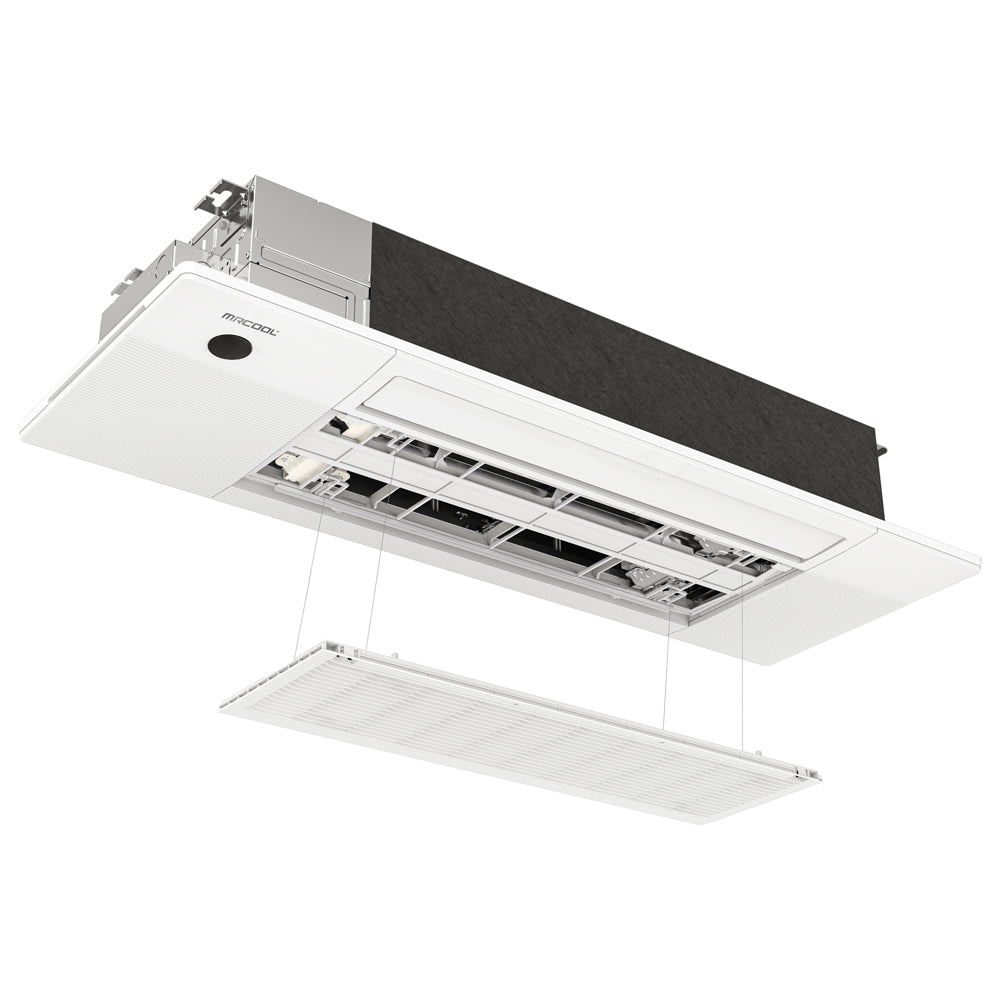

    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

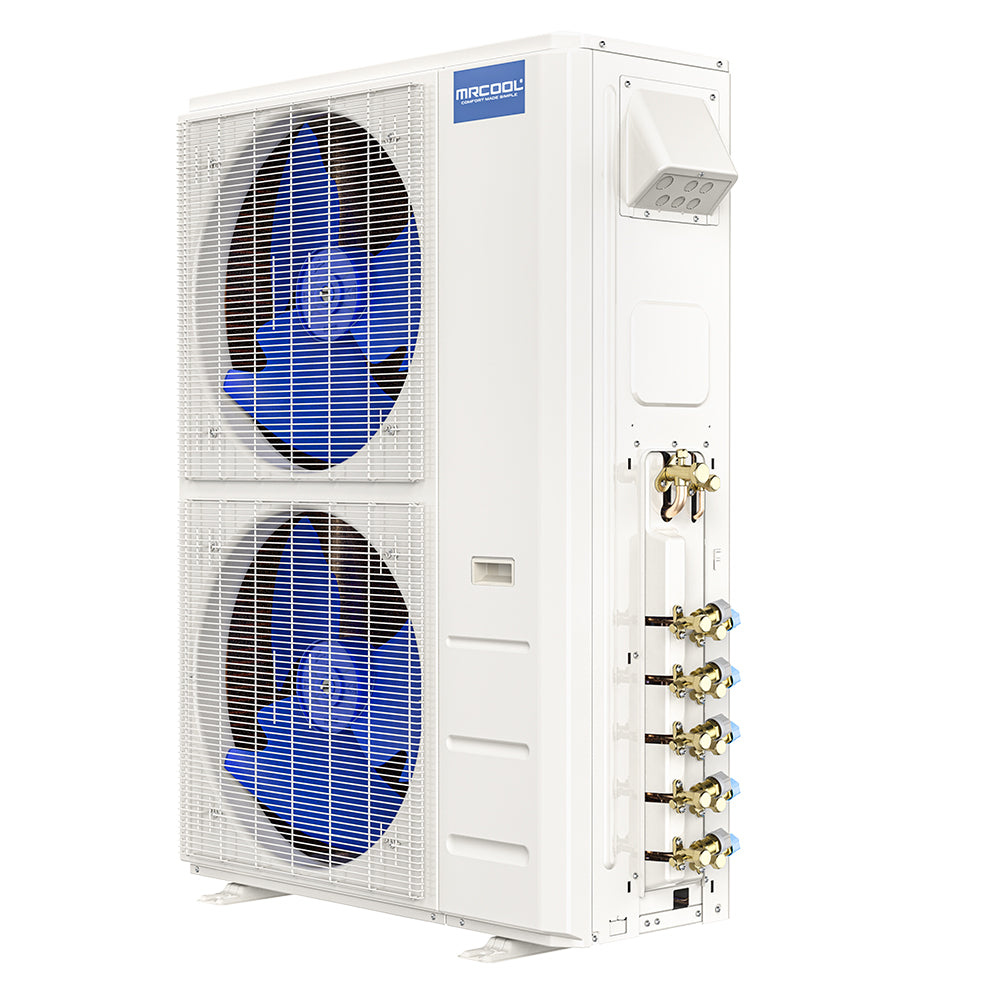

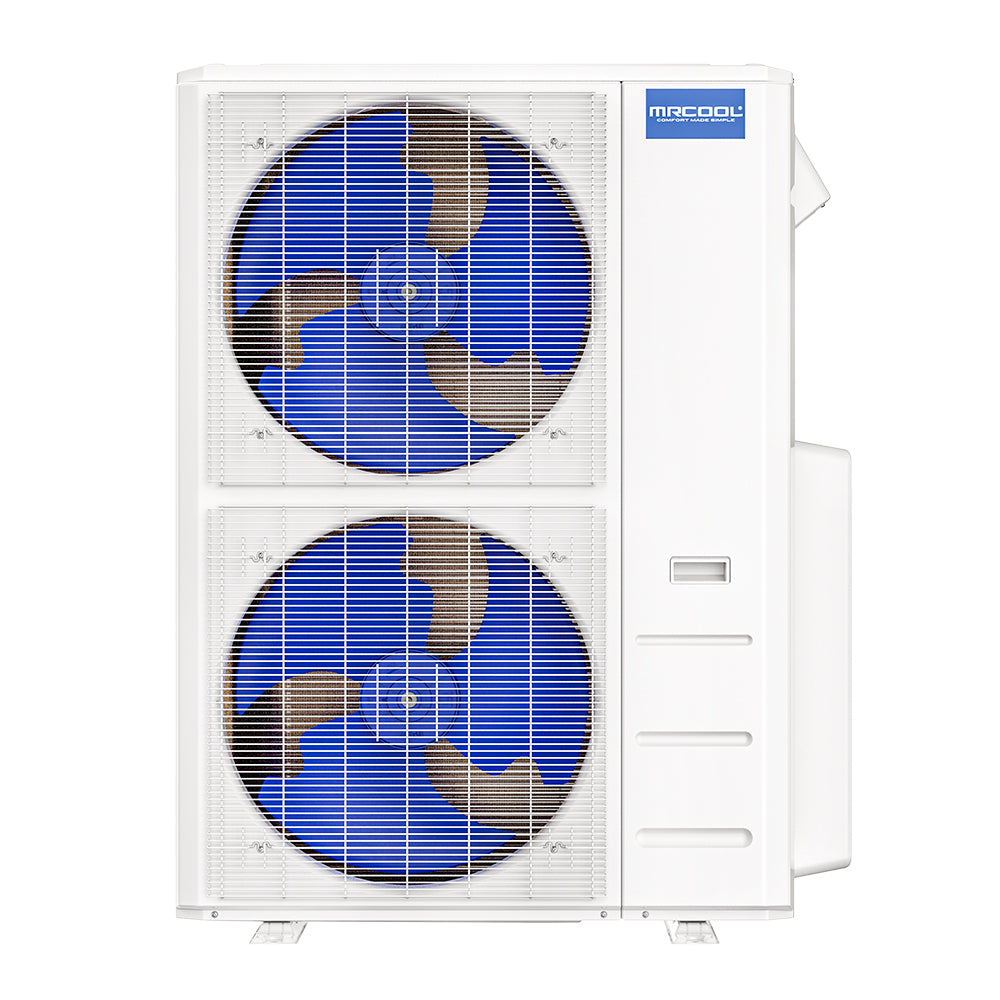

            Condenser

            Product Dimensions 37.48"W x 16.34"D x 52.48"H
            Cooling Capacity 48,000 BTU
            Heating Capacity 48,000 BTU
            Zone Capacity 5
            Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
            Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
            SEER 21.5
            EER 10.5
            Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty
            7 Years Replacement on Condenser, 5 Years Parts


            Air Handler 9K BTU

            Product Dimensions 50.31"W x 13.19"D x 8.98"H
            Mount Type Ceiling Cassette
            Cooling Capacity 9,000 BTU
            Heating Capacity 9,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - Auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 12K BTU

            Product Dimensions 50.31"W x 13.19"D x 8.98"H
            Mount Type Ceiling Cassette
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty
            5 Years Parts
            Modes Auto - Auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep

            Air Handler 18K BTU

            Product Dimensions 50.31"W x 13.19"D x 8.98"H
            Mount Type Ceiling Cassette
            Cooling Capacity 17,000 BTU
            Heating Capacity 19,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - Auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep

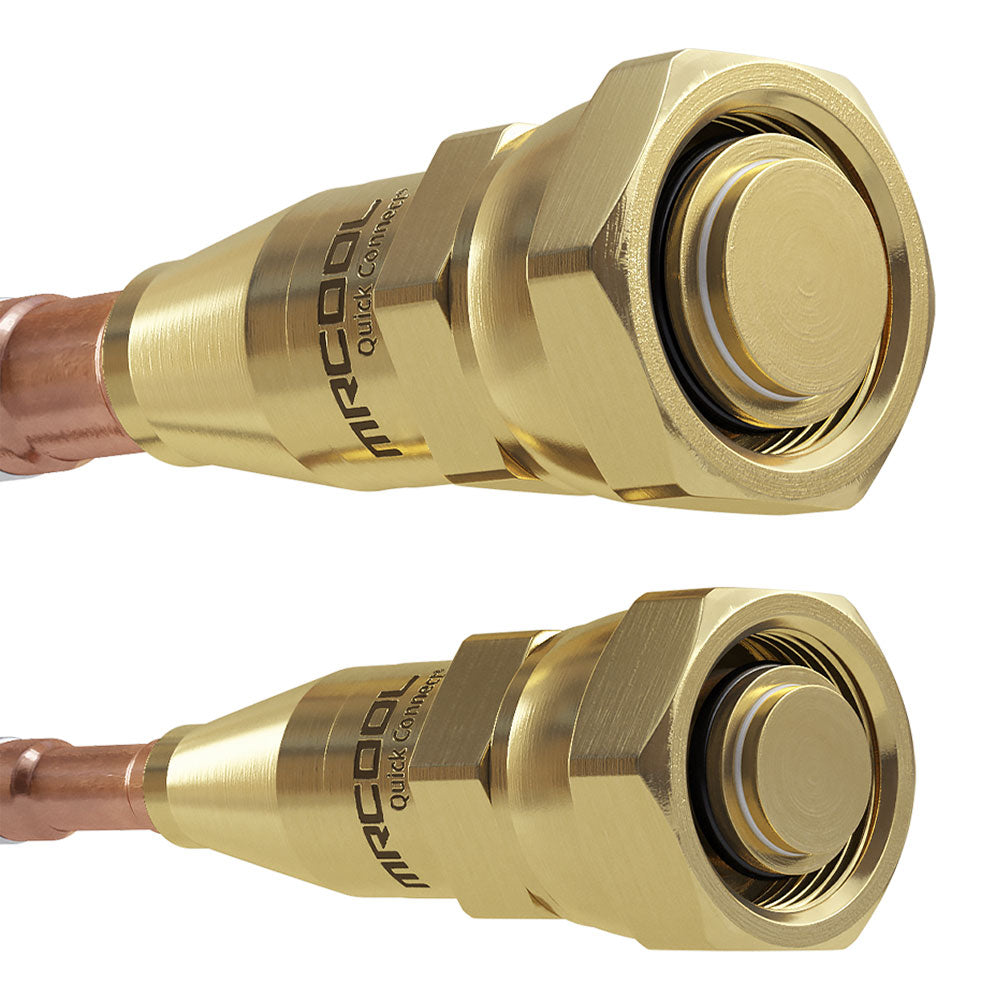

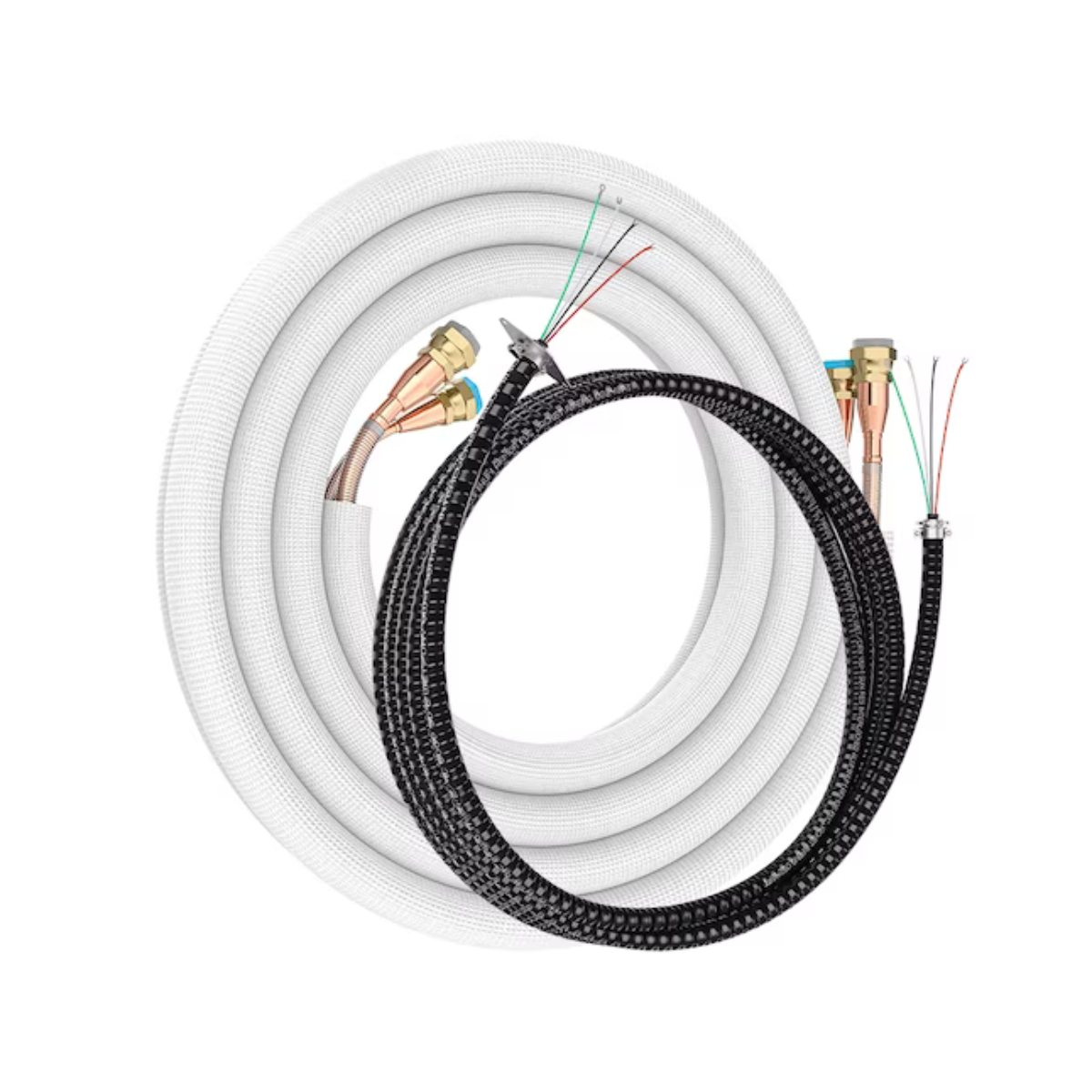

            Line Set

            Length
            16 Feet
            Liquid Line Size 1/4"
            Suction Line Size 1/2"

            Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

            Square Feet: 180-375 | BTU = 9K
            Square Feet: 376-500 | BTU = 12K
            Square Feet: 501-750 | BTU = 18K
            Square Feet: 751-1,000 | BTU = 24K
            Square Feet: 1,001-1,500 | BTU = 36K

            Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
