MRCOOL DIY 5th Gen 18K BTU 2-Zone Mini Split (9K+9K) with Pre-Charged Line Sets – 23.9 SEER2, 230V (TEST PRODUCT - DO NOT ORDER)

Name: MRCOOL DIY 5th Gen 18K BTU 2-Zone Mini Split (9K+9K) with Pre-Charged Line Sets – 23.9 SEER2, 230V (TEST PRODUCT - DO NOT ORDER)
Brand: MRCOOL
SKU: mrcool-5-test
Price: 10000.0 USD
Availability: OutOfStock

Model: mrcool-5-test

$10,000.00

Shipping calculated at checkout.

This item is out of stock. Please contact us for an alternative.

$10,000.00

BETTER TOGETHER

Key Features

Multi-Zone Comfort: Heat and cool 2 separate rooms/zones with individual temperature control.
Coverage Area: This system provides efficient climate control for up to 700 sq. ft., with 350 sq. ft. coverage in Zones 1 and 2.
DIY-Friendly Installation: No HVAC license needed. Quick setup with basic tools.
Pre-Charged Line Sets: Includes Quick-Connect pre-charged line sets—no vacuuming or refrigerant handling required.
High Efficiency: Up to 23.9 SEER / 10.8 HSPF2-4 for low energy bills and year-round savings.
Year-Round Performance: Enjoy reliable heating even in extreme cold, down to -13°F.

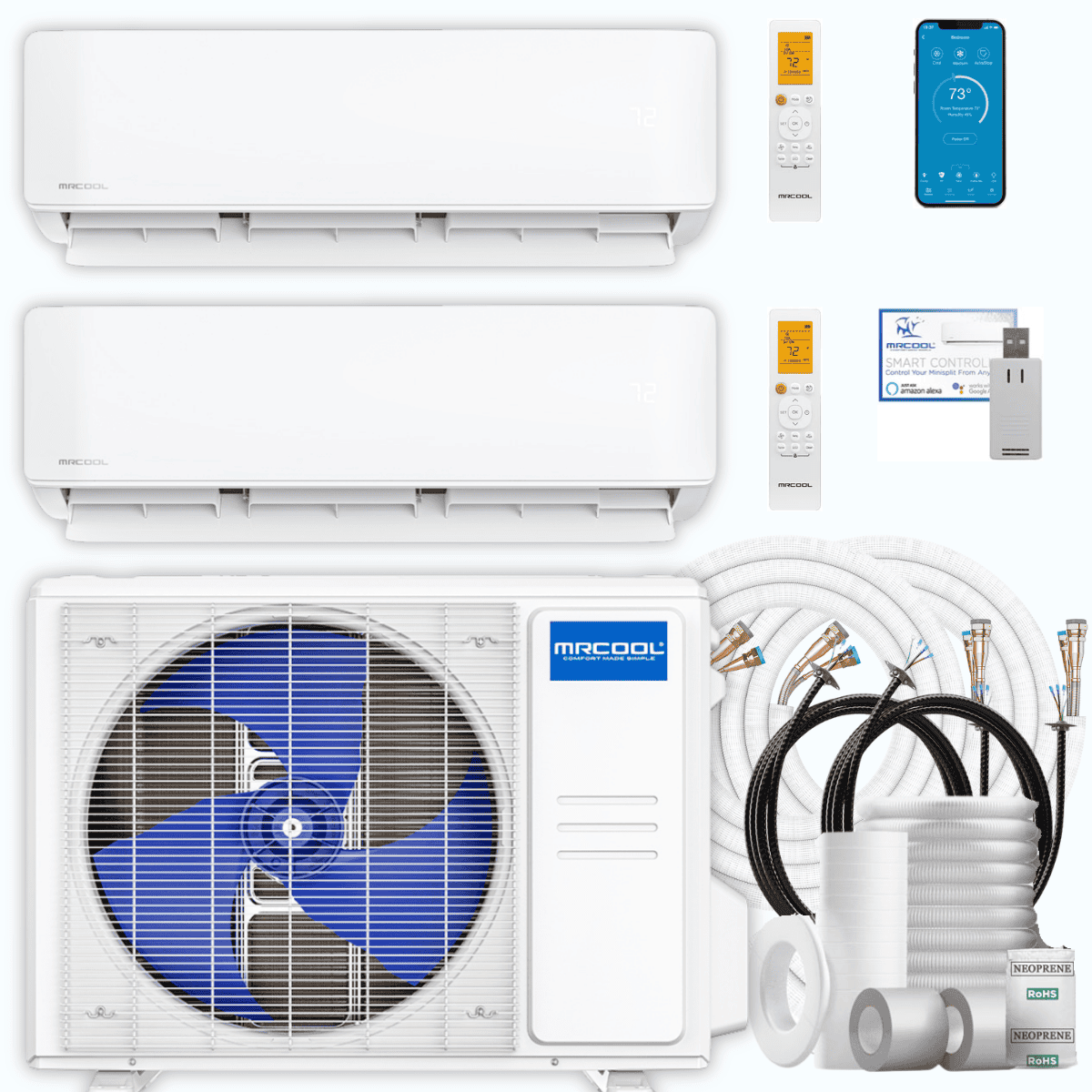

What's Included

18K BTU Condenser

Quantity: 1
9K BTU Air Handler

Quantity: 2
25 ft. 1/4 x 1/2 Line Set

Quantity: 2

System Information

SPECIFICATIONS & DIMENSIONS

18K CONDENSER
Condenser Dimensions: 35.04" W x 13.46" D x 26.50" H
Condenser Weight: 101.63 lbs
Maximum Zone Capacity: 3
Cooling Capacity: 18,000 BTU
Outdoor Operating Temperature (Cooling): 5°F - 122°F
EER2: 13.0
SEER2: 23.9
Heating Capacity: 18,000 BTU
Outdoor Operating Temperature (Heating): 13°F - 75°F
HSPF2-4: 10.0
HSPF2-5: 7.8
Outdoor Noise Level: 55 dB(A)
Indoor Noise Level (Hi/Mi/Lo): 46.5/36/18.5 dB(A)
9K AIR HANDLER
ELECTRICAL REQUIREMENTS
Voltage: 208-230V
Cycle: 60 Hz
Max Fuse Breaker: 20A
Min Circuit Ampacity: 15A
Refrigerant & Piping
Refrigerant Type: R-454B
Refrigerant Volume: 34.92 oz
Liquid Line Size: 1/4"
Suction Line Size: 1/2"
Max Line Set Length: 98.4 ft.
FEATURES
Modes: Auto Mode: Automatically selects heating or cooling based on the room's temperature. // Cool Mode: Lowers the room temperature to your desired setting. // Heat Mode: Raises the room temperature to your desired setting. // Fan-Only Mode: Circulates air without heating or cooling. // Dry Mode (Dehumidification): Reduces humidity levels in the room. // Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
Inverter: DC
Compressor Type: Rotary
Fan Only Option: Yes
Quiet Mode: Yes
Auto Cool: Yes
Wifi Compatibility: Yes
App Compatibility: Yes
Works with IOS: Yes
Works with Android: Yes
Remote Control Included: Yes
Certifications & Warranty
Certifications: UL Listed, CSA Listed, ETL Listed, AHRI Certified
Warranty: 7 Years Compressor//5 Years Parts//Extended Limited Lifetime Replacement//*If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty//**The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.
