ZLINE 30" Outdoor Stainless Steel Wall Range Hood, 697-304-30
OPTIONS & ACCESSORIES
Ductless/Recirculate Option - Yes, requires CF1 Filter (sold separately)
Ceiling Heights Options:
Less 8’ - Require Short Kit SK-667/697-304
8’ to 9' - No Ext or Short Kit required
9' to 10’ - Require Ext 1PCEXT-667/697-304
10' to 12’ - Require Ext 2PCEXT-667/697-304
Crown Molding(s) - NA
Certified Outdoor Use - Yes
Also available in 36"(697-304-36), 42"(697-304-42), 48”(697-304-48). 54"(697-304-54), 60"(697-304-60)Purchasing an outdoor range hood comes with a different set of recommendations than indoor range hoods:

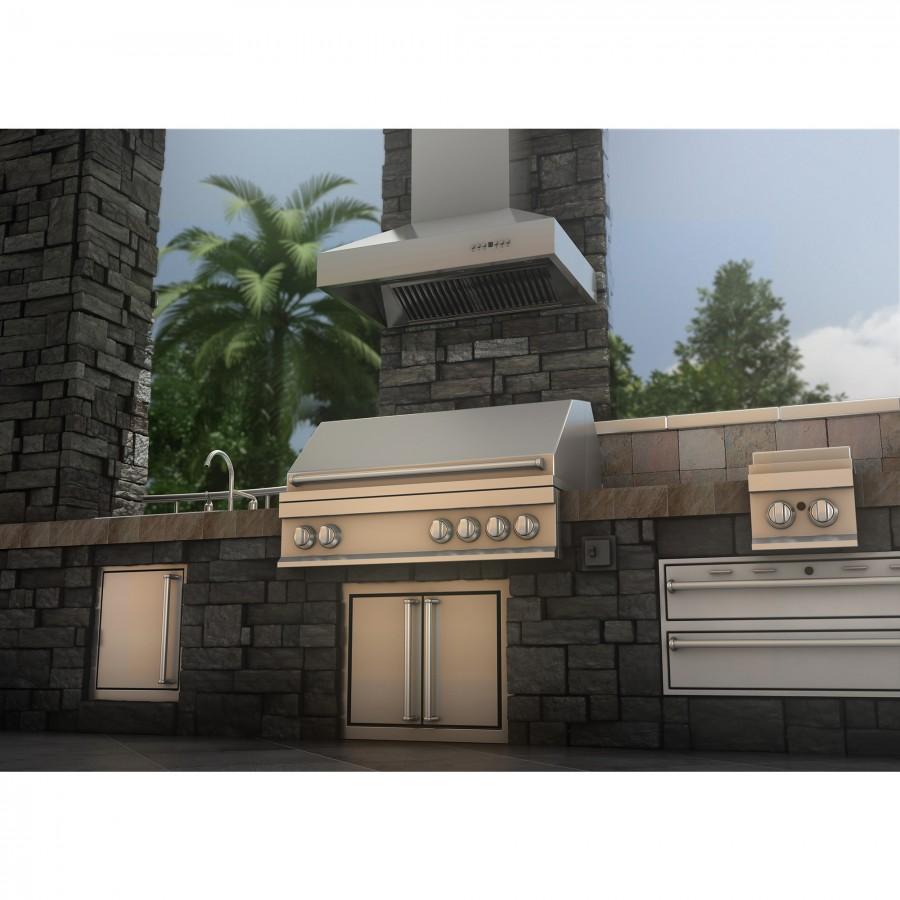

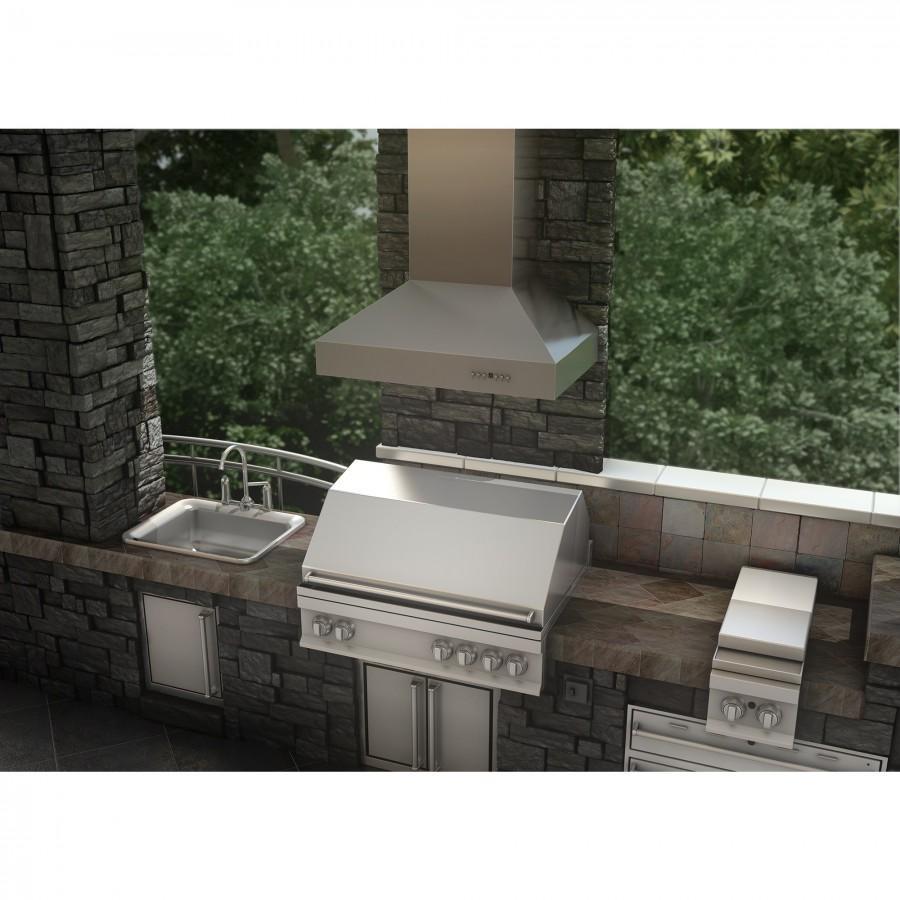

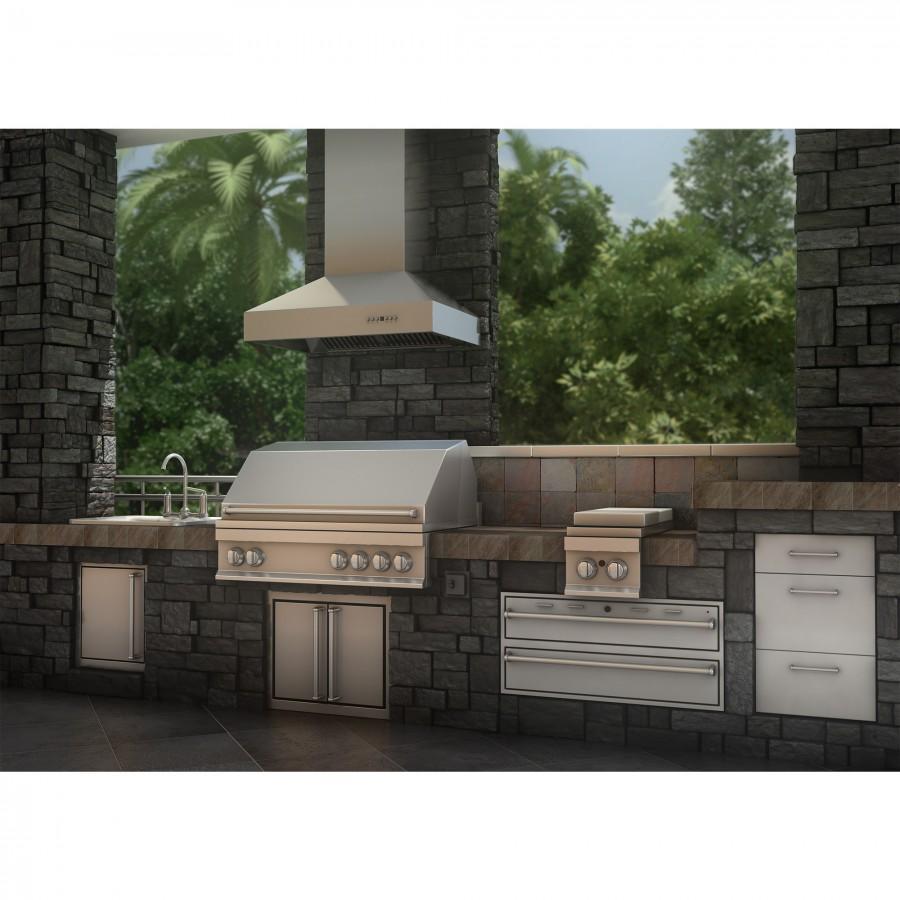

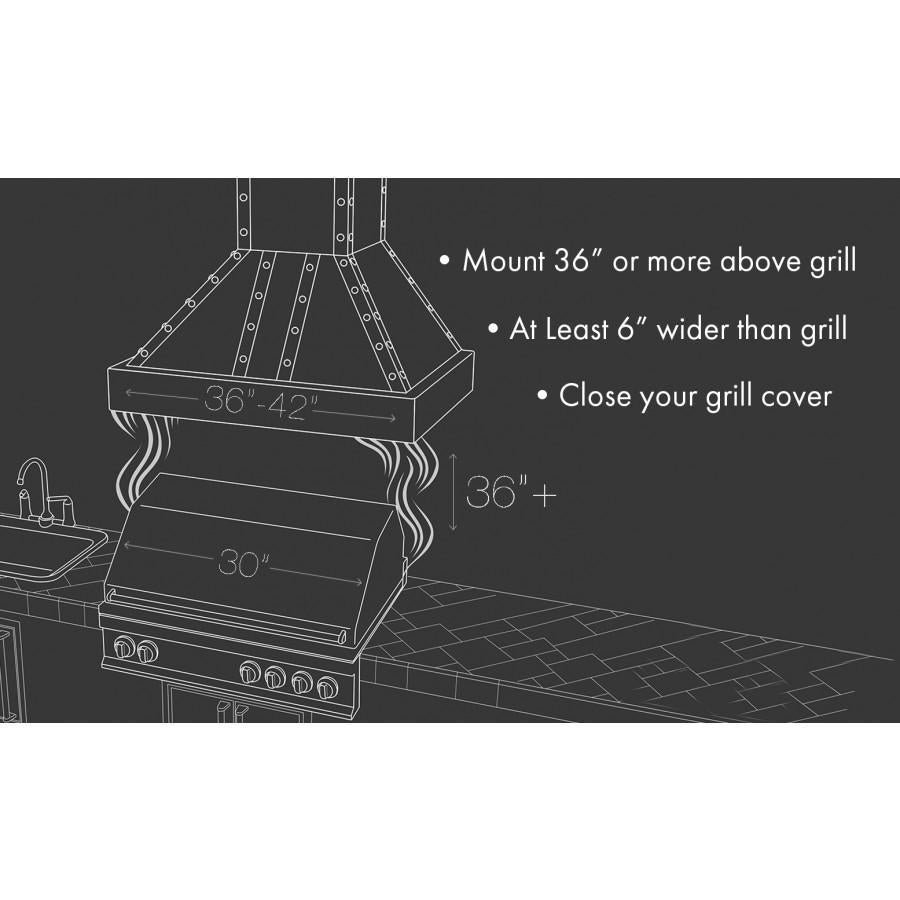

• Always install your outdoor range hood at least 36" above your outdoor range or grill
• If purchasing a 760 CFM range hood, your hood should be at least 2 sizes larger than your grill
• If purchasing a 900 or 1200 CFM range hood, your hood should be at least 1 size larger than your grill
• It is not recommended to use a recirculating range hood, you should always duct away from your cooking areaPRODUCT DESCRIPTION:

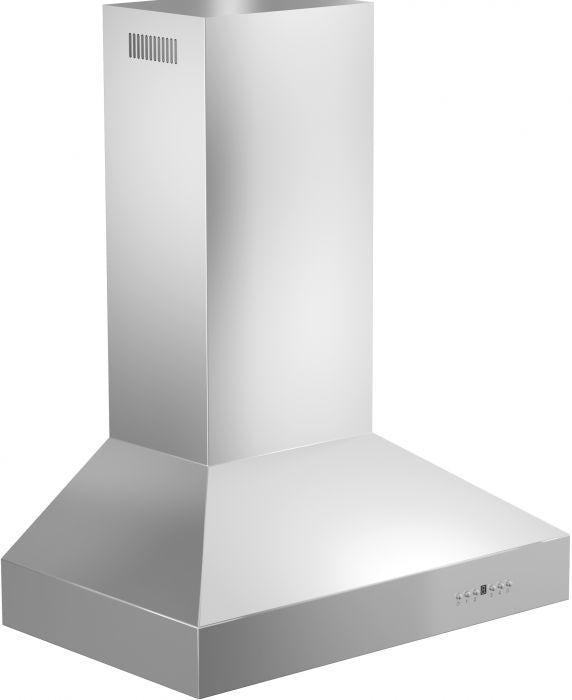

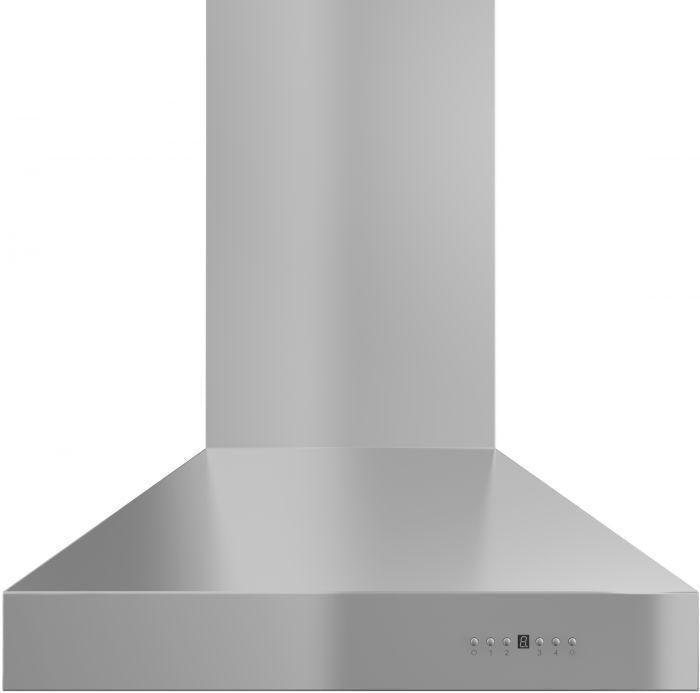

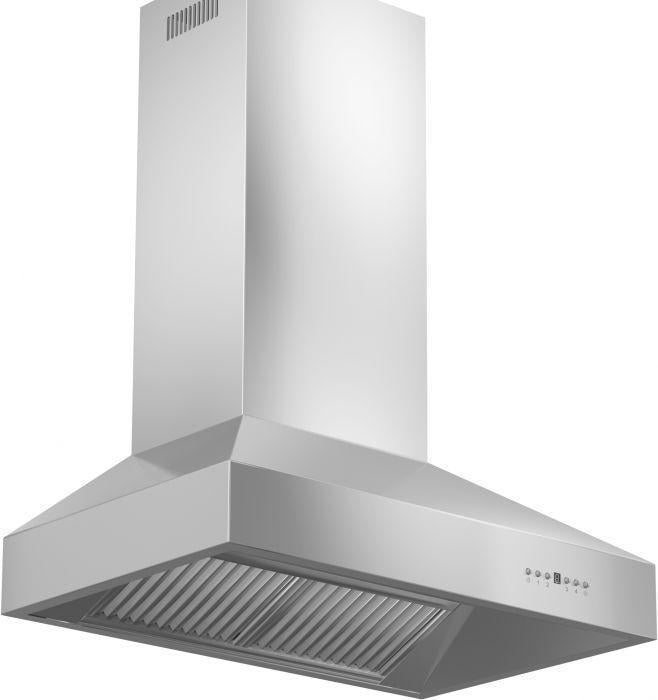

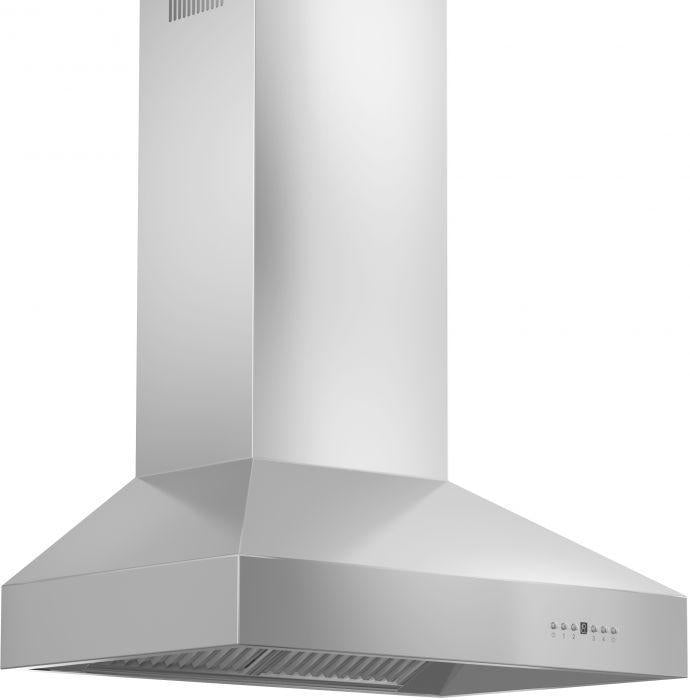

The ZLINE 697-304-30 is a 30-inch outdoor professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade, outdoor approved stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
PRODUCT SPECIFICATIONS:

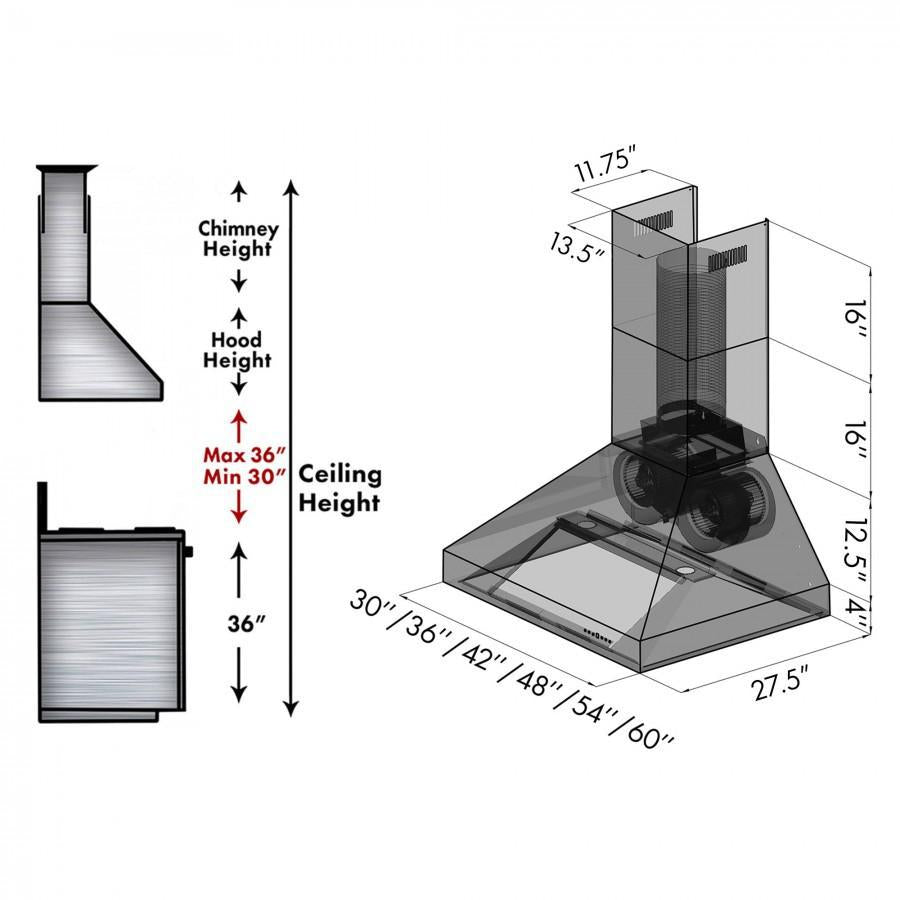

Brand: ZLINE Kitchen and Bath Dimension: 30" W x 27.5" D x 16.375" HChimney (Dimension): 13.5" W x 11.75" D x 16" H (x2) (Telescoping)
Chimney Short Kit and Extension(s) Available:
Short Kit (2-12") ~7-8 ft. Ceilings
1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
2 PC Extension (2-36") ~10-12 ft. CeilingsVenting Size: 6" Outlet (Transition piece with backdraft damper to round ducting included)
Charcoal Filters (not included) available for ductless/recirculating option.

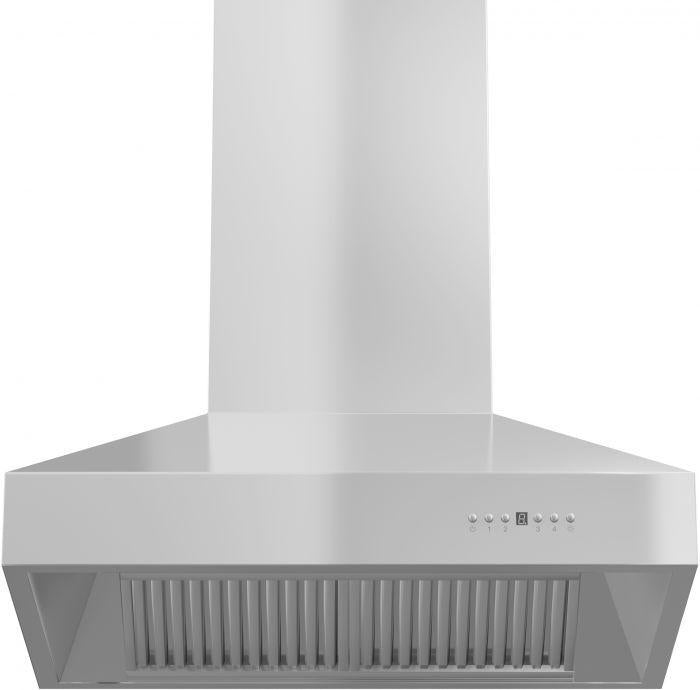

Airflow (Q/L/M/H): 280/460/670/900 (CFM)Lighting: 2 Directional LED Lights (3-Watt) Noise Level: 30/42/51/55 (Decibels)Voltage: 110V/60HZ Motor: High Performance 900 CFM/4-Speed MotorMount Type: Wall Mount - RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL Speeds: 4 speeds Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)Filters: Stainless Steel Baffle Filters (Dishwasher Safe)Material: 19g #304 Stainless Steel Warranty: 3 Year Parts Warranty Features: Model No. 697-304-30 (ETL Listed) UPC: 855187005832 Certifications: ETL Certified
Range Hood Decibel Levels:
ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation.
Chimney Sizing:
ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
ABOUT ZLINE:
THE INDUSTRY LEADER
- ZLINE Range Hoods blend superior performance with elegant design
- An industry-first LIFETIME WARRANTY on all motors
- 3 Year All-Inclusive Parts Warranty
- Propriety designs and high end craftsmanship
- Crown Molding is included on all Designer Range Hoods providing a seamless hood to ceiling transition
INSTALLATION AND CARE
- The installation of this product is one of the easiest in the industry!
- Standard ducting and electrical requirements (110V/60HZ) make ZLINE Range Hoods compatible with most kitchens and homes
- Chimney Short Kits and Extensions available for non-standard ceiling heights
- High-quality Stainless Steel Baffle Filters can be easily removed and washed in the dishwasher, allowing for easy clean-up for years to come
- Factory-tested assurance of performance and our 3 Year Parts Warranty shows we stand by our craftsmanship
- Easy-to-contact, friendly customer service department available to answer any and all questions throughout the duration of your ZLINE Range Hood experience
-
