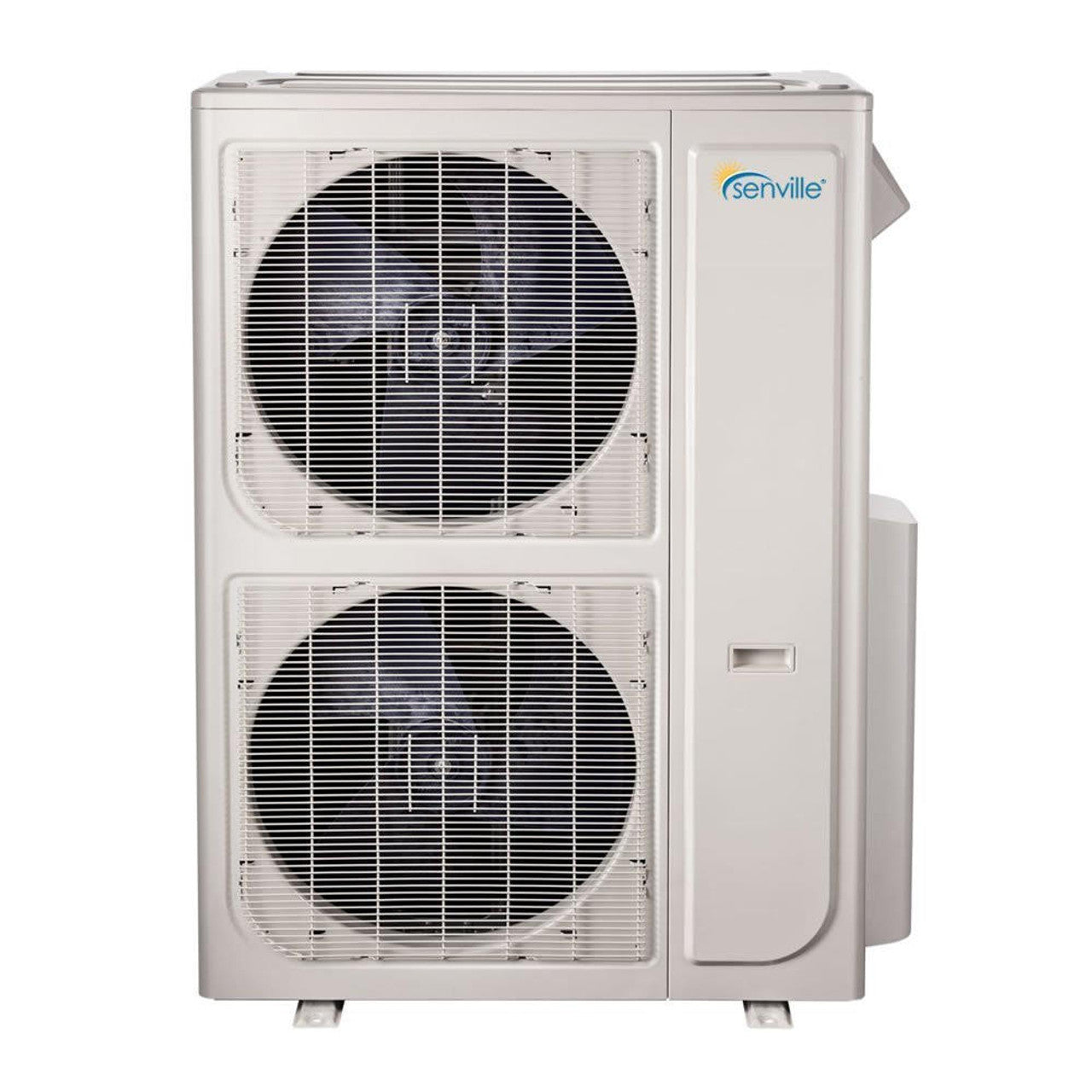

Senville AURA 48,000 BTU Multi-Zone Mini Split Condenser 230V, SENA-48HF-MOA

Name: Senville AURA 48,000 BTU Multi-Zone Mini Split Condenser 230V, SENA-48HF-MOA
Brand: Senville
SKU: SENA-48HF-MOA
Price: 2899.99 USD
Availability: InStock

Model: SENA-48HF-MOA

$2,899.99

$2,899.99 ~~$3,099.99~~

-6%

Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 48,000

48,000

18,000

28,000

36,000

48,000

Product variants

This item is in stock! Estimated Arrival: Apr 30 to May 03

$2,899.99

$2,899.99 ~~$3,099.99~~

Product Overview

Voltage: 208-230V
HVAC Technician Required
ENERGY STAR Certified

BETTER TOGETHER

DESCRIPTION

A powerful heating and cooling solution for year-round comfort. ENERGY STAR® Certified with Ultra-Inverter Technology, saving up to 40% on energy costs while maintaining precise temperature control.

High Efficiency: 20.4 SEER2 rating for lower energy bills
Extreme Cold Performance: Operates in temperatures as low as -22°F (-30°C)
Advanced Safety: Leak detection & self-diagnosis for easy maintenance
Durable & Weatherproof: Designed to withstand harsh conditions
10-Year Warranty: Industry-leading protection (10 years on compressor, 5 years on parts)

*HVAC Technician required for installation*

SPECIFICATIONS & DIMENSIONS

Dimensions & Weight

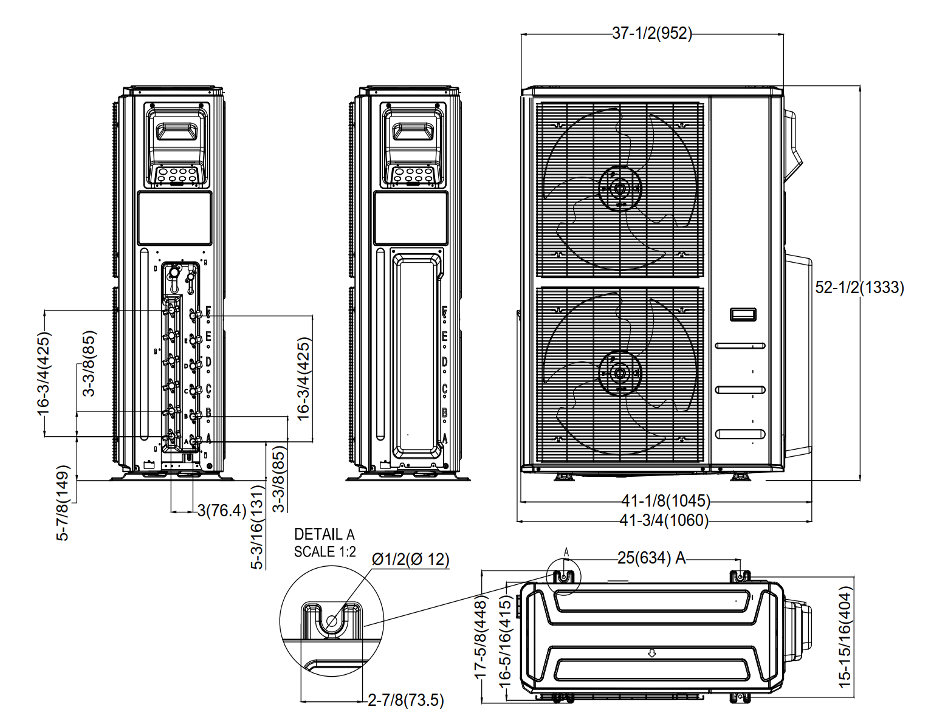

Dimensions: 37.84" W x 16.34" D x 52.84" H
Net Weight: 246.47 lbs
Capacity & Performance
Maximum Zones: 5 or 6
Ports: 6 Ports Available
Cooling Capacity: 47,000 BTU
Standard Operating Range (Cooling): -22~122℉
SEER2: 20.4
EER2: 11.7
Heating Capacity: 20,000 BTU
Standard Operating Range (Heating): -22~75℉
HSPF2-4: 11.0
HSPF2-5: 8
COP: 3.5
Outdoor Noise Level: 65 dB(A)
Electrical Requirements
Power Supply: 208/230V,60Hz,1Ph
Voltage Range: 187-253V
Minimum Circuit Ampacity: 37A
Max. Fuse: 40A
Connection Wiring: AWG 14-4
Fan Motor (RLA): 2.5A
Compressor Rated current (RLA): 27A
Refrigerant & Piping
N.A. Design Pressure: 550 / 340 PSI
Refrigerant Type: R454B
Refrigerant Charge: 151.68 oz
Additional Refrigerant per ft: 0.16 oz per ft
Throttle Type: EXV
Liquid Size: 6x6.35mm(6x1/4in)
Gas Size: 4x9.52mm+2x12.7mm(4x3/8in+2x1/2in)
Max. Length per Each Indoor Unit: 114.8 ft.
Max. Piping Length per system: 262.4 ft.
Max. Height Difference: 49.2 ft.
Connection Method: Flared
Certifications & Warranty
Certifications: Energy Star Certified, UL Certified
Warranty: 10 Years Compressor / 5 Years Parts

INSTALLATION & GUIDES

Product Brochure

Installation Manual

Remote Control Manual

Energy Guide

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU	Square Feet
9,000 BTU	150 - 400 Sq Ft.
12,000 BTU	401 - 550 Sq Ft.
18,000 BTU	551 - 1,000 Sq Ft.
24,000 BTU	1,001 - 1,250 Sq Ft.
30,000 BTU	1,251 - 1,350 Sq Ft.
36,000 BTU	1,351 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
