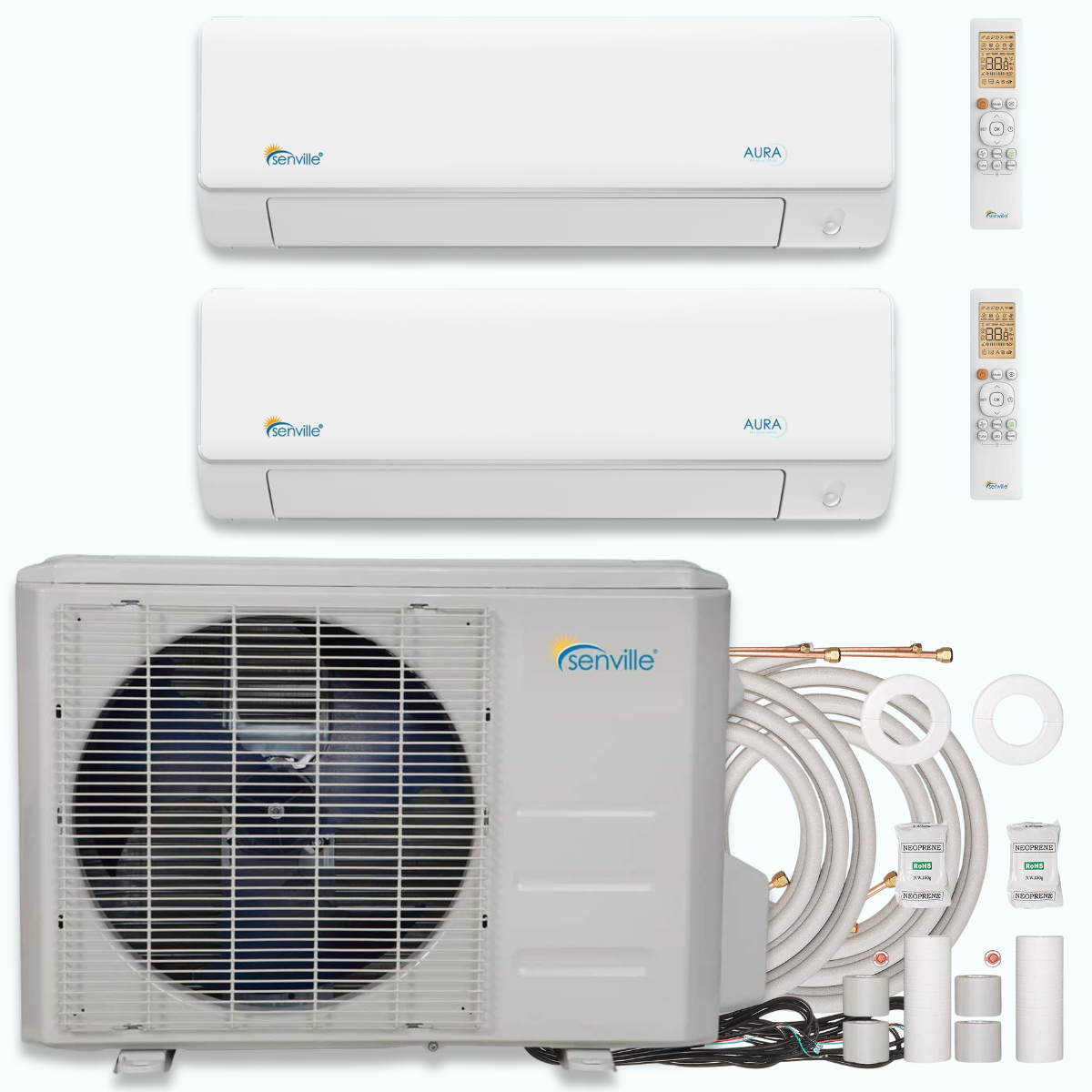

Senville AURA 24,000 BTU 2 Zone Ductless Mini Split - 230V - 25 SEER2 - Energy Star, SENA-18HF-D1212

Model: SENA-18HF-D1212
$2,099.99 - $2,399.99
Shipping calculated at checkout.

Buy Now, Pay Later

16 ft. + 16 ft.
16 ft. + 16 ft.
16 ft. + 25 ft.
25 ft. + 25 ft.
16 ft. + 50 ft.
50 ft. + 50 ft.
$2,099.99
$2,099.99 $2,470.58
-15%

This item is in stock! Estimated Arrival: May 16 to May 19

$2,099.99
$2,099.99 $2,470.58

Product Overview

  • Zones: 2

  • Voltage: 208-230V

  • 10 Years Compressor Warranty

  • 5 Years Parts Warranty

  • HVAC Tech Required

  • ENERGY STAR Certified

What's Included

BETTER TOGETHER

DESCRIPTION

A powerful heating and cooling solution for year-round comfort. ENERGY STAR® Certified with Ultra-Inverter Technology, saving up to 40% on energy costs while maintaining precise temperature control. Ideal for spaces 750 to 1,250 sq. ft.

  • High Efficiency: 25 SEER2 rating for lower energy bills
  • Extreme Cold Performance: Operates in temperatures as low as -22°F (-30°C)
  • WiFi Smart Control: Adjust settings from anywhere with iOS & Android apps
  • Whisper-Quiet Operation: Perfect for homes, offices, and commercial spaces

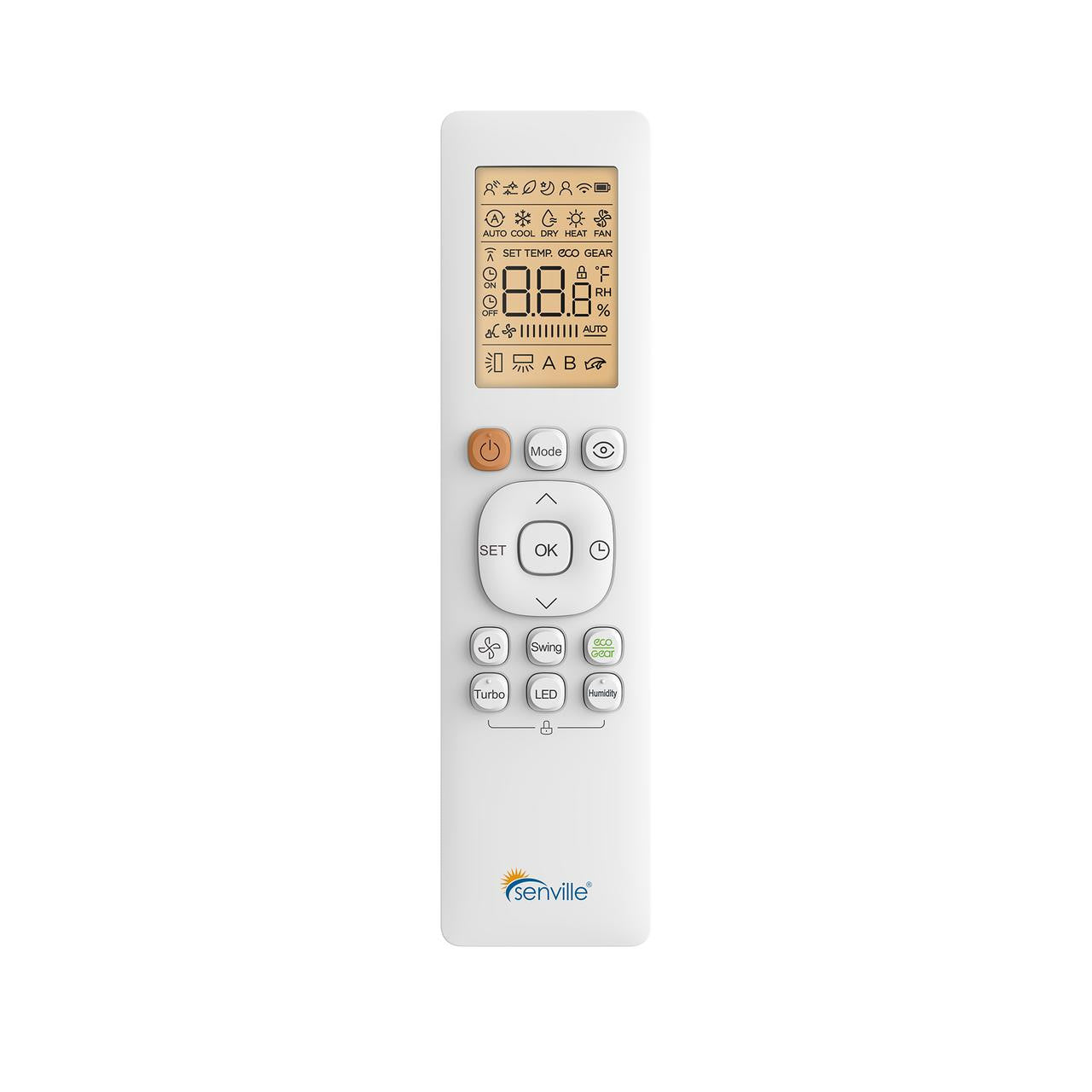

  • "Follow Me" Remote: Built-in thermostat adjusts based on your location
  • Self-Cleaning & Silver Ion Filter: Maintains efficiency and cleaner air
  • Advanced Safety: Leak detection & self-diagnosis for easy maintenance
  • Durable & Weatherproof: Designed to withstand harsh conditions
  • 10-Year Warranty: Industry-leading protection (10 years on compressor, 5 years on parts)
  • Easy Installation: Pre-charged with R454B refrigerant, includes installation kit

*HVAC Technician required for installation*

SPECIFICATIONS & DIMENSIONS

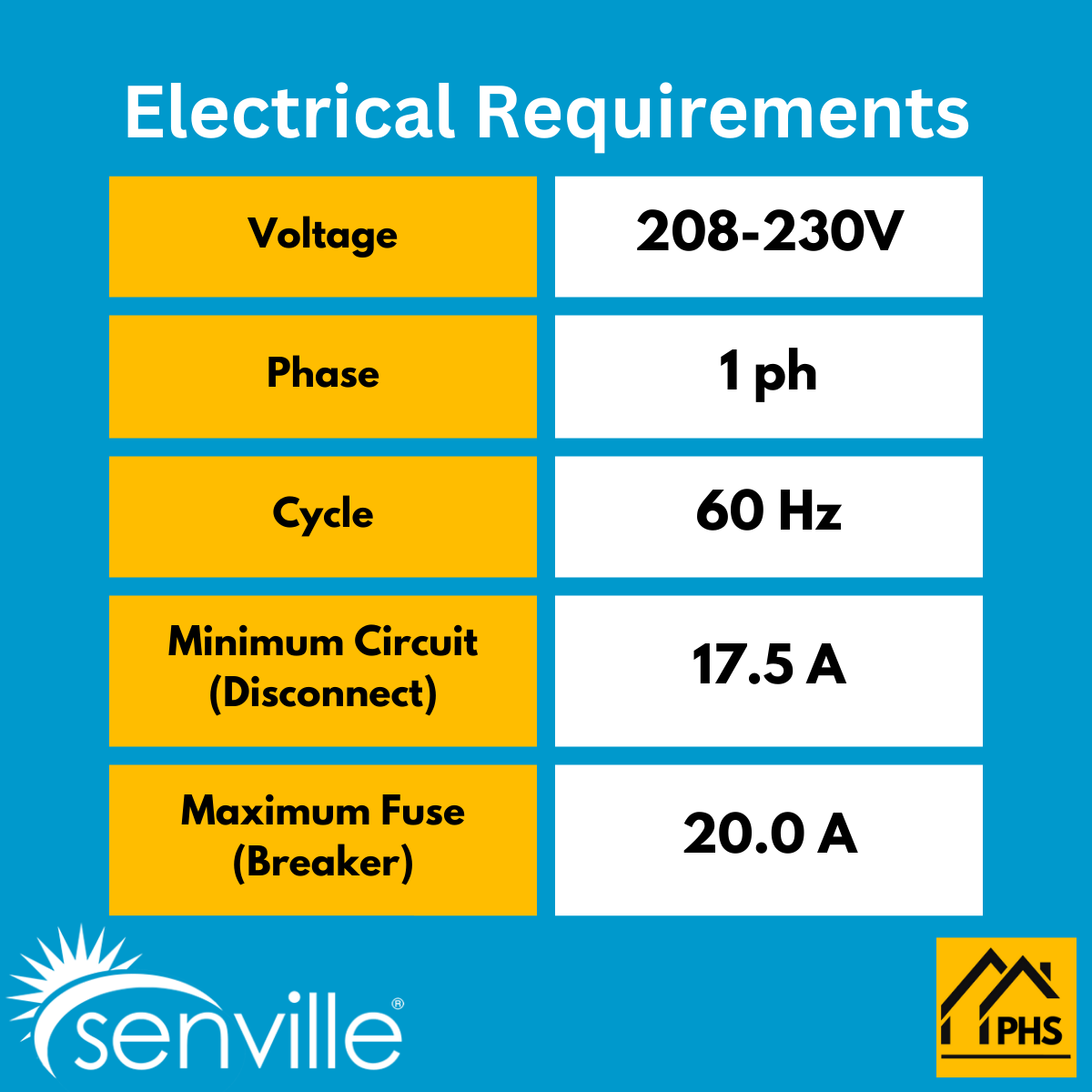

  • Electrical Requirements
  • Voltage: 208/230V
  • Phase: 1
  • Cycle: 60 Hz
  • Minimum Circuit (Disconnect): 17.5 A
  • Maximum Fuse (Breaker): 20 A

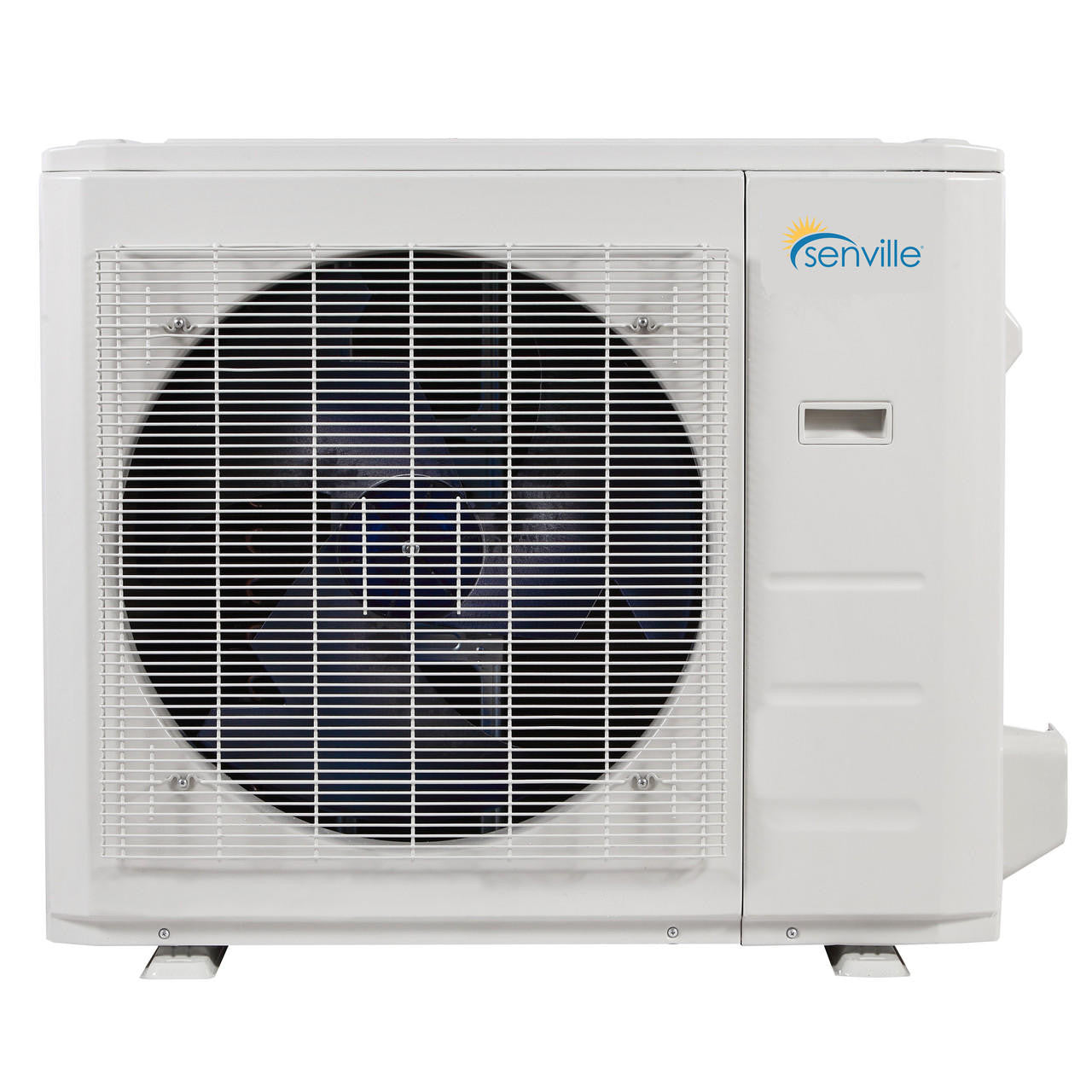

  • Condenser (18,000 BTU)
  • Number of Zones: 2
  • Dimensions: 37.24" W x 16.14" D x 31.89" H
  • Weight: 37.35 lbs
  • Cooling Capacity: 19,000 BTU
  • Outdoor Operating Temperature (Cooling): -22°F - 122°F
  • SEER2: 25
  • EER2: 15
  • Heating Capacity: 20,000 BTU
  • Outdoor Operating Temperature (Heating): -22°F - 86°F
  • HSPF2-4: 10.4
  • HSPF2-5: 8.5
  • COP W/W: 4
  • Outdoor Noise Level: 61.5 dB
  • Outdoor Air Flow (Max): 2130.7 CFM

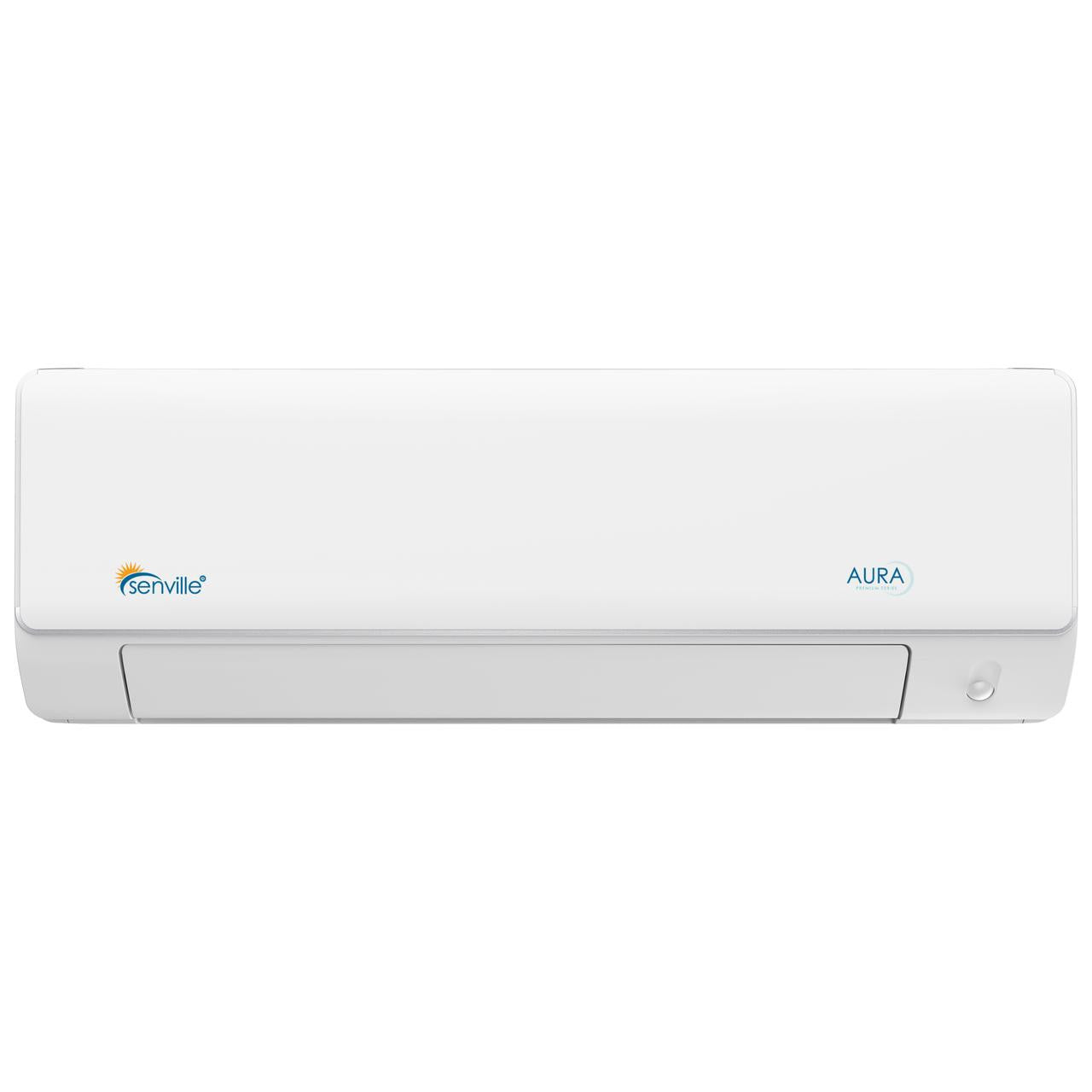

  • Air Handler (12,000 BTU)
  • Dimensions: 32.87" W x 7.80" D x 11.02" H

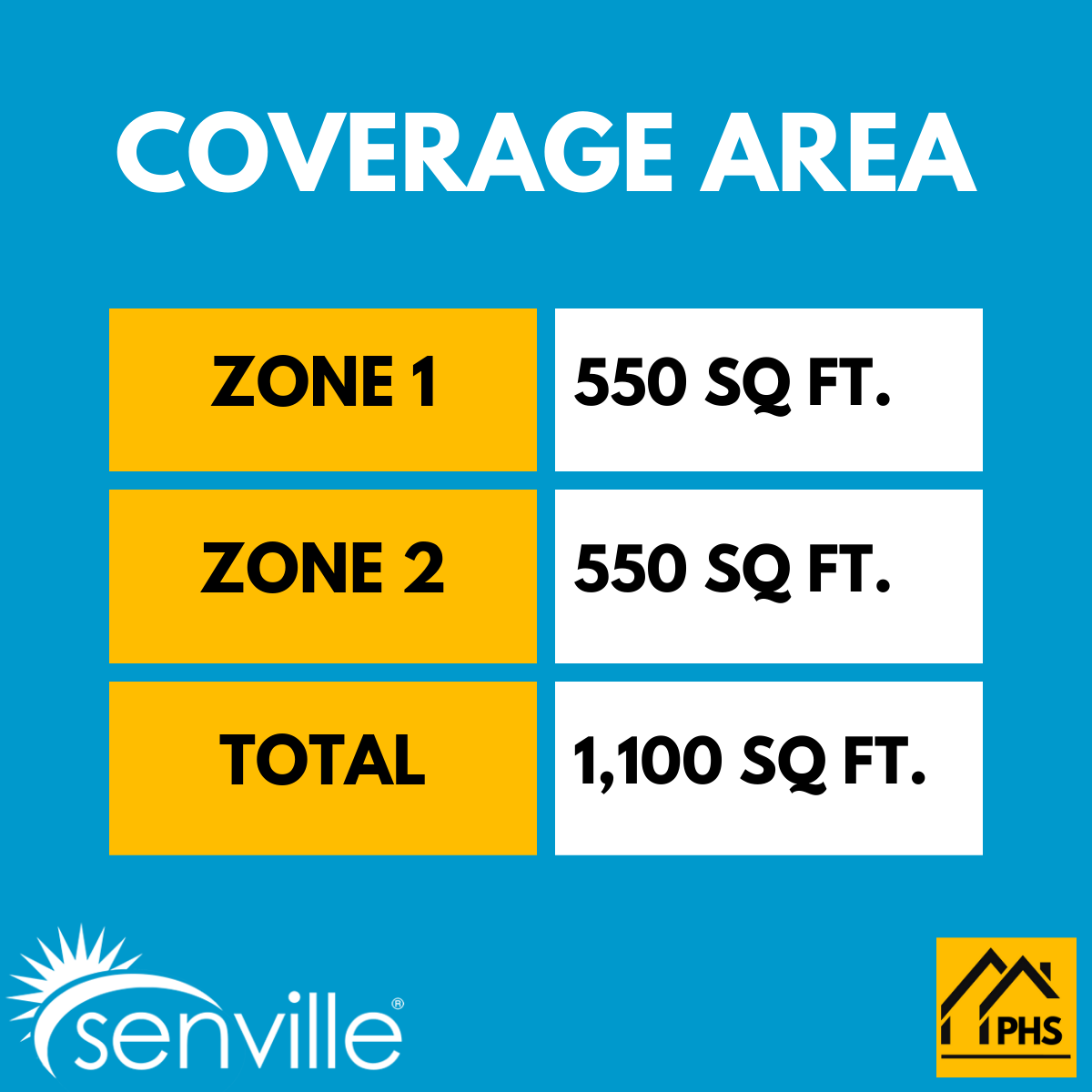

  • Coverage Area: 400 to 550 sq ft.
  • Cooling Capacity: 12,000 BTU
  • Heating Capacity: 11,800 BTU
  • Refrigerant & Piping
  • Refrigerant Type: R454B
  • Refrigerant Volume: 78.31 oz
  • Certifications & Warranty
  • Certifications: Energy Star Certified, UL Certified
  • Warranty: 10 Years Compressor / 5 Years Parts

INSTALLATION & GUIDES

Product Brochure
Installation Manual
Remote Control Manual
AHRI Certificate

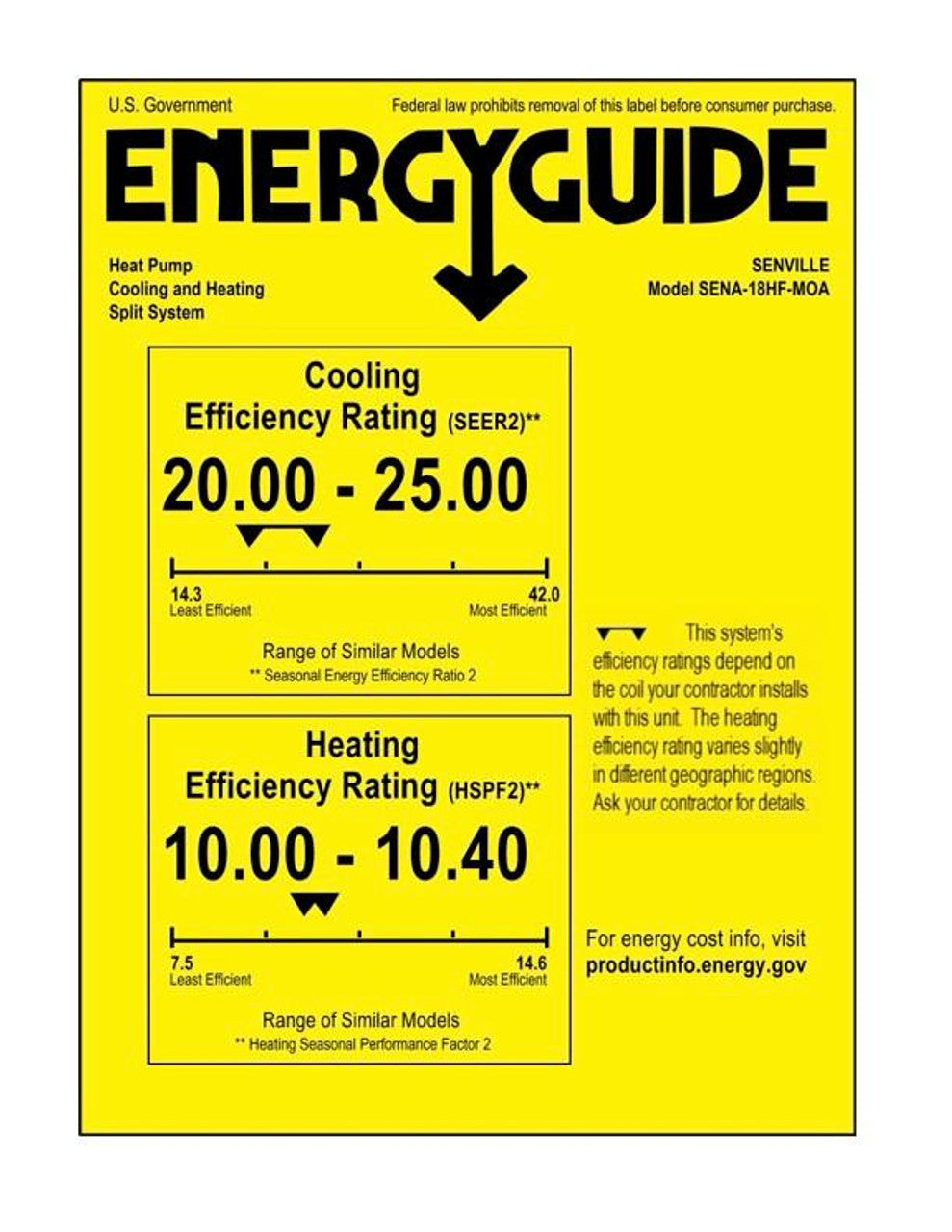

Energy Guide

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU Capacity Area to be Heated (Sq Ft) Area to be Cooled (Sq Ft)
9,000 BTU 150 - 400 150 - 400
12,000 BTU 401 - 550 401 - 550
18,000 BTU 551 - 825 551 - 925
24,000 BTU 826 - 1,100 926 - 1,250
30,000 BTU 1,101 - 1,375 1,251 - 1,550
36,000 BTU 1,376 - 1,650 1,551 - 1,875
48,000 BTU 1,651 - 2,200 1,876 - 2,500
60,000 BTU 2,201 - 2,750 2,501 - 3,125

Additional Factors That Affect Sizing

Location & Climate:

  • Cold climates: 40–60 BTUs per sq ft.
  • Mild climates: 20–30 BTUs per sq ft.

Insulation & Windows:

  • Well-insulated homes can reduce BTU needs by 10–15%.
  • Poor insulation may require up to 20% more BTUs.

Ceiling Height:

  • Table assumes 8-foot ceilings.
  • Add 10–12% BTUs per additional foot of ceiling height.

Room Type Adjustments:

  • Kitchens: Add 4,000–5,000 BTUs for appliance-generated heat.
  • High-occupancy rooms: Add 400–600 BTUs per extra person beyond two.
  • Sunrooms: Add 10–20% depending on glass exposure.

Usage:

  • In cold climates, size primarily for heating.
  • In warm climates, size primarily for cooling.

System Choice:

  • Under 1,200 sq ft: Single-zone unit may be enough.
  • Over 1,200 sq ft: Consider multi-zone or multiple systems.

Professional Sizing:

  • For best results, request a Manual J Load Calculation from a licensed HVAC contractor.

SHIPPING POLICY

Free Curbside Delivery
Senville orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most affordable carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

Senville returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Please note, a 15% restocking fee and return shipping fee will be applied to all approved returns.

See our full Return Policy here.

Accessories

AURA MINI SPLIT

Frequently Asked Questions

Do Senville Mini Splits provide both heating and cooling?

Yes! All Senville Mini Split models are heat pumps, offering both cooling in the summer and heating in the winter for year-round comfort.

Are Senville AURA systems eligible for rebates?

Yes, many AURA models are ENERGY STAR® certified, making them eligible for local utility rebates or tax incentives. Check with your local energy provider.

Can you connect two line sets together?

It is possible to connect two lines together using a union and it must be done by a HVAC technician.

Is the Senville AURA a DIY system?

No, the AURA Series is not a DIY model. It must be installed by a licensed HVAC technician to comply with warranty terms and ensure proper refrigerant handling.

Can the AURA Series heat in freezing temperatures?

Yes! The AURA Series is built for cold climates and can heat effectively in temperatures as low as -22°F, making it perfect for winter weather performance.

Can you mix and match air handler unit styles?

Yes, you can mix and match air handler styles (wall-mounted, ceiling cassette, concealed duct, etc.), but this must be done as a custom order.

Find the product here: Build Your Own Senville System, or contact us and we’ll help you create the right setup for your home.

What is the warranty?

Senville offers a 10 year warranty on the compressor and a 5 year warranty on parts.
