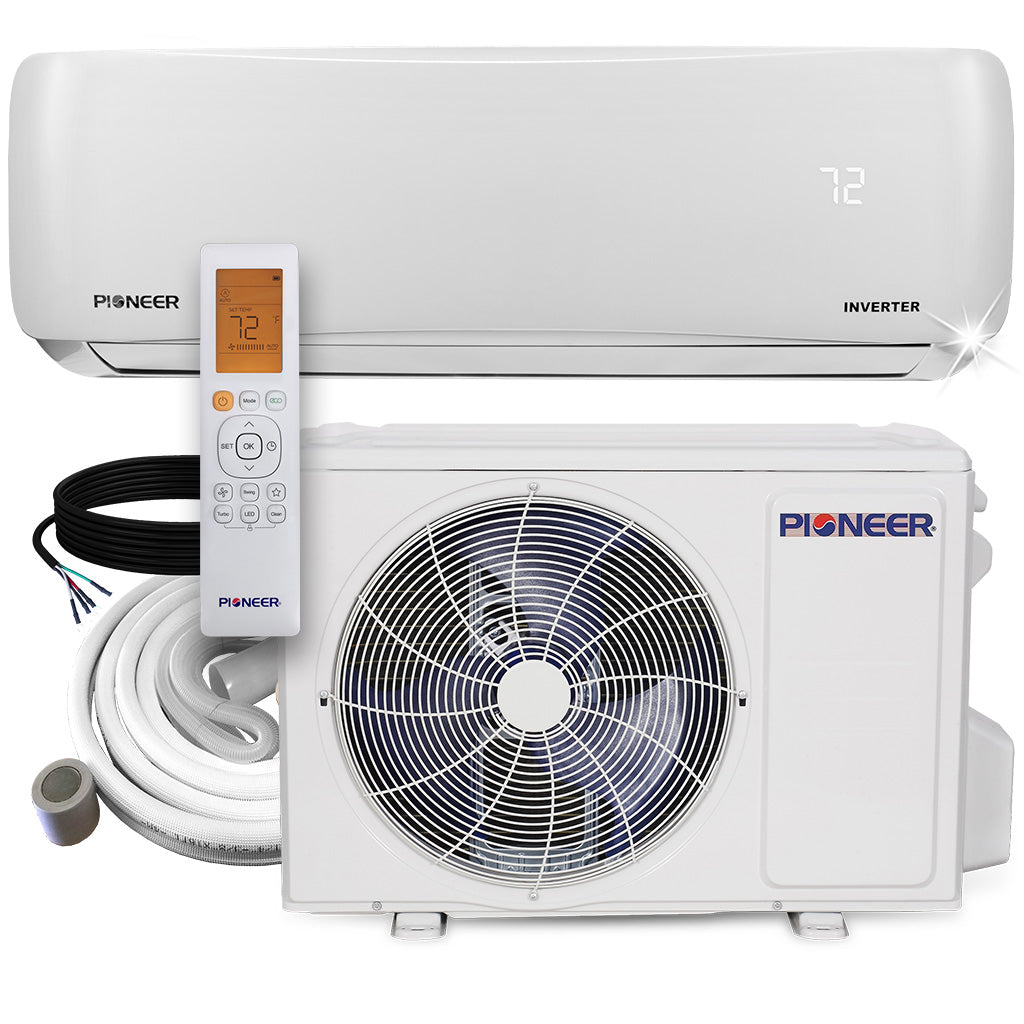

Pioneer® 9,000 BTU 21.5 SEER 230V Ductless Mini-Split Inverter + Air Conditioner Heat Pump System with 33 ft. Line Sets, WYS009GMFI20RL-33
$958.00
$1,119.00
14% Off
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Pioneer® 9,000 BTU 21.5 SEER 230V Ductless Mini-Split Inverter + Air Conditioner Heat Pump System with 33 ft. Line Sets, WYS009GMFI20RL-33
This item is out of stock. Please contact us for an ETA.
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Need help with choosing a Mini Split system or have other questions?
Talk with one of our trusted HVAC professionals today!
Product Overview
- Covers 350 sq. ft.
- HVAC Technician Required
- Wall Mounted
- Number of Zones: 1
Features
- Ultra-high-efficiency Pioneer® 9,000 BTU 21.5 SEER 230V ductless mini-split inverter and air conditioner heat pump
- Cooling capacity: 9,000 BTU/H with 21.5 SEER efficiency
- Heating capacity: 10,000 BTU/H with 10 HSPF efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $55.00
- Heating: $211.00
- Low Ambient Heating. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
Important

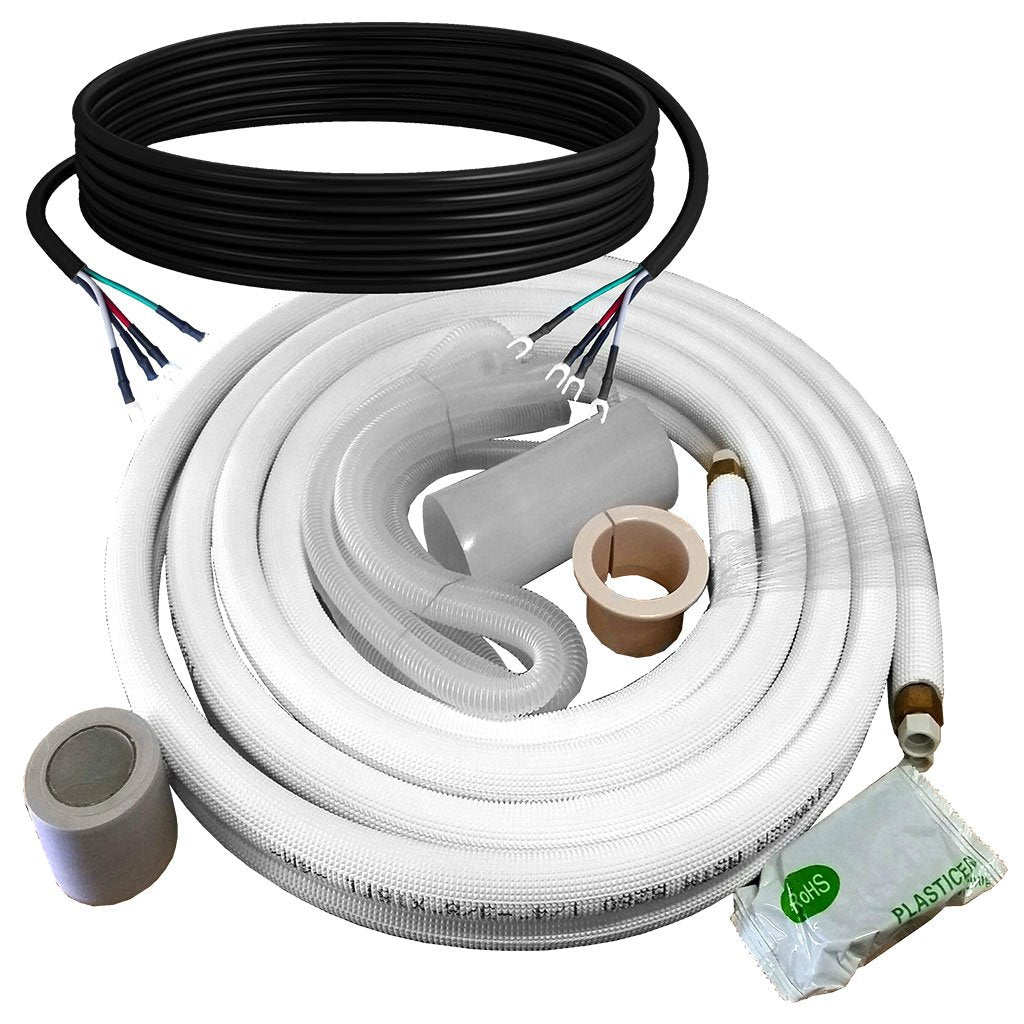

The installation kit is: 33 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Performance Data
| Power Supply: |
208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity: | 9,000 BTU/h |
| Cooling Capacity Range: | 2,600~10,200 BTU/h |
| Cooling SEER: | 21.5 BTU/w |
| SEER2 | 21.7 |
| Heating Rated Capacity: | 10,000 BTU/h |
| Heating Capacity Range: | 2,400~10,900 BTU/h |
| Heating HSPF4/HSPF5: | 10 / 8.3 BTU/w |
| Refrigerant Type: | R410A/30 |
| Suitable Area: | 100~350 Sq.F |
| Warranty | 5 Years Parts and Compressor |

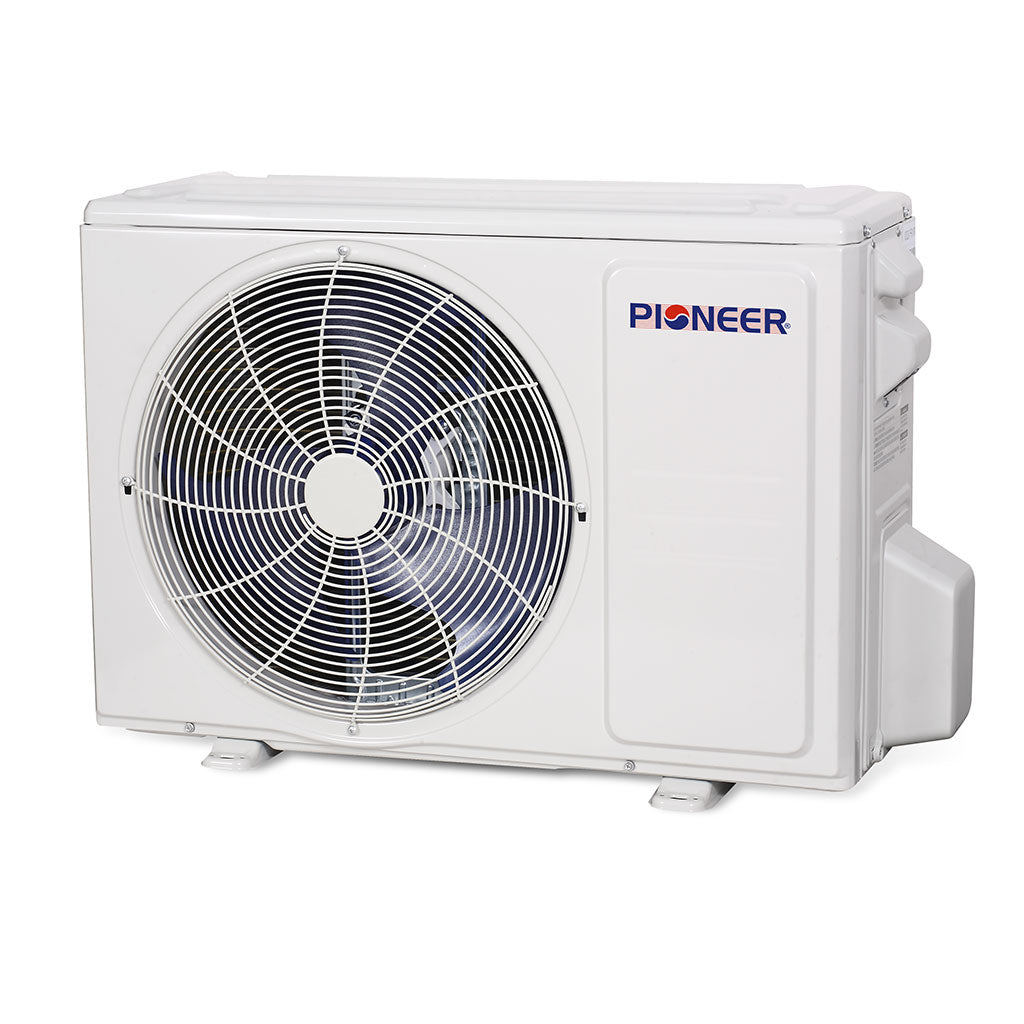

Condenser
| Sound Level: | 53 dB(A) |
| Breaker Needed: | 15A (double-pole) |
| Net Dimensions (WDH): | 31.3"W x 10.6" D x 21.8" H |
| Carton Dimensions (WDH): | 34.8" W x 13.2" D x 24" H |
| Net / Gross Weight: | 55.1 / 60.9 lbs |
| Cool Mode - Outdoor Operating Temperature Range | 5° to 122°F |
| Heat Mode - Outdoor Operating Temperature Range | -13° to 75°F |

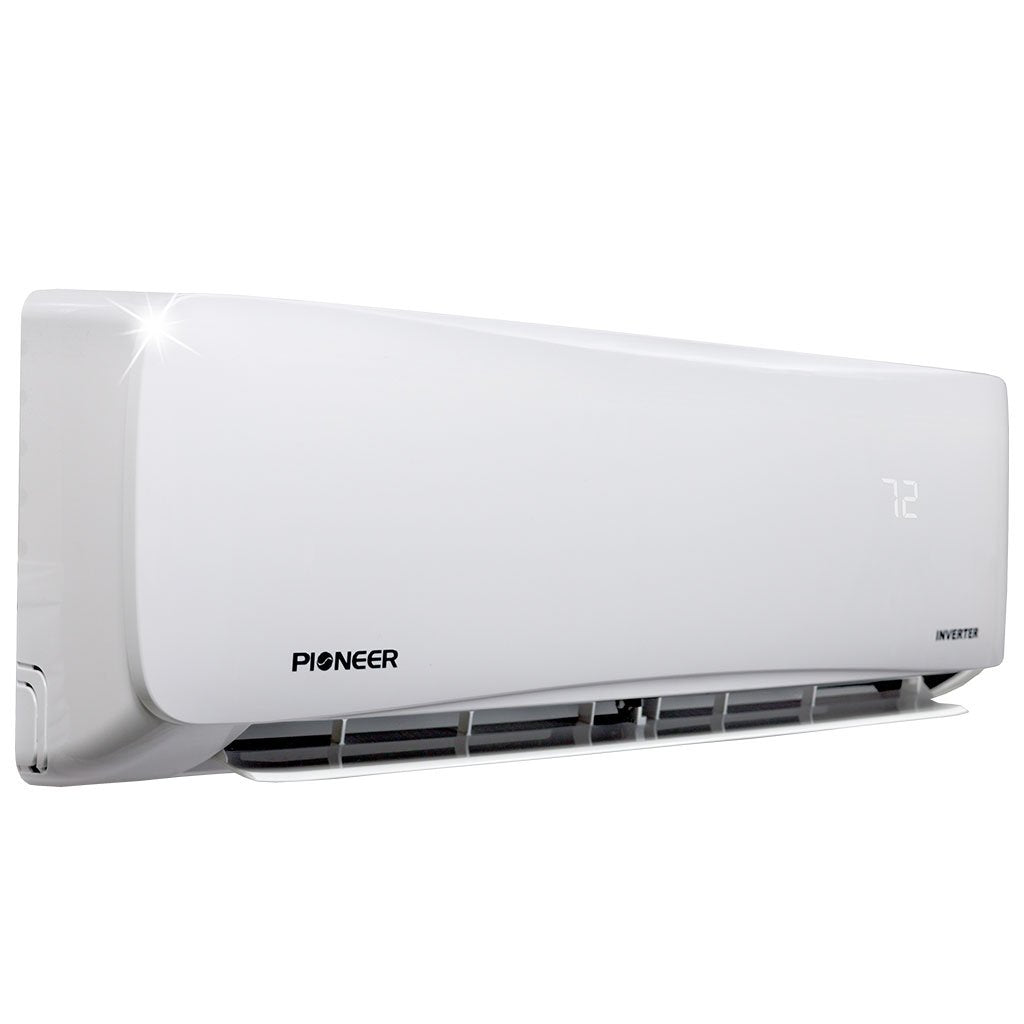

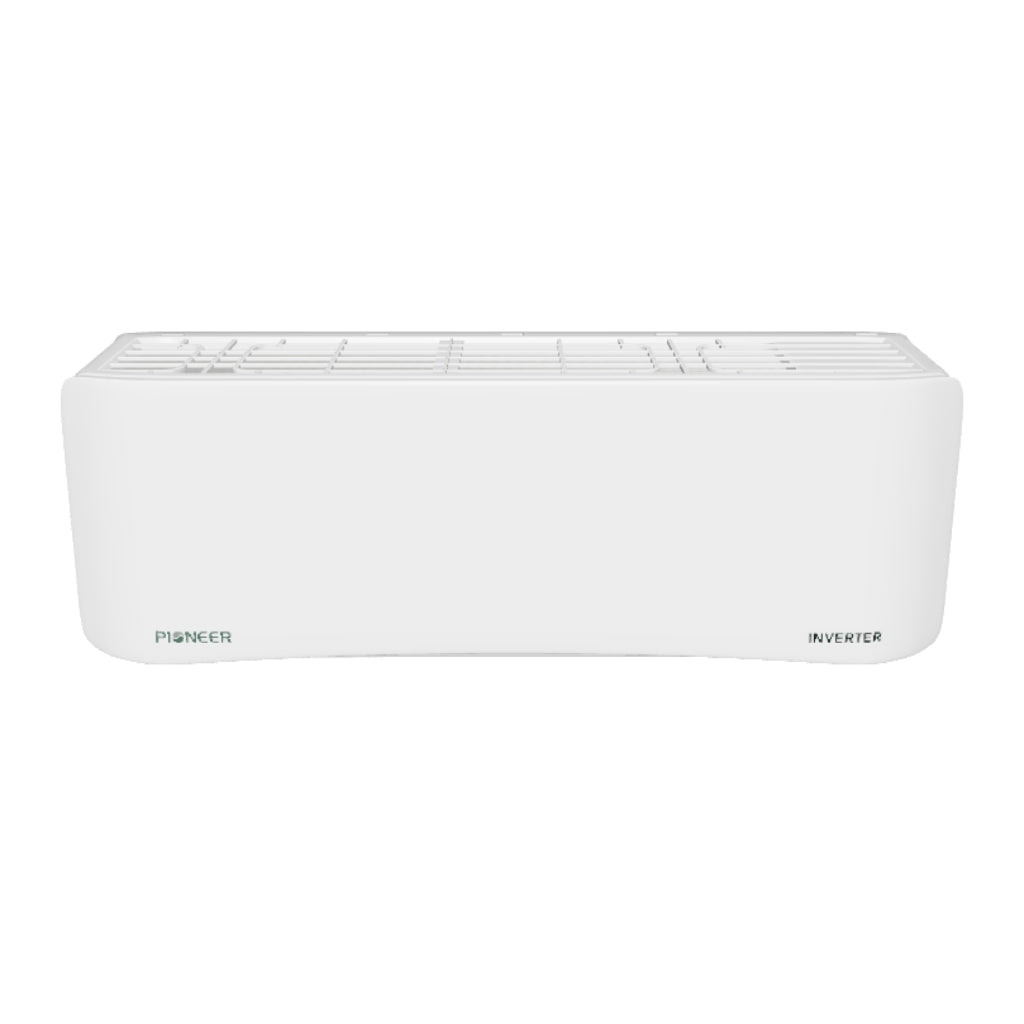

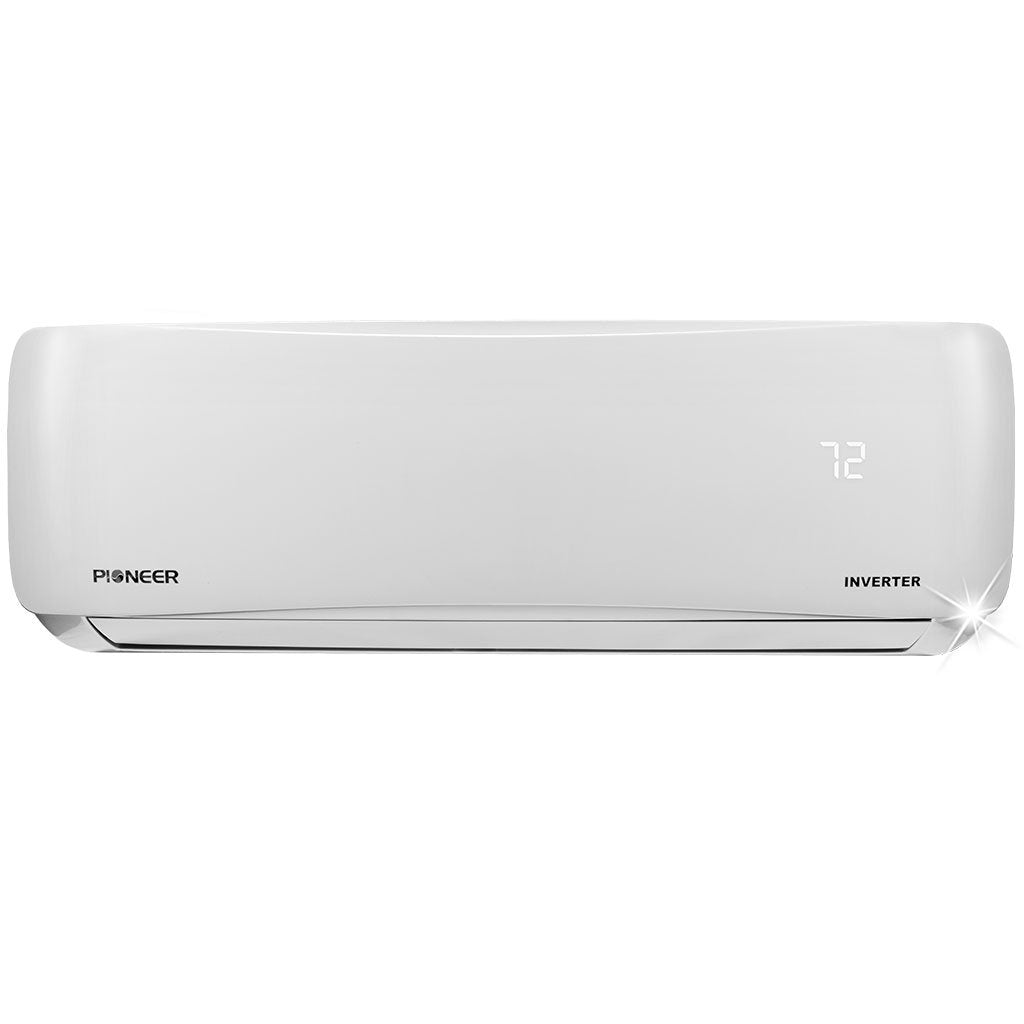

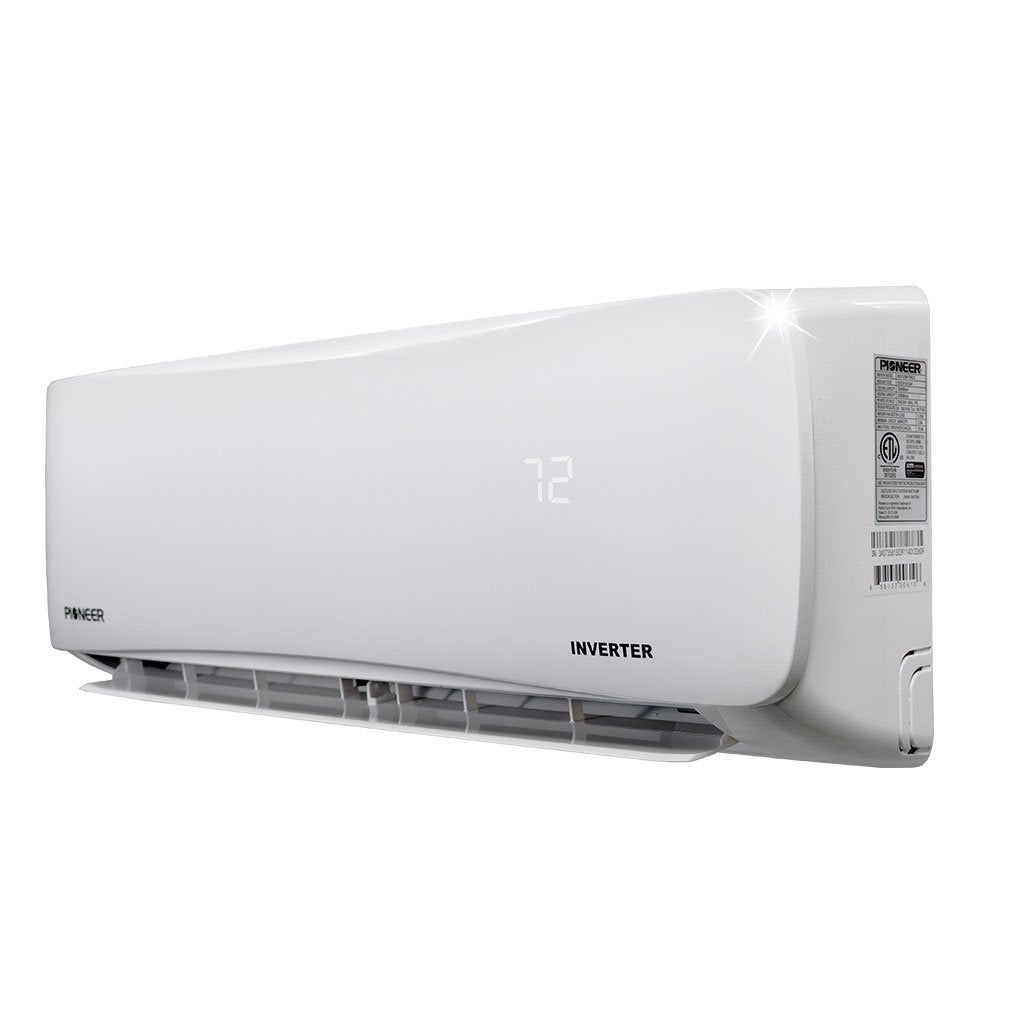

Air Handler
| Air Flow (Hi/Med/Lo): | 259 / 193 / 136 CFM |
| Sound Level (Hi/Med/Lo): | 40.5 / 30.5 / 24 dB(A) |
| Net Dimensions (WDH): | 28.5" W x 7.3" D x 11.4" H |
| Carton Dimensions (WDH): | 31.2" W x 10..6" D x 14.75" H |
| Net / Gross Weight: | 17 / 22.3 lbs |
