Pioneer® 9,000 BTU 21.5 SEER 230V Ductless Mini-Split Inverter + Air Conditioner Heat Pump System with 10 ft. Line Sets, WYS009GMFI20RL-10

Features

• Ultra-high-efficiency Pioneer® 9,000 BTU 21.5 SEER 230V ductless mini-split inverter and air conditioner heat pump
• Cooling capacity: 9,000 BTU/H with 21.5 SEER efficiency
• Heating capacity: 10,000 BTU/H with 10 HSPF efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $55.00
• Heating: $211.00

• Refrigerant Leakage Detect Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Low Ambient Heating With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Important Note

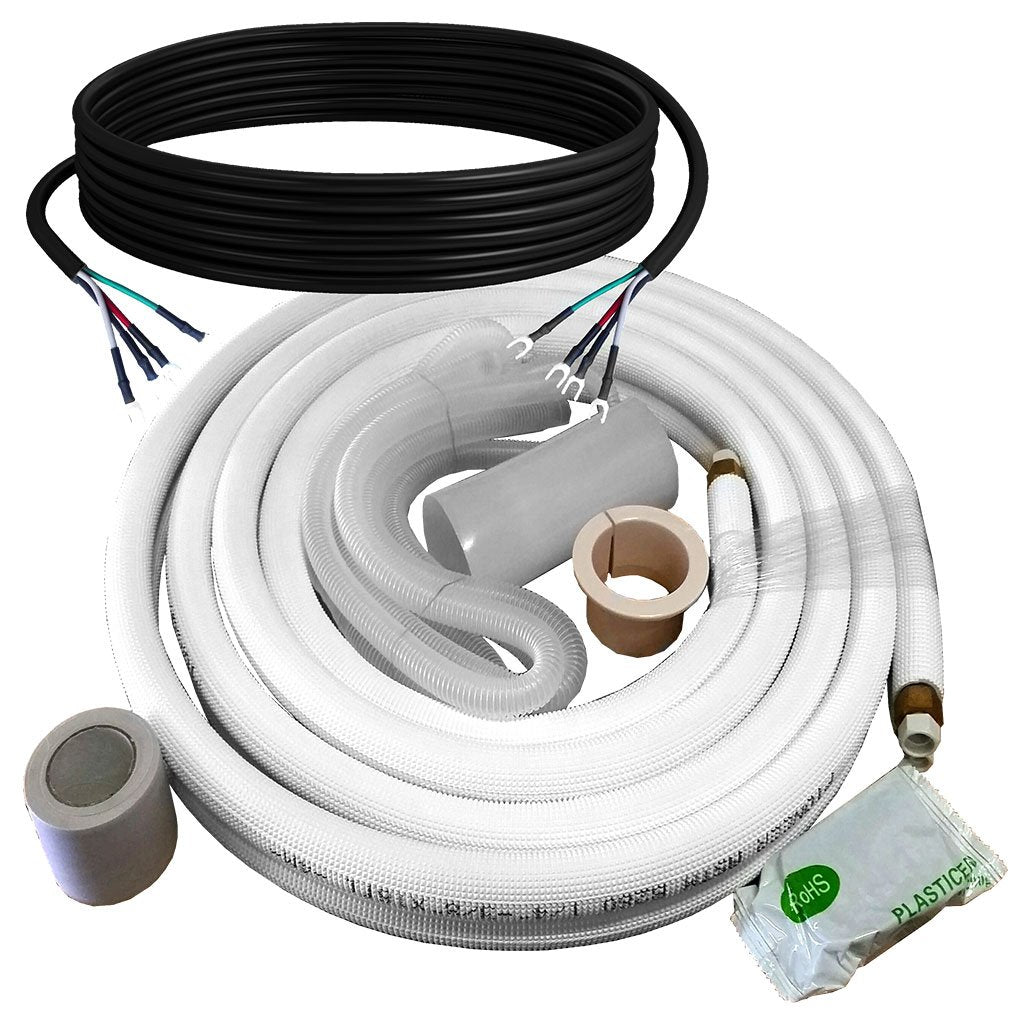

The installation kit is: 10 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Flare Connection Leak Guard Sealer

• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure

• User Manual

• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
