Product Summary
- Ultra-high efficiency ductless mini split inverter + ductless mini split heat pump system
- Cooling capacity: 9,000 BTU/H with 20.5 SEER/12.5 EER efficiency
- Heating capacity: 10,000 BTU/H with 10 HSPF/2.93 COP efficiency
- Voltage: 110~120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Customizable length copper line set with flare connections
-
Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $58.00
- Heating: $211.00
Features
-
Refrigerant Leakage Detect Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
-
Anti-cold Air Function Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
-
Low Ambient Heating. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
-
Follow Me Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

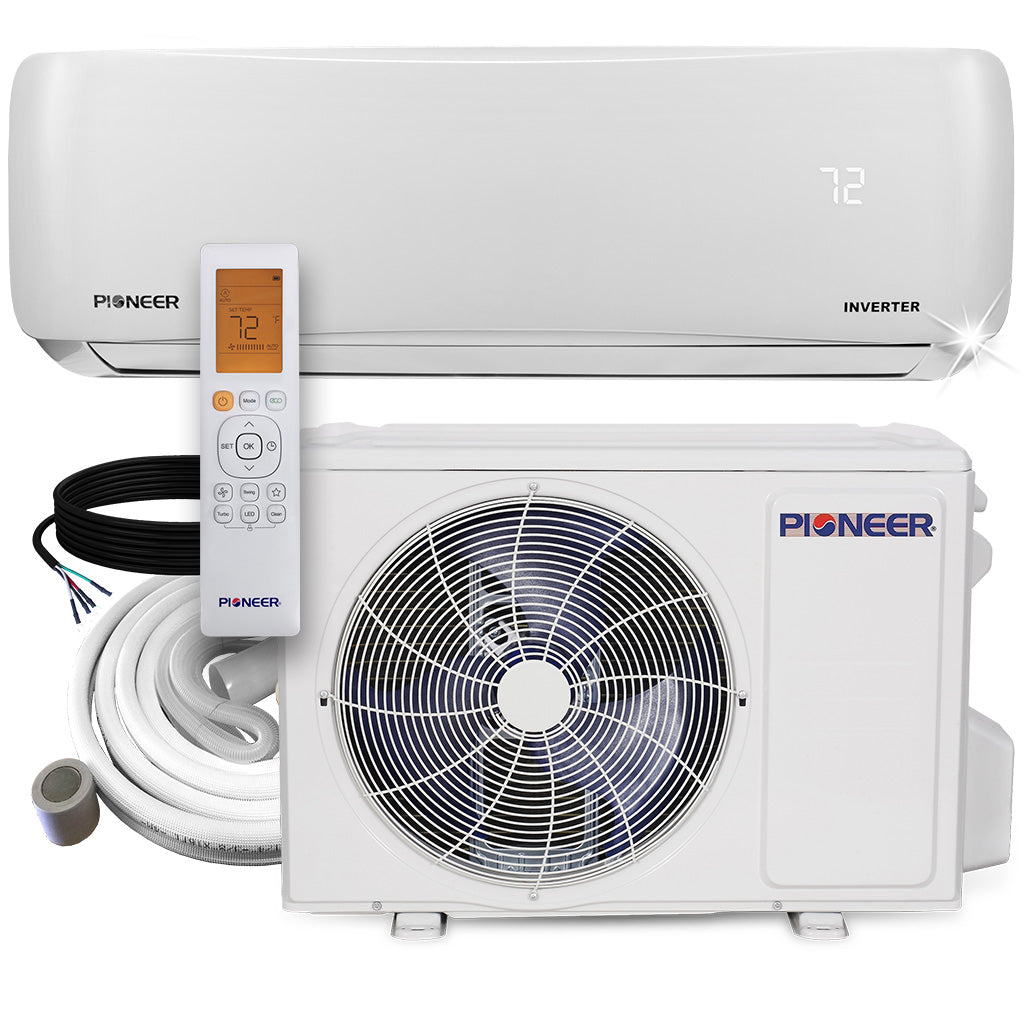

What's Included

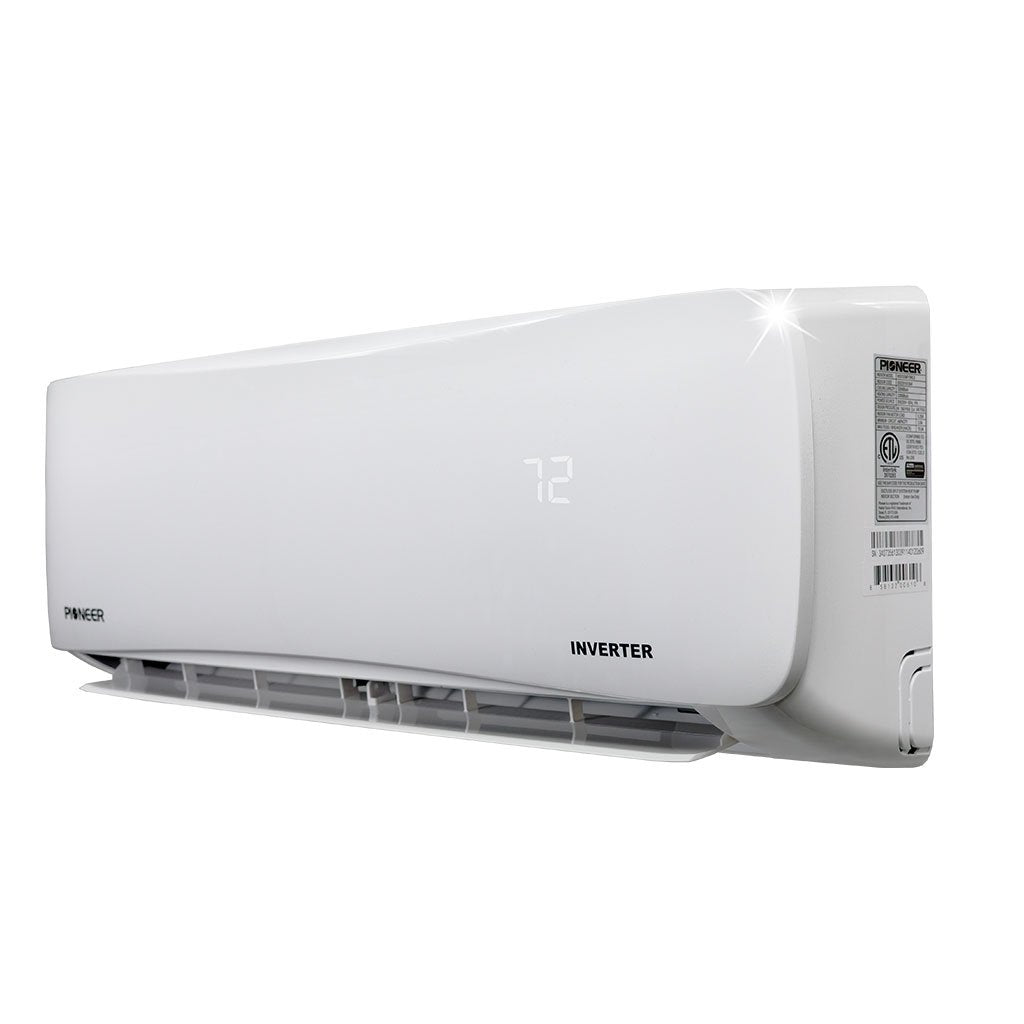

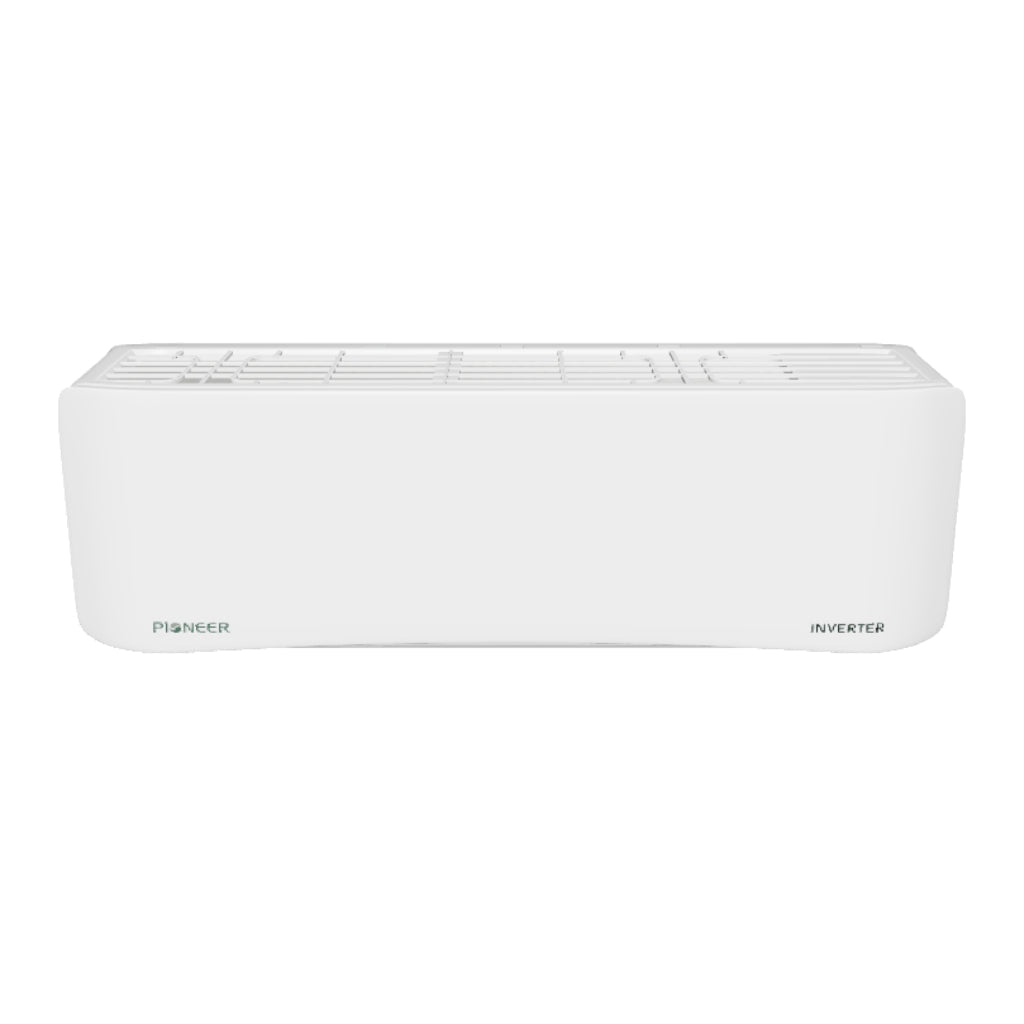

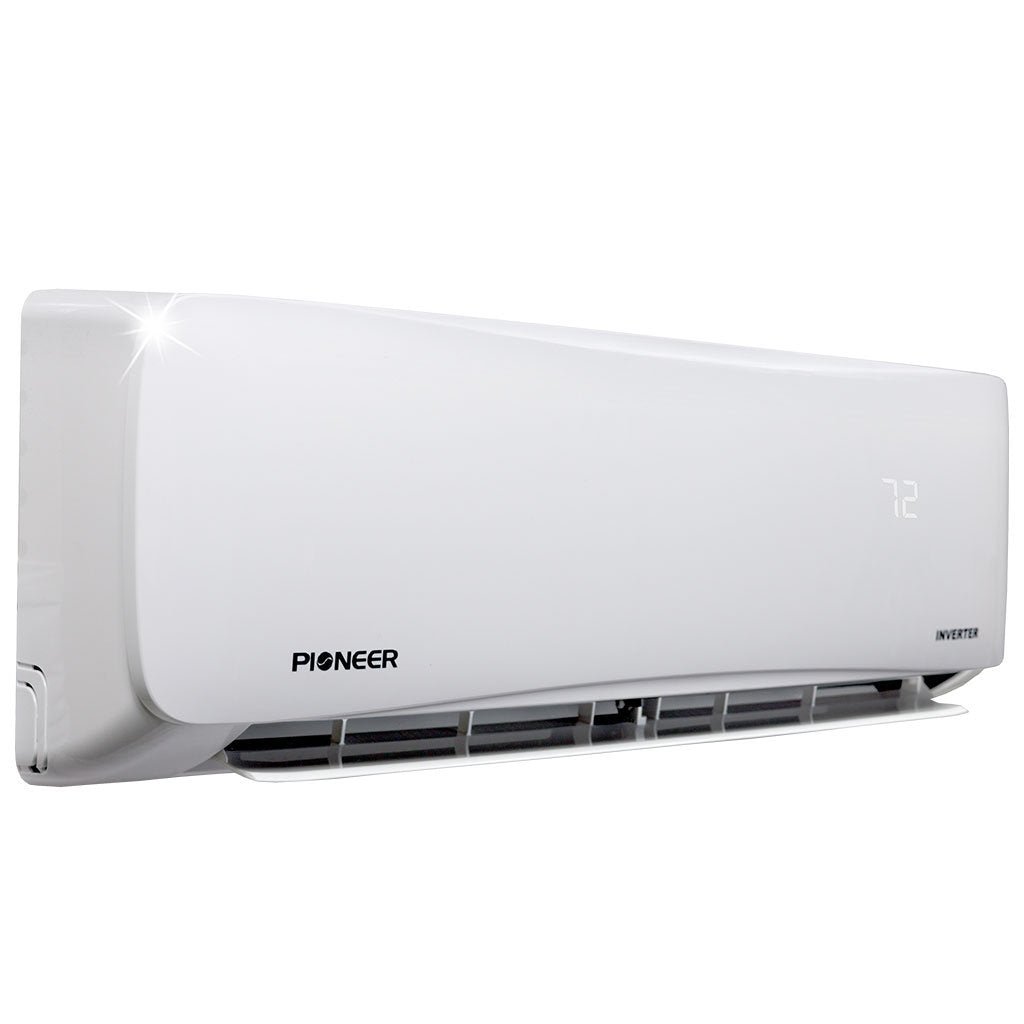

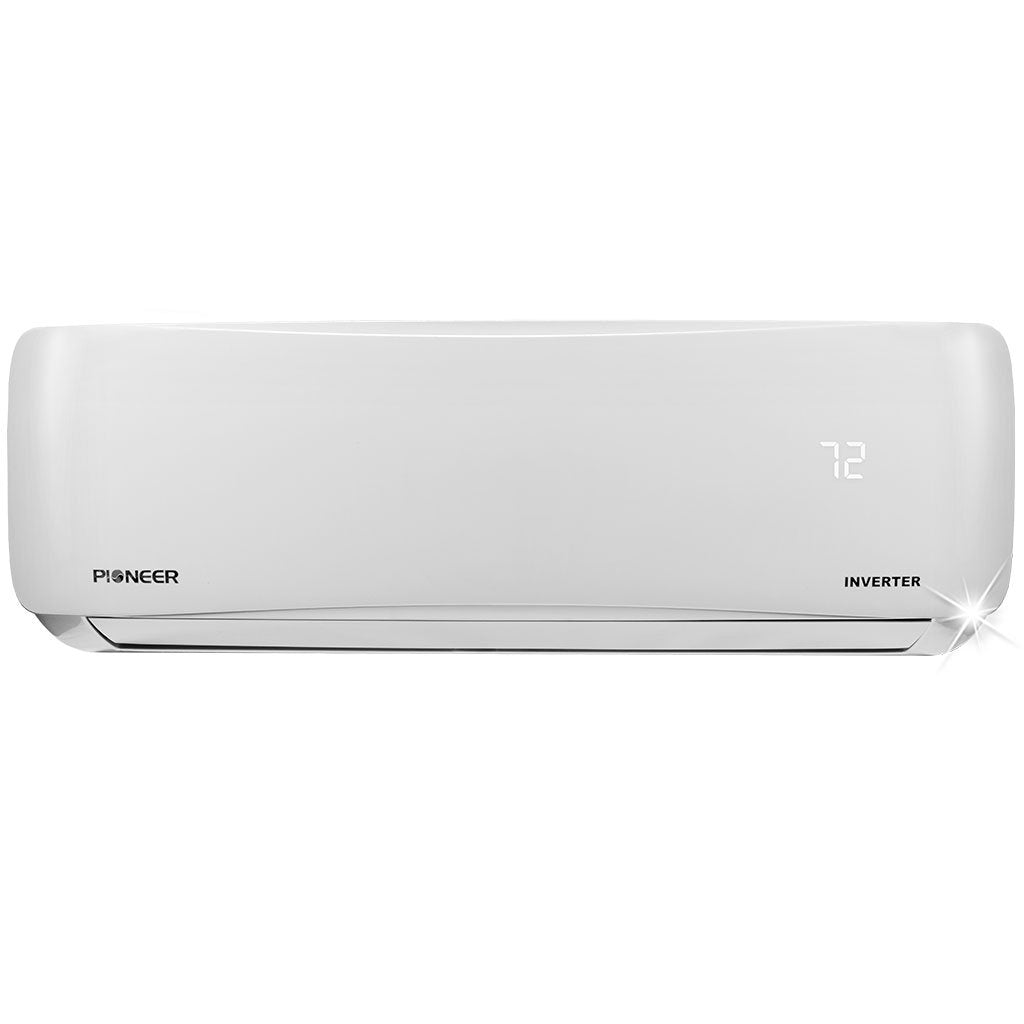

- Indoor Unit

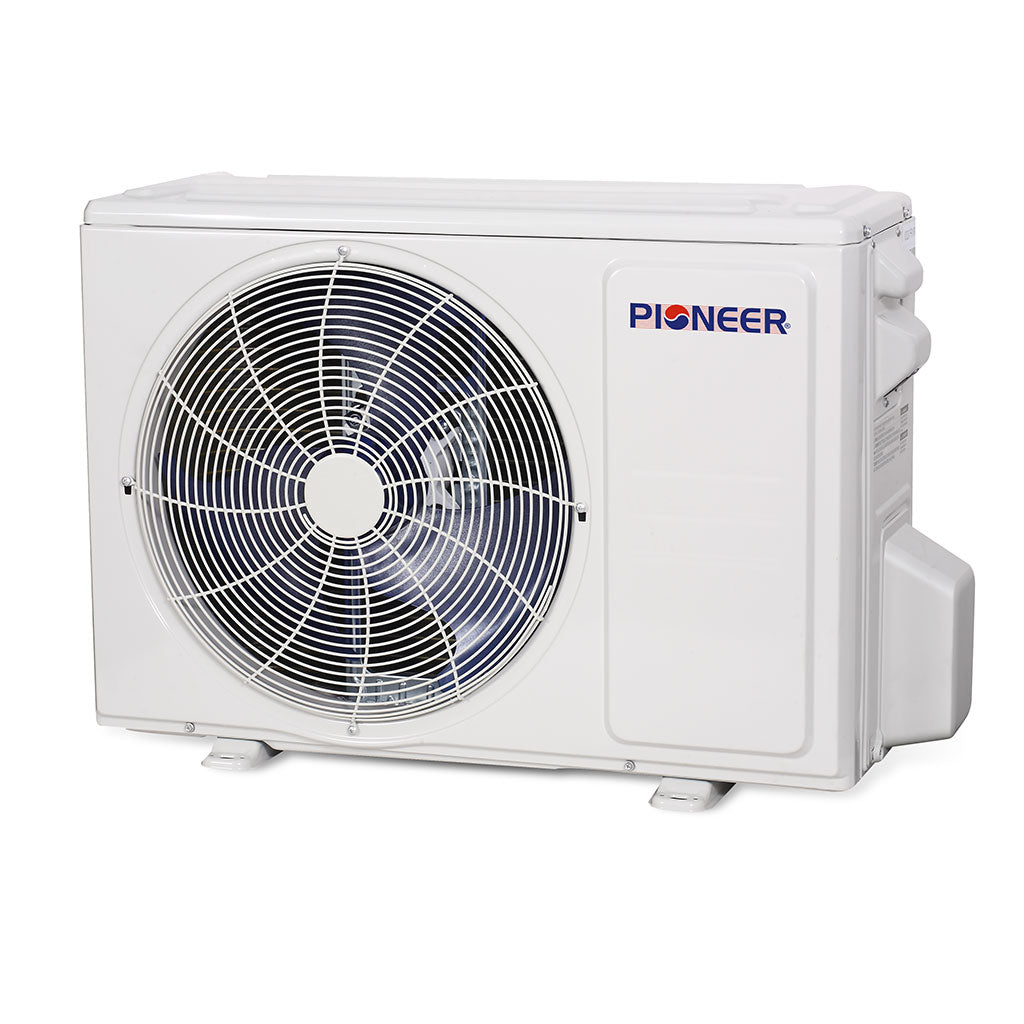

- Outdoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What's Not Included and Required for Installation
- Electrical Requirements, such as Disconnect Box or Electrical Whip
- Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)
Important Note

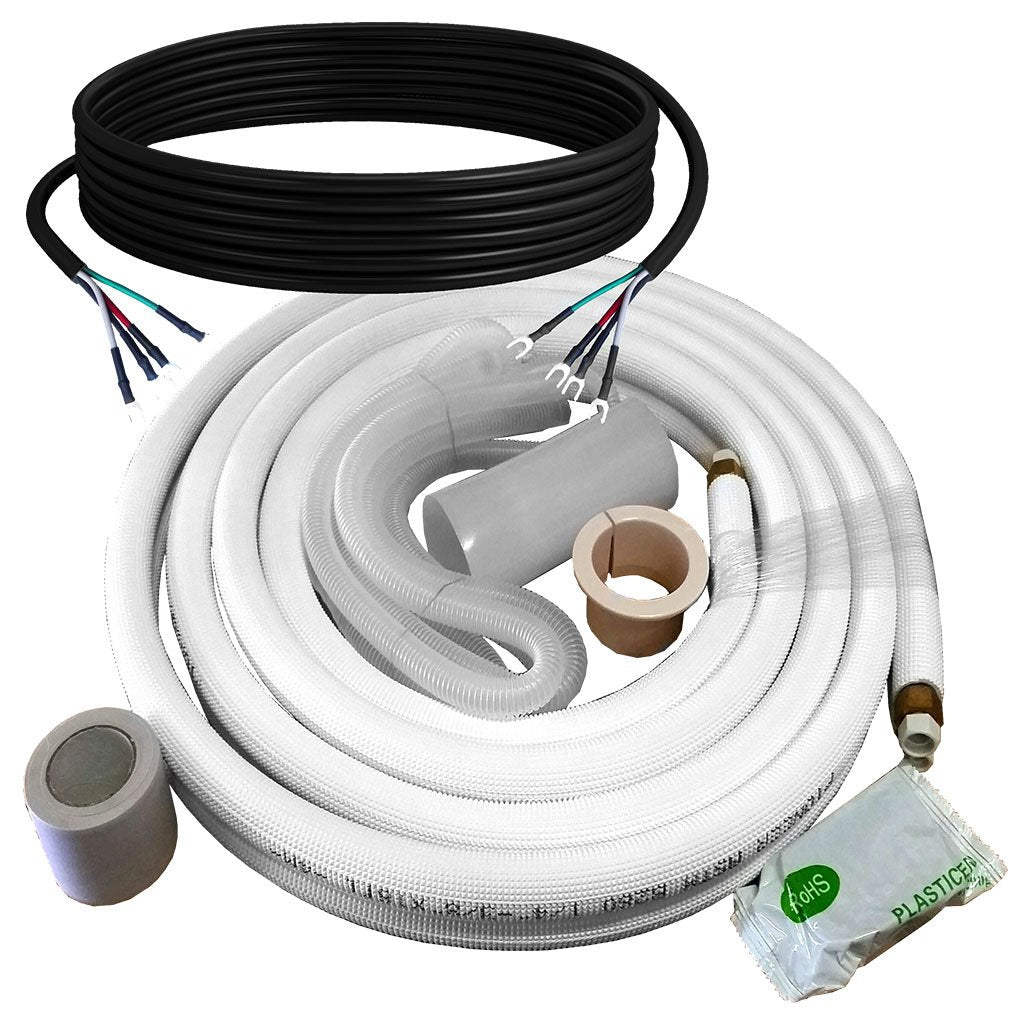

The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
