Pioneer® 12,000 BTU 21.5 SEER Floor Console Mini-Split Air Conditioner Heat Pump System with 33 ft. Line Sets, FYB012GMFILCAD-33

Model: FYB012GMFILCAD-33
Regular price $1,608.00
Sale price $1,608.00 Regular price $1,940.00
-17%
Shipping calculated at checkout.

Financing Options


This item is out of stock. Please contact us for an ETA.

Regular price $1,608.00
Sale price $1,608.00 Regular price $1,940.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

These mini split inverter ductless air conditioning and heating systems have ultra-quiet operation and superior efficiency. Our floor-mount mini splits are the perfect equipment for any cooling or heating application, using a single ductless indoor unit. All of our floor mini split options include an easy installation kit with a configurable length line set and various other accessories. Our floor-mount mini splits are made with high-quality materials and great attention to detail, which ensures that your unit will get the job done. Pioneer Mini Split’s floor-mount ductless mini splits are easy and convenient to install; our floor mini splits include an indoor unit, outdoor unit, wireless remote controls, manufacturer warranty, and more. Check out our selection of floor-mounted split system units today!

Features

  • Ultra High Efficiency Inverter++ floor console split heat pump system
  • Cooling capacity: 12,000 BTU/H with 21.5 SEER/13 EER efficiency
  • Heating capacity: 12,000 BTU/H with 10.0 HSPF/3.52 COP efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor Console Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $74.00
    • Heating: $254.00
  • Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
  • Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
  • Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
  • Emergency Using
  • Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
  • Follow Me. Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
Optional
  • Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
  • Remote in Engineer Mode
  • Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.
IMPORTANT

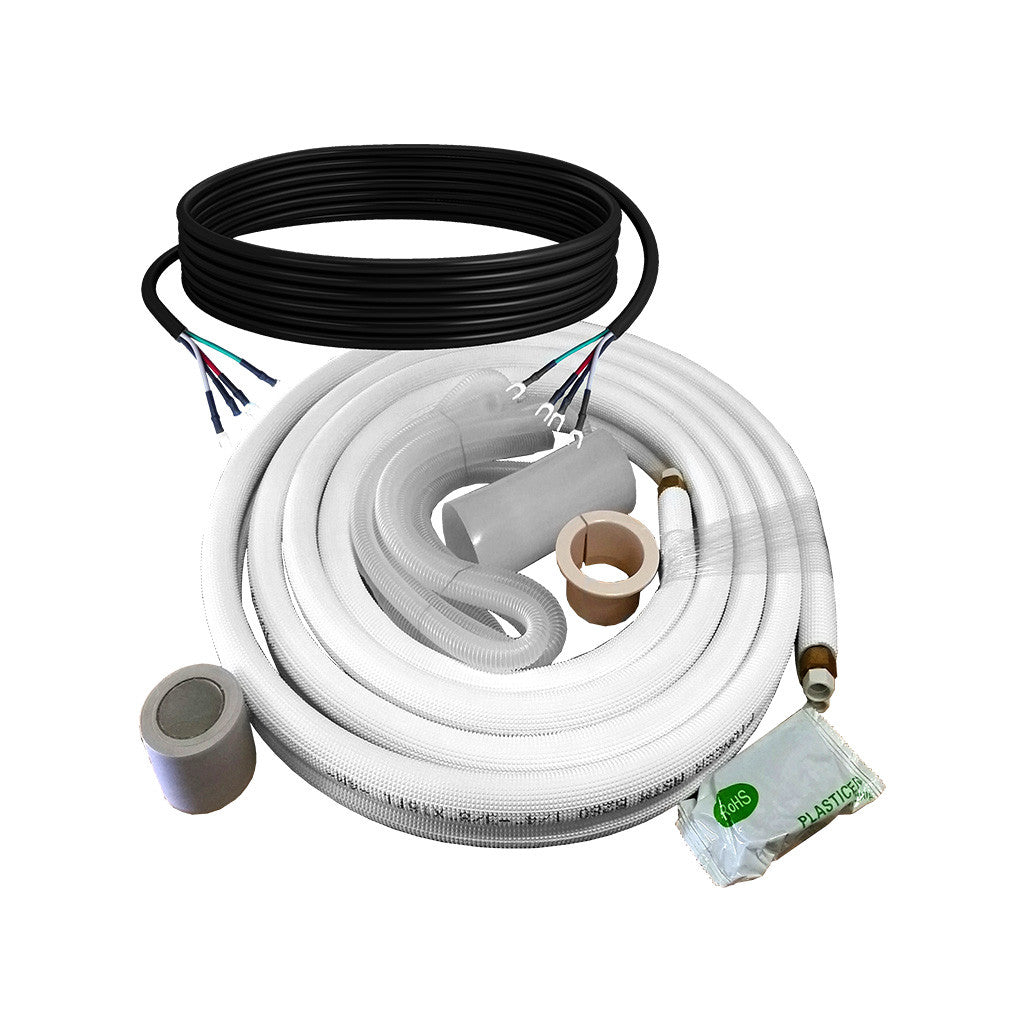

The installation kit is 33 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

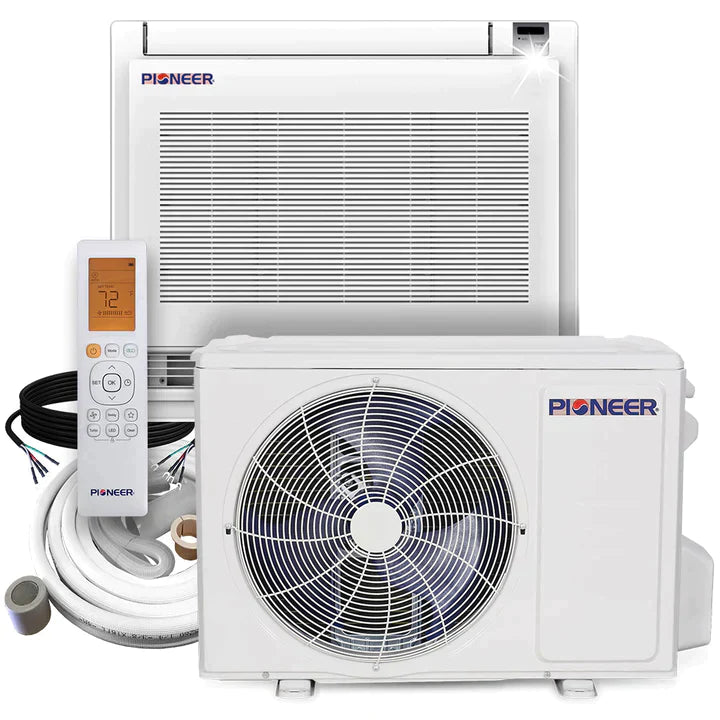

What's Included

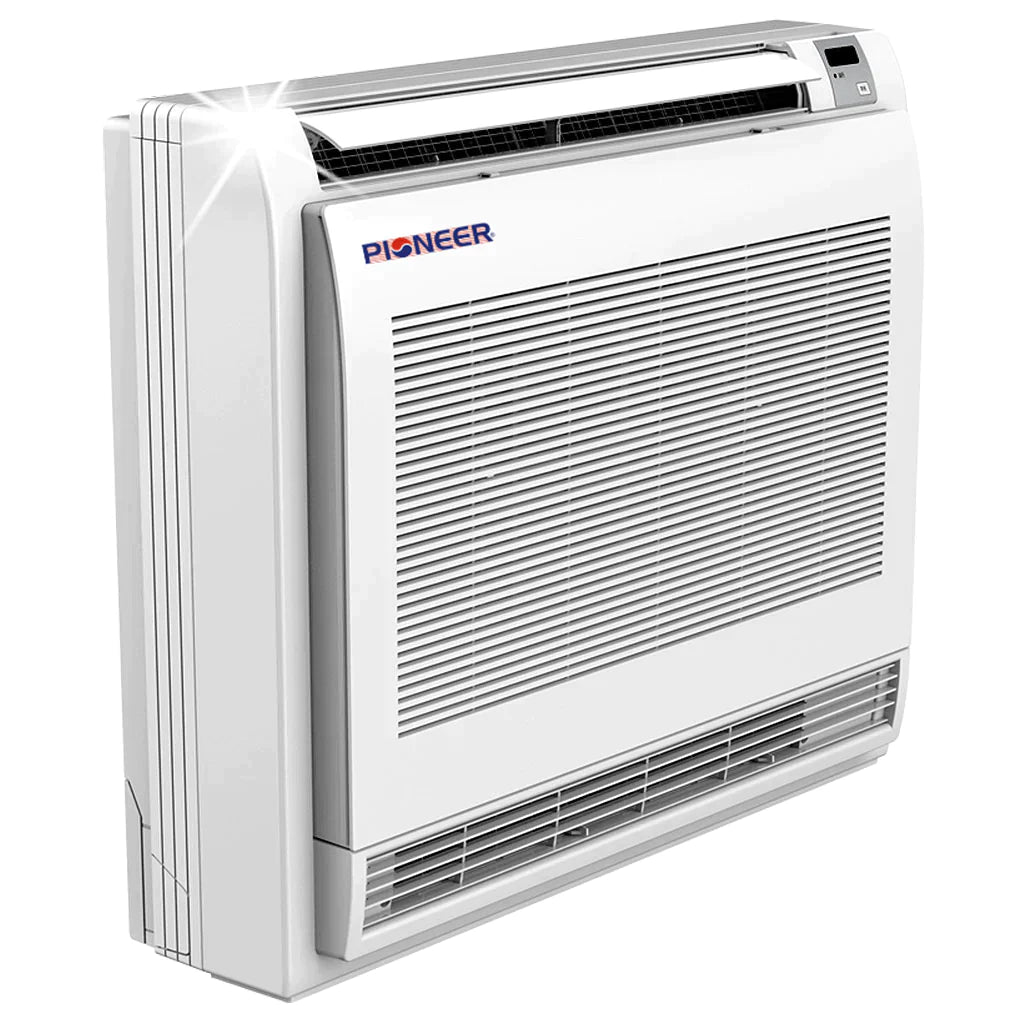

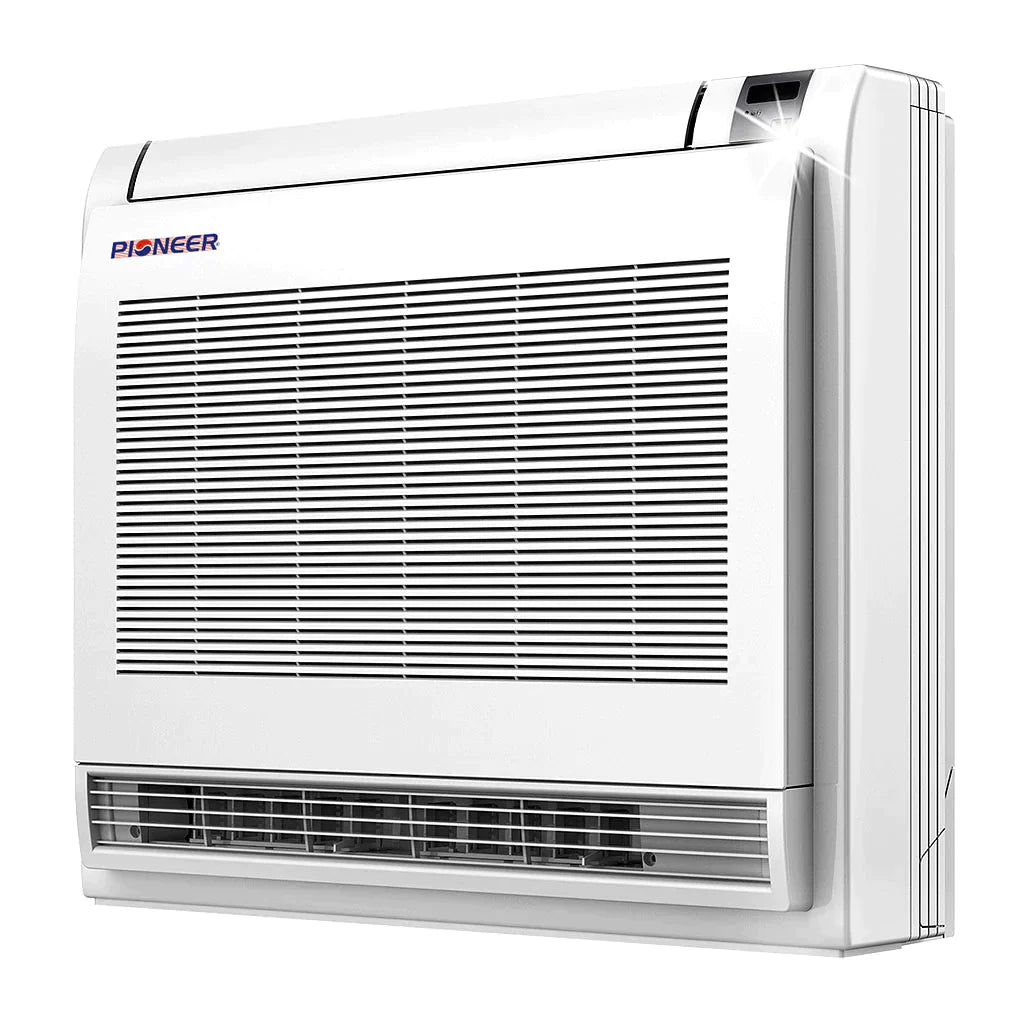

  • Indoor Unit

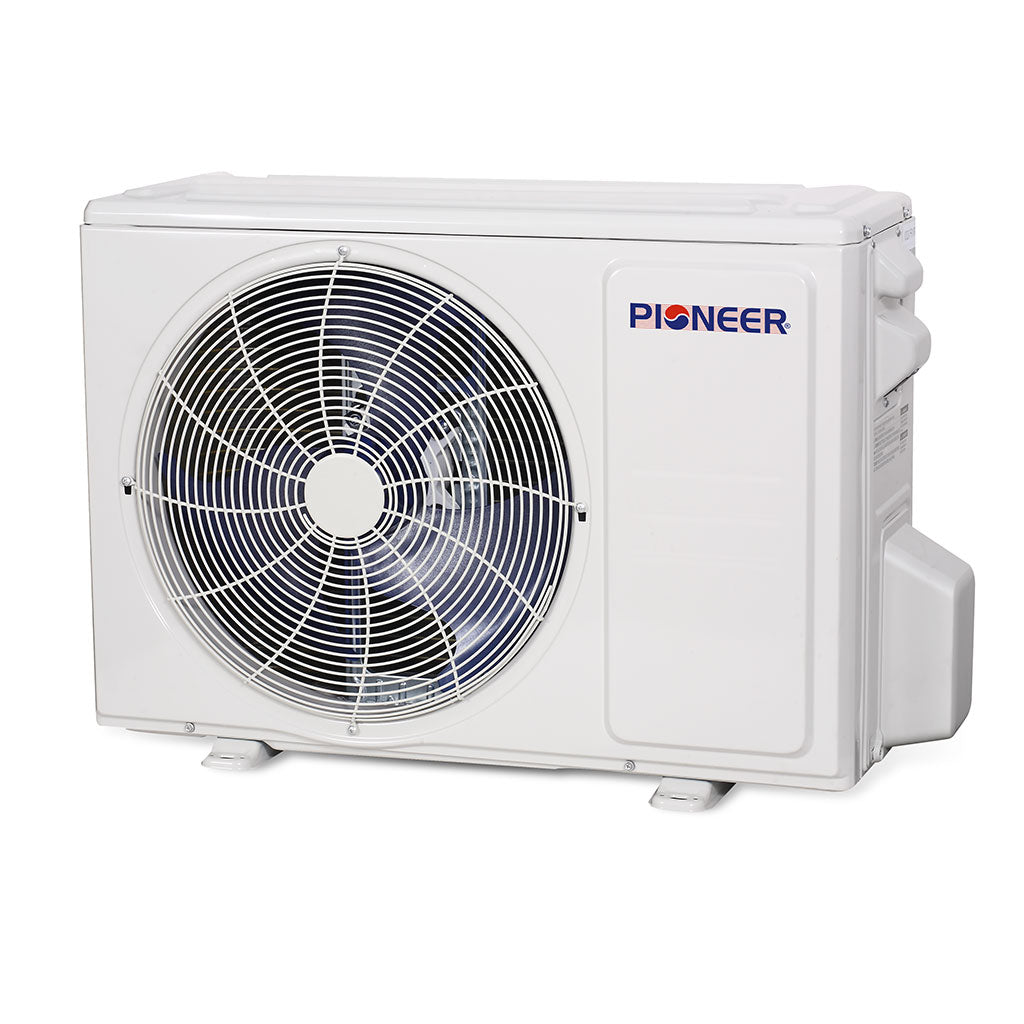

  • Outdoor Unit
  • Wireless Remote Control
  • 33 Ft. Installation Kit
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

SPECIFICATIONS & DIMENSIONS

  • Performance Data
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,850~13,000 BTU/h
  • Cooling SEER: 21.5 BTU/w
  • SEER2: 21.5
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 2,250~14,800 BTU/h
  • Heating HSPF4/HSPF5: 10.0 BTU/w
  • Refrigerant Type: R410a
  • Suitable Area: 200~450 Sq.F
  • Condenser
  • Sound Level: 53.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30 1/8 "W x 11 7/8" D x 21 7/8" H
  • Carton Dimensions (WDH): 34. 7/8" W x 13 1/4" D x 24" H
  • Net / Gross Weight: 63.7 / 69 Lbs
  • Cool Mode - Outdoor Operating Temperature Range: 5° to 122°F
  • Heat Mode - Outdoor Operating Temperature Range: -13° to 75°F
  • Air Handler
  • Air Flow (Hi/Med/Lo): 365 / 318 / 248 CFM
  • Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 33.0 dB(A)
  • Net Dimensions (WDH): 27 1/2" W x 8 1/4" D x 23 5/8" H
  • Carton Dimensions (WDH): 30 3/4" W x 11 3/4" D x 27" H
  • Net / Gross Weight: 32.6 / 41 Lbs
