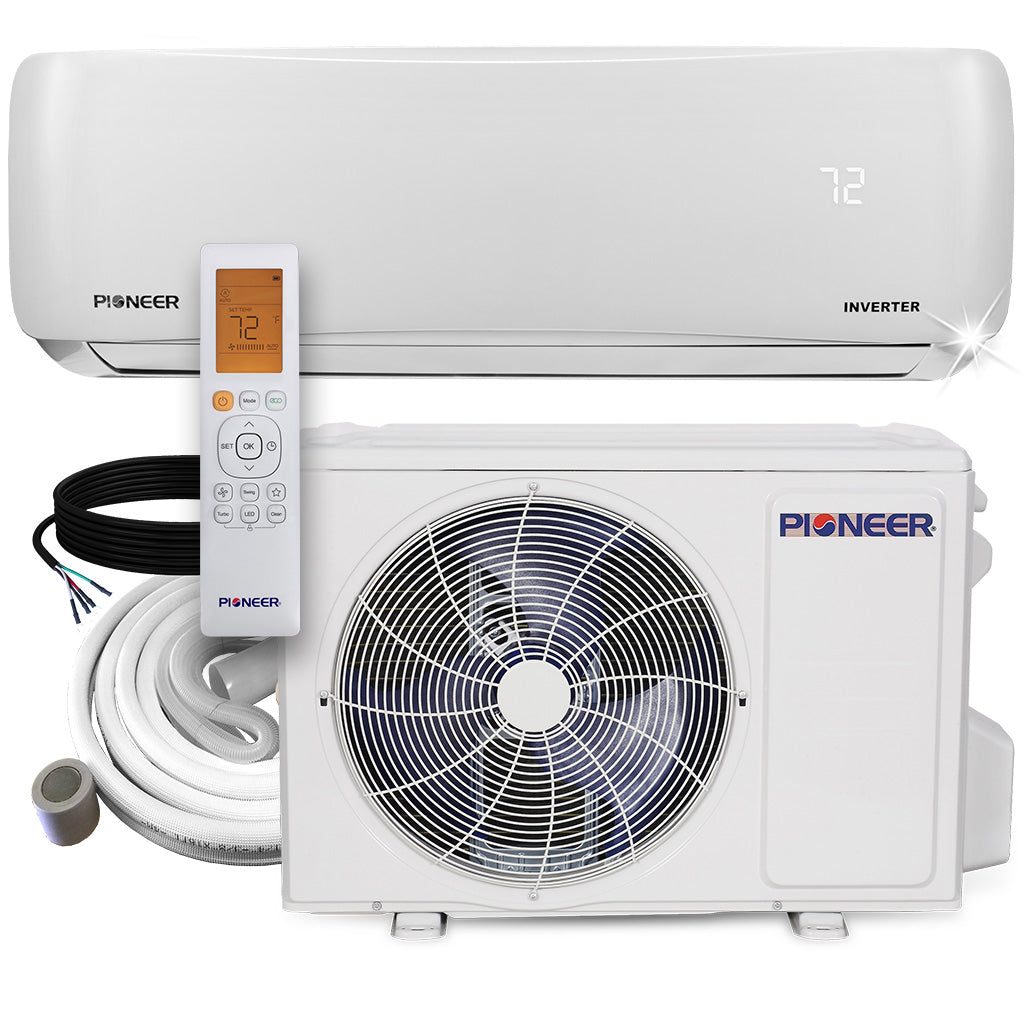

  3. Pioneer® 12,000 BTU 20 SEER 115V Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System with 16 ft. Line Sets, WYS012AMFI20RL-16

Pioneer® 12,000 BTU 20 SEER 115V Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System with 16 ft. Line Sets, WYS012AMFI20RL-16

Model: WYS012AMFI20RL-16
$938.00
$938.00 $1,069.00
-12%
Shipping calculated at checkout.

This item is in stock! Estimated Arrival: Apr 01 to Apr 04

Buy Now, Pay Later

$938.00
$938.00 $1,069.00

What's Included

BETTER TOGETHER

DESCRIPTION

Features

  • Ultra High Efficiency Inverter+ ductless mini split heat pump system
  • Cooling capacity: 12,000 BTU/H with 20 SEER/10.3 EER efficiency
  • Heating capacity: 12,000 BTU/H with 10.5 HSPF/3.13 COP efficiency
  • Voltage: 110~120V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $79.00
    • Heating: $242.00
  • Low Ambient Heating. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.

IMPORTANT

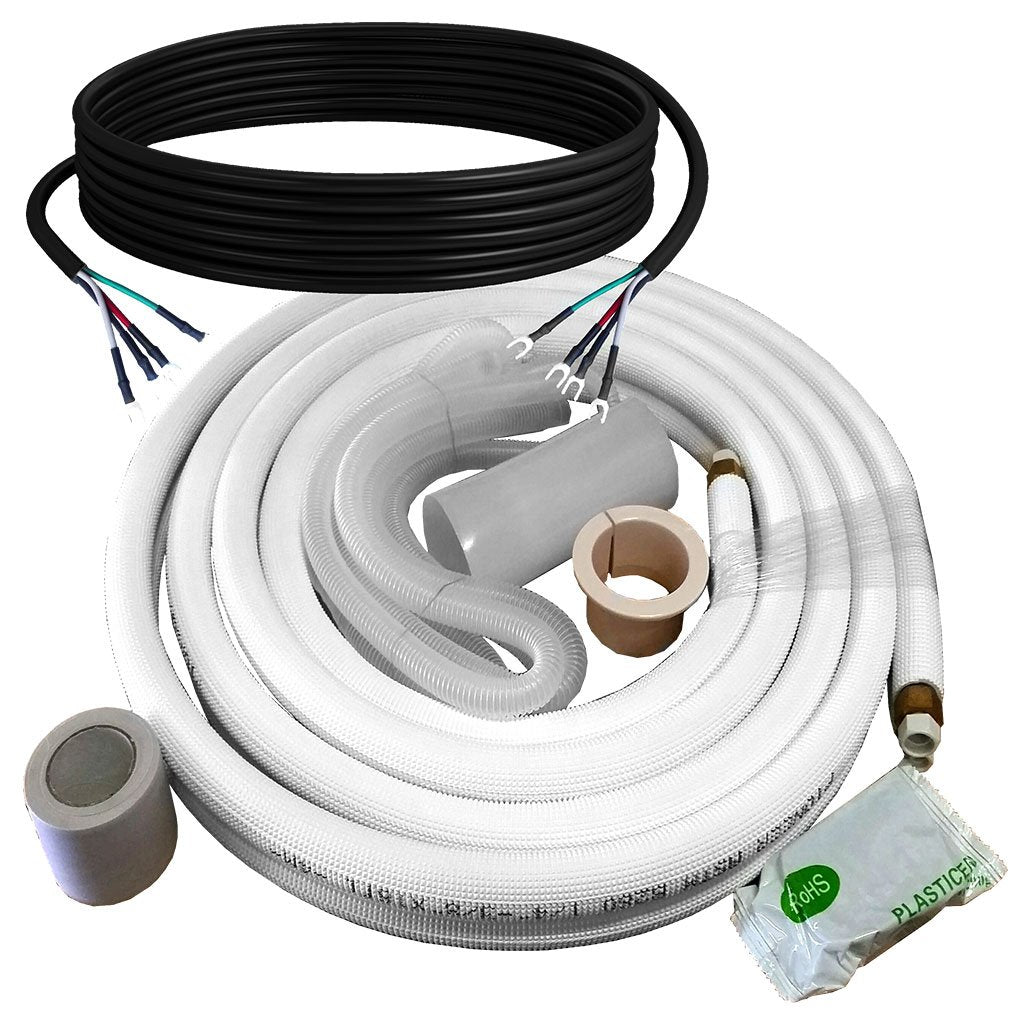

The installation kit is: 16 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • R410A Pre-Charged Outdoor Unit
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

SPECIFICATIONS & DIMENSIONS

  • Performance Data
  • Power Supply: 110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,700~13,000 BTU/h
  • Cooling SEER: 20 BTU/w
  • Cooling EER: 10.3 BTU/w
  • SEER2: 20.8
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 3,500~13,500 BTU/h
  • Heating HSPF4/HSPF5: 10.5 / 8.4 BTU/w
  • Refrigerant Type: R410A/30
  • Suitable Area: 300~450 Sq.F

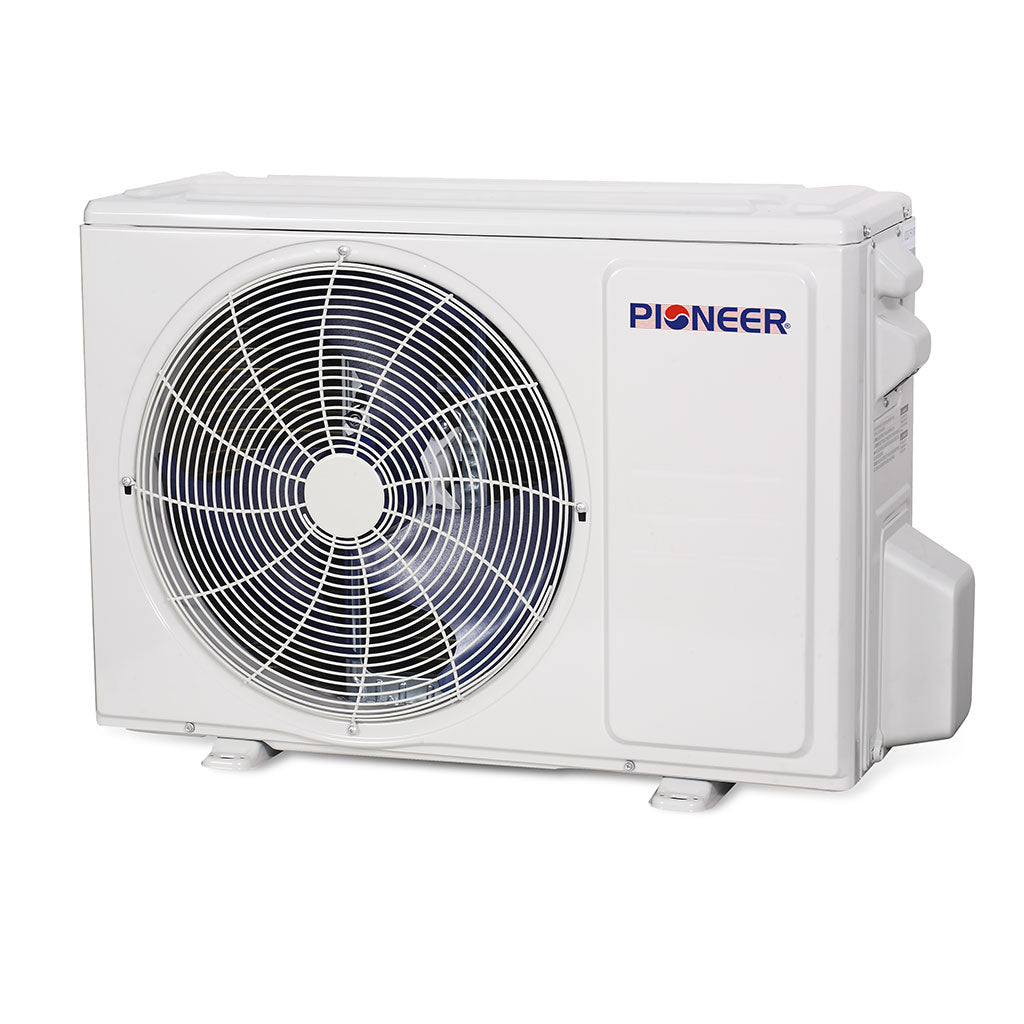

  • Condenser
  • Sound Level: 55.5 dB(A)
  • Net Dimensions (WDH): 30.1"W x 11.8" D x 21.81" H
  • Carton Dimensions (WDH): 34.8" W x 13.25" D x 24" H
  • Net / Gross Weight: 62.2 / 67.7 lbs
  • Cool Mode - Outdoor Operating Temperature Range: 5° to 122°F
  • Heat Mode - Outdoor Operating Temperature Range: -13° to 75°F

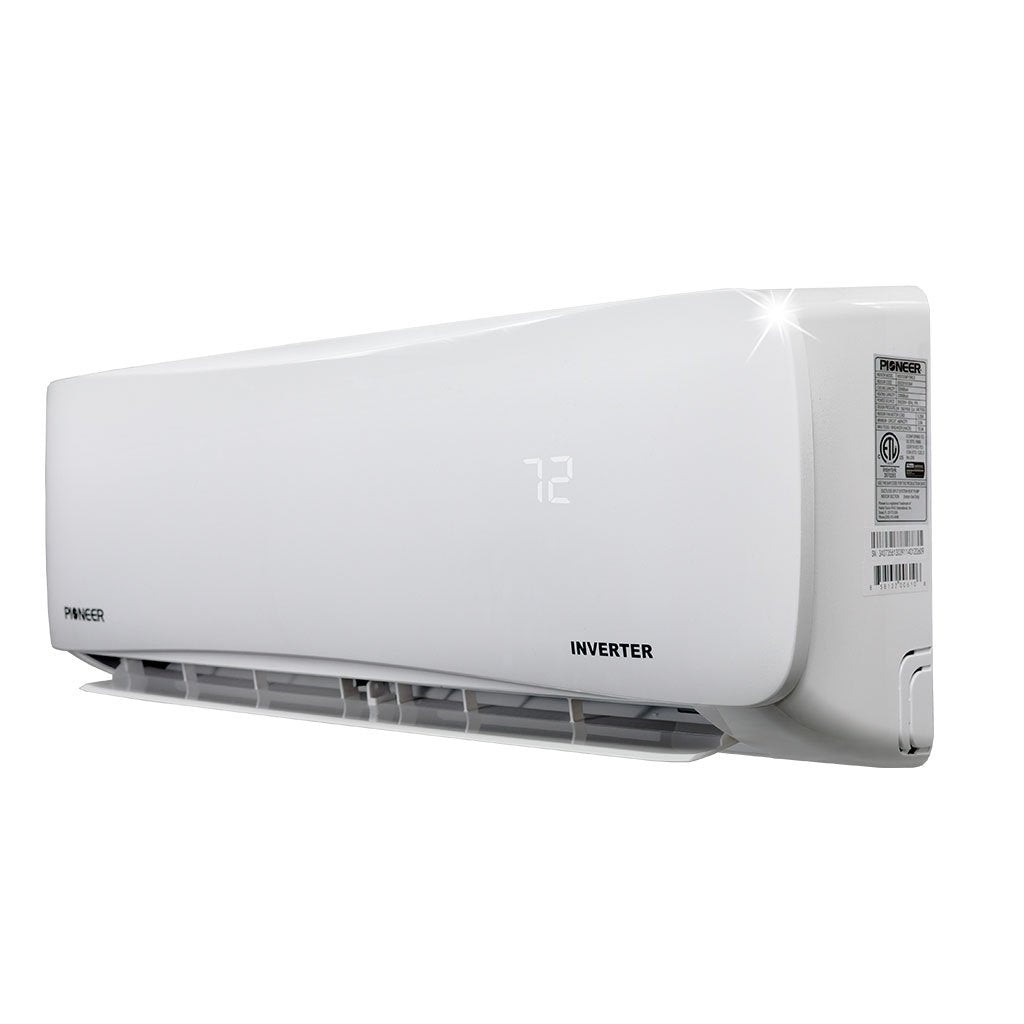

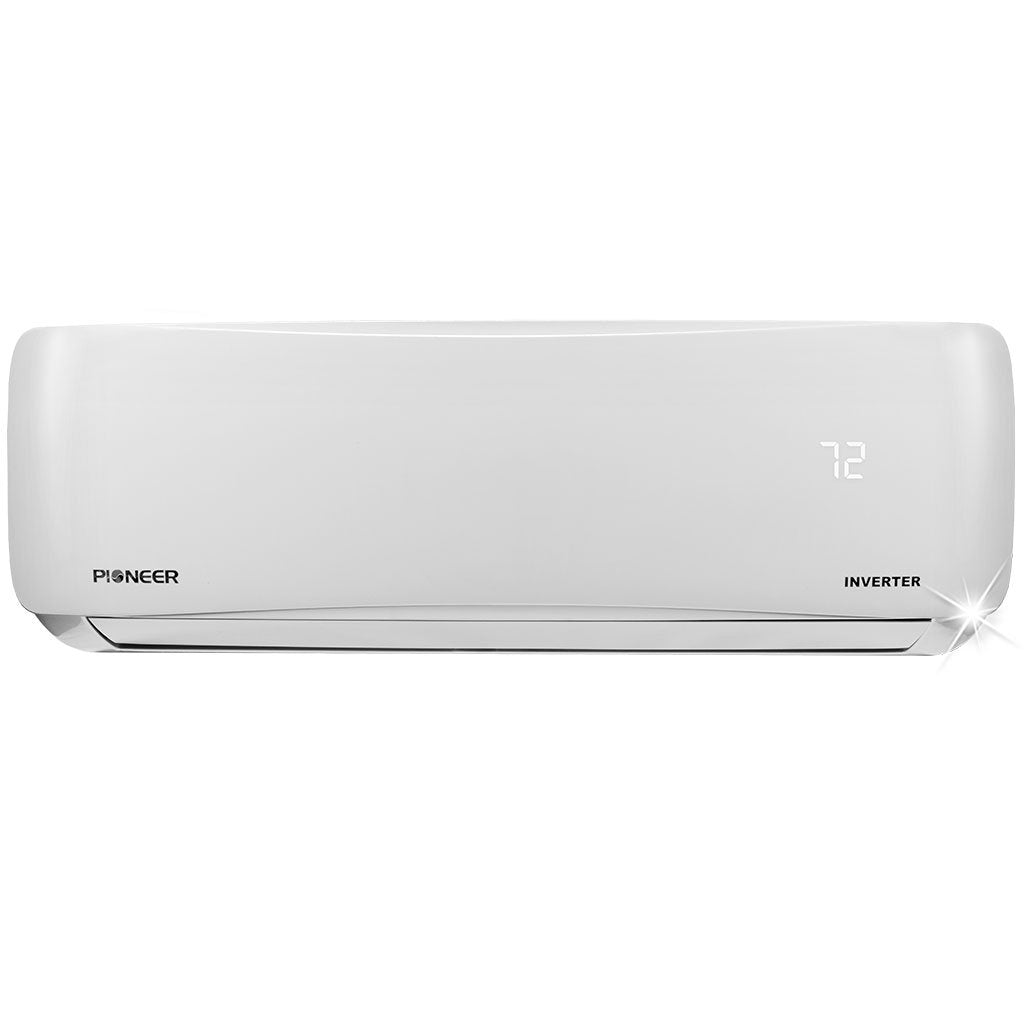

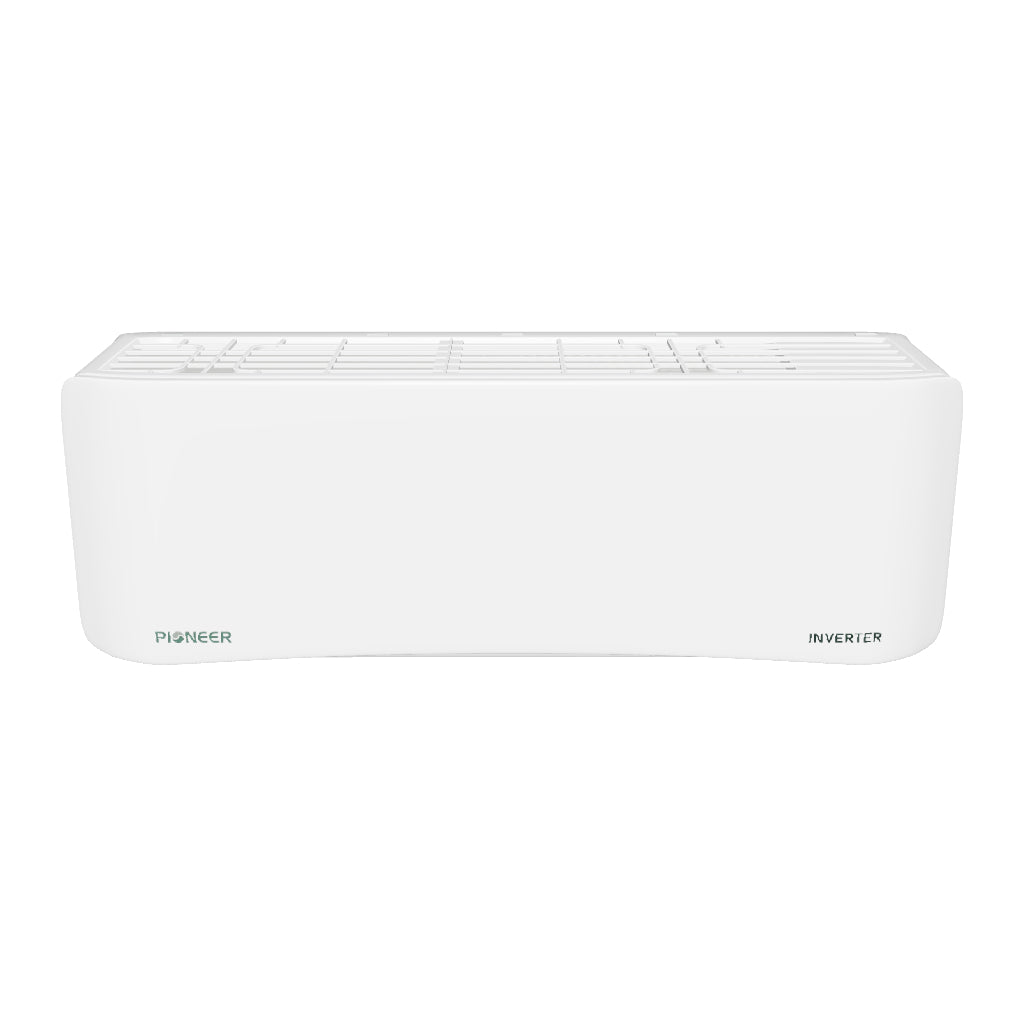

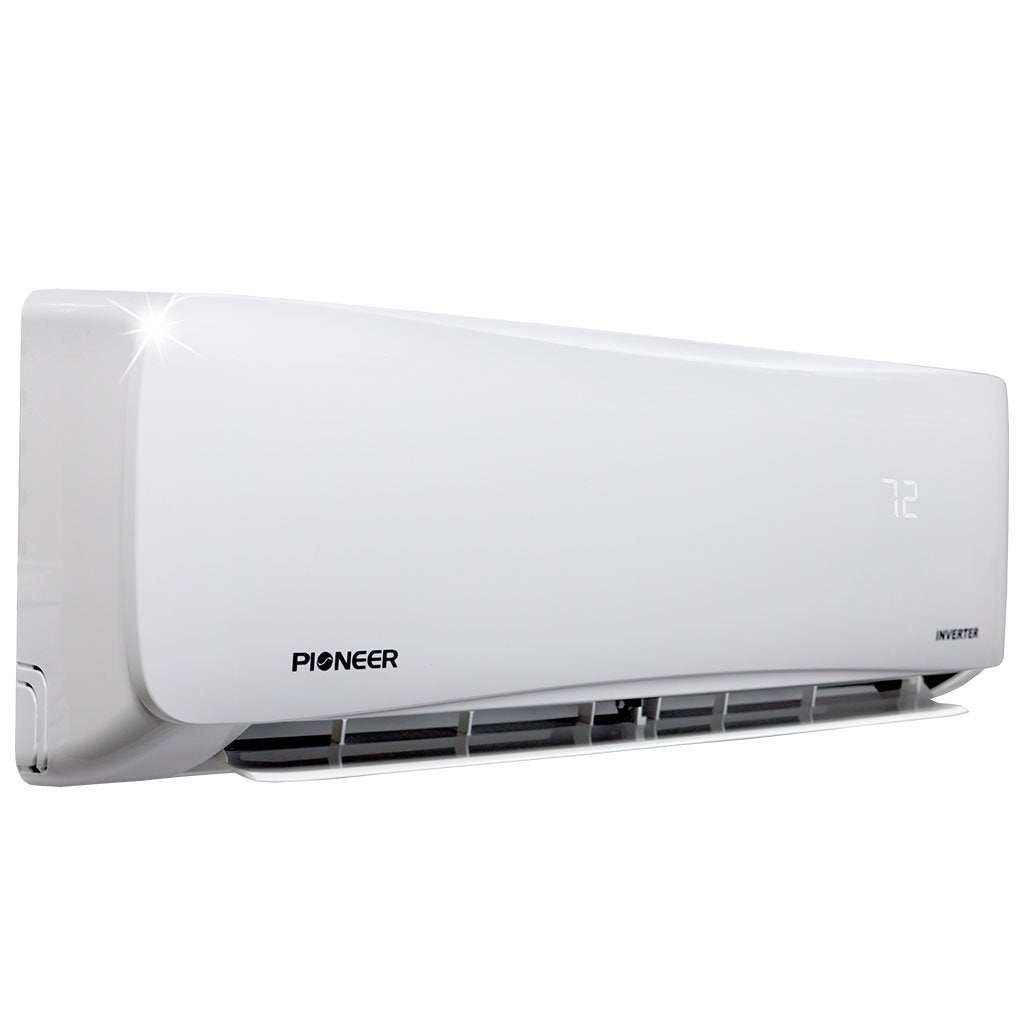

  • Air Handler
  • Air Flow (Hi/Med/Lo): 309 / 206 / 176 CFM
  • Sound Level (Hi/Med/Lo): 41.5/ 30.5 / 26.0 dB(A)
  • Net Dimensions (WDH): 31.57" W x 7.44" D x 11.69" H
  • Carton Dimensions (WDH): 34.45" W x 11.22" D x 14.96" H
  • Net / Gross Weight: 20 / 25 lbs
