Pioneer® 12,000 BTU 20 SEER 115V Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System with 10 ft. Line Sets, WYS012AMFI20RL-10

See more from Pioneer Model: WYS012AMFI20RL-10

Model: WYS012AMFI20RL-10

$903.00

$1,029.00

12% Off

This item is in stock! Estimated Arrival: Oct 11 to Oct 14

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

Contact Us

Need help with choosing a Mini Split system or have other questions?

Talk with one of our trusted HVAC professionals today!

Product Overview

  • Covers 450 sq. ft.
  • Wall Mounted
  • Number of Zones: 1

Features

  • Ultra High Efficiency Inverter+ ductless mini split heat pump system
  • Cooling capacity: 12,000 BTU/H with 20 SEER/10.3 EER efficiency
  • Heating capacity: 12,000 BTU/H with 10.5 HSPF/3.13 COP efficiency
  • Voltage: 110~120V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $79.00
    • Heating: $242.00
  • Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.

IMPORTANT

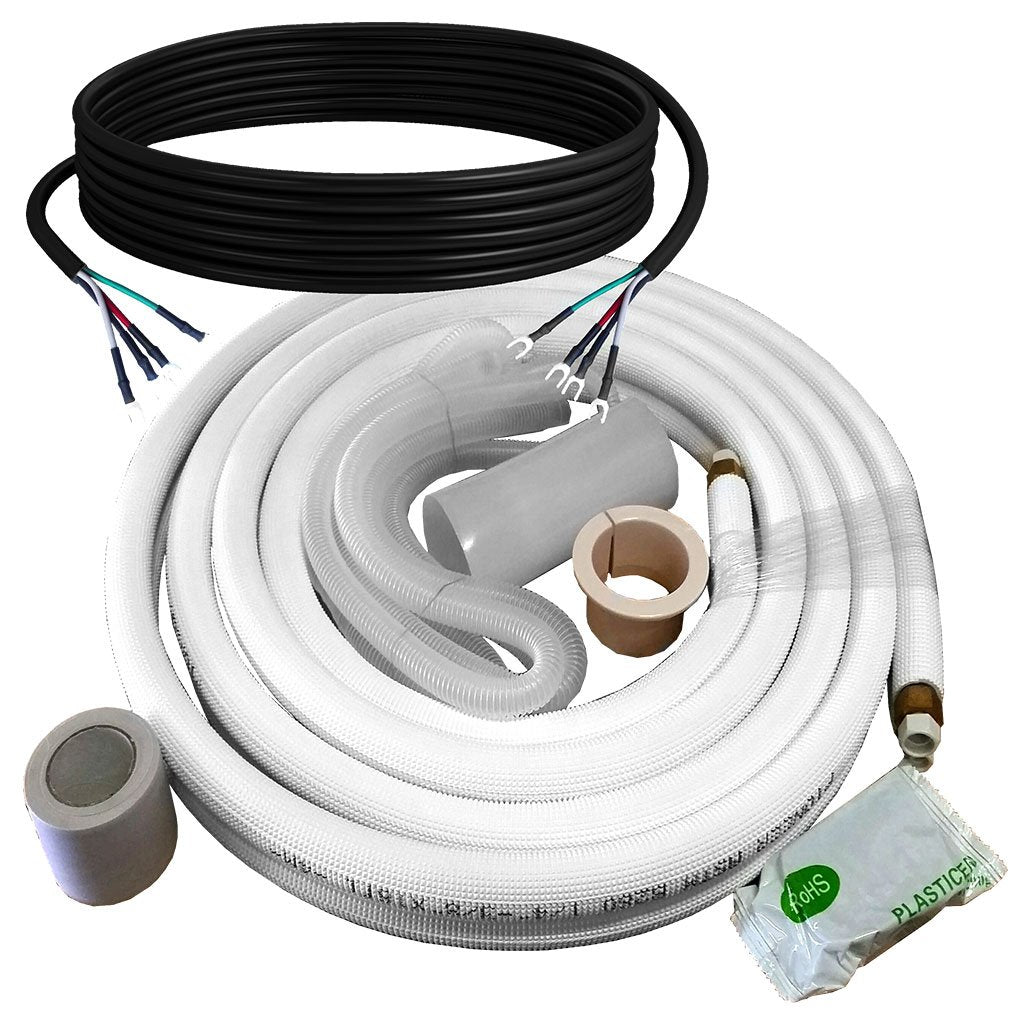

The installation kit is: 10 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

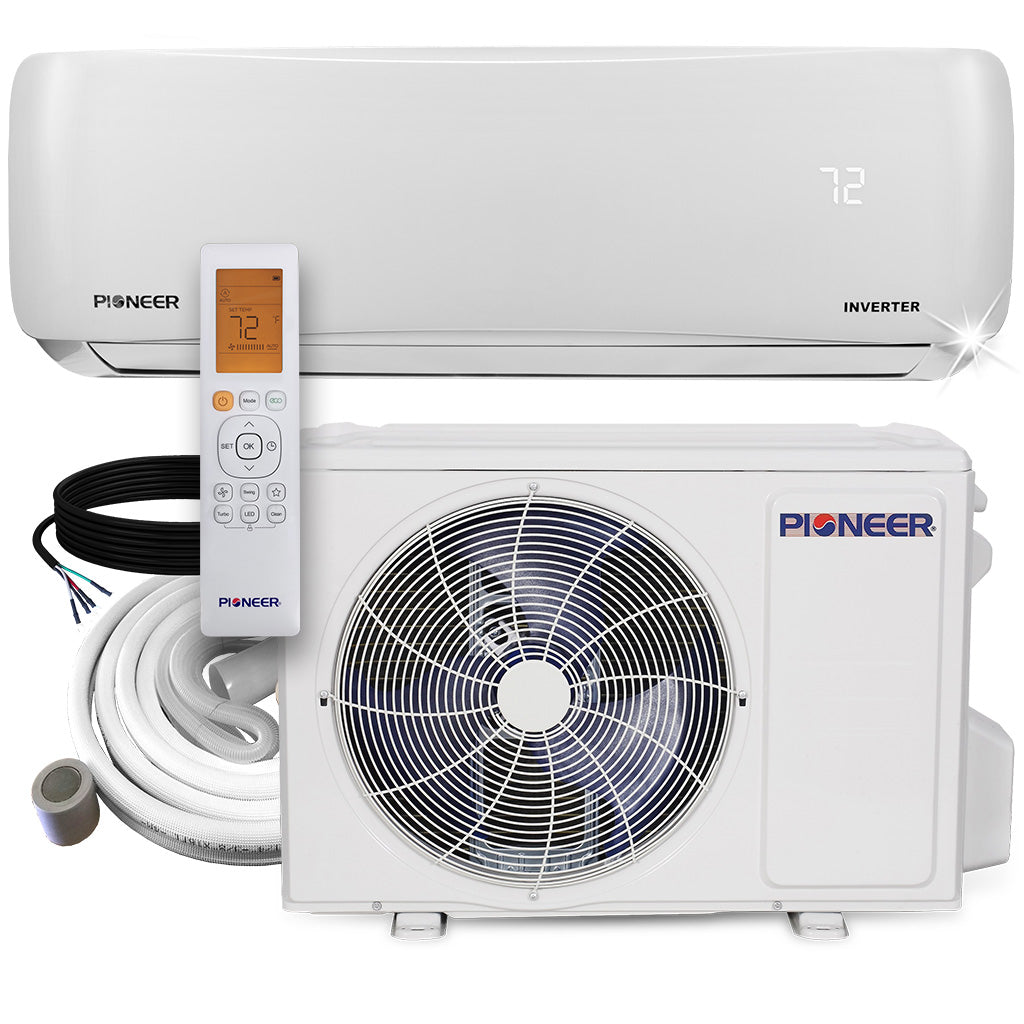

What's Included

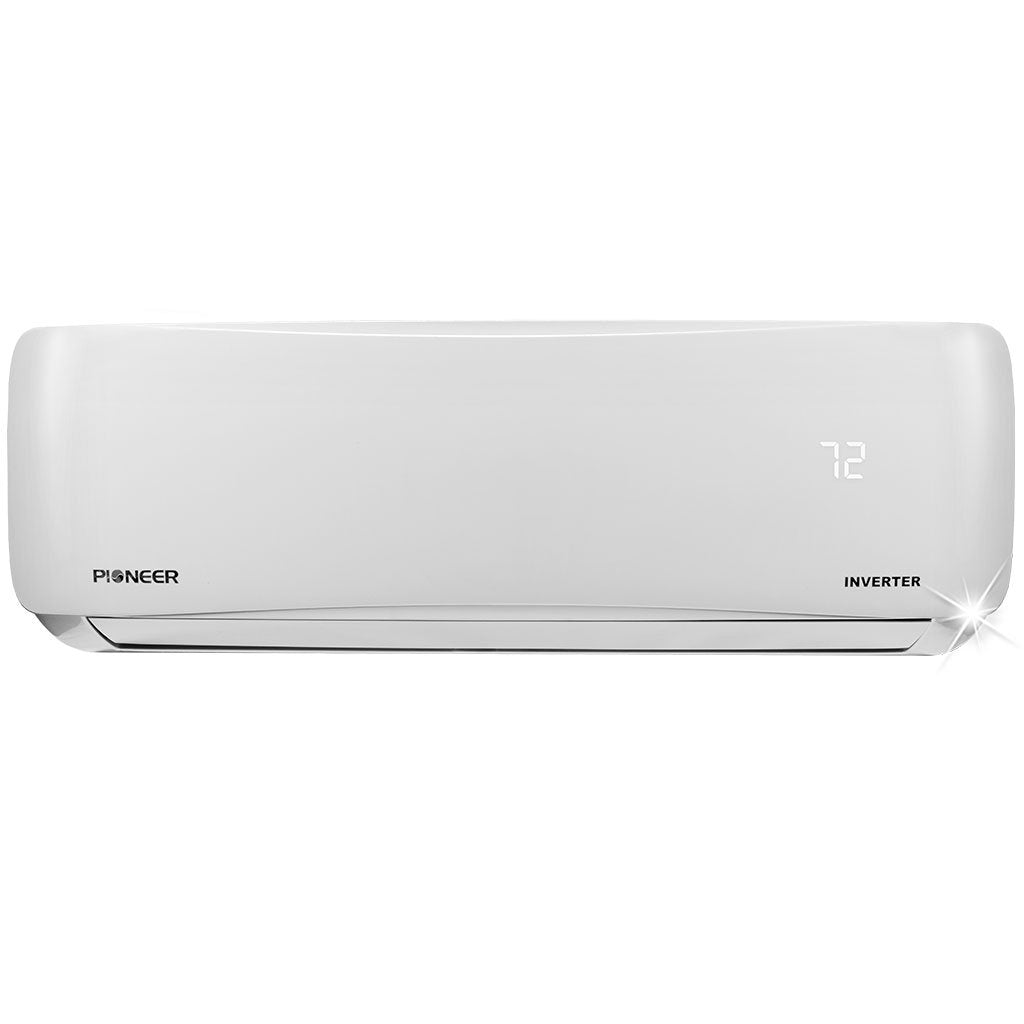

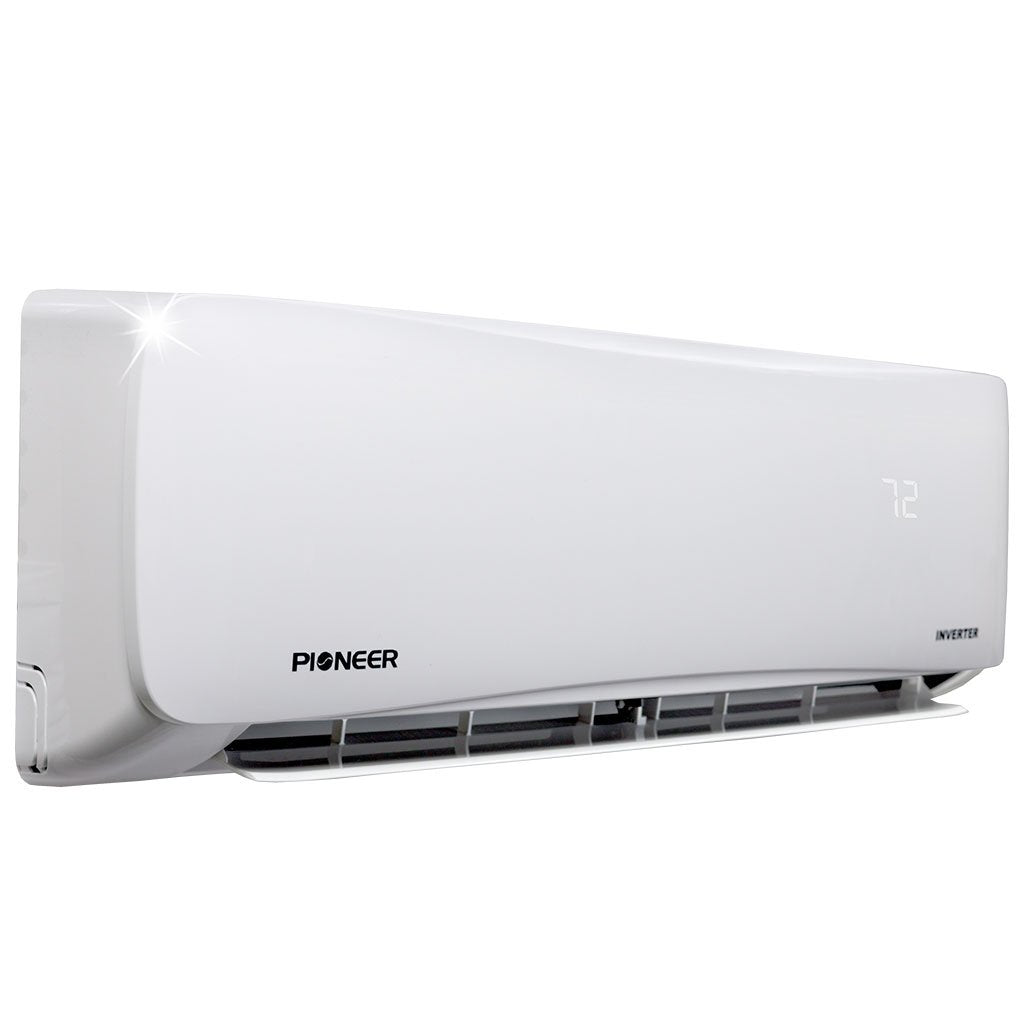

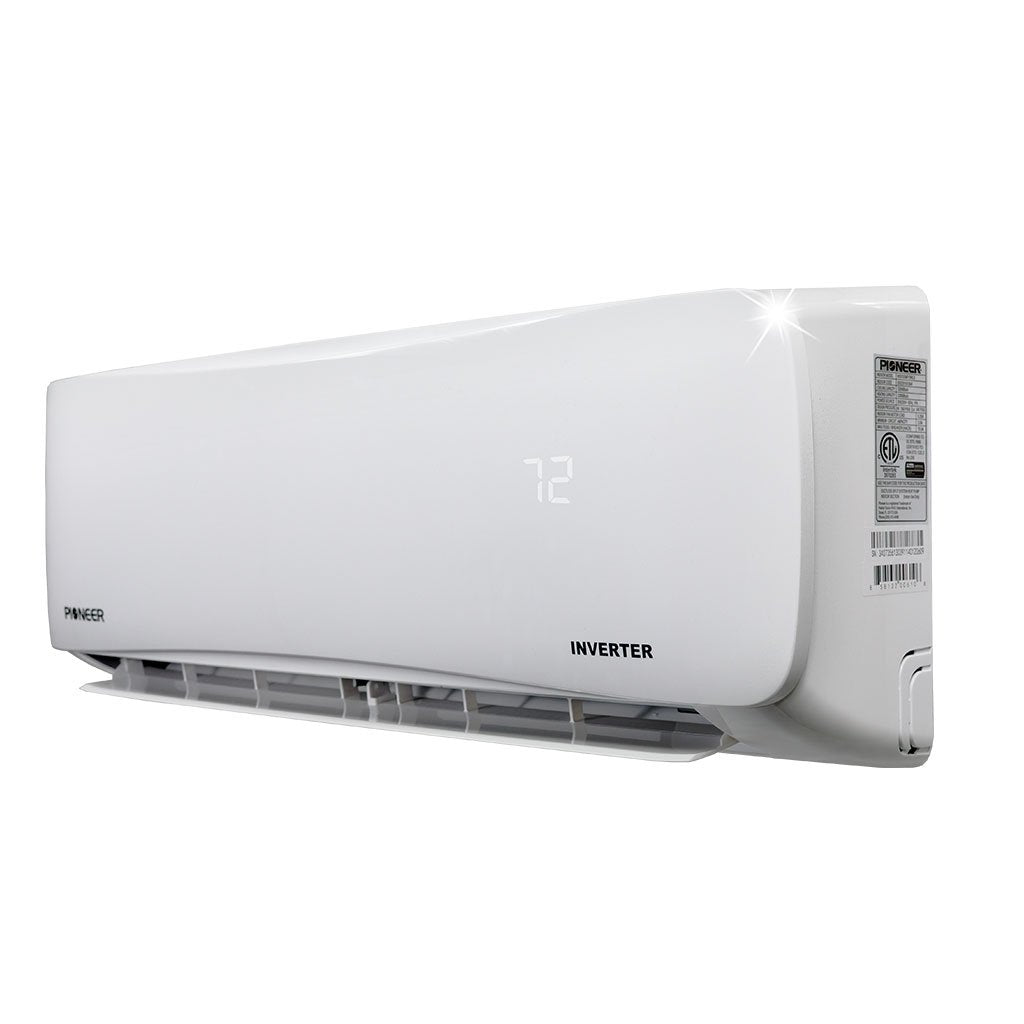

  • Indoor Unit

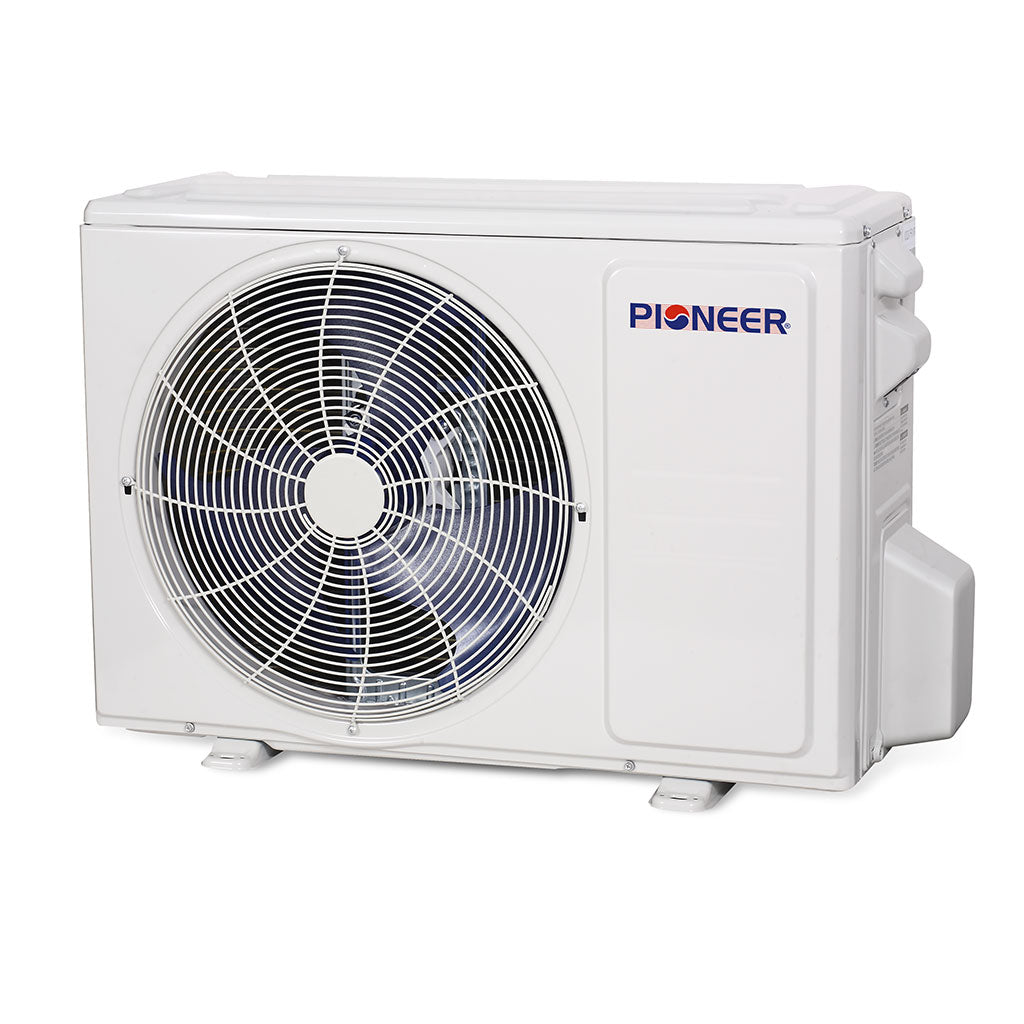

  • Outdoor Unit

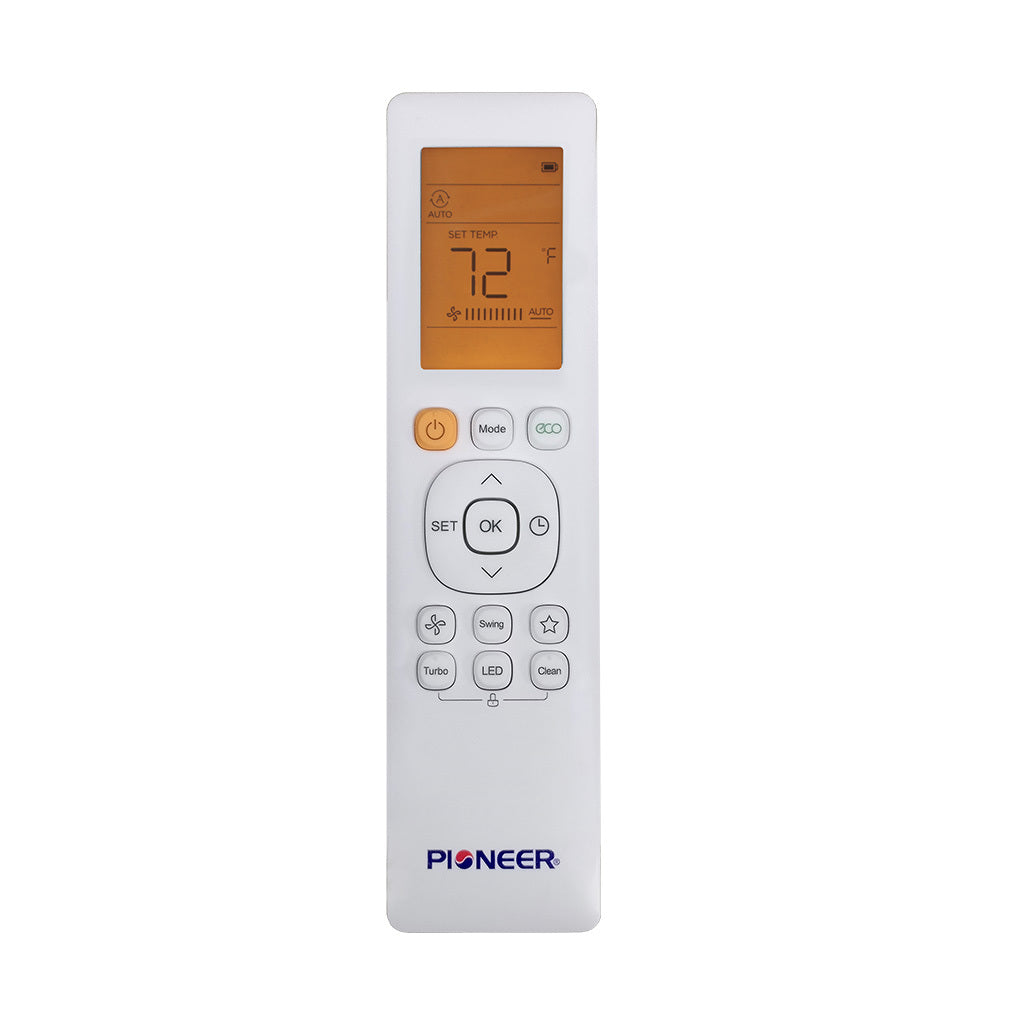

  • Wireless Remote Control
  • R410A Pre-Charged Outdoor Unit
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Performance Data

Power Supply: 110~120V, 60Hz, 1Ph
Cooling Rated Capacity: 12,000 BTU/h
Cooling Capacity Range: 3,700~13,000 BTU/h
Cooling SEER: 20 BTU/w
Cooling EER: 10.3 BTU/w
SEER2 20.8
Heating Rated Capacity: 12,000 BTU/h
Heating Capacity Range: 3,500~13,500 BTU/h
Heating HSPF4/HSPF5: 10.5 / 8.4 BTU/w
Refrigerant Type: R410A/30
Suitable Area: 300~450 Sq.F


Condenser

Sound Level: 55.5 dB(A)
Net Dimensions (WDH): 30.1"W x 11.8" D x 21.81" H
Carton Dimensions (WDH): 34.8" W x 13.25" D x 24" H
Net / Gross Weight: 62.2 / 67.7 lbs
Cool Mode - Outdoor Operating Temperature Range 5° to 122°F
Heat Mode - Outdoor Operating Temperature Range -13° to 75°F


Air Handler

Air Flow (Hi/Med/Lo): 309 / 206 / 176 CFM
Sound Level (Hi/Med/Lo): 41.5/ 30.5 / 26.0 dB(A)
Net Dimensions (WDH): 31.57" W x 7.44" D x 11.69" H
Carton Dimensions (WDH): 34.45" W x 11.22" D x 14.96" H
Net / Gross Weight: 20 / 25 lbs
