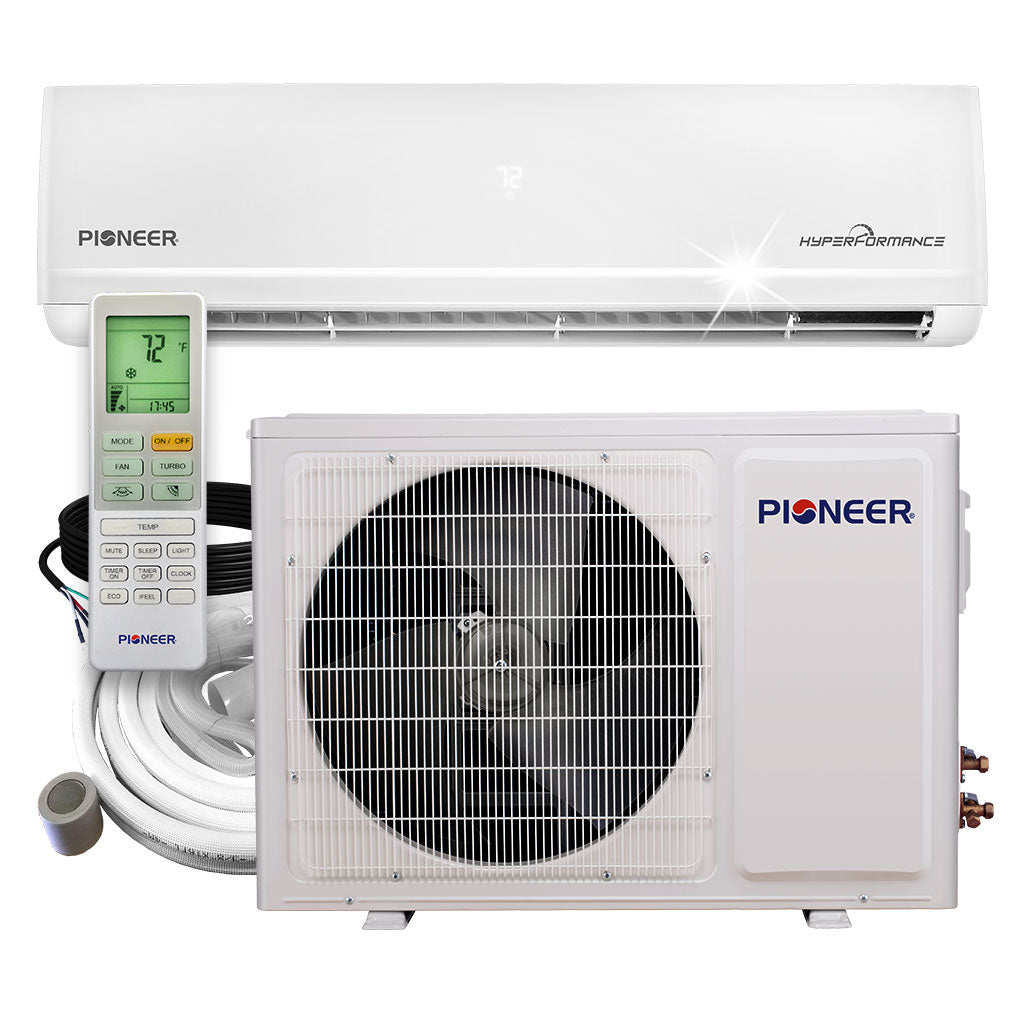

Pioneer Hyperformance 9K BTU Ductless Mini Split Hyper Heat Pump Complete System, Energy Star, WYF009GHFI25RH

Model: WYF009GHFI25RH
Regular price $1,048.00
Sale price $1,048.00 Regular price $1,499.00
-30%
Shipping calculated at checkout.

Financing Options


Choose your Line Set and Communication Wires:

Total Price: $1,048.00

This item is in stock! Estimated Arrival: Dec 15 to Dec 18

Regular price $1,048.00
Sale price $1,048.00 Regular price $1,499.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

Experience unmatched comfort and efficiency with the Pioneer® WYF-25 Hyperformance™ series of ductless mini split heat pumps. These revolutionary systems redefine year-round comfort, providing exceptional heating and cooling performance even in extreme weather conditions as low as -22°F.

Summary

  • Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
  • Cooling capacity: 9,000 BTU/H (0.75 Ton) with 25.5 SEER2 / 14.5 EER2 efficiency
  • Heating capacity: 10,000 BTU/H (0.83 Ton) with 10.5 HSPF2 / 4.07 COP efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Hyper Heat Unit (Continues heating in -22°F weather)
  • Wireless Internet Access Included (Via Free Smartphone App)

Key Features

Energy-Star Certified Efficiency
Save on utility bills with Energy-Star certification and qualify for rebates nationwide.

Heavy Duty Heating in -22°F
Engineered to keep your space warm in extreme cold with up to 88% capacity retention.

Dual-Swing 3D Louver
Ensure optimal airflow distribution with automatic dual-directional louvers.

Dependably Durable Design
Built to withstand harsh climates with galvanized steel panels and anti-corrosion coil.

Wi-Fi Controllable
Control your system remotely with the free app, set custom schedules, and integrate with smart home setups.

High-Density Air Particle Filtration
Improve air quality with ultrafine and supplemental filters, eliminating pollutants and odors.

What's Included

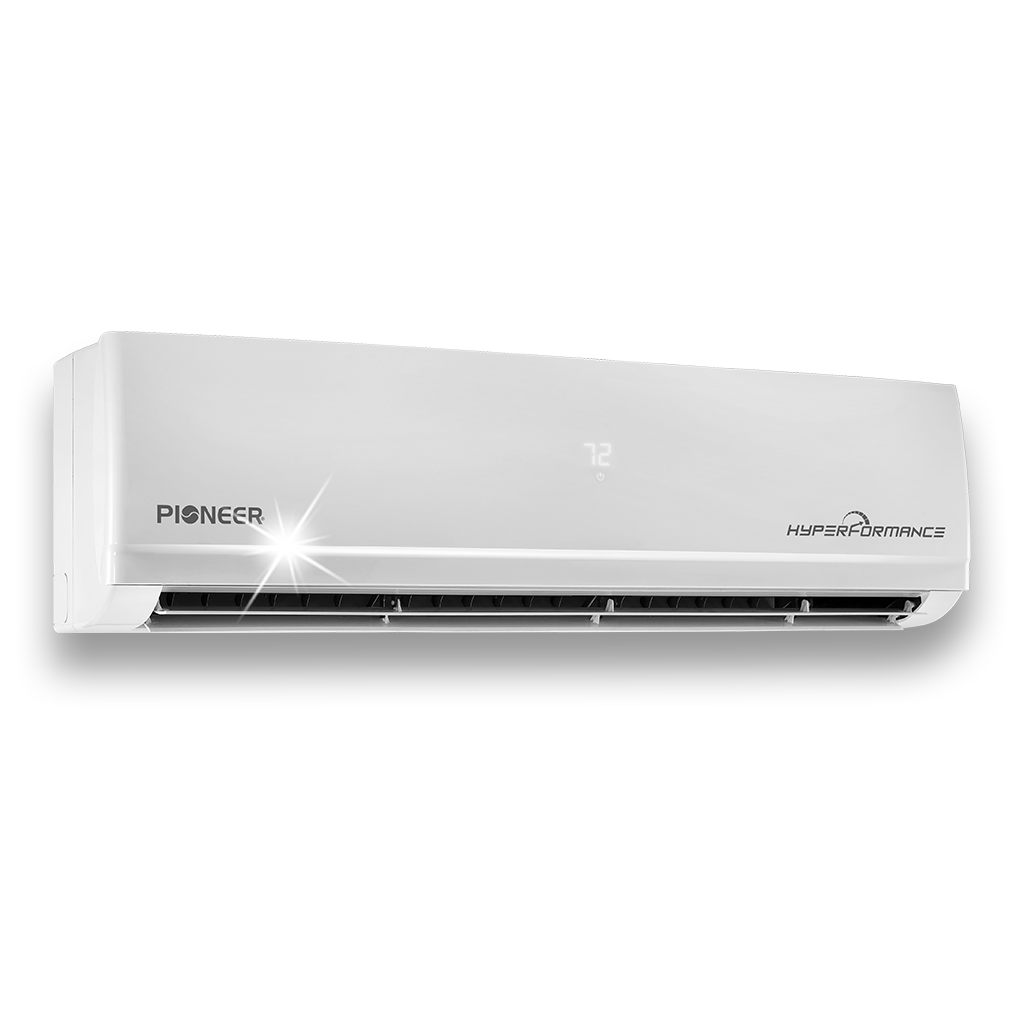

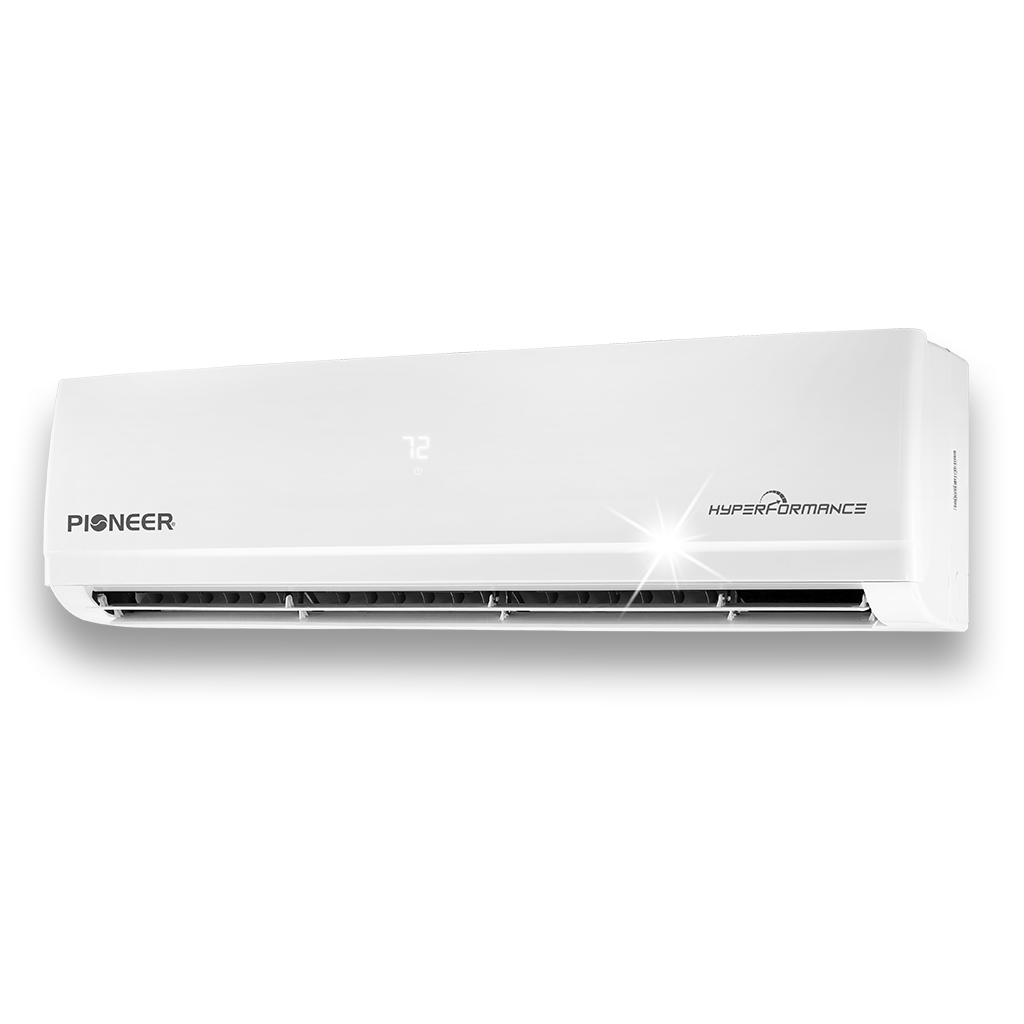

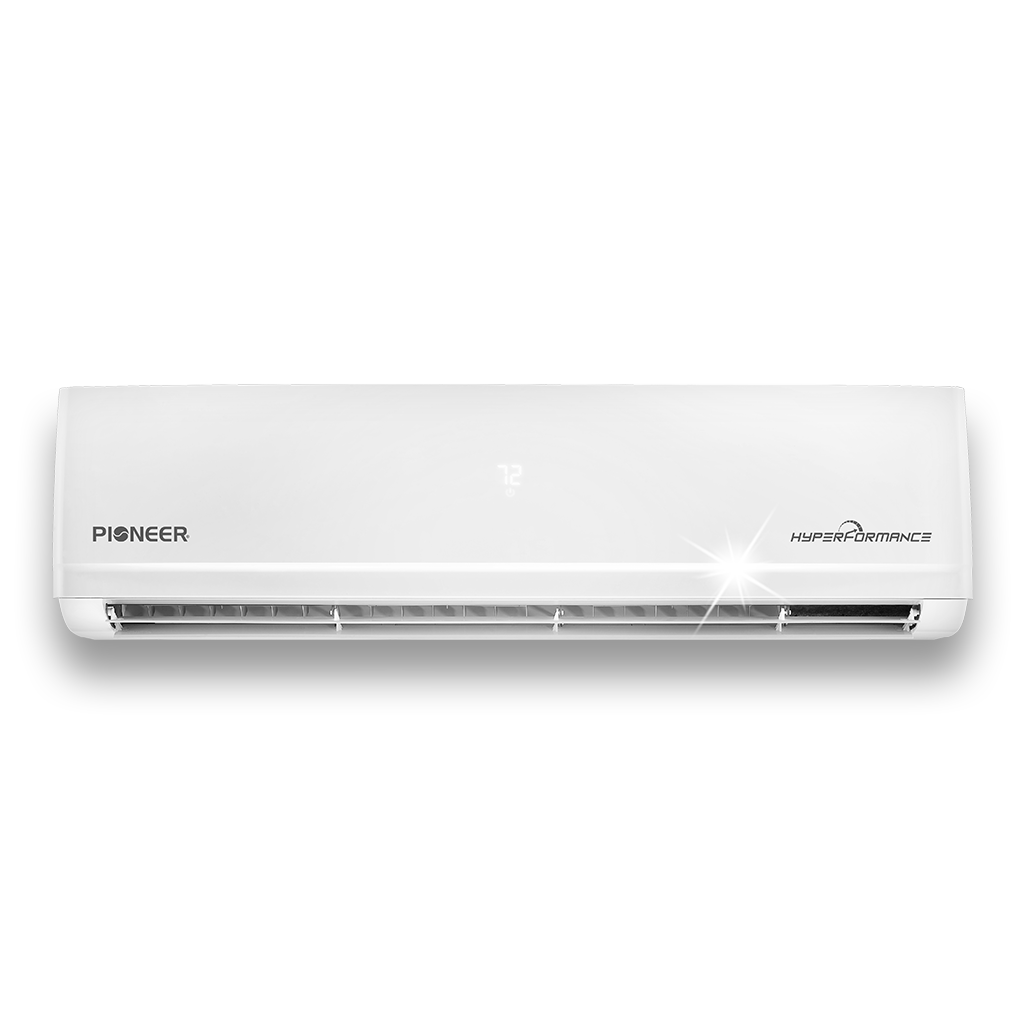

  • Indoor Unit

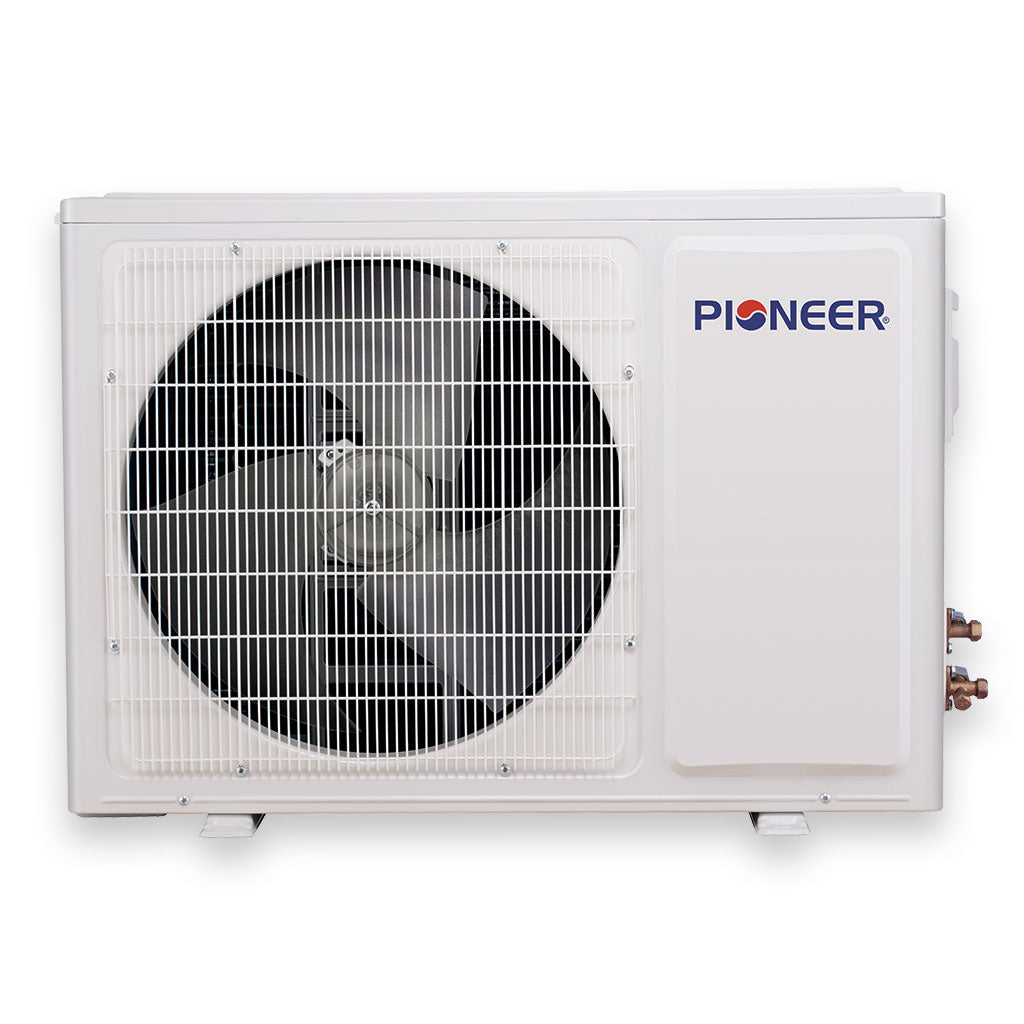

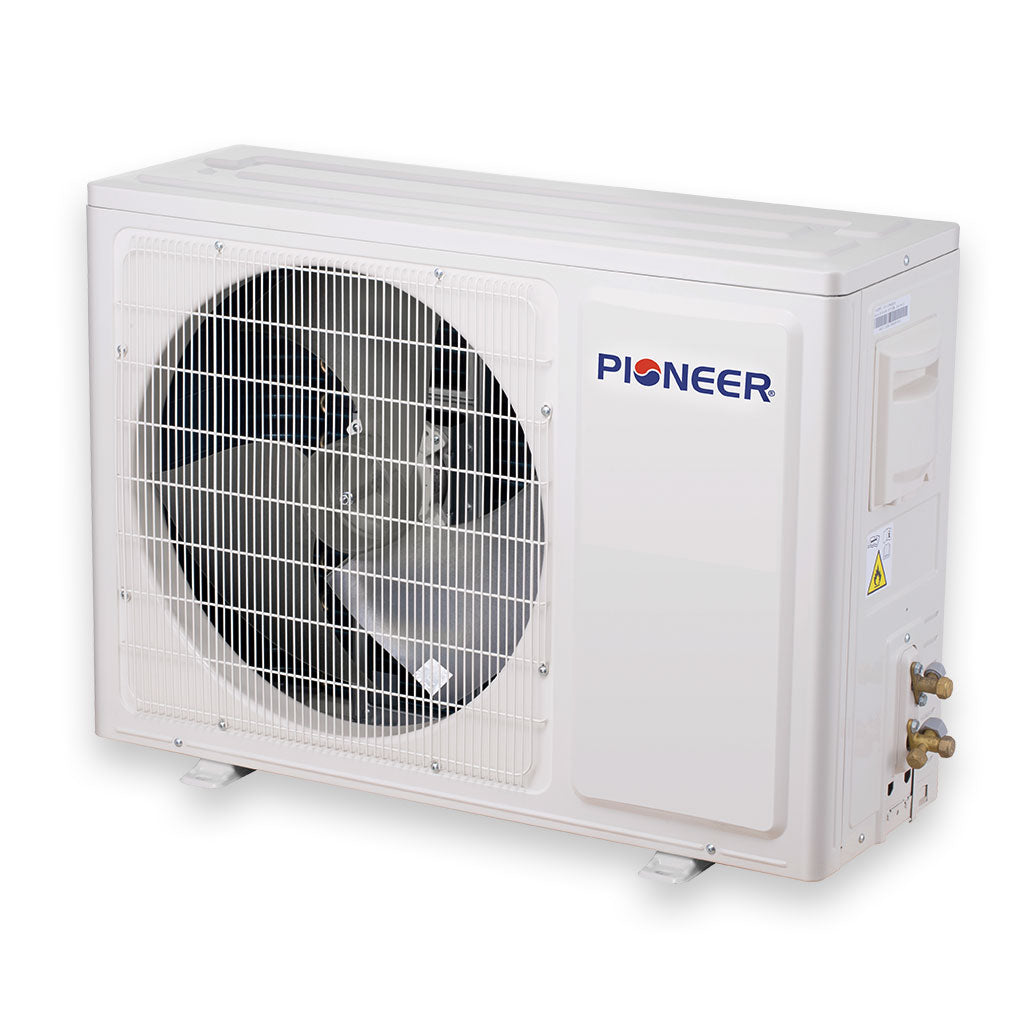

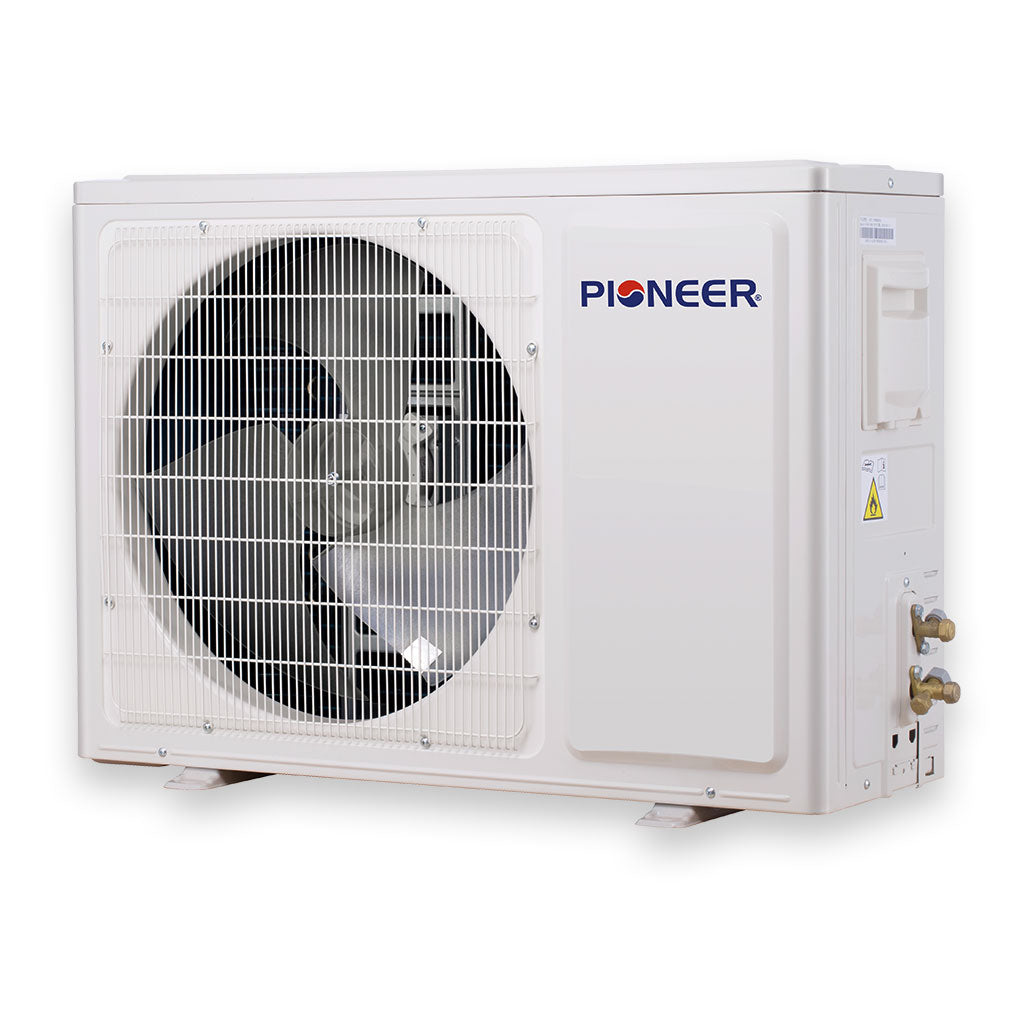

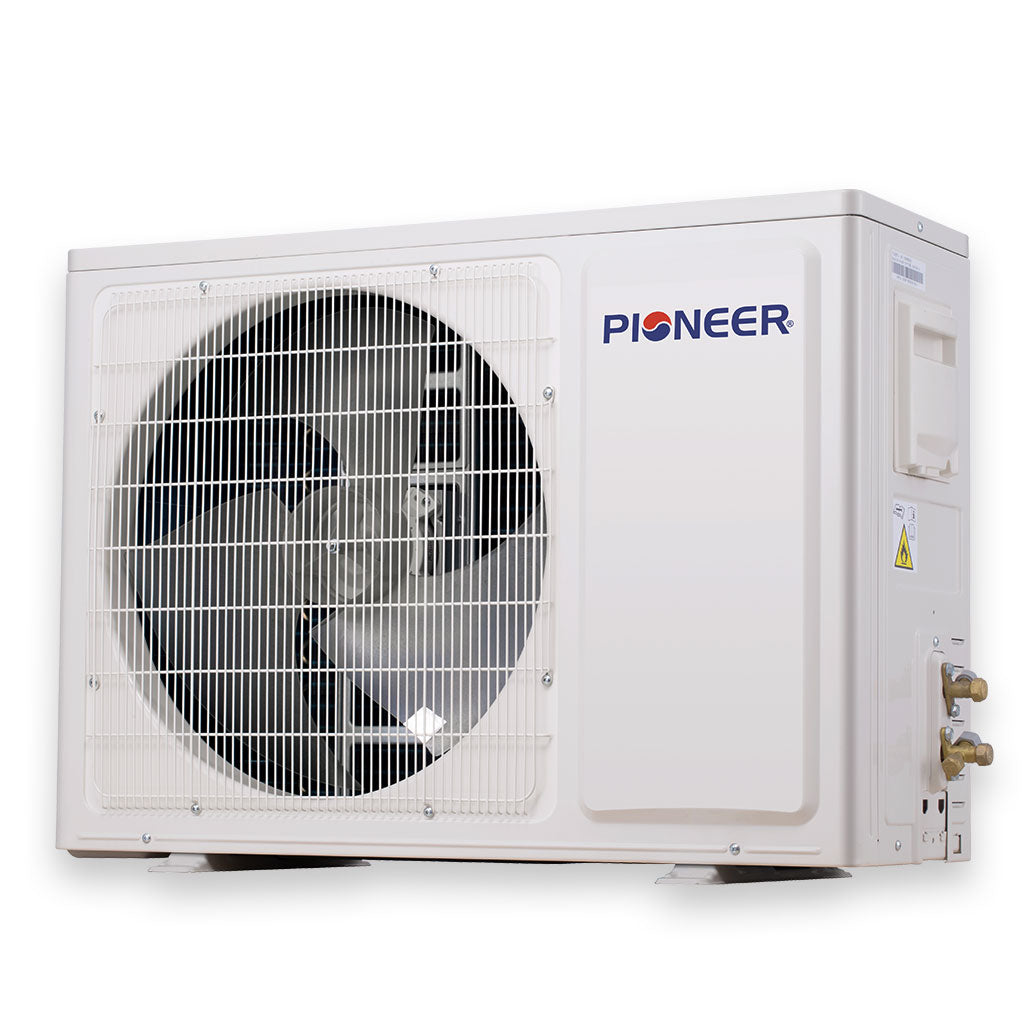

  • Outdoor Unit

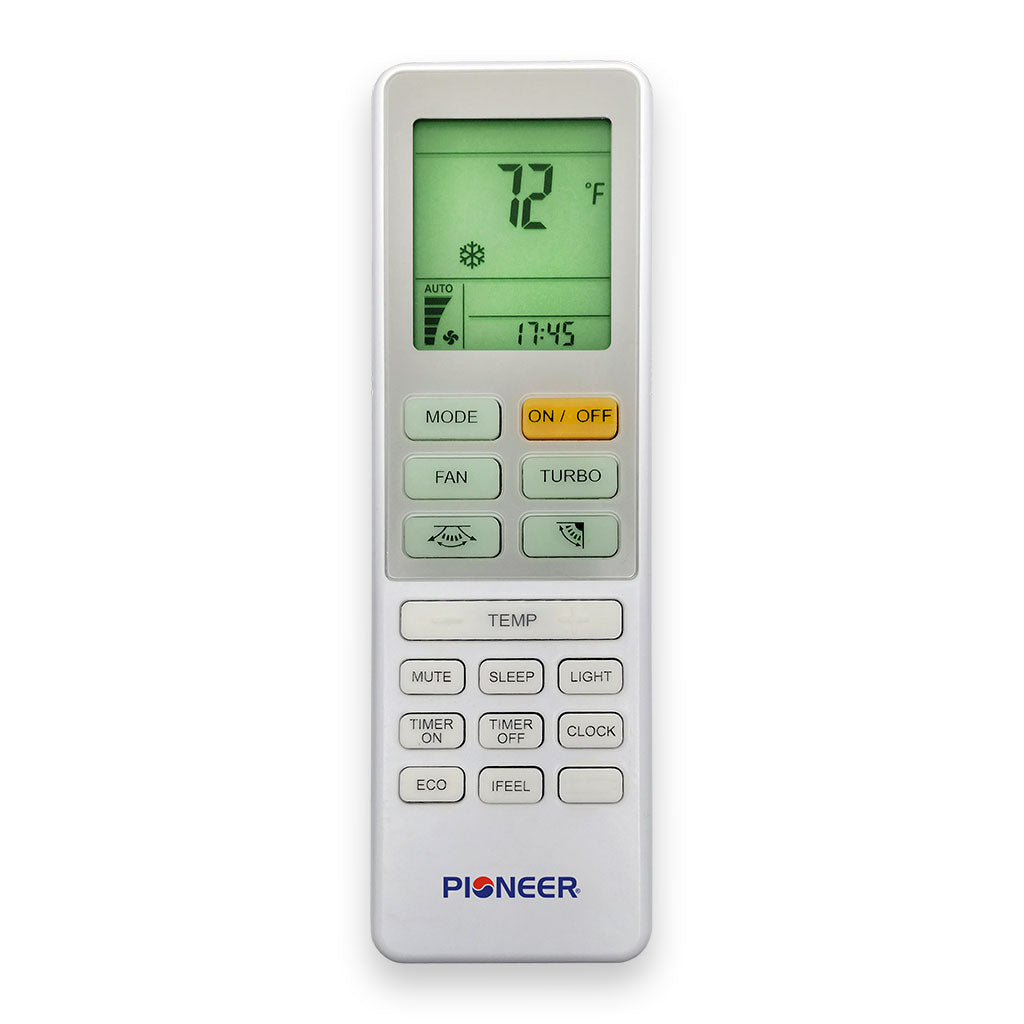

  • Wireless Remote Control (with wall holder and batteries)
  • Internet Control Module

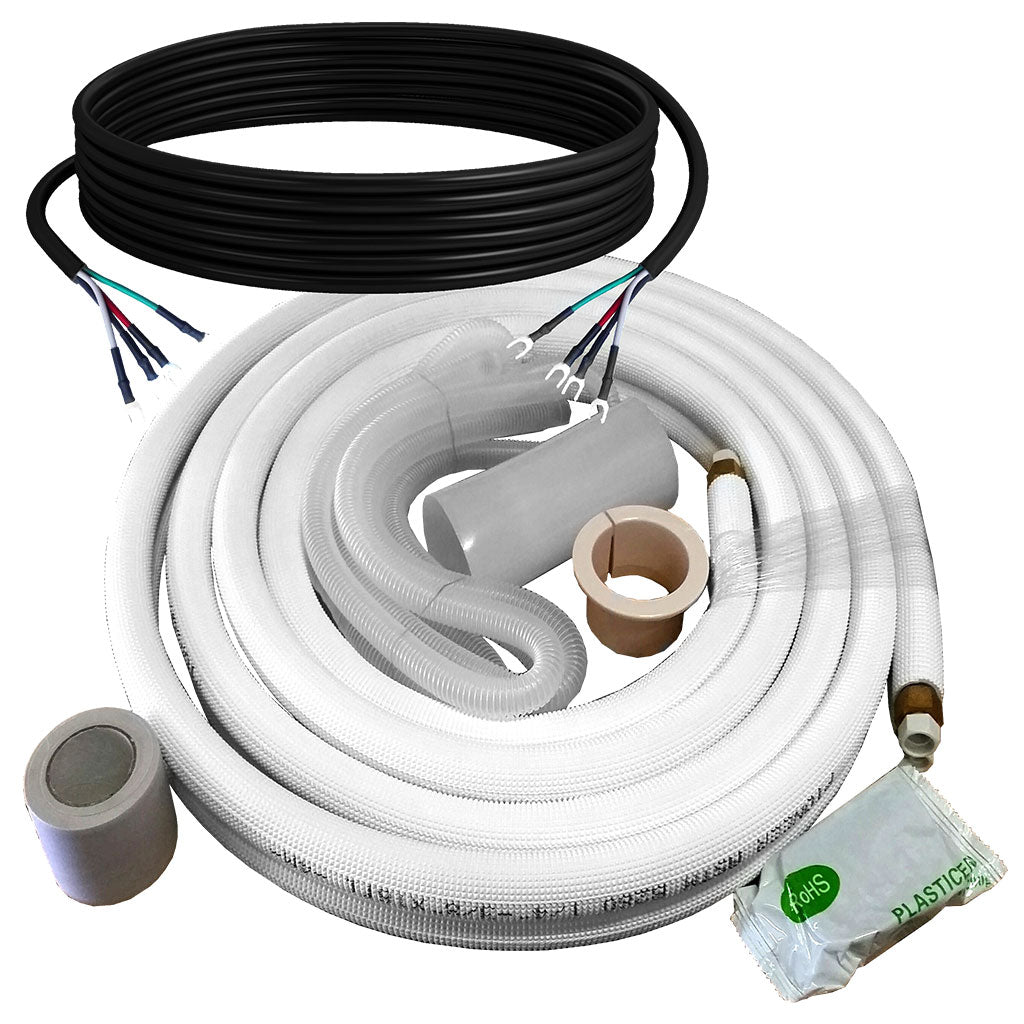

  • Copper Lines*
  • Signal Cable Between Units*
  • Drain for Indoor/Outdoor*
  • Wall Passage Sleeve*
  • Putty for Wall Hole*
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual
  • (*If ordered with an installation kit)

    SPECIFICATIONS & DIMENSIONS

    • Condenser Dimensions: 31 7/8" W x 11" D x 23" H
    • Condenser Weight: 72.6 lbs
    • Air Handler Dimensions: 33 1/2" W x 8 1/8" D x 10 5/8" H
    • Air Handler Weight: 18.7 lbs
    • SEER2: 25.5 BTU/W.h
    • EER2: 14.5 BTU/W.h
    • COP 47: 4.07 / 2.2 W/W
    • HSPF2: 12 / 10.5 BTU/W.h
    • Cooling Capacity: 9,000BTU (3,000BTU - 12,000BTU)
    • Heating Capacity: 10,000BTU (3,000BTU - 14,000BTU)
    • Cooling Rated Current: 2.8A / 620W
    • Heating Rated Current: 3.2A / 720W
    • Voltage: Requires a minimum of 208-230V, 60Hz, 1Ph (please check your home meets this electrical requirement prior to purchase)
    • Phase: 1
    • Cycle: 60 Hz
    • Max Coverage Area: 100-400 sq. ft.
    • Zone Capacity: 1
    • Refrigerant Type: R-410A
    • Indoor Decibel Rating: 39 / 32 / 29 (Hi/Med/Lo)
    • Indoor Decibel Rating: 53 (High)
    • Inverter: Yes
    • Line Set Length: Choose between 10ft., 16ft., 25ft., 33ft., and 50ft. line set.
    • Maximum Line Set Length: 20m / 65ft
    • Liquid Pipe Diameter: 1/4”
    • Gas Pipe Diameter: 3/8”
    • Wifi Compatibility: Yes
    • App Compatibility: Yes
    • Compatible with: IOS // Android
    • Control: Handheld Remote Controller (Included/Default), or Wired Controller (Optional/Sold Separately)
    • Certifications: Energy Star // AHRI
    • Warranty: 5 years Warranty for Parts // 5 years for Compressor

    INSTALLATION & GUIDES
