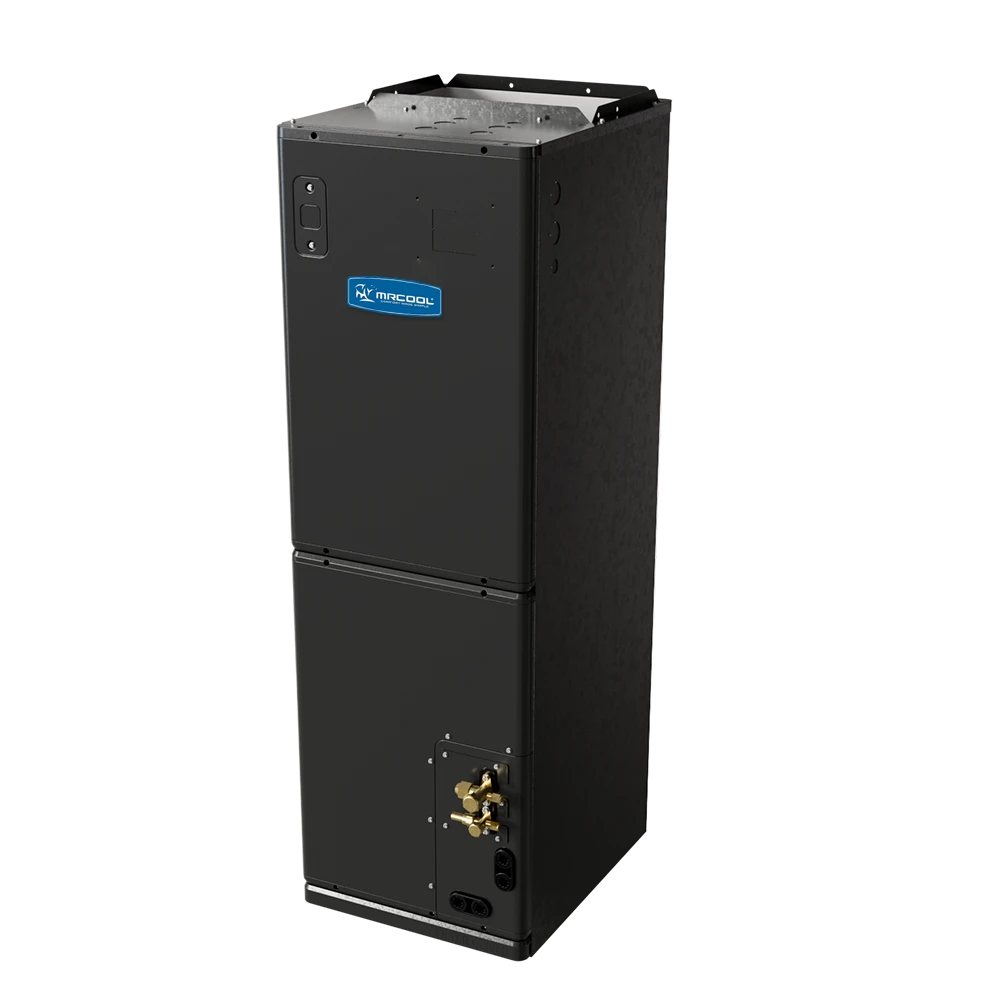

MRCOOL Universal Series 24,000 BTU (2 Ton) Multi-Position Air Handler - R-454B Refrigerant, UAH18024-O

Model: UAH18024-O
$1,741.78
$1,741.78 $1,999.00
-13%
Shipping calculated at checkout.

Buy Now, Pay Later

This item is in stock! Estimated Arrival: Oct 01 to Oct 07

$1,741.78
$1,741.78 $1,999.00

What's Included

DESCRIPTION

The MRCOOL® Universal® Series 24K Air Handler delivers powerful, reliable, and energy-efficient comfort in every season. Its slim, versatile design supports multiple installation options, making it ideal for attics, closets, or crawlspaces. Built with a corrosion-resistant aluminum coil, quiet operation, and compatibility with MRCOOL® NO-VAC® Quick Connect® line sets, this air handler is designed for convenience, durability, and performance. With optional heat kits for added cold-weather efficiency and backed by a strong warranty, it’s a dependable solution for year-round home comfort.

  • Versatile Installation: Supports upflow, downflow, and horizontal configurations for flexible placement in various spaces.
  • Compact Design: Slim profile makes it easy to install in attics, closets, and crawlspaces.
  • Quick Connect® Compatible: Works with MRCOOL® NO-VAC® Quick Connect® line sets for fast, no-vacuum installation.
  • Optional Heat Kits: Provides additional heating capacity and emergency backup for extreme winter conditions.
  • Durable Coil: M-shaped 100% aluminum coil maximizes airflow and heat exchange while resisting corrosion.
  • Quiet Operation: Designed to deliver powerful performance at whisper-quiet sound levels.
  • Reliable Warranty: Backed by a 10-year parts warranty and 2-year limited labor warranty for peace of mind.

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Dimensions: 14.49" W x 21.50" D x 49.72" H
  • Mount Type: Multi-Position
  • Weight: 123.02 lbs
  • CAPACITY & PERFORMANCE
  • Tonnage: 2
  • Cooling Capacity: 24,000 BTU
  • Heating Capacity: 24,000 BTU
  • Coverage Area: 900 to 1,200 sq. ft.
  • Noise Level (Hi/Mi/Lo): 47.5 / 44 / 33 dB(A)
  • Indoor air flow (Turbo/Hi/Mi/Lo): 824 / 759 / 694 / 629 CFM
  • ELECTRICAL REQUIREMENTS
  • Voltage: 115/208/230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 15A
  • Min Circuit Ampacity: 5.5/3.5A
  • REFRIGERANT & PIPING
  • Refrigerant Type: R-454B
  • Liquid Line Size: 3/8"
  • Suction Line Size: 3/4"
  • Max Line Set Length: 164 ft.
  • FEATURES
  • Filter Type: Replaceable
  • Filter Size: 12" x 20" x 1"
  • Metering Device: EXV
  • Auxiliary Heater Included: No
  • Auxiliary Heater Available: Yes
  • Compatible Auxiliary Heater Sizes: 5 KW / 8 KW / 10 KW / 15 KW
  • CERTIFICATION & WARRANTY
  • Certifications: UL Listed, CSA Listed, ETL Listed
  • Warranty: 10 Year Parts and 2 Year Labor

INSTALLATION & GUIDES

File icon
Installation Manual PDF
File icon
Warranty Document PDF
File icon
Product Brochure PDF
File icon
Service Manual PDF
