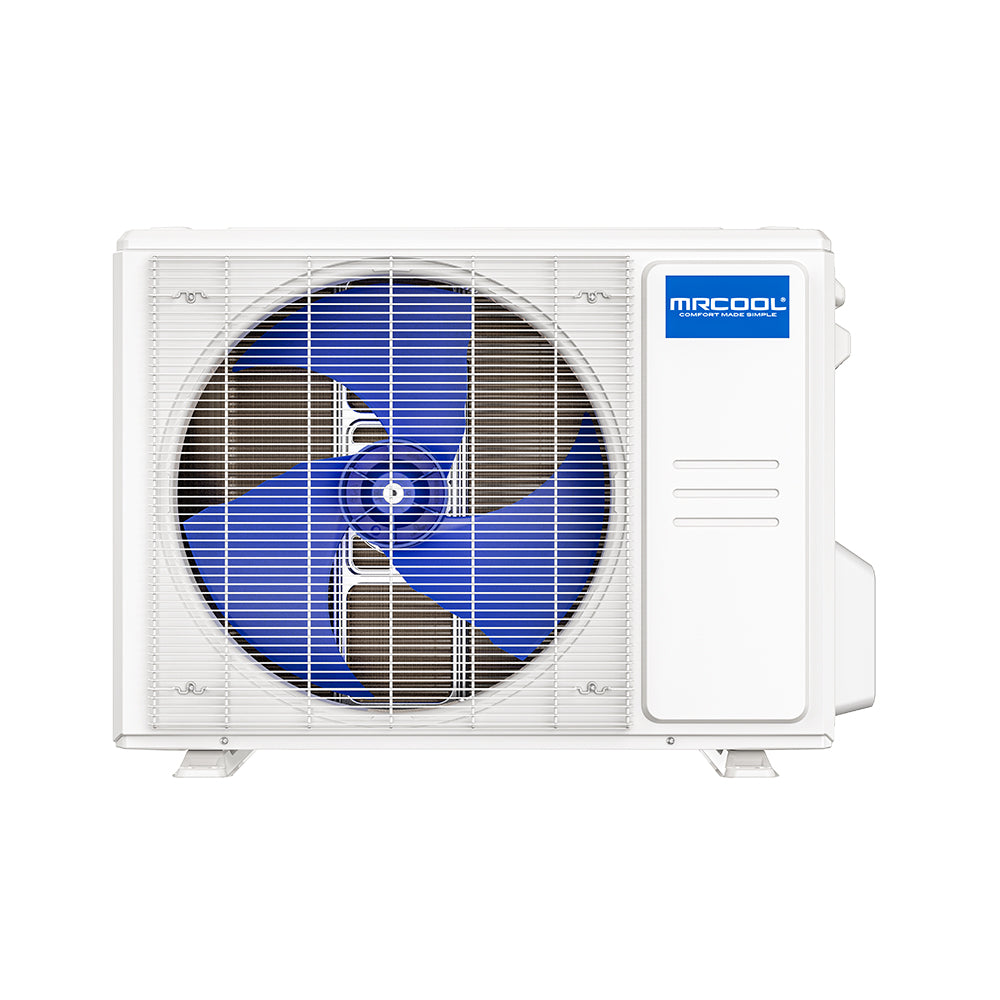

MRCOOL Olympus E Star 9,000 BTU 3/4 Ton Mini Split Heat Pump Condenser 230V/60Hz, O-ES-09-HP-C-230C-O1

Brand: MRCOOL
Model: O-ES-09-HP-C-230C-O1
$1,061.00
$1,061.00 $1,167.10
You save $106.10
Shipping calculated at checkout.

Payment Plans Available

BTU: 9,000
9,000
9,000
12,000
18,000
24,000
In stock - Ready to Ship
Free Curbside Delivery
Curbside shipping means your order will be delivered to the curb or driveway outside your home. The driver will not bring it inside or set it up. Please arrange for help if needed!
Estimated Arrival: Nov 01 to Nov 07
$1,061.00
$1,061.00 $1,167.10

What's Included

DESCRIPTION

The MRCOOL Olympus E Star 9,000 BTU mini split heat pump efficiently heats and cools spaces up to 350 sq ft. Its compact design allows easy installation in tight areas. Control the system remotely via Wi-Fi with the MRCOOL Smart HVAC app or use the included remote. It features high energy efficiency, quiet operation, and eco-friendly R-454B refrigerant. Compatible with Amazon Alexa and Google Assistant for voice control. Backed by a limited lifetime warranty and extended coverage for compressor and parts, it offers dependable comfort and energy savings.

  • Efficient Performance: SEER2 rating of 27.4, EER2 of 15.4, and HSPF2-4 of 12.5 help maximize comfort while reducing energy costs.
  • Smart Control: Wi-Fi connectivity and the MRCOOL® Smart HVAC app provide full control from your smartphone or tablet.
  • Quiet Operation: Outdoor fan runs at just 52.5 dB for minimal noise and uninterrupted comfort.
  • Compact Design: Space-saving build allows quick and simple installation even in tighter spaces.
  • Eco-Friendly Refrigerant: Uses R-454B refrigerant to reduce environmental impact while maintaining peak efficiency.
  • Voice Compatibility: Works with Amazon Alexa and Google Assistant for hands-free adjustments.
  • Reliable Warranty: Includes limited lifetime warranty, 7-year compressor coverage, and 5-year parts protection for peace of mind.

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Dimensions: 31.69" W x 12.99" D x 21.81" H
  • Weight: 72.75 lbs
  • CAPACITY & PEFORMANCE
  • Maximum Zones: 1
  • Tonnage: 3/4 Ton
  • Cooling Capacity: 9,000 BTU
  • SEER2: 27.4
  • EER2: 15.4
  • Heating Capacity: 12,000 BTU
  • HSPF2-4: 12.5
  • HSPF2-5: 9.5
  • Outdoor Operating Temperature: Cooling: -22°F to 122°F//Heating: -22°F to 75°F
  • Outdoor Noise Level: 56 dB(A)
  • Outdoor Operating Temperature: Cooling: 5°F – 122°F//Heating: -13°F – 75°F
  • Coverage Area: 151 to 350 sq ft.
  • ELECTRICAL REQUIREMENTS
  • Voltage: 208-230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 15A
  • Min Circuit Ampacity: 15A
  • REFRIGERANT & PIPING
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 35.27 oz
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"
  • Max Line Set Length: 82 ft.
  • FEATURES
  • Inverter: DC
  • Compressor Type: Rotary
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • CERTIFICATIONS & WARRANTY
  • Certifications: Energy Star Certified, UL Listed, ETL Listed, AHRI Certified
  • Warranty: 7 Years Compressor // 5 Years Parts

INSTALLATION & GUIDES

File icon
Brochure PDF
File icon
User Manual PDF
File icon
Service Manual PDF
File icon
Warranty PDF
File icon
AHRI Certificate PDF
File icon
Energy Guide PDF

SHIPPING POLICY

Free Curbside Delivery
MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Restocking Fee
Please note, a 35% restocking fee will be applied to all approved returns.

Non-Returnable Items
Accessories including lineguards, wall mounts, linesets, couplers, and similar items are not eligible for return.

See our full Return Policy here.
