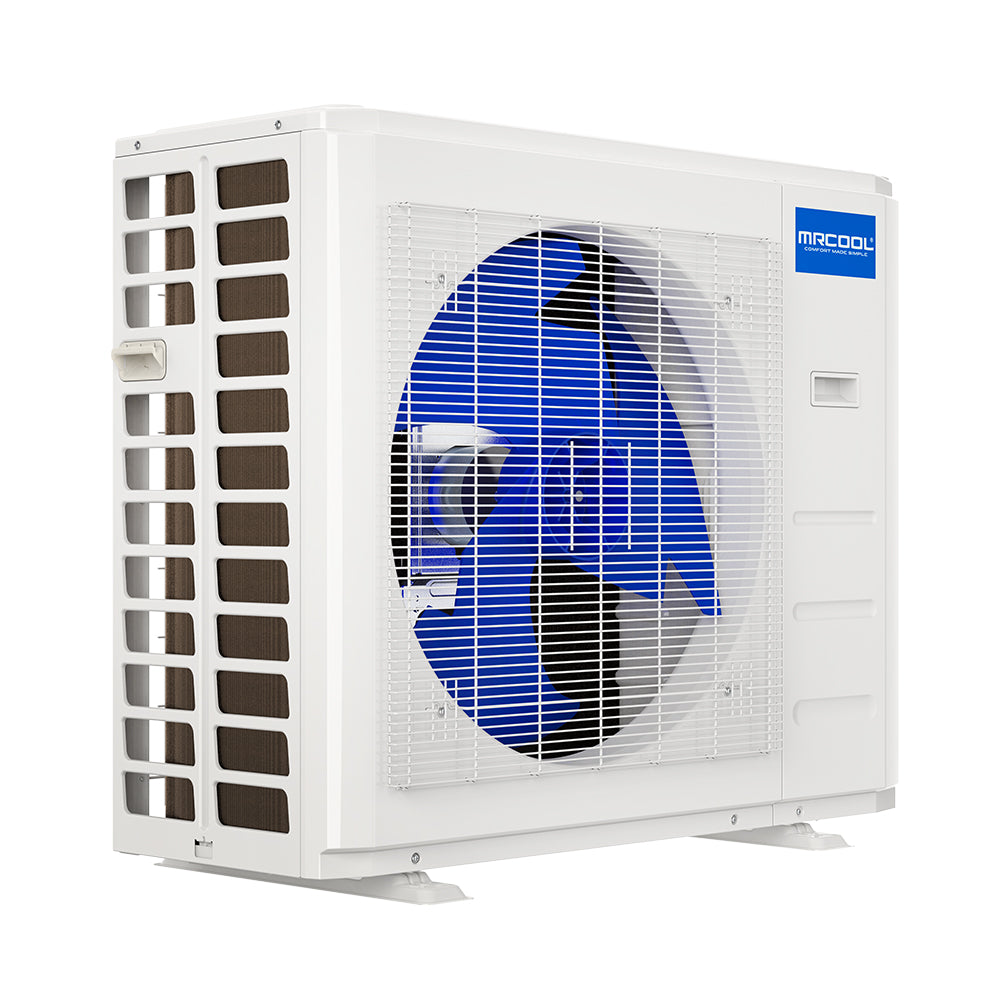

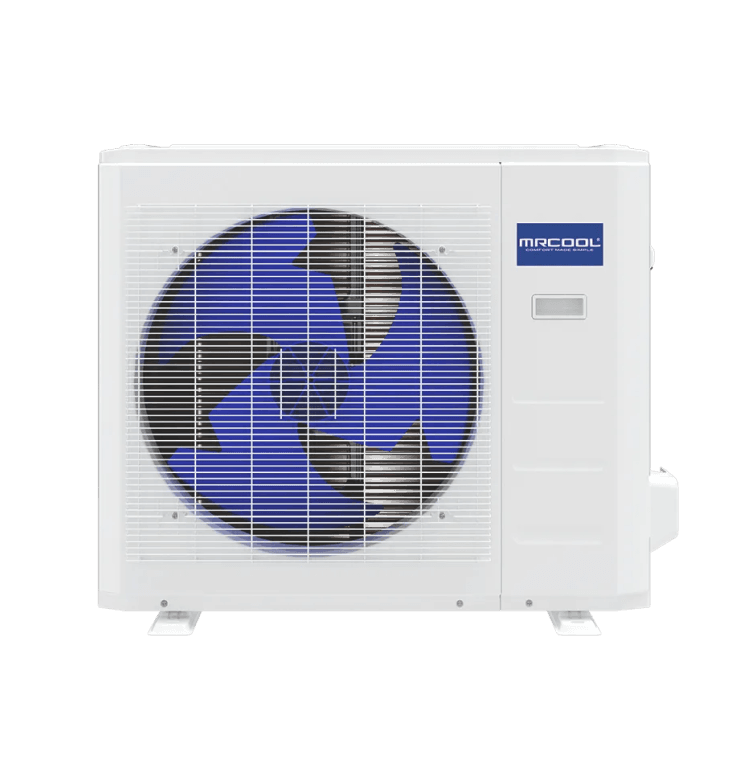

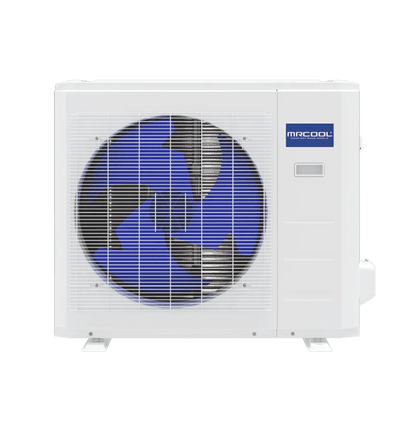

MRCOOL Olympus E Star 24,000 BTU 2 Ton Mini Split Heat Pump Condenser 230V/60Hz, O-ES-24-HP-C-230C-O1

Brand: MRCOOL
Model: O-ES-24-HP-C-230C-O1
$1,714.00
$1,714.00 $1,885.40
You save $171.40
Shipping calculated at checkout.

Payment Plans Available

BTU: 24,000
24,000
9,000
12,000
18,000
24,000
In stock - Ready to Ship
Free Curbside Delivery
Curbside shipping means your order will be delivered to the curb or driveway outside your home. The driver will not bring it inside or set it up. Please arrange for help if needed!
Estimated Arrival: Nov 01 to Nov 07
$1,714.00
$1,714.00 $1,885.40

What's Included

DESCRIPTION

The MRCOOL Olympus E Star 24,000 BTU mini split heat pump efficiently heats and cools spaces up to 1,000 sq ft. Compact and easy to install, it offers Wi-Fi control via the MRCOOL Smart HVAC app and a remote for convenience. With high energy efficiency ratings and quiet operation, it reduces bills and noise. The system uses eco-friendly R-454B refrigerant and supports voice control with Alexa and Google Assistant. Backed by a lifetime warranty, 7-year compressor, and 5-year parts coverage, it ensures reliable, long-lasting comfort.

  • Powerful Efficiency: SEER2 rating of 21.0, EER2 of 13.0, and HSPF2-4 of 13.5 provide reliable performance with reduced energy usage.
  • Smart Control: Wi-Fi enabled with MRCOOL® Smart HVAC app for full access from your smartphone or tablet.
  • Quiet Operation: Outdoor fan runs at just 51.5 dB, keeping your environment peaceful and comfortable.
  • Compact Design: Streamlined structure allows easy installation in various room sizes or layouts.
  • Eco-Friendly Refrigerant: Uses R-454B refrigerant to maintain strong performance with lower environmental impact.
  • Voice Compatibility: Supports Amazon Alexa and Google Assistant for convenient, hands-free operation.
  • Reliable Warranty: Covered by a limited lifetime warranty, 7-year compressor protection, and 5-year parts warranty.

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Dimensions: 37.24" W x 16.14" D x 31.89" H
  • Weight: 130.29 lbs
  • CAPACITY & PEFORMANCE
  • Maximum Zones: 1
  • Tonnage: 2 Ton
  • Cooling Capacity: 24,000 BTU
  • SEER2: 21
  • EER2: 13
  • Heating Capacity: 29,000 BTU
  • HSPF2-4: 13.5
  • HSPF2-5: 9.8
  • Coverage Area: 751 to 1,000 sq ft.
  • Outdoor Noise Level: 61.5 dB(A)
  • Outdoor Operating Temperature: Cooling: -22°F to 122°F//Heating: -22°F to 75°F
  • ELECTRICAL REQUIREMENTS
  • Voltage: 208-230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 25A
  • Min Circuit Ampacity: 24.9A
  • REFRIGERANT & PIPING
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 63.49 oz
  • Liquid Line Size: 3/8"
  • Suction Line Size: 5/8"
  • Max Line Set Length: 164 ft.
  • FEATURES
  • Inverter: DC
  • Compressor Type: Rotary
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • CERTIFICATIONS & WARRANTY
  • Certifications: Energy Star Certified, UL Listed, ETL Listed, AHRI Certified
  • Warranty: 7 Years Compressor // 5 Years Parts

INSTALLATION & GUIDES

File icon
Brochure PDF
File icon
User Manual PDF
File icon
Service Manual PDF
File icon
Warranty PDF
File icon
AHRI Certificate PDF
File icon
Energy Guide PDF
