  3. MRCOOL DIY® 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable, EZPRO-09-HP-11516D-O

DIY® 5th Gen EasyPro

MRCOOL DIY® 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable, EZPRO-09-HP-11516D-O

Model: EZPRO-09-HP-11516D-O
$1,569.00
$1,569.00 $2,300.00
-32%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 9,000
9,000
9,000
12,000
18,000
24,000

This item is in stock! Estimated Arrival: May 13 to May 19

$1,569.00
$1,569.00 $2,300.00

Product Overview

  • Zones: 1

  • DIY Installation

  • Voltage: 115V

  • Smartphone Control

What's Included

BETTER TOGETHER

DESCRIPTION

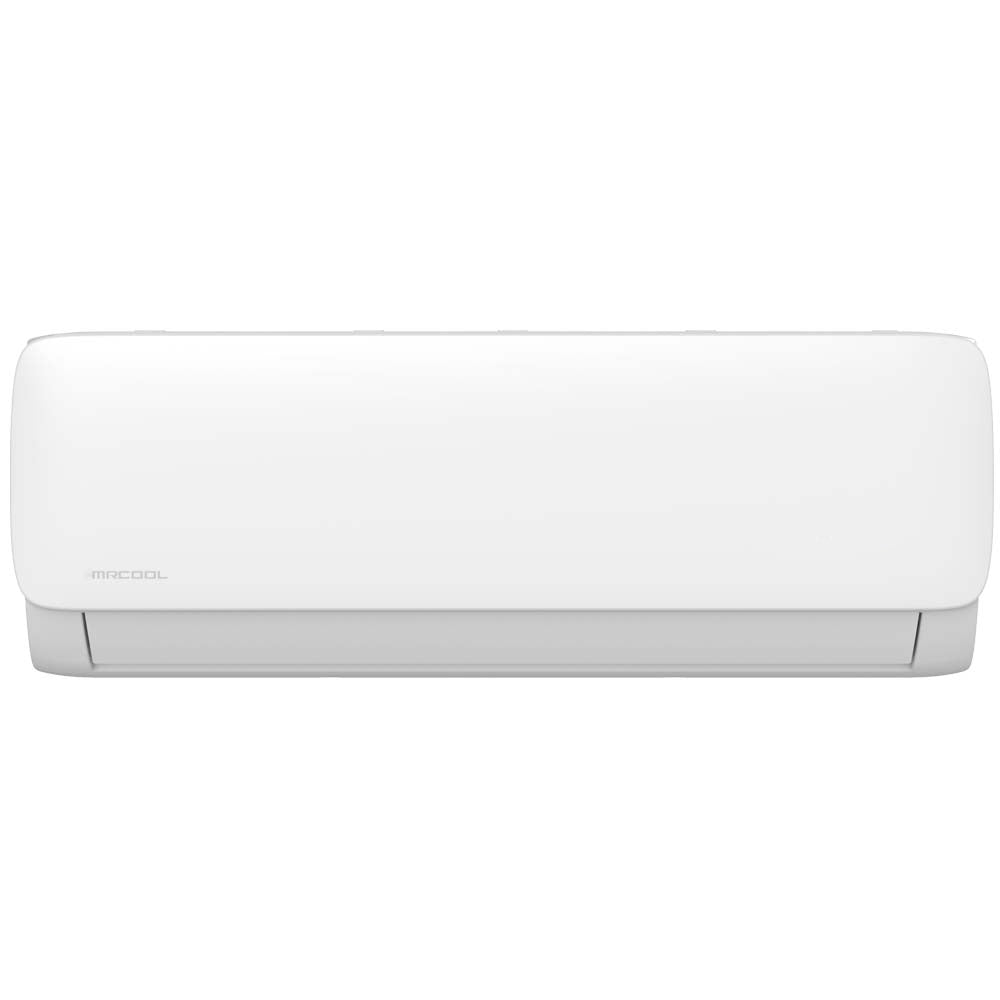

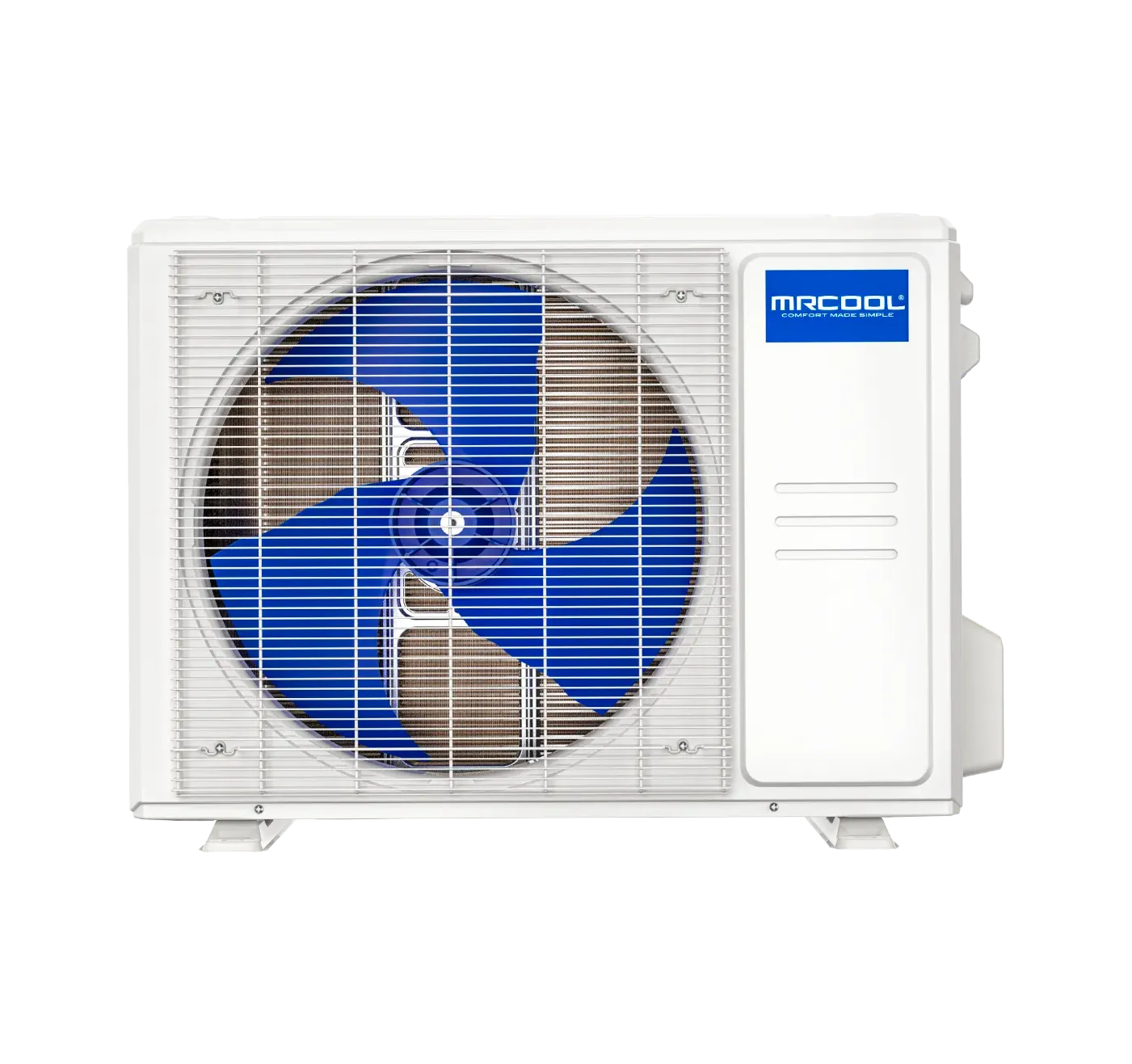

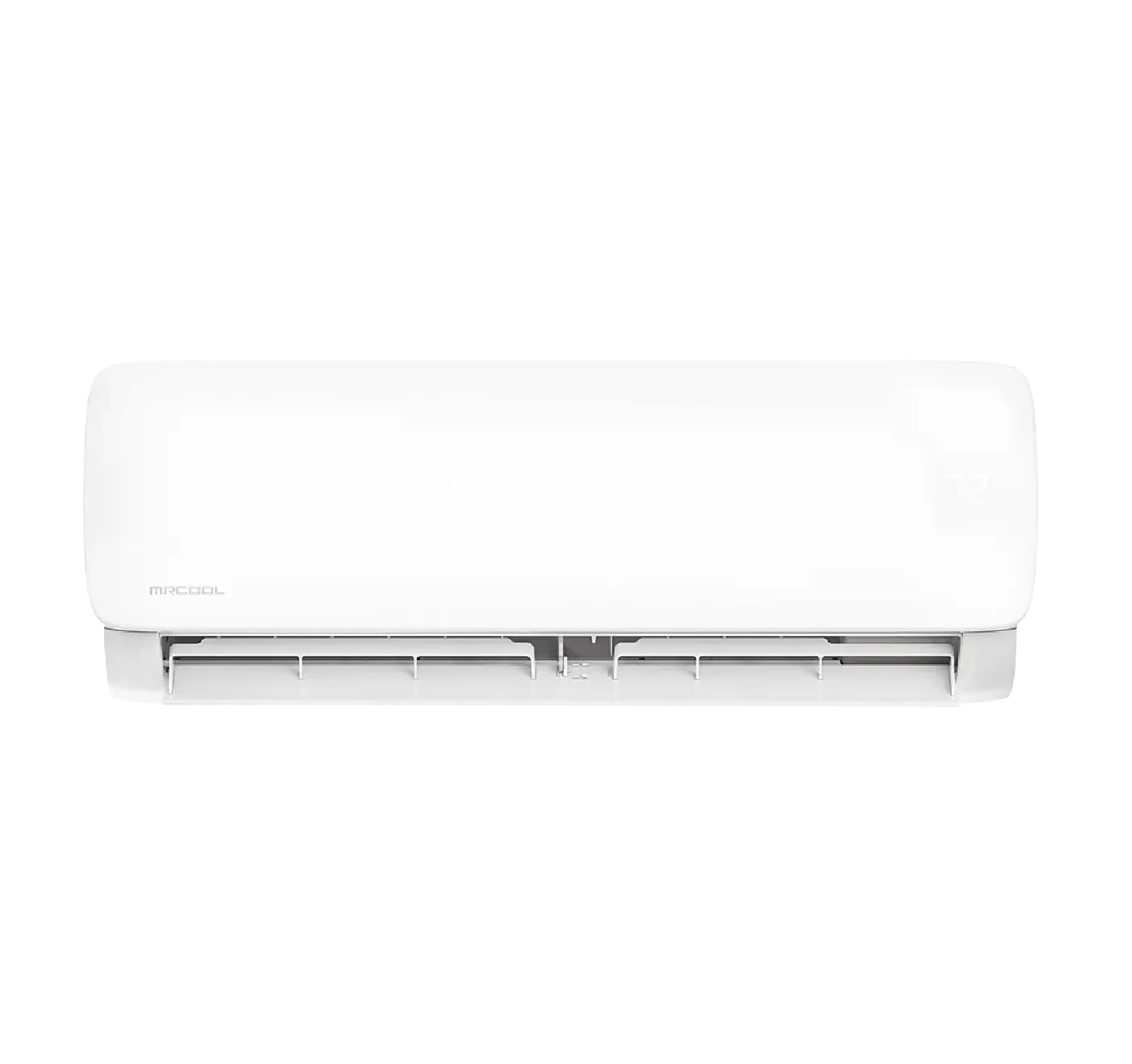

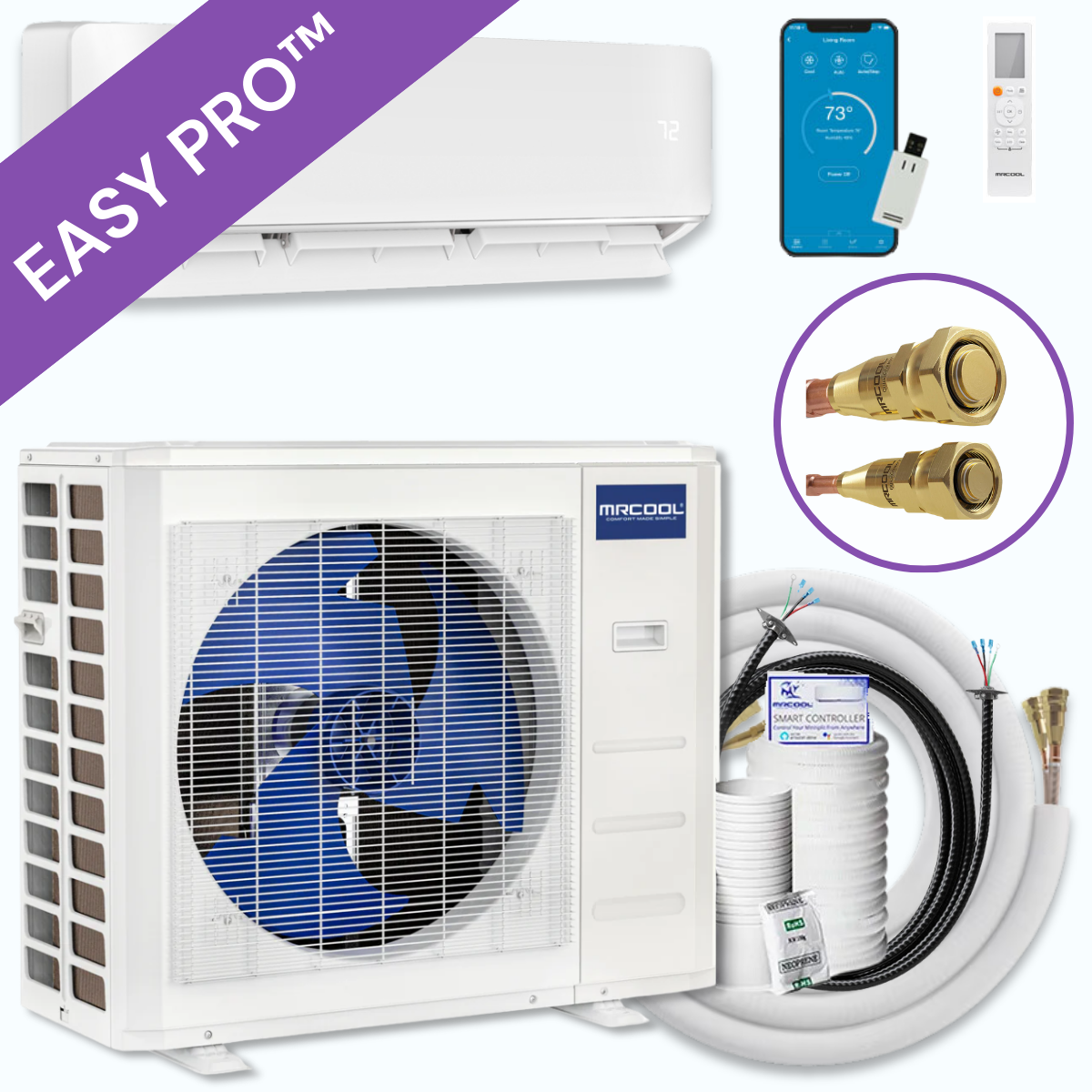

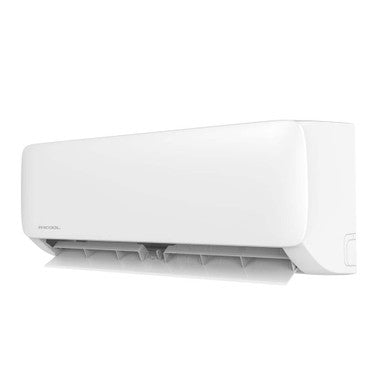

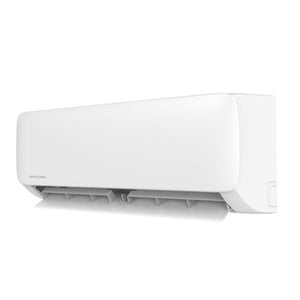

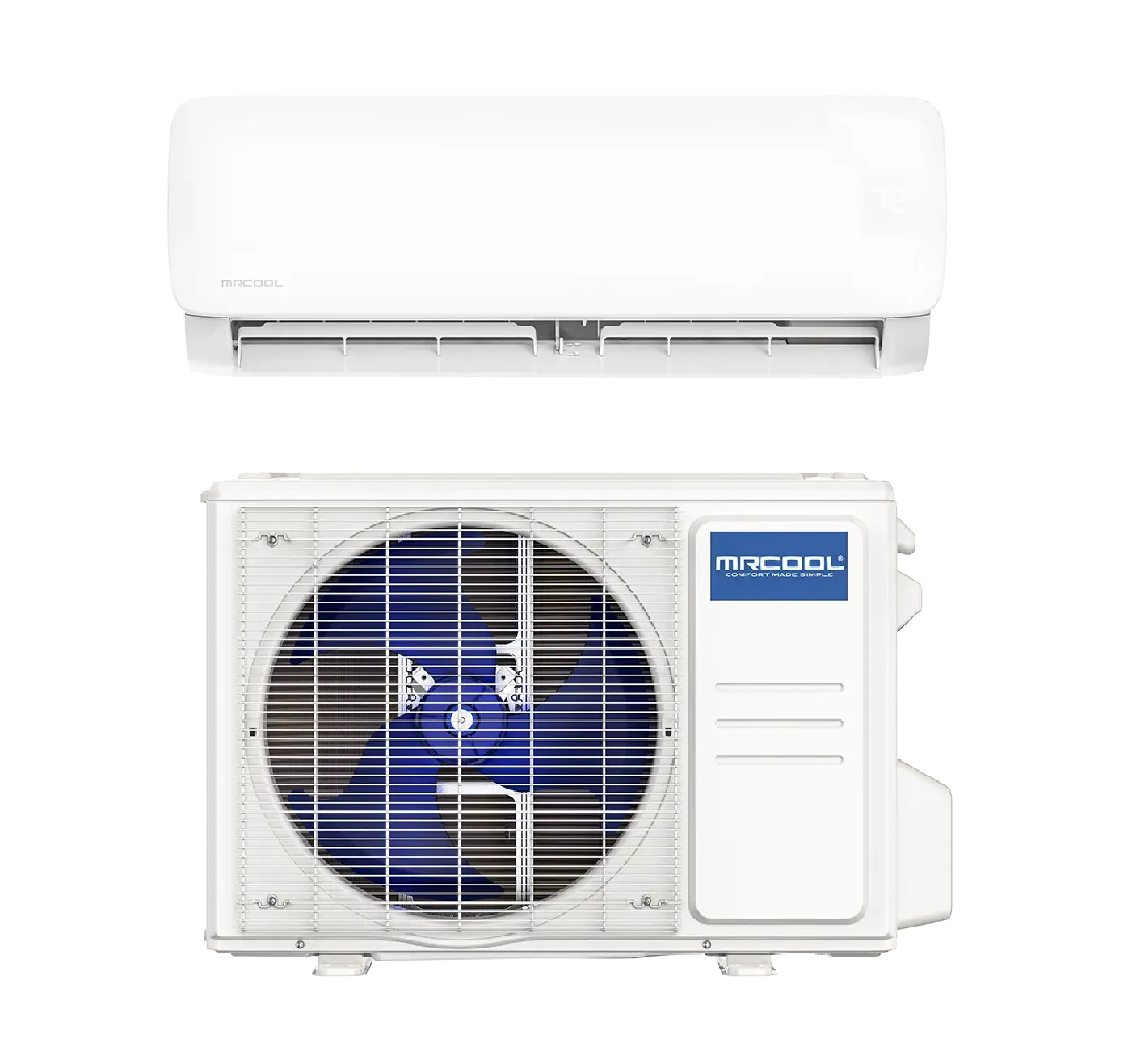

The MRCOOL® Easy Pro™ Mini-Split System delivers powerful, energy-efficient heating and cooling for spaces up to 400 sq. ft.- all with a simple DIY installation. This complete system includes a quiet, WiFi-enabled indoor air handler and a rugged outdoor condenser. Whether for a bedroom, office, or tech space like a server room, the Easy Pro™ system offers smart control, year-round performance, and peace of mind - without breaking the bank.

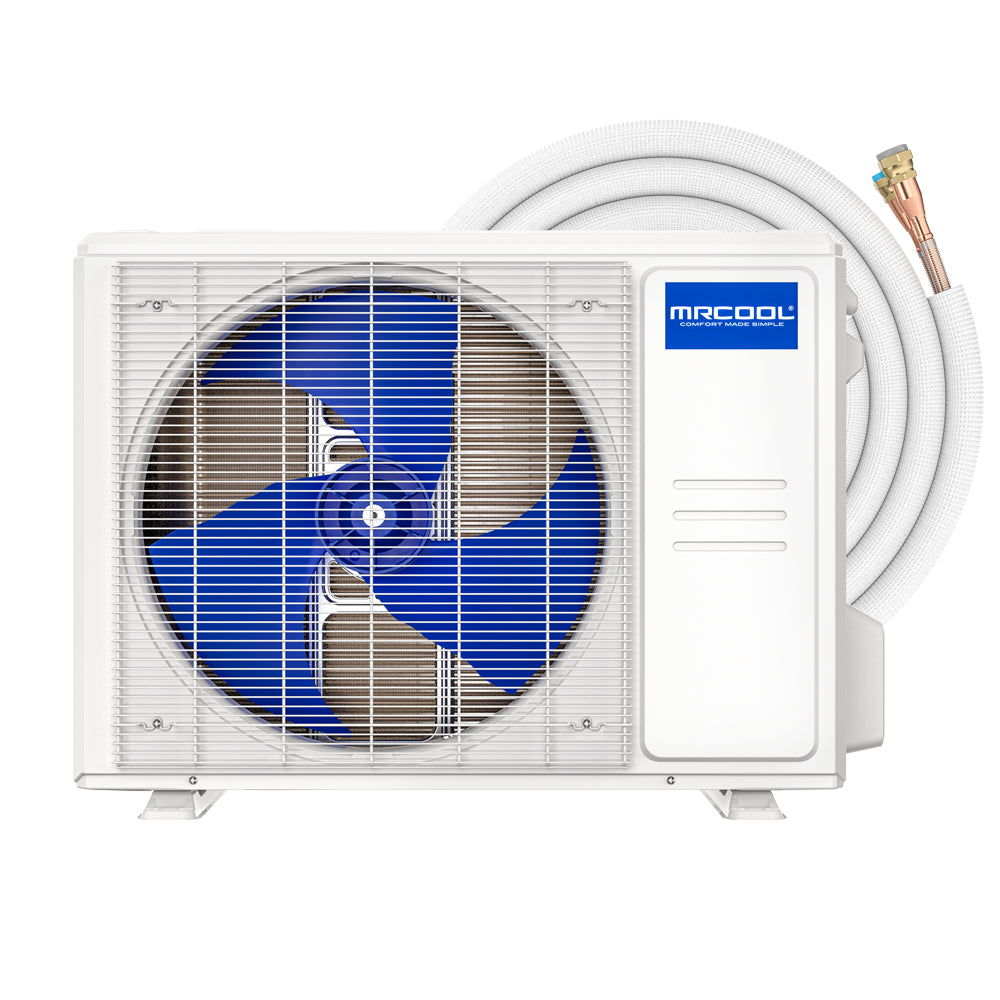

  • DIY Installation Made Simple: Comes with a 16 ft. pre-charged Fast Connection® line set for easy homeowner installation - no HVAC technician required.
  • Smart Home Integration: Built-in WiFi with MRCOOL® Smart HVAC Controller® app support, plus full compatibility with Google Assistant and Amazon Alexa.
  • Personalized Comfort Control: Includes a remote with Follow Me® technology that adjusts temperature based on your location in the room.
  • Energy-Efficient Performance: Features a SEER2 rating of 20.2 and HSPF2-4 of 9.2, providing cost-effective heating and cooling all year long.
  • Quiet Operation: Runs at just 54 dB(A), making it ideal for bedrooms, offices, and other quiet spaces.
  • Low Ambient Cooling: Delivers consistent performance even in outdoor temperatures as low as 5°F—perfect for server rooms or greenhouses.
  • Durable, Weather-Resistant Design: Gold Fin® condenser coating offers long-term corrosion resistance, ideal for coastal environments.
  • Clean, Healthy Air: Active Clean Technology keeps the indoor unit fresh and filters easy to maintain for better indoor air quality.
  • Eco-Conscious & Certified: Uses R-454B refrigerant and meets AHRI, NEEP ccASHP, and CEE Tier 1 - North certification standards.
  • Warranty Protection: Includes a 2-year parts warranty and a 1-year compressor warranty upon registration for peace of mind.

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS

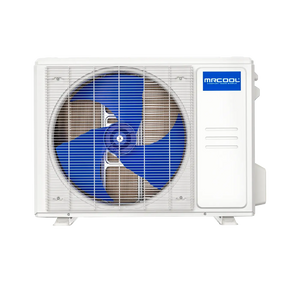

  • Condenser Dimensions: 28.35 W" x 10.63 D" x 19.49 H"
  • Air Handler Dimensions: 28.7 W" x 7.87 D" x 11.5 H"
  • Condenser Weight: 54.67 lbs
  • Air Handler Weight: 23.81 lbs

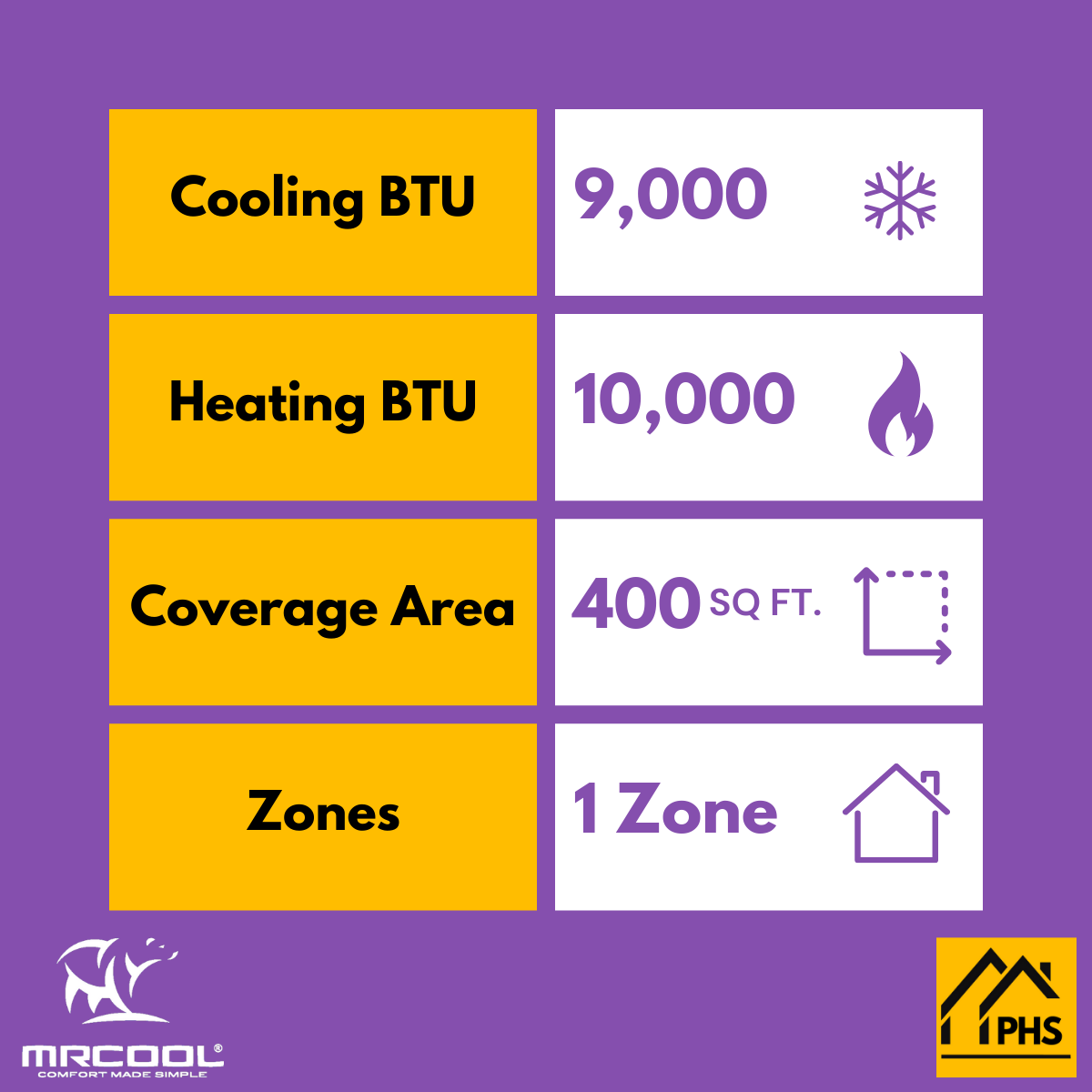

  • CAPACITY & PERFORMANCE
  • Zone Capacity: 1
  • Cooling Capacity: 9,000 BTU
  • Outdoor Operating Temperature (Cooling): 5°F - 122°F
  • EER2: 11.3
  • SEER2: 20.2
  • Heating Capacity: 10,000 BTU
  • Outdoor Operating Temperature (Heating): 13°F - 75°F
  • HSPF2-4: 9.2
  • HSPF2-5: 7.1
  • Coverage Area: Up to 400 sq ft.
  • Outdoor Noise Level: 54 dB(A)
  • Indoor Noise Level (Hi/Mi/Lo): 43.0/31.0/18.0 dB(A)
  • ELECTRICAL REQUIREMENTS
  • Voltage: 115V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 20A
  • Min Circuit Ampacity: 17A
  • Refrigerant & Piping
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 17.28 oz
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"
  • Max Line Set Length: 82 ft.
  • FEATURES
  • Modes: Auto Mode: Automatically selects heating or cooling based on the room's temperature. // Cool Mode: Lowers the room temperature to your desired setting. // Heat Mode: Raises the room temperature to your desired setting. // Fan-Only Mode: Circulates air without heating or cooling. // Dry Mode (Dehumidification): Reduces humidity levels in the room. // Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
  • Inverter: DC
  • Compressor Type: Rotary
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • Remote Control Included: Yes
  • Certifications & Warranty
  • Certifications: UL Listed, CSA Listed, ETL Listed, AHRI Certified
  • Warranty: 2 Year Parts / 1 Year Compressor

INSTALLATION & GUIDES

Product Brochure
Installation Manual
Product Specifications
Remote Control Manual
Warranty Document
Energy Guide
AHRI Certificate
