DIY® 5th Gen EasyPro

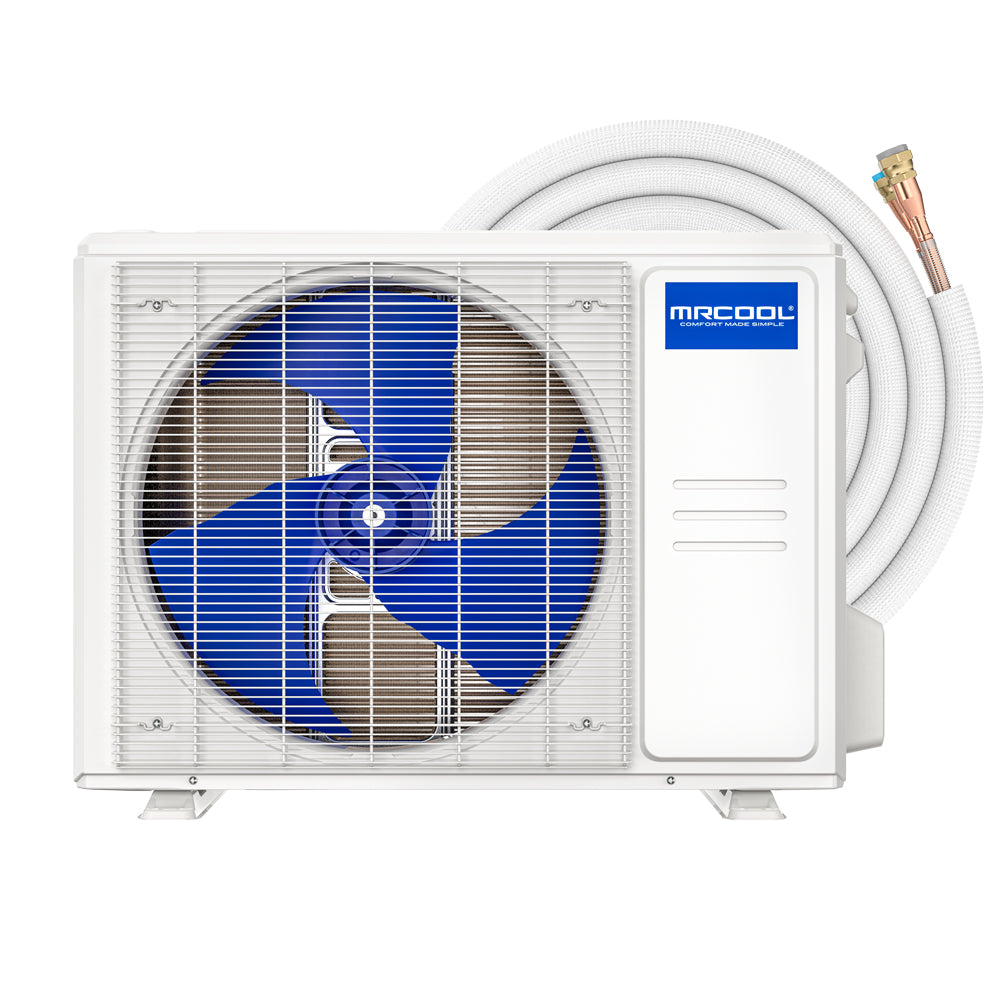

MRCOOL DIY® 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set, EZPRO-09-HP-C-11516D-O

Regular price $1,020.00
Sale price $1,020.00 Regular price $1,900.00
-46%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 9,000
9,000
9,000
12,000
18,000
24,000

This item is in stock! Estimated Arrival: May 13 to May 19

Brand: MRCOOL
Model: EZPRO-09-HP-C-11516D-O
Regular price $1,020.00
Sale price $1,020.00 Regular price $1,900.00

Product Overview

  • Zones: 1

  • DIY Installation

  • Voltage: 115V

Collapsible content

DESCRIPTION

The MRCOOL® Easy Pro™ Condenser is the perfect blend of efficiency, convenience, and affordability. Designed to heat and cool spaces up to 400 sq. ft., this 9k BTU unit features a SEER2 rating of 20.2 and an HSPF2-4 of 9.2 for reliable year-round performance. With the pre-charged 16' Fast Connection® line set, homeowners can install it themselves—no professional help needed. Quiet, smart, and built to last, this condenser makes comfort easy to achieve, control, and enjoy.

  • DIY Friendly: Installs easily with a 16' pre-charged Fast Connection® line set—no HVAC tech required.
  • Smart Connectivity: Built-in WiFi control via the MRCOOL® Smart HVAC Controller® App, with full support for Google Assistant and Amazon Alexa.
  • Reliable Performance: Auto Restart restores settings after outages; Low Ambient Cooling works down to 5°F—ideal for greenhouses or server rooms.
  • Quiet Comfort: Operates at just 54 dB(A), keeping your space peaceful and disruption-free.
  • Durable Design: Gold Fin® coating resists corrosion—even in coastal environments—for long-lasting performance.
  • Certified & Covered: Uses eco-friendly R-454B refrigerant, AHRI certified, NEEP ccASHP listed, and includes a 2-year parts / 1-year compressor warranty upon registration.

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Dimensions: 28.35 W" x 10.63 D" x 19.49 H"
  • Weight: 54.67 lbs
  • CAPACITY & PERFORMANCE
  • Zone Capacity: 1
  • Cooling Capacity: 9,000 BTU
  • Outdoor Operating Temperature (Cooling): 5°F - 122°F
  • EER2: 11.3
  • SEER2: 20.2
  • Heating Capacity: 10,000 BTU
  • Outdoor Operating Temperature (Heating): 13°F - 75°F
  • HSPF2-4: 9.2
  • HSPF2-5: 7.1
  • Coverage Area: Up to 400 sq ft.
  • Outdoor Noise Level: 54 dB(A)
  • ELECTRICAL REQUIREMENTS
  • Voltage: 115V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 20A
  • Min Circuit Ampacity: 17A
  • Refrigerant & Piping
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 17.28 oz
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"
  • Max Line Set Length: 82 ft.
  • FEATURES
  • Inverter: DC
  • Compressor Type: Rotary
  • Certifications & Warranty
  • Certifications: UL Listed, CSA Listed, ETL Listed, AHRI Certified
  • Warranty: 2 Year Parts / 1 Year Compressor
