  3. MRCOOL DIY® 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Air Handler 115V with DIYPRO Cable, EZPRO-09-HP-WMAH-115D-O

DIY® 5th Gen EasyPro

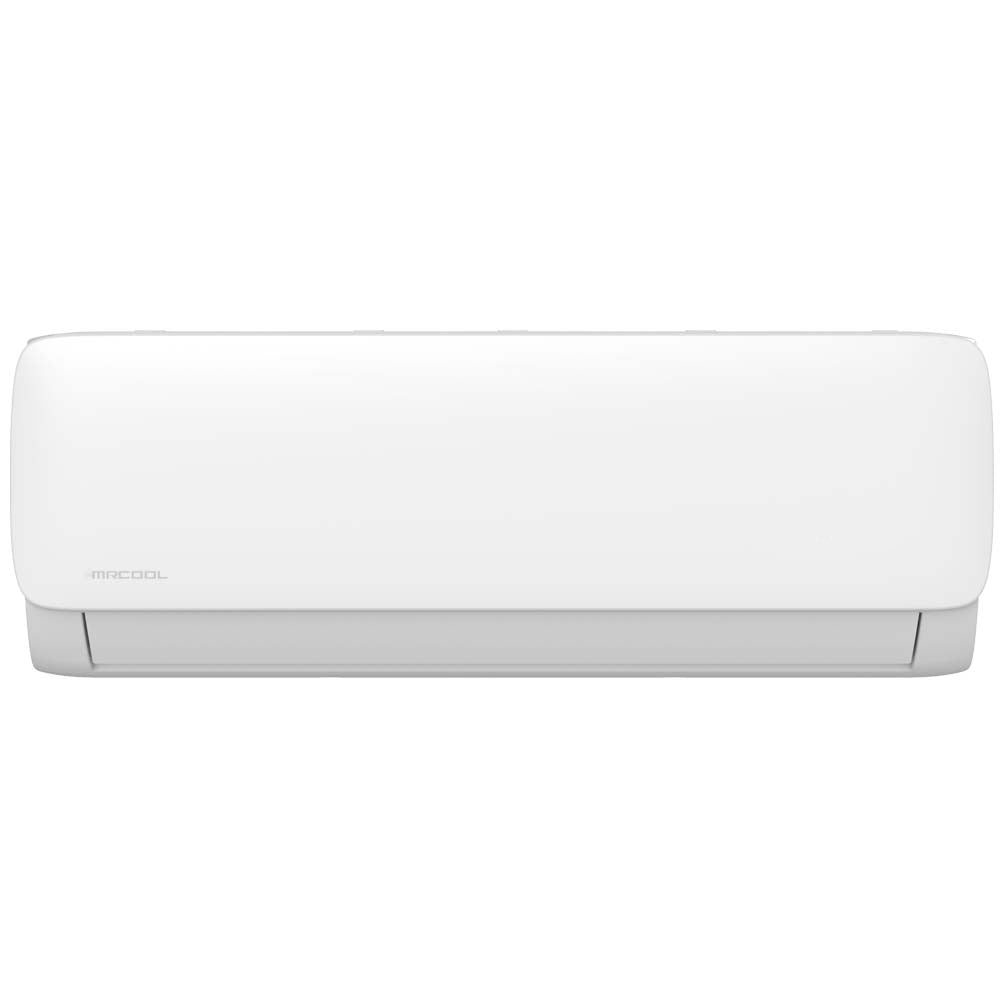

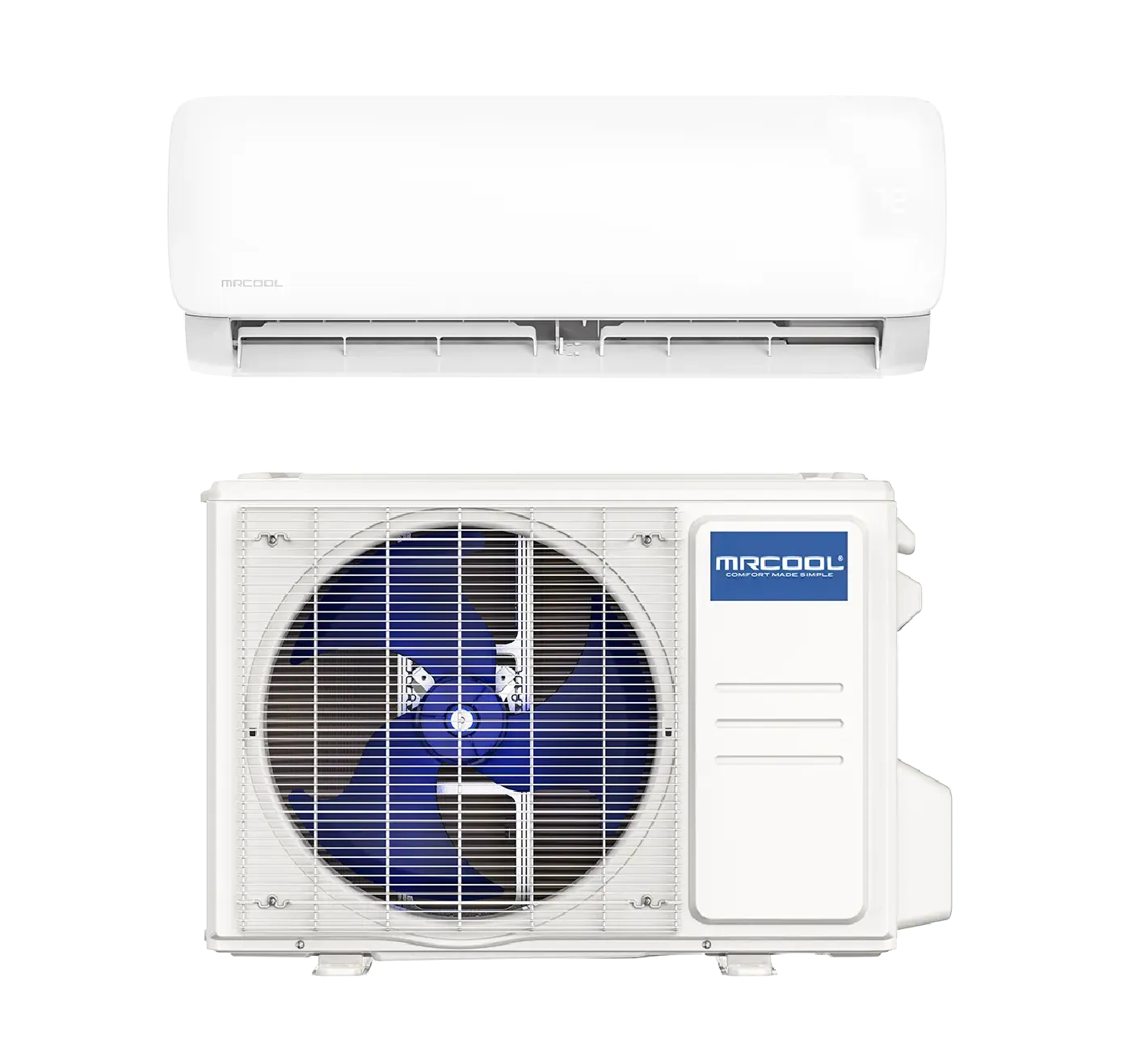

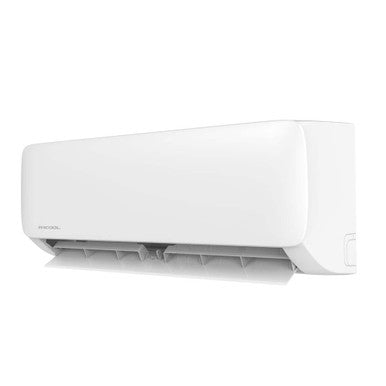

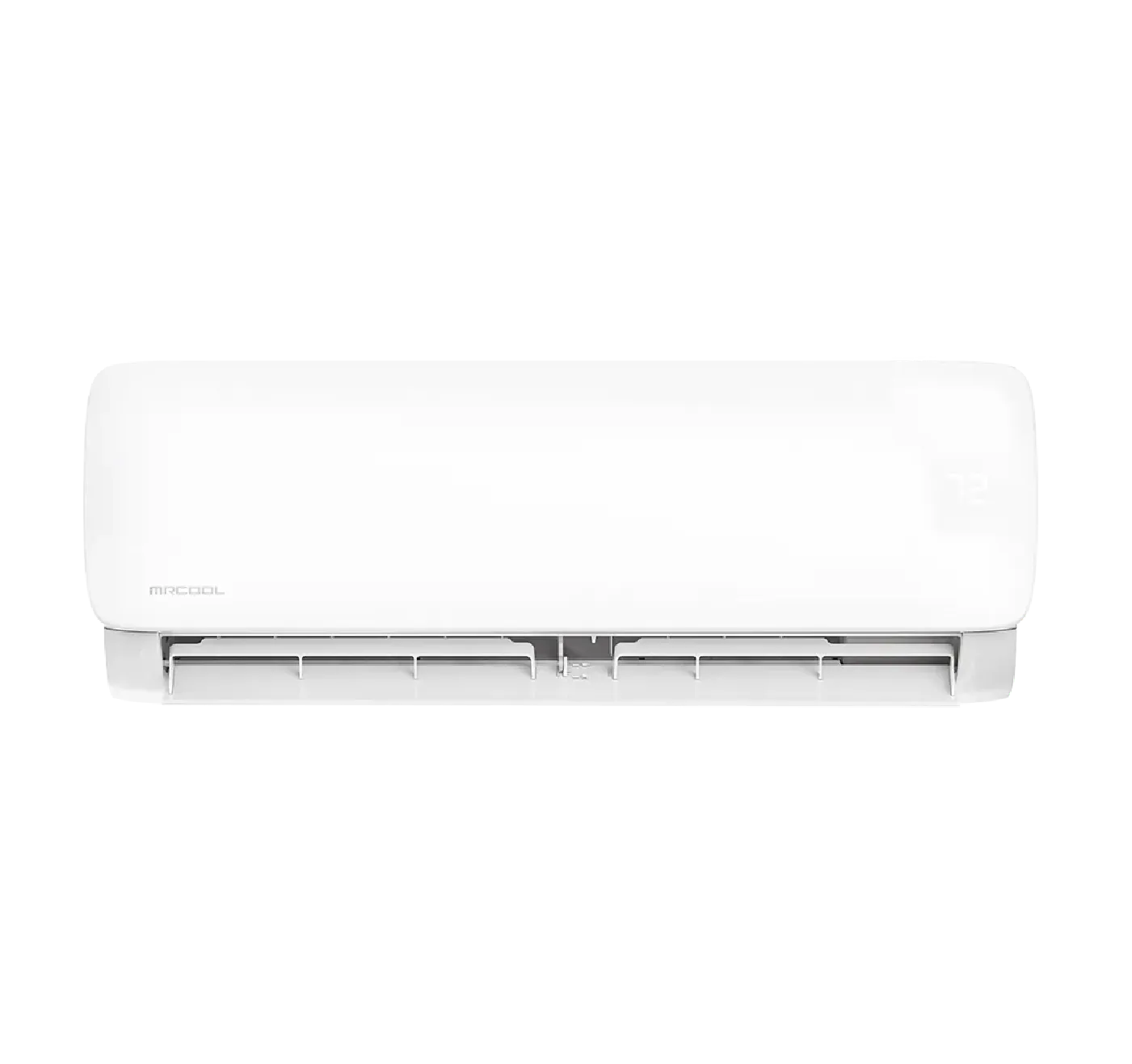

MRCOOL DIY® 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Air Handler 115V with DIYPRO Cable, EZPRO-09-HP-WMAH-115D-O

$549.00
$549.00 $840.00
-35%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 9,000
9,000
9,000
12,000
18,000
24,000

This item is in stock! Estimated Arrival: May 13 to May 19

Brand: MRCOOL
Model: EZPRO-09-HP-WMAH-115D-O
$549.00
$549.00 $840.00

Product Overview

  • Zones: 1

  • DIY Installation

  • Voltage: 115V

What's Included

DESCRIPTION

The MRCOOL® EASY PRO™ is a budget-friendly, DIY mini-split air handler that delivers reliable heating and cooling for spaces up to 400 square feet. Perfect for single rooms, small offices, or tech spaces like server rooms, this sleek unit is built for convenience. It’s WiFi-enabled, smart-home compatible, and designed for quiet, efficient performance—even in extreme temperatures. With simple installation and thoughtful features, it’s comfort made easy—anytime, anywhere.

  • Easy Installation: Designed for hassle-free DIY setup, saving time and professional installation costs.
  • Smart Control: Built-in WiFi and MRCOOL® Smart HVAC Controller® support Google Assistant and Amazon Alexa for seamless smart home integration.
  • Clean & Efficient: Active Clean Technology, washable filters, and R-454B refrigerant keep air fresh and energy use low.
  • Quiet Operation: Runs whisper-quiet, making it ideal for bedrooms, offices, and sound-sensitive areas.
  • All-Weather Performance: Provides low ambient cooling down to 5°F, perfect for year-round use in server rooms or greenhouses.
  • Reliable Warranty: Comes with a 2-year parts warranty and 1-year compressor warranty for peace of mind.



SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Dimensions: 28.7 W" x 7.87 D" x 11.5 H"
  • Weight: 23.81 lbs
  • CAPACITY & PERFORMANCE
  • Zone Capacity: 1
  • Cooling Capacity: 9,000 BTU
  • EER2: 11.3
  • SEER2: 20.2
  • Heating Capacity: 10,000 BTU
  • HSPF2-4: 9.2
  • HSPF2-5: 7.1
  • Coverage Area: Up to 400 sq ft.
  • Indoor Noise Level (Hi/Mi/Lo): 43.0/31.0/18.0 dB(A)
  • ELECTRICAL REQUIREMENTS
  • Voltage: 115V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 15A
  • Min Circuit Ampacity: 3A
  • Refrigerant & Piping
  • Refrigerant Type: R-454B
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"
  • FEATURES
  • Modes: Auto Mode: Automatically selects heating or cooling based on the room's temperature. // Cool Mode: Lowers the room temperature to your desired setting. // Heat Mode: Raises the room temperature to your desired setting. // Fan-Only Mode: Circulates air without heating or cooling. // Dry Mode (Dehumidification): Reduces humidity levels in the room. // Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • Remote Control Included: Yes
  • Certifications & Warranty
  • Certifications: UL Listed, CSA Listed, ETL Listed, AHRI Certified
  • Warranty: 2 Year Parts

INSTALLATION & GUIDES

Product Brochure
Installation Manual
Product Specifications
Remote Control Manual
Warranty Document

SHIPPING POLICY

Free Curbside Delivery
MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Please note, a 35% restocking fee will be applied to all approved returns.

See our full Return Policy here.
