4th Gen New Release!

MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump, DIY-B-448HP09091224

$5,096.00

$5,869.00

13% Off

4.8 44 reviews

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

4th Gen New Release!

MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump, DIY-B-448HP09091224

See more from MRCOOL Model: DIY-B-448HP09091224
4.8 44 reviews

Model: DIY-B-448HP09091224

$5,096.00

$5,869.00

13% Off

Choose your Line Set and Communication Wires:

Total Price: $5,096.00

This item is in stock! Estimated Arrival: Mar 05 to Mar 11

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

Contact Us

Need help with choosing a Mini Split system or have other questions?

Talk with one of our trusted HVAC professionals today!

Product Overview

  • Covers 2250 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 4
  • voltage-240 Voltage: 208 to 230
  • Outdoor Operating Temp (Heat): 5°F to 75.2°F

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handle, one 24,000 BTU Wall Mounted Air Handler and four Remotes. The best part about all of this is that you can install it yourself!

Package Includes

This package does not include linesets, don't forgot to scroll up and add them!

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU Rating of the Condenser

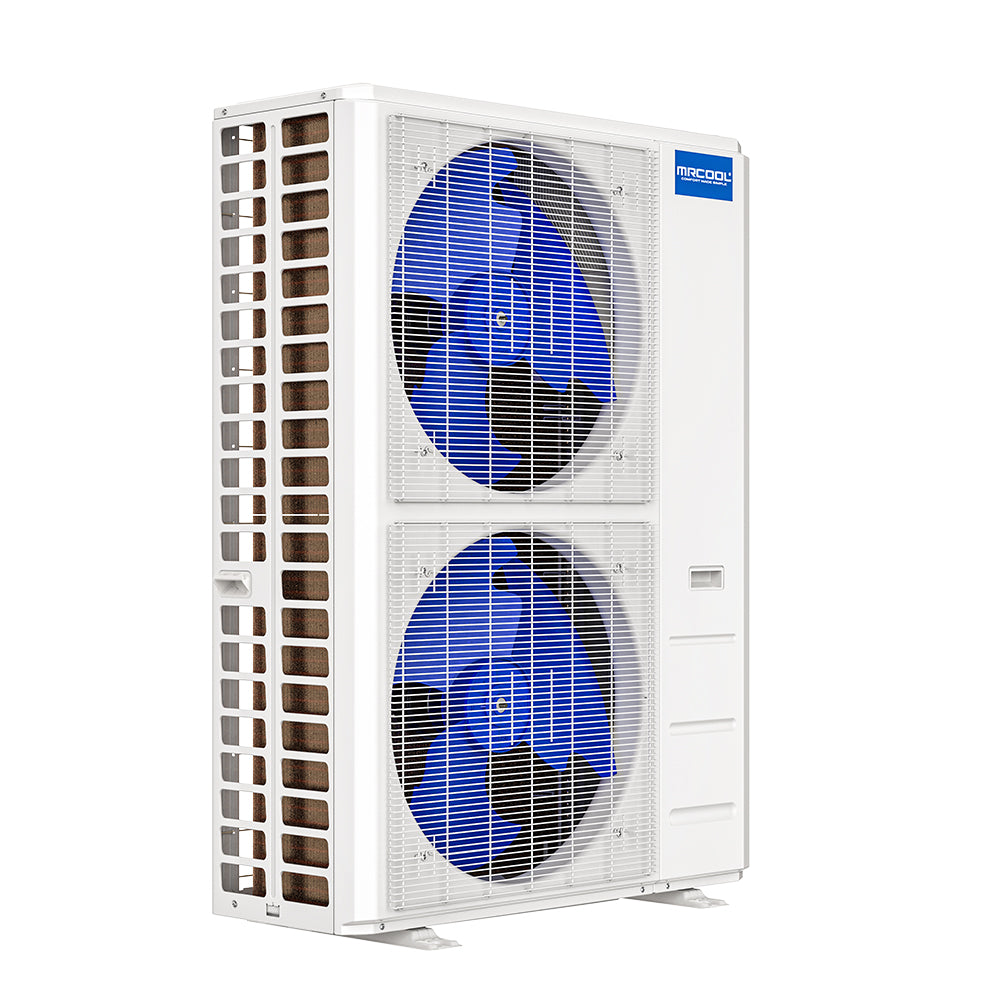

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

      Air Handler, 9K BTU, Quantity 2

      • Large Coverage Area. Handler covers an area up to 375 sq. ft.
      • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
      • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
      • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      Air Handler, 12K BTU, Quantity 1

      • Large Coverage Area. Handler covers an area up to 500 sq. ft.
      • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
      • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
      • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      Air Handler, 24K BTU, Quantity 1

      • Large Coverage Area. Handler covers an area up to 1,000 sq. ft.
      • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
      • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
      • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.


            Condenser

            Product Dimensions 37.48"W x 16.34"D x 52.48"H
            Cooling Capacity 48,000 BTU
            Heating Capacity 48,000 BTU
            Zone Capacity 5
            Min Ambient Cool 5F ~ 122F
            Min Ambient Heat 5F ~ 75.2F
            SEER 20.5
            EER 11
            Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty
            7 Years Replacement on Condenser, 5 Years Parts


            Air Handler 9K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 9,000 BTU
            Heating Capacity 9,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 12K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 24K BTU

            Product Dimensions 42.52"W x 8.90"D x 13.19"H
            Mount Type Wall
            Cooling Capacity 23,000 BTU
            Heating Capacity 25,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep

            Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

            Square Feet: 180-375 | BTU = 9K
            Square Feet: 376-500 | BTU = 12K
            Square Feet: 501-750 | BTU = 18K
            Square Feet: 751-1,000 | BTU = 24K
            Square Feet: 1,001-1,500 | BTU = 36K

            Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
