4th Gen New Release!

MRCOOL DIY Mini Split - 51,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump, DIY-B-548HP0909091212

4.9 58 reviews
Model: DIY-B-548HP0909091212
Regular price $5,288.00
Sale price $5,288.00 Regular price $6,298.00
-16%
Shipping calculated at checkout.

Financing Options


Choose your Line Set and Communication Wires:

Total Price: $5,288.00

This item is in stock! Estimated Arrival: Nov 09 to Nov 15

Regular price $5,288.00
Sale price $5,288.00 Regular price $6,298.00

Product Overview

  • Zones: 5

  • DIY Installation

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): 5°F to 75.2°F

Collapsible content

DESCRIPTION

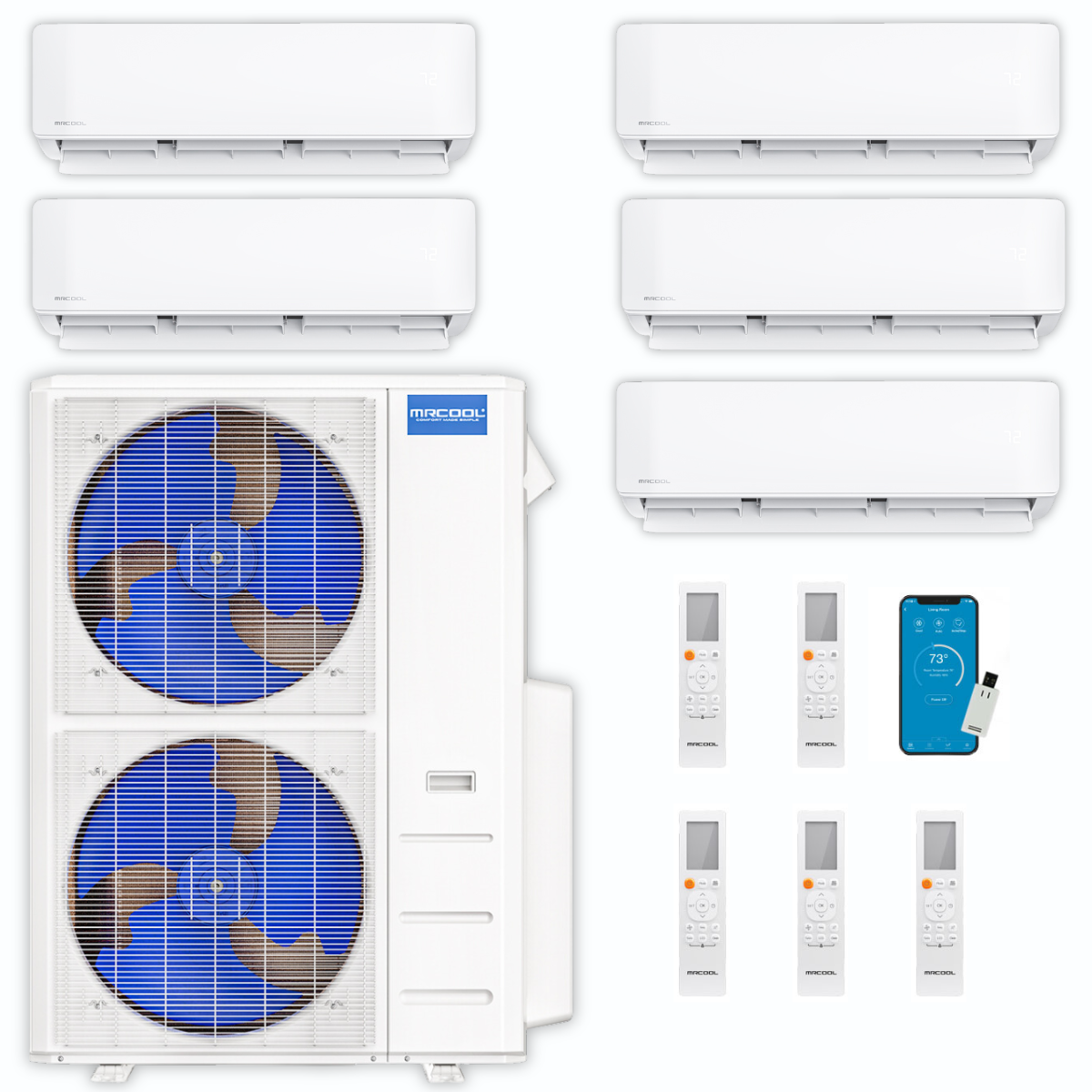

This 4th Generation MRCOOL Mini Split includes DIY 48,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handler, two 12,000 BTU Wall Mounted Air Handler, and five Remotes. The best part about all of this is that you can install it yourself!
Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.

This package does not include linesets, don't forgot to scroll up and add them!

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
  • 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 9K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

          SPECIFICATIONS & DIMENSIONS

          • Condenser
          • Product Dimensions: 37.48"W x 16.34"D x 52.48"H
          • Cooling Capacity: 48,000 BTU
          • Heating Capacity: 48,000 BTU
          • Zone Capacity: 5
          • Cool Mode - Outdoor Operating Temperature Range: 5F ~ 122F
          • Heat Mode - Outdoor Operating Temperature Range: 5F ~ 75.2F
          • SEER: 20.5
          • EER: 11
          • Voltage: Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
          • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
          • Air Handler 9K BTU
          • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
          • Mount Type: Wall
          • Cooling Capacity: 9,000 BTU
          • Heating Capacity: 9,000 BTU
          • Registered Warranty: 5 Years Parts
          • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
          • Air Handler 12K BTU
          • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
          • Mount Type: Wall
          • Cooling Capacity: 12,000 BTU
          • Heating Capacity: 12,000 BTU
          • Registered Warranty: 5 Years Parts
          • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep

          INSTALLATION & GUIDES

          COVERAGE AREA

          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          BTU  Square Feet
          9,000 BTU 180 - 375 Sq Ft.
          12,000 BTU 376 - 500 Sq Ft.
          18,000 BTU 501 - 750 Sq Ft.
          24,000 BTU 751 - 1,000 Sq Ft.
          36,000 BTU 1,001 - 1,500 Sq Ft.

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.

          Customer Reviews

          Based on 58 reviews
          91%
          (53)
          7%
          (4)
          0%
          (0)
          2%
          (1)
          0%
          (0)
          J
          Jules P
          Sleek, Classy Ceiling Cassettes

          The ceiling cassettes really deliver with space saving and a sleek, classy design. They even work well in 100+ year old lath and plaster ceiling as pictured here. Still getting the hang of the controls and waiting to see what its like in different temperatures but initial installation and operation is great.

          J
          Jeff Frederick
          Dual or multiple zone

          Two ceiling handlers with 18K condenser works perfectly. I had an issue where the system was not working properly from room to room and I could not identify the issue. After contacting tech support and testing and rechecking everything, the problem was electrical was backwards from the refrigeration lines (A & B reversed). I originally did not identify A & B on the refrigerant lines running to the condenser. Once I switched electrical A and B, all worked as it should.

          A
          Abdel Benghanem

          Great for cooling so far I have not use it for heat yet waiti for winter season .

          T
          Taylor Hodges
          Perfect Fit for Gym

          We were super happy with the system that we got. Easy to install and works very efficiently!

          S
          S.T.
          Best unit EVER!

          I have had an amazing time after setting up this unit it works wonders, I personally mounted it to the back of my travel trailer and it is amazing!
