  3. MRCOOL DIY Mini Split - 48,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM548HPW01C336

Pre-Order the new 5th Gen Series!

MRCOOL DIY Mini Split - 48,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM548HPW01C336

4.8 24 reviews
Model: DIYM548HPW01C336
$10,284.40
$10,284.40 $14,692.00
-30%
Shipping calculated at checkout.

Buy Now, Pay Later

Mount type: Wall
Line set length: 35 ft.

Need different line set lengths?
Configure your system here!

Pre-Order Now! Estimated Shipping: June 2025. Be the first to own the brand-new 5th Gen Series.

$10,284.40
$10,284.40 $14,692.00

Product Overview

  • Zones: 5

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): 5°F to 75.2°F

What's Included

  • MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C

    48K BTU Condenser

    Quantity: 1
    Model: DIY-MULTI5-48HP230C
  • MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler with Enhanced WiFi (208V-230V/60HZ/3-15A), DIY-09-HP-WMAH-230C25 MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler with Enhanced WiFi (208V-230V/60HZ/3-15A), DIY-09-HP-WMAH-230C25

    9K BTU Air Handler

    Quantity: 4
    Model: DIY-09-HP-WMAH-230C25
  • MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25 MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25

    12K BTU Air Handler

    Quantity: 1
    Model: DIY-12-HP-WMAH-230C25
  • MRCOOL DIY 35ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C MRCOOL DIY 35ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C

    35 ft. 1/4 x 1/2 Line Set

    Quantity: 5
    Model: DIY35-1412C

System also includes Communication Wires, Drain Hose Pipes, Wall Sleeves, Remote Controls and Wifi Dongles.

Better Together

System Details

DESCRIPTION

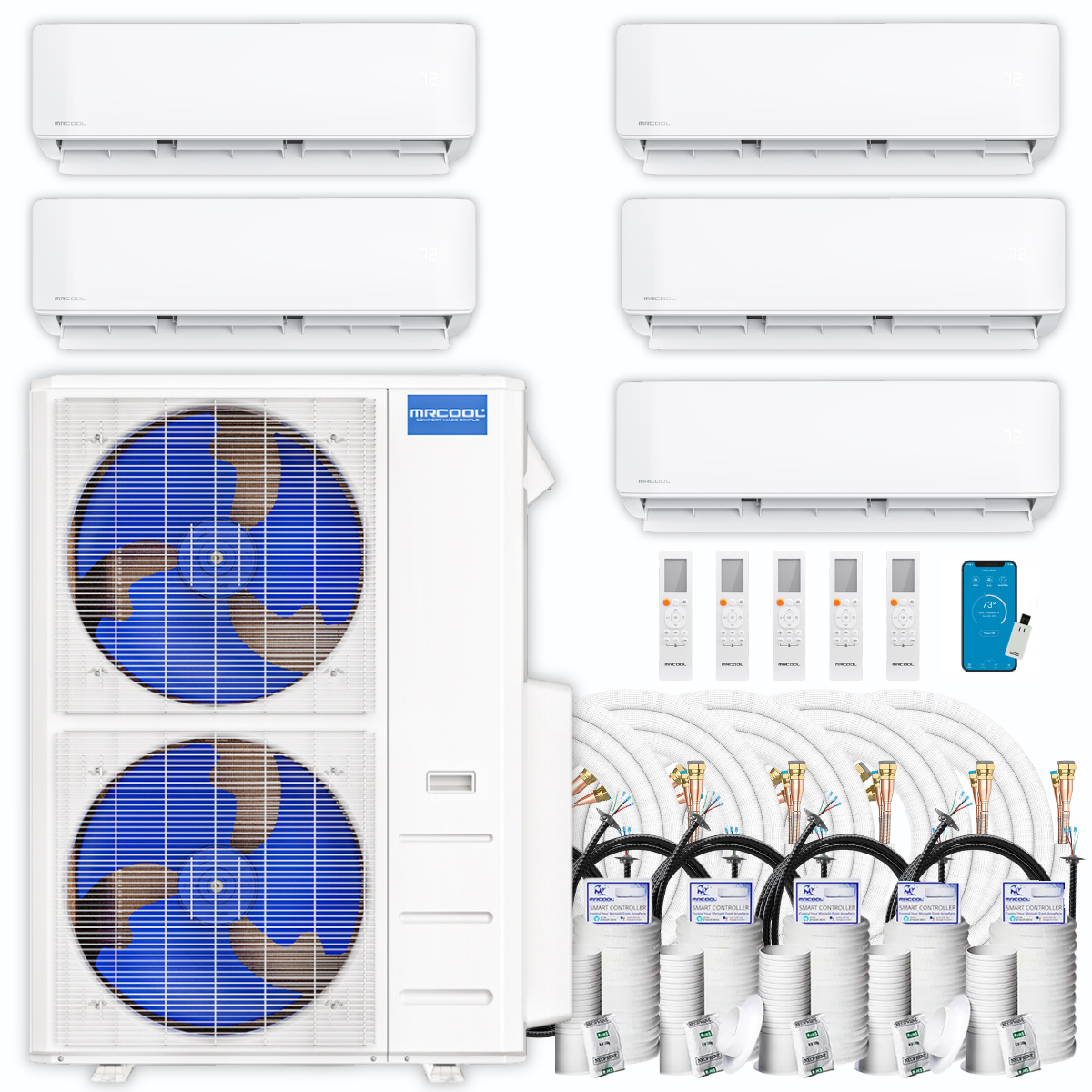

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat five different rooms. You'll be sent: DIY 48,000 BTU Multi-Zone Condenser, four 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, five Remotes, and five 35 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

Package Includes

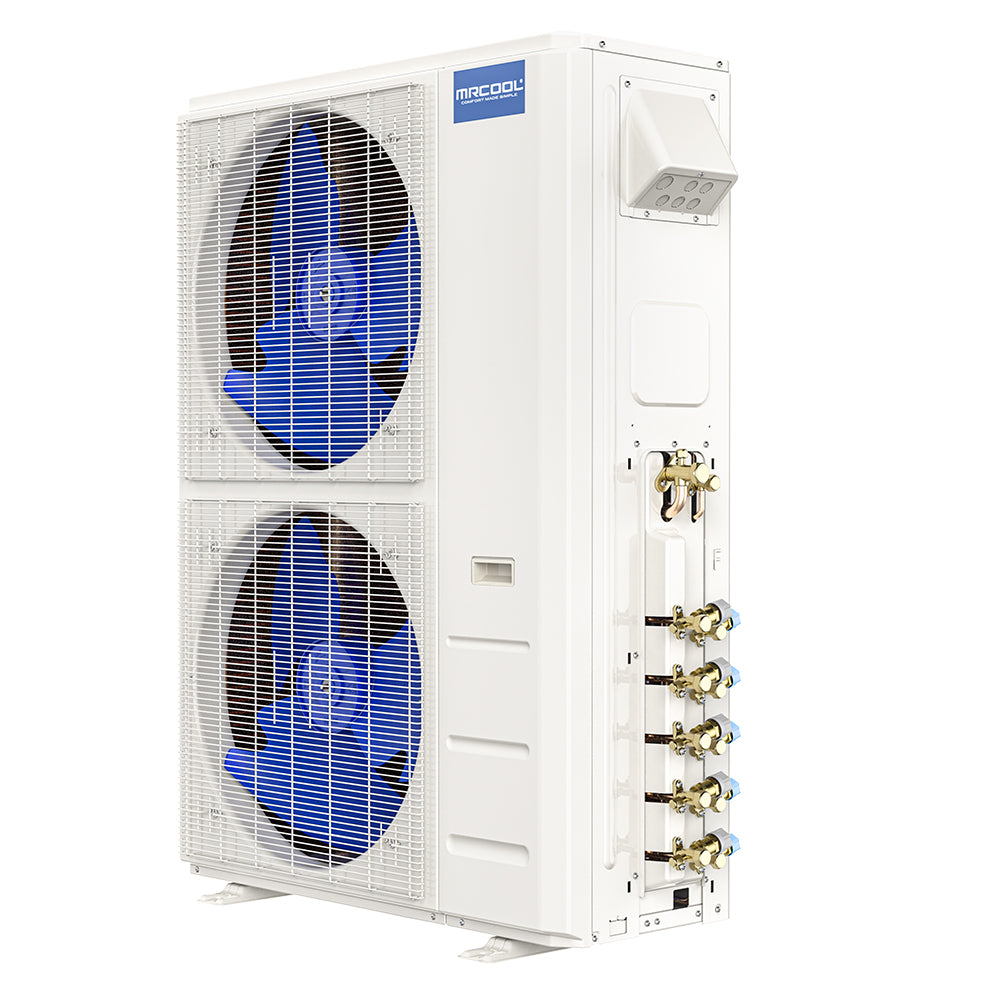

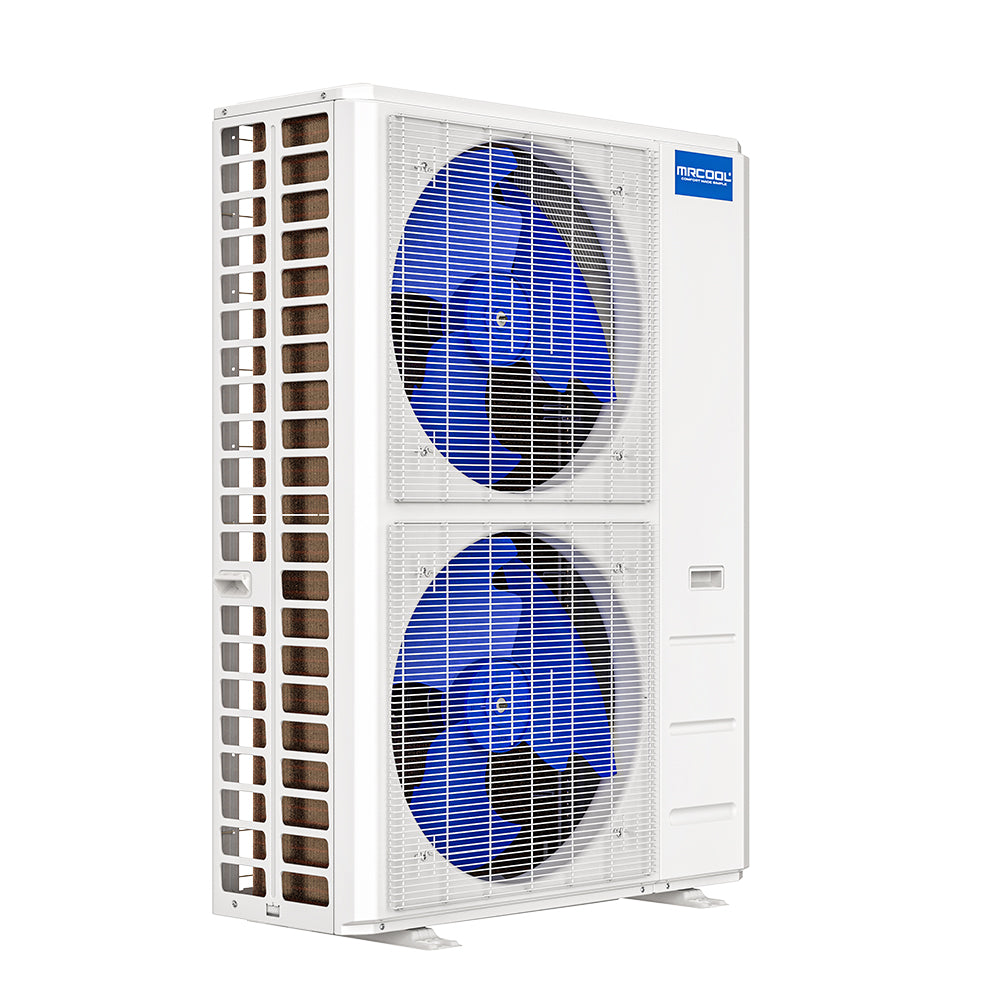

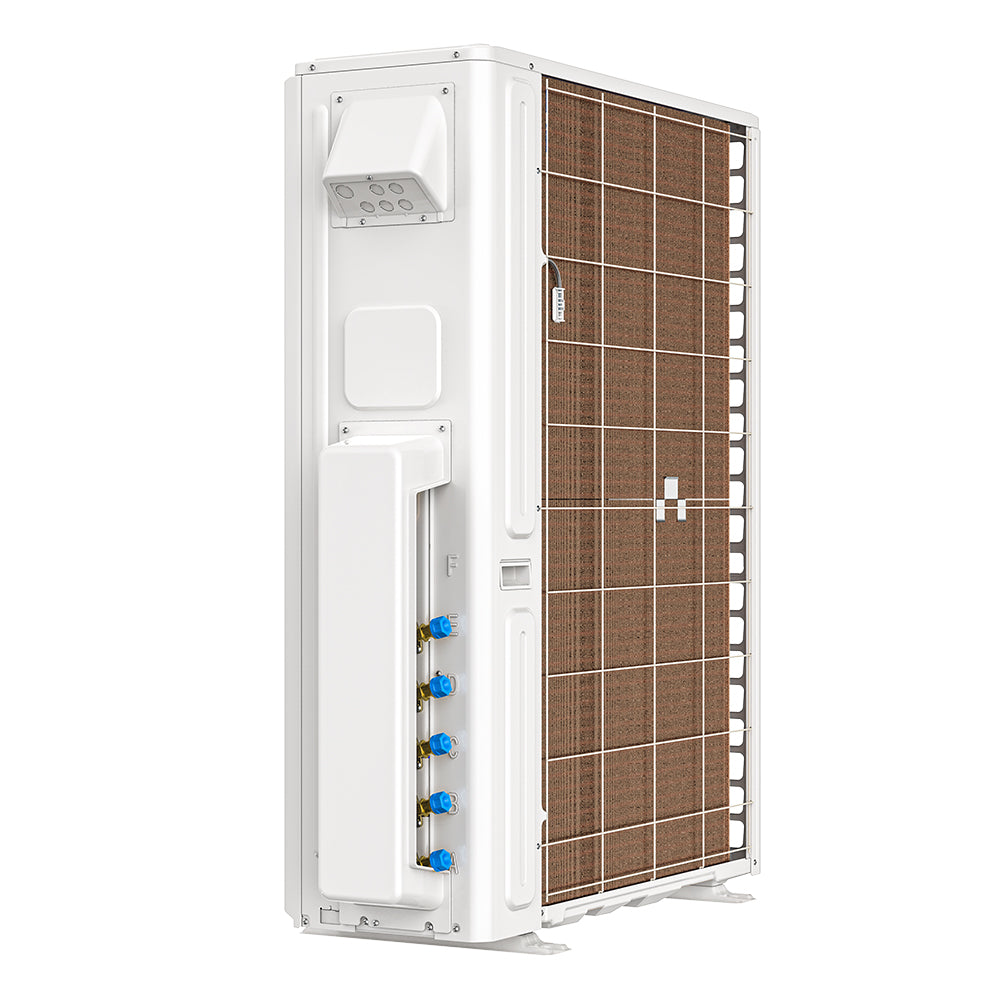

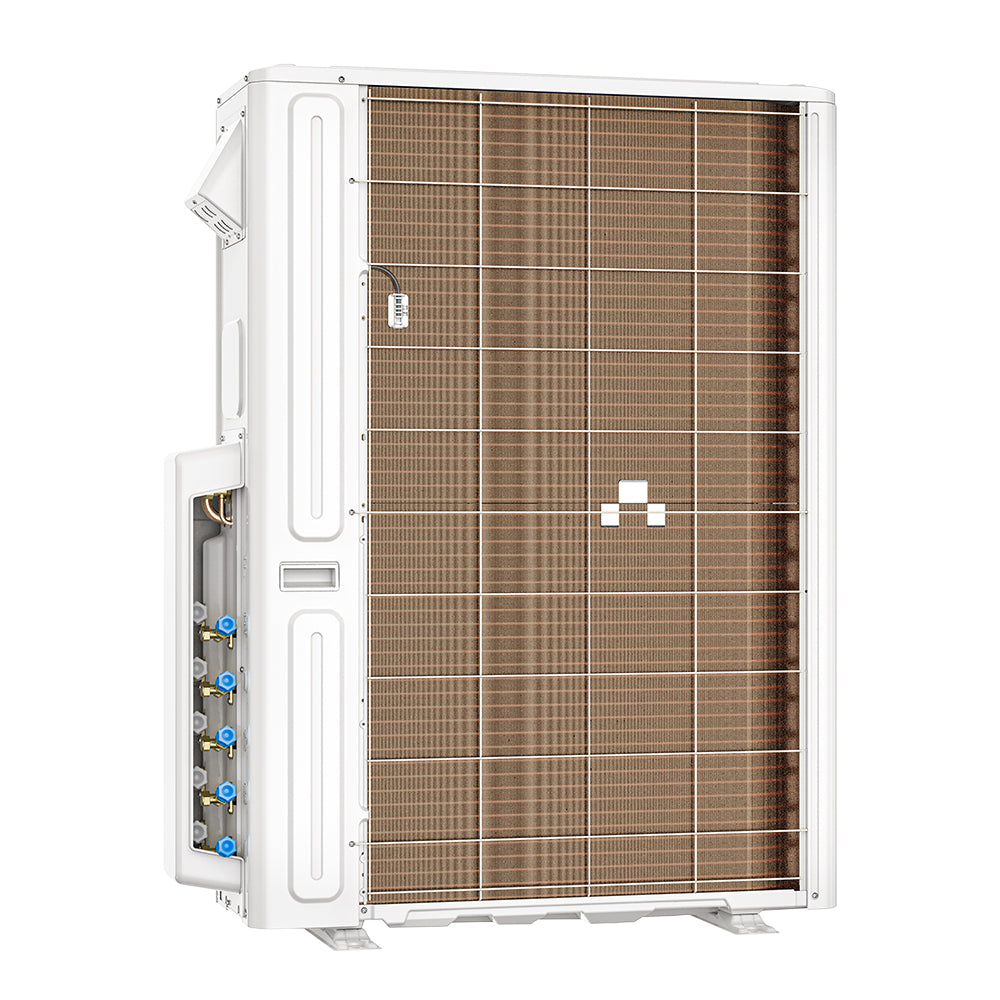

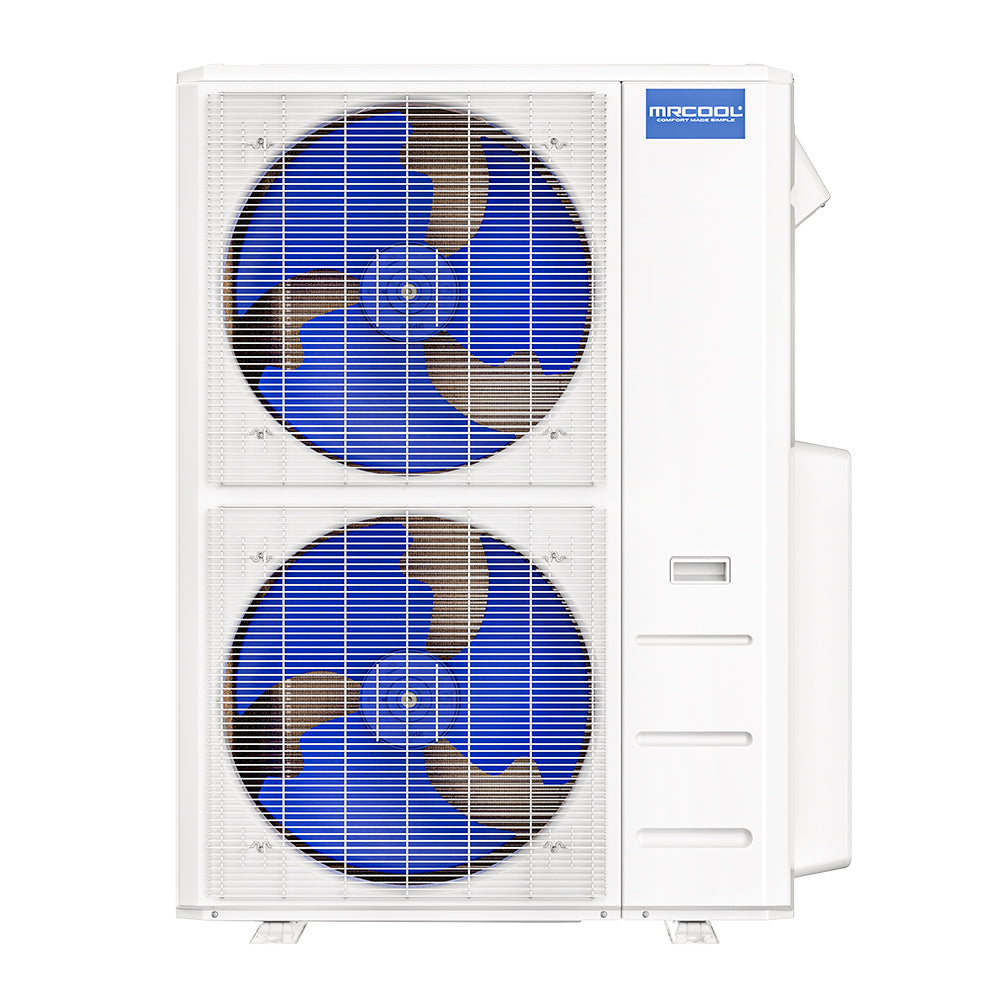

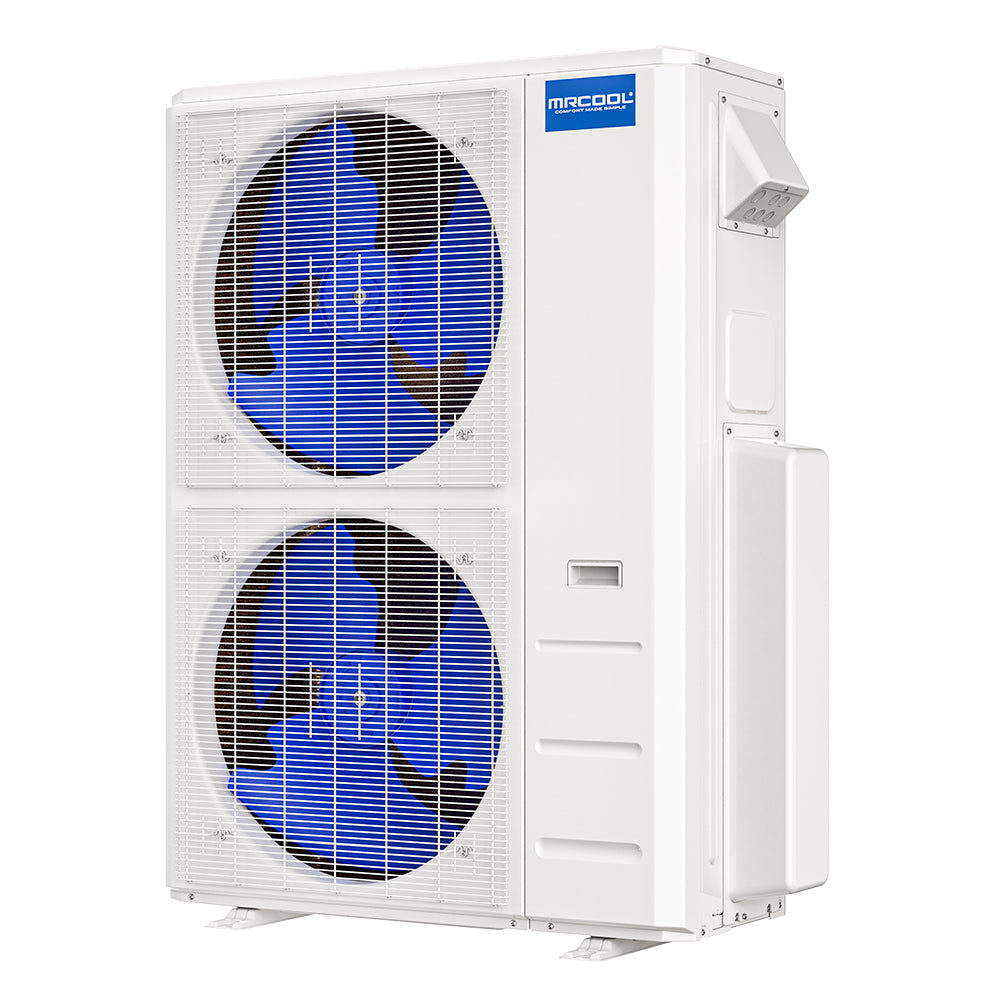

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

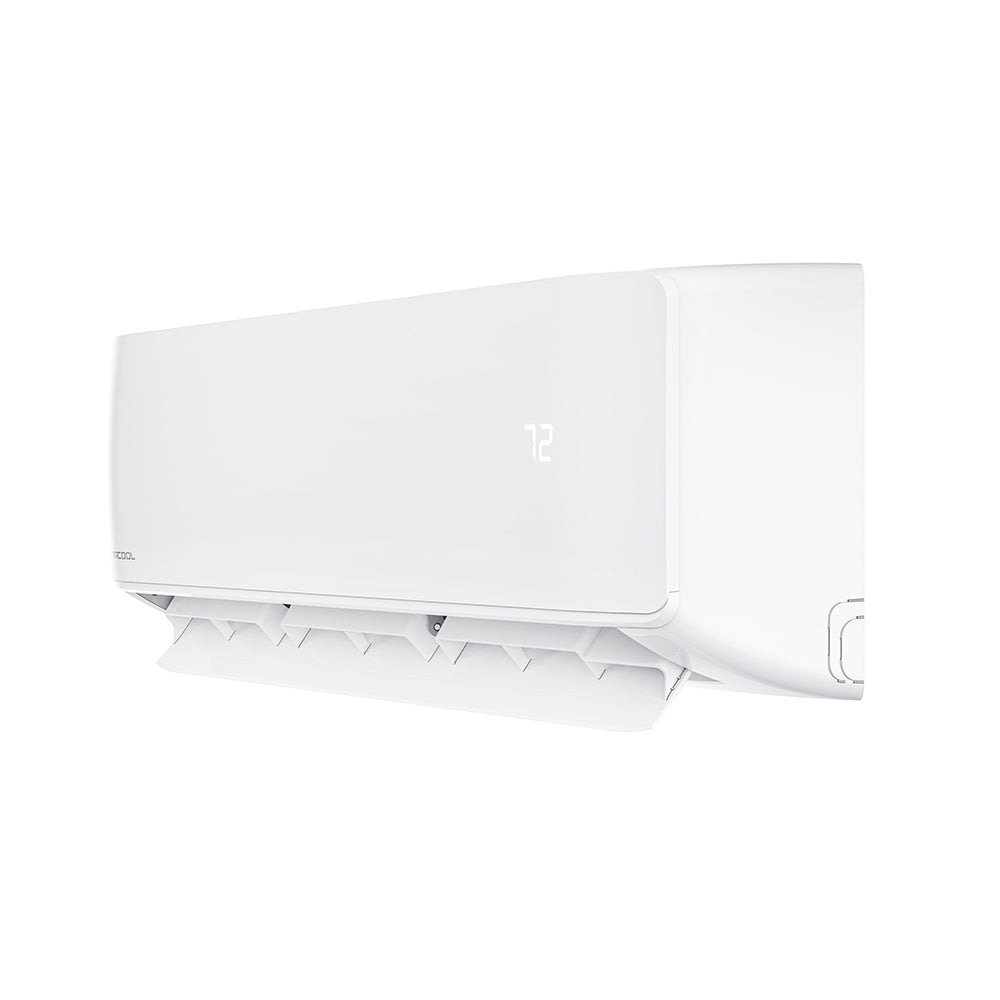

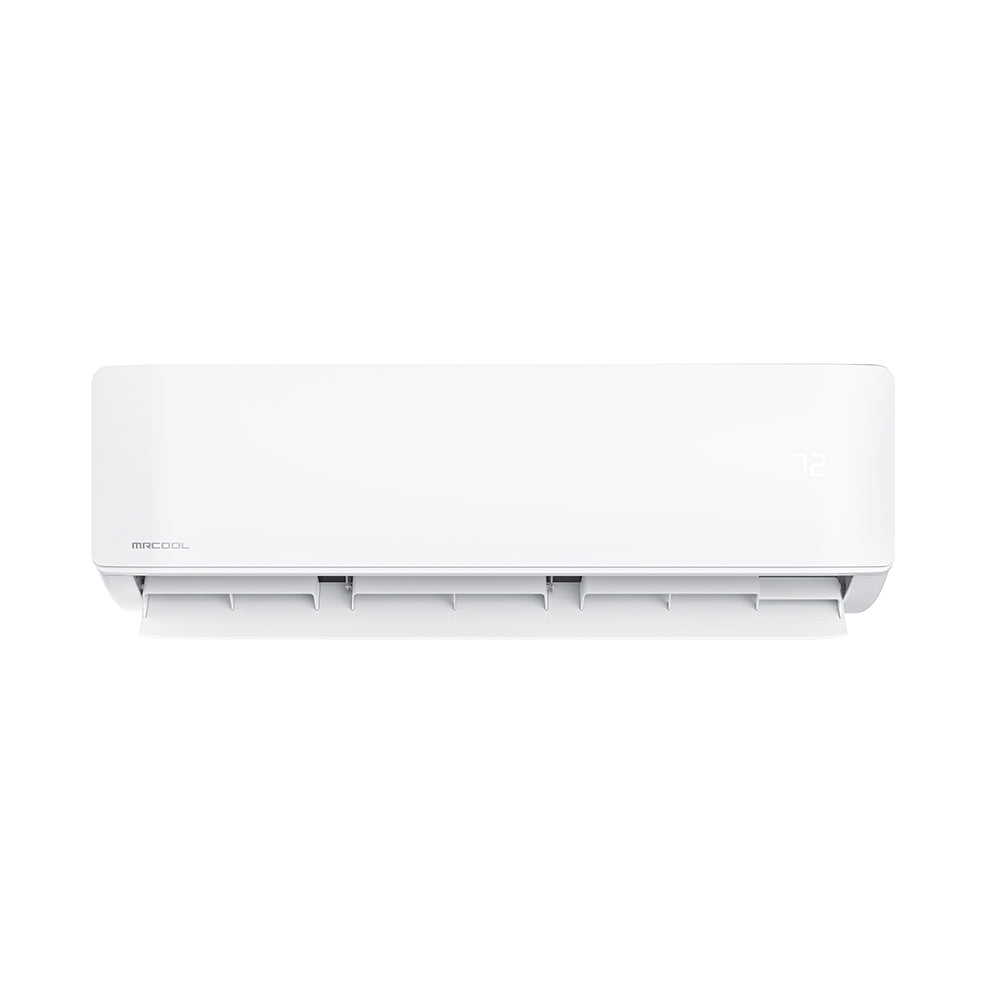

    Air Handler, 9K BTU, Quantity 4

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

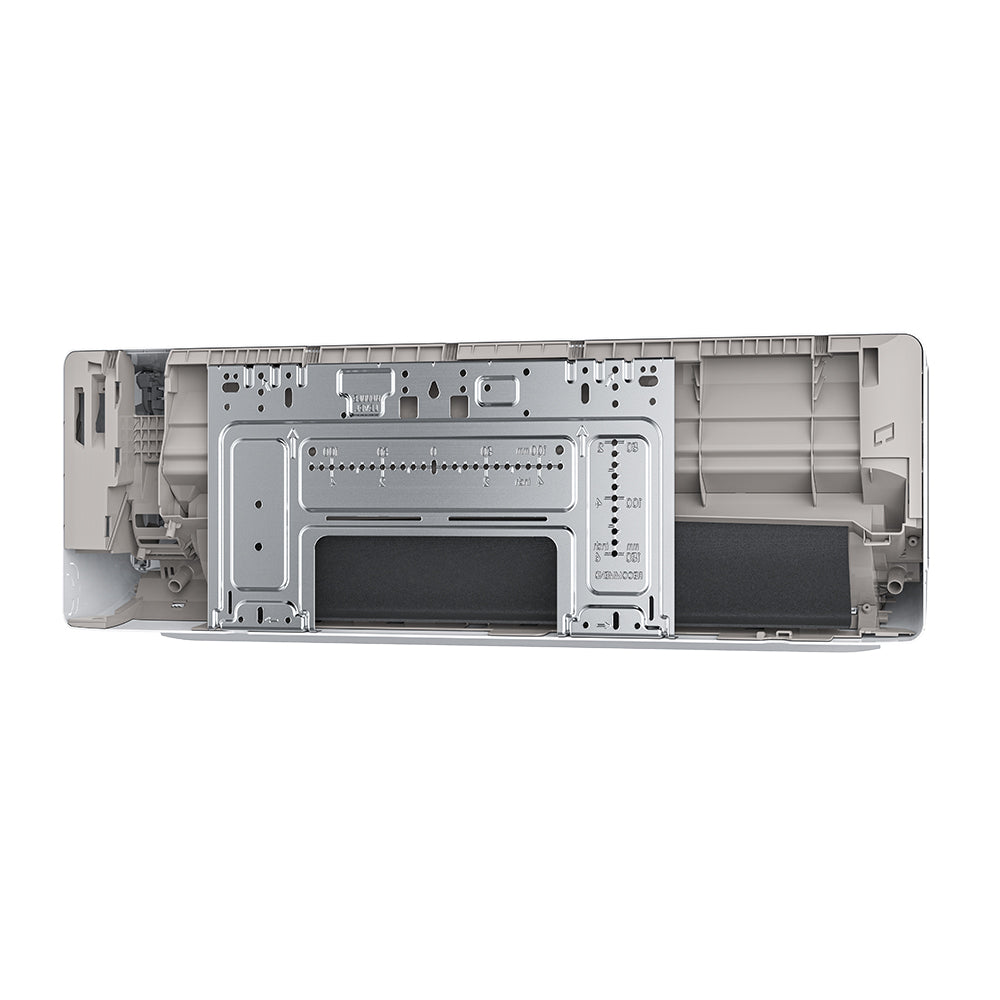

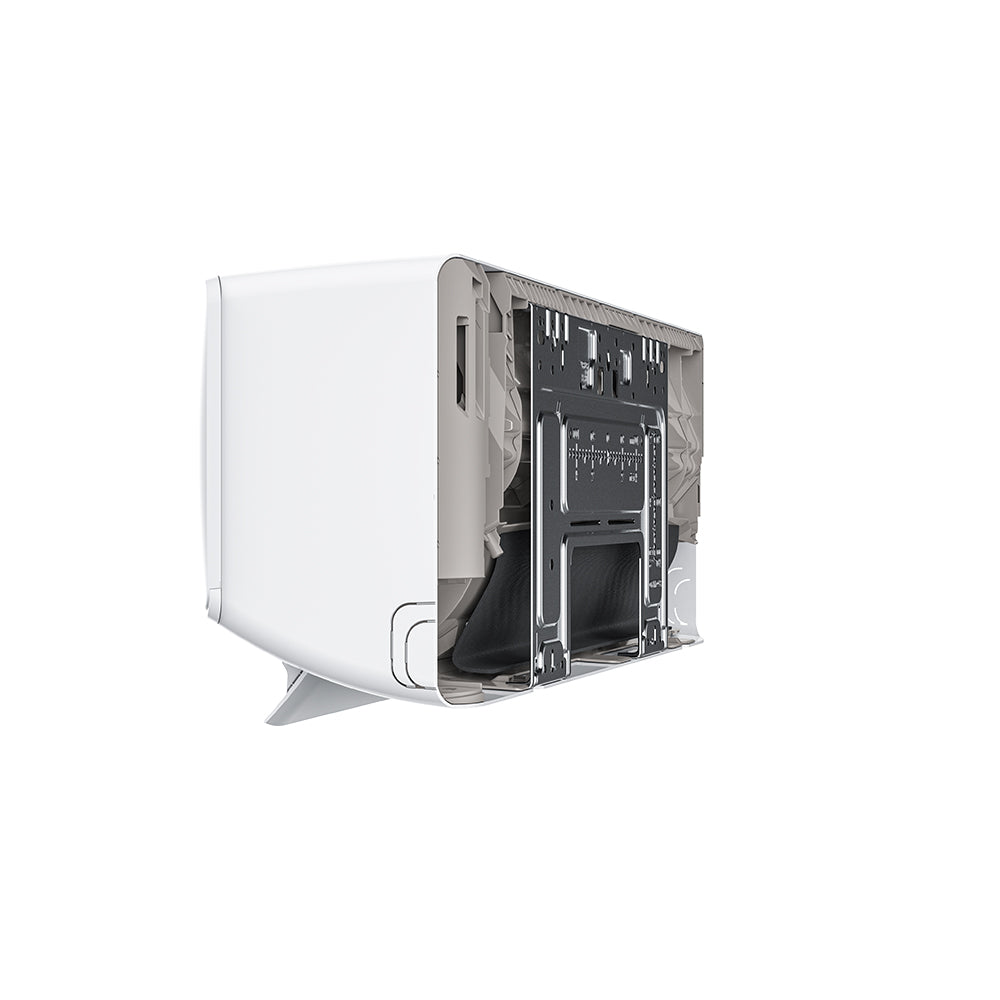

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

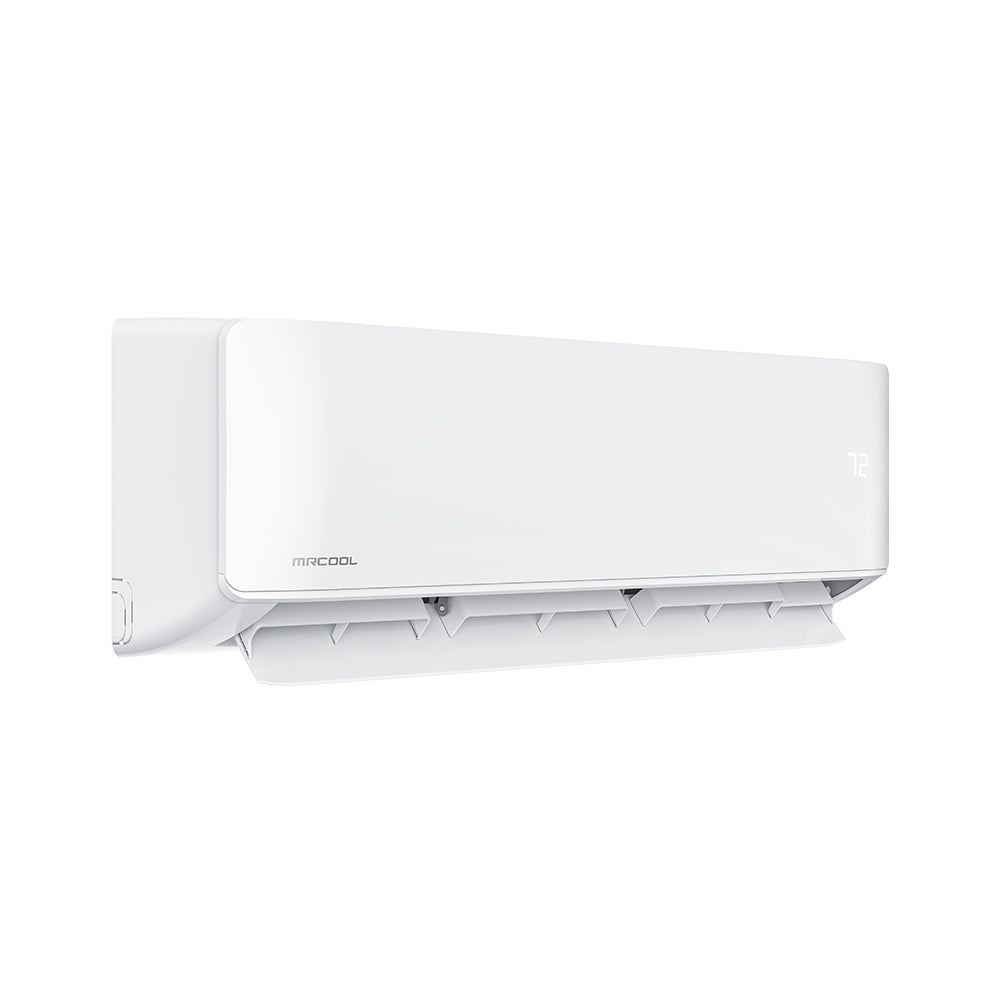

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

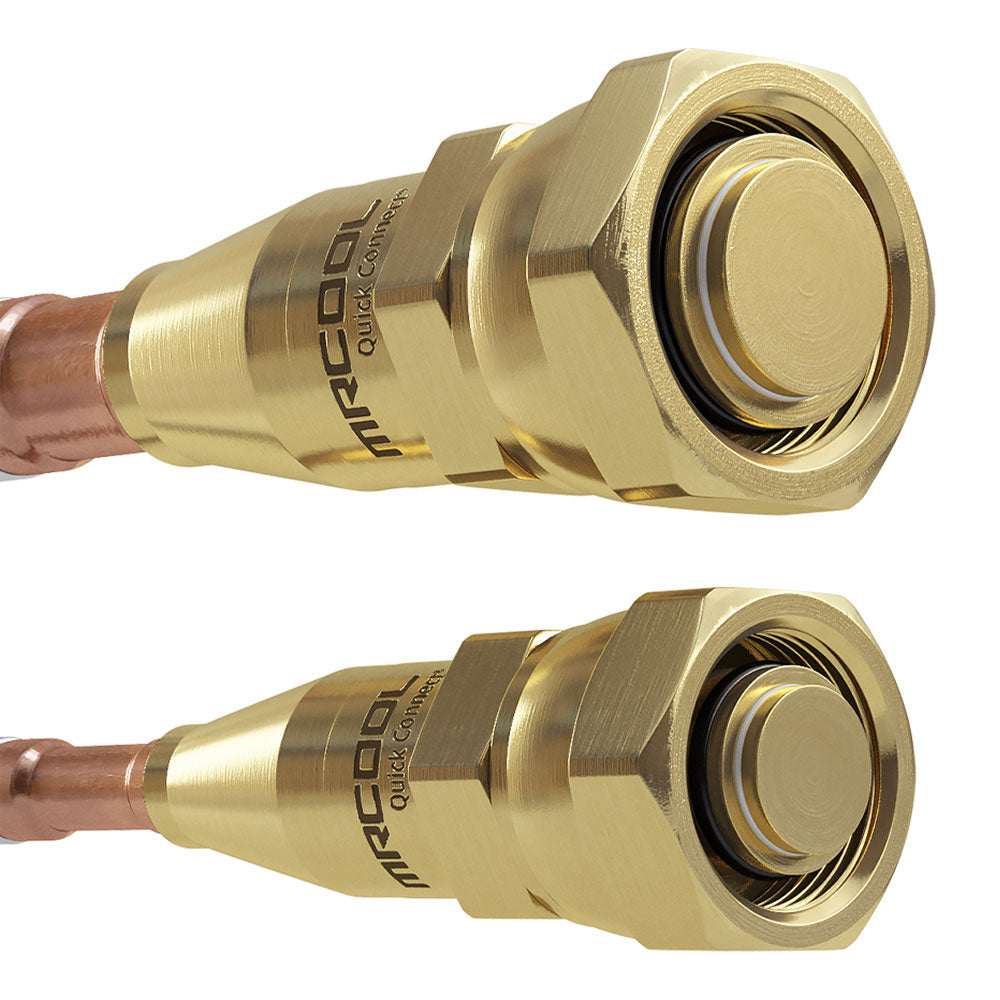

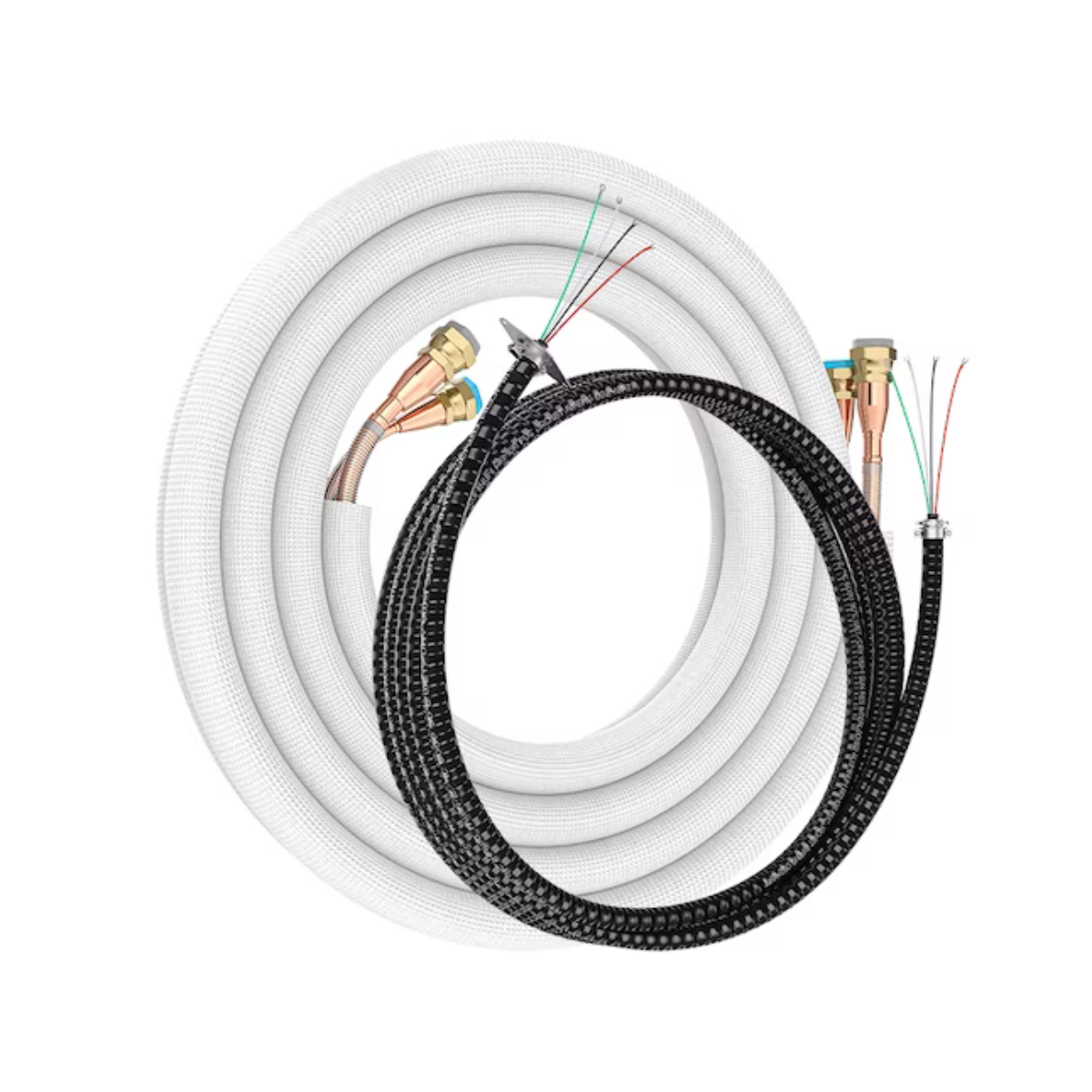

        Line Set 35 ft., Quantity 5

        • This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

        What does this package include?

        This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

            ELECTRICAL REQUIREMENTS

            • Model: DIY-MULTI5-48HP230C
            • Type: 48K BTU Condenser
            • BTU: 48,000 BTU
            • Power Supply: 208-230V/60 Hz/1ph
            • Minimum Circuit (Disconnect): 40.0 A
            • Maximum Fuse (Breaker): 60.0 A

            SPECIFICATIONS & DIMENSIONS

            • Condenser Specifications
            • Product Dimensions: 37.48"W x 16.34"D x 52.48"H
            • Cooling Capacity: 48,000 BTU
            • Heating Capacity: 48,000 BTU
            • Zone Capacity: 5
            • Min Ambient Cool: 5F ~ 122F
            • Min Ambient Heat: 5F ~ 75.2F
            • SEER: 20.5
            • EER: 11
            • Voltage: Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
            • Air Handler 9K BTU
            • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
            • Mount Type: Wall
            • Cooling Capacity: 9,000 BTU
            • Heating Capacity: 9,000 BTU
            • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
            • Air Handler 12K BTU
            • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
            • Mount Type: Wall
            • Cooling Capacity: 12,000 BTU
            • Heating Capacity: 12,000 BTU
            • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
            • Line Set
            • Length: 35 Feet
            • Liquid Line Size: 1/4"
            • Suction Line Size: 1/2"

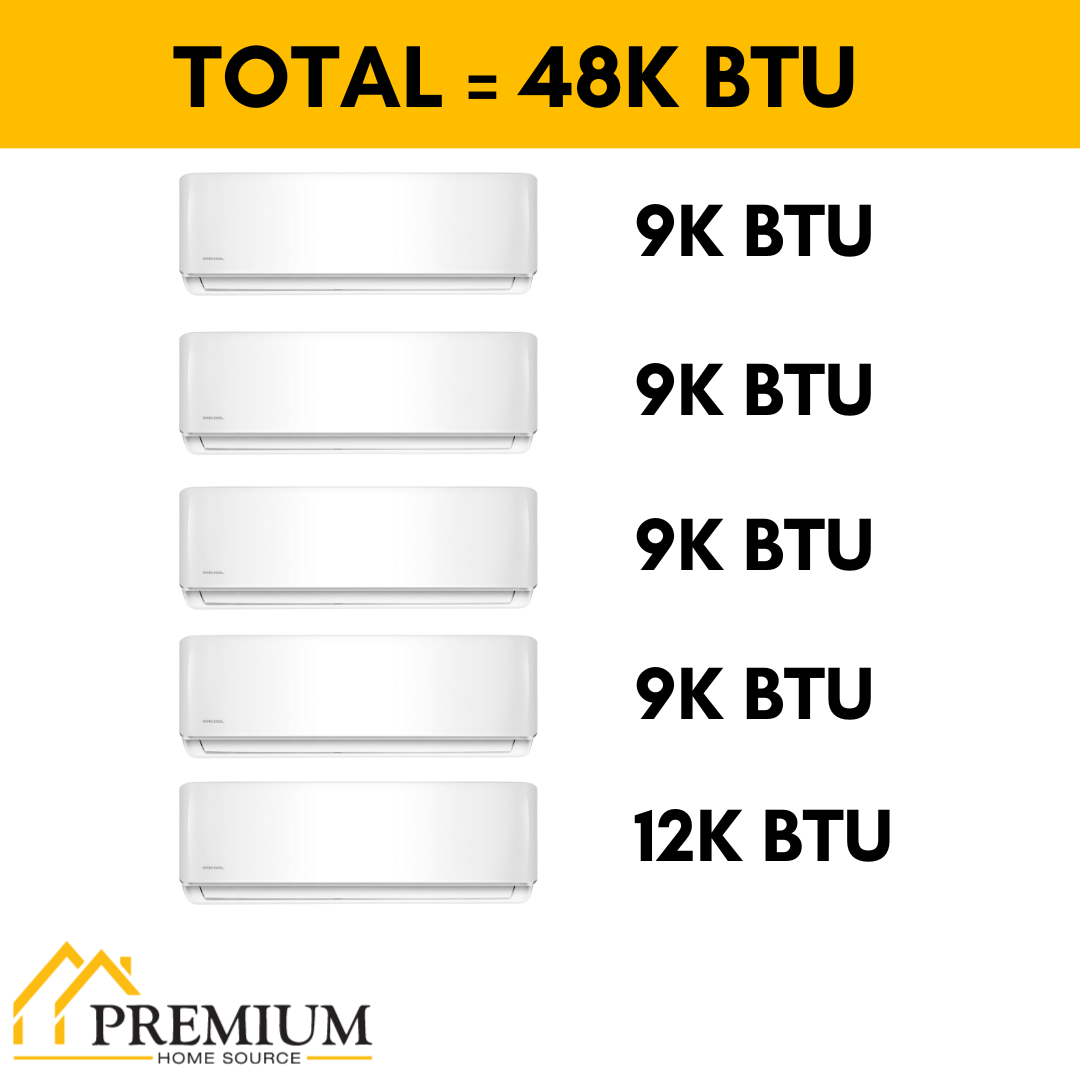

            WHAT'S INCLUDED

            • 1 x 48K BTU Condenser
            • 4 x 9K BTU Air Handler
            • 1 x 12K BTU Air Handler
            • 5 x 35 ft. 1/4 x 1/2 Line Set

            INSTALLATION & GUIDES

            Installation Manual
            Product Brochure
            Performance Specifications
            Warranty
            Energy Guide
            AHRI Certificate

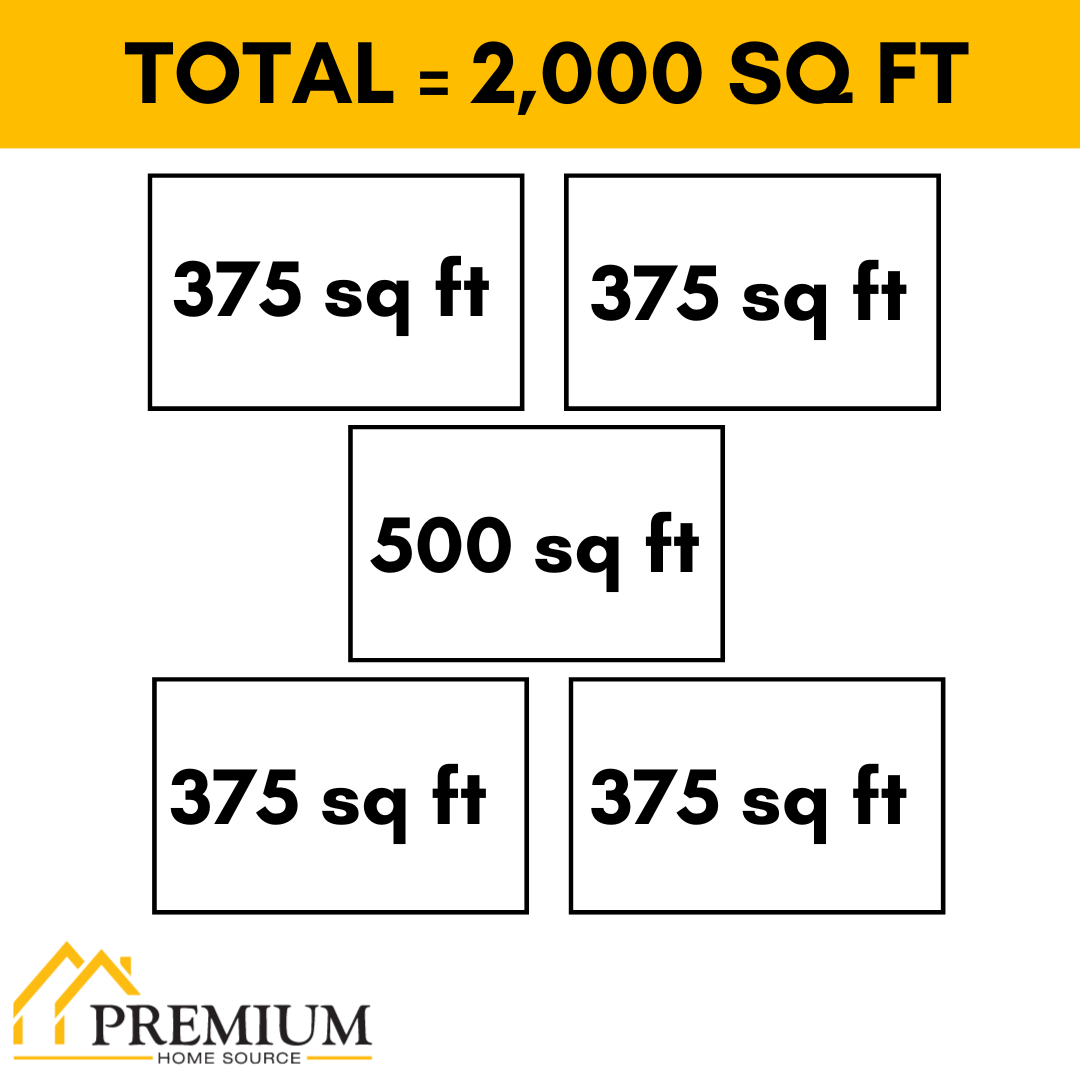

            COVERAGE AREA

            Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

            BTU  Square Feet
            9,000 BTU 180 - 375 Sq Ft.
            12,000 BTU 376 - 500 Sq Ft.
            18,000 BTU 501 - 750 Sq Ft.
            24,000 BTU 751 - 1,000 Sq Ft.
            36,000 BTU 1,001 - 1,500 Sq Ft.

            Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
