MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM436HPW01C140

See more from MRCOOL Model: DIYM436HPW01C140
4.7 23 reviews

Model: DIYM436HPW01C140

$5,759.00

$7,198.75

20% Off

Indoor Unit Type: Wall Mount

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Mar 07 to Mar 13

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

Contact Us

Need help with choosing a Mini Split system or have other questions?

Talk with one of our trusted HVAC professionals today!

Product Overview

  • Covers 1625 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 4
  • voltage-240 Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): 5°F to 75.2°F

  • Air Handler
  • Condenser
  • Line Set
  • Wall Sleeve
  • Communication Wire
  • Remote Control

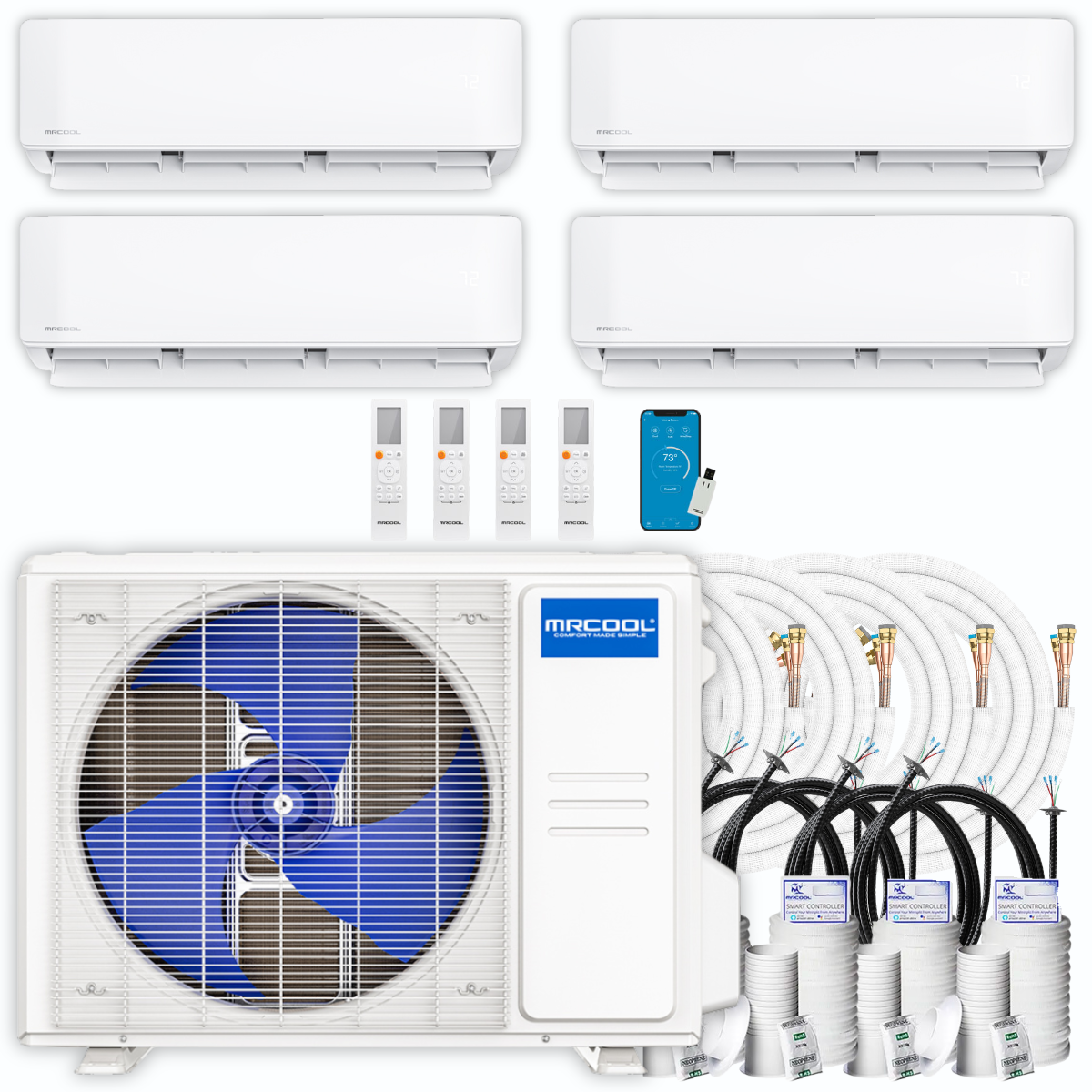

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat four different rooms. You'll be sent: DIY 36,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, four Remotes, and four 35 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

Package Includes

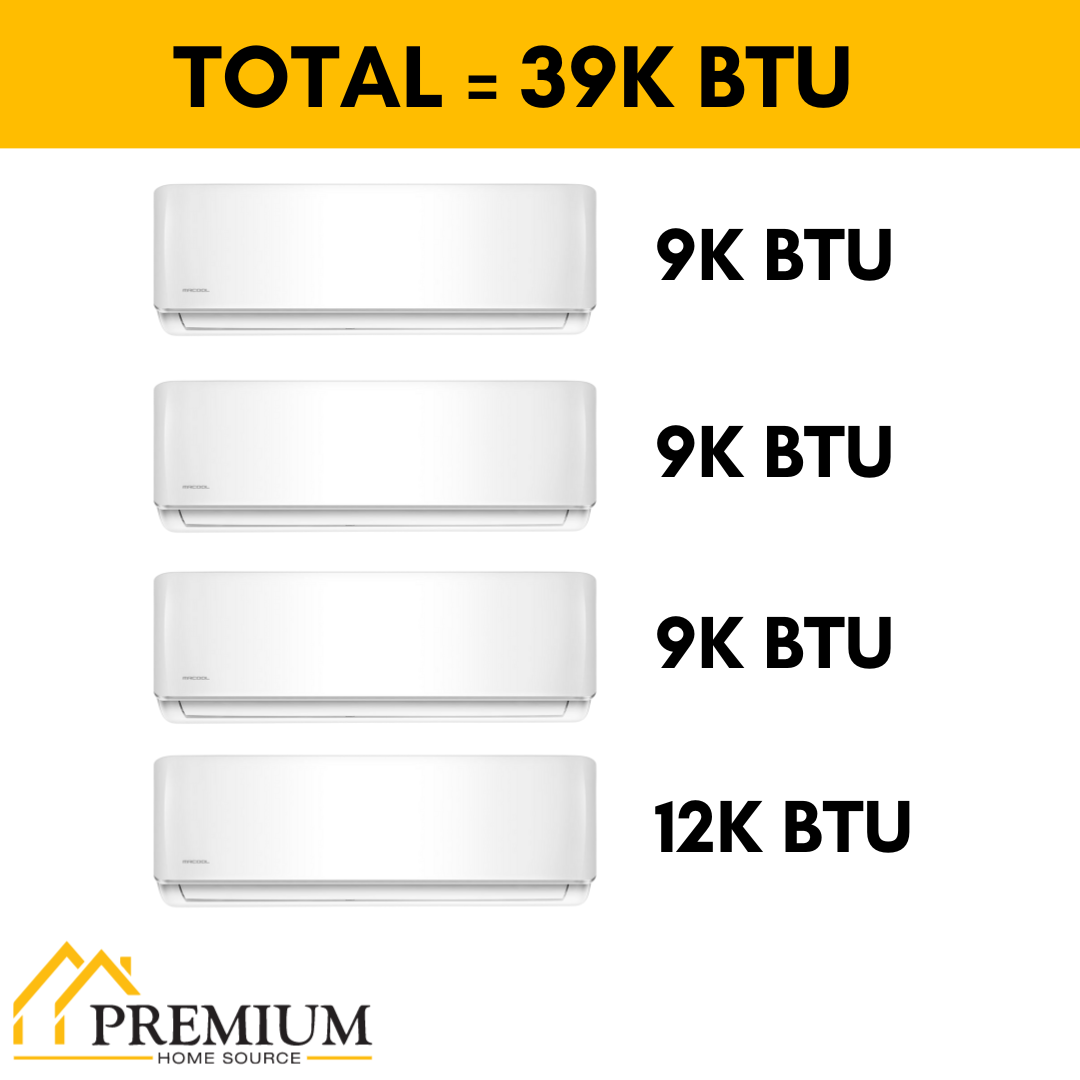

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 36K BTU rating of the Condenser.

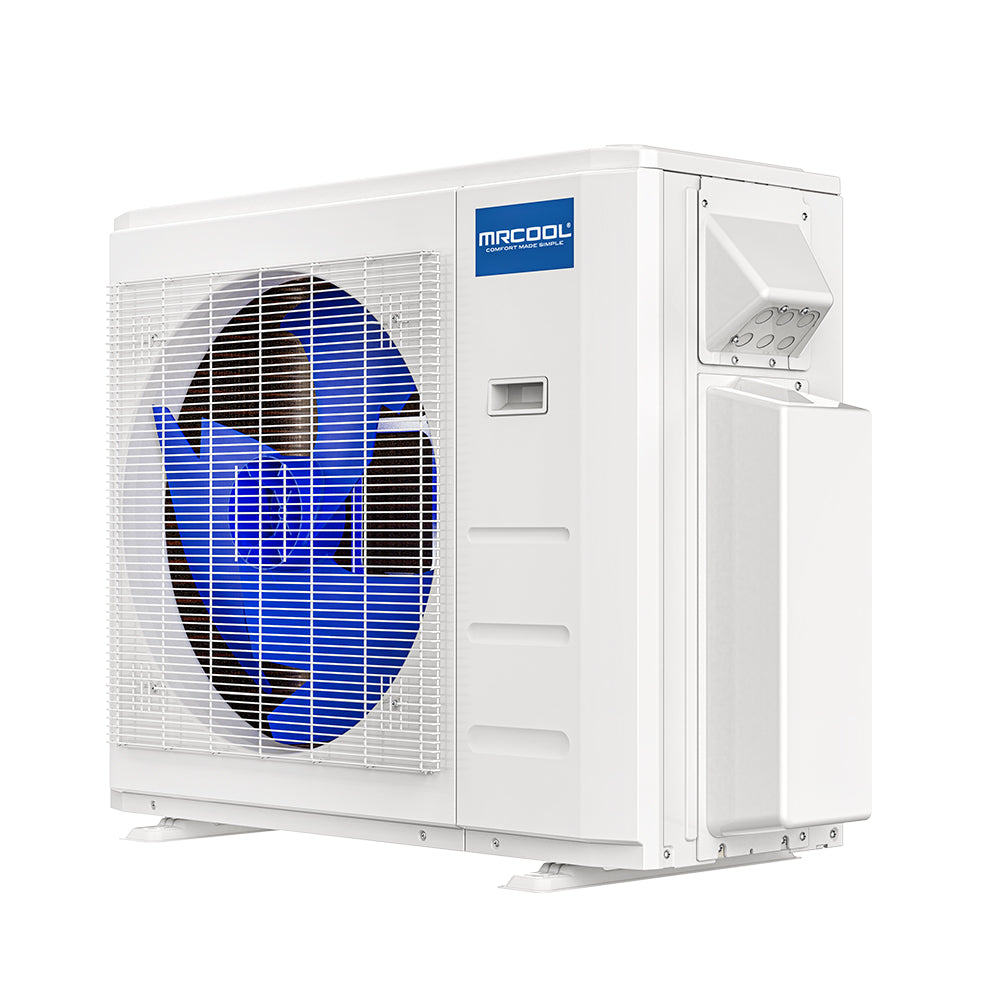

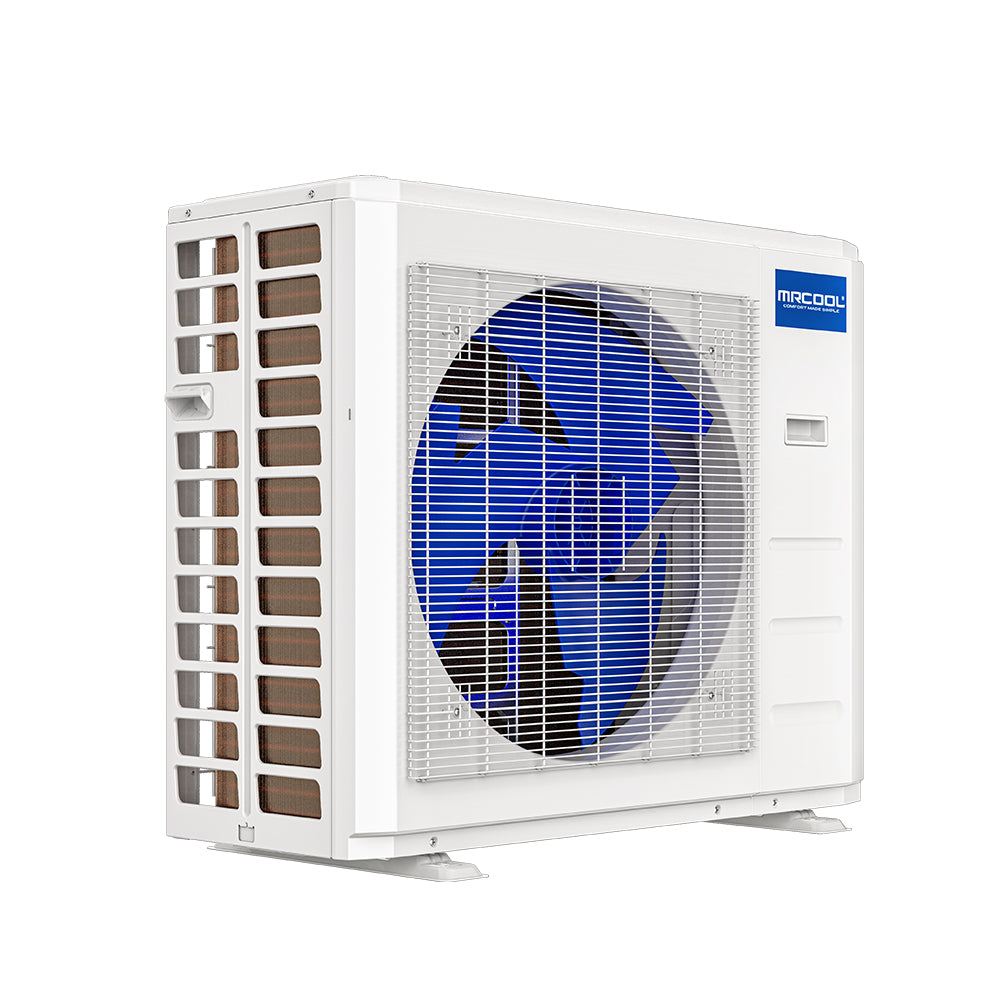

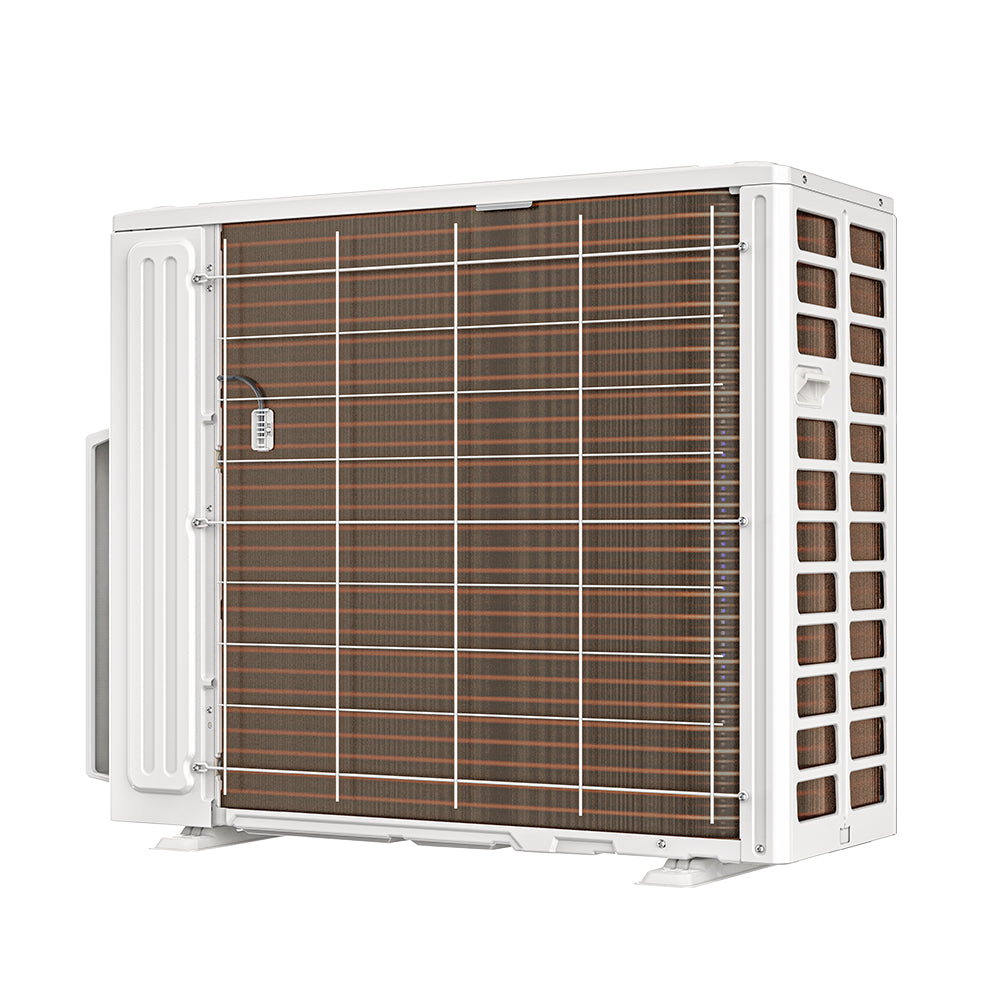

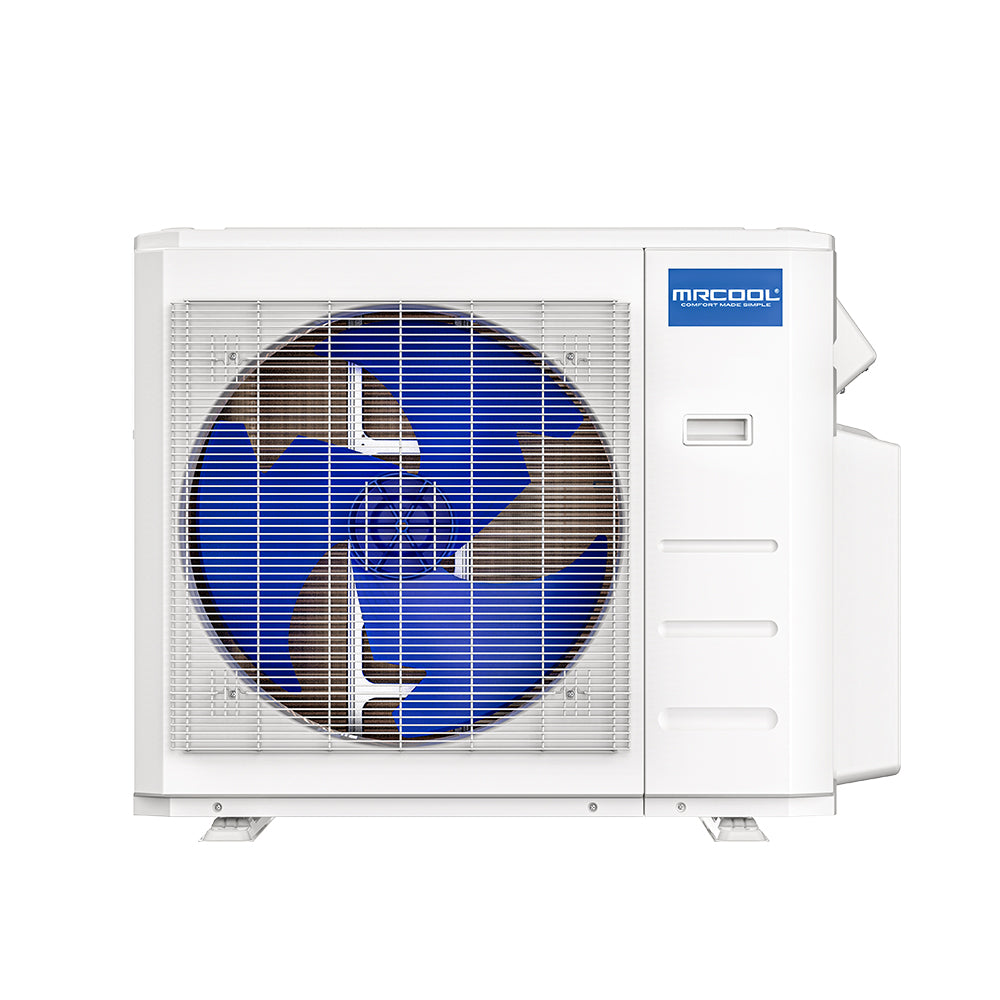

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

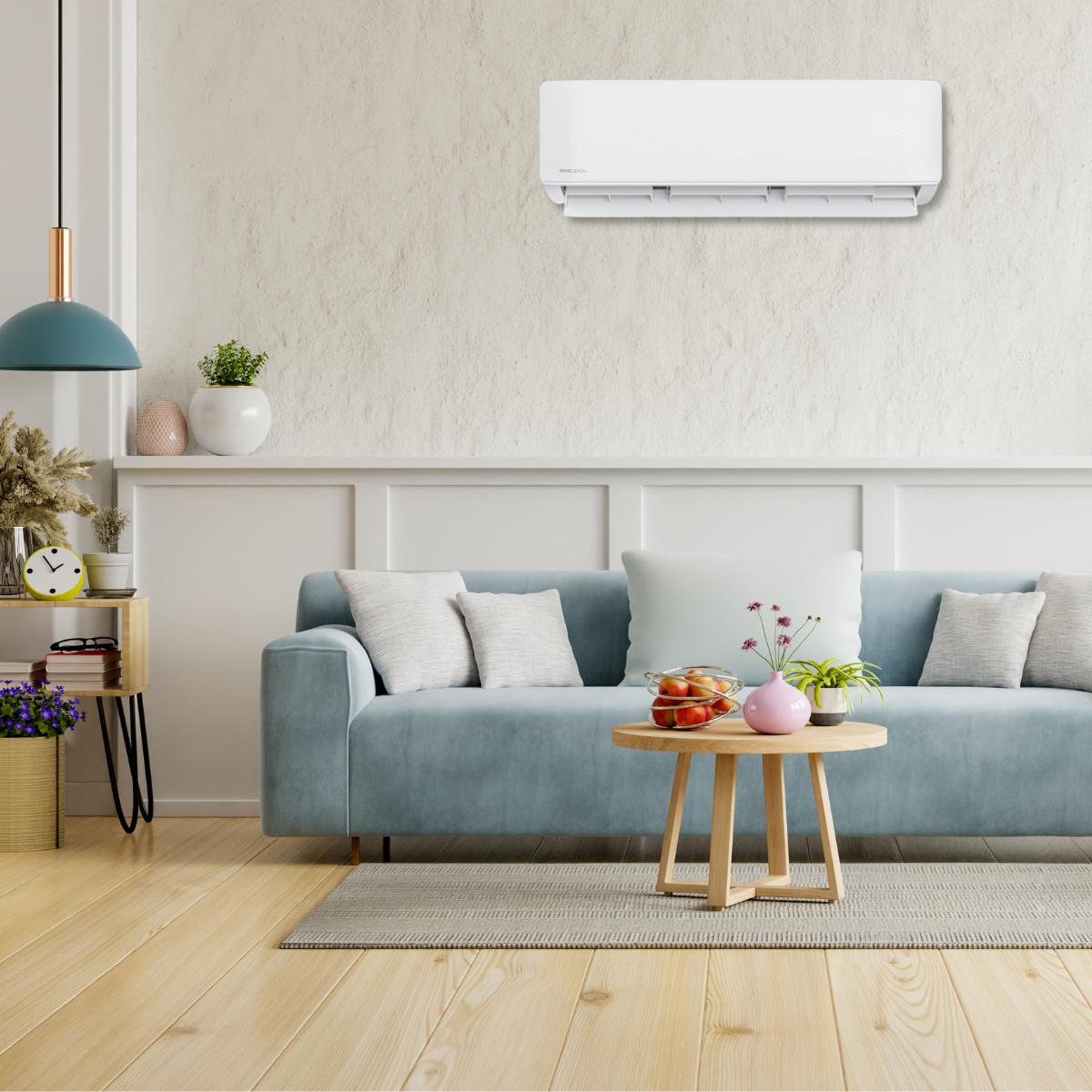

    Air Handler, 9K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

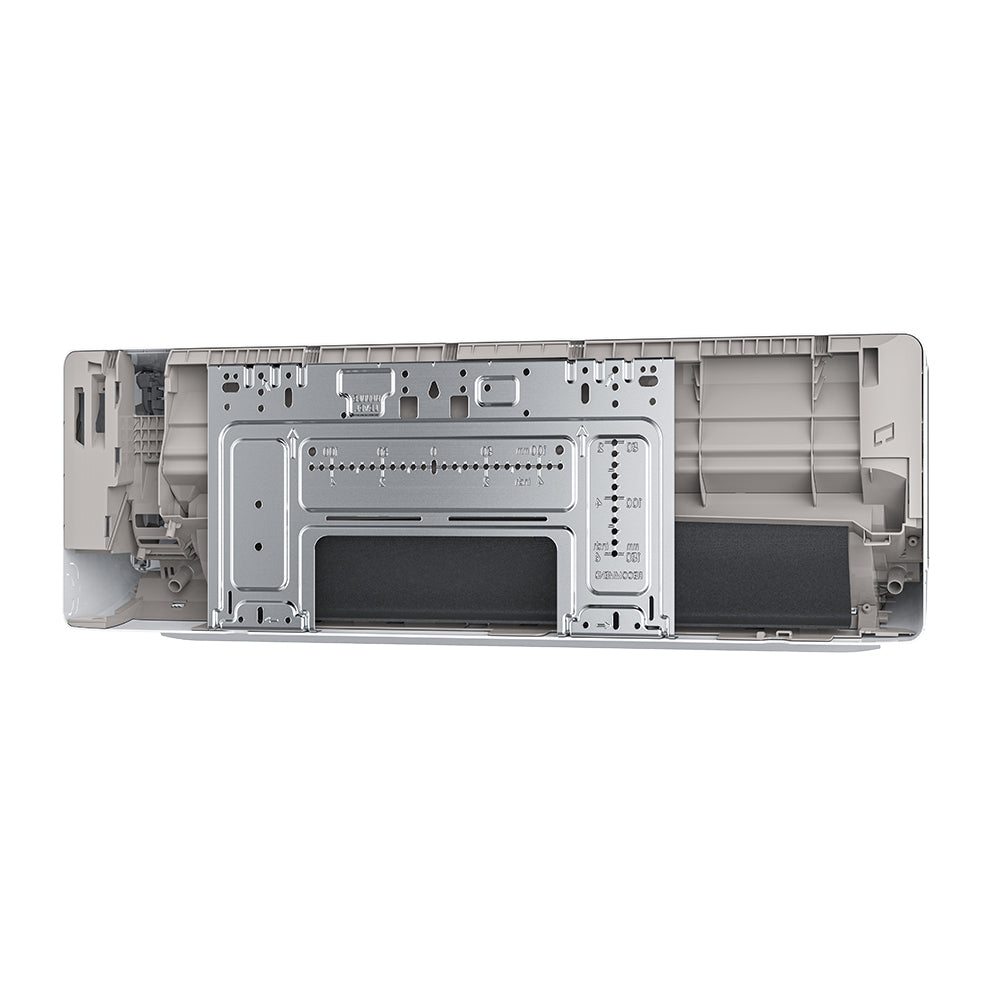

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

        Line Set 35 ft., Quantity 4

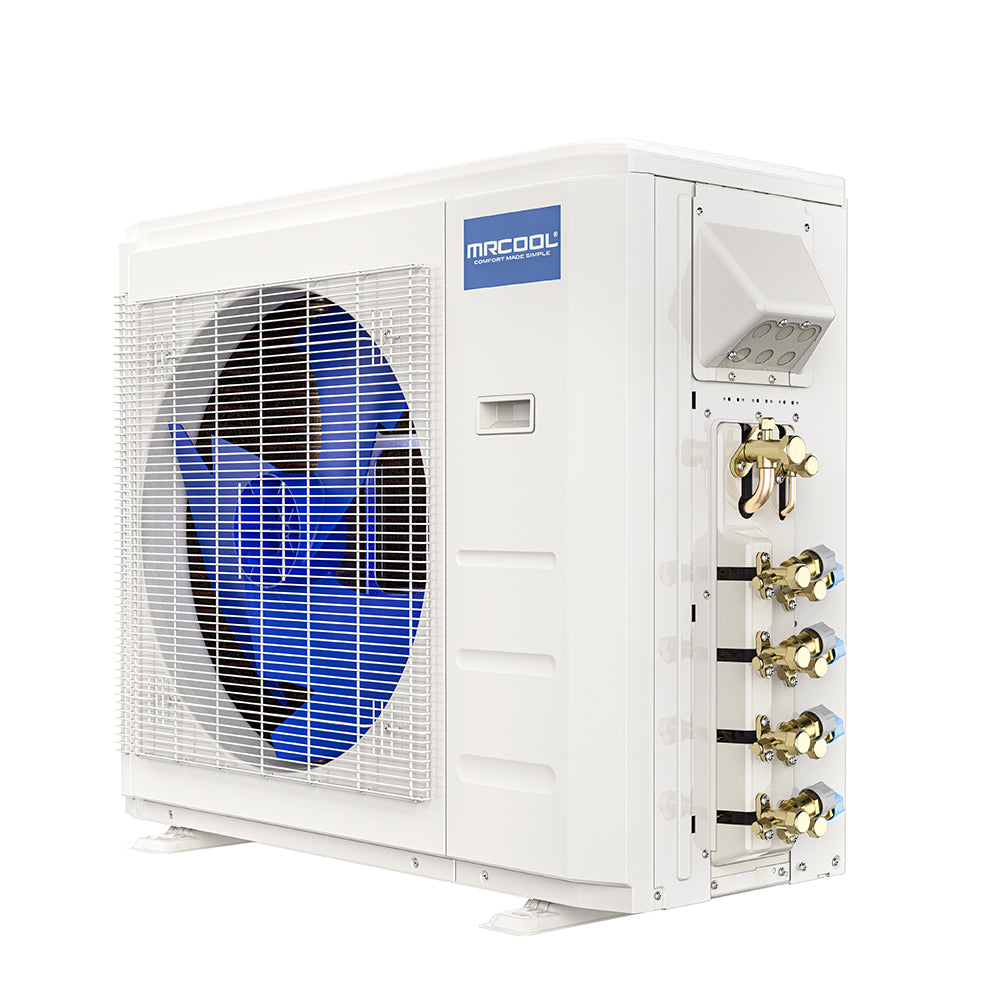

        • This 35 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

        What does this package include?

        This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.


            Condenser Specifications

            Product Dimensions 37.24"W x 16.14"D x 31.89"H
            Cooling Capacity 36,000 BTU
            Heating Capacity 36,000 BTU
            Zone Capacity 4
            Min Ambient Cool 5F ~ 122F
            Min Ambient Heat -13F ~ 75.2F
            SEER 21.5
            EER 10.5
            Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty
            7 Years Replacement on Condenser, 5 Years Parts


            Air Handler 9K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 9,000 BTU
            Heating Capacity 9,000 BTU
            Registered Warranty
            5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 12K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty
            5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Line Set

            Length 35 Feet
            Liquid Line Size 1/4"
            Suction Line Size 1/2"

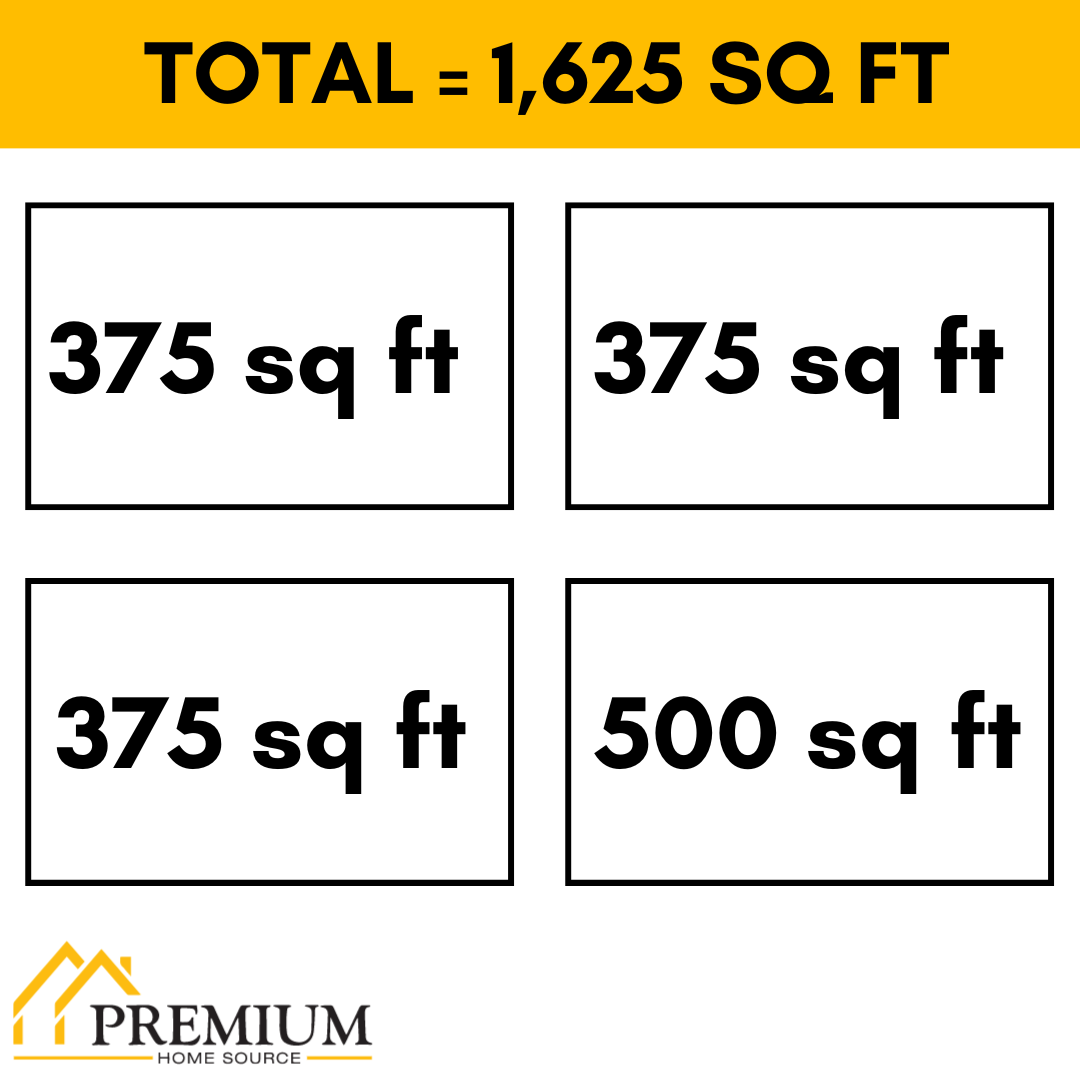

            Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

            Square Feet: 180-375 | BTU = 9K
            Square Feet: 376-500 | BTU = 12K
            Square Feet: 501-750 | BTU = 18K
            Square Feet: 751-1,000 | BTU = 24K
            Square Feet: 1,001-1,500 | BTU = 36K

            Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.

            Customer Reviews

            Based on 23 reviews
            83%
            (19)
            13%
            (3)
            0%
            (0)
            4%
            (1)
            0%
            (0)
            J
            James Reyes
            Mrcool 3 purchases

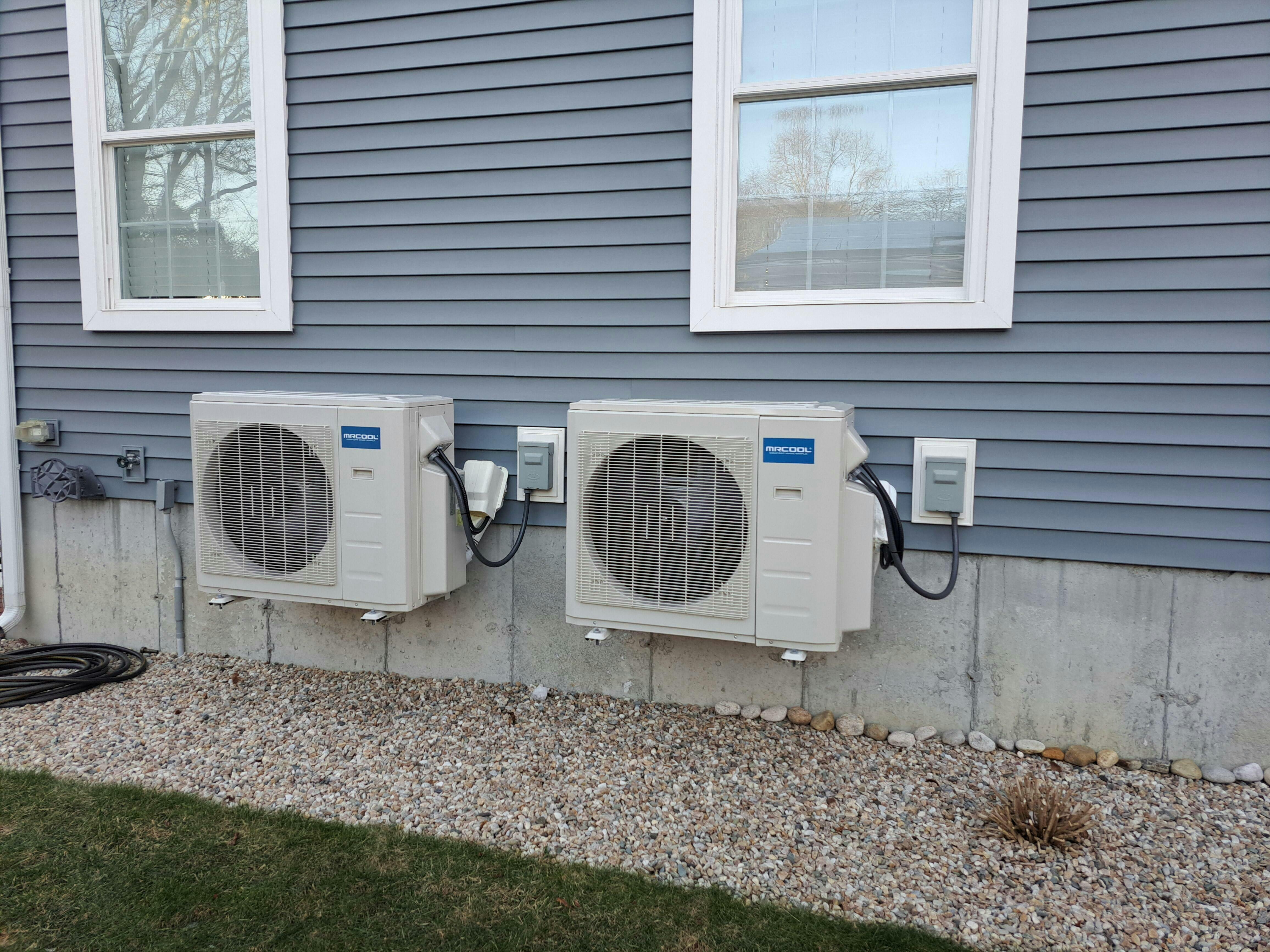

            This the 3rd time I purchased a Mrcool system from Premium Home Source for my wood shop, my daughter's house and my house. No problems with the purchase as well as the DIY installation.

            G
            Guy Patton
            Just installed this morning!

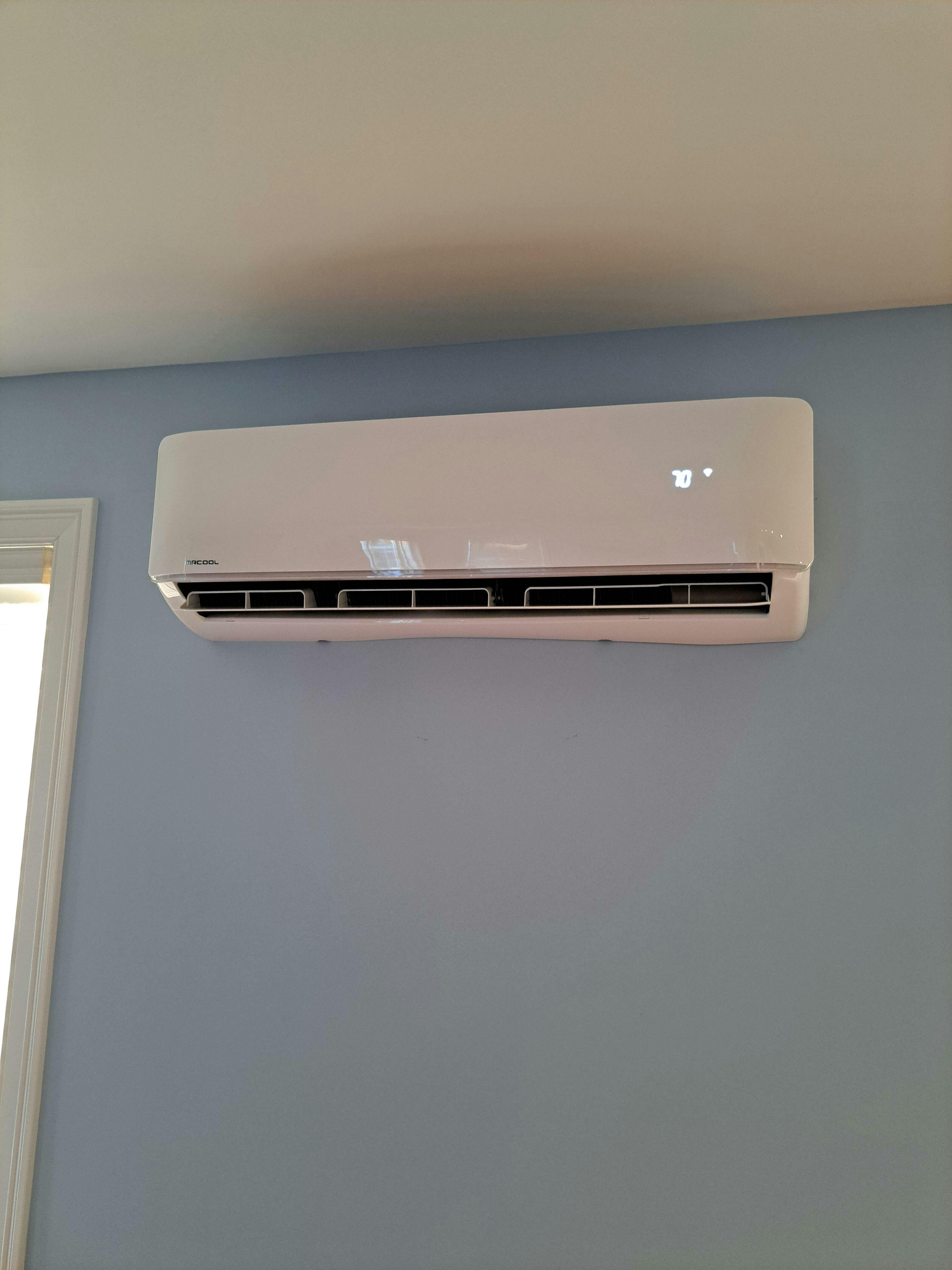

            The unit was turned on for the 1st time and boy it was so quiet I literally had to make sure the fan was spinning outside. the unit and air handlers cool very quickly. I also tested the heating it worked superb. I wont be using this until summer time gets here honestly. that's my main purpose for purchasing it. Living in the deep south requires good A/C. Premium Home Source customer service is also top notch. I would recommend anyone to give them a try. THEY ROCK!

            E
            Emma Brewer
            Best $ spent in a long time

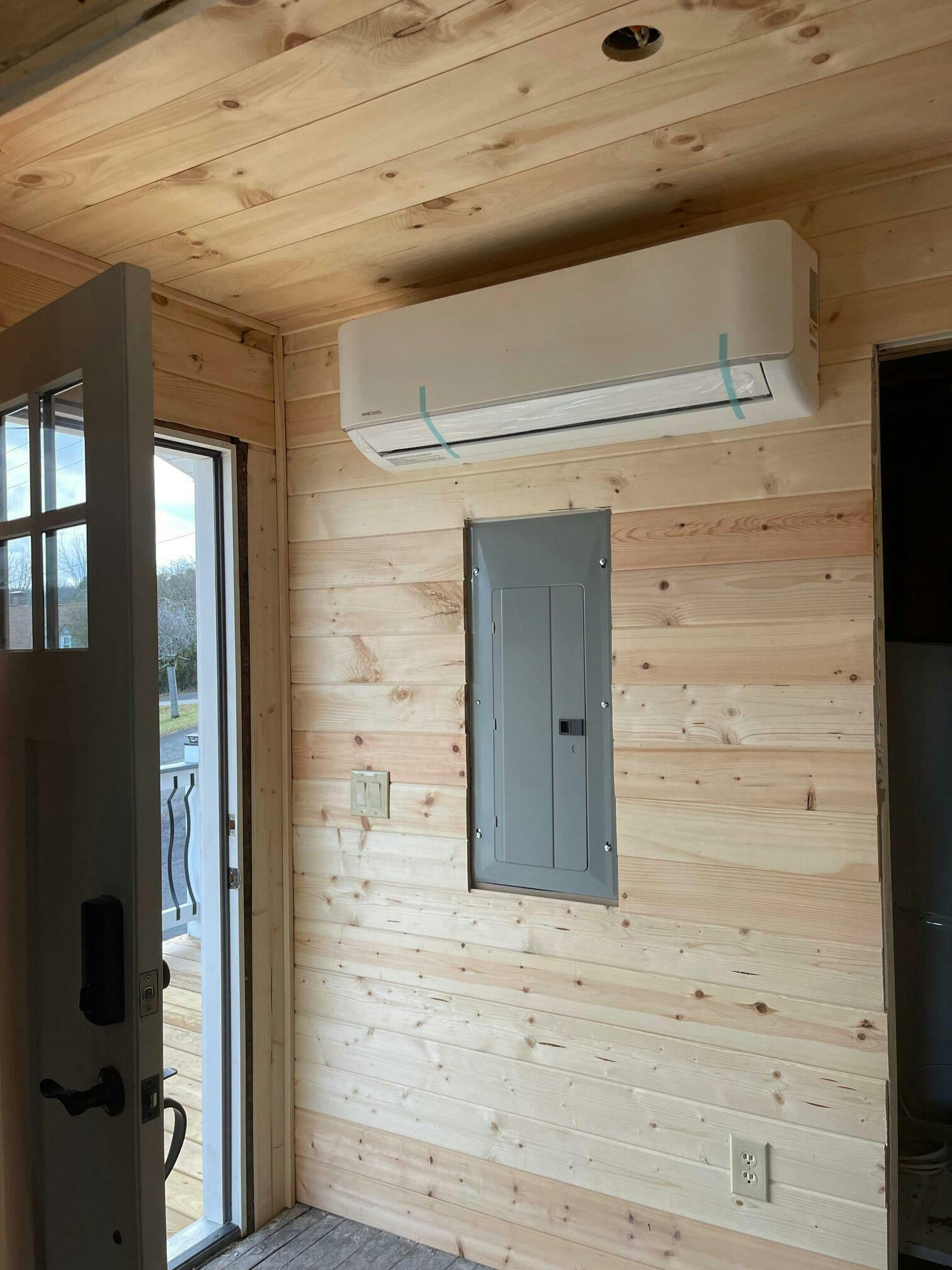

            Best $ spent in a long time. Super easy install even for this 62 y.o. female. Had to have grandsons lift the units up in place but if you can read you can install this yourself. If I could change anything I would make a simpler remote with an on/off, temp up / down button and mode. I won't be using the sleep or other features the unit offers and those buttons are just cluttering up the remote. The overall system works fantastic though - couldn't be happier with the cooling - and the system is very VERY quiet

            J
            Jack Wade
            You guys are great

            Thank you so much for the help Premium Home Source and standing behind your product I will be definitely recommending your company to anyone looking to buy your type of products!

            B
            Bryant Carpenter
            One of the best purchases I've ever made

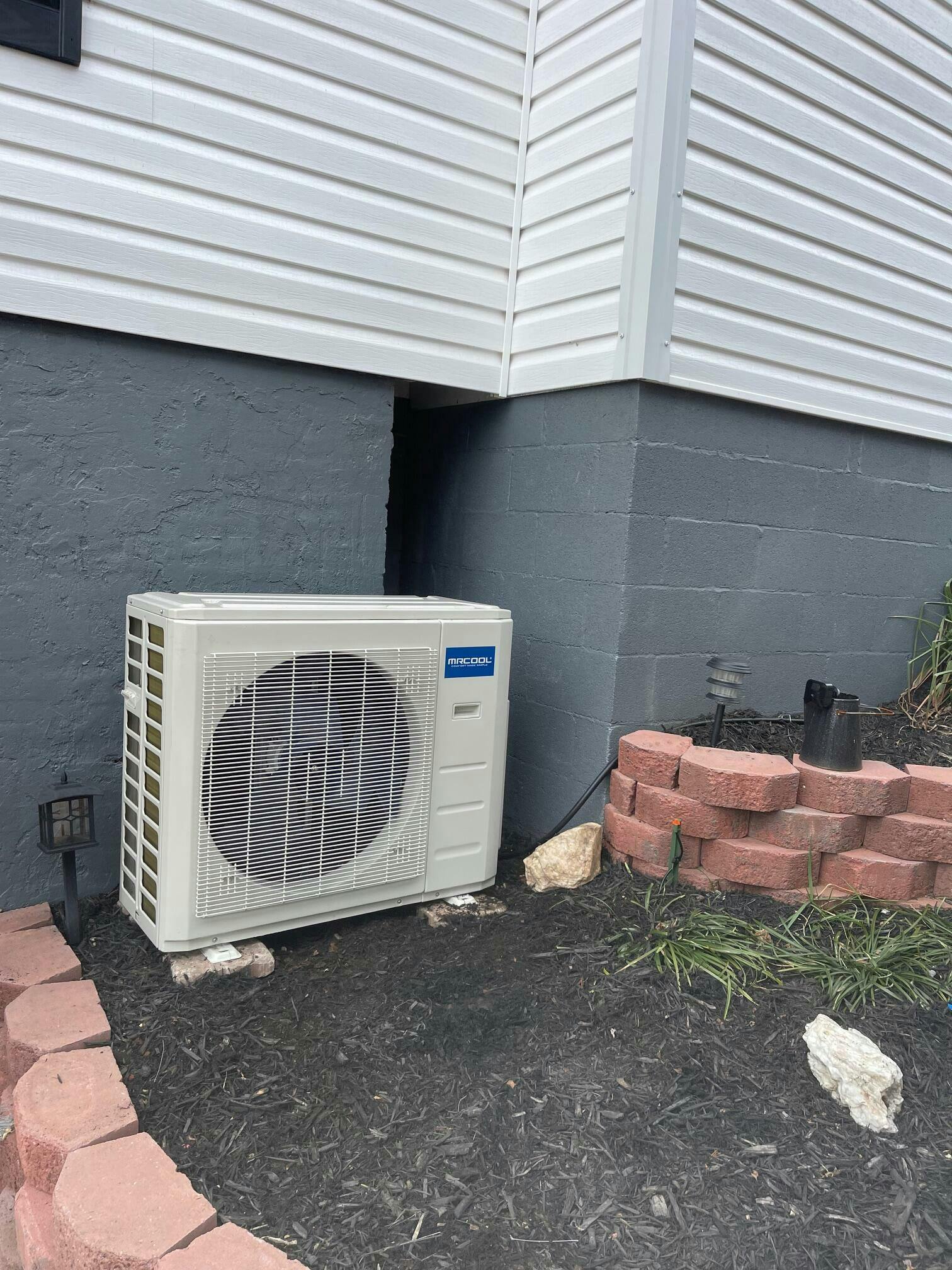

            I'm renovating an older house built in 1966. The house had central air but the duct work was disgusting. Moldy and filled with dog hair. I removed all the ducting and the air handler. I got some bibs on replacing the central air and was blown away by how much it would cost. We had been using portable ac units but my wife and I could not stand the noise and the vent going out the window. Being a DIY kind of guy, I decided to try mini split units but was not sure if they would do the job. I bought this unit and I couldn't believe how easy it was to install. I worried that it would still be noisy. Boy! was I wrong! We pleasantly surprised to see how quiet it was. It cooled the room quickly and easily. We liked it so much that we bought another unit for the garage. I highly recommend These units and intend to buy several more for other rooms.
