4th Gen New Release!

MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM436HPW00C194

4.8 27 reviews
Model: DIYM436HPW00C194
Regular price $5,927.00
Sale price $5,927.00 Regular price $7,823.64
-24%
Shipping calculated at checkout.

Financing Options


Mount type: Wall
Line set length: 50 ft.

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Nov 08 to Nov 14

Regular price $5,927.00
Sale price $5,927.00 Regular price $7,823.64

Product Overview

  • Zones: 4

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Collapsible content

BETTER TOGETHER

DESCRIPTION

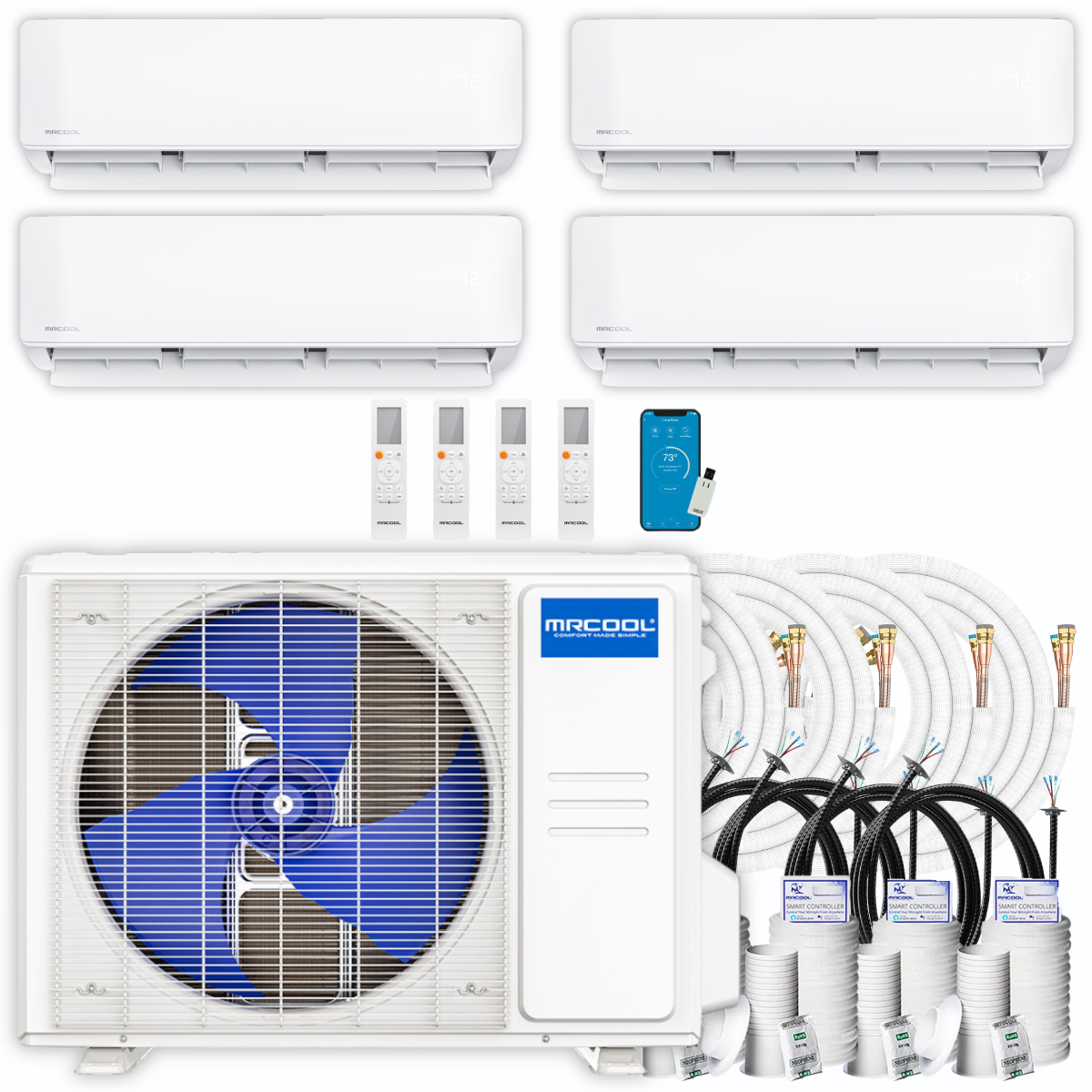

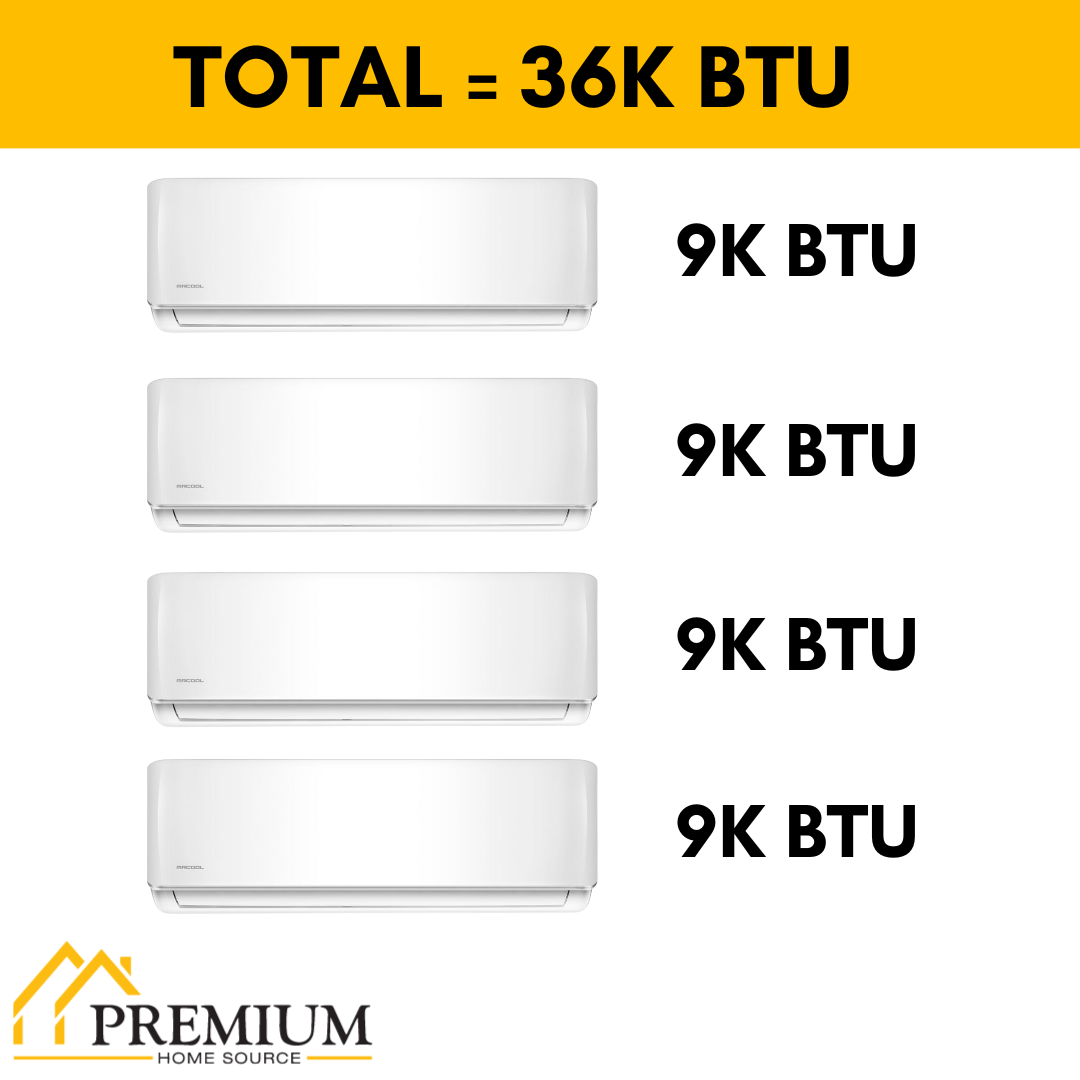

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat four different rooms. You'll be sent: DIY 36,000 BTU Multi-Zone Condenser, four 9,000 BTU Wall Mounted Air Handler, four Remotes, and four 50 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

Package Includes

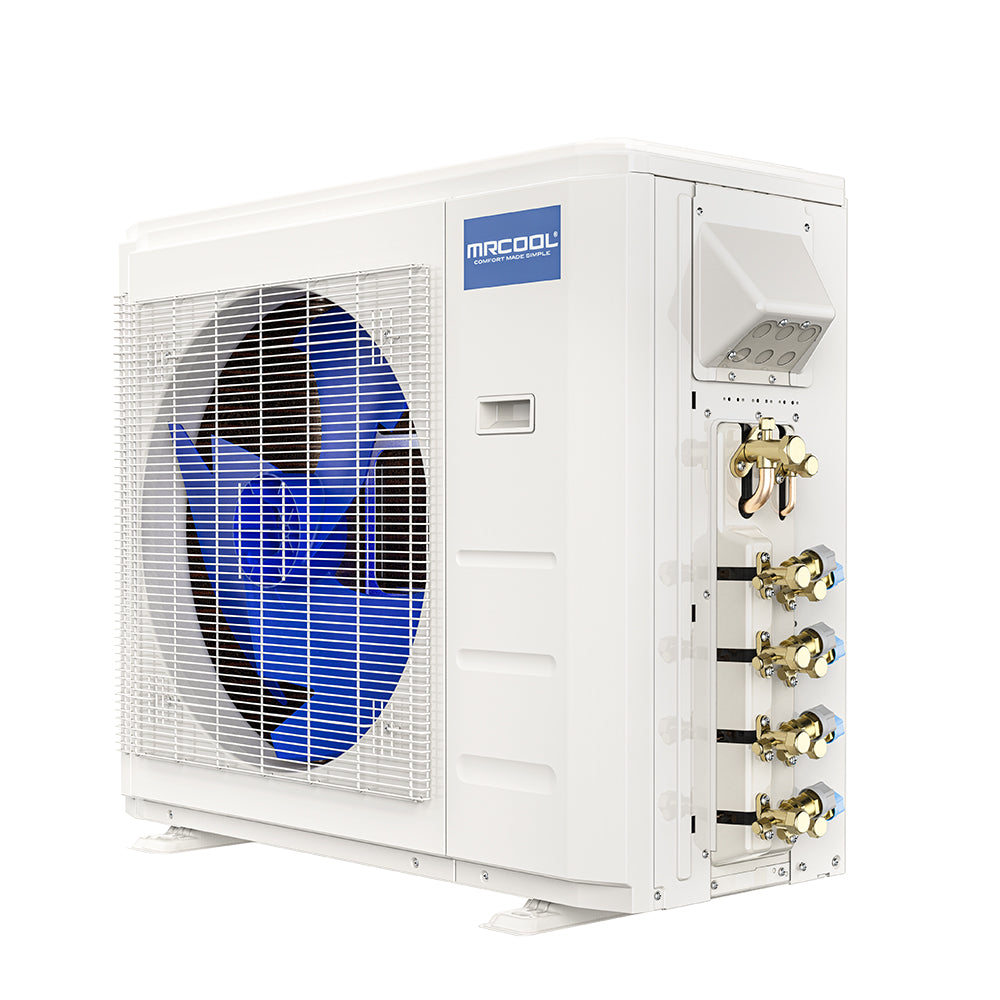

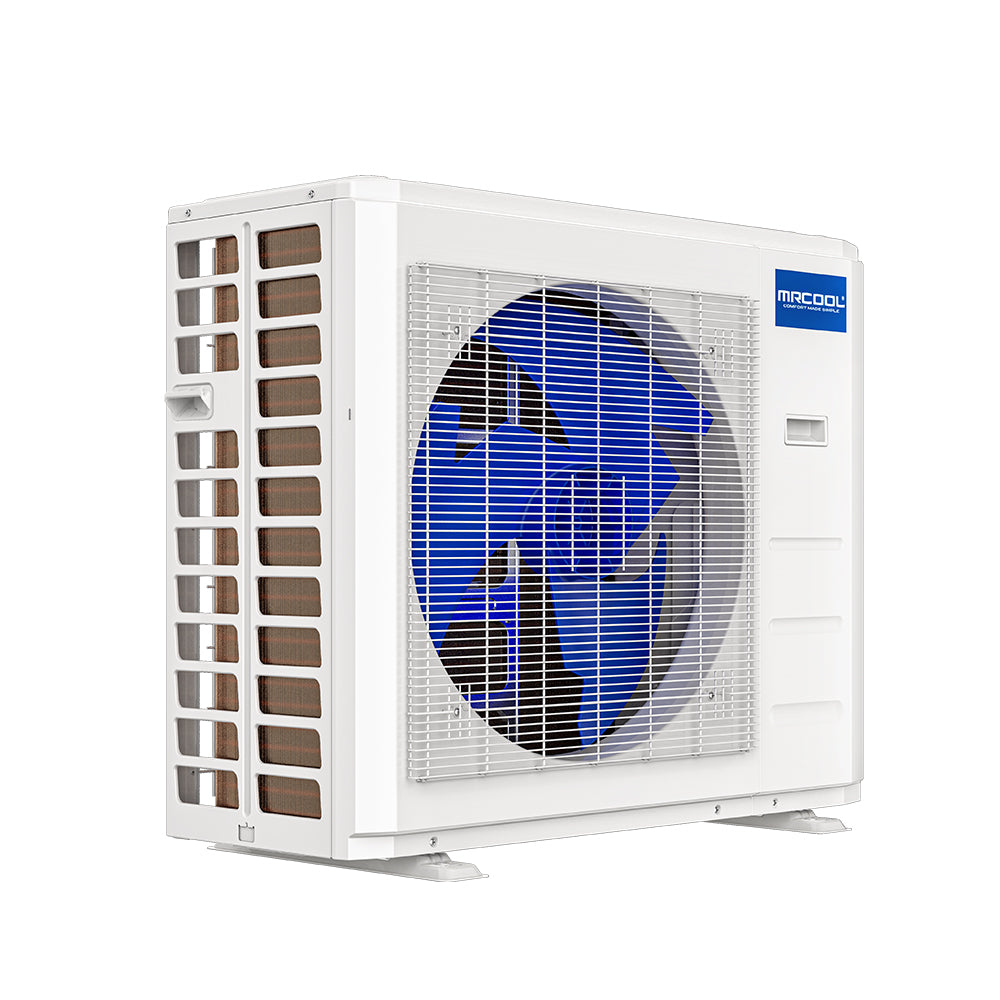

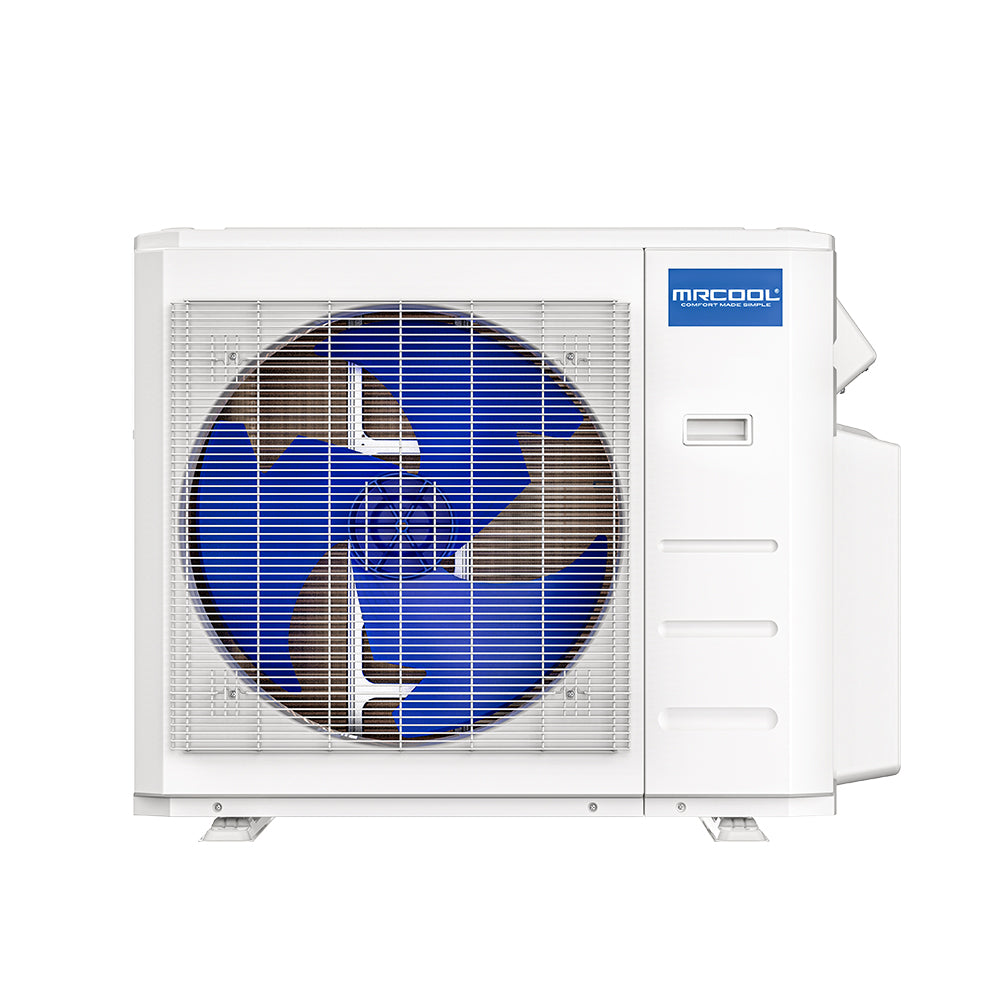

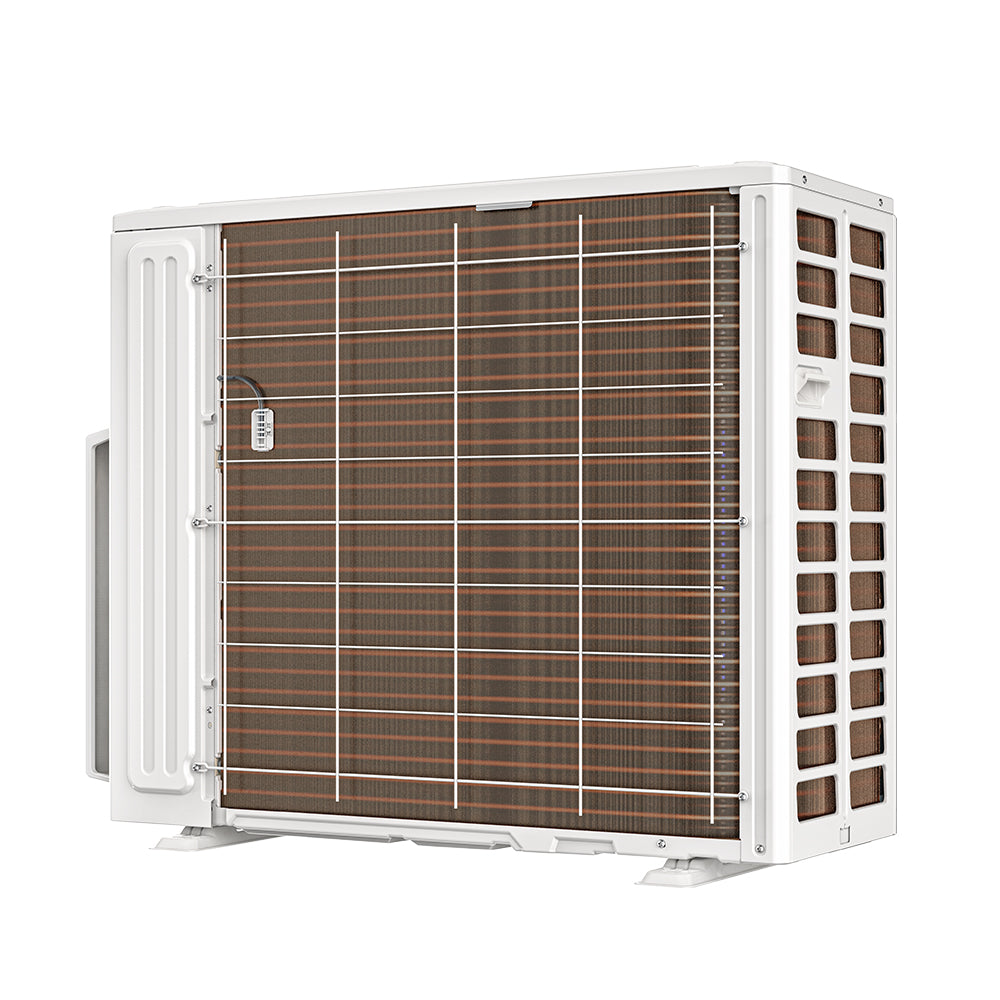

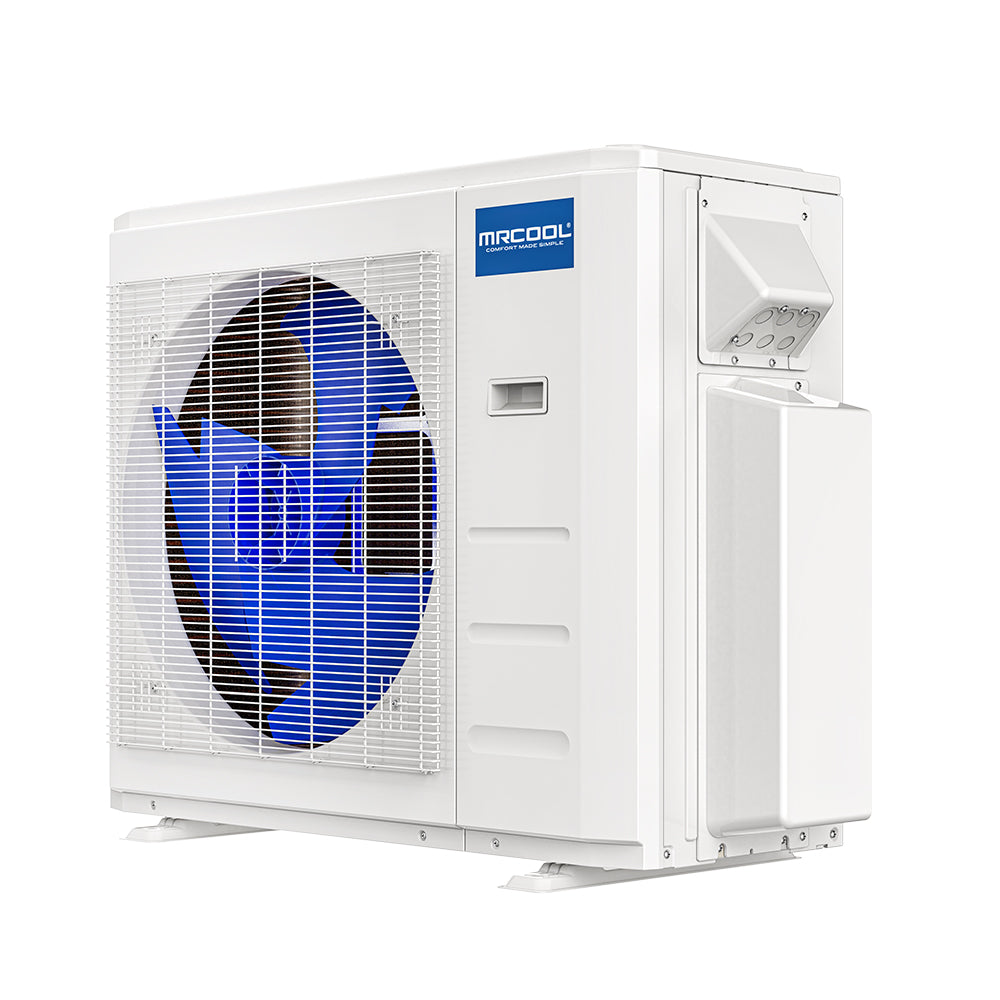

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

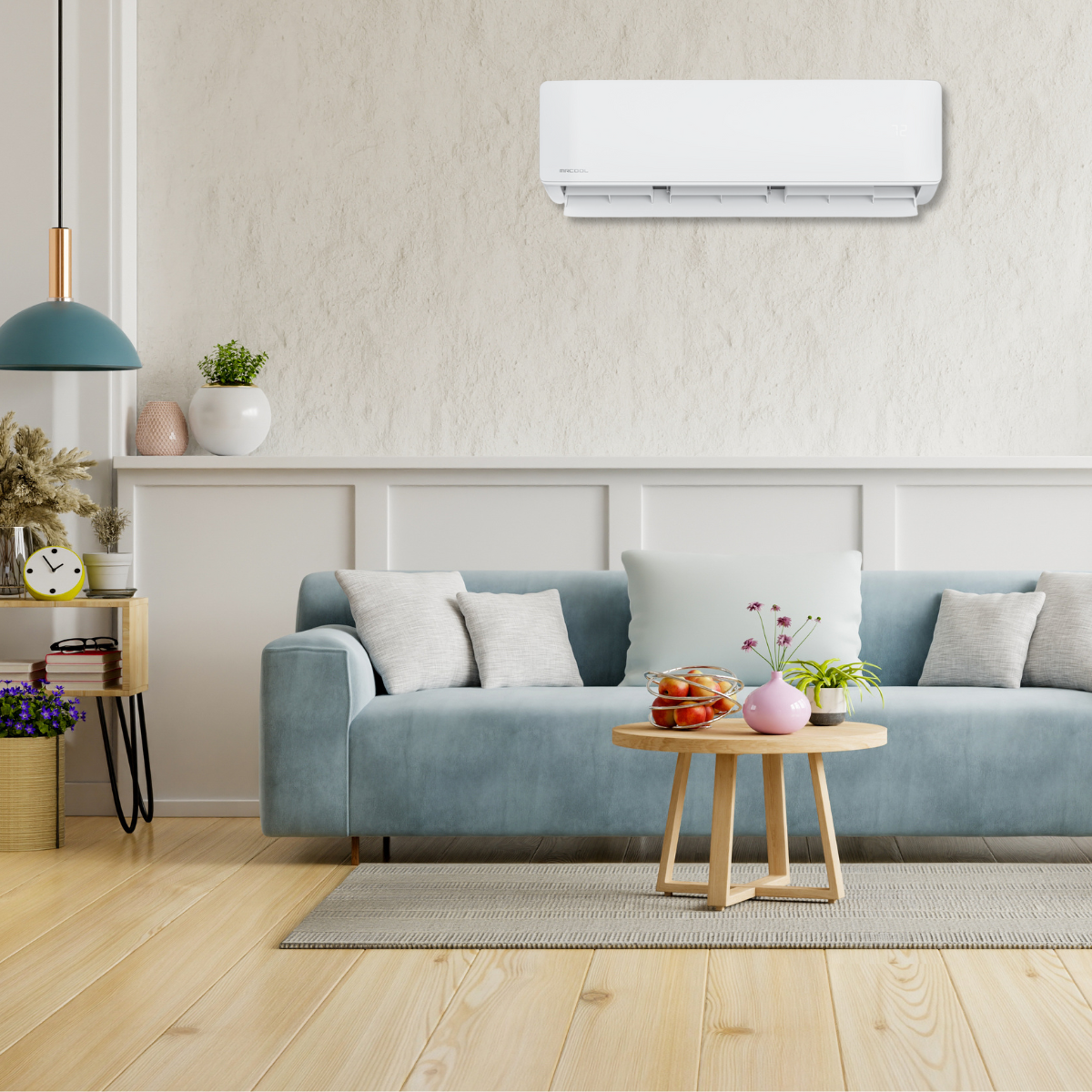

    Air Handler, 9K BTU, Quantity 4

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

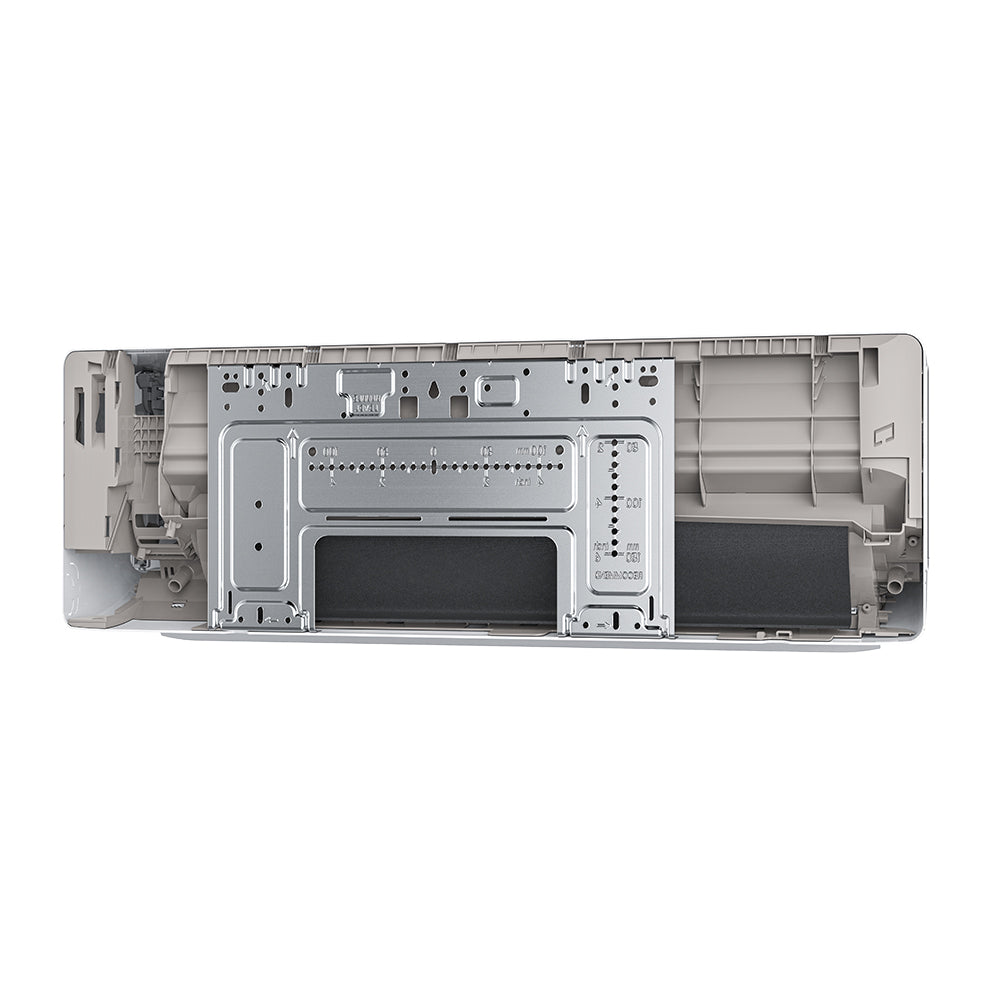

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

        Line Set 50 ft., Quantity 4

        • This 50 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

        What does this package include?

        This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

            SPECIFICATIONS & DIMENSIONS

            • Condenser Specifications
            • Product Dimensions: 37.24"W x 16.14"D x 31.89"H
            • Cooling Capacity: 36,000 BTU
            • Heating Capacity: 36,000 BTU
            • Zone Capacity: 4
            • Min Ambient Cool: 5F ~ 122F
            • Min Ambient Heat: -13F ~ 75.2F
            • SEER: 21.5
            • EER: 10.5
            • Voltage: Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
            • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
            • Air Handler 9K BTU
            • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
            • Mount Type: Wall
            • Cooling Capacity: 9,000 BTU
            • Heating Capacity: 9,000 BTU
            • Registered Warranty: 5 Years Parts
            • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
            • Line Set
            • Length: 50 Feet
            • Liquid Line Size: 1/4"
            • Suction Line Size: 1/2"

            INSTALLATION & GUIDES

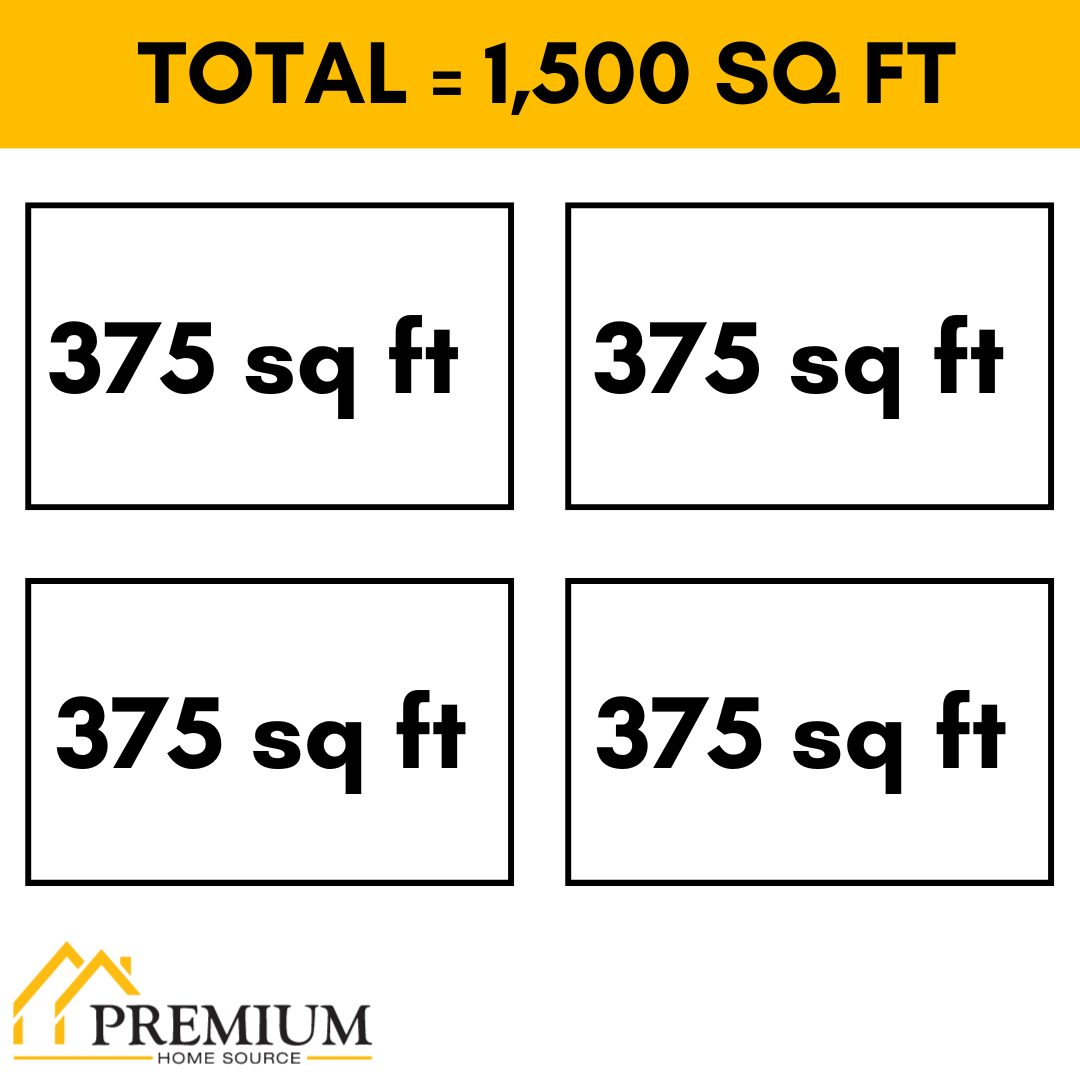

            COVERAGE AREA

            Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

            BTU  Square Feet
            9,000 BTU 180 - 375 Sq Ft.
            12,000 BTU 376 - 500 Sq Ft.
            18,000 BTU 501 - 750 Sq Ft.
            24,000 BTU 751 - 1,000 Sq Ft.
            36,000 BTU 1,001 - 1,500 Sq Ft.

            Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
