MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM436HPC00C00
$7,635.00
$10,307.25
26% Off
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
ServicesExclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
4th Gen New Release!
MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM436HPC00C00
This item is in stock! Estimated Arrival: Sep 22 to Sep 28
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
ServicesExclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Need help with choosing a Mini Split system or have other questions?
Talk with one of our trusted HVAC professionals today!
Product Overview
- Ceiling Mounted

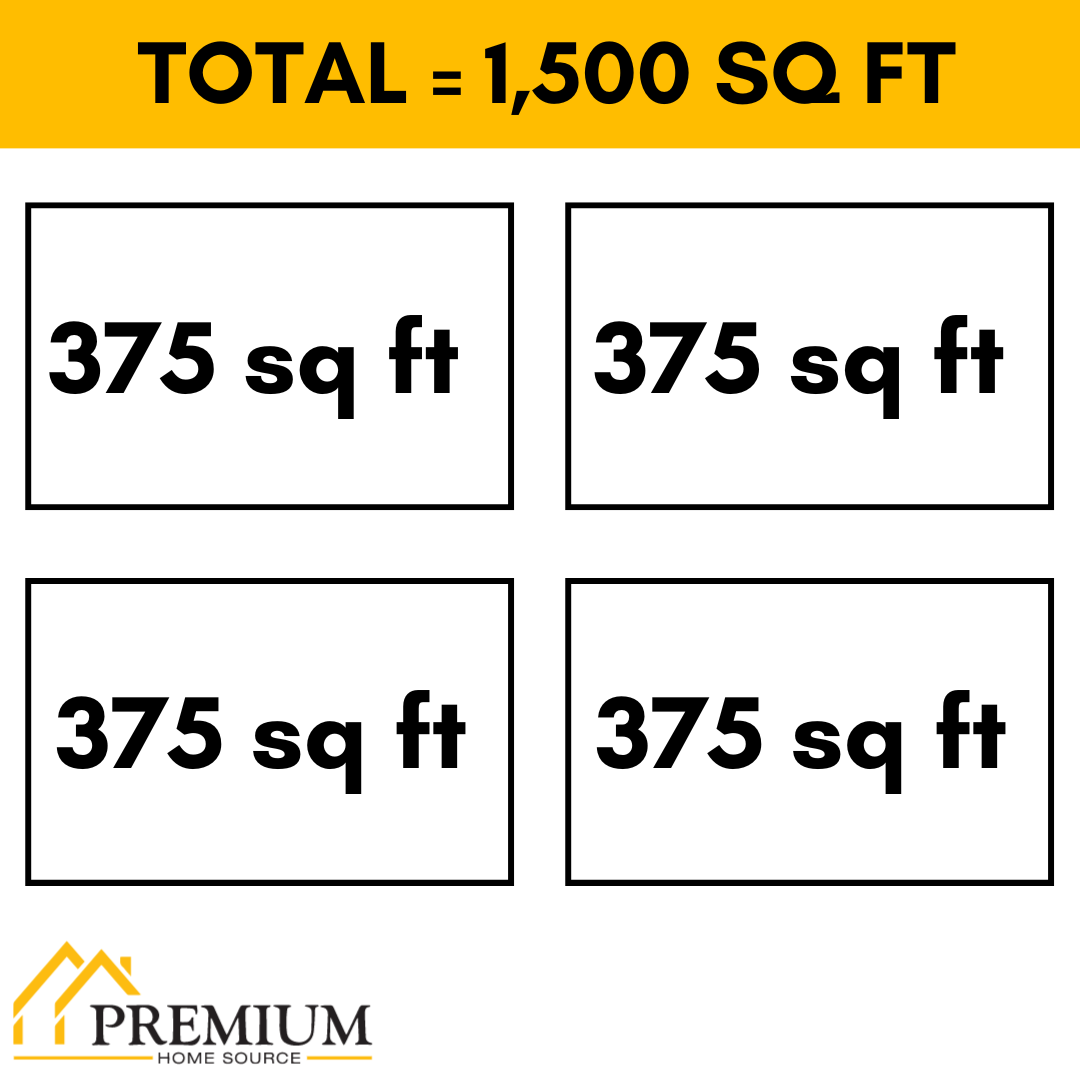

- Covers 1500 sq. ft.
- DIY Installation
- Number of Zones: 4
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): -13°F to 75.2°F

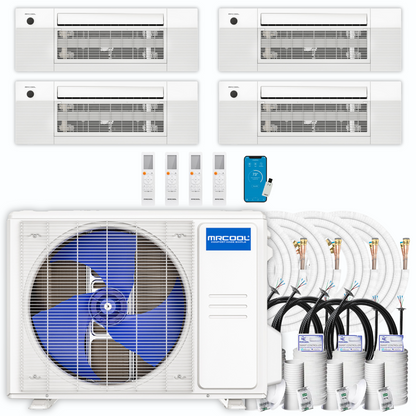

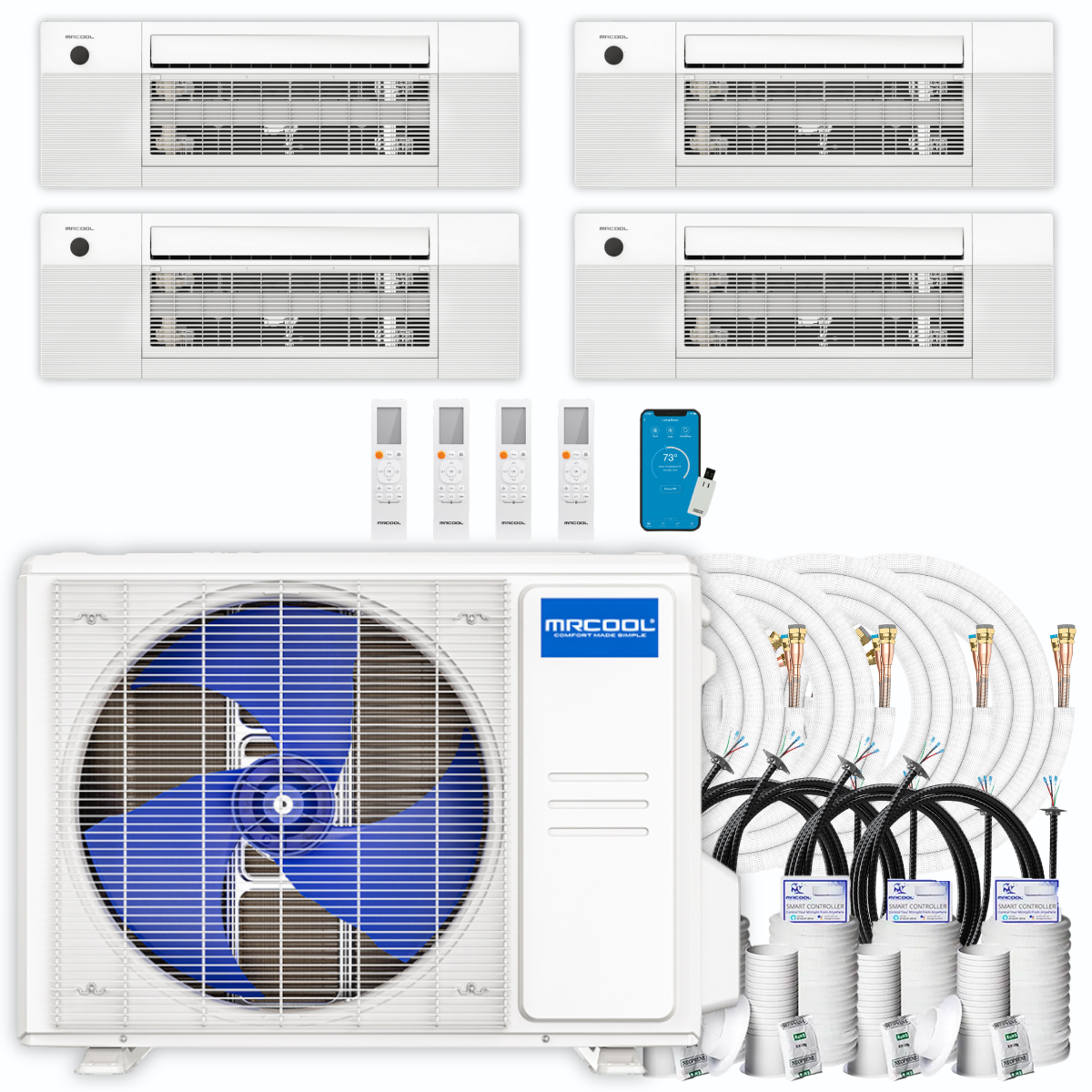

- MRCOOL DIY Multi-Zone 4-Zone 36K BTU Condenser, 4th Gen Series, DIY-MULTI4-36HP230C

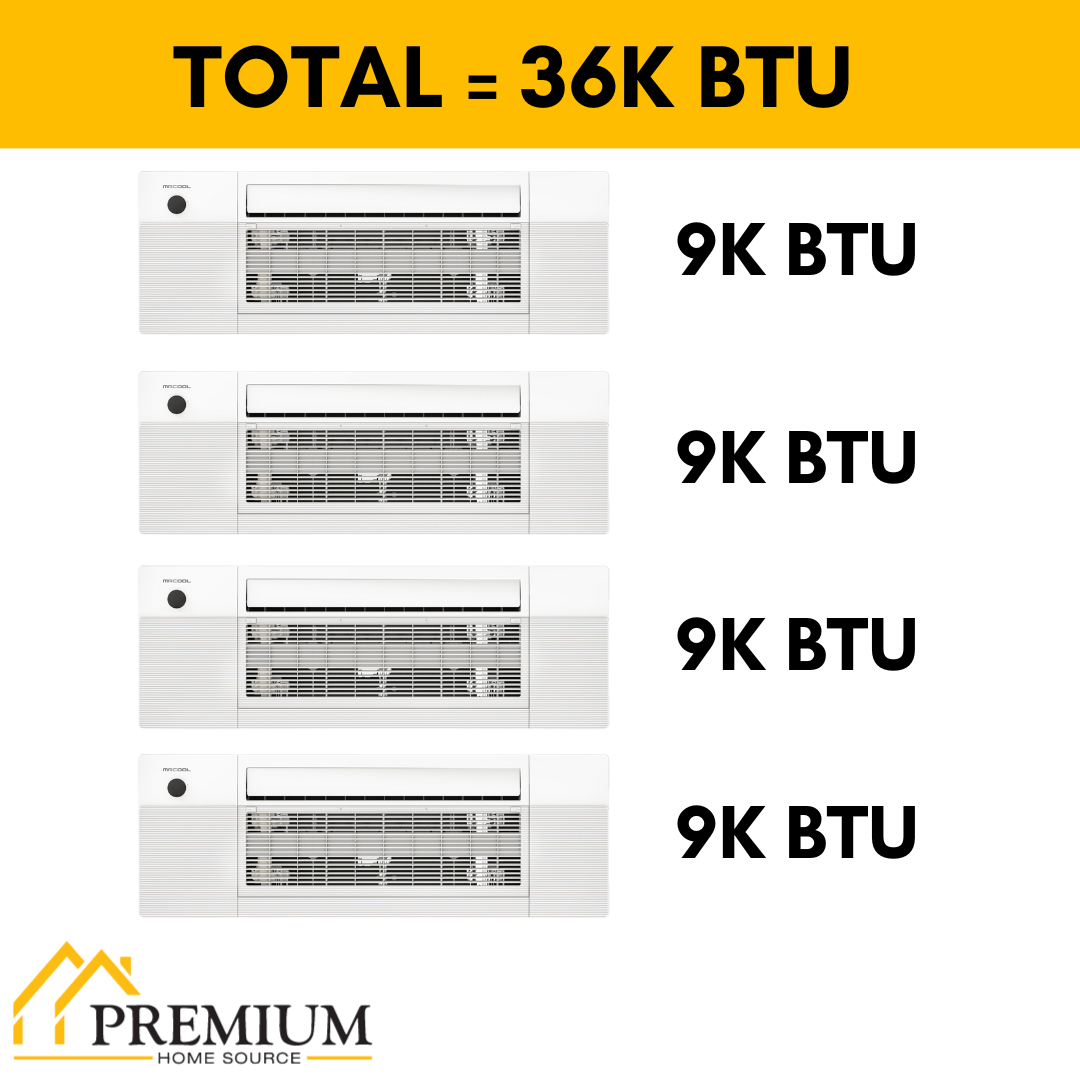

- MRCOOL DIY Series 9K BTU Ceiling Cassette, DIYCASSETTE09HP-230C25 (x4)
- MRCOOL 16ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412 (x4)

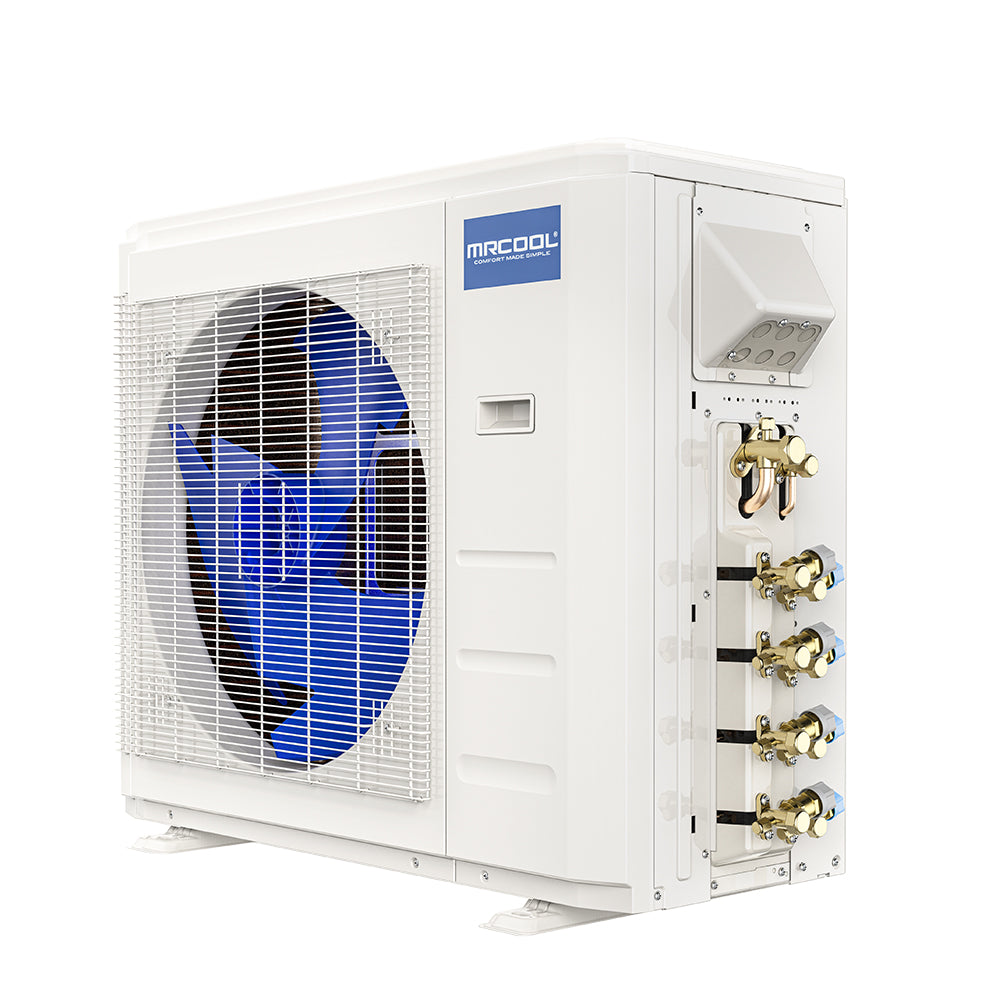

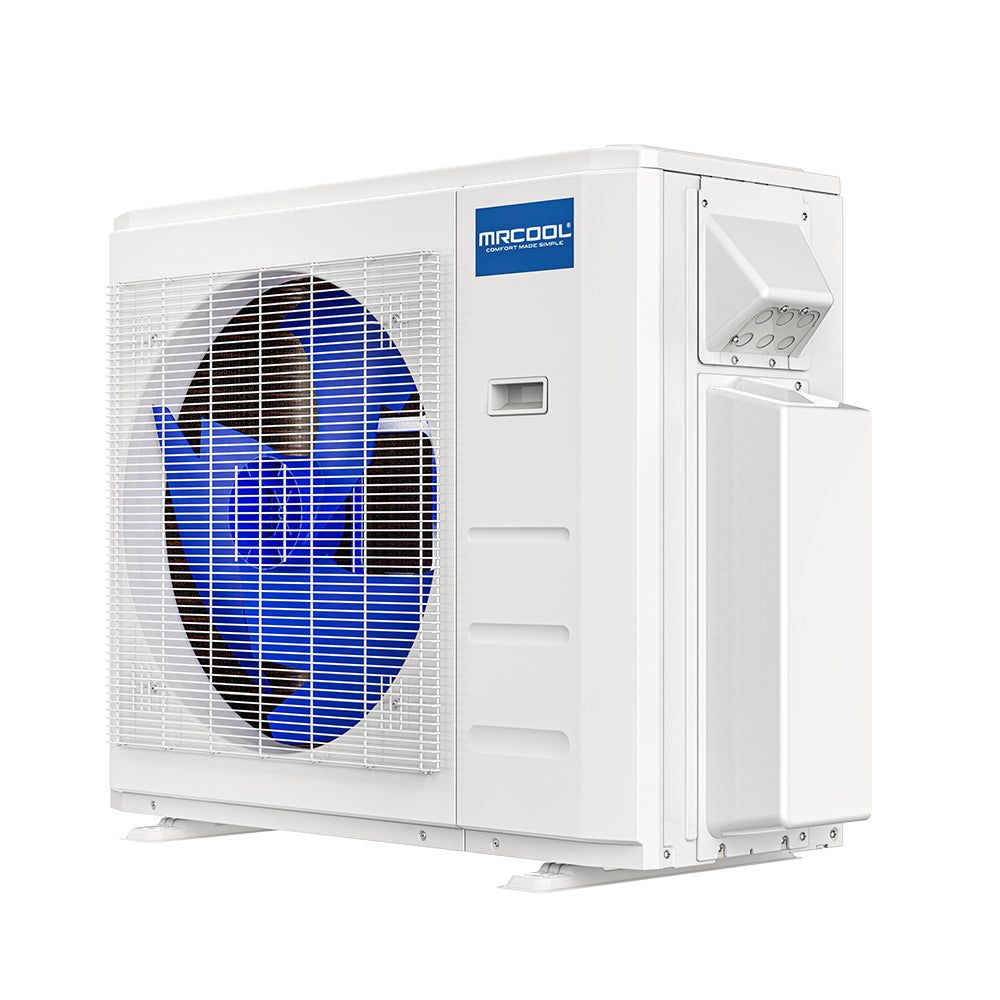

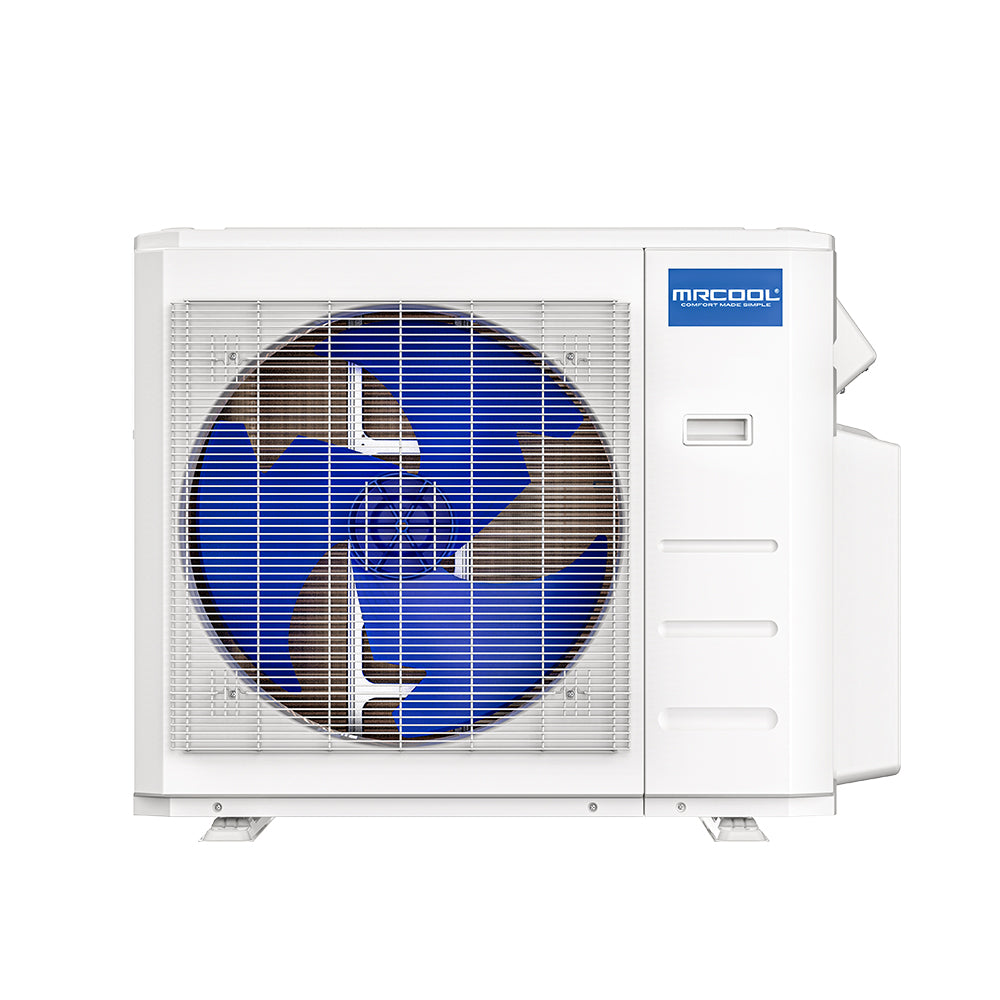

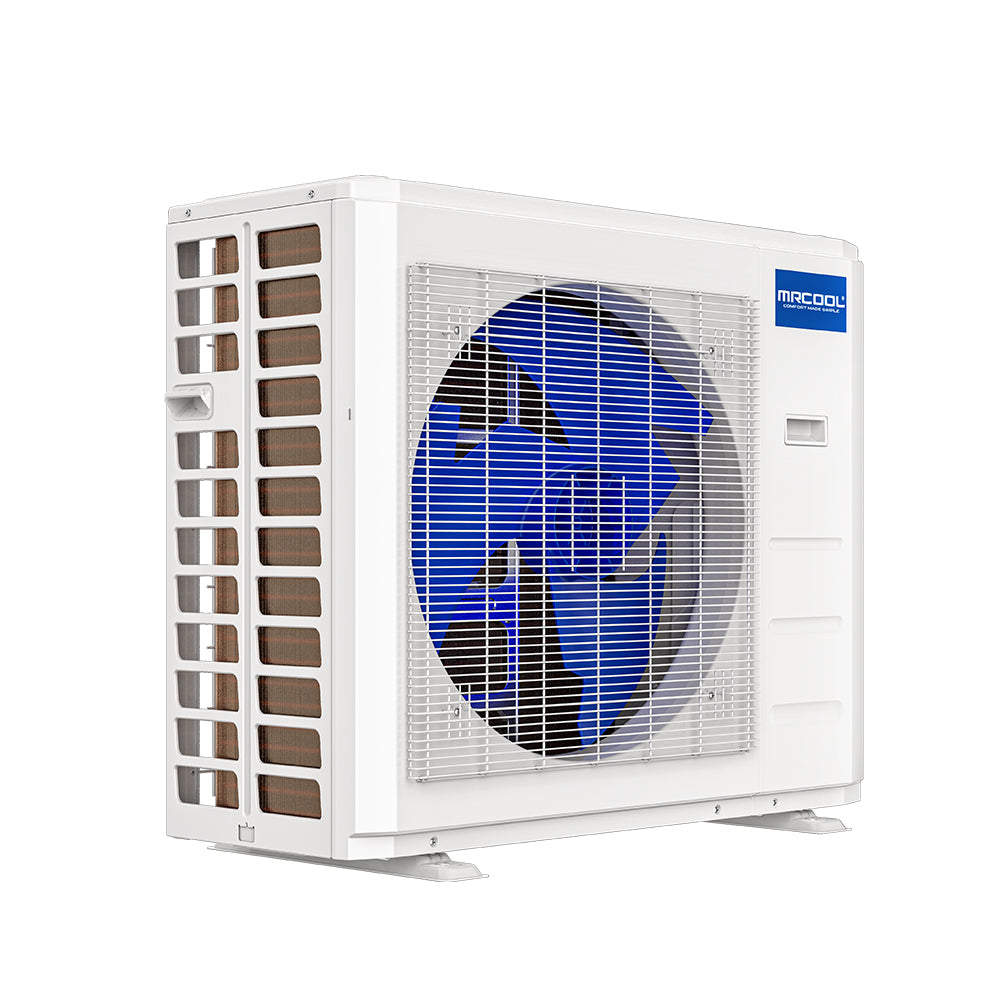

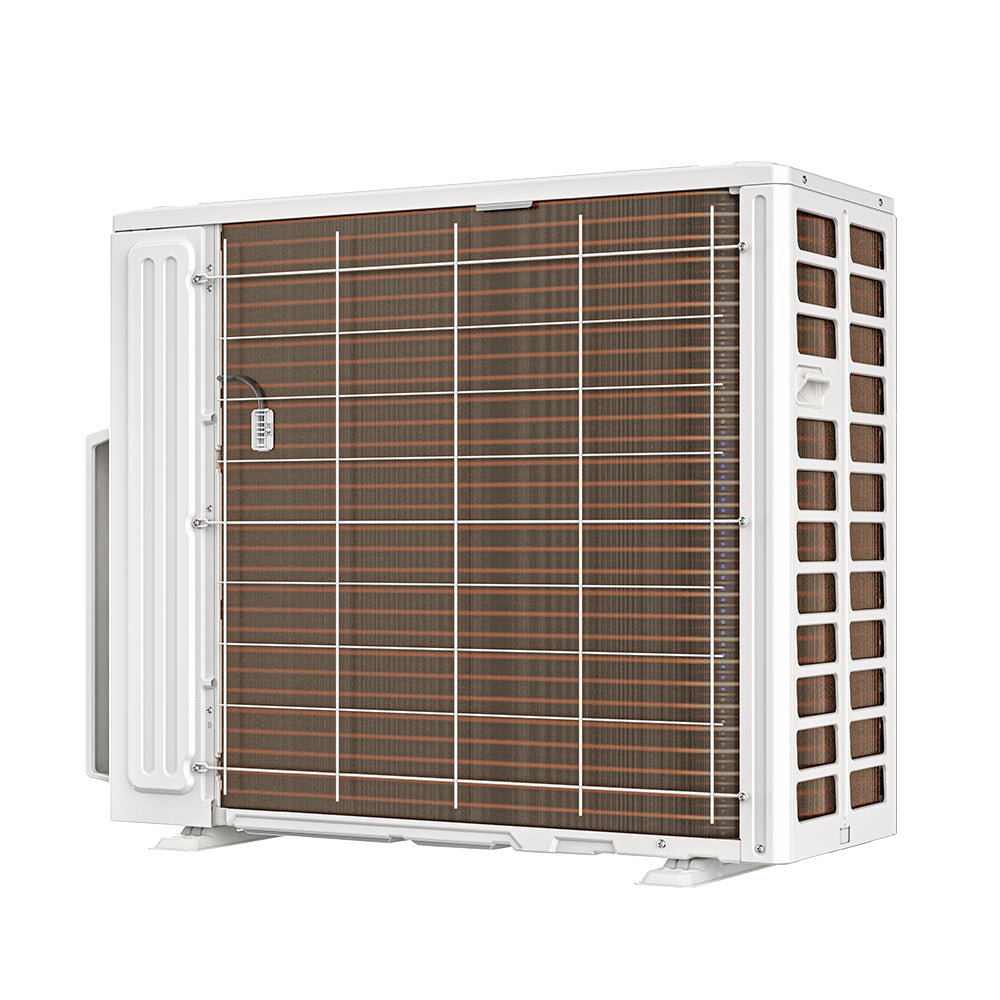

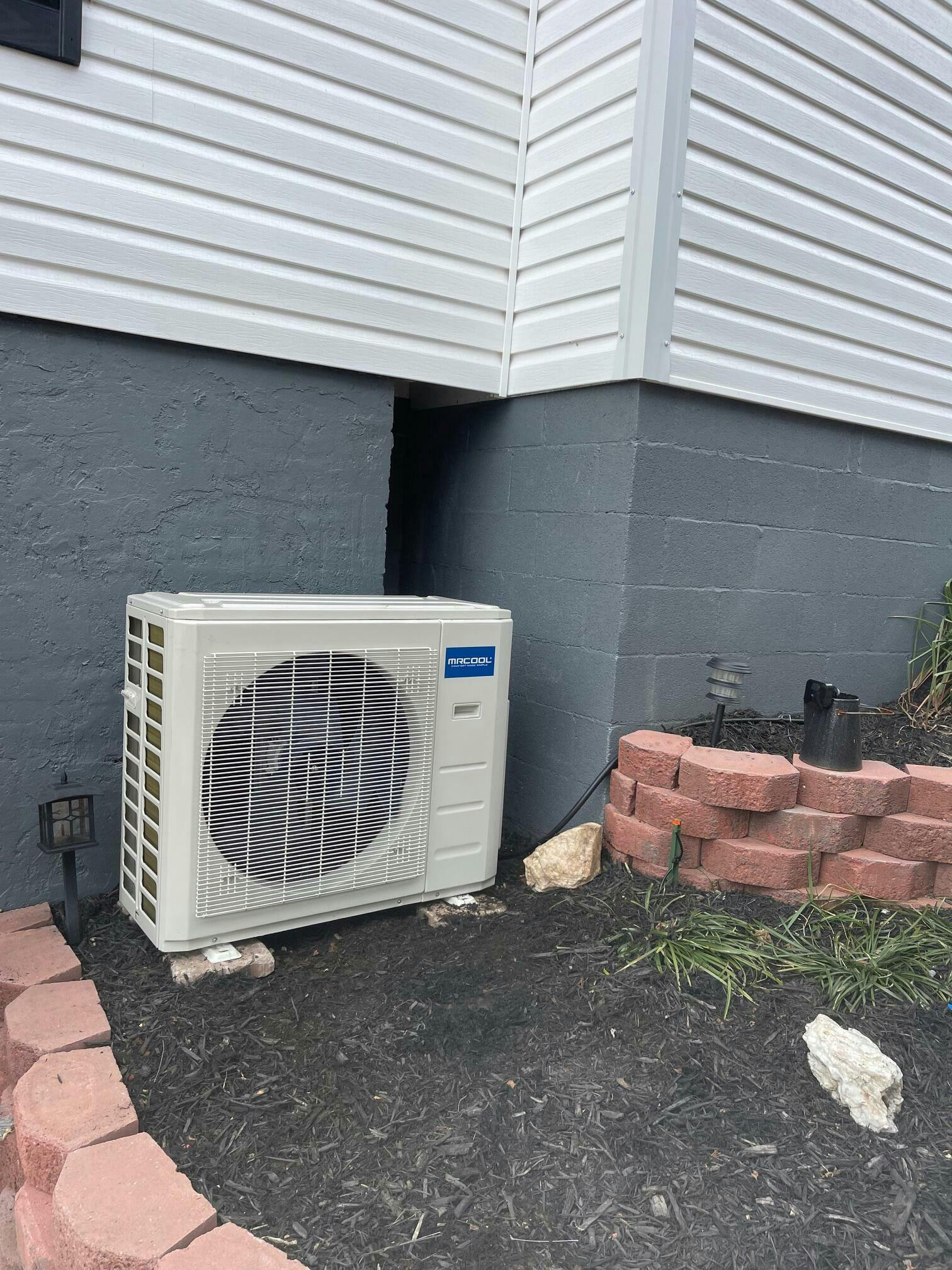

Condenser
- Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

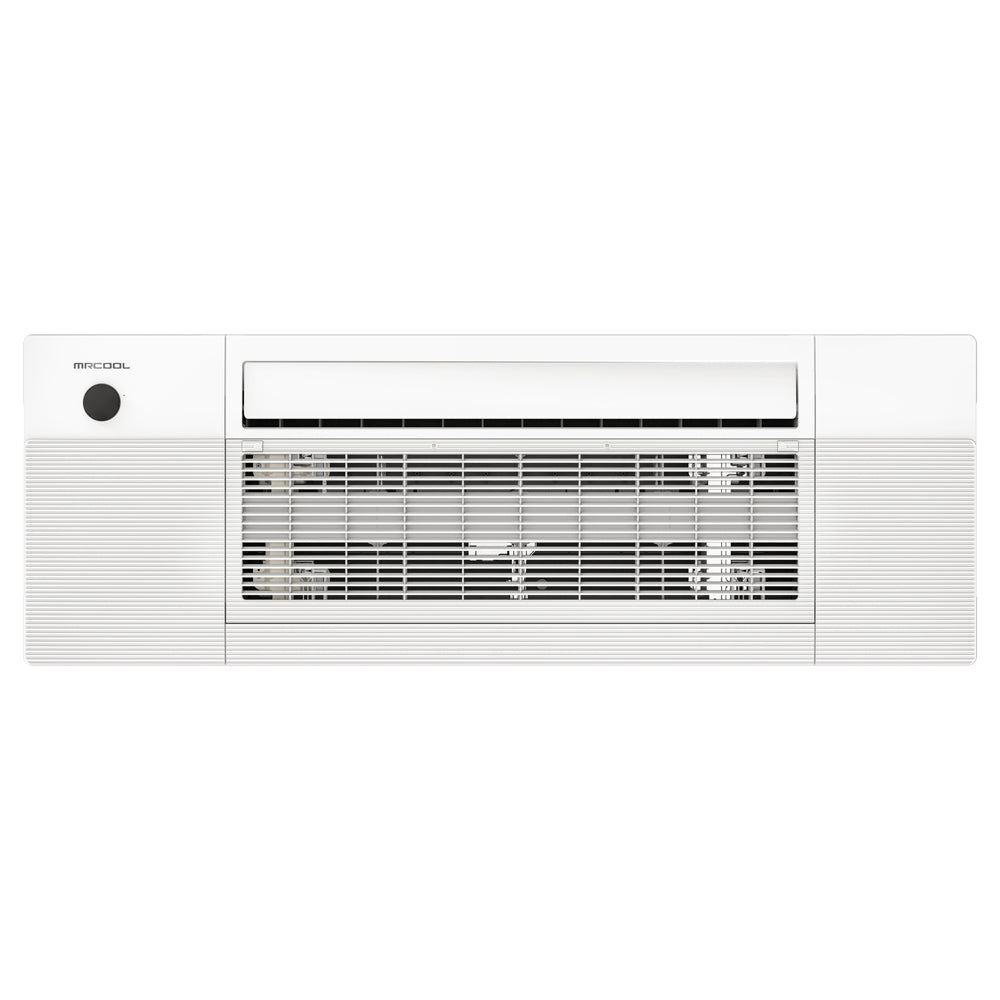

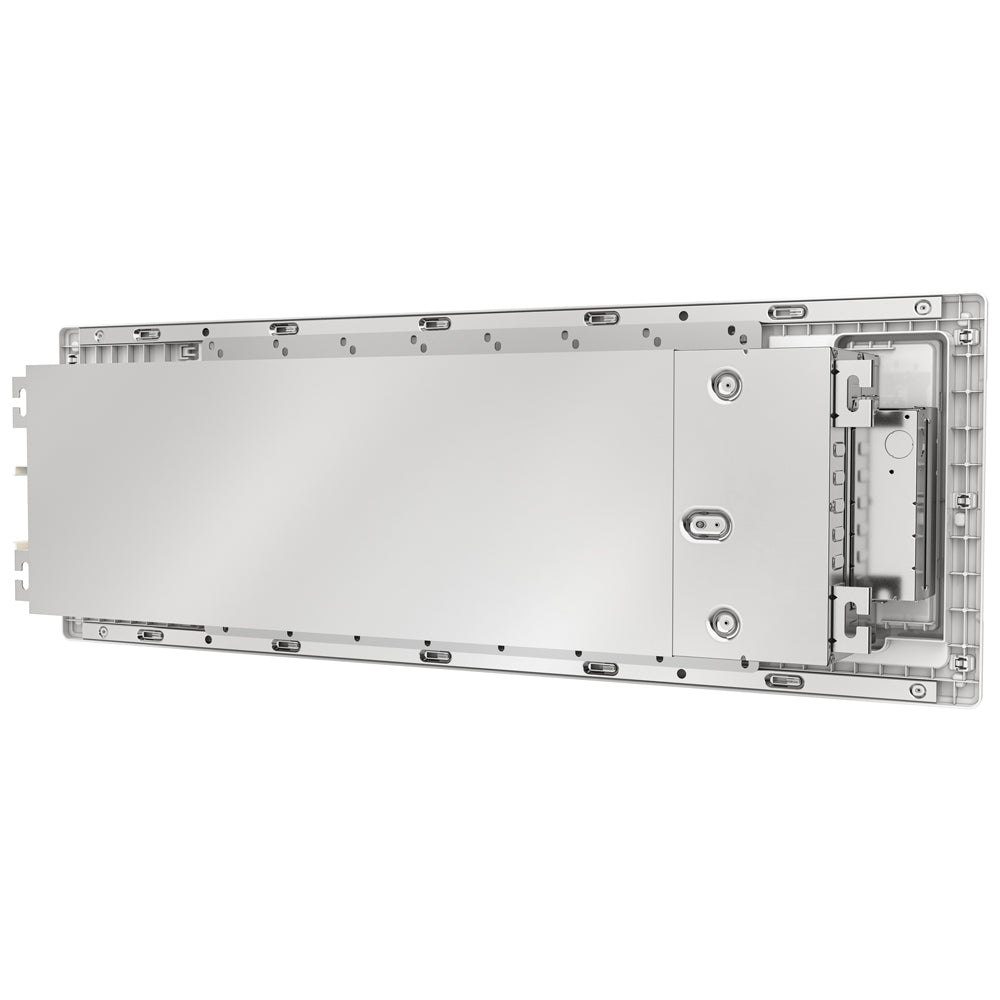

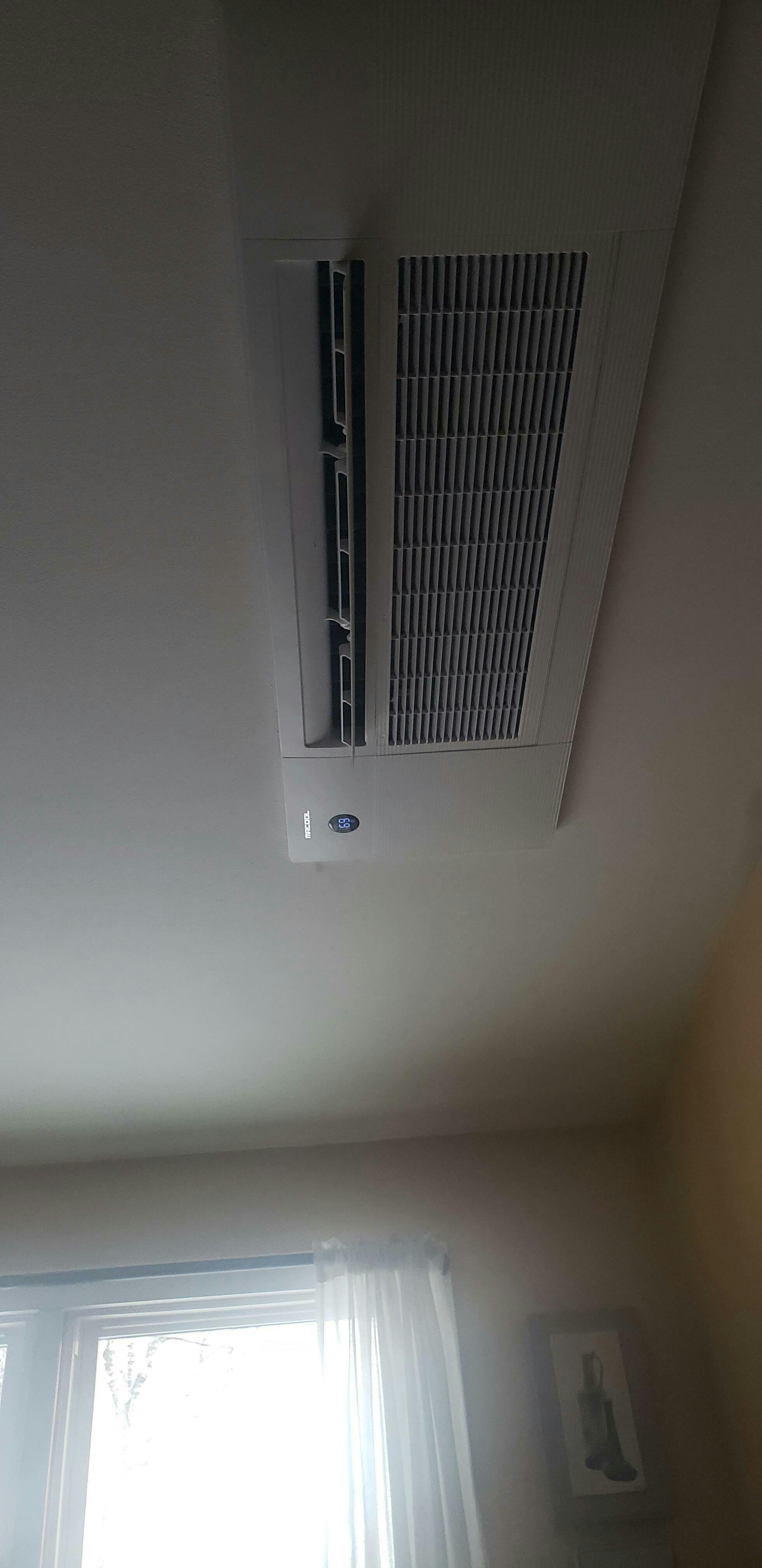

Air Handler, 9K BTU, Quantity 4
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

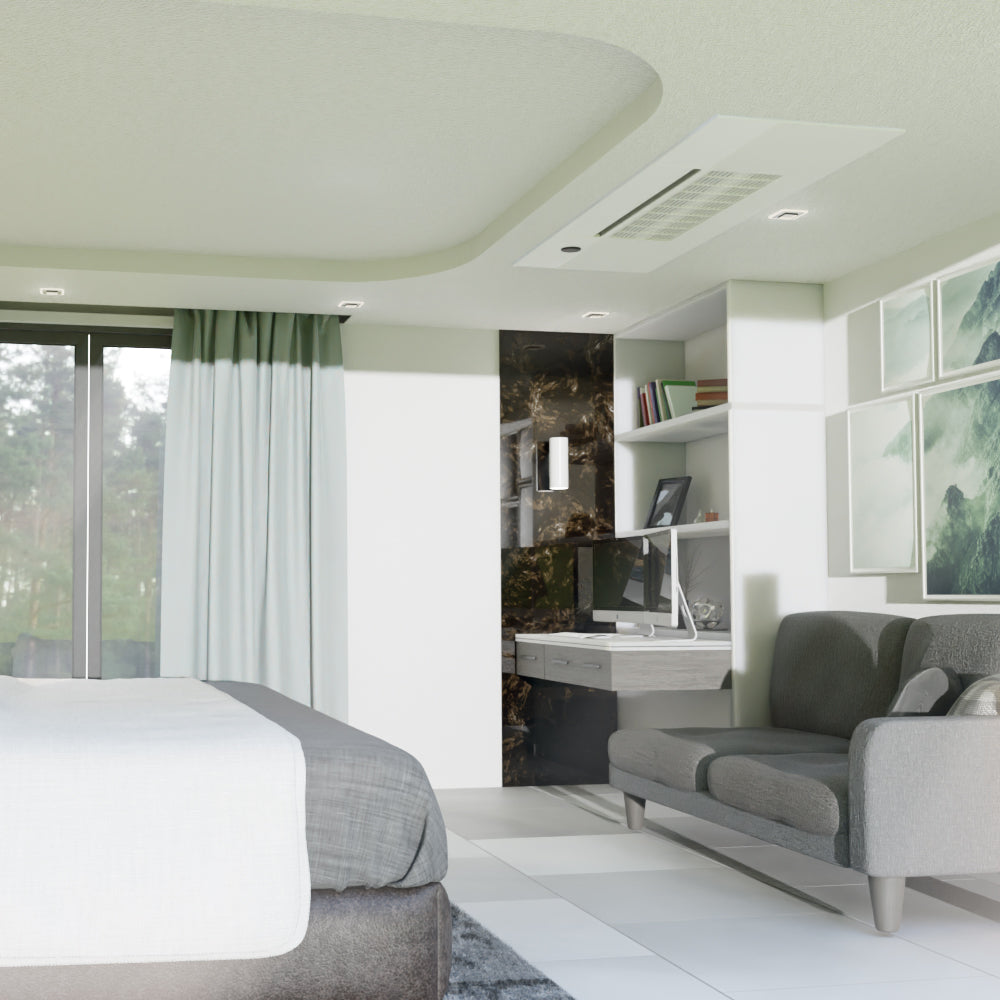

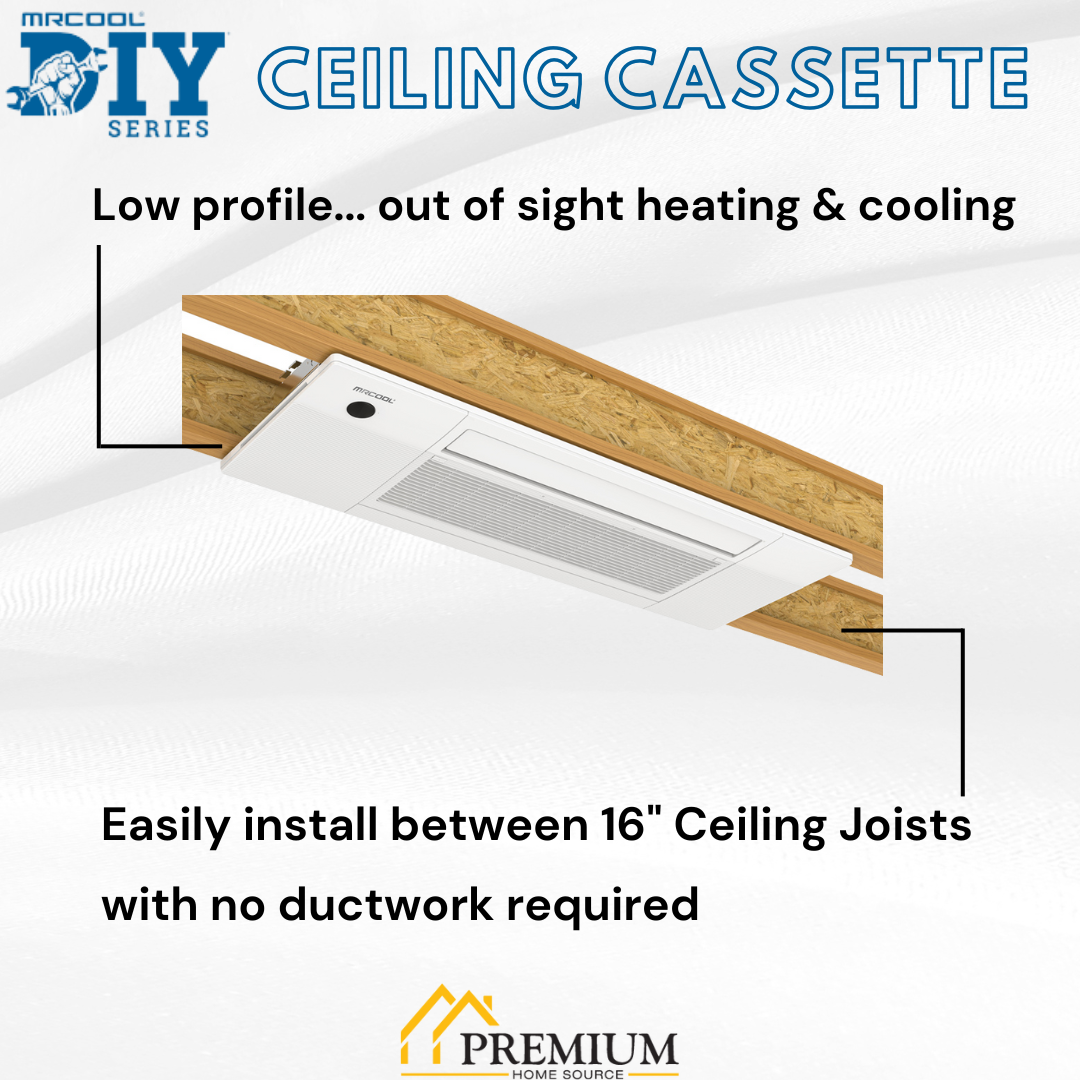

- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

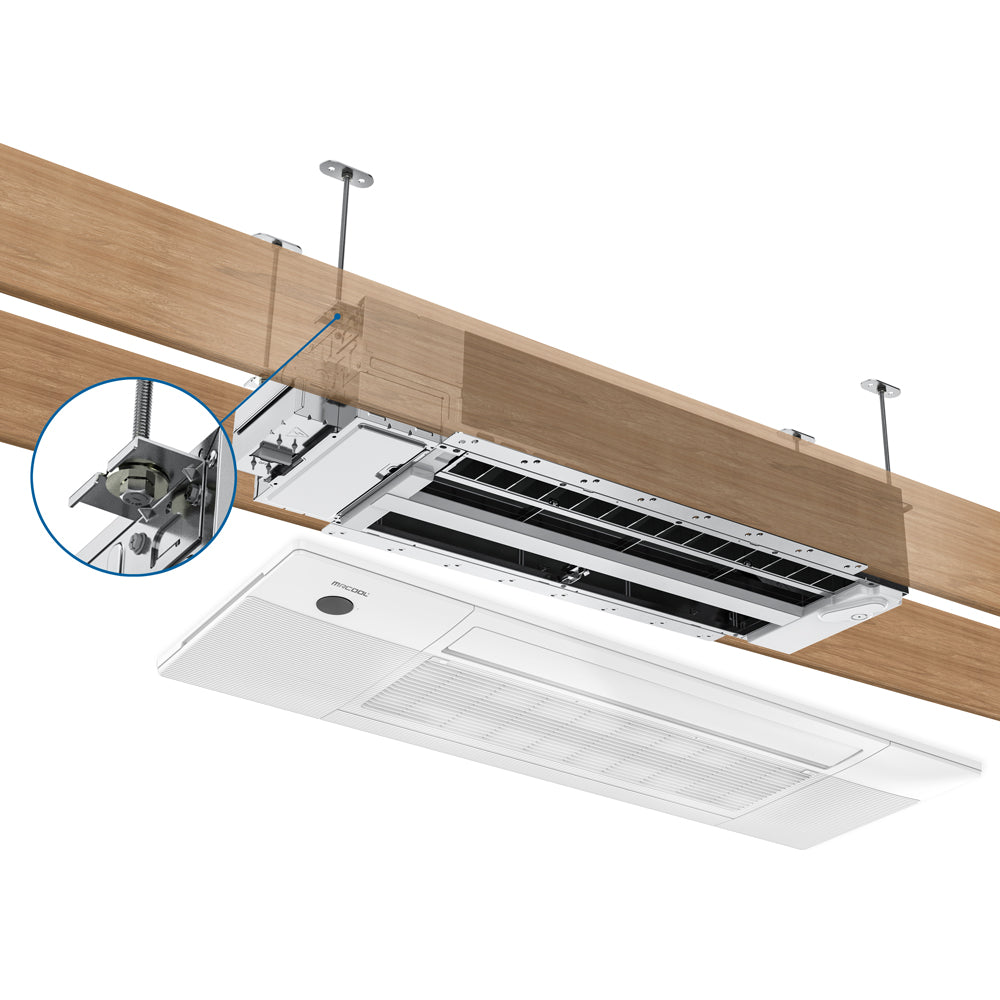

- Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

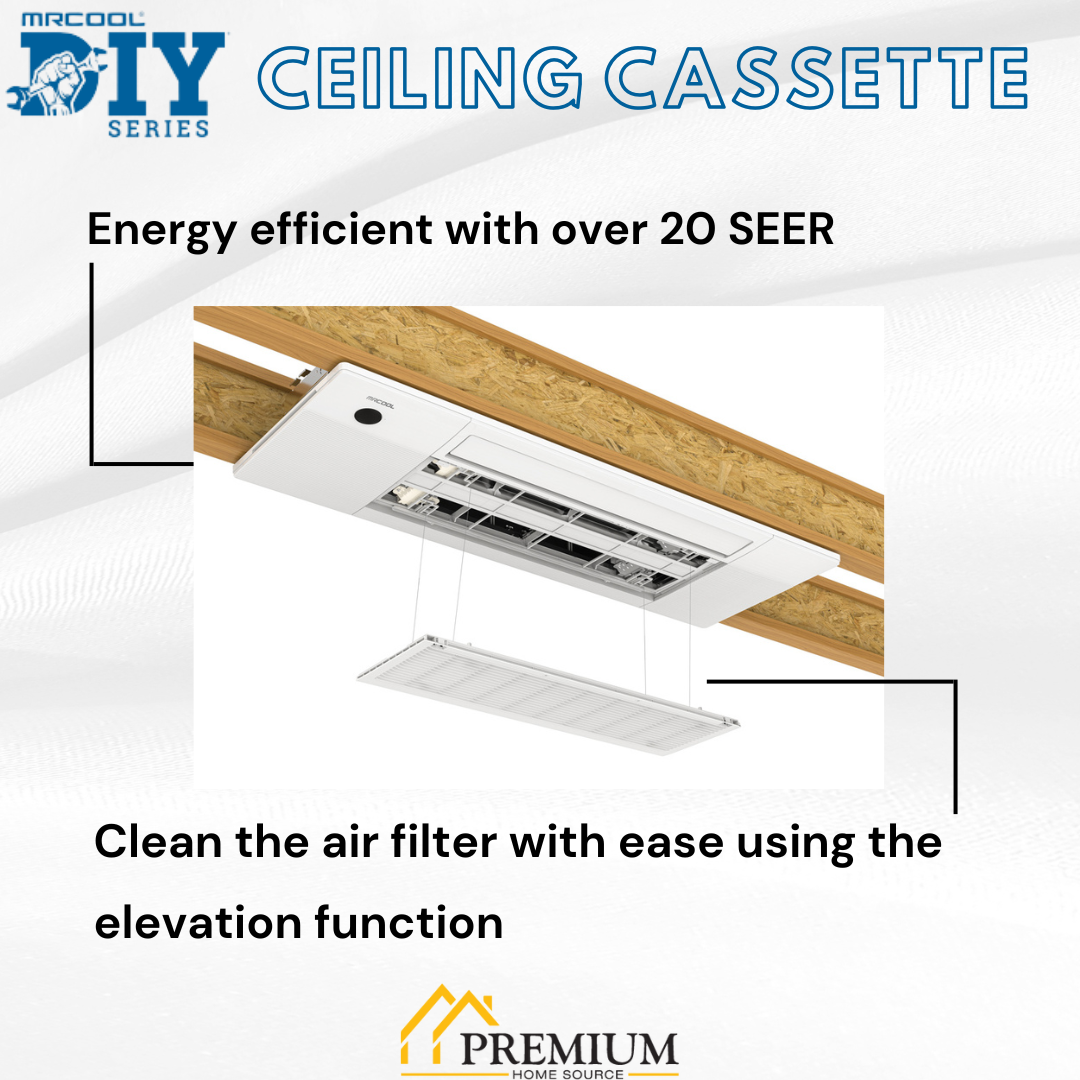

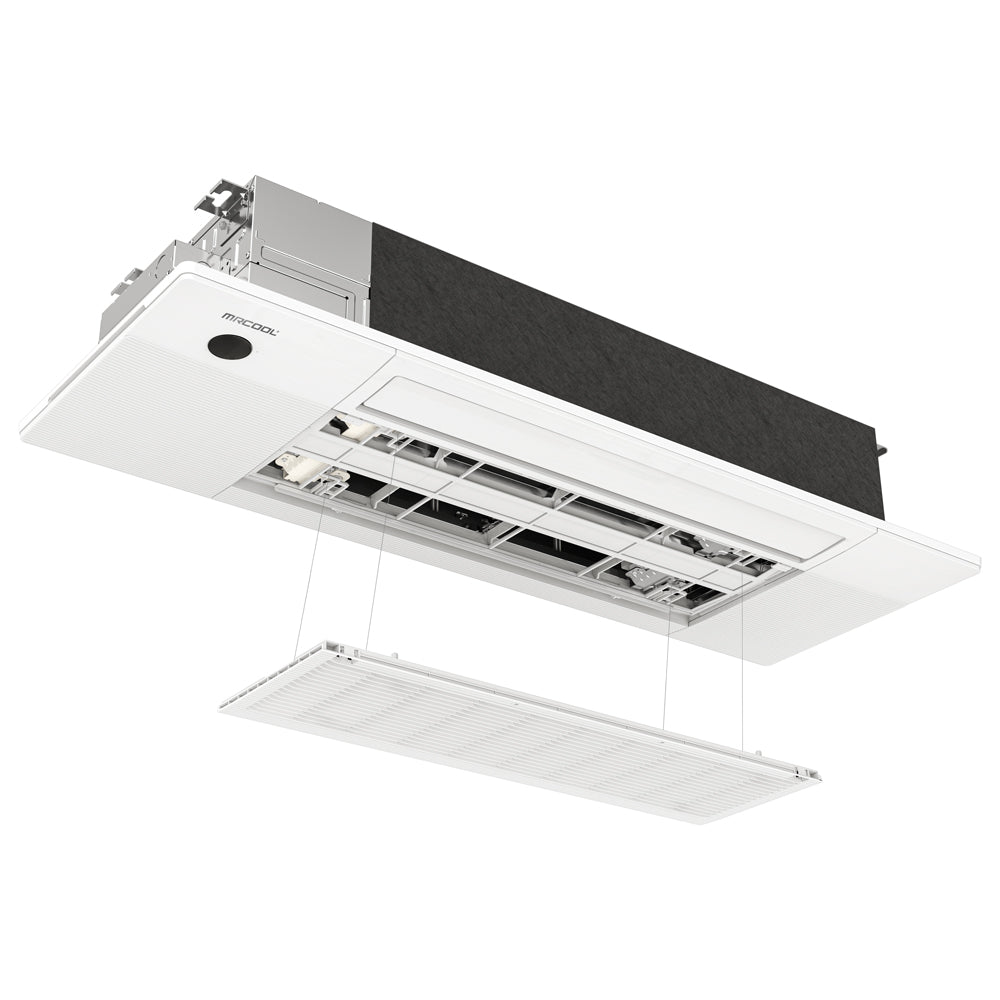

- Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.
Line Set 16 ft., Quantity 4
- Pre-Charged. These copper line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Condenser
Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
Cooling Capacity | 36,000 BTU |
Heating Capacity | 36,000 BTU |
Zone Capacity | 4 |
Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
SEER | 21.5 |
EER | 10.5 |
Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
Registered Warranty |
7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
Product Dimensions | 50.31"W x 13.19"D x 8.98"H |
Mount Type | Ceiling Cassette |
Cooling Capacity | 9,000 BTU |
Heating Capacity |
9,000 BTU |
Registered Warranty |
5 Years Parts |
Modes |
Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
Length |
16 Feet |
Liquid Line Size | 1/4" |
Suction Line Size | 1/2" |
Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
