  3. MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPW03C13

4th Gen DIY® Multi-Zone

MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPW03C13

4.8 27 reviews
Model: DIYM227HPW03C13
$3,874.00
$3,874.00 $4,997.46
-22%
Shipping calculated at checkout.

Financing Options

Mount type: Wall
Line set length: 35 ft.

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Jan 26 to Feb 01

$3,874.00
$3,874.00 $4,997.46

Product Overview

  • Zones: 2

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

What's Included

System also includes Communication Wires, Drain Hose Pipes, Wall Sleeves, Remote Controls and Wifi Dongles.

*Note: If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser.

Better Together

System Details

DESCRIPTION

Step into the future of comfort with MRCOOL’s innovative 4th Gen DIY Mini Split, trusted by thousands of satisfied customers! Experience unmatched climate control across your rooms, all with effortless convenience. Perfect for your home, garage, workshop, and beyond. The best part? You can handle the installation yourself!

Condenser (27K BTU)

  • Innovative Installation: Get ready for an unparalleled installation experience with MRCOOL’s patented Pre-Charged Quick Connect Line Sets, empowering you to install without needing a technician!
  • Durability Redefined: Protect against corrosion with the robust Gold Fin® condenser coating, specially designed for coastal areas.
  • Impressive Efficiency: Achieve incredible energy savings with a 22 SEER2 and 8.2 HSPF-5 rating.
  • Year-Round Performance: Enjoy reliable heating even in extreme cold, down to -13°F.
  • Peace of Mind: Benefit from a 7-year compressor warranty and a 5-year parts warranty.

Air Handler (12K BTU)

  • Versatile Climate Control: Enjoy personalized comfort with COOL, HEAT, AUTO, DRY, or SLEEP modes to suit any season or preference.
  • Perfect Room Coverage: Tailored for areas ranging from 376 to 500 square feet, ideal for medium-sized spaces.
  • Smart Control Anywhere: Take advantage of SmartHVAC app compatibility, giving you complete control remotely.
  • Effortless Installation: A compact and lightweight design allows for hassle-free mounting and setup.
  • Quick Connect System: Thanks to the MRCOOL Pre-Charged Quick Connect Line Set, installation is incredibly simple—no professional vacuuming needed!

Air Handler (18K BTU)

  • Versatile Climate Control: Easily adjust to COOL, HEAT, AUTO, DRY, or SLEEP modes for year-round comfort.
  • Perfect Room Coverage: Designed to suit spaces between 501 to 750 square feet, perfect for larger rooms and open areas.
  • Smart Control Anywhere: The SmartHVAC app compatibility lets you manage your system conveniently from anywhere.
  • Effortless Installation: The compact and lightweight design simplifies the mounting process significantly.
  • Quick Connect System: Simplify your setup with MRCOOL’s Pre-Charged Quick Connect Line Set—no extra tools required!

Line Set

  • Optimized System Performance: The advanced copper line set connects the MRCOOL Condenser to MRCOOL Air Handlers, enhancing performance for your Multi-Zone system. One line set per indoor unit ensures seamless operation.
  • Pre-Charged Convenience: Designed for simplicity, these line sets are pre-filled with R-410A refrigerant, making installation quick and hassle-free.
  • DIY and Cost Savings: Skip the expensive technician fees with our user-friendly design. Install confidently and save money without compromising quality.
  • Extended Flexibility: Need additional reach? Our coupler kit allows you to effortlessly connect two standard line sets, ensuring unlimited cooling and heating coverage.

ELECTRICAL REQUIREMENTS

  • Model: DIY-MULTI3-27HP230C DIY
  • Type: 27K BTU Condenser
  • BTU: 27,000 BTU
  • Power Supply: 208-230V/60 Hz/1ph
  • Minimum Circuit (Disconnect): 26.0 A
  • Maximum Fuse (Breaker): 40.0 A

SPECIFICATIONS & DIMENSIONS

  • Condenser Specifications
  • Product Dimensions: 37.24"W x 16.14"D x 31.89"H
  • Cooling Capacity: 27,000 BTU
  • Heating Capacity: 27,000 BTU
  • Zone Capacity: 3
  • Min Ambient Cool: 5F ~ 122F
  • Min Ambient Heat: -13F ~ 75.2F
  • SEER: 22
  • EER: 12
  • Voltage: Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
  • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
  • Air Handler 12K BTU
  • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
  • Mount Type: Wall
  • Cooling Capacity: 12,000 BTU
  • Heating Capacity: 12,000 BTU
  • Registered Warranty: 5 Years Parts
  • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
  • Air Handler 18K BTU
  • Product Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Mount Type: Wall
  • Cooling Capacity: 18,000 BTU
  • Heating Capacity: 18,000 BTU
  • Registered Warranty: 5 Years Parts
  • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
  • Line Set
  • Length: 35 Feet
  • Liquid Line Size: 1/4"
  • Suction Line Size: 1/2"

WHAT'S INCLUDED

  • 1 x 27K BTU Condenser
  • 1 x 12K BTU Air Handler
  • 1 x 18K BTU Air Handler
  • 2 x 35 ft. 1/4 x 1/2 Line Set

INSTALLATION & GUIDES

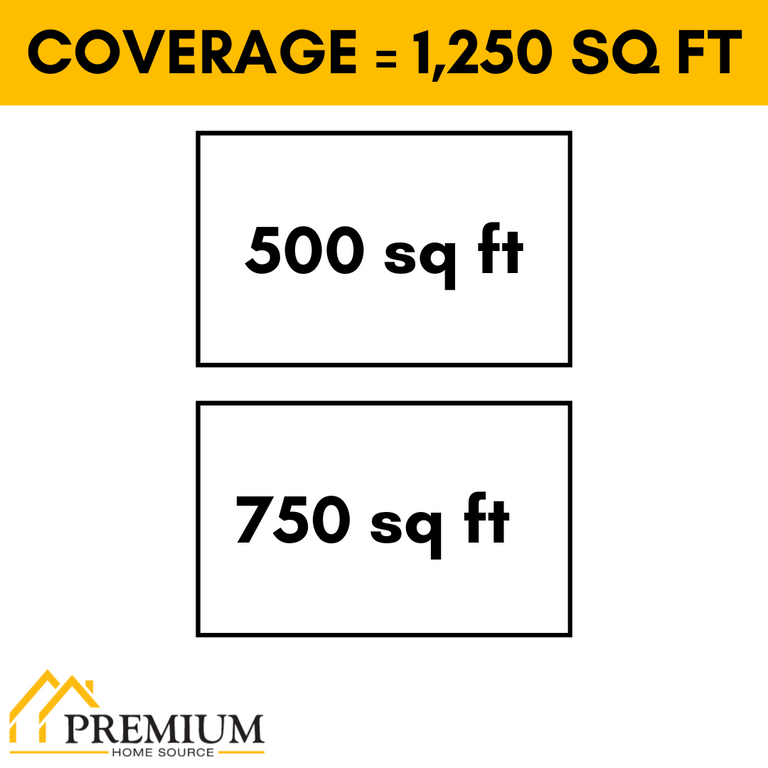

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
