  2. MRCOOL DIY® 5th Gen Hyper Heat 12,000 BTU Single Zone Mini Split System 230V, DIYHH-12-HP-WM-230D25

MRCOOL DIY® 5th Gen Hyper Heat 12,000 BTU Single Zone Mini Split System 230V, DIYHH-12-HP-WM-230D25

Model: DIYHH-12-HP-WM-230D25More from MRCOOL
$2,532.00
$2,532.00 $3,145.00
Save $613
Shipping calculated at checkout.
Size: 351 to 500 sq ft

Includes a 25 ft. line set. Need a longer one? Add a longer line set →

In Stock · Delivers Nov 23-27 (Est.)
Free Curbside Shipping

MRCOOL DIY® 5th Gen Hyper Heat 12,000 BTU Single Zone Mini Split System 230V, DIYHH-12-HP-WM-230D25

$2,532.00
$2,532.00 $3,145.00

Free shipping
Ask about this product Get an answer with Appliance AI™
AI-generated from product data and store information. Responses may not always be accurate. For any clarifications, talk to our team.

Product Overview

  • DIY Installation

  • Voltage: 208-230V

What size mini split do I need?

Takes about 10 seconds.

sq ft

We recommend

9,000BTU

6K9K12K18K24K36K
Shop MRCOOL DIY mini splits Or build your own system
See the BTU coverage guide
6,000 BTU100-150 sq ft
9,000 BTU151-350 sq ft
12,000 BTU351-500 sq ft
18,000 BTU501-750 sq ft
24,000 BTU751-1,000 sq ft
36,000 BTU1,001-1,500 sq ft

This is an estimate. Insulation, windows and the number of appliances in the room can change what you need. For assistance, contact our Product Experts.

DESCRIPTION

Experience next-generation comfort with the MRCOOL® DIY® 12K BTU 208/230V Hyper Heat Single Zone Mini Split System—featuring both the outdoor condenser and the matching wall-mounted air handler for a complete, integrated comfort solution. Engineered for powerful performance, whisper-quiet operation, and true do-it-yourself installation, this system is designed for spaces up to 500 sq. ft. The Hyper Heat technology delivers reliable heating down to -22°F and efficient cooling up to 122°F, ensuring dependable comfort in even the most demanding climates. The included 25-foot DIY QuickConnect® line set arrives pre-charged with eco-friendly R-454B refrigerant, eliminating the need for vacuum pumps or HVAC tools, while the DIYPRO® armored cable adds long-term protection and durability. The sleek wall-mounted air handler provides refined airflow, advanced programming modes, and quiet operation. With smartphone app control, voice assistant compatibility, and industry-leading warranty protection, achieving premium climate control has never been this effortless.

  • Complete Single Zone System: Includes the 12K Hyper Heat outdoor condenser and matching wall-mounted air handler for a fully integrated heating and cooling solution.
  • Hyper Heat Performance: Provides high-output heating in temperatures as low as -22°F and cooling up to 122°F for dependable comfort in any season.
  • DIY® Installation: Features the patented No-Vac® QuickConnect® line set pre-filled with R-454B refrigerant, allowing true DIY setup without special tools, gauges, or professional assistance.
  • Room Size Coverage: Ideal for efficiently heating and cooling spaces between 350 to 500 sq. ft., including bedrooms, offices, studios, workshops, and bonus rooms.
  • Wall-Mounted Air Handler: Offers quiet operation, efficient airflow distribution, and advanced features such as Turbo mode, Auto mode, Sleep mode, and louver position memory.
  • Gold Fin® Protection: Corrosion-resistant condenser coating ensures durability in coastal and inland environments for long-term reliability.
  • DIYPRO® Armored Cable: Replaces traditional electrical conduit for enhanced protection against weather, pests, and yardwork damage.
  • Smart Control Compatibility: Control your comfort with the included remote, the SmartHVAC app, or voice commands via Amazon Alexa and Google Assistant.
  • Energy-Saving Features: Includes Auto Mode, Sleep Mode, Turbo, Programmable Timer, and Follow Me® technology for optimized comfort with reduced energy usage.
  • Auto Restart: Automatically resumes operation after a power interruption to maintain uninterrupted comfort.
  • Premium Warranty Coverage: Comes standard with a 7-year compressor and 5-year parts warranty

System includes:

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Condenser Dimensions: 31.69" W x 12.99" D x 21.81" H
  • Condenser Weight: 72.31 lbs
  • Air Handler Dimensions: 31.57" W x 7.44" D x 11.63" H
  • Air Handler Weight: 24.47 lbs
  • CAPACITY & PEFORMANCE
  • Maximum Zones: 1
  • Cooling Capacity: 12,000 BTU
  • SEER2: 23.5
  • EER2: 12.8
  • Heating Capacity: 12,000 BTU
  • HSPF2-4: 10
  • HSPF2-5: 8
  • Outdoor Noise Level: 56.5 dB(A)

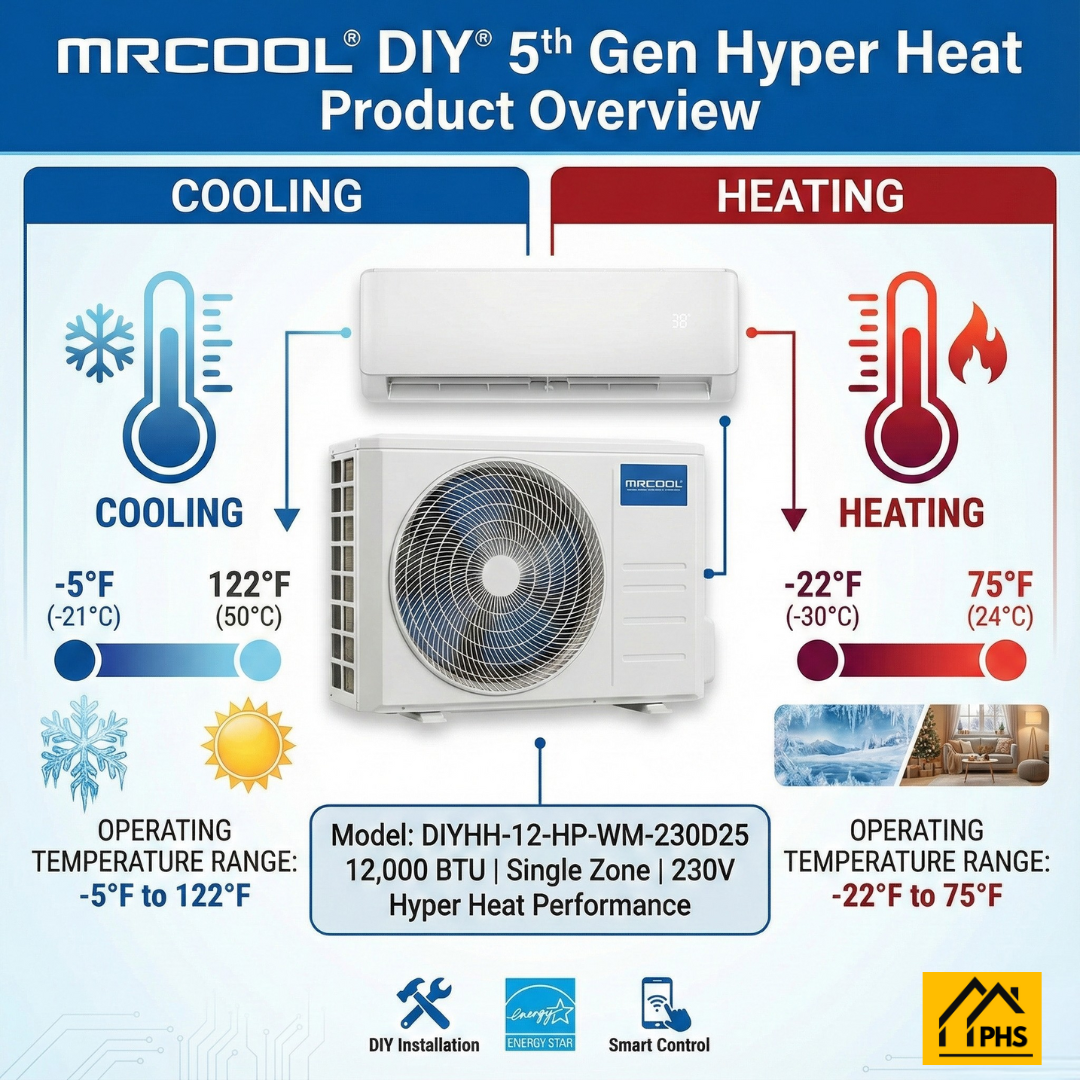

  • Outdoor Operating Temperature: Cooling: -5°F to 122°F//Heating: -22°F to 75°F
  • ELECTRICAL REQUIREMENTS
  • Voltage: 208-230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 15A
  • Min Circuit Ampacity: 15A
  • REFRIGERANT & PIPING
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 32.1 oz
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"
  • Max Line Set Length: 75 ft.
  • FEATURES
  • Coverage Area: 350 to 500 sq. ft.
  • Inverter: Yes
  • Compressor Motor Type: Rotary
  • Auto Mode: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • CERTIFICATIONS & WARRANTY
  • Certifications: Energy Star Certified, UL Listed, CSA Certified, ETL Certified, AHRI Certified
  • Warranty: 7 Years Compressor // 5 Years Parts
