MRCOOL 5th Gen Advantage 9,000 BTU Single Zone Mini Split Complete System with 16ft. Line Set 115V (HVAC Technician Required), A-09-HP-115D-O

Model: A-09-HP-115D-O
$799.00
$799.00 $998.75
-20%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 9,000
9,000
9,000
12,000
18,000: See available options
24,000: See available options
36,000: See available options
Voltage: 115V

This item is in stock! Estimated Arrival: May 29 to Jun 04

$799.00
$799.00 $998.75

Product Overview

  • Zones: 1

  • HVAC Tech Required

  • Voltage: 115V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): 5°F to 86°F

What's Included

BETTER TOGETHER

DESCRIPTION

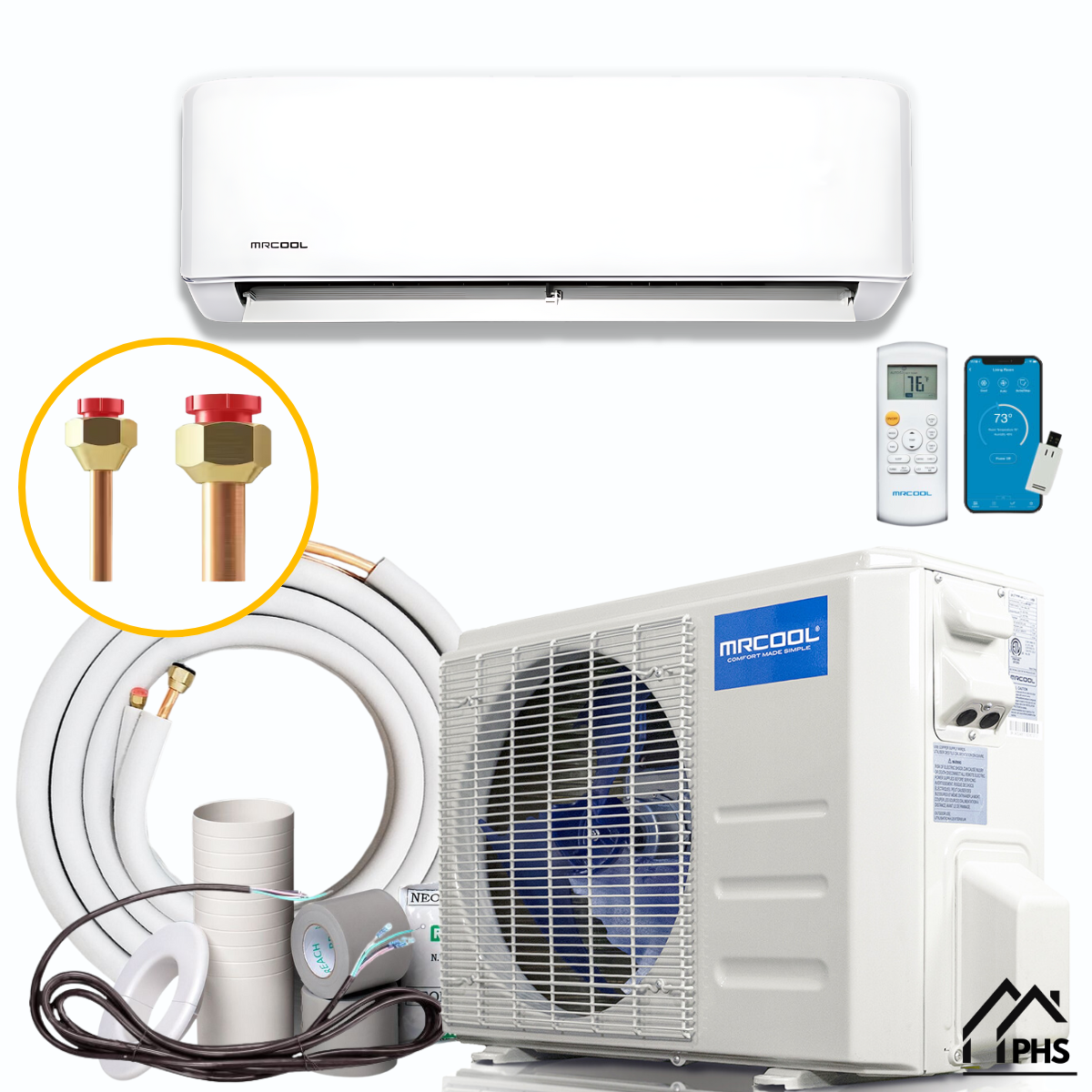

MRCOOL 5th Gen Advantage 9,000 BTU Mini-Split delivers efficient climate control for spaces up to 400 sq. ft. This ductless system features eco-friendly R-454B refrigerant, impressive SEER2 rating of 21.5, and built-in Wi-Fi control. Includes 16ft line set and corrosion-resistant Gold Fin® condenser. Professional HVAC installation required. Ideal for year-round comfort with minimal energy consumption.

  • Gold Fin® Condenser: Corrosion-resistant design ideal for coastal environments.
  • R-454B Refrigerant: Eco-friendly with 80% lower GWP than R-410A.
  • High Efficiency Ratings: Up to 21.5 SEER2 and 9.0 HSPF2-4 for energy savings.
  • Smart Controls: Built-in Wi-Fi supports Google Assistant & Amazon Alexa.
  • Remote + Follow Me® Mode: Automatically adjusts temperature based on your location.
  • Quiet Operation: Indoor noise levels as low as 18 dB(A).
  • Coverage Area: Effectively cools/heats rooms up to 400 sq. ft.
  • Timer Mode + Leak Detection: Intelligent operation with safety and savings in mind.
  • Certified & Listed: AHRI Certified, NEEP ccASHP Listed, CEE Tier 1 (North).
  • Warranty & Support: 1-year parts, 2-year compressor, 1-year remote warranty; optional Lifetime compressor coverage with MRCOOL® Care enrollment.

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS

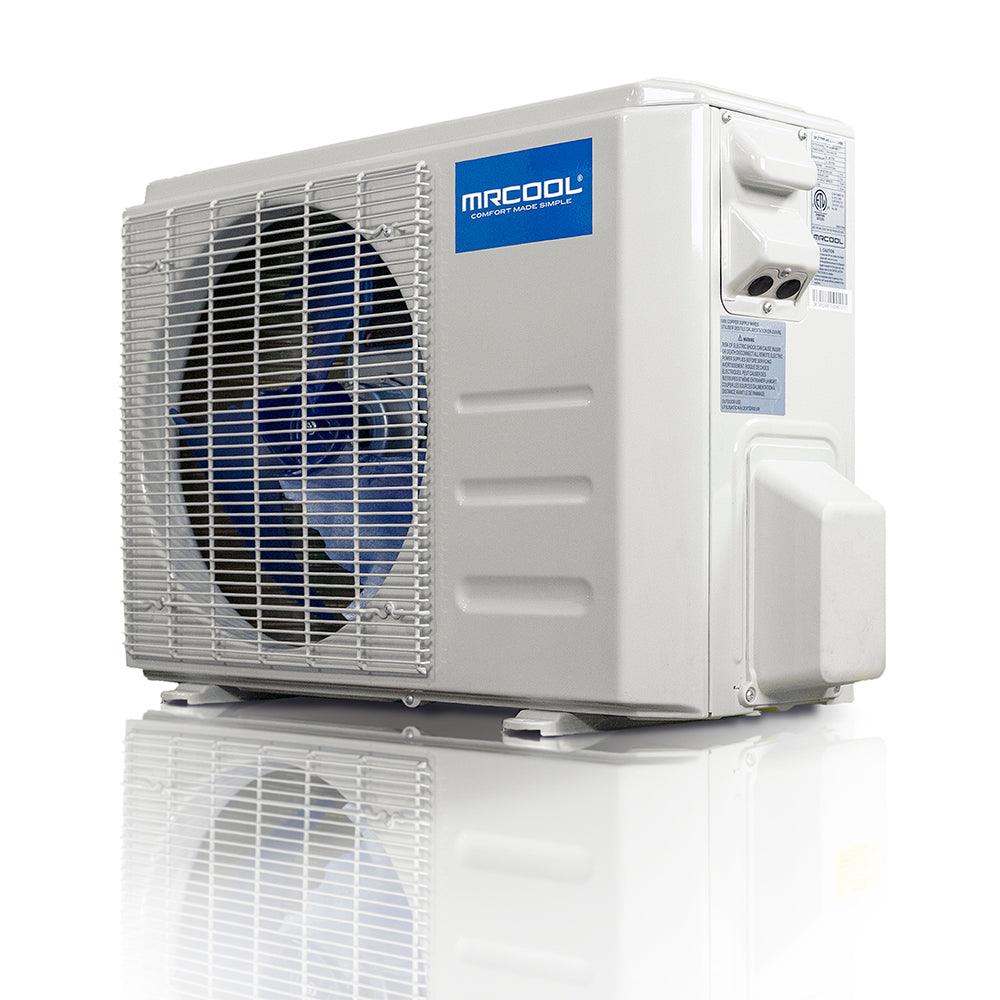

  • Condenser Dimensions: 30.12" W x 11.93" D x 21.85" H

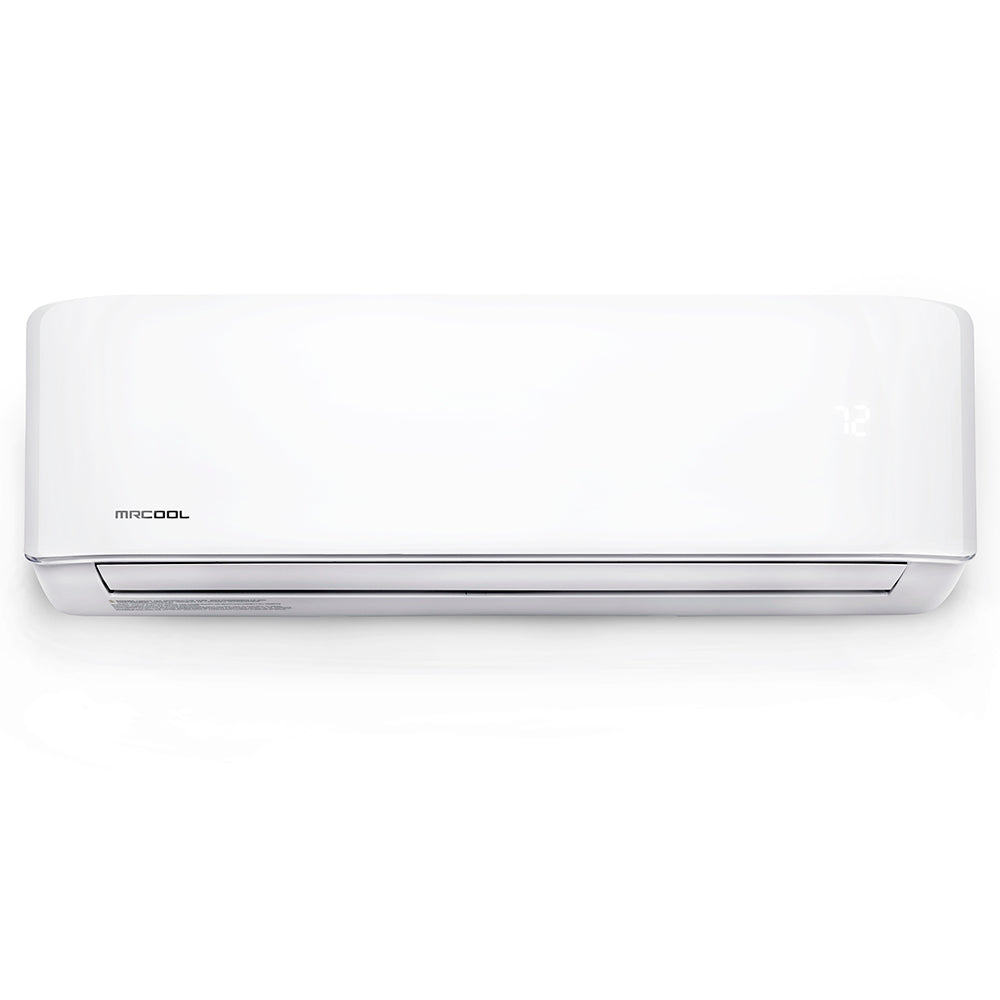

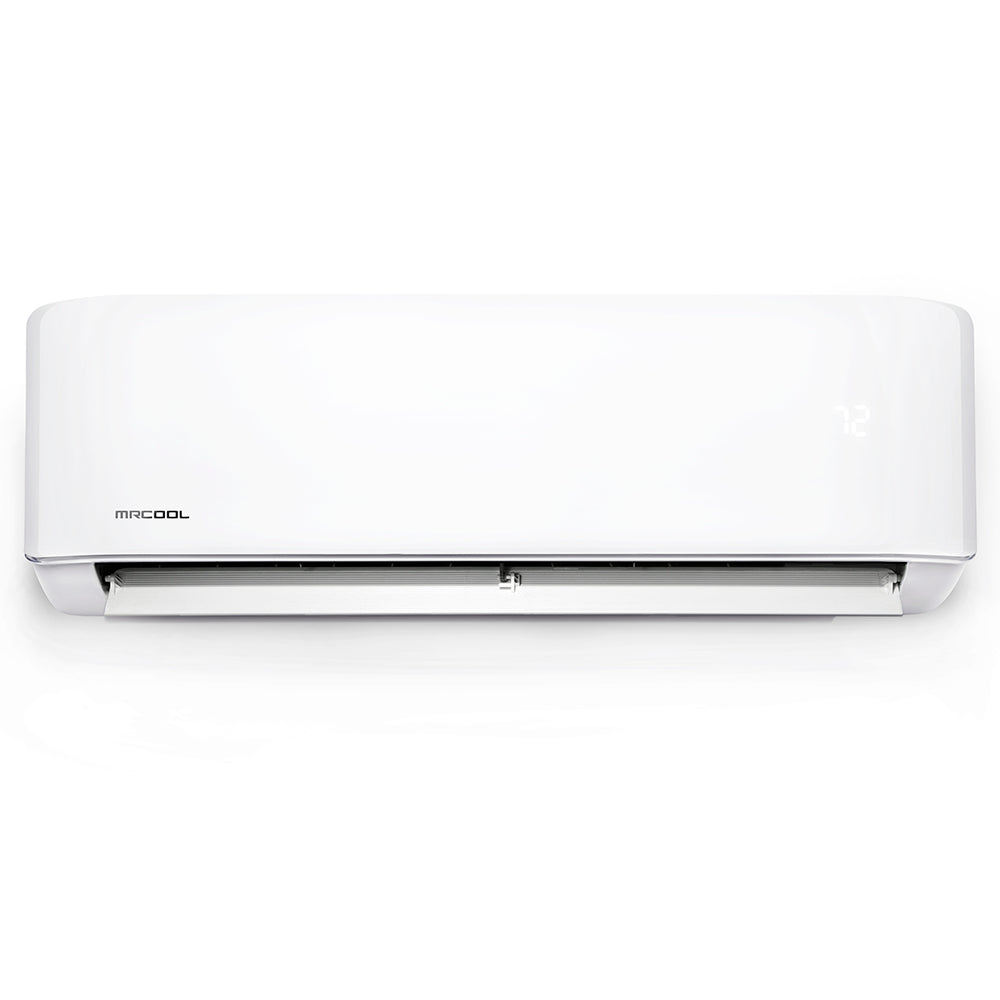

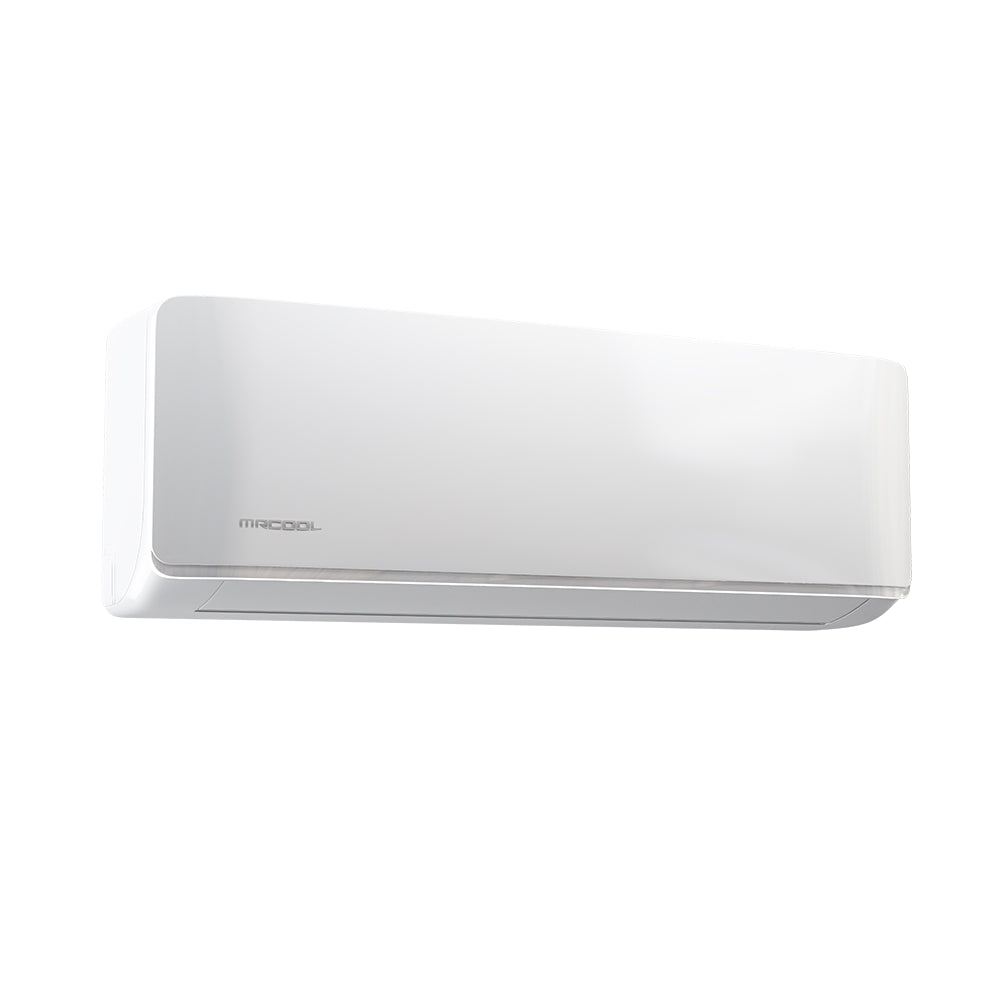

  • Air Handler Dimensions: 28.43" W x 7.36" D x 11.42" H
  • Condenser Weight: 56.66 lbs
  • Air Handler Weight: 17.42 lbs
  • CAPACITY & PERFORMANCE
  • Zone Capacity: 1
  • Cooling Capacity: 9,000 BTU
  • Outdoor Operating Temperature (Cooling): 5°F - 122°F
  • EER2: 12.5
  • SEER2: 21.5
  • Heating Capacity: 10,000 BTU
  • Outdoor Operating Temperature (Heating): 5°F - 86°F
  • HSPF2-4: 9.0
  • HSPF2-5: 7.0
  • Coverage Area: Up to 400 sq ft.
  • Outdoor Noise Level: 52.4 dB(A)
  • Indoor Noise Level (Hi/Mi/Lo): 43.0/37.5/33.5/25.0/18.0 dB(A)
  • ELECTRICAL REQUIREMENTS
  • Voltage: 115V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 20A
  • Min Circuit Ampacity: 18A
  • REFRIGERANT & PIPING
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 21.52 oz
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"
  • Max Line Set Length: 82 ft.
  • FEATURES
  • Inverter: DC
  • Compressor Type: Rotary
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • Remote Control Included: Yes
  • CERTIFICATIONS & WARRANTY
  • Certifications: UL Listed, CSA Listed, ETL Listed, AHRI Certified
  • Warranty: 1-year parts, 2-year compressor, 1-year remote warranty; optional Lifetime compressor coverage with MRCOOL® Care enrolment.

INSTALLATION & GUIDES

File icon
Product Brochure PDF
File icon
Installation Manual PDF
File icon
Energy Guide PDF
File icon
AHRI Certificate PDF
File icon
Performance Specs PDF
File icon
Warranty Document PDF
