  3. MRCOOL 5th Gen Advantage 12,000 BTU Single Zone Mini Split Complete System with 16ft. Line Set 230V (HVAC Technician Required), A-12-HP-230D-O

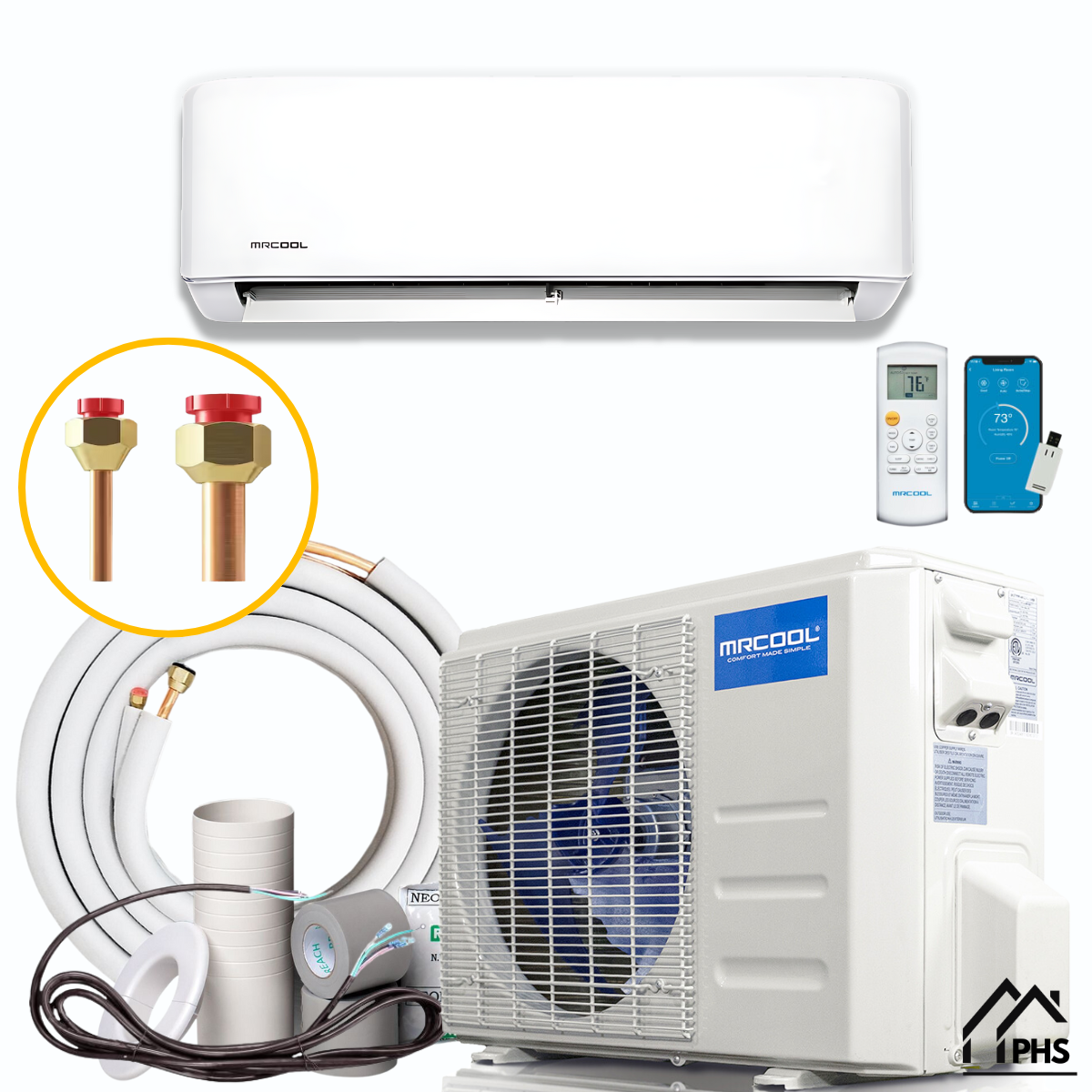

MRCOOL 5th Gen Advantage 12,000 BTU Single Zone Mini Split Complete System with 16ft. Line Set 230V (HVAC Technician Required), A-12-HP-230D-O

Model: A-12-HP-230D-O
$905.00
$905.00 $1,308.00
-31%
Shipping calculated at checkout.

Buy Now, Pay Later

This item is in stock! Estimated Arrival: Apr 25 to May 01

$905.00
$905.00 $1,308.00

Product Overview

  • Zones: 1

  • HVAC Technician Required

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): 5°F to 86°F

What's Included

BETTER TOGETHER

DESCRIPTION

The 5th Generation MRCOOL® 12K BTU 230V Advantage Air Handler and Condenser provide powerful heating and cooling without requiring ductwork. Designed for quiet operation and energy efficiency, this system is perfect for maintaining a comfortable home while lowering energy costs. Ideal for space between 376 ot 500 sq ft.

  • Uses R-454B Refrigerant: A next-generation refrigerant with approximately 80% lower Global Warming Potential (GWP) compared to R-410A, reducing environmental impact.
  • Smart Climate Control: Built-in Wi-Fi module allows remote control via the MRCOOL® Smart HVAC Controller® app.
  • Follow Me® Function: The included remote control senses the temperature around you and adjusts accordingly for personalized comfort.
  • Timer & Sleep Mode: Program automatic temperature adjustments for optimized nighttime comfort and energy savings.
  • Gold Fin® Condenser Coating: Corrosion-resistant technology ideal for coastal and humid environments.
  • Up to 21.3 SEER2 Rating: High energy efficiency reduces power consumption and lowers utility bills.
  • Ductless Mini-Split Design: Simplifies installation and eliminates energy loss through ductwork.
  • AHRI Certified & NEEP ccASHP Listed: Meets high industry standards for efficiency and performance.
  • Supports Amazon Alexa & Google Assistant: Enables voice control for effortless temperature adjustments.
  • 2-Year Parts Warranty: Ensures long-term reliability with proper registration.
  • 1-Year Compressor & Remote Control Warranty: Protects critical system components.
  • Limited Lifetime Warranty Available: Register with the MRCOOL® Care program for extended coverage.

SPECIFICATIONS & DIMENSIONS

  • Condenser 12K BTU
  • Product Dimensions: 30.12"W x 11.93"D x 21.85"H
  • Electrical Requirements: Requires a minimum of 208-230V/60HZ/13-15A (please check your home meets this electrical requirement prior to purchase)
  • Cooling Capacity: 12,000 BTU
  • Heating Capacity: 12,000 BTU
  • Zone Capacity: 1
  • Cool Mode - Outdoor Operating Temperature Range: 5°F - 122°F
  • Heat Mode - Outdoor Operating Temperature Range: 5°F - 86°F
  • SEER2: 21.3
  • EER2: 10.8
  • Registered Warranty: 1-Year Compressor and 2-Year Parts Warranty when registered and when installed by a licensed professional
  • Air Handler 12K BTU
  • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
  • Electrical Requirements: Requires a minimum of 208-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
  • Mount Type: Wall
  • Cooling Capacity: 12,000 BTU
  • Heating Capacity: 12,000 BTU
  • Coverage Area: 376 - 500 sq ft
  • Modes: Auto Heat // Quiet Mode // Fan Only
  • Registered Warranty: 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
  • Line Set
  • Length: 16 Feet
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"

INSTALLATION & GUIDES

Installation Manual
Product Brochure
Service Manual
Warranty
Energy Guide
AHRI Certificate
