MRCOOL 2-3 Ton Universal Air Conditioner and 95% AFUE, 66K BTU Gas Furnace Split System - Upflow or Horizontal

5.0 1 reviews
Model: CS-MD36MGM98MDU36
$4,400.00
$4,400.00 $5,195.00
-15%
Shipping calculated at checkout.

Buy Now, Pay Later

This item is in stock! Estimated Arrival: Apr 22 to Apr 28

$4,400.00
$4,400.00 $5,195.00

What's Included

BETTER TOGETHER

DESCRIPTION

The 2 to 3 Ton MRCOOL Universal Air Conditioner and Gas Furnace System is the innovative heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient every day of the year.
This system is perfect for to cool with the Universal® condenser and heat with an energy-efficient gas furnace option from the MRCOOL Signature Series 95% line to get high-quality heating as well. And since it is non-communicating, this could be an ideal product for homeowners who have a relatively new gas furnace they want to match with variable-speed Universal® technology.

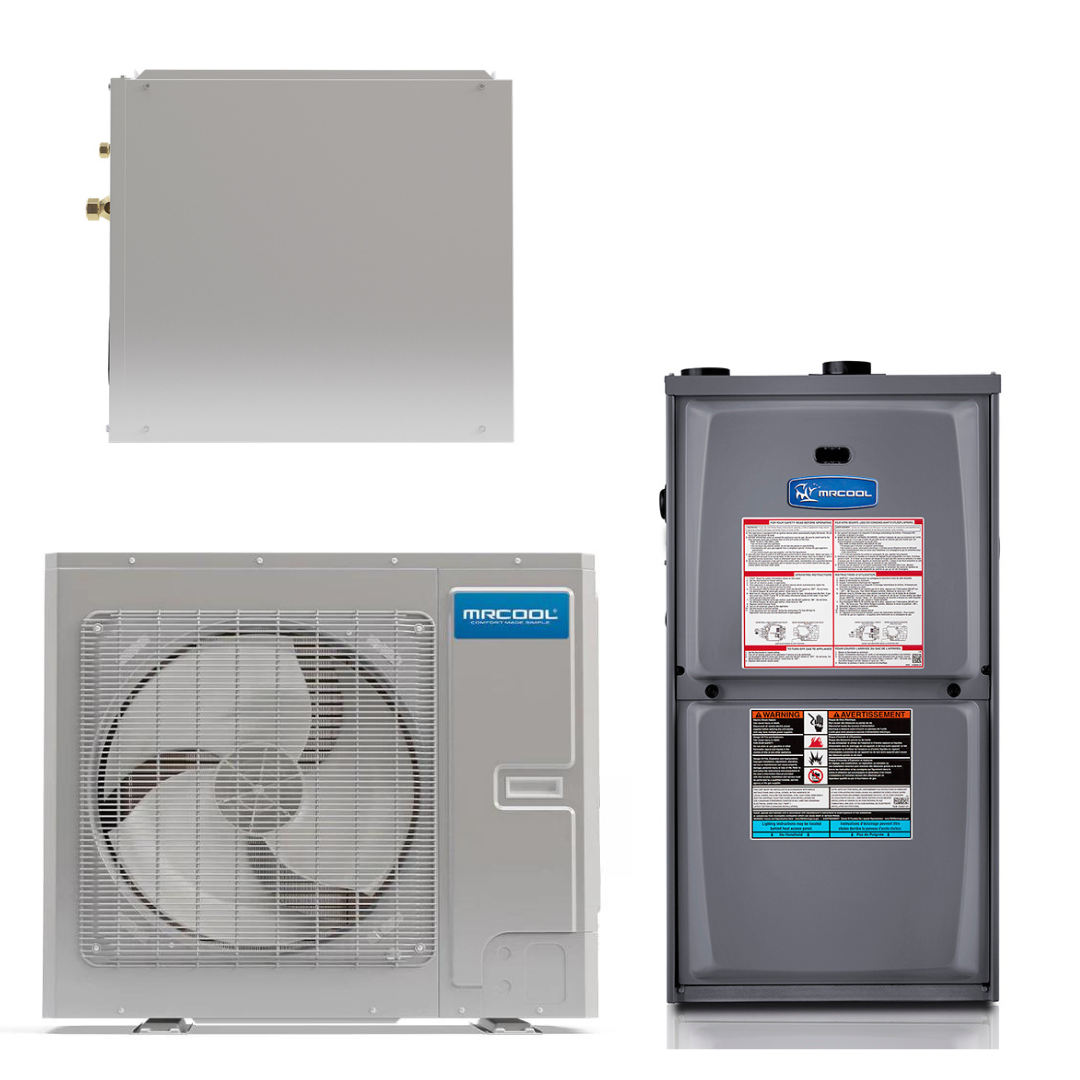

System Includes

*Does not include No-Vac Quick Connect lineset to connect the Condenser to Evaporator Coils.

Condenser

  • The 2 to 3 Ton 20 SEER MRCOOL Universal AC Condenser is a cutting edge HVAC technology from an innovation leader. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and maximum savings while running on end.
  • Energy Efficient Condenser. Up to 20 SEER in 2 Ton Mode, Up to 18 SEER in 3 Ton Mode
  • Multiple Connection Types. Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
  • Environmentally Friendly. Factory Charged and environmentally friendly R410

    Gas Furnace

    • Unlike a lot of other furnace models, the MRCOOL 95% AFUE furnace wastes a minimal amount of fuel. This ensures most of your dollar is spent wisely rather than wasted, and that in turn means you have to spend less of those dollars to keep your house warm all winter long.
    • Energy Efficient. Uses up to 1/3 less energy than a fixed-speed blow
    • Warranty. Protected by a 20 year Heat Exchanger Warranty, and a 10-Year Registered Parts Warranty.

    Evaporator Coil

    • Multi-Position. Can be installed upflow, downflow or horizontal right positions to ensure it can be adapted to almost any situation
    • Easy to Install. Installation is quick and easy when paired with the optional MRCOOL No-Vac Quick Connect line sets
    • Avoid Property Damage. Special liquid pipe design that reduces excessive condensation
    • It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.

      SPECIFICATIONS & DIMENSIONS

      • Condenser
      • Product Dimensions: 37"W x 18-1/8"D x 32-1/4"H
      • Cooling Capacity: 24,000 or 36,000 BTU
      • Line Set Connection: Quick Connect, Pre-Flared or Sweat
      • SEER: 20 in 2 Ton Mode // 18 in 3 Ton Mode
      • Warranty: 10 Year Registered Limited Warranty
      • Electrical Requirements: Requires a minimum of 208V-230V/60HZ/24A-35A (please check your home meets this electrical requirement prior to purchase)
      • Gas Furnace
      • Product Dimensions: 17 1/2"W x 28 1/2"D x 33"H
      • AFUE: 95%
      • Heating Capacity: 66,000 BTU
      • Fuel Type: Natural Gas
      • Installation Options: Upflow or Horizontal
      • Blower Motor Speeds: 4 Speeds
      • Motor Type: ECM
      • Warranty: Protected by a 20 year Heat Exchanger Warranty, and a 10-Year Registered Parts Warranty.
      • Electrical Requirements: Requires a minimum of 120V/60HZ/15A
      • A-Coil
      • Dimensions: 17-1/2"W x 21-1/4"D x 23"H
      • SEER: 2 Ton - 19.53 Ton - 18
      • EER: 2 Ton - 8003 Ton - 1000
      • Cooling Capacity: 24,000 or 36,000 BTU
      • Refrigerant Type: R-410A
      • Liquid Line Size: 3/8 Inches
      • Suction Line Size: 3/4 Inches

      INSTALLATION & GUIDES

      SHIPPING POLICY

      Free Curbside Delivery
      MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

      Tracking & Delivery Scheduling
      In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

      See our full Shipping Policy here.

      RETURN POLICY

      MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

      Please note, a 35% restocking fee will be applied to all approved returns.

      See our full Return Policy here.

      Accessories
      See more from MRCOOL

      Customer Reviews

      Based on 1 review
      100%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      D
      David Carson
      Happy from start to finish

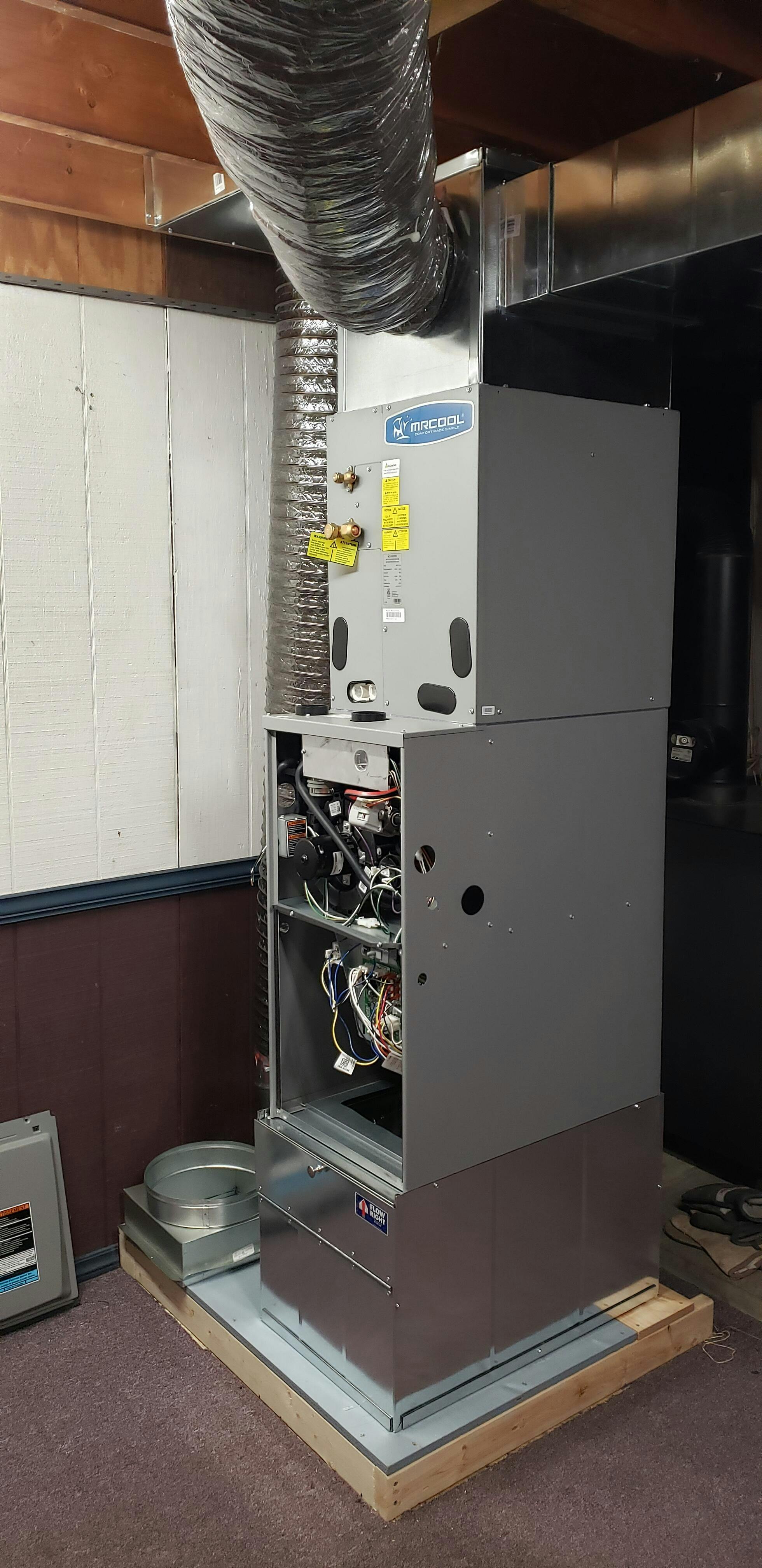

      Purchased the Mr Cool furnace and A/C complete system from Premium Home Source because they had everything I needed. I checked other sites which said the systems were out of stock. Was a bit skeptical because I had not heard of Premium Home Source and had never used them, but as it turned out they were a pleasure to deal with. They contacted me when the furnace I ordered was replaced with a new more efficient furnace and gave me the option to upgrade at no cost. The order was placed quickly and delivered no problems at all. I am very happy with Premium Home Source and would highly recommend them based on my experience.
