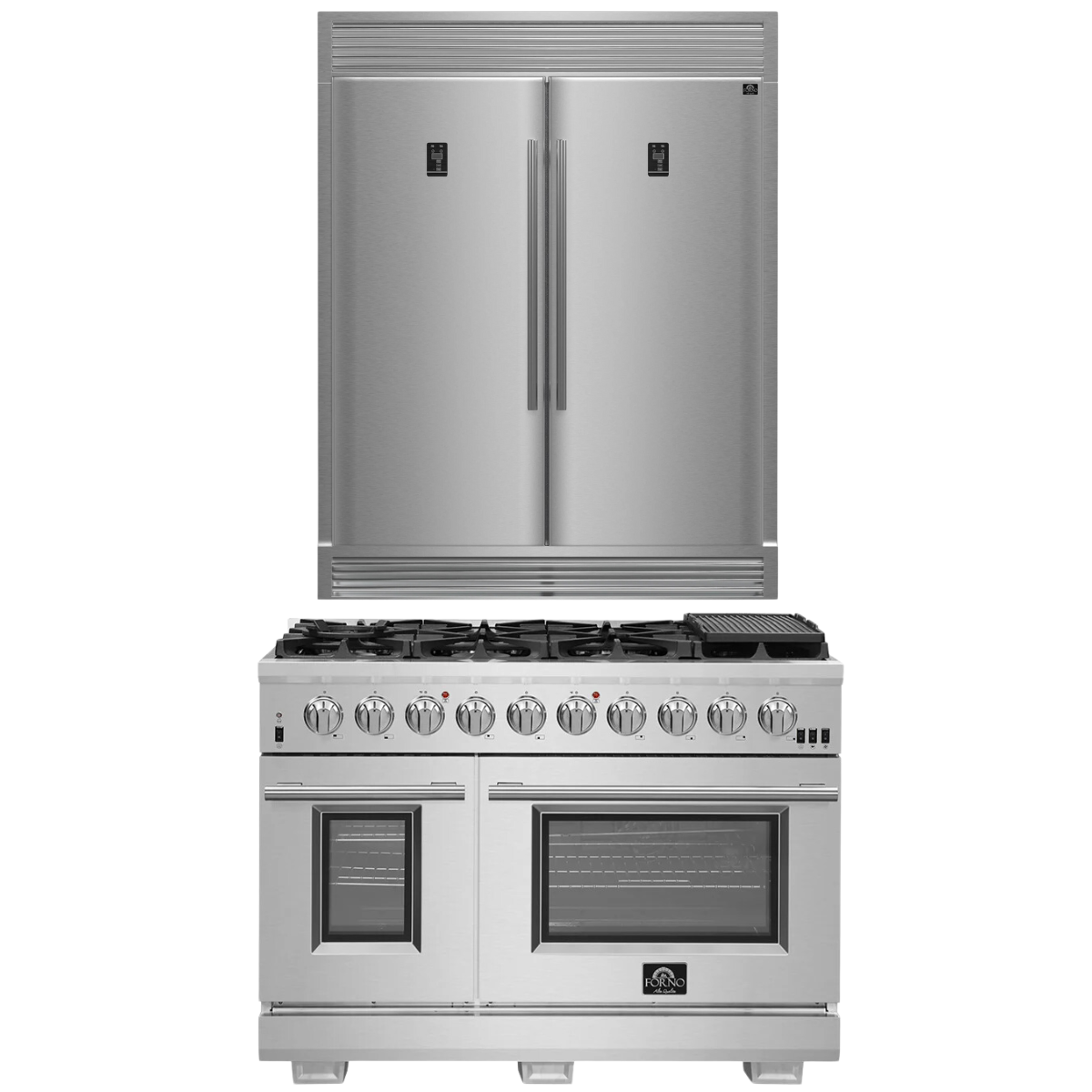

FORNO Appliance Package - 48" Gas Range and 60" Refrigerator with Grill Trim, FBDL-019-04CAUS

Brand: FORNO
Model: FBDL-019-04CAUS
Skip to product information
Regular price $7,298.00
Sale price $7,298.00 Regular price $10,598.00
You save $3,300.00
Shipping calculated at checkout.

Payment Plans Available

In Stock
Delivers Oct 31-Nov 7 (Est.)
Free In-Home Shipping
The courier brings your appliance inside and checks for damage. No installation or haul-away. Delivery to your chosen room includes up to 7 steps; extra steps may incur fees—notify us in advance.
Regular price $7,298.00
Sale price $7,298.00 Regular price $10,598.00
Ask about this product Get an answer with Appliance AI™
AI-generated from product data and store information. Responses may not always be accurate. For any clarifications, talk to our team.

Package Information

Range

The Forno Capriasca 48 Inch Gas Range enhances your home kitchen with professional styling and performance through its durable and beautiful 304-grade stainless-steel design. The cooking surface features 8 sealed dual-ring brass burners, totaling 160,000 BTU. All burners, each at 20,000 BTU, can simmer precisely at 1,000 BTU. Continuous heavy-duty cast-iron grates facilitate easy sliding of pots or pans off heat over the enamel cooktop cavity, simplifying spill cleanup. The cumulative 6.58 cu. ft. double ovens, with a 44,000 BTU output, are enclosed in a blue enamel interior. The 4.32 cu.ft. main oven offers a powerful infrared mesh broiler, a rotisserie skewer and a convection fan for precise, and consistent cooking on multiple levels. The package includes 6 telescopic stainless-steel oven racks, 1 rotisserie kit, wok support, griddle and an LP conversion kit. Additionally, zinc-coated illuminated metal knobs with bezel rings ensure enduring beauty.

  • High-Output Brass Burners: 8 sealed dual-ring burners deliver a combined 160,000 BTU with precise 1,000 BTU simmer control
  • Even Heat Transfer: Continuous cast iron grates support stable cookware movement and consistent cooking performance
  • Spill-Resistant Cooktop: Deep recessed black enamel surface simplifies cleaning and contains messes
  • Powerful Convection Cooking: 4.32 cu.ft convection fan oven paired with an additional 2.26 cu.ft oven for multi-tasking
  • Broiler & Rotisserie Options: Infrared mesh broiler and rotisserie skewer provide versatile cooking functionality
  • Premium Oven Racks: 6 stainless steel telescopic racks with ball bearing guides ensure smooth access
  • Heat-Retaining Oven Doors: Triple-layer glass windows with friction hinges ensure efficiency and visibility
  • Elegant & Durable Controls: Zinc-coated illuminated knobs with bezel rings offer lasting beauty and usability
  • DIMENSIONS
  • Product Dimensions: 48" W x 28" D x 38" H
  • Cutout Dimensions: 48" W x 25" D x 36" H
  • Interior Oven Dimensions: Primary Oven: 24" W x 14" D x 10.38" H//Secondary Oven: 12" W x 14" D x 10.38" H
  • Oven Capacity: Total 6.58 cu. ft.//Primary Oven: 4.32 Cu.Ft//Secondary Oven: 2.26 Cu.Ft
  • Weight: 418.87 lbs
  • ELECTRICAL REQUIREMENTS
  • Voltage: 120 V
  • Frequency: 60 Hz
  • Circuit Breaker Amperage: 15 A
  • Plug Included: Yes
  • Plug Type: NEMA 5-15P
  • Power Cord Included: Yes
  • Power Cord Length: 5 ft.
  • Power Cord Location: Back
  • FUEL TYPE
  • Fuel Type: Gas
  • Gas Type: Natural Gas//Can be converted to Propane Gas (LP Conversion Kit Included)
  • FEATURES
  • Color: Stainless Steel
  • Fingerprint Resistant: No
  • Cooktop Features: 8 Sealed Dual-Ring Brass Burners combine a total -top out of 160,000 BTU
  • Burner #1: Front Left : 20000
  • Burner #2: Back Left: 20000
  • Burner #3: Back Right: 20000
  • Burner #4: Front Right: 20000
  • Burner #5: Middle Front Left: 20000
  • Burner #6: Middle Back Left: 20000
  • Burner #7: Middle Front Right: 20000
  • Burner #8: Middle Back Right: 20000
  • Total Burner BTU: 160,000 BTU
  • Convection: Yes
  • Oven Lighting: Yes
  • Number of Racks: 6
  • Control Type: Manual/Knob
  • Sabbath Mode: No
  • Timer: No
  • Self-Clean: No
  • Air-Fry: No
  • Storage Drawer: No
  • Oven Preheating Indicator: Yes
  • WARRANTY & CERTIFICATIONS
  • Warranty: 2 Years Parts & Labor
  • Certifications: cETLus
  • Commercial Use: No (Warranty will be void if used in a commercial setting)

Refrigerator

The FORNO Maderno 60-inch Convertible Refrigerator/Freezer in stainless steel delivers 27.2 cu. ft. of counter-depth built-in storage with an inverter compressor and ENERGY STAR certification.

  • 27.2 Cu. Ft. Capacity: 27.2 cu. ft. of storage in a 60-inch wide footprint.
  • Convertible Refrigerator/Freezer: Switch between refrigerator and freezer modes to match what you need to store.
  • Reliable Cooling: Features inverter compressor with multi air flow cooling for consistent temperatures and efficient operation, plus dual independent cooling systems.
  • Flexible Storage: Six glass shelves and six removable drawers across the two units keep groceries organized.
  • Electronic Controls: Electronic controls for precise temperature adjustment with temperature memory and a door-ajar alarm.
  • Fast Cool and Fast Freeze: Super Cool and Super Freeze modes quickly bring fresh and frozen food to temperature after loading groceries.
  • Efficient and Quiet: ENERGY STAR certified efficiency and LED interior lighting.
  • Built-In Installation: Designed for a flush built-in look with the cutout dimensions listed in the specifications.

⚠ Installation Disclaimer

This side-by-side refrigerator is a built-in system composed of three separate components, delivered as follows:

  • FFFFD1722-28LS – Left Swing Unit
  • FFFFD1722-28RS – Right Swing Unit
  • F1722-60MTK – Decorative Trim Kit

Electrical Requirements: Each refrigeration unit must be connected to its own dedicated 15-amp circuit breaker (2 x 15A total). Please ensure the proper electrical infrastructure is in place prior to installation.

Platform Base Requirement: A built platform base is required to support proper installation. The platform must extend fully beyond the cabinet opening. If the platform does not extend out of the opening, the lower trim kit cannot be installed correctly.

Installation Resources: Before installation, please review the following resources available in the Installation & Guides section:

Important: Failure to follow these installation requirements may result in:

  • Improper setup or alignment
  • Inability to install trim kit components
  • Potential voiding of the product warranty
  • DIMENSIONS
  • Overall Dimensions Without Grill Trim: 55.2" W x 29.7" D x 67.7" H
  • Overall Dimensions With Grill Trim: 59.76" W x 29.7" D x 84" H
  • Depth Without Handles: 27.70"
  • Depth With Handles: 29.7"
  • Cabinet Depth (Excluding Door): 24.1"
  • Cutout Dimensions: 55.9" W x 28.94" D x 69.06" H
  • Depth with Door Open 90°: 52.64"
  • Depth with Door Fully Open: 46.3"
  • Width with Door(s) Fully Open: 95.30"
  • Total Capacity: 27.2 cu. ft.
  • Fridge/Freezer Capacity (Left Swing unit): 13.6 cu. ft.
  • Fridge/Freezer Capacity (Right Swing unit): 13.6 cu. ft.
  • Weight: 330 lbs (both units)
  • ELECTRICAL REQUIREMENTS
  • Volts: 120V
  • Frequency: 60Hz
  • Running Amperage: 7.6A
  • Circuit Breaker Amperage: 15A
  • Power Cord Included: Yes
  • Number of Power Cords: 2
  • Power Cord Length: 5.80 ft.
  • Power Cord Location: Lower Back
  • Estimated Annual Energy Use: 647 kWh/yr
  • FEATURES
  • Installation Type: Built-In (platform base required, see Installation Disclaimer)
  • Mount Type: Built-in / Side-by-Side
  • Counter Depth: Yes
  • Color/Finish: Stainless Steel
  • Handle Finish: Stainless Steel
  • Door Style: Swing Door
  • Shelf Material: Glass With Silver Trim
  • Temperature Range Refrigerator (°F): 36°F to 46°F
  • Temperature Range Freezer (°F): -11°F to 7°F
  • Control Type: Electronic
  • Control Location: Internal
  • Defrost Type: Automatic/Frost free
  • Cooling System: Multi Air Flow
  • Compressor Type: Inverter Compressor
  • Fast Cool / Fast Freeze: Yes
  • Ice Maker: No
  • Water Dispenser: No
  • Door Alarm: Yes
  • Sabbath Mode: No
  • WARRANTY & CERTIFICATIONS
  • Certifications: CSA safety listing, ENERGY STAR Certified, California Title 20
  • Warranty: 2 Years Parts & Labor

Product Overview

  • Appliances: 2

  • Fuel Type: Gas

  • Gas Type: Natural Gas

  • LP Convertible
