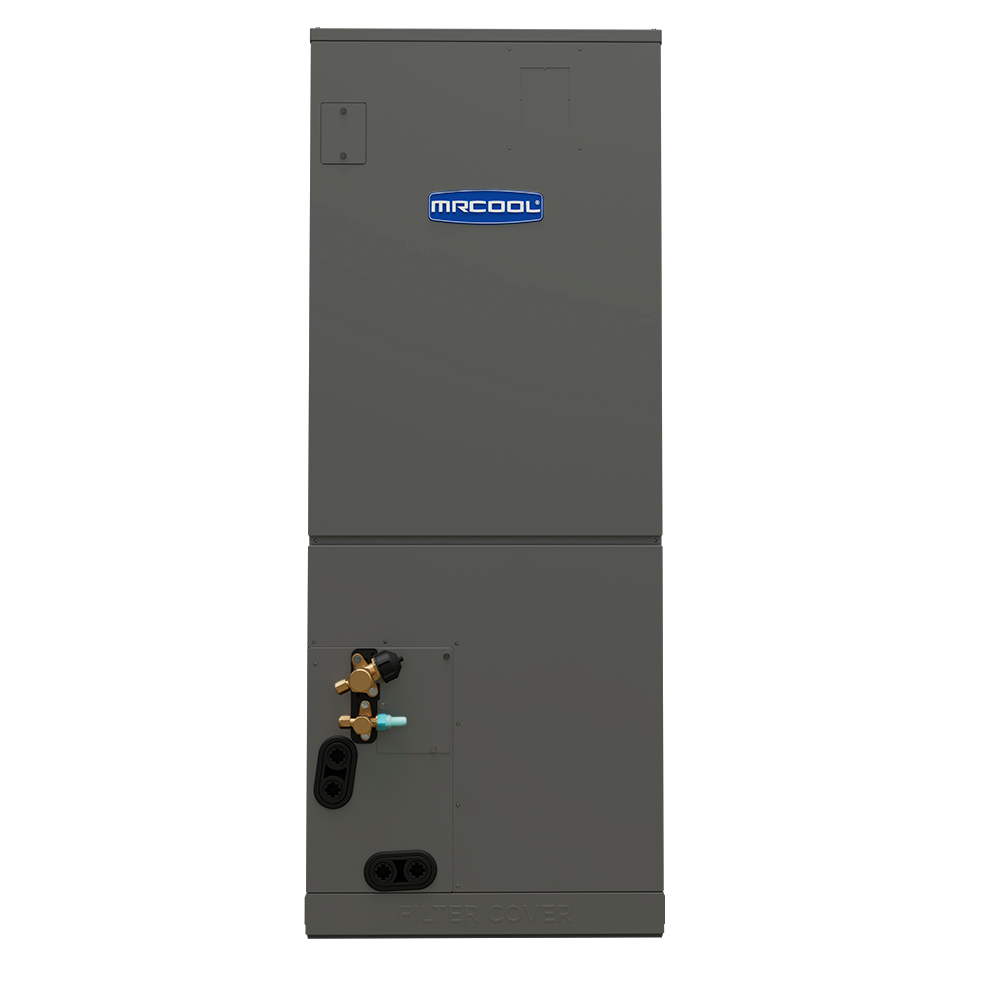

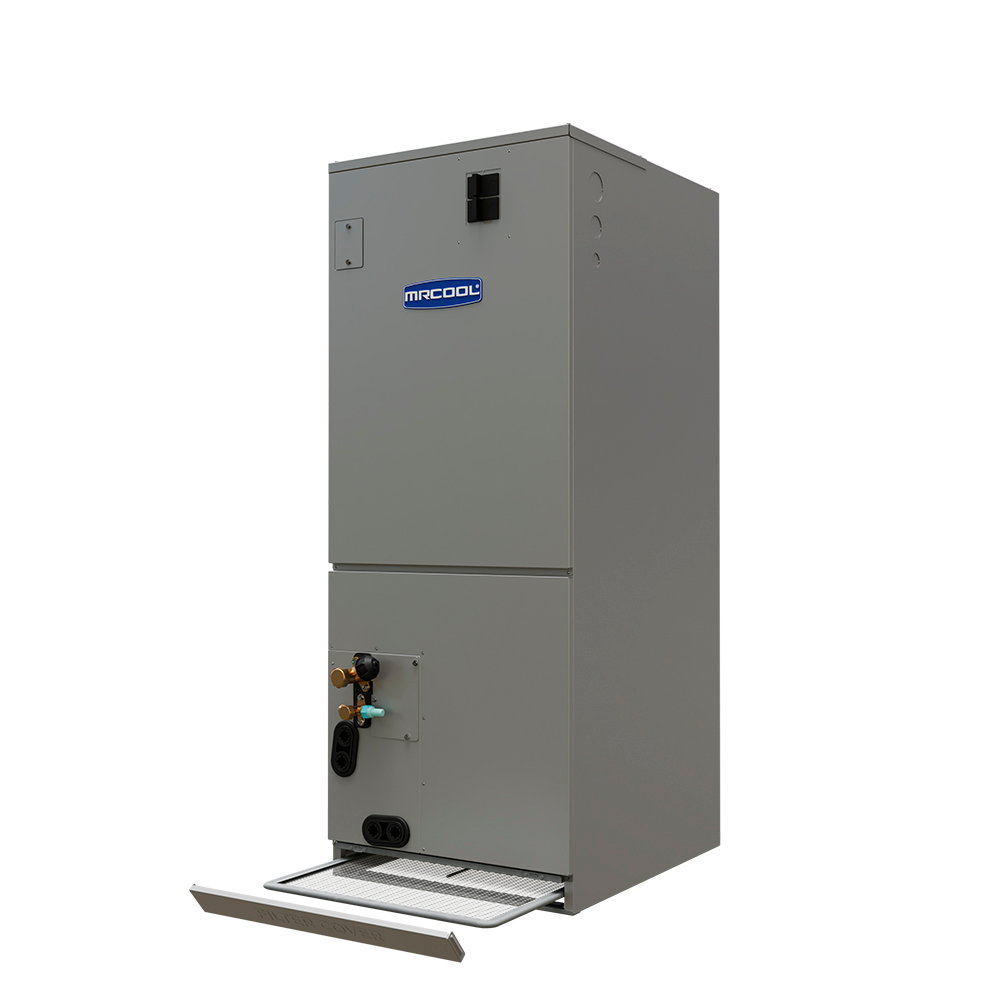

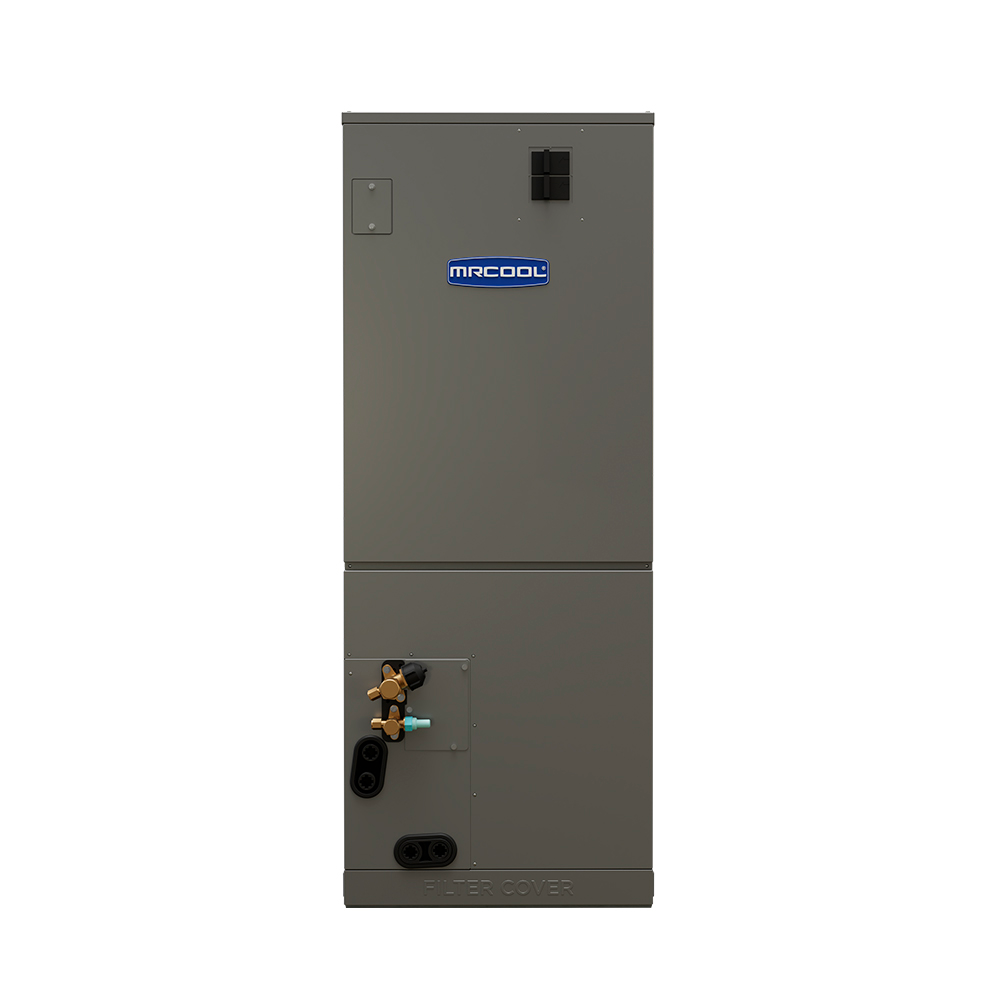

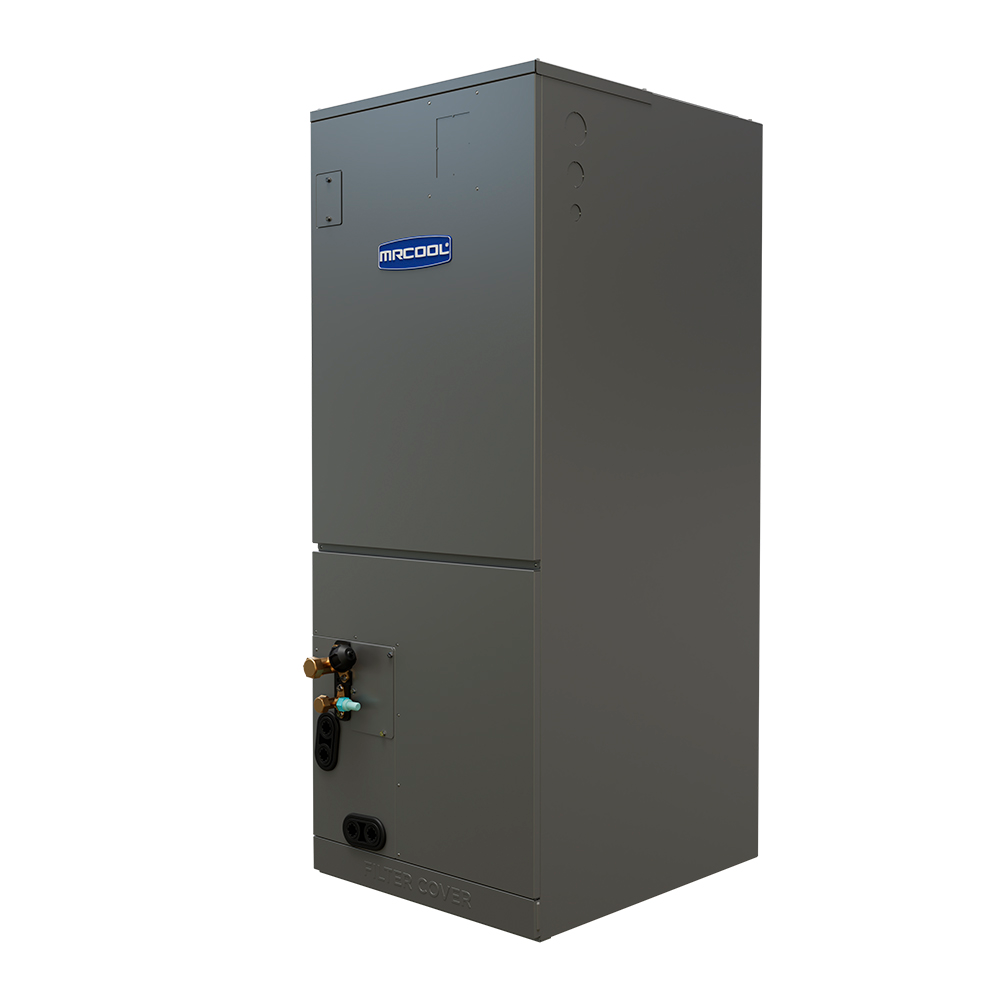

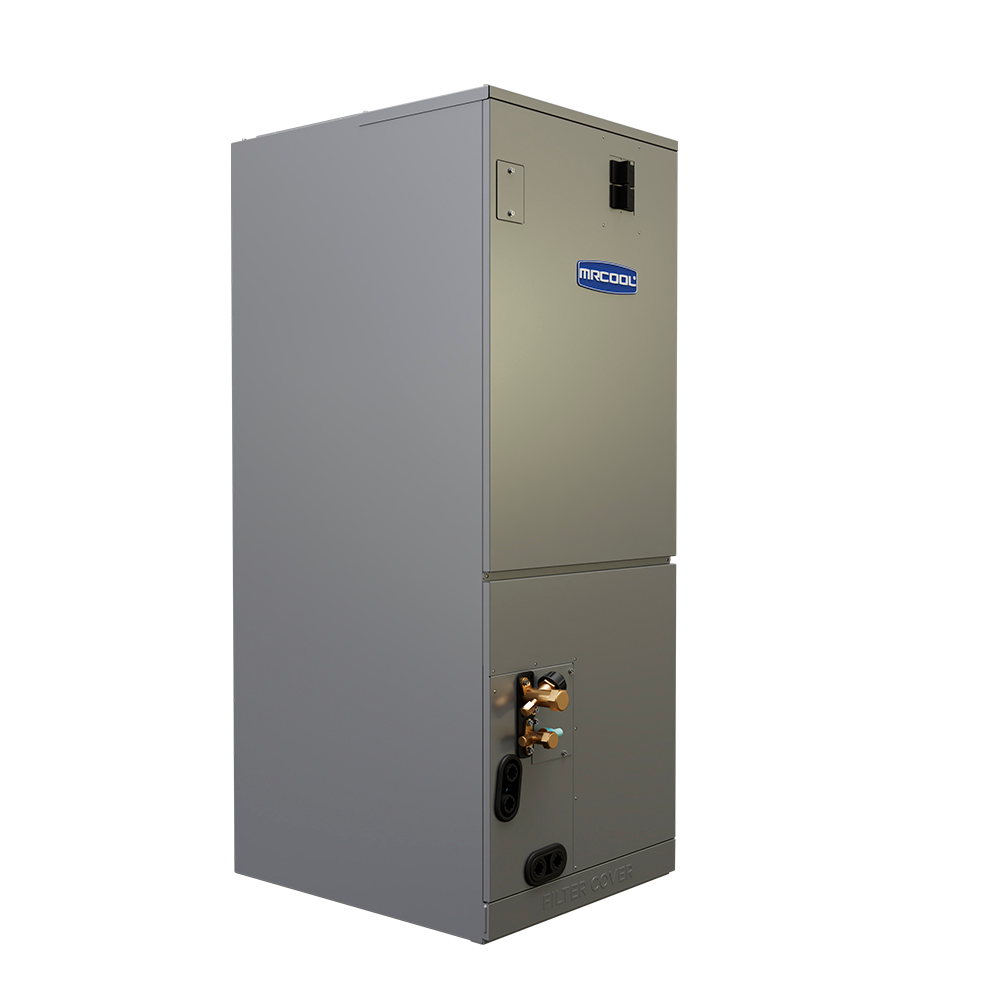

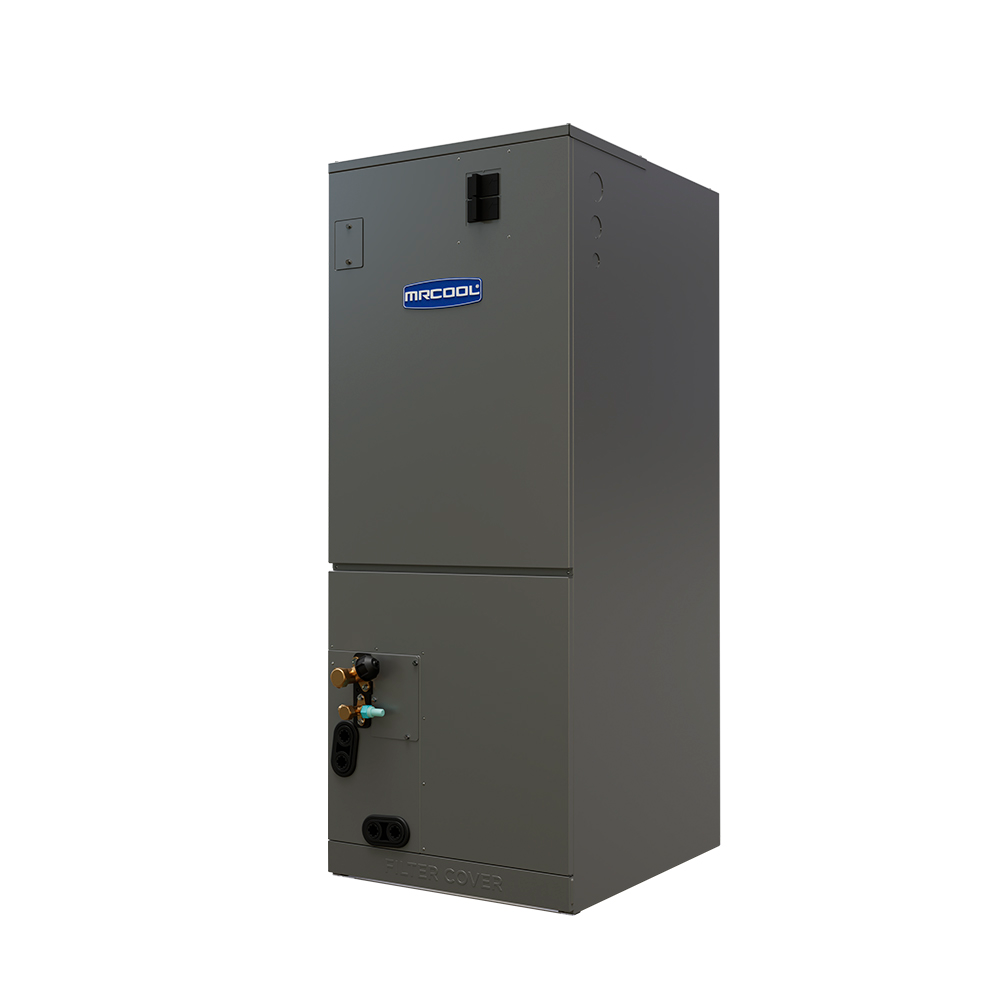

MRCOOL DIY® 36K DIY Hybrid™ Air Handler, DIY-36-HP-MUAH-230D25-O

Brand: MRCOOL
Model: DIY-36-HP-MUAH-230D25-O
$1,153.00
$1,153.00 $1,395.00
You save $242.00
Shipping calculated at checkout.

Payment Plans Available

BTU: 36,000
36,000
24,000
36,000
In stock - Ready to Ship
Free Curbside Delivery
Curbside shipping means your order will be delivered to the curb or driveway outside your home. The driver will not bring it inside or set it up. Please arrange for help if needed!
Estimated Arrival: Dec 12 to Dec 18
$1,153.00
$1,153.00 $1,395.00

Product Overview

  • DIY Installation

  • Voltage: 208-230V

What's Included

DESCRIPTION

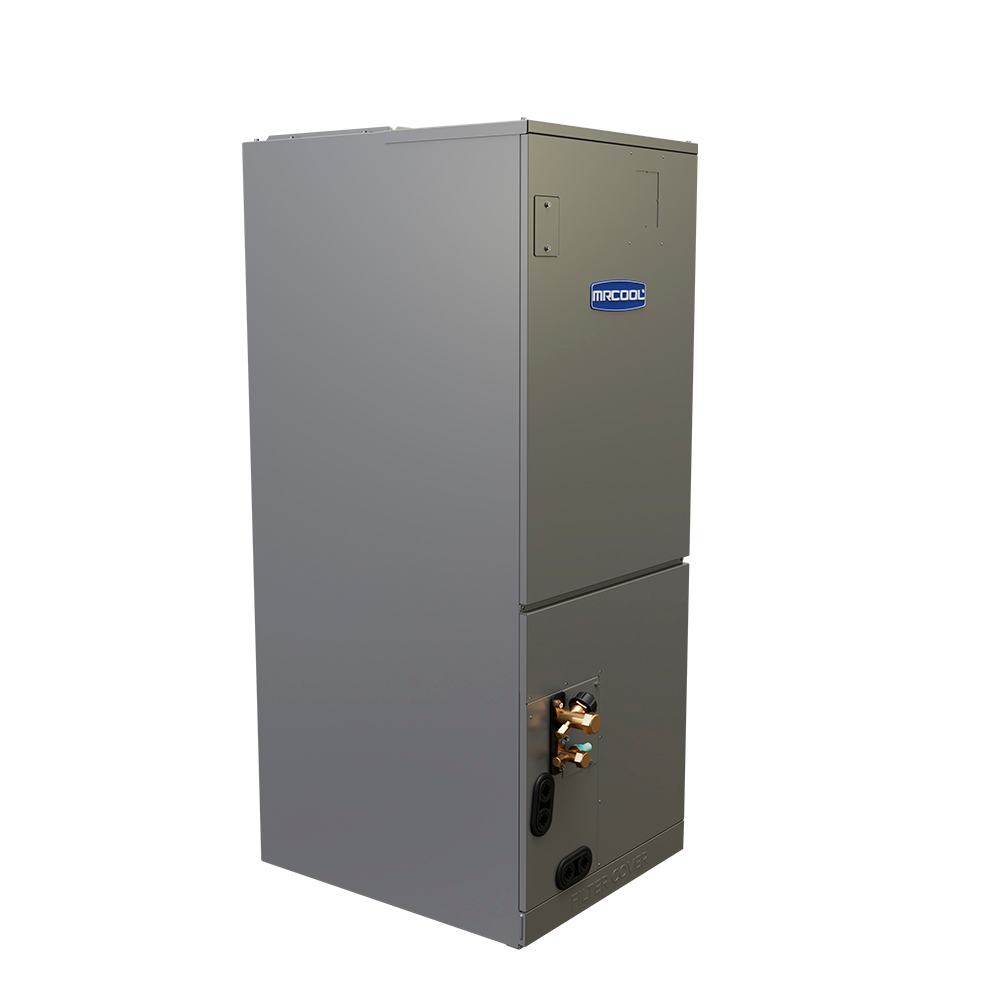

The 36K MRCOOL® DIY Hybrid™ Air Handler is a smart, flexible solution designed to heat and cool spaces up to 1,500 square feet. Built for easy pairing with MRCOOL® DIY condensers, it offers a seamless installation experience while delivering reliable performance and long-lasting durability. With multiple installation configurations, environmentally conscious R-454B refrigerant, and smart thermostat compatibility, this air handler provides modern comfort and efficiency for any home.

  • Flexible Installation: Supports upflow, downflow, and horizontal left or right configurations for versatile placement

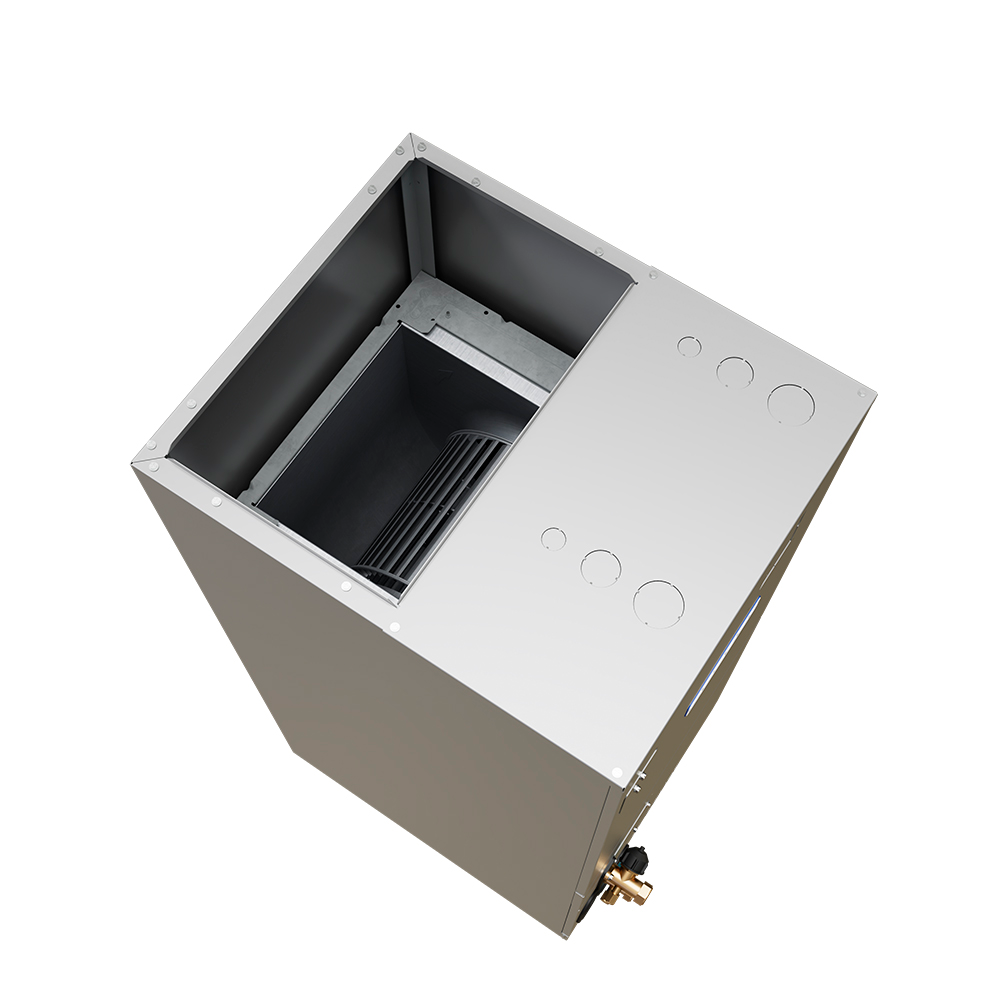

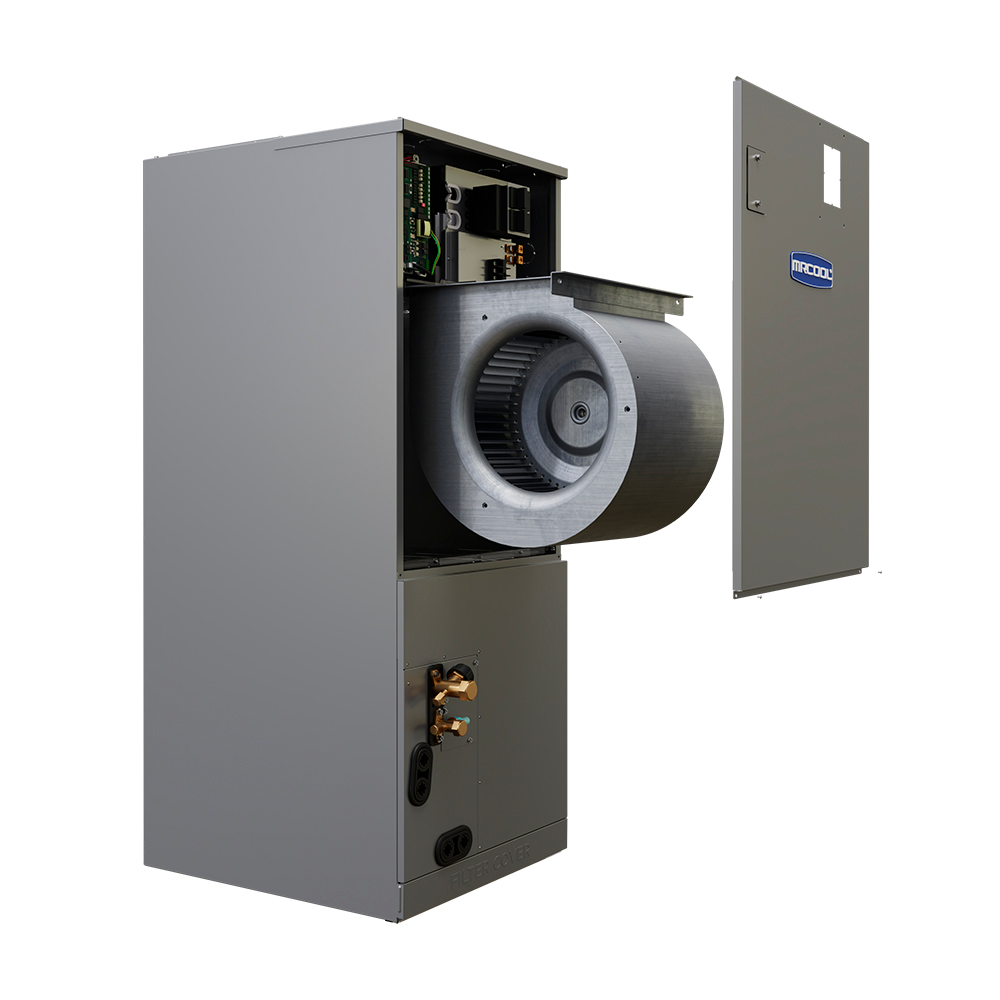

  • Durable Build: Painted galvanized steel cabinet protects against wear for long-lasting performance
  • Smart Control: Includes MRCOOL® Smart Wi-Fi Thermostat for easy touchscreen and app-based control
  • Eco-Friendly Refrigerant: Uses R-454B for high efficiency with reduced environmental impact
  • Simple Troubleshooting: Built-in self-diagnostics panel quickly identifies error codes
  • Compatible with: DIY MZ or 36K DIY Condenser

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Dimensions: 21.02" W x 21.02" D x 49.02" H
  • Weight: 128.31 lbs
  • CAPACITY & PERFORMANCE
  • Capacity: 36,000 BTU
  • Coverage Area: 1,500 sq. ft.
  • Decibel Rating: 31 to 48
  • ELECTRICAL REQUIREMENTS
  • Voltage: 208/230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 15A
  • Min Circuit Ampacity: 6A
  • Rated Load: 4.5
  • REFRIGERANT & PIPING
  • Refrigerant Type: R-454B
  • Liquid Line Size: 3/8"
  • Suction Line Size: 5/8"
  • Drain Connection Size: 3/4
  • FEATURES
  • Position: Upflow, Downflow, Horizontal Left or Horizontal Right
  • Wifi Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • Smart Wi-Fi Thermostat: Included
  • Remote Included: No
  • Auxiliary Heater: Not Included

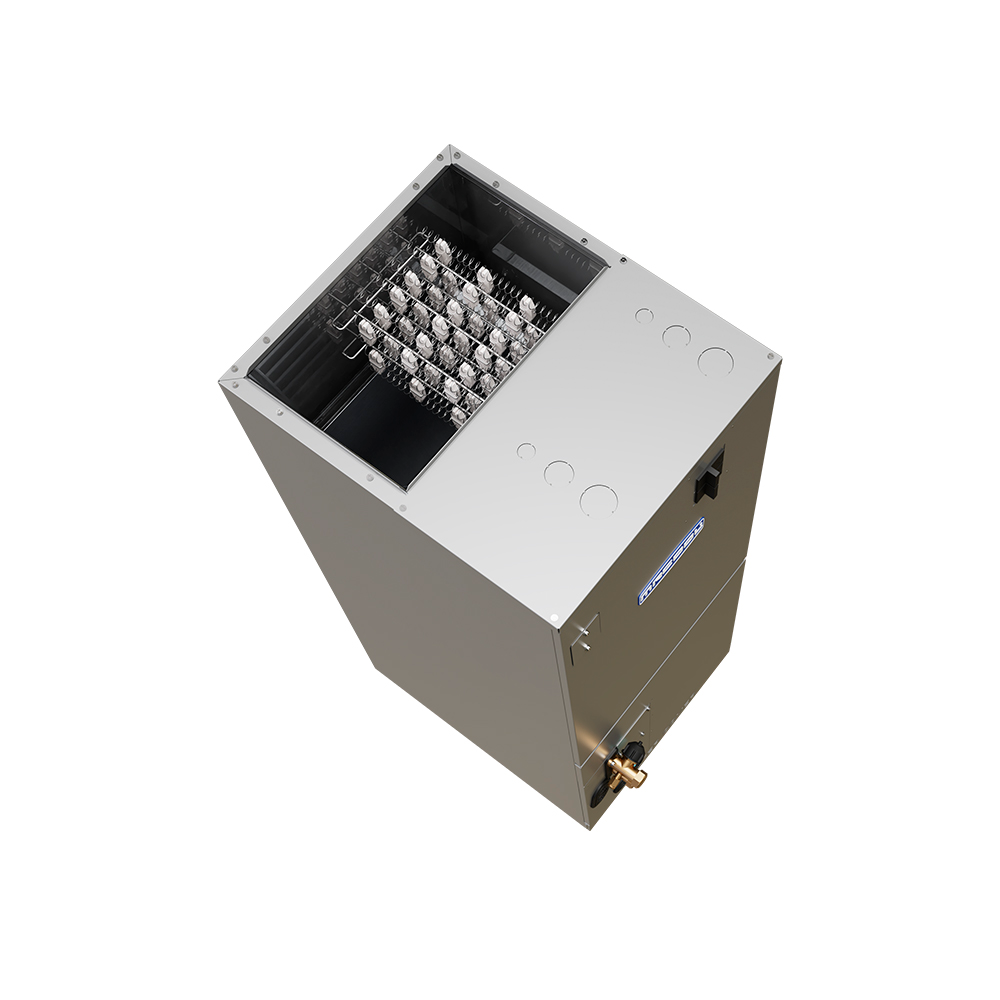

  • Auxiliary Heater Sizes: MVPHK 5kW, 8kW, 10kW, 15kW, 20kW
  • Number of Speeds: 4
  • CERTIFICATION & WARRANTY
  • Certifications: UL Listed, CSA Certified, ETL Listed, AHRI Certified, Energy Star Certified
  • Warranty: 5 Year Parts
