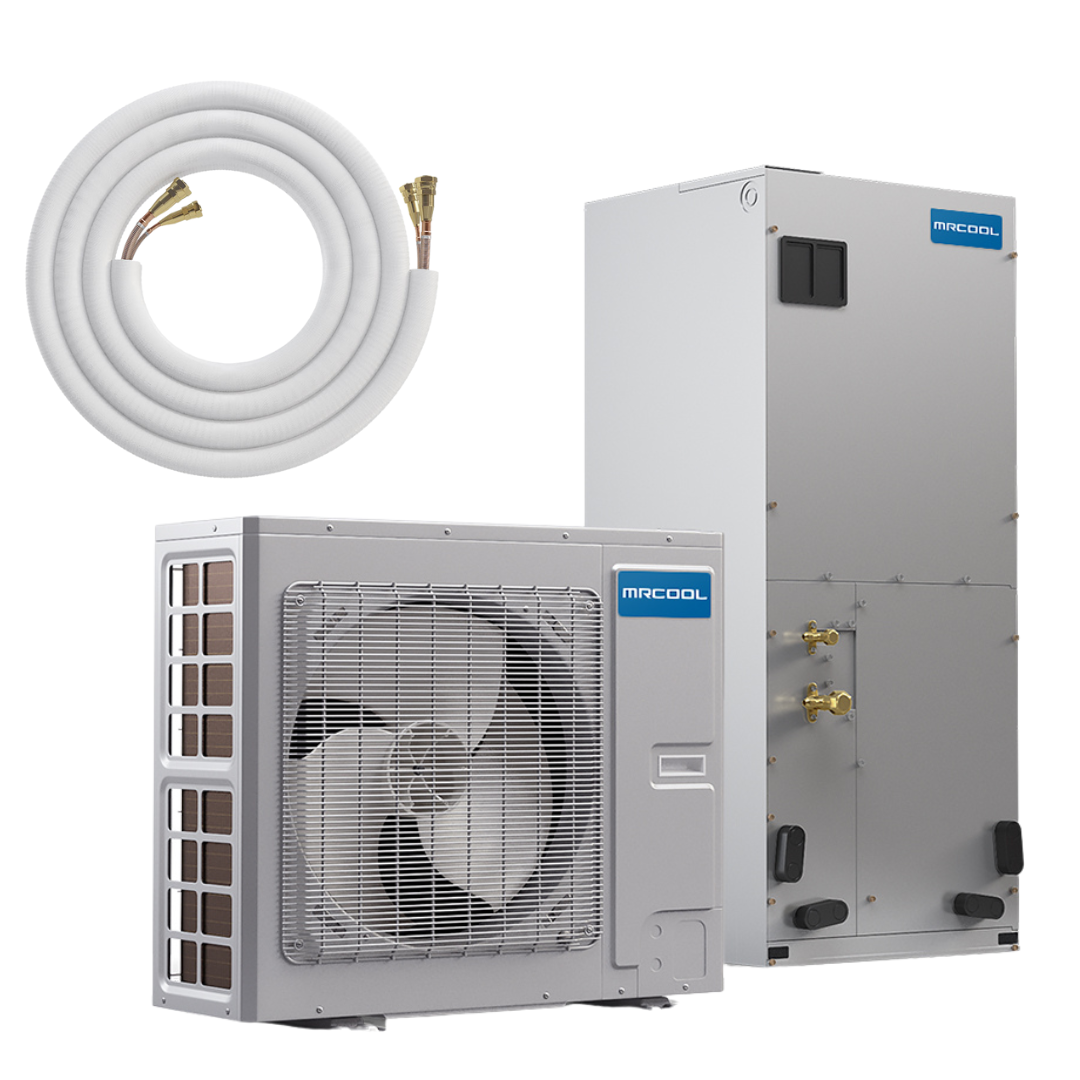

MRCOOL Universal 2-3 Ton 20 SEER Central Heat Pump Split System with 25 ft. Lineset, MDU18024036-25

5.0 1 reviews
Model: MDU18024036-25
$3,925.00
$3,925.00 $4,595.00
-15%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 36,000
36,000
36,000
54,000
Line set length: 25 ft.

This item is in stock! Estimated Arrival: May 13 to May 19

$3,925.00
$3,925.00 $4,595.00

What's Included

BETTER TOGETHER

DESCRIPTION

The 2 to 3 Ton 20 SEER MRCOOL Universal Central Heat Pump Split System is the innovative heating and cooling tool you need to stay warm in winter, cool in summer, and energy efficient every day of the year. Unlike other conventional heat pump split systems, the Universal relies on a DC inverter compressor to modulate performance based on fluctuating demand. It can scale capacity up as necessary or reduce it in mild weather. It can save you time, money, and, over the long term, a lot of headache.

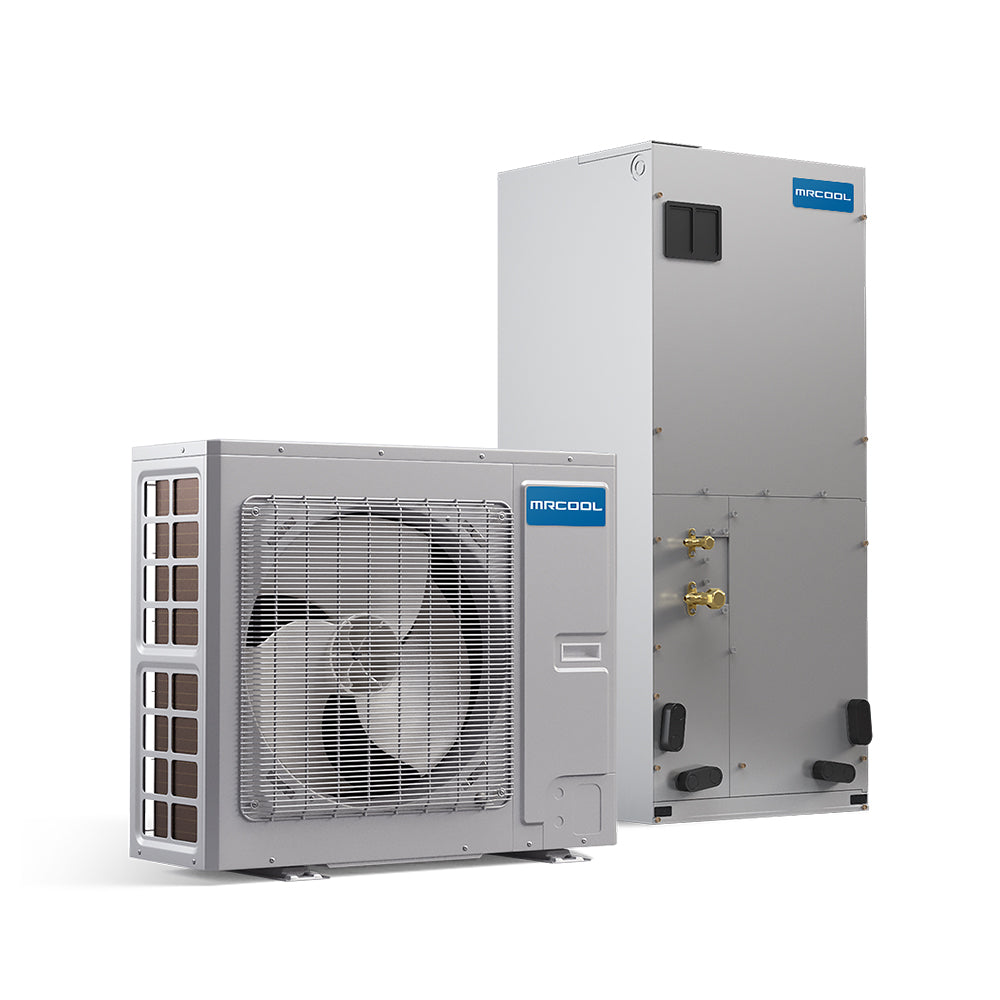

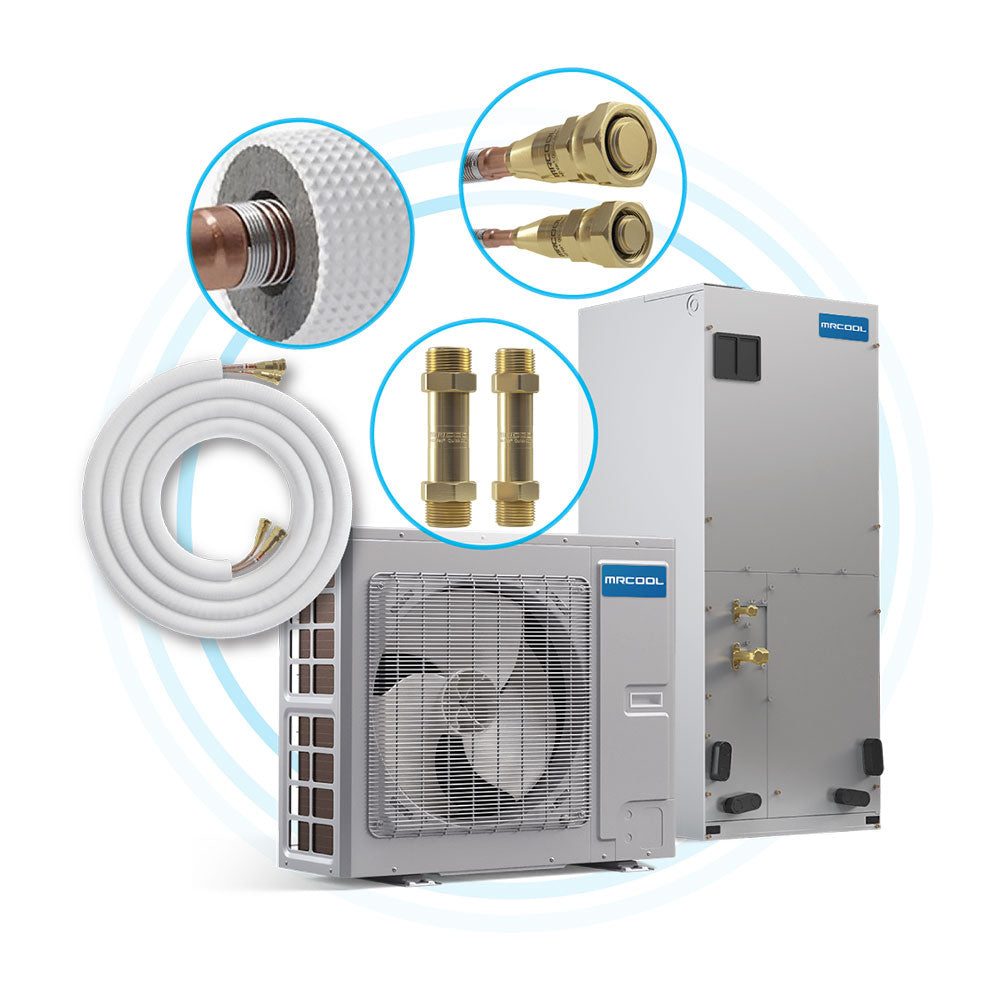

System Includes

Condenser

  • The 2 to 3 Ton 20 SEER MRCOOL Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end.
  • Superior Heat Pump. 100% Heating Capacity to -5°F, 100% Cooling Capacity to 115°F
  • Ultra Quiet. Internal Fan Blade Creates Low Noise
  • Environmentally Friendly. Factory Charged and environmentally friendly R410

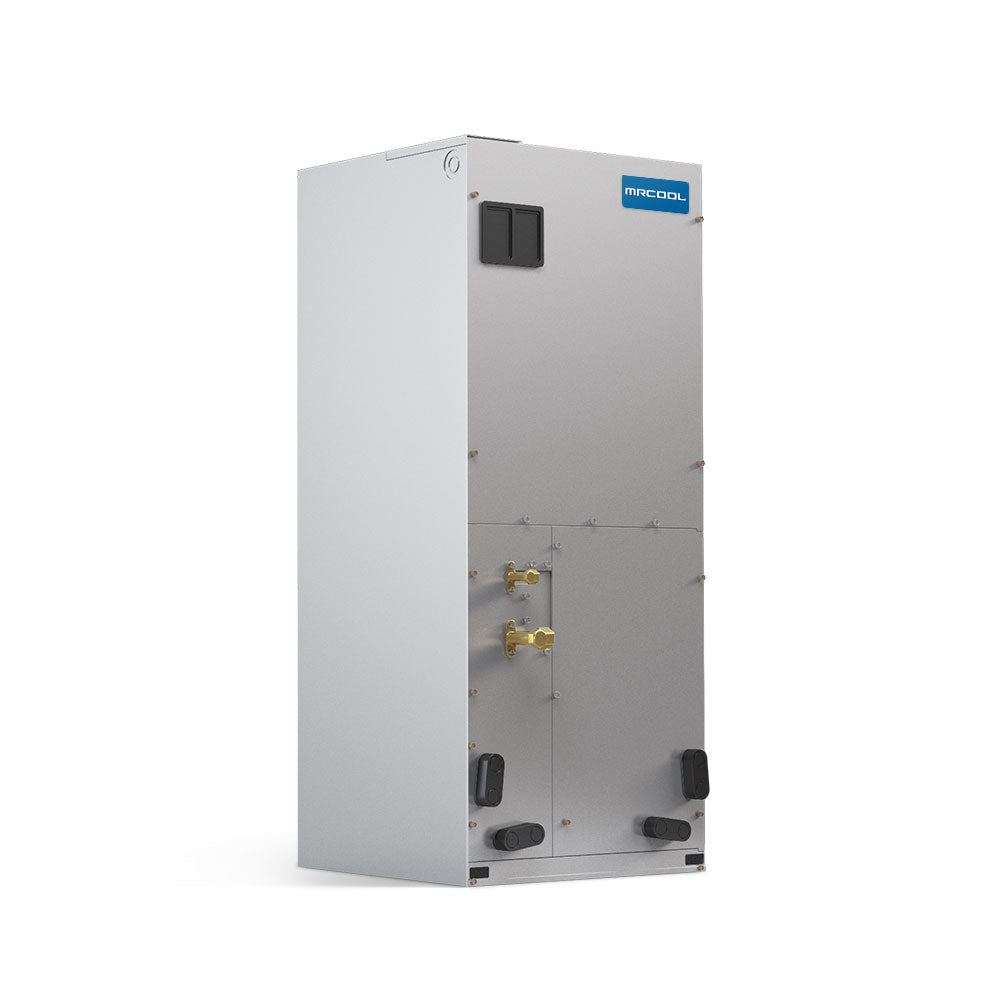

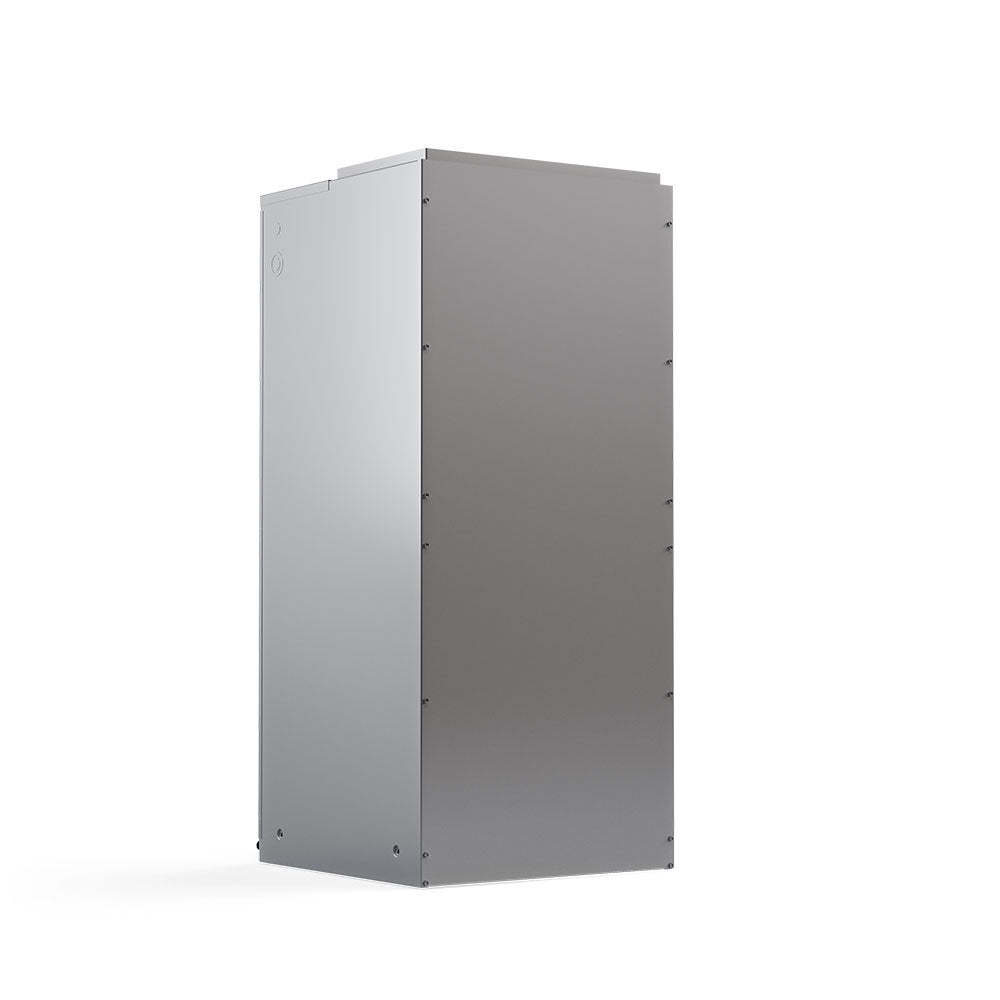

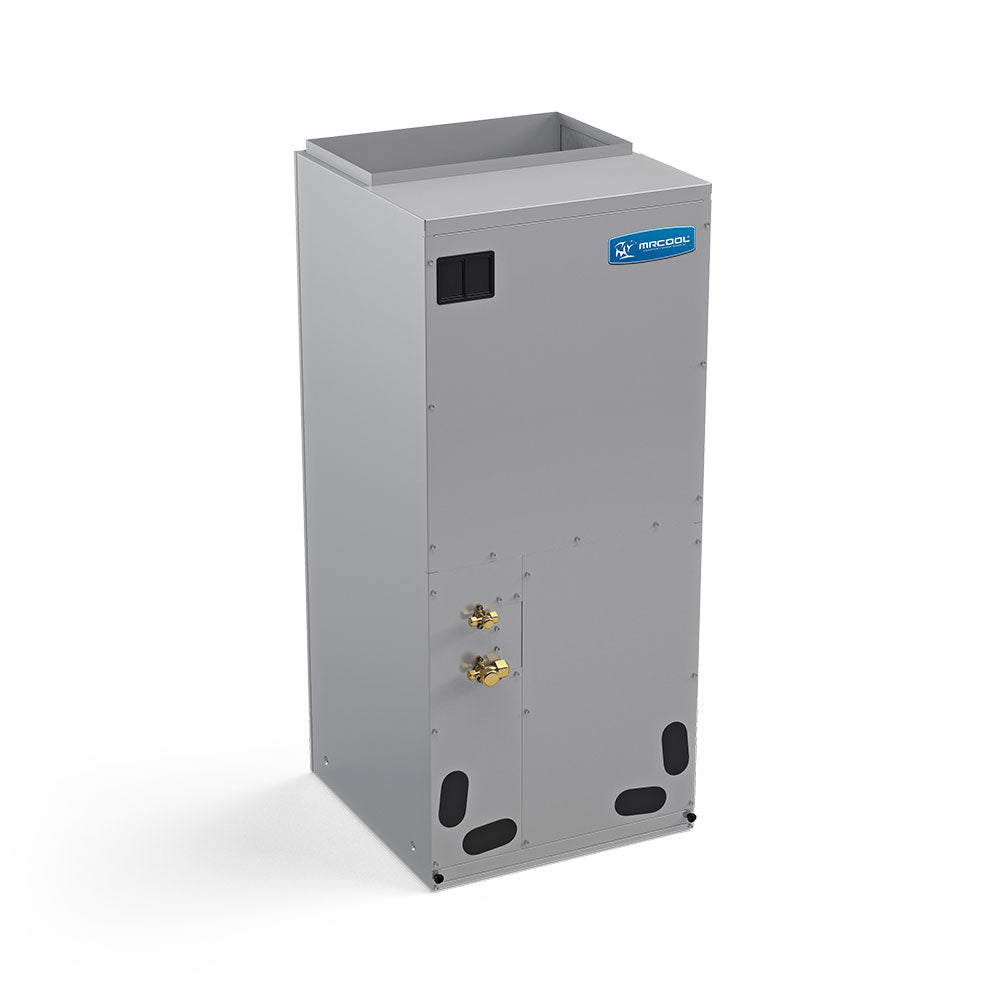

    Air Handler

    • This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance.
    • Anti Shock. Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
    • Easy to clean. Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
    • Multi-Position. Upflow or Horizontal

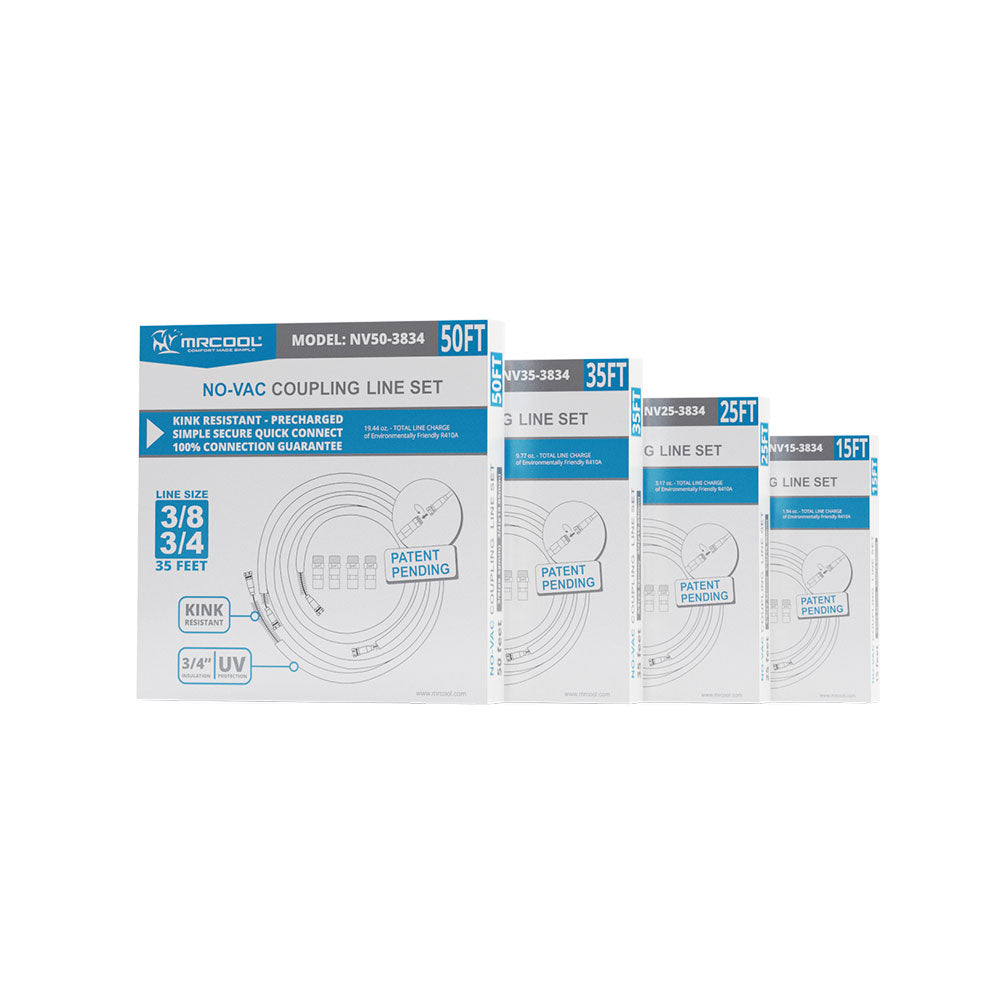

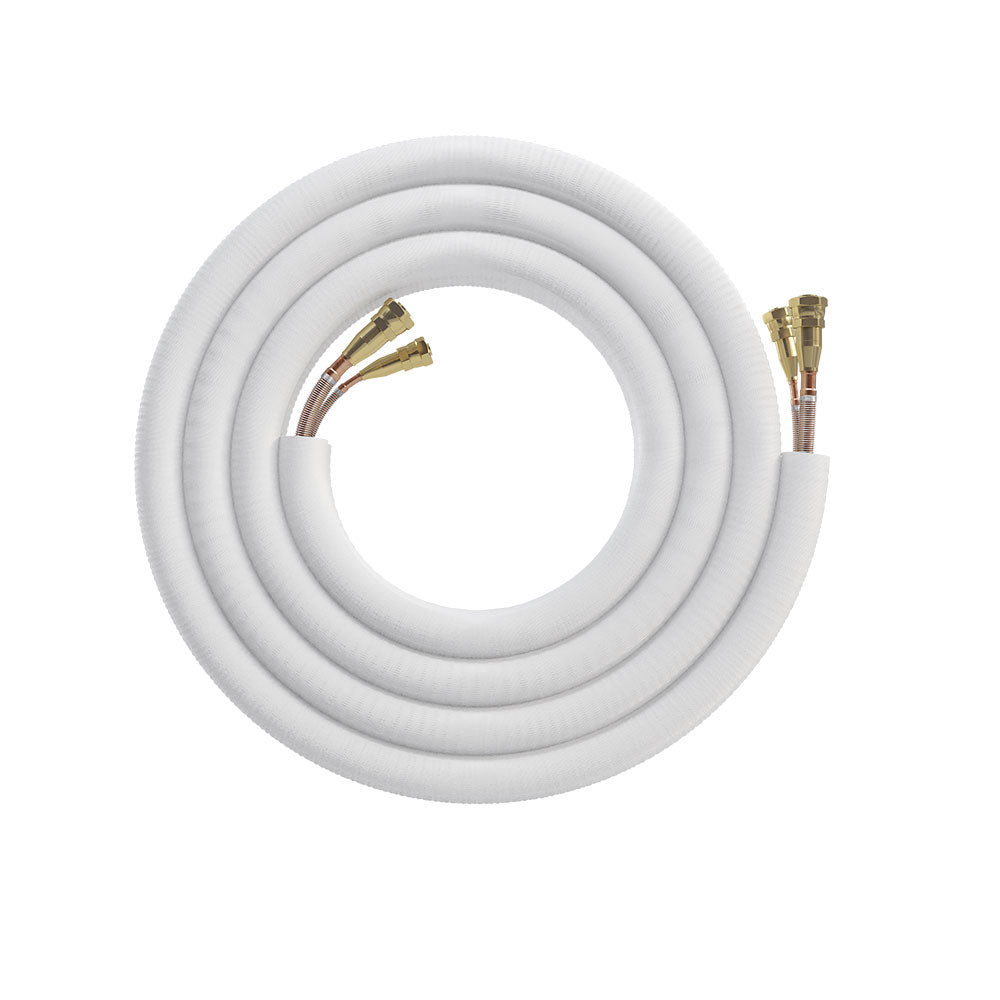

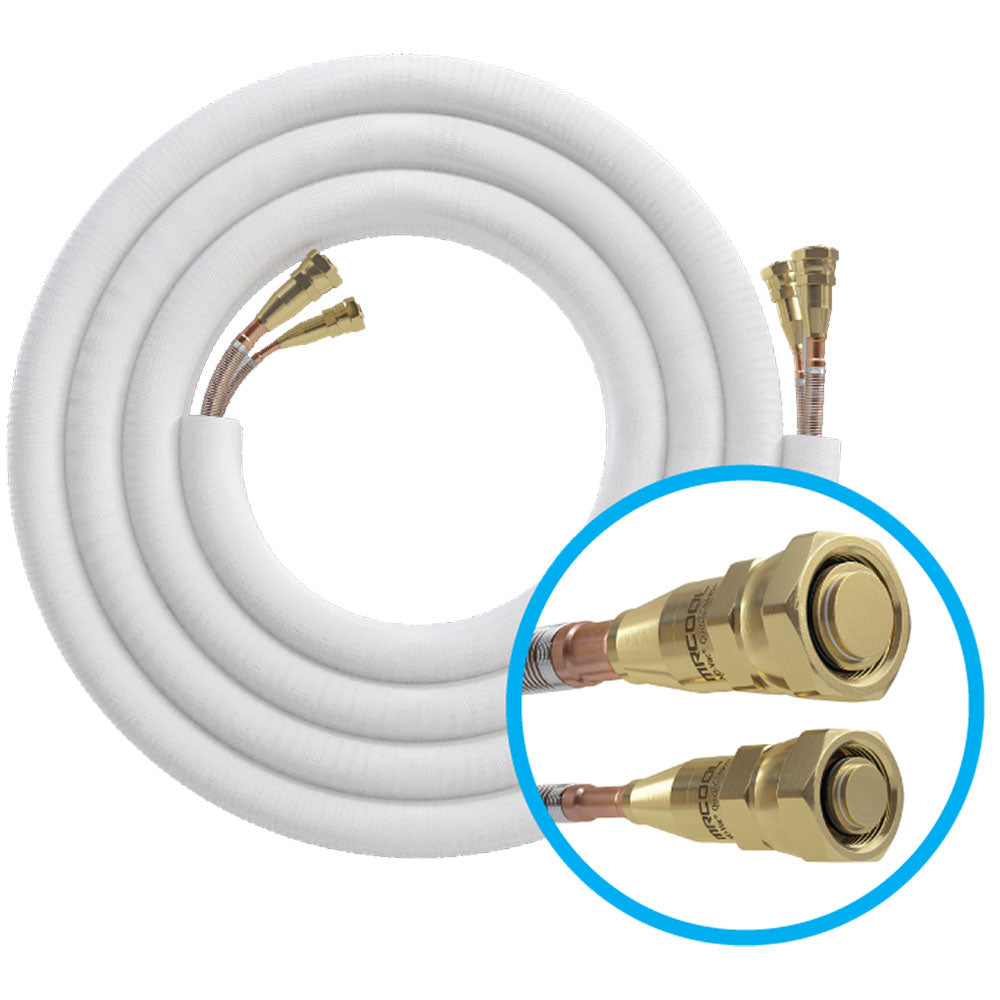

    Line Set 25 ft.

    • Kink Resistant. Kink Resistant for Easier Bending During Installation
    • Pre-Charged. Pre-Charged R-410A to 1.94 oz for 100% Accuracy
    • UV Protective. Strong 3/4" Gator-Flextra UV Protective Insulation Sleeve

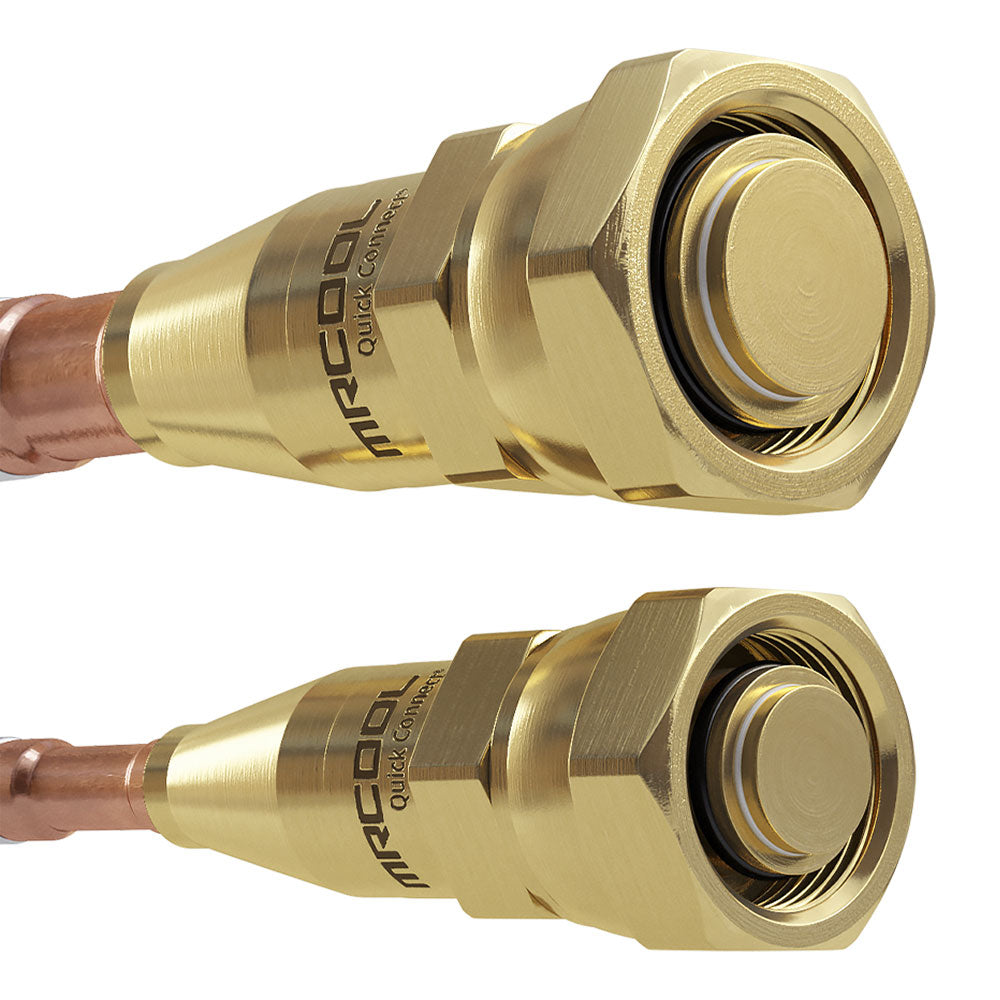

    • Easy to Use. Simple to Use Screw-on Quick Connect Valves

      SPECIFICATIONS & DIMENSIONS

      • Condenser
      • Product Dimensions: 37"W x 18 1/8"D x 32 1/4"H
      • Cooling Capacity: 36,000 BTU
      • Heating Capacity: 36,000 BTU
      • Compressor: Inverter
      • Min Ambient Cool: 5°F - 129.2°F
      • Min Ambient Heat: -22°F - 75.2°F
      • Line Set Connection: Quick Connect, Pre-Flared or Sweat
      • SEER: Up to 20
      • Warranty: 10 Year Registered Limited Warranty // 5 Years Parts
      • Electrical Requirements: Requires a minimum of 208V-230V/60HZ/24A-35A (please check your home meets this electrical requirement prior to purchase)
      • Air Handler
      • Product Dimensions: 21.25"W x 21.25"D x 48.25"H
      • Installation: Upflow or Horizontal
      • Cooling Capacity: 36,000 BTU
      • Heating Capacity: 36,000 BTU
      • Coverage Area: Up to 1,500 square feet
      • Warranty: 10 Year Registered Limited Warranty // 5 Years Parts
      • Electrical Requirements: Requires a minimum of 208V-230V/60HZ/4A-15A (please check your home meets this electrical requirement prior to purchase)
      • Line Set
      • Length: 25 Feet
      • Liquid Line Size: 3/8"
      • Suction Line Size: 3/4"

      INSTALLATION & GUIDES

      Condenser
      Air Handler
      How to check for the qualifying tax rebate credit?
      1. Simply visit the Rebate Center.
      2. Enter in your Zip Code
      3. Search for the Product Code: MDU18024036
      4. See if this qualified & how much your tax rebate will be!

      SHIPPING POLICY

      Free Curbside Delivery
      MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

      Tracking & Delivery Scheduling
      In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

      See our full Shipping Policy here.

      RETURN POLICY

      MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

      Restocking Fee
      Please note, a 35% restocking fee will be applied to all approved returns.

      Non-Returnable Items
      Accessories including lineguards, wall mounts, linesets, couplers, and similar items are not eligible for return.

      See our full Return Policy here.

      Accessories
      See more from MRCOOL

      Customer Reviews

      Based on 1 review
      100%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      K
      Kyle C.
      Overall worth any headaches

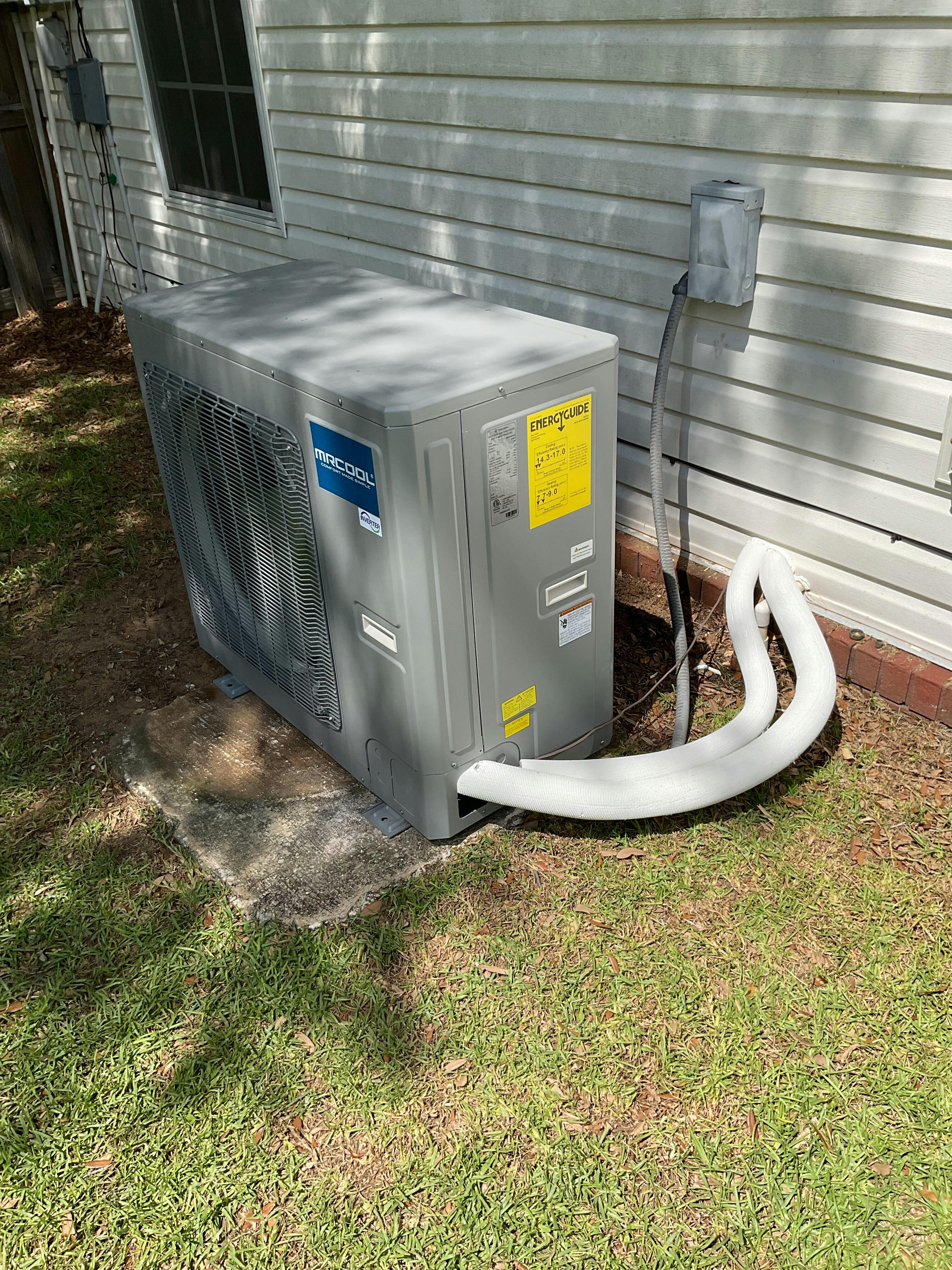

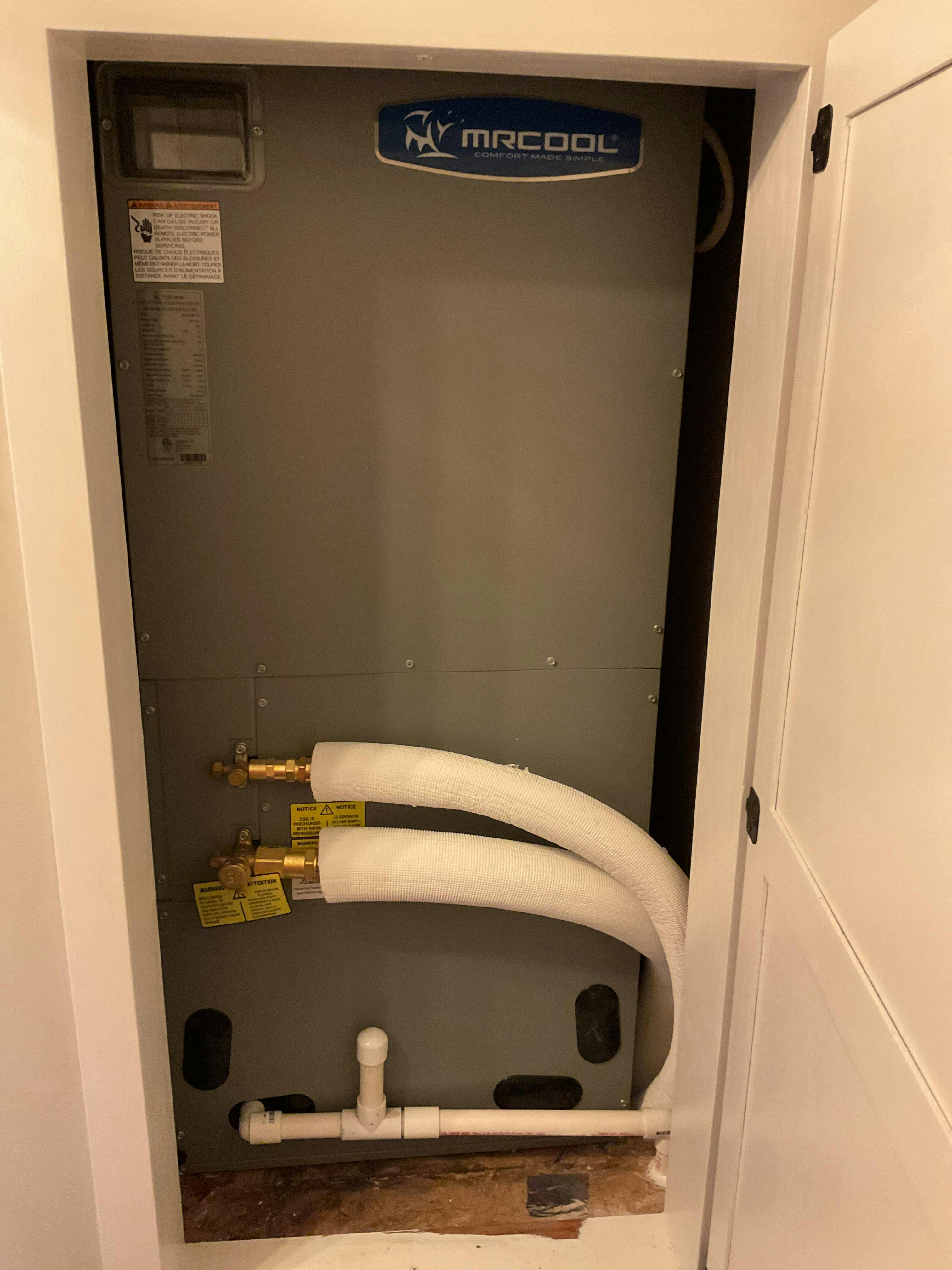

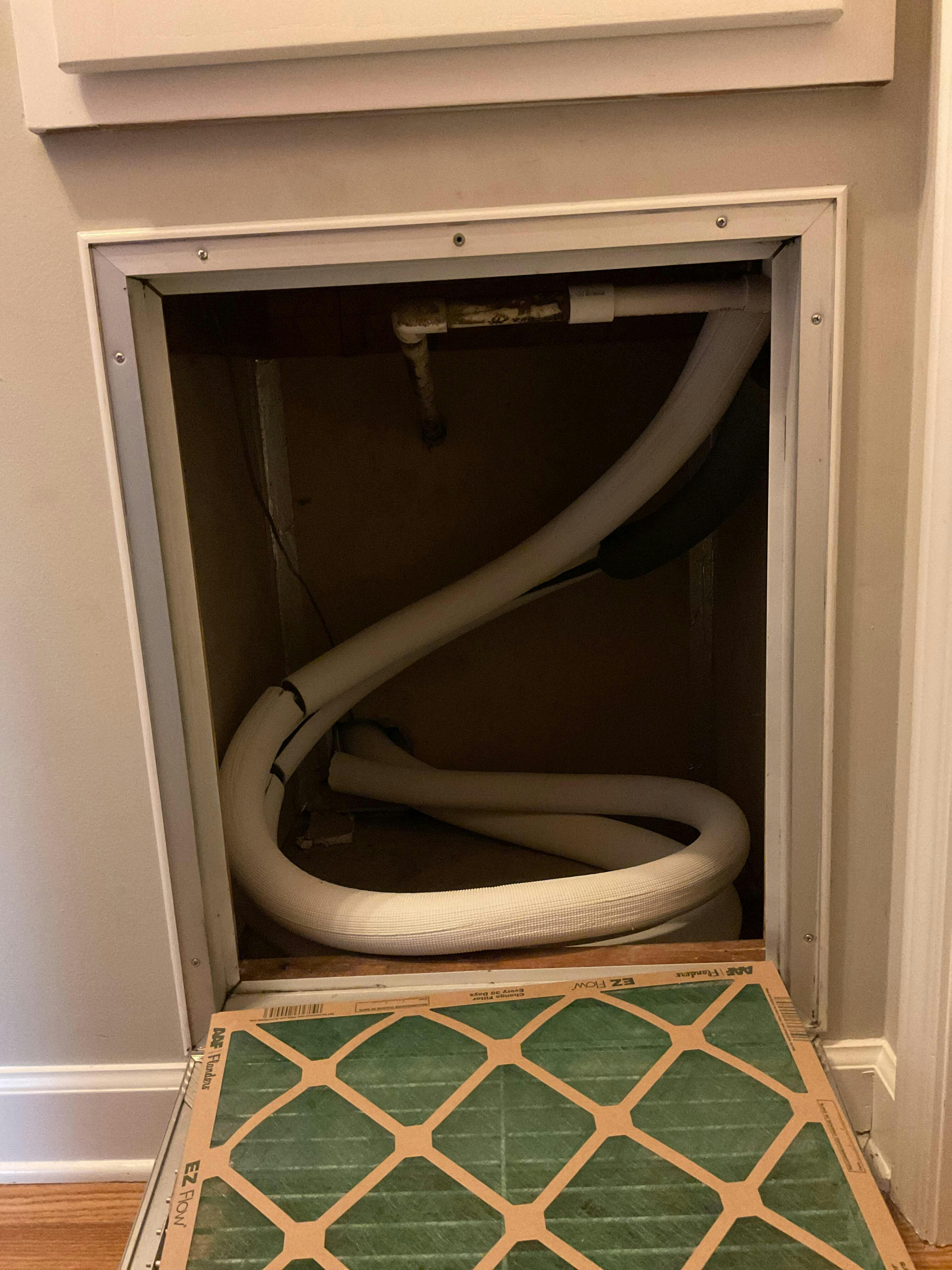

      I am pleased with my over all experience thus far. Build quality pleasantly surprised me as everything seemed to be well put together and made with reasonably sturdy materials. I retro fitted the condenser and air handler into my home replacing a 24 year old unit. As with any retro fit I had to make modifications to both the air handler and condenser to make them fit into my space but only minimal and mostly cosmetic changes were made. The pre-charged flexible line set gave me the most trouble however connecting them to the units was not the problem, but bending them to fit almost sank my instal. Because these lines only come in set sizes, I had to move up to a size longer then required for my home and I had to get creative on what to do with the excess line. Wiring in the units was fairly straightforward with the included wire diagram and a little know how. The few complaints I have are related to the design and layout of the line set connectors, in my use case it was very difficult to get the line set bent into place without a kink ruining the line. The line set is kink resistant but the tight corners I had to navigate into the condenser and air handler required a tremendous amount of patience and careful pressure to bend the line set into place. Overall I would recommend this product and the family member who helped install mine is convinced to purchase the same product when they next need to update their A/C. I would recommend doing plenty of measurements before any attempt to install and plan out the path for the line set. The unit has been up and running for 2 days and i will update my review if necessary should any problems arise
