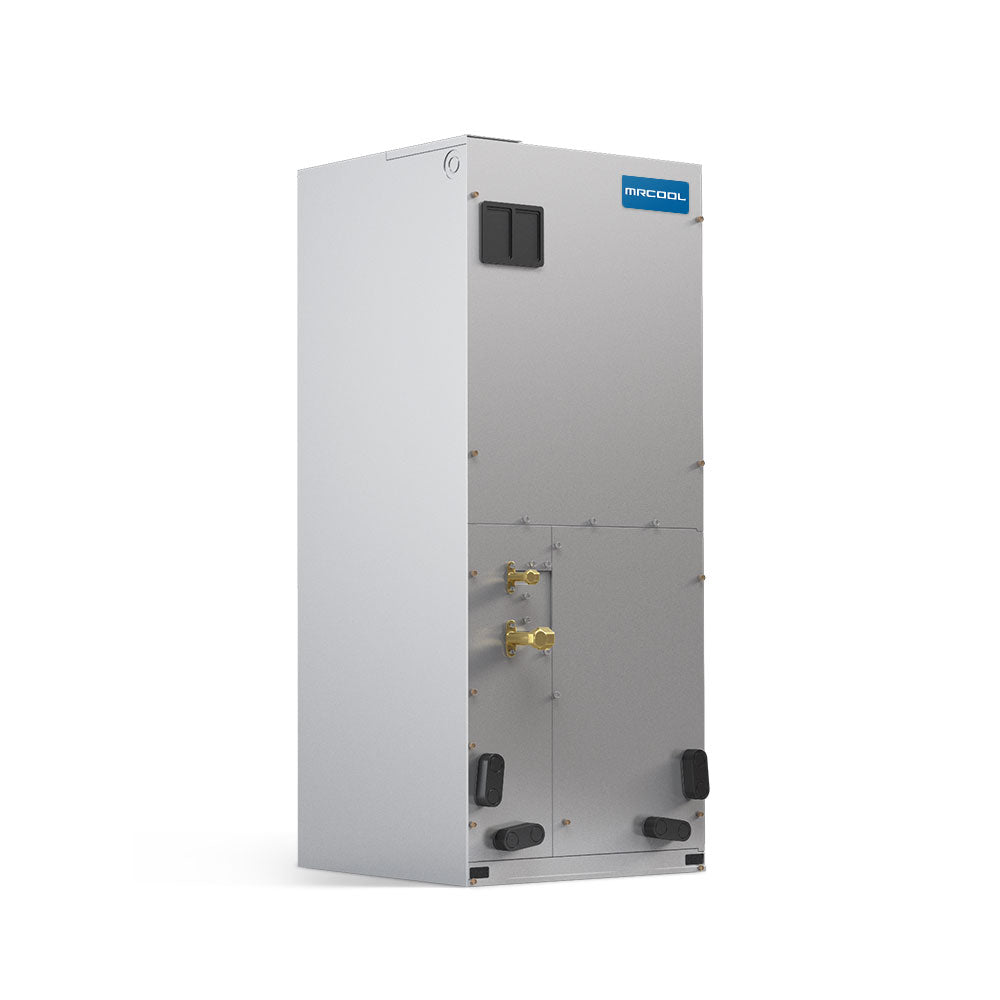

MRCOOL Universal High ESP 36,000 BTU Air Handler, MDUI18024036E

5.0 1 reviews
Model: MDUI18024036E
$1,550.00
$1,550.00 $2,190.00
-29%
Shipping calculated at checkout.

Financing Options

This item is in stock! Estimated Arrival: Feb 13 to Feb 19

$1,550.00
$1,550.00 $2,190.00

What's Included

BETTER TOGETHER

DESCRIPTION

The new Universal High-ESP Air Handler has been designed for use in high static pressure applications such as a manufactured or mobile home, or in a system that has restrictions in the ductwork which would place a strain on a conventional air handler not rated for high external static pressure. This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance.

The unit is capable of reaching a maximum static pressure of 250Pa. It offers multiple installation positions (vertical, horizontal left, or horizontal right) for an easy fit into many applications. The Universal High-ESP Air Handler also uses a durable metal filter that is both easy to clean and corrosion resistant to ensure it has a long service life.

Key Features

  • Up to 20 SEER
  • High Efficient Energy Saving DC Fan Motor
  • Internal Fan Blade Creates Low Noise
  • R-410A environmentally friendly refrigerant
  • 3 Connection Types: Patented Pre Charged No-Vac, Sweat Braze Fitting and Flare Fitting
  • AHRI Certified & ETL listed
  • High Efficient Energy Saving DC Fan Motor
  • Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
  • Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
  • Multi-Position Installation: Upflow or Horizontal
  • 10 Year Registered Limited Warranty
  • 2 Step Condensation Protection

SPECIFICATIONS & DIMENSIONS

  • Product Dimensions: 21.25"W x 21.25"D x 48.25"H
  • Product Weight: 156.5 lbs
  • SEER: Up to 20
  • EER: 10
  • HSPF: 10
  • CFM: 1,000
  • Tonnage: 2-3 Ton
  • Cooling Capacity: 36,000 BTU
  • Heating Capacity: 36,000 BTU
  • Electrical Requirements: Requires a minimum of 208V-230V/60HZ/4A-15A (please check your home meets this electrical requirement prior to purchase)
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 15 A
  • Min Circuit Ampacity: 4 AMP
  • Color: Gray
  • Max Coverage Area: Up to 1,500
  • Refrigerant Type: R-410A
  • Decibel Rating: 47
  • lnverter: DC
  • Lineset Included: No
  • Line Set Length: 15ft, 25ft, 35ft, 50ft
  • Liquid Line Size: 3/8 in
  • Suction Line Size: 3/4in
  • Filter Type: Washable
  • Filter Size: 19-5/16 X 20-5/16 X 5/8
  • Auxiliary Heater Available: Yes
  • Auxiliary Heater Sizes: 5kw / 8kw / 10kw
  • Overload Protection: Yes
  • Certifications: ETL Listed // Energy Star // AHRI
  • Warranty: 10 Year Registered Limited Warranty // 5 Years Limited Parts Warranty
