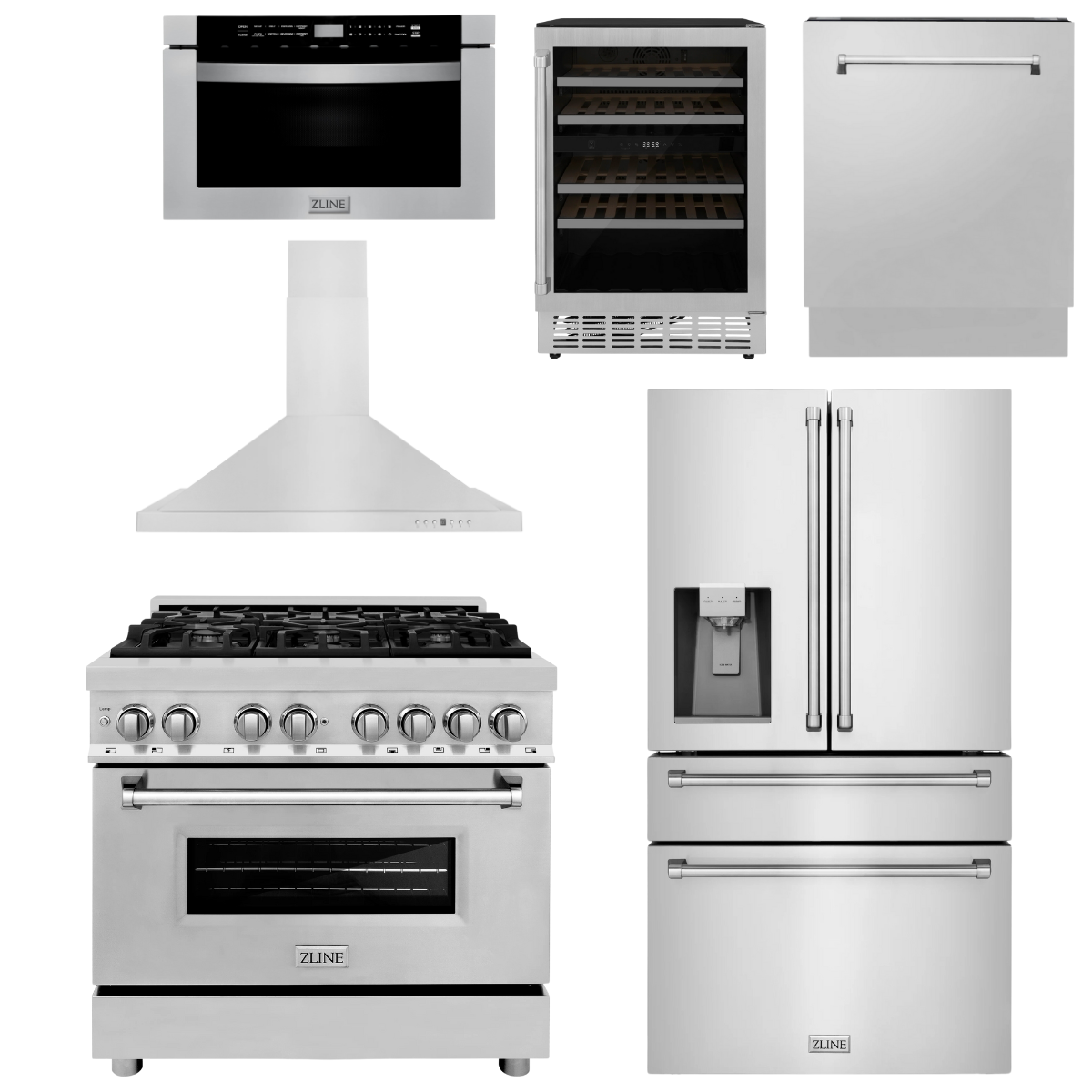

ZLINE Appliance Package - 36" Dual Fuel Range, Range Hood, Refrigerator with Water and Ice Dispenser, Microwave Drawer, Dishwasher and Wine Cooler

5.0 2 reviews
Model: 6KPRW-RARH36-MWDWV-RWV
Regular price $10,754.76
Sale price $10,754.76 Regular price $12,099.70
-11%
Shipping calculated at checkout.

Financing Options


Fuel type: Dual Fuel
Refrigerator type: External Water & Ice Dispenser

This item is in stock! Estimated Arrival: Oct 16 to Oct 23


Regular price $10,754.76
Sale price $10,754.76 Regular price $12,099.70

Package Information

Range

ZLINE Kitchens's Premium 36" Dual Fuel Range, RA36 is complete with a 6 burner gas cooktop for energy-efficiency, temperature control, and easy even-cooking. The 4.6 cu.ft. of deep oven capacity provides a large cooking area that's perfect for multiple dishes at once and easily handles large baking sheets, like an 18" pizza.

THREE-LAYER GLASS OVEN

  • An oven with three layers of glass and dual lighting.
  • Professional aluminum mesh seal for optimum insulation.
  • Oven light controlled by a light switch located on the front control panel.
  • Crystal clear visibility to see inside your oven while cooking.

STAY-PUT HINGES

  • ZLINE Kitchens's proprietary stay-put hinges.
  • Designed to support the full weight of oven door and stop at any place.
  • Durable and effective, with a smooth action.

PORCELAIN COOKTOP

  • Heavy Duty Italian made porcelain one-piece cooktop.
  • 6 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
  • One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
  • No-scratch porcelain designed to handle every cooking environment.

CAST IRON GRILL

  • Solid-piece cast iron grill - heavy duty and built to last.
  • Extremely durable, with an exceptional strength-to-weight ratio.

ITALIAN BURNERS

  • Handcrafted, high-quality Italian burners imported directly from Italy.
  • Premium alloy to ensure efficient and clean-burning flames.
  • Durable and easy to clean. Italian burners easily detach for a simple clean.

STAINLESS STEEL KNOBS

  • Heavy duty stainless steel knob controls with smooth action turn.
  • 5 oven settings.

ADJUSTABLE LEGS

  • ZLINE ranges feature stainless steel, easy-to-install adjustable legs
  • Twist legs to adjust total range height anywhere from 36" to 38.5"

OVEN FUNCTIONS

  • High Bake
  • Low Bake
  • Broil
  • Convection Bake
  • Convection Broil

Convection Fan can be turned on or off by the oven knobs.

Note: ZLINE Range does not come with a wok ring (pictures to be updated).

Appliance Academy - Learn More:

  • Dimensions: 36" W x 27.38" (29" w/handle) D x 36"H
  • Oven Dimension: 30.5" W x 18.5" D x 14" H
  • Lighting: Dual Lighting, controlled by a light switch on the front control panel
  • Voltage: *Requires a minimum of 220V-240V/60HZ/20-50A (please check your kitchen meets this electrical requirement prior to purchase) // NEMA-14-50 4 wire plug system
  • Control Type: Durable Front Control
  • Material: - Stainless Steel frame with porcelain Top // - Italian made hinges and burners
  • Warranty: 1 Year Full Warranty
  • Certifications: ETL Certified
  • Product Weight: 253 lbs
  • Cooktop: - Cooktop: (6) Burners with porcelain Cook Top with electronic spark ignition for all burners // - Type: Gas or Propane // - This range is shipped for use with natural gas. It also has an LP conversion kit for propane use included.
  • Oven: - Convection Electric // - 4.6 cu.ft. deep oven // - Triple Glass Window // - Dual Lighting // - Professional Aluminum mesh Seal // - Number of Oven Racks: 2
  • BTU Ratings: - Dual Burn - 18,000 BTU // - Rapid Burner (x2) - 13,000 BTU // - Semi-Rapid Burner (x2) - 8,500 BTU // - Auxiliary Burner - 4,200 BTU
  • Fuel Type: - Cooktop: Gas or Propane // - Oven: Convection Electric

Range Hood



ZLINE 36" Stainless Steel Indoor Wall Range Hood KB-36

OPTIONS & ACCESSORIES

Ductless/Recirculate Option - Yes requires CF1 filters
Ceiling Heights Options:
Less 8’ - require Short Kit SK-KB/KL2/KL3
8’ to 9' - No Ext or Short Kit required
9' to 10’ - require Ext 1PCEXT-KB/KL2/KL3
10' to 12’ - require Ext 2PCEXT-KB/KL2/KL3
Crown Molding(s) - Available for purchase (sold separately):
CM1-KB/KL2/KL3
CM2-KB/KL2/KL3
CM3-KB/KL2/KL3
CM4-KB/KL2/KL3
CM5-KB/KL2/KL3
CM6-KB/KL2/KL3

Certified Outdoor Use - No
Available in - 30"(KB-30), 42"(KB-42), 48"(KB-48)

PRODUCT DESCRIPTION:

The ZLINE KB-36 is a 36-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:

  • Dishwasher-safe stainless steel baffle filters
  • Built-in LED lighting
  • High performance 4-speed motor with speeds up to 400 CFM

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-36 ships next business day when in stock.



  • Dimensions: 36" W x 19.7" D x 10.5" H
  • Chimney (Dimension): 9.2" W x 8" D x 16" H (x2) (Telescoping)
  • Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~7-8 ft. Ceilings // 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings // 2 PC Extension (2-36") ~10-12 ft. Ceilings
  • Venting Size: 6" Outlet (Transition piece with backdraft damper to round ducting included) // Charcoal Filters (not included) available for ductless/recirculating option.
  • Airflow (Q/L/M/H): 120/240/320/400 (CFM)
  • Lighting: 2 Directional LED Lights (3-Watt)
  • Noise Level: 20/29/34/41 (Decibels)
  • Voltage: 110V/60HZ
  • Motor: High Performance 400 CFM/4-Speed Motor
  • Mount Type: Wall Mounted
  • Speeds: 4 speeds
  • Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
  • Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
  • Material: 21g #430 Stainless Steel
  • Warranty: 3 Year Parts Warranty
  • Features: Manufactured by ZLINE Kitchen & Bath // Model No. KB-36 (ETL Listed)
  • UPC: 855187005405
  • Certifications: ETL and UL Listed

INSTALLATION INSTRUCTIONS




Range Hood Decibel Levels:

ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed this range hood only reach 41 decibels, which is quieter than your average conversation.




Range Hood Decibel Levels





    Refrigerator

    This ZLINE Professional 36" 21.6 cu. ft Freestanding French Door Refrigerator, crafted in Lake Tahoe, USA, combines top-tier performance with classic design. This refrigerator is packed with innovative features to enhance your kitchen experience, making it the perfect blend of style and functionality.

    • External Water Dispenser and Ice Maker: Delivers fresh, filtered water discreetly within the refrigerator and up to 4 lbs of ice per day with an automatic ice maker in the freezer
    • Spacious Interior: With a generous 21.6 cu. ft. capacity and two large freezer drawers, you’ll have plenty of space to keep your groceries organized and within reach.
    • Counter Depth Design: Achieve a sleek, modern kitchen look with a fridge that fits perfectly flush with your countertops.
    • Customizable Temperature Control: Adjust the refrigerator temperature between 34°F to 44°F and freezer settings from -7°F to 7°F, ensuring your food is stored in the ideal environment.
    • RapidChill Mode: Need to cool something quickly? Use the RapidChill mode to save time and keep your food fresh.
    • Digital ChillControl: Easily manage temperatures and switch between modes—vacation, sabbath, or eco—using the intuitive LED display.
    • CrispControl Drawer: Keep fruits and vegetables fresh longer with two adjustable temperature crisper drawers.
    • Dual Cooling System: Separate cooling systems for the refrigerator and freezer ensure optimal freshness and prevent odors from mixing.
    • Fingerprint-Resistant Finish: Keep your fridge looking spotless with our smudge-proof, fingerprint-resistant stainless steel finish.
    • Energy Efficient: ENERGY STAR rated for superior insulation and an energy-reducing cooling system, combining power with savings.

    *Assembly Required: This refrigerator and its door handles will ship in multiple boxes and requires assembly upon installation.

    • Dimensions: 35.8" W x 29" D x 69.9" H
    • Depth With Door Open: 43.2"
    • Depth Type: Counter Depth
    • Door Style: French Door
    • Capacity: Total Capacity - 21.6 cu. ft. // Fridge Capacity - 15 cu. ft. // Freezer Capacity - 6.6 cu. ft.
    • Number of Fridge Shelves: 4
    • Electrical Requirements: 120V/60Hz/15A
    • Noise Level: 43 dBA
    • Ice Maker: Yes - External
    • Ice Maker Type: Dual Automatic
    • Ice Amount per Day (lbs.): 5 lbs
    • Ice Tray Storage: 4 lbs
    • Water Dispenser: Yes - External
    • Replacement Filter Model Number: RFM-W-FILTER
    • Certifications: UL Listed, ENERGY STAR Certified
    • Warranty: 1 year parts and service and 5 year parts on sealed system, including compressor, evaporator coil, condenser coil, filter drier

    Dishwasher

    ZLINE 24 in. Top Control Tall Dishwasher in Stainless Steel with 3rd Rack, DWV-304-24

    Experience Attainable Luxury with the ZLINE Tall Tub Top Control Dishwasher in Stainless Steel. Featuring 8 different wash cycles to accommodate every need, this dishwasher delivers a powerful performance with sparkling clean and dry dishes every time. Customize the dishwasher to your needs with two adjustable racks and a third utensil rack for added flexibility. This ENERGYSTAR Certified dishwasher is designed to optimize performance with every use, using multiple filter technology that ensures clean dishes while being environmentally friendly. Choosing a ZLINE dishwasher means you've chosen a product that is high performance, professional quality, energy conscious, and fully customizable to your kitchen.

    The ZLINE DWV-304-24 includes a Stainless Steel panel and ships next day when in stock. This dishwasher will be sent in multiple boxes.

    DESIGN & PERFORMANCE

    • ZLINE Stainless Steel Finish Panel
    • At only 51 decibels of sound on the highest setting, ZLINE dishwashers will let your kitchen tasks continue in peace.
    • All installation hardware included - One of the easiest in the industry, guaranteed!
    • Top control panel is easy and straightforward to use, while offering a sleek concealed look

    INSTALLATION & CARE

    • Simple Installation - This dishwasher comes with a single three prong plug for easy installation
    • Below is a video on how to install a custom panel:

    Information Center:

    • Ultimate Dishwasher Guide: 5 things to consider when buying a Dishwasher: Read Now

    • Dimensions: 23.6"W x 22.4"D x 33.9" to 35.9"H
    • Suggested Cut-Out: 24"W x 24"D x 34.13"H
    • Interior Dimensions: 20.95"W x 20.5"D x 24.17"H
    • Steam Function: Without Steam
    • Material: Stainless Steel
    • Control Location: Top Control
    • Number of Cycles: 8
    • Number of Place Settings: 15
    • Number of Racks: 3
    • Panel Finish: Stainless Steel
    • Energy Efficient Tier: 1
    • Noise Level: 51 Decibel
    • Electrical Requirements: 120V / 60Hz / 15A
    • Control Type: Button Control
    • Control Location: Top Control
    • Warranty: 1 year on the Parts
    • Installation Type: Plug In - 3 Prong - Nema5-15 // Power Cord Included

    Microwave

    Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Stainless Steel (MWD-1) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.

    Features

    • Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
    • Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
    • Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
    • Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
    • Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
    • High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000 watt cooking power
    • 1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
    • Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
    • Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
    • Manufacturer Warranty - 2 year parts warranty
    • ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance

    • Brand: ZLINE Kitchen and Bath
    • Dimension: 23 7/8" W x 24" D x 15" H
    • Voltage: 120V/60HZ
    • Motor: 1,000W
    • Mount Type: Drawer
    • Control Type: 11 Power Levels
    • Warranty: 2 Year Parts Warranty
    • UPC: 817299028529
    • Product Weight: 70.5

    Installation Manual

    ZLINE Microwave Drawer Review | What to know before you buy

    Frequently Asked Questions:

    Q: Can you manually open and close the drawer on this microwave MWD-1?

    A: You can manually open the MWD-1 if you pull the handle on the drawer. Do not attempt to use the button and manually open the drawer at the same time.

    This might cause the drawer to come off the tracks if it's pulled too fast while trying to automatically open. Either manually open the drawer or use the button but don’t do both.

    Wine Cooler

    The ZLINE ZLINE 24" Dual Zone 44-Bottle Wine Cooler in Stainless Steel with Wood Shelf (RWV-UD-24) provides a premium entertainment experience by pairing unmatched cooling technology with luxurious style. Achieve ZLINE Attainable Luxury® excellence with innovative technology designed to enhance your kitchens capability.

    This fridge includes many unique features such as:

    Spacious Storage - Easily store up to 44 Bordeaux-style wine bottles or 154 12 oz. cans with 4 durable wood storage shelves

    Dual Zone Temperature Control - An adjustable upper zone of 39°F-50°F and lower zone of 50°F-68°F allows you to keep your red and white wines at an ideal temperature

    LED Display - Easy-to-use LED display allows you to quickly change temperatures, lighting, and control a child lock for additional safety

    Smooth Glide Wood Racks - Smooth-gliding Beech wood racks showcase your collection in style and ensure any vibration is absorbed

    Built-in or Freestanding - Enjoy versatile installation options to perfectly match your style, either seamless within your cabinetry or standalone

    Dual Pane Glass Door - Maintain the perfect cooling temperature for your beverages and easily spot your items with a well insulated UV-resistant dual pane glass door

    Reversible Door - Provides additional installation flexibility with an easily reversible door hinge

    LED Lighting - Illuminate the interior of the beverage cooler with bright built-in LED lights

    Professional Look and Feel - A modern flat door design paired with a stainless steel door frame and professional handle provides a premium look and feel that complements any kitchen style

    Carbon Filter - Included carbon filter protects wine and other beverages from harmful odors


    For California residents, please see Prop 65 Warning

    • Dimensions: 23.44"W x 22.5"D x 34.13"H
    • Cut-Out Dimensions: 24"W x 24"D x 34 1/4"H
    • Depth incl. handles: 24.06"
    • Depth without panel: 20.63"
    • Weight: 93 lbs
    • Capacity: 4.5 cu. ft. // 44 Wine Bottles
    • Temperature: Higher zone of 39°F-50°F and lower zone of 50°F-68°F
    • Decibels: 39 dBA
    • Electrical requirements: 115V/60Hz/2A
    • Depth: Counter-Depth
    • Door Style: Single Door (Reversible Hinge)
    • Number of Shelves: 4
    • Warranty: 2-year parts and labor warranty, 5 years sealed system parts and labor
    • Certifications: ETL Listed, DOE certified
