  3. MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM448HPC07C84

4th Gen New Release!

MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM448HPC07C84

5.0 3 reviews
Model: DIYM448HPC07C84
$8,498.00
$8,498.00 $11,473.00
-26%
Shipping calculated at checkout.

Financing Options

Mount type: Ceiling
Line set length: 25 ft.

This item is in stock! Estimated Arrival: Dec 09 to Dec 15

$8,498.00
$8,498.00 $11,473.00

Product Overview

  • Zones: 4

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

What's Included

BETTER TOGETHER

DESCRIPTION

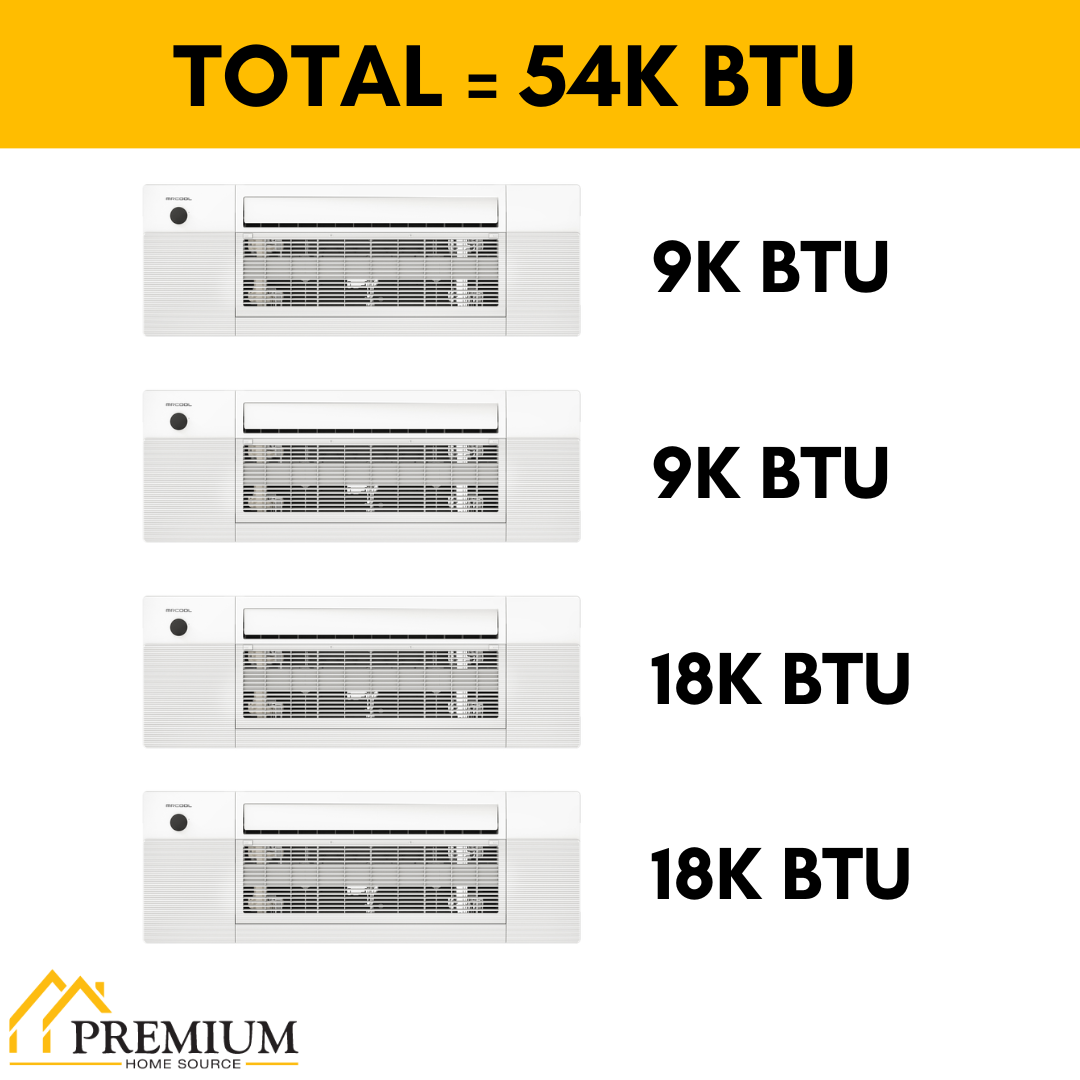

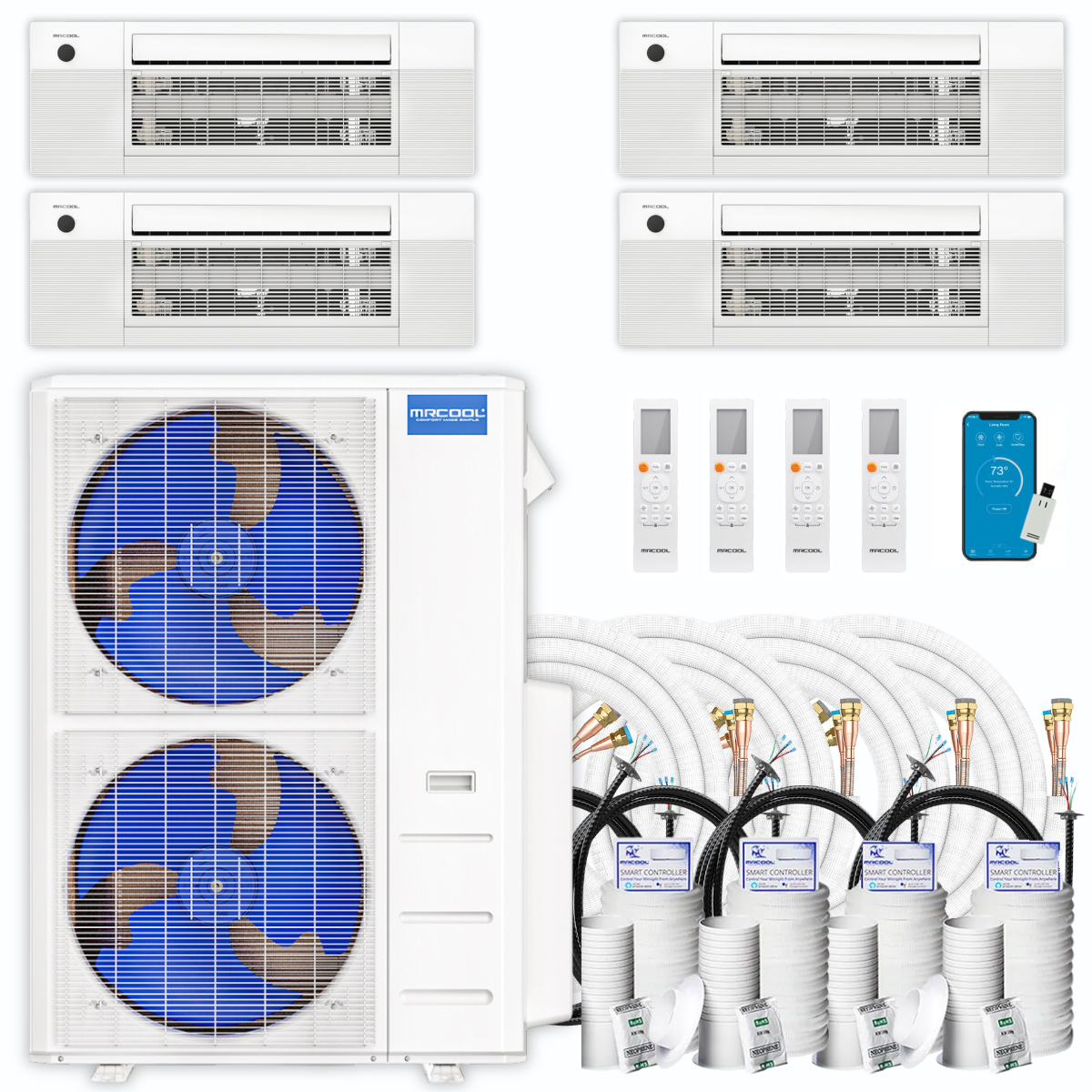

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, two 9K and two 18K BTU Ceiling Cassette Air Handlers and a remote, lineset, communication wire for each air handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

Mini Split System Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU Rating of the Condenser.

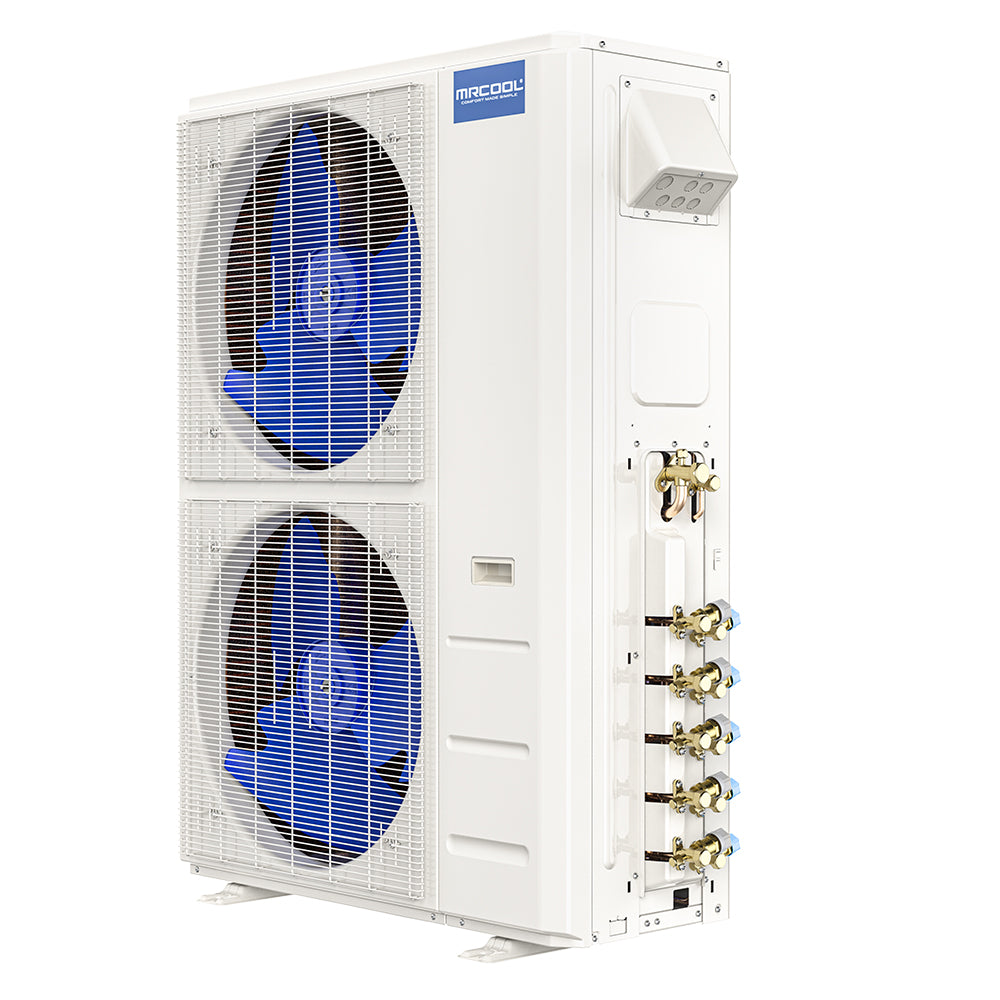

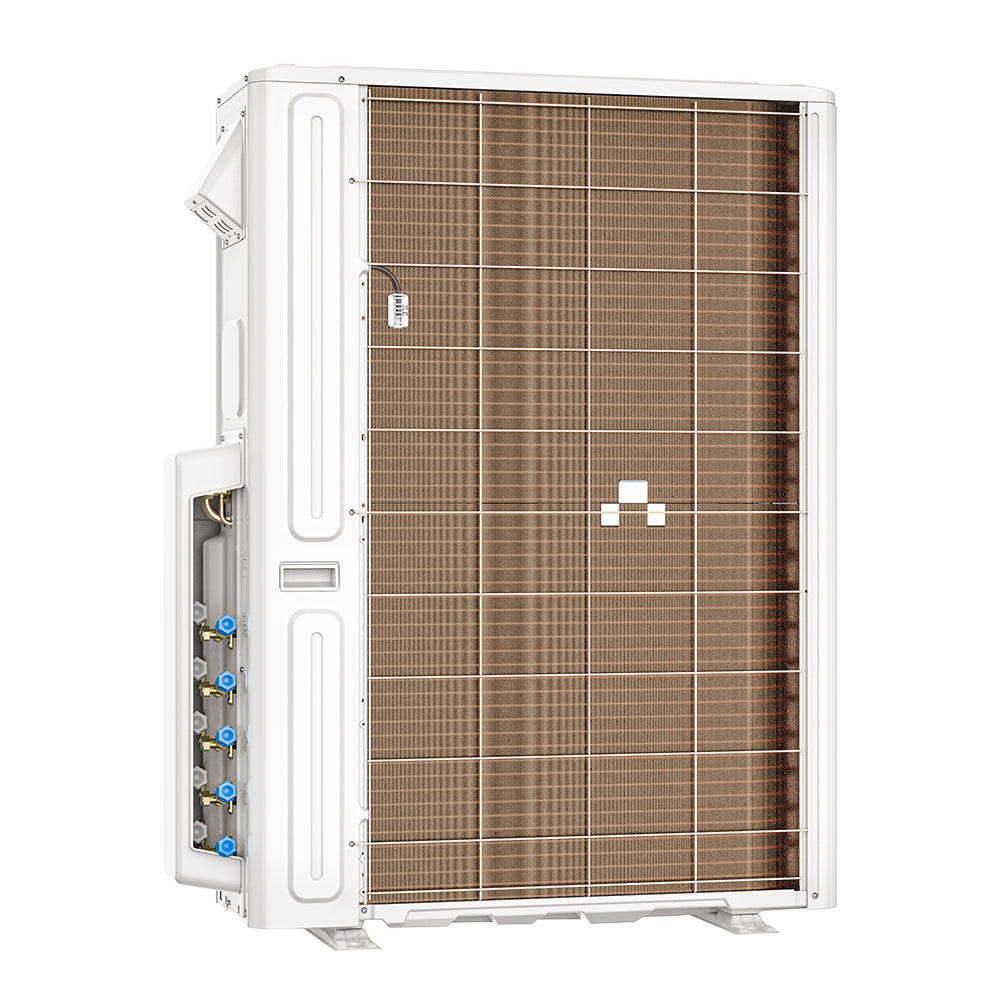

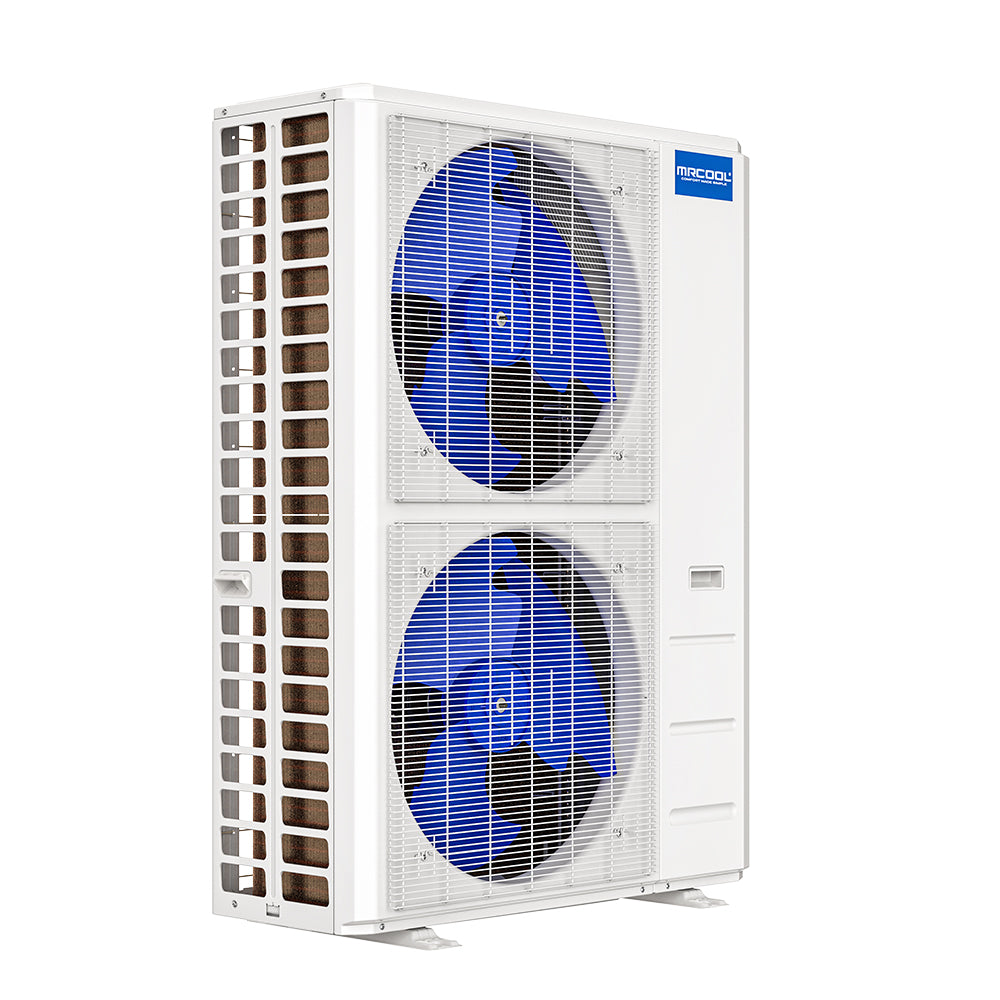

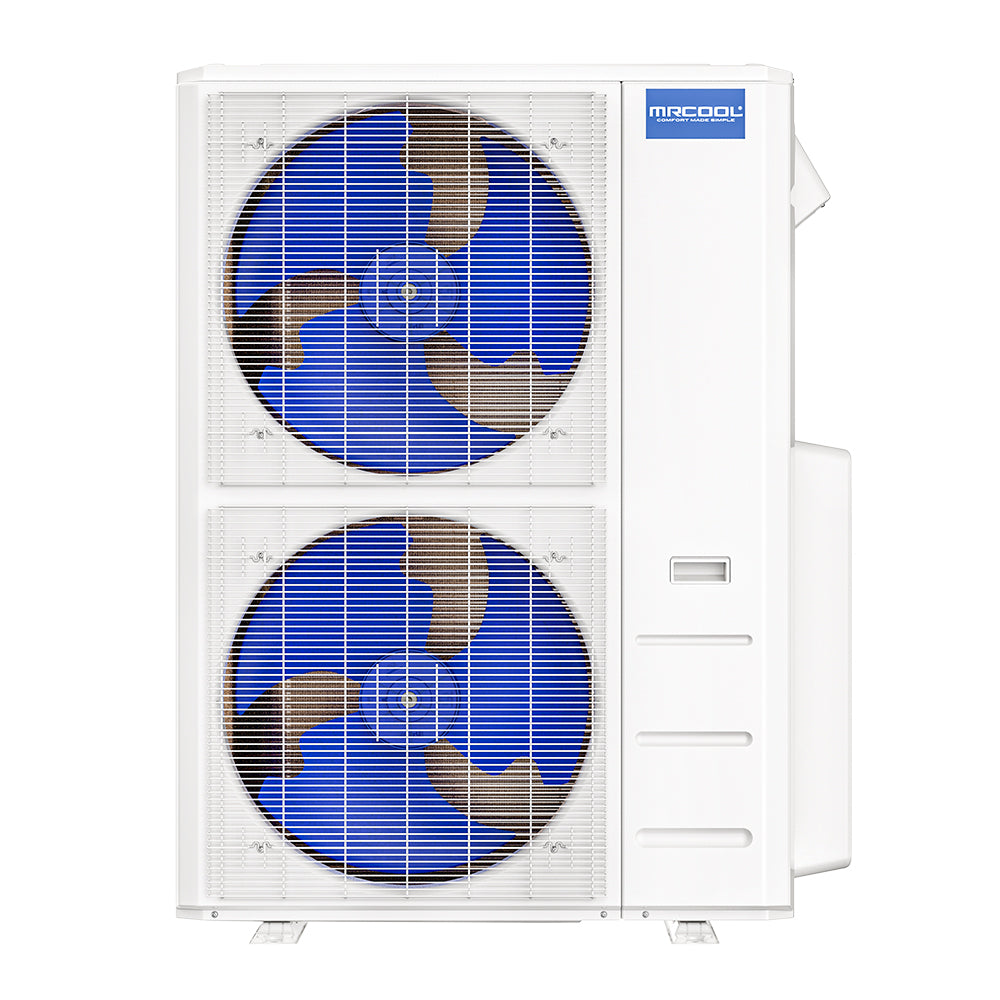

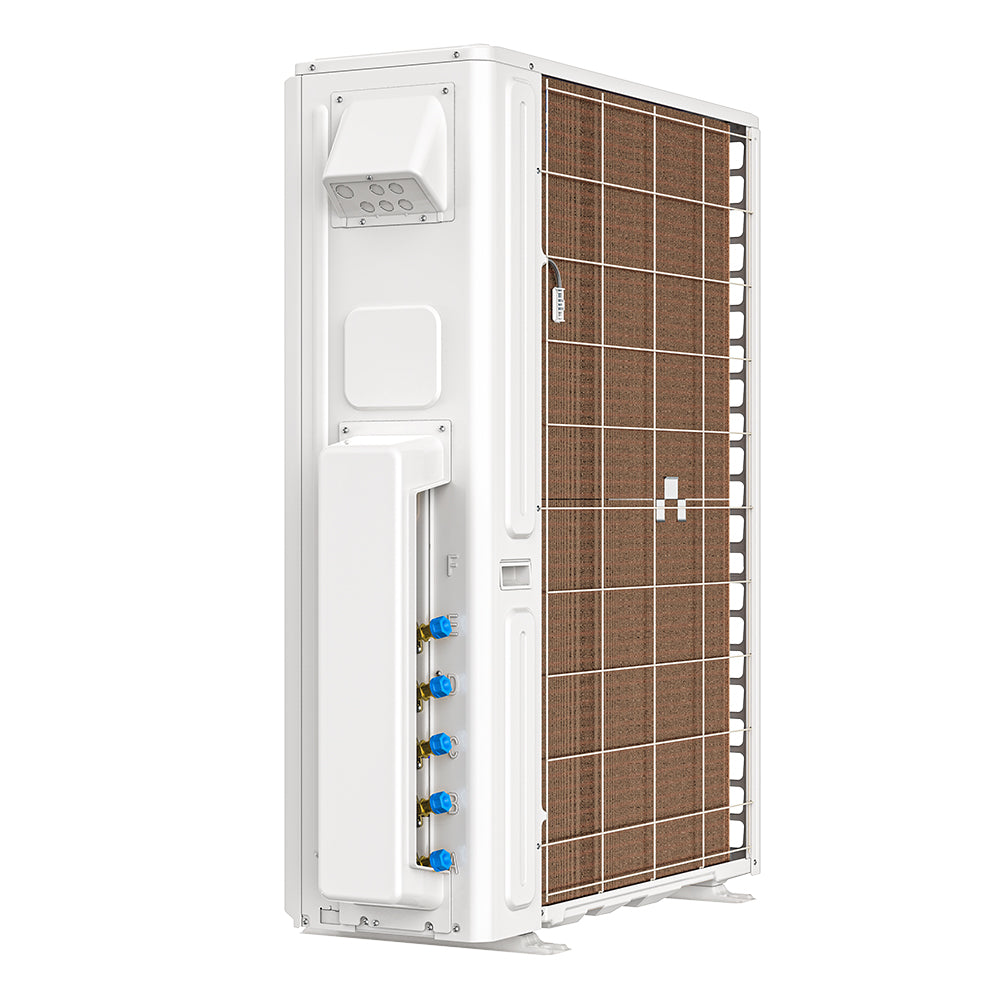

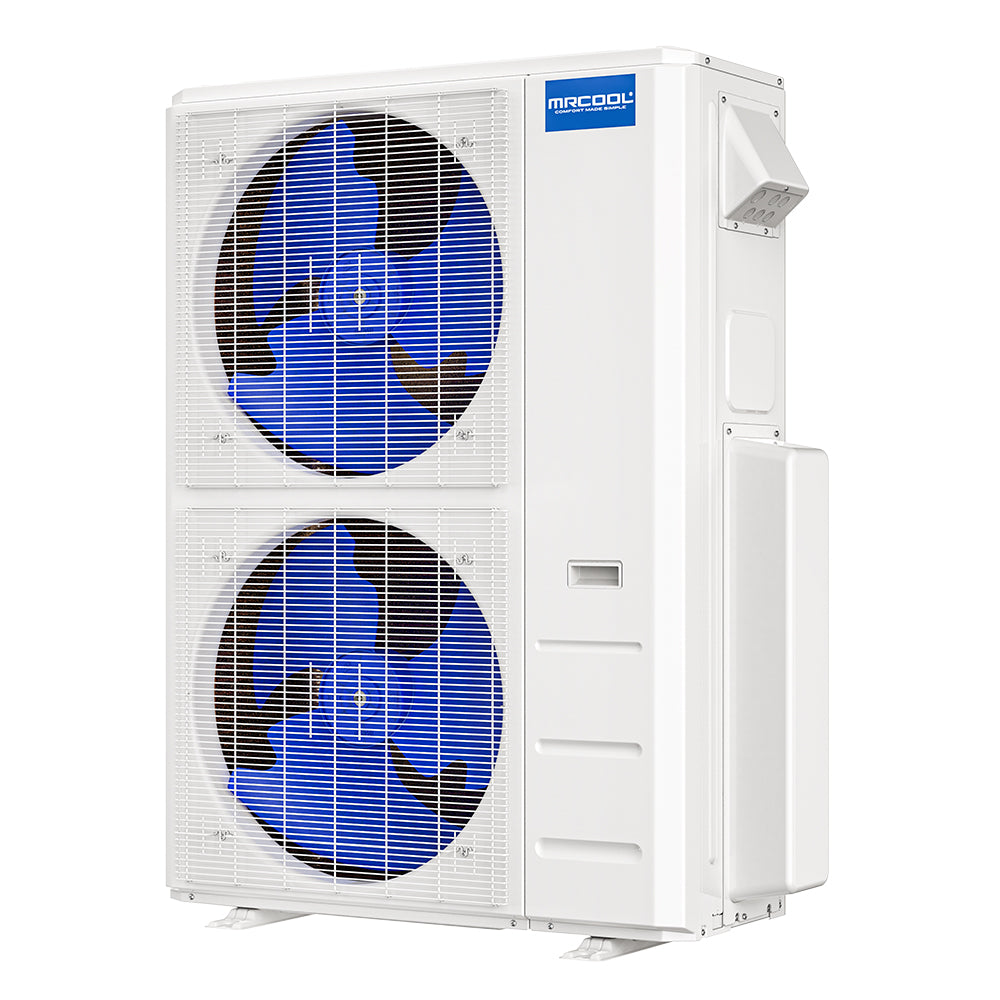

Condenser 48K BTU

  • Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
  • Works In Extreme Temperature. The ability to heat even when temperatures drop to -5°F.
  • Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

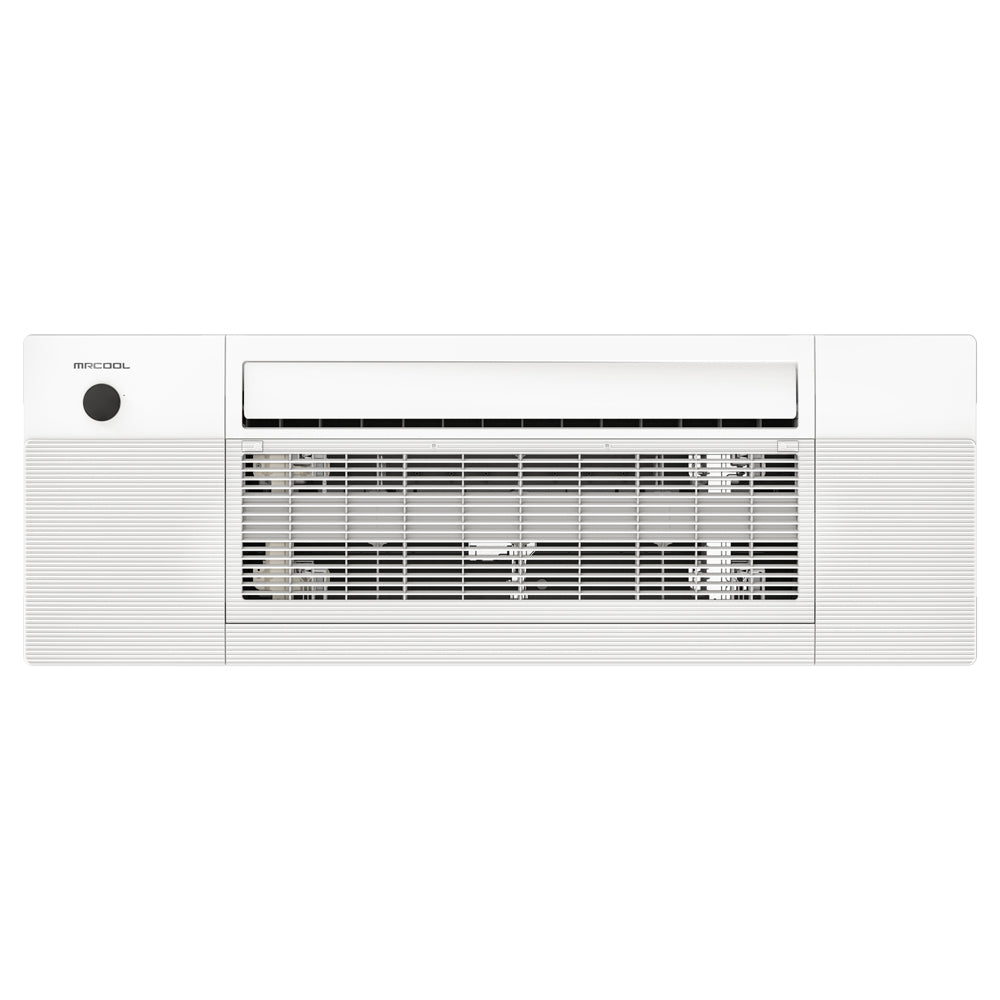

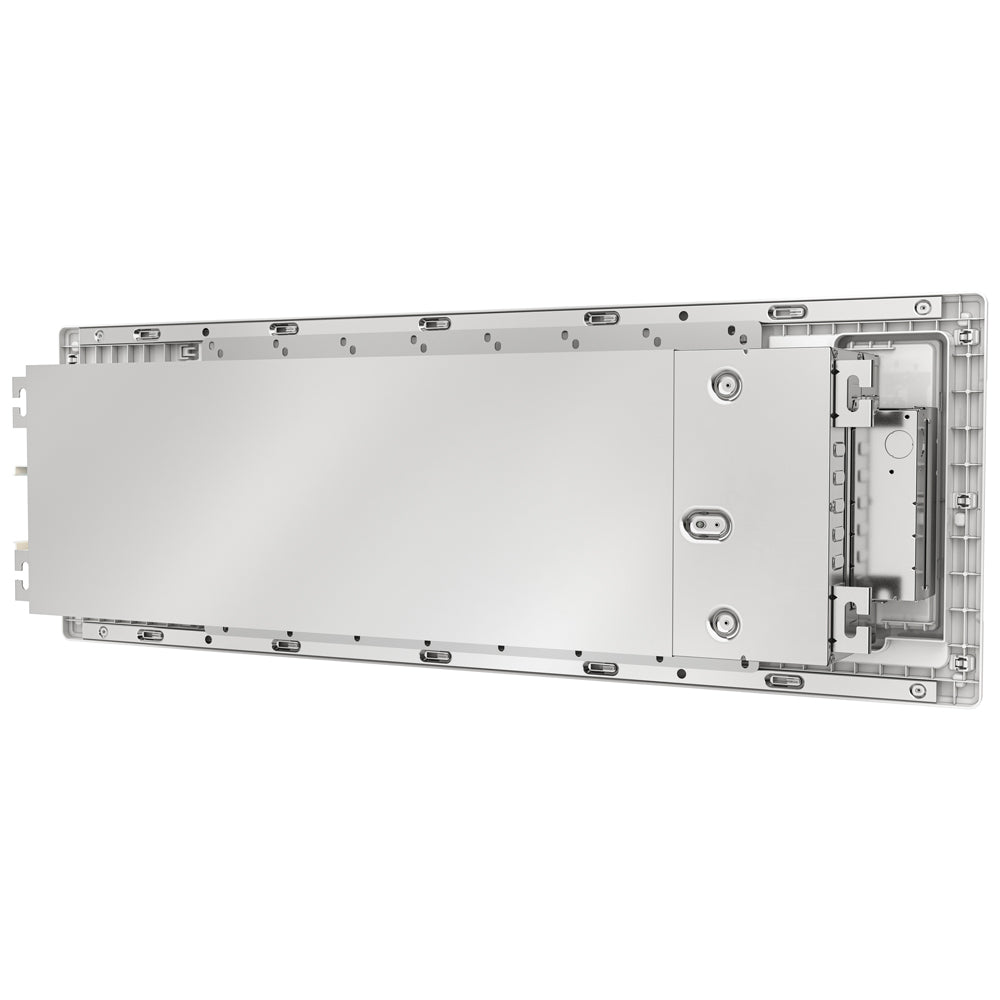

    Air Handler 9K BTU

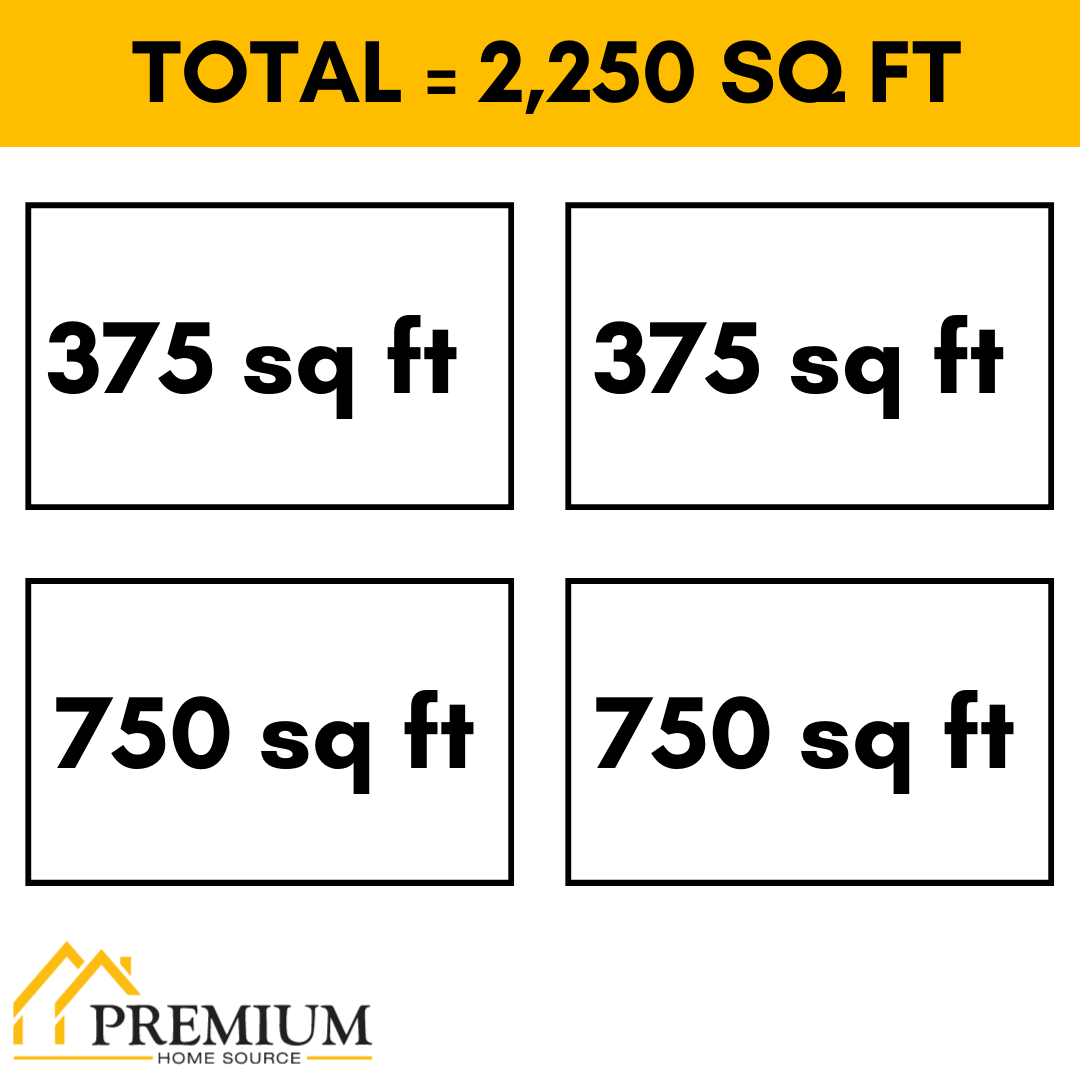

    • Vast Coverage Area. The cassette covers an area between 180 to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.

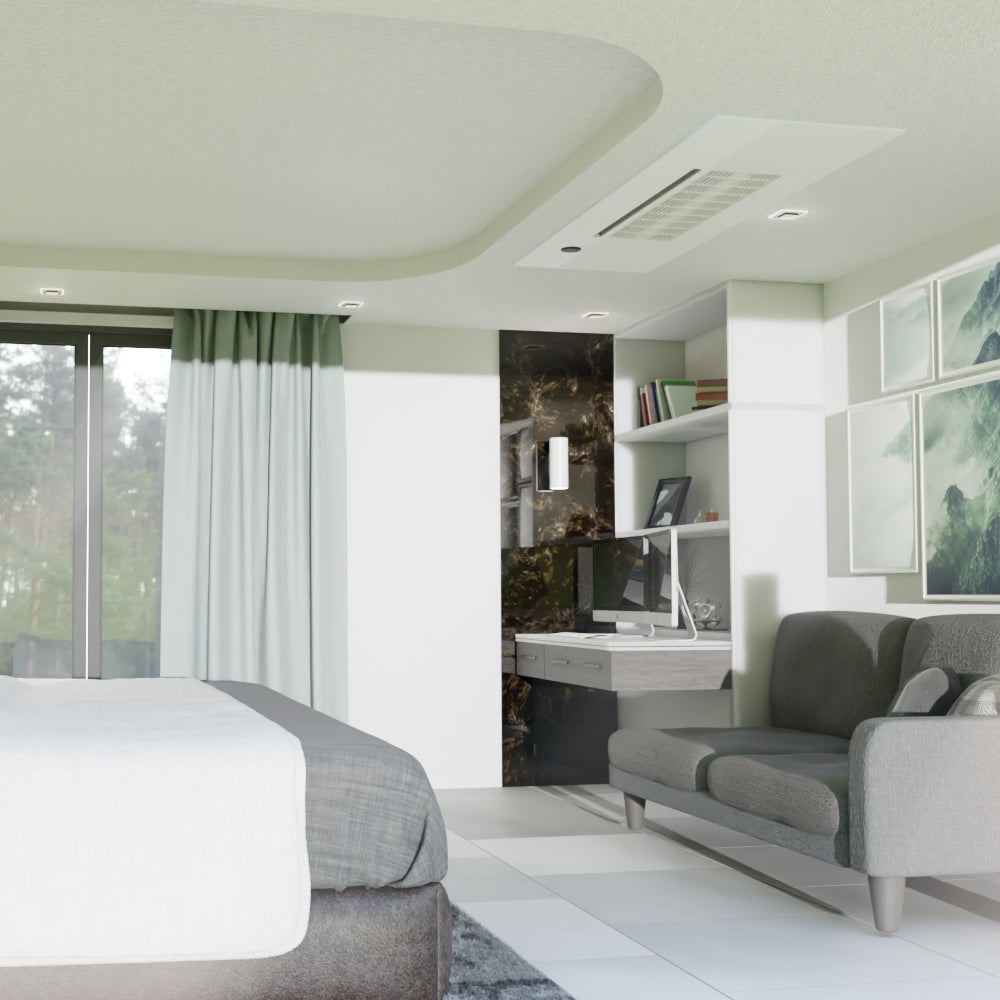

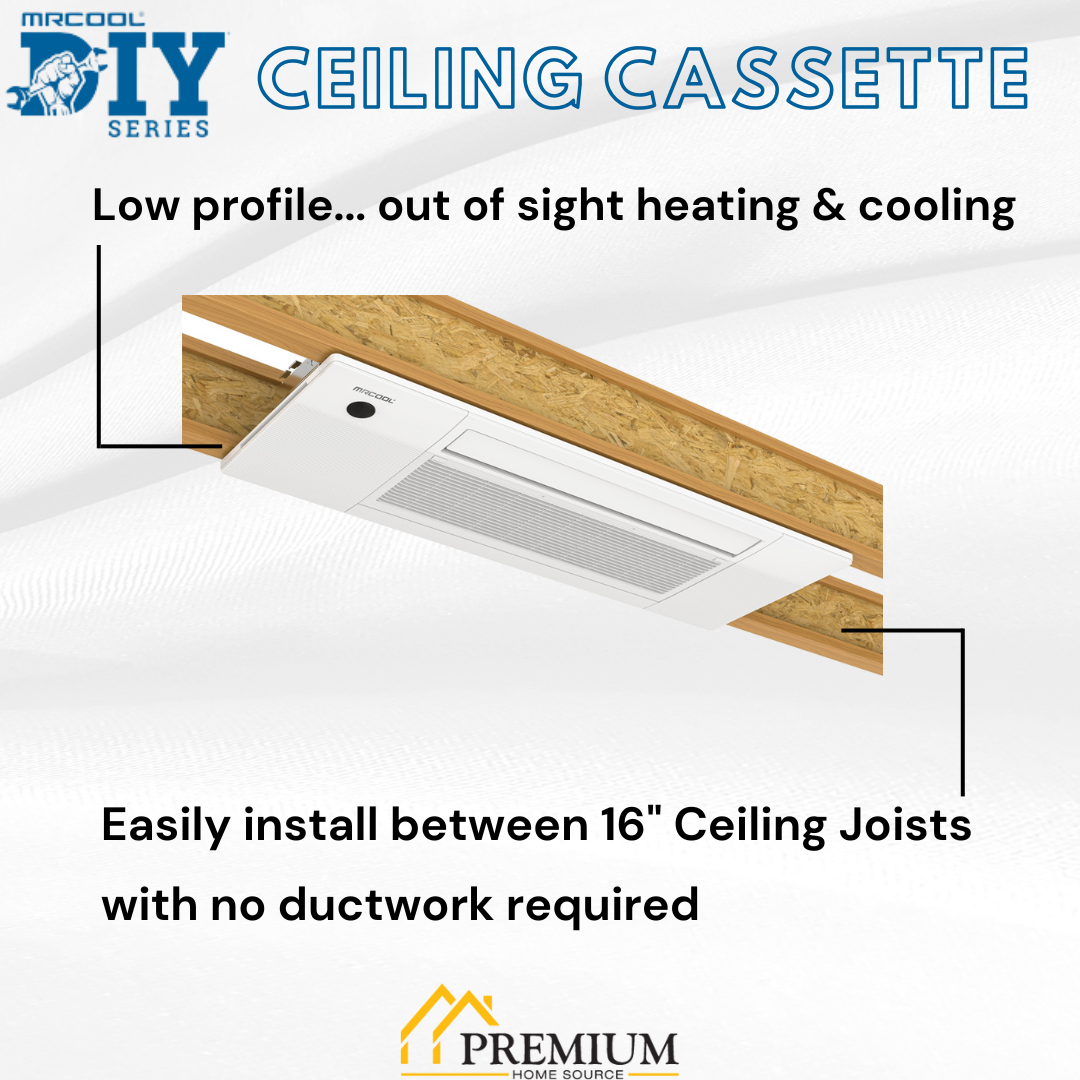

    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

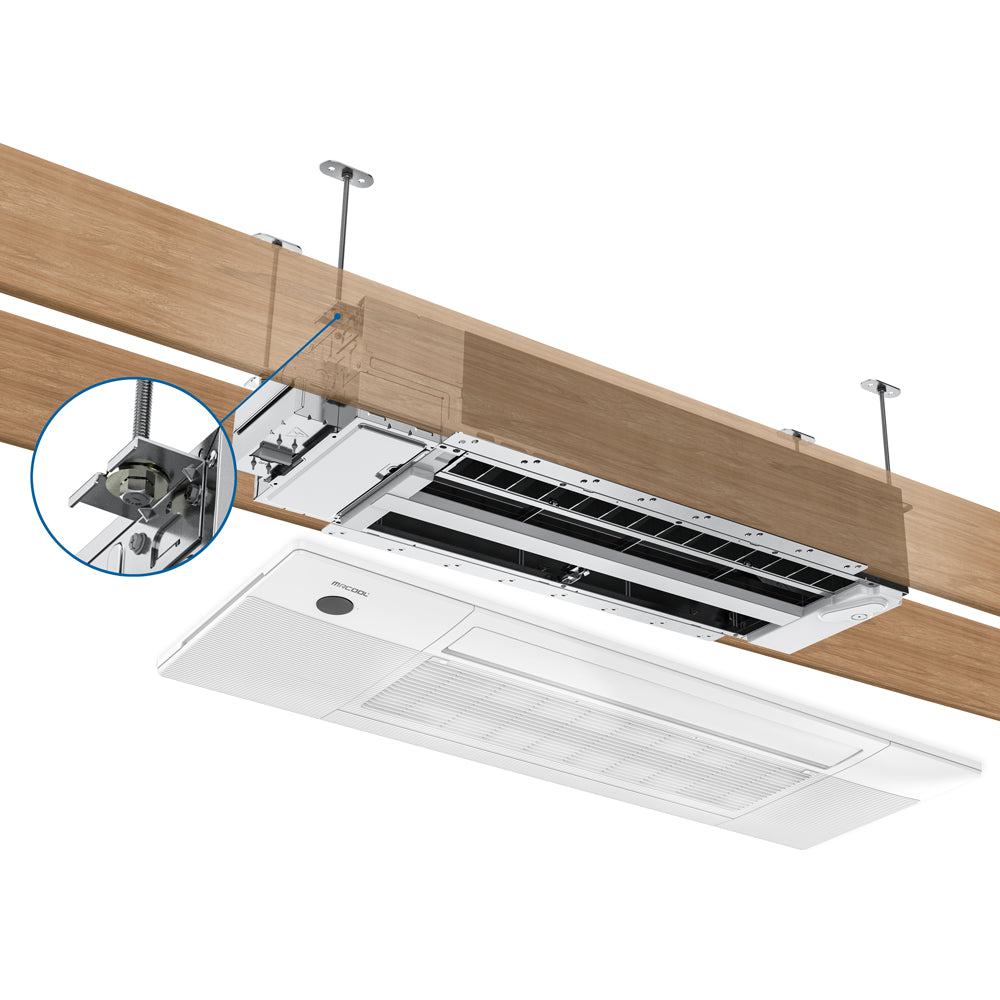

    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

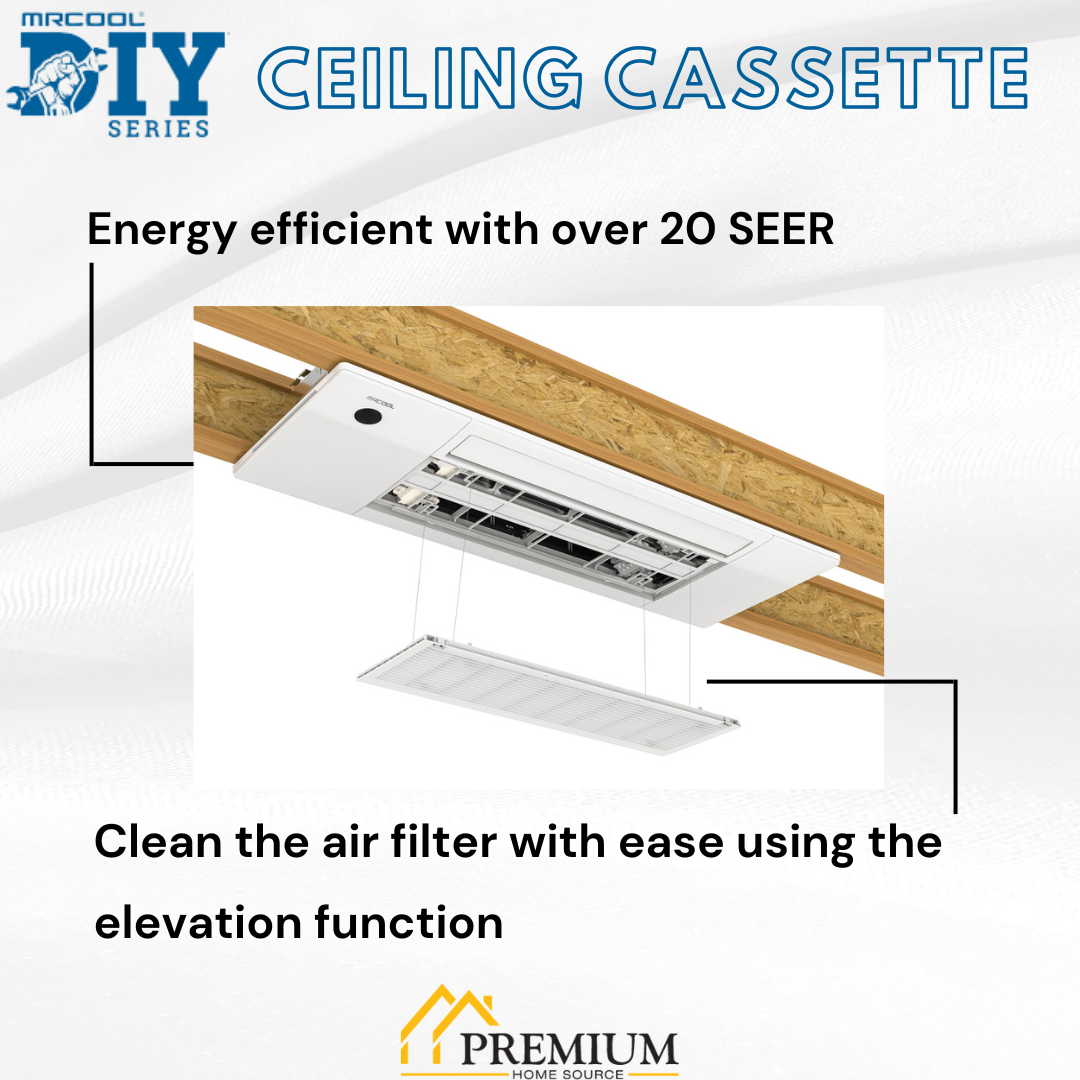

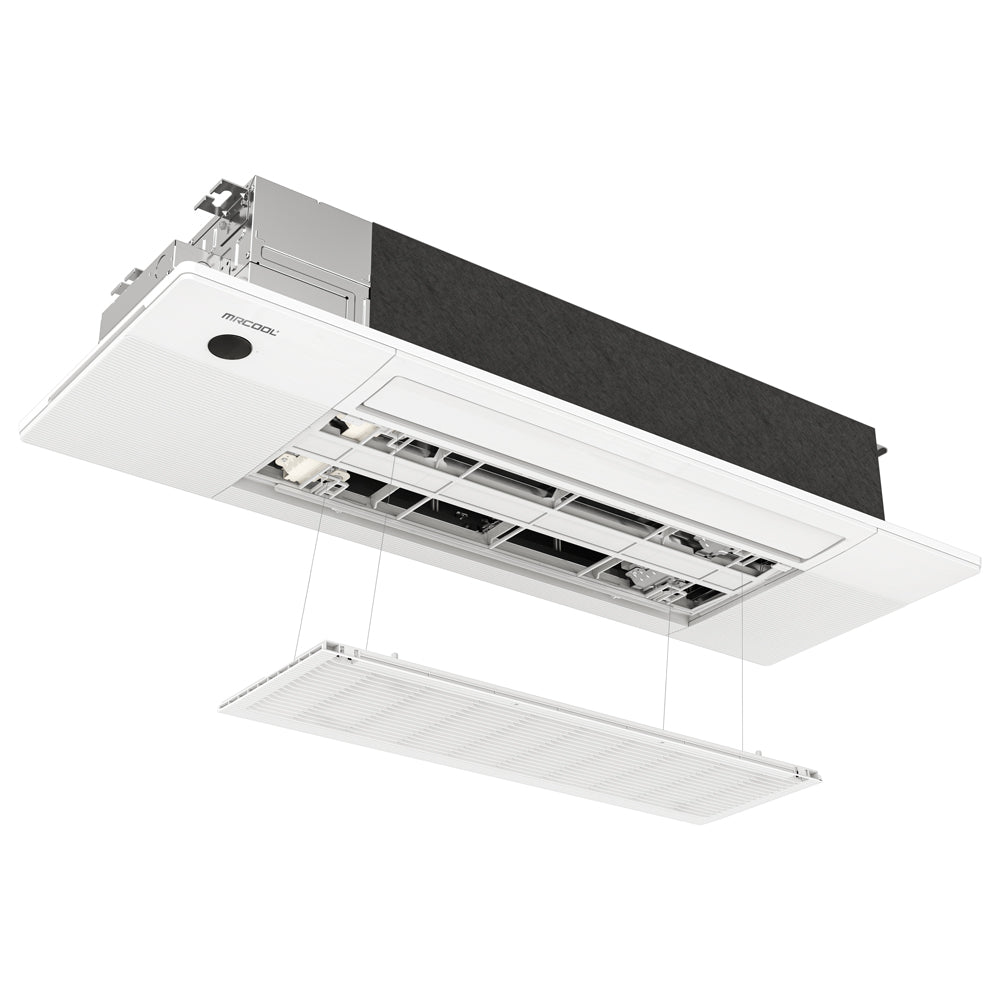

    • Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.

    Air Handler 18K BTU

    • Vast Coverage Area. The cassette covers an area between 375 to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.

      Line Set

      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

          SPECIFICATIONS & DIMENSIONS

          • Condenser
          • Product Dimensions: 37.48"W x 16.34"D x 52.48"H
          • Cooling Capacity: 48,000 BTU
          • Heating Capacity: 48,000 BTU
          • Zone Capacity: 5
          • Cool Mode - Outdoor Operating Temperature Range: 5°F ~ 122°F
          • Heat Mode - Outdoor Operating Temperature Range: 5°F ~ 75.2°F
          • SEER2: 20.50
          • EER2: 11
          • HSPF2: 9.2
          • Voltage: Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
          • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
          • Air Handler 9K BTU
          • Product Dimensions: 50.31"W x 13.19"D x 8.98"H
          • Mount Type: Ceiling Cassette
          • Cooling Capacity: 9,000 BTU
          • Heating Capacity: 9,000 BTU
          • Registered Warranty: 5 Years Parts
          • Modes: Auto (Auto selects Cool, Heat or Fan-Only) // Cool // Heat // Dry // Fan Only // Sleep
          • Air Handler 18K BTU
          • Product Dimensions: 50.31"W x 13.19"D x 8.98"H
          • Mount Type: Ceiling Cassette
          • Cooling Capacity: 18,000 BTU
          • Heating Capacity: 18,000 BTU
          • Registered Warranty: 5 Years Parts
          • Modes: Auto (Auto selects Cool, Heat or Fan-Only) // Cool // Heat // Dry // Fan Only // Sleep
          • Line Set
          • Length: 25 Feet
          • Liquid Line Size: 1/4"
          • Suction Line Size: 1/2"

          INSTALLATION & GUIDES

          Installation Manual
          Product Brochure
          Performance Specifications
          Warranty
          Energy Guide
          AHRI Certificate

          COVERAGE AREA

          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          BTU  Square Feet
          9,000 BTU 180 - 375 Sq Ft.
          12,000 BTU 376 - 500 Sq Ft.
          18,000 BTU 501 - 750 Sq Ft.
          24,000 BTU 751 - 1,000 Sq Ft.
          36,000 BTU 1,001 - 1,500 Sq Ft.

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
