MRCOOL DIY Mini Split - 54,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM348HPW04C134

See more from MRCOOL Model: DIYM348HPW04C134
4.7 23 reviews

Model: DIYM348HPW04C134

$6,477.00

$9,132.57

29% Off

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Mar 07 to Mar 13

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

Contact Us

Need help with choosing a Mini Split system or have other questions?

Talk with one of our trusted HVAC professionals today!

Product Overview

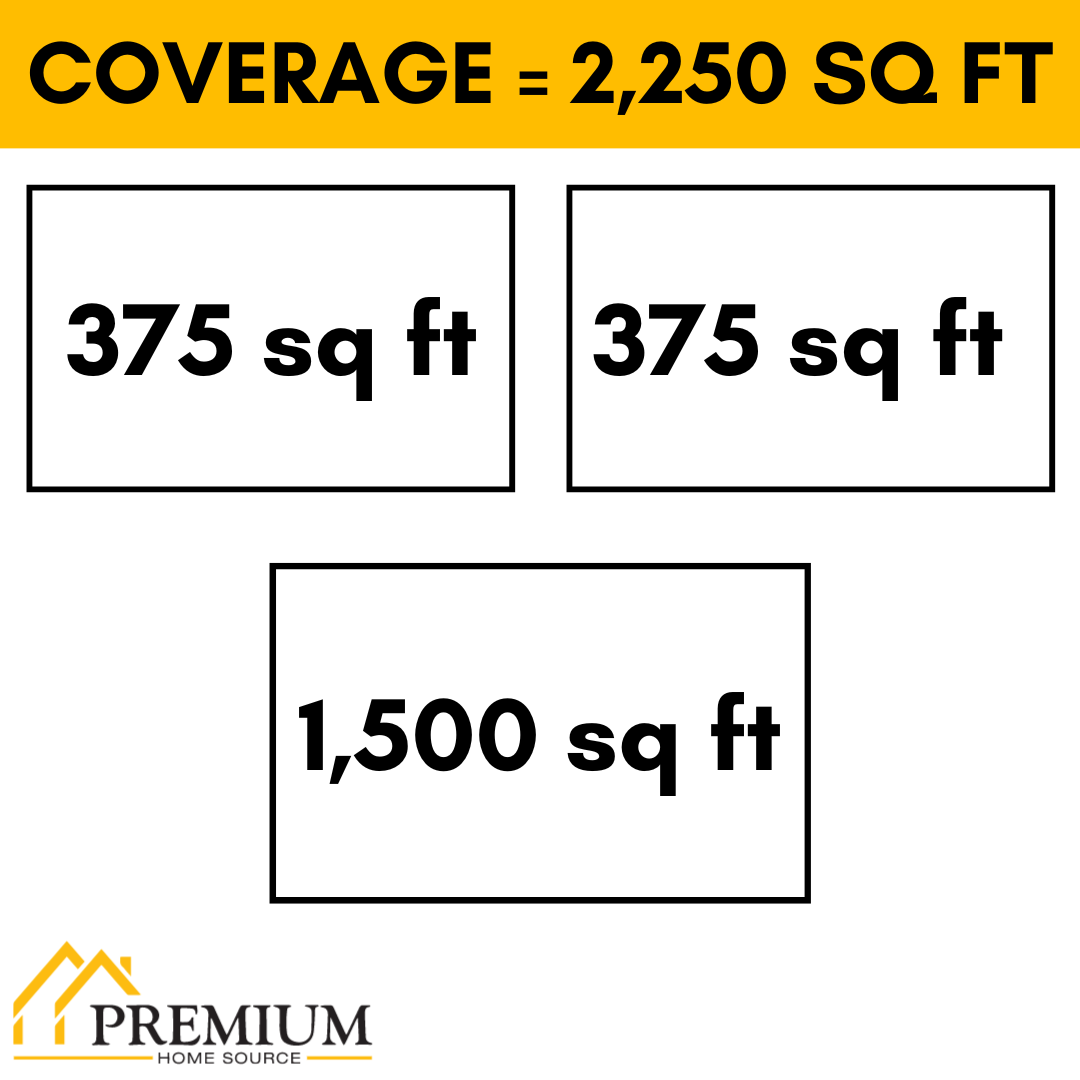

  • Covers 2250 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 3
  • voltage-240 Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): 5°F to 75.2°F

  • Air Handler
  • Condenser
  • Line Set
  • Wall Sleeve
  • Communication Wire
  • Remote Control

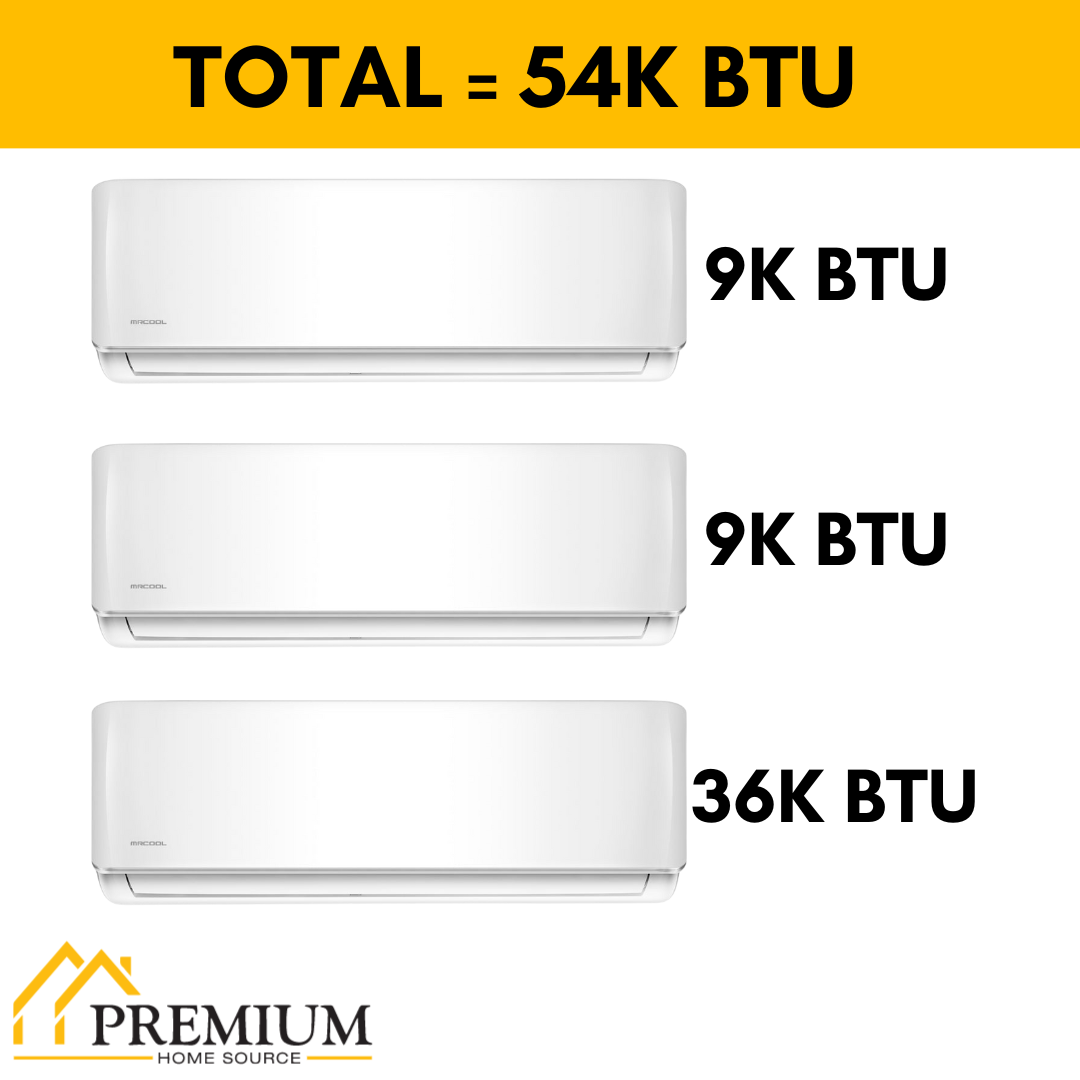

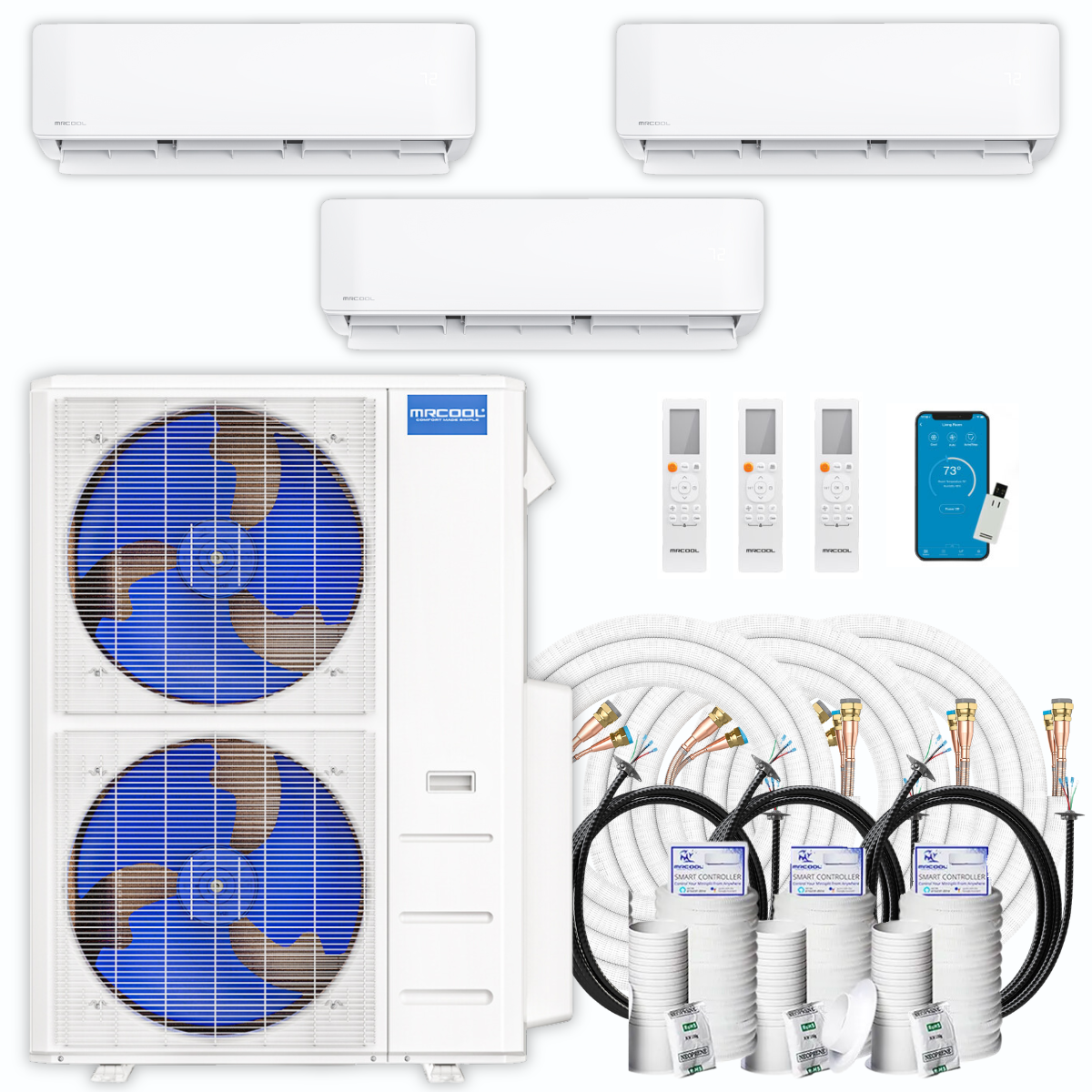

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, one 36,000 BTU Wall Mounted Air Handler, three Remotes, and three 50 ft. Installation Kits. The best part about all of this is that you can install it yourself!
Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.

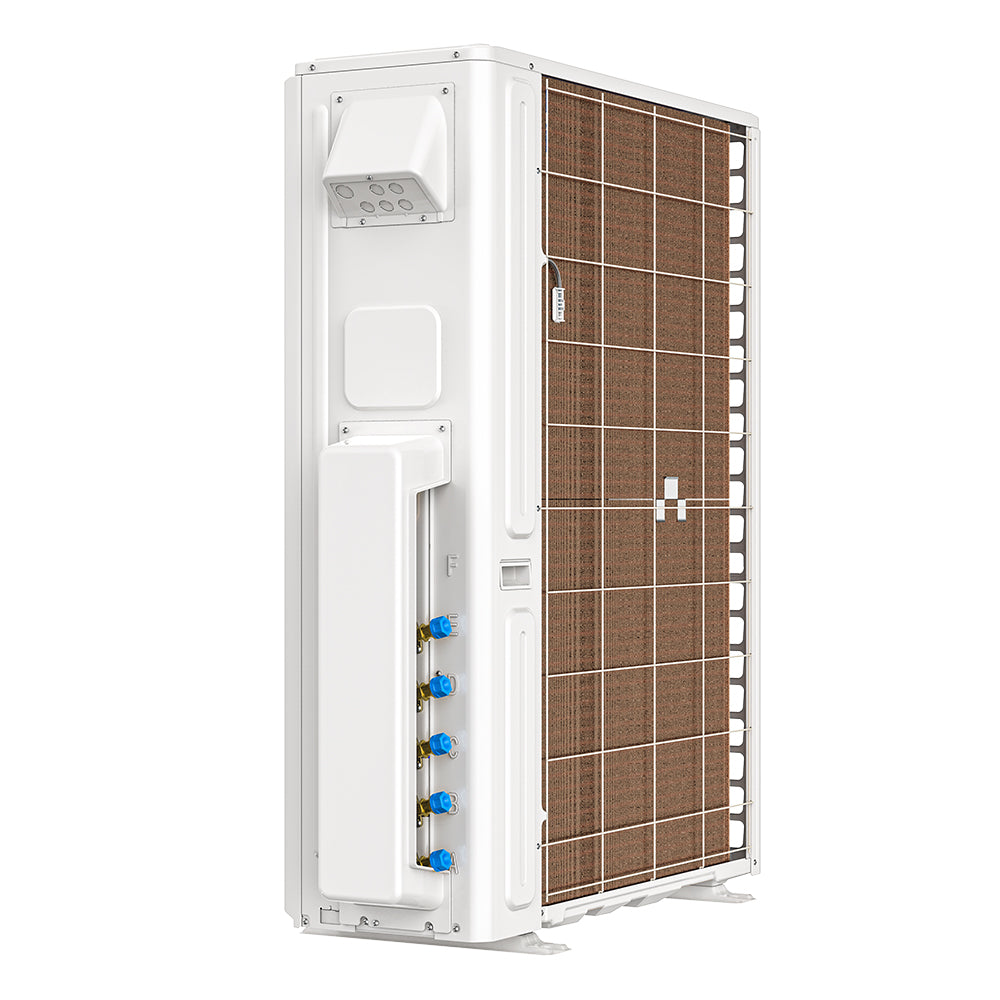

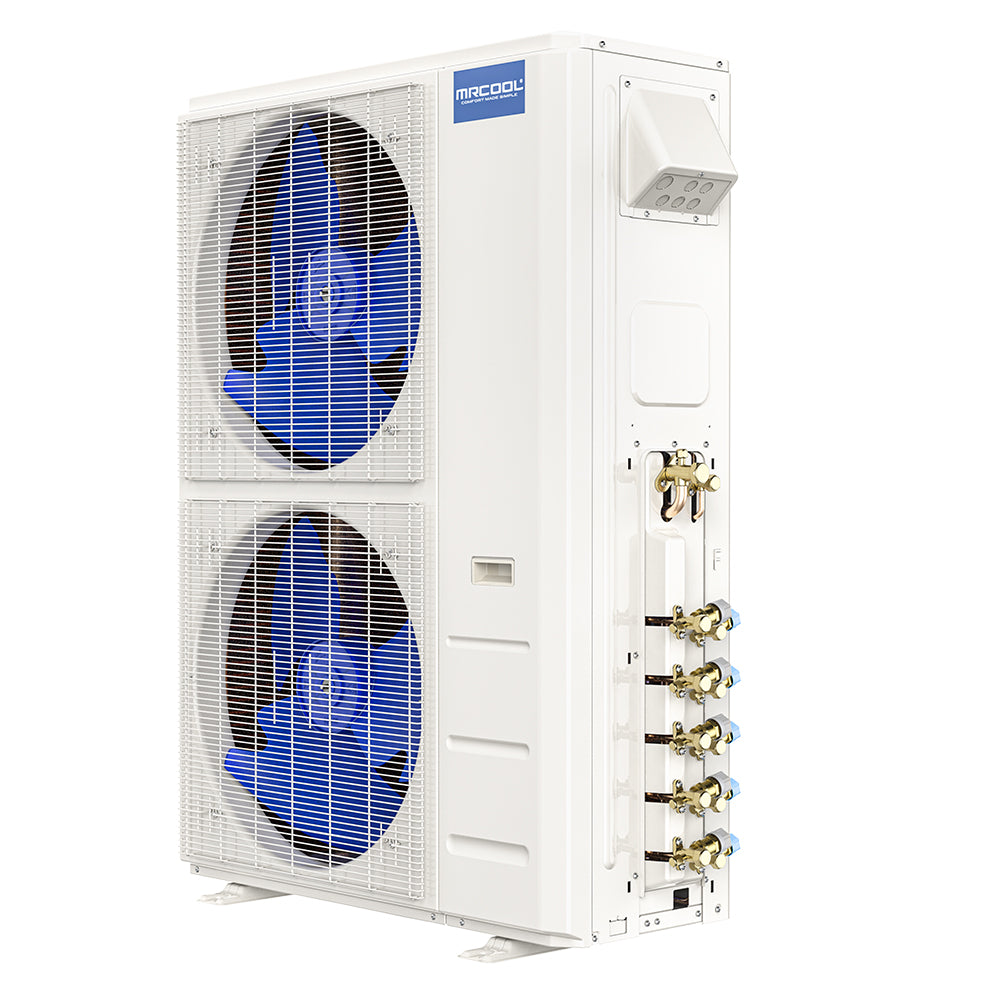

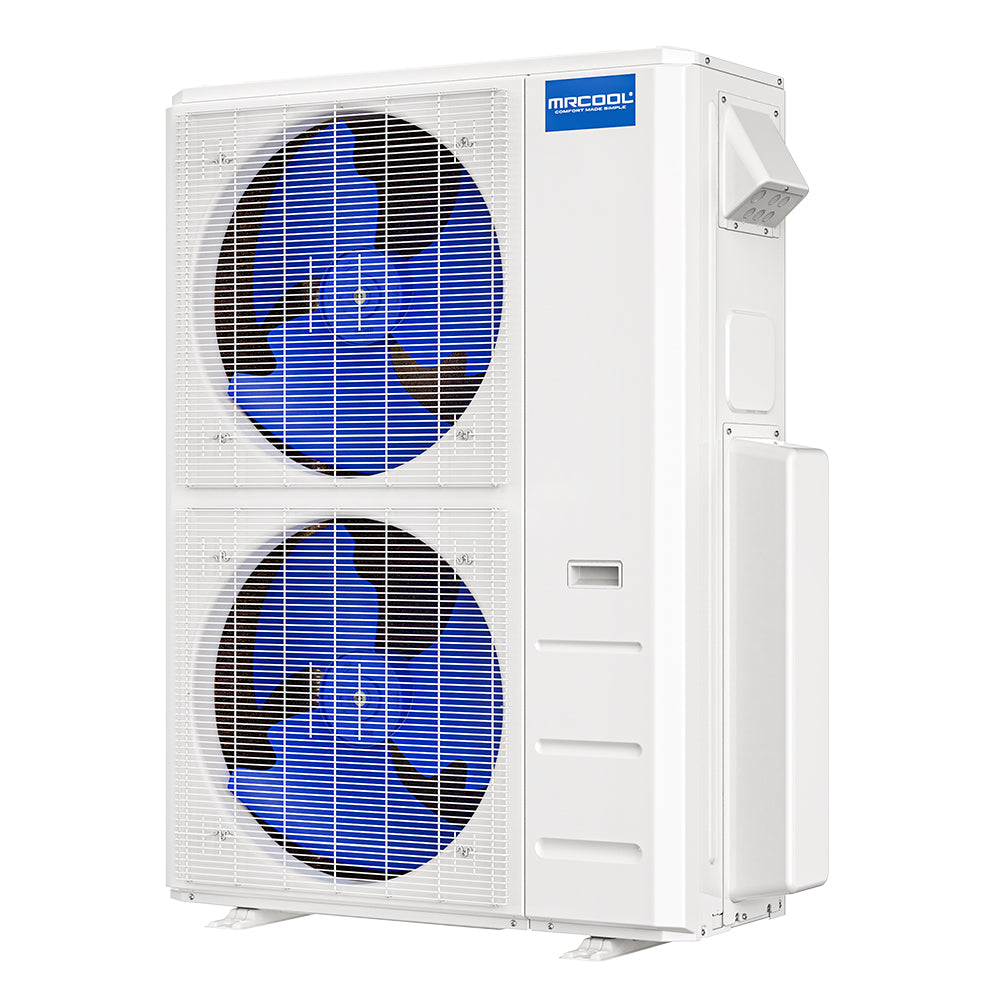

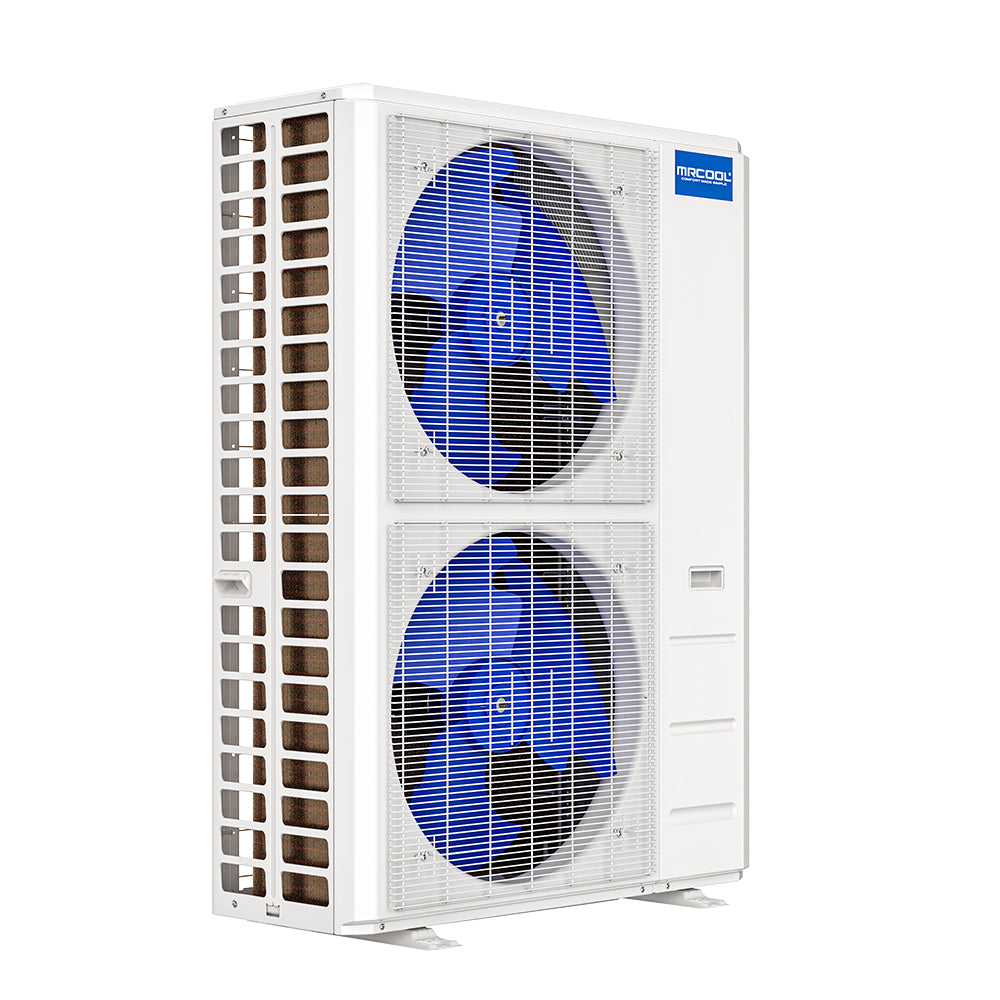

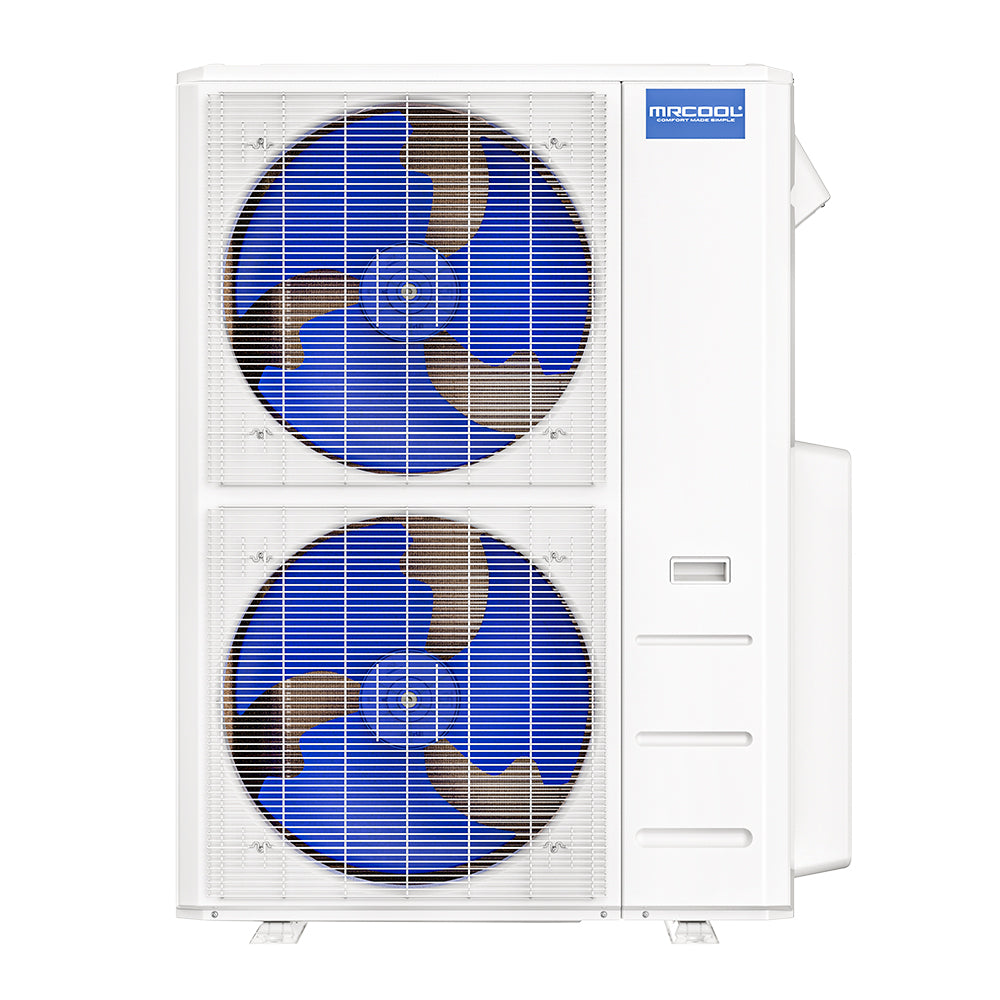

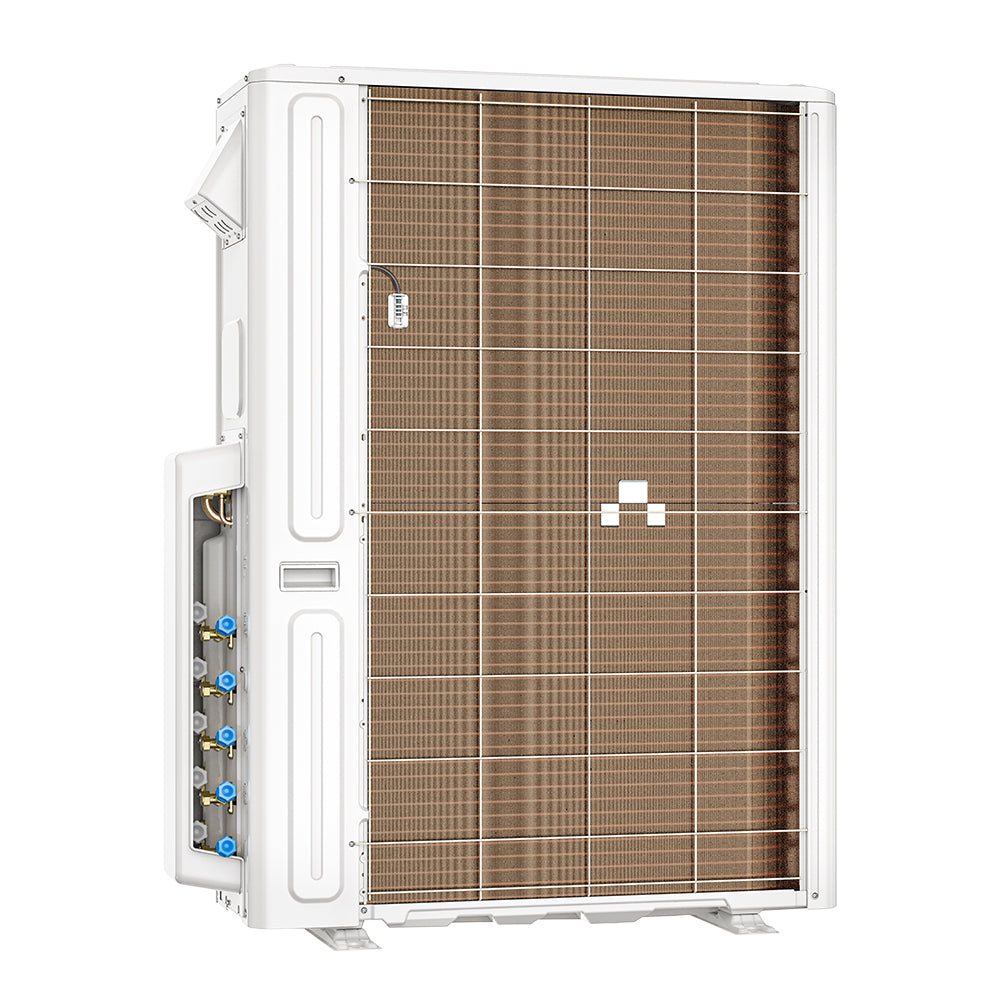

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

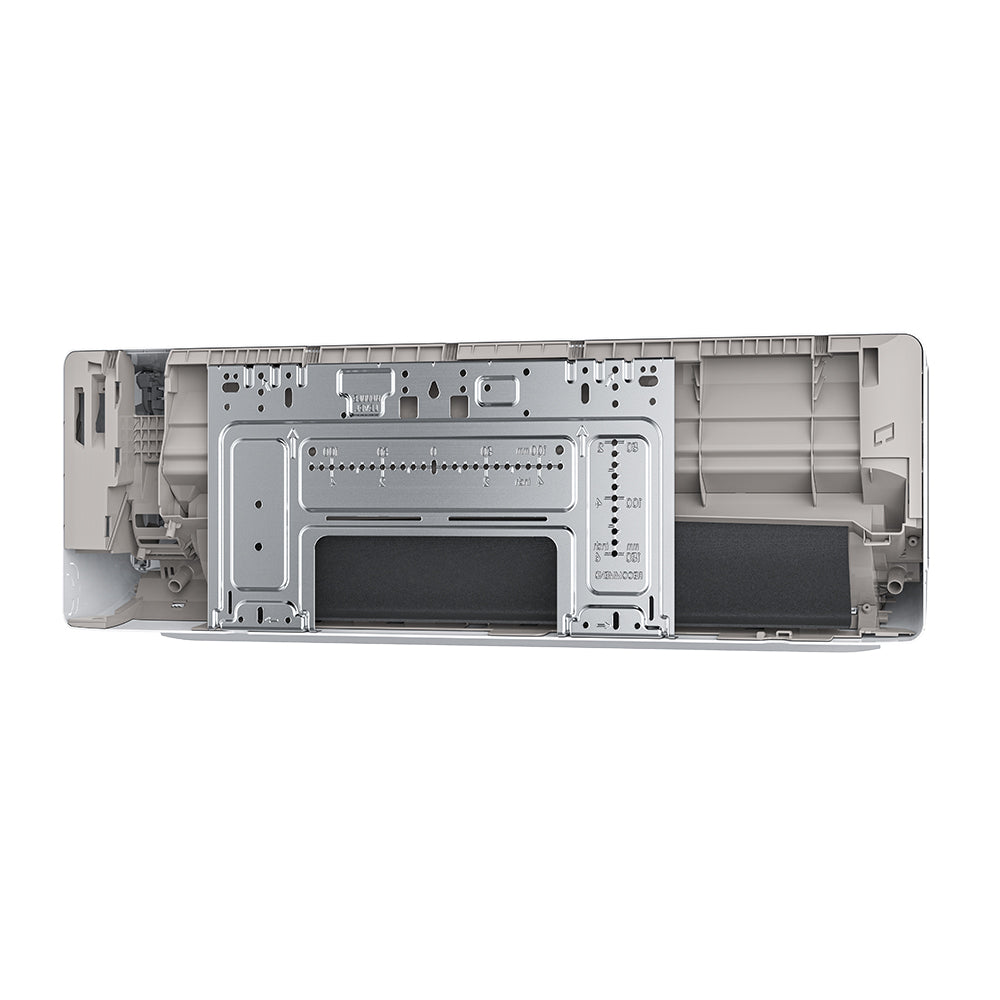

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 36K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 1,500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      Line Set 50 ft., Quantity 3

      • This 50 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!


          Condenser Specifications

          Product Dimensions 37.48"W x 16.34"D x 52.48"H
          Cooling Capacity 48,000 BTU
          Heating Capacity 48,000 BTU
          Zone Capacity 5
          Min Ambient Cool 5F ~ 122F
          Min Ambient Heat 5F ~ 75.2F
          SEER 20.5
          EER 11
          Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty
          7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 36K BTU

          Product Dimensions 49.57"W x 11.10"D x 14.25"H
          Mount Type Wall
          Cooling Capacity 36,000 BTU
          Heating Capacity 36,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Line Set

          Length 50 Feet
          Liquid Line Size 3/8"
          Suction Line Size 5/8"


          Line Set

          Length 50 Feet
          Liquid Line Size 1/4"
          Suction Line Size 1/2"

          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          Square Feet: 180-375 | BTU = 9K
          Square Feet: 376-500 | BTU = 12K
          Square Feet: 501-750 | BTU = 18K
          Square Feet: 751-1,000 | BTU = 24K
          Square Feet: 1,001-1,500 | BTU = 36K

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
