4th Gen New Release!
MRCOOL DIY Mini Split - 54,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW04C16
$5,647.00
$7,284.63
22% Off
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
4th Gen New Release!
MRCOOL DIY Mini Split - 54,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW04C16
This item is in stock! Estimated Arrival: Apr 22 to Apr 28
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Need help with choosing a Mini Split system or have other questions?
Talk with one of our trusted HVAC professionals today!
Product Overview
- Covers 2250 sq. ft.
- DIY Installation
- Wall Mounted
- Number of Zones: 2
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): 5°F to 75.2°F

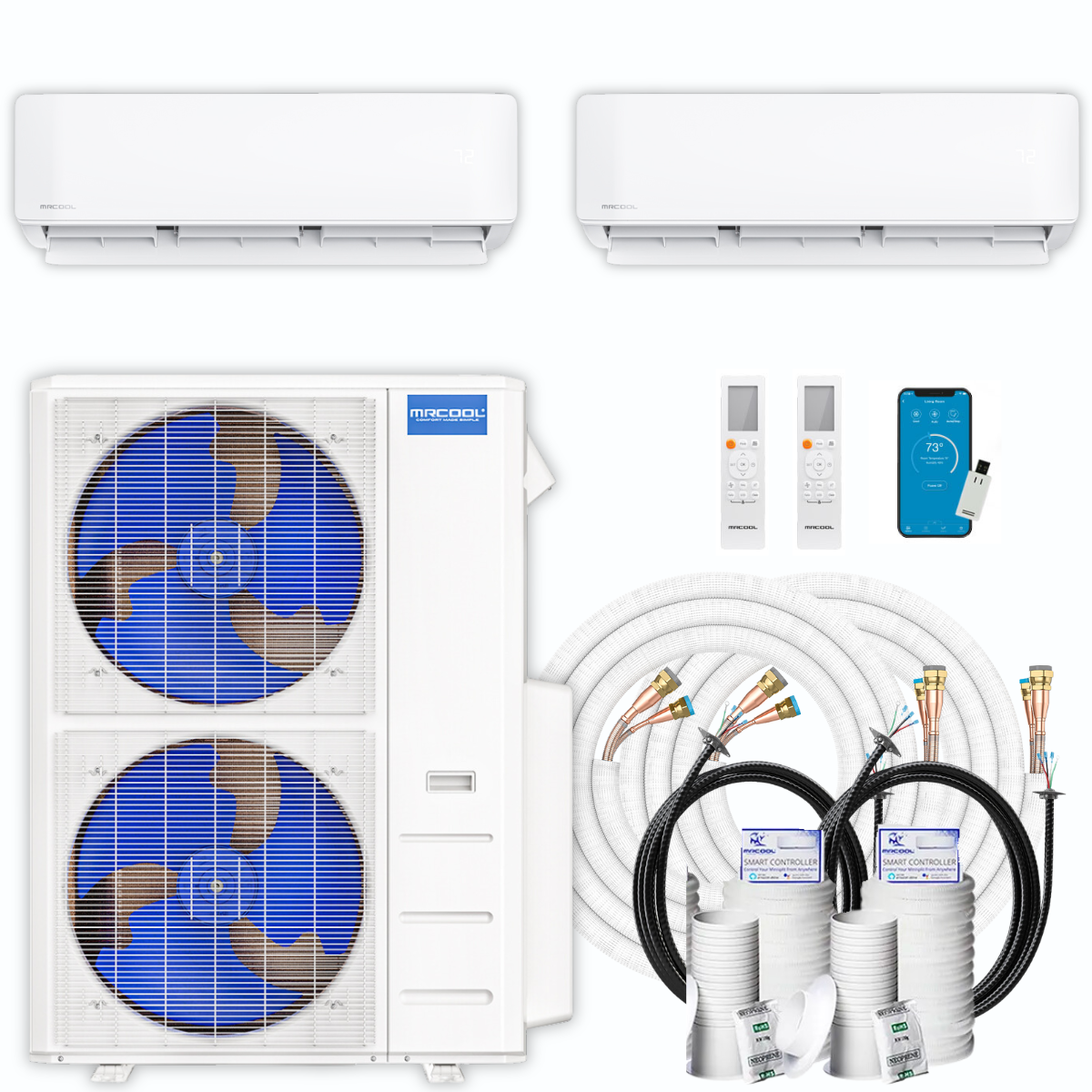

Air Handler
Condenser
Line Set
Wall Sleeve
Communication Wire
Remote Control
- MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25
- MRCOOL DIY 4th Generation 36K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-36-HP-WMAH-230C25
- MRCOOL DIY 35ft 3/8 x 5/8 Lineset for DIY 24K, 36K Indoor, 4th Generation, DIY35-3858C
- MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C
If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.

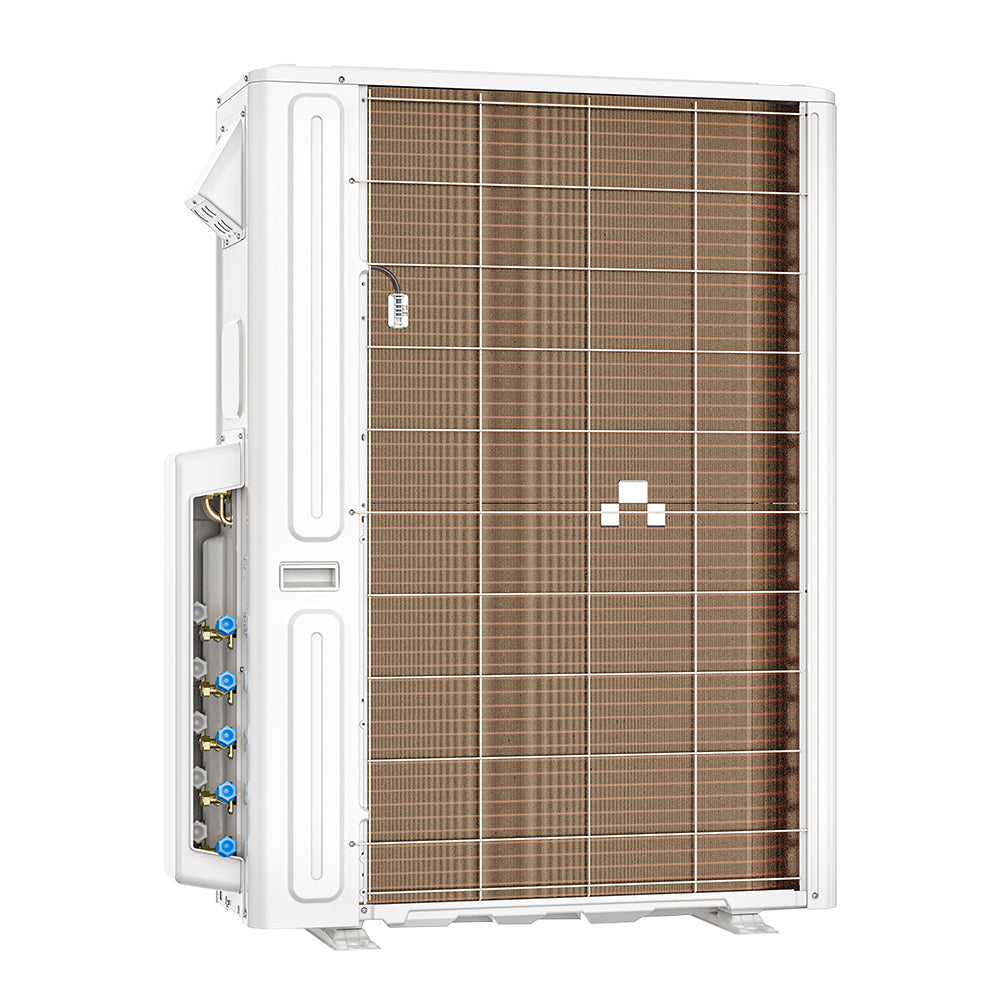

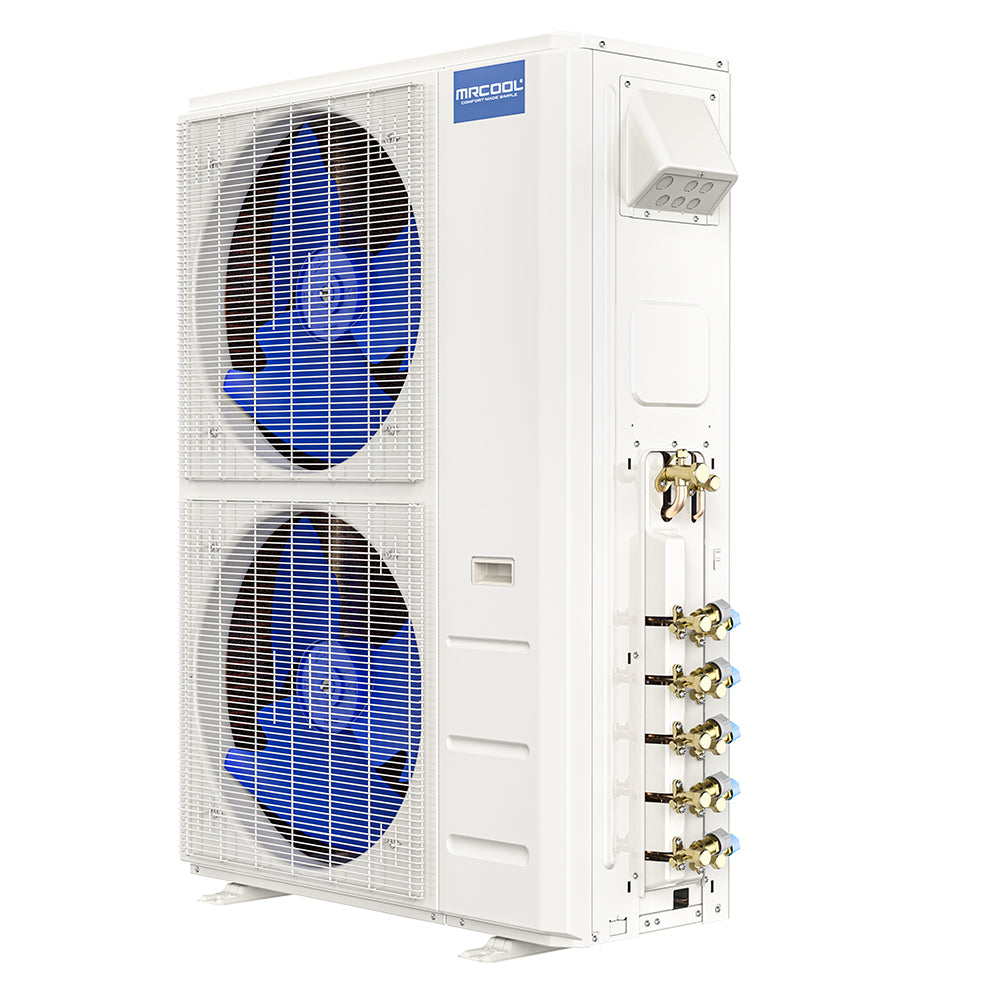

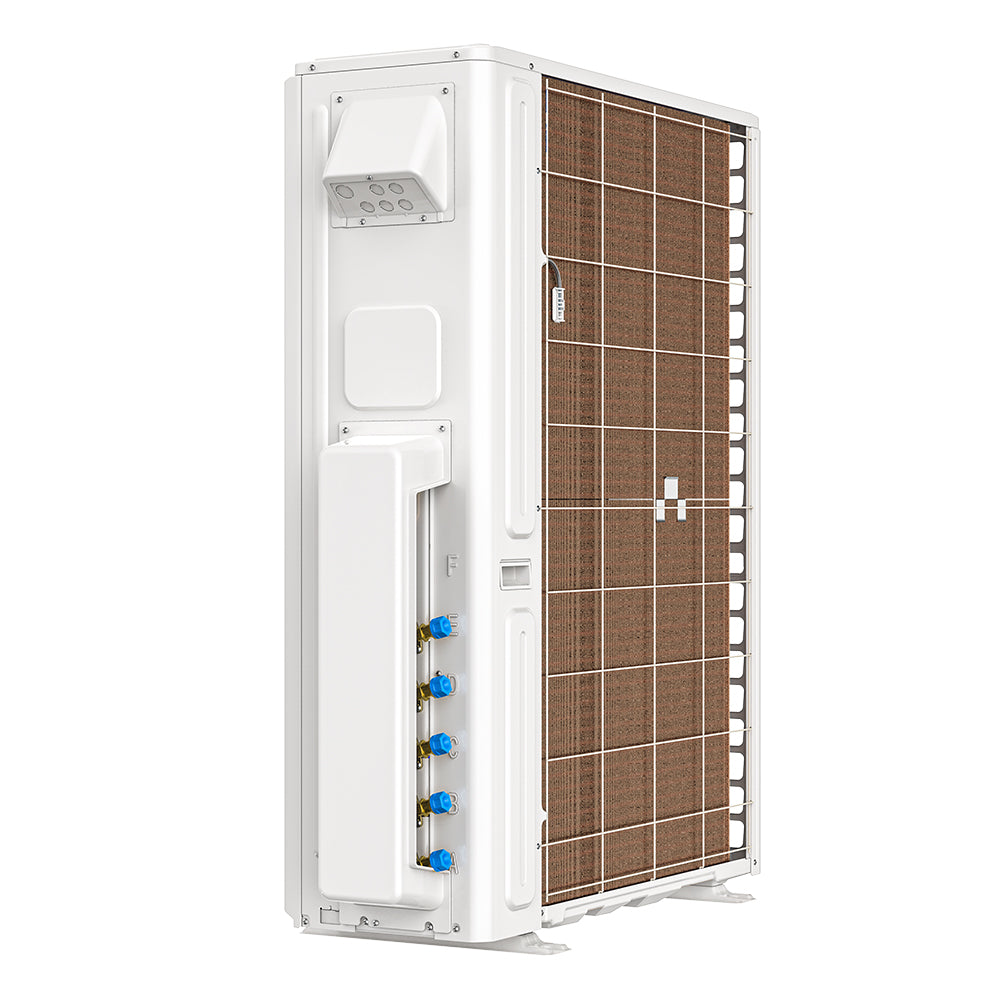

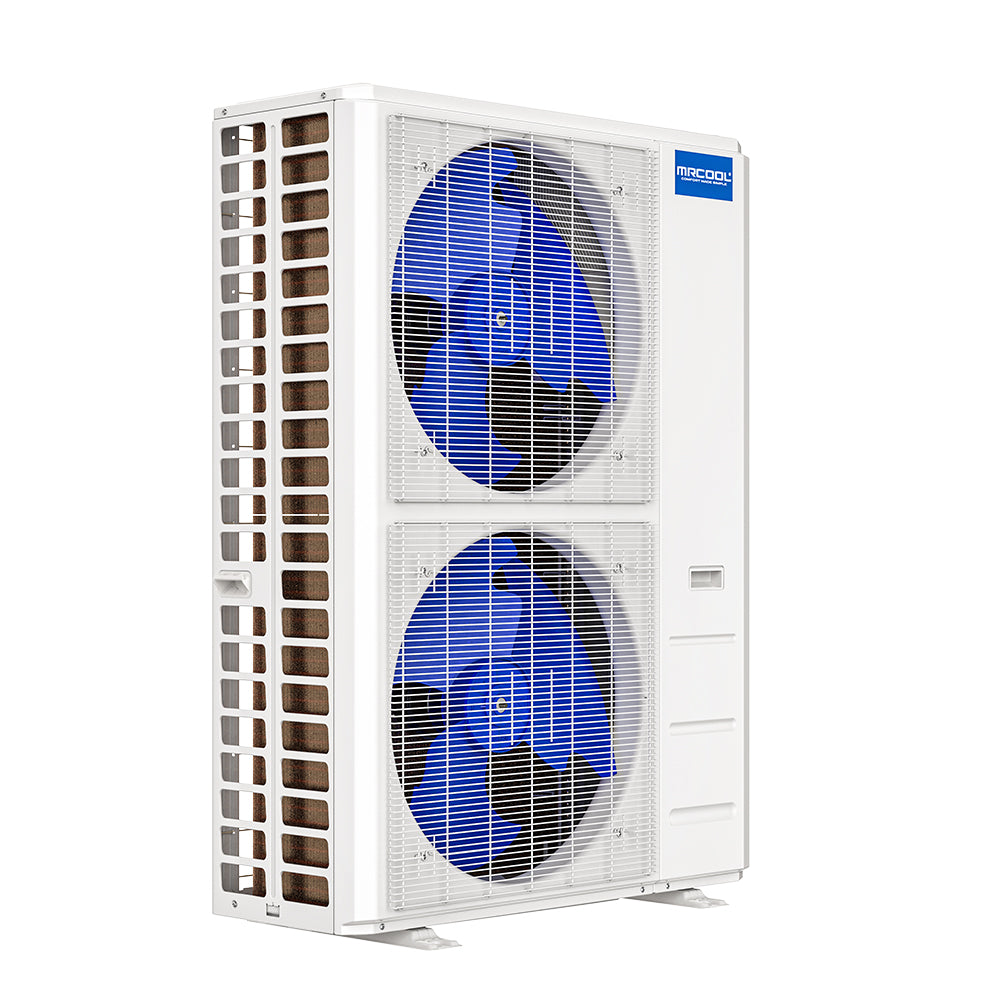

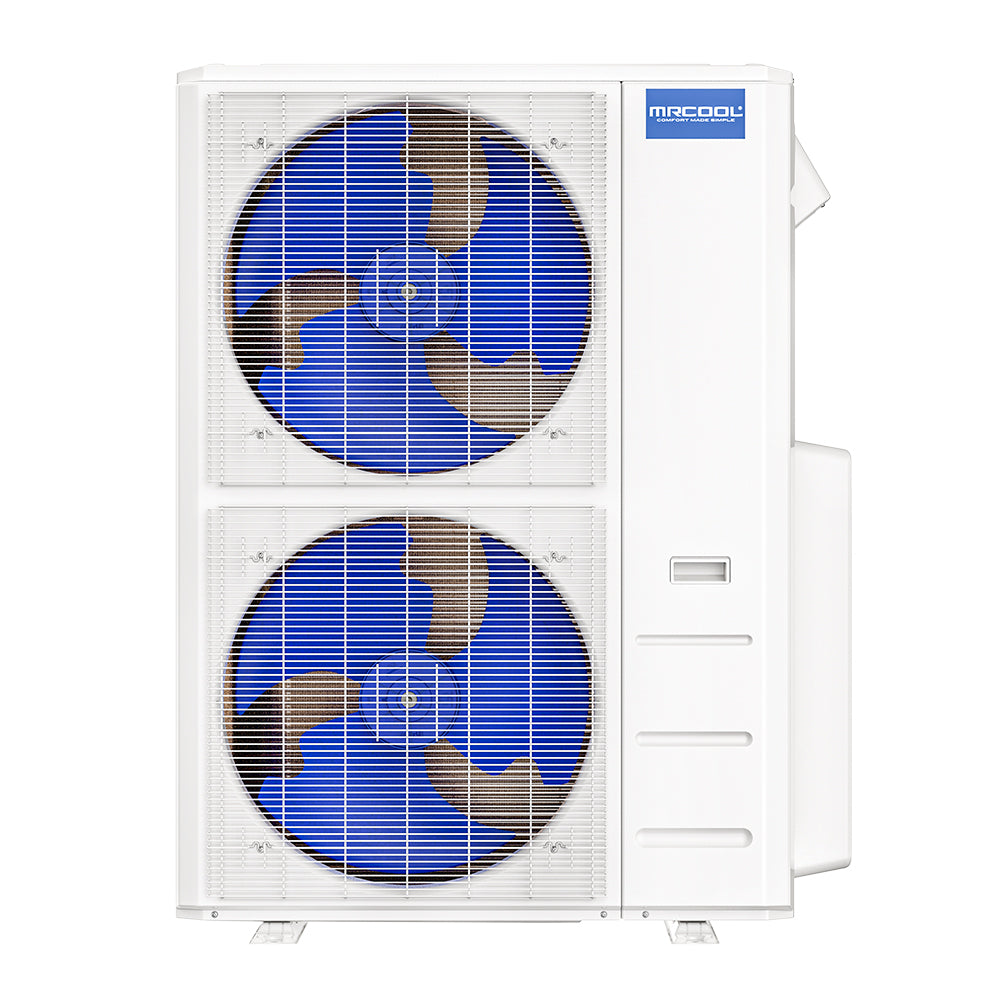

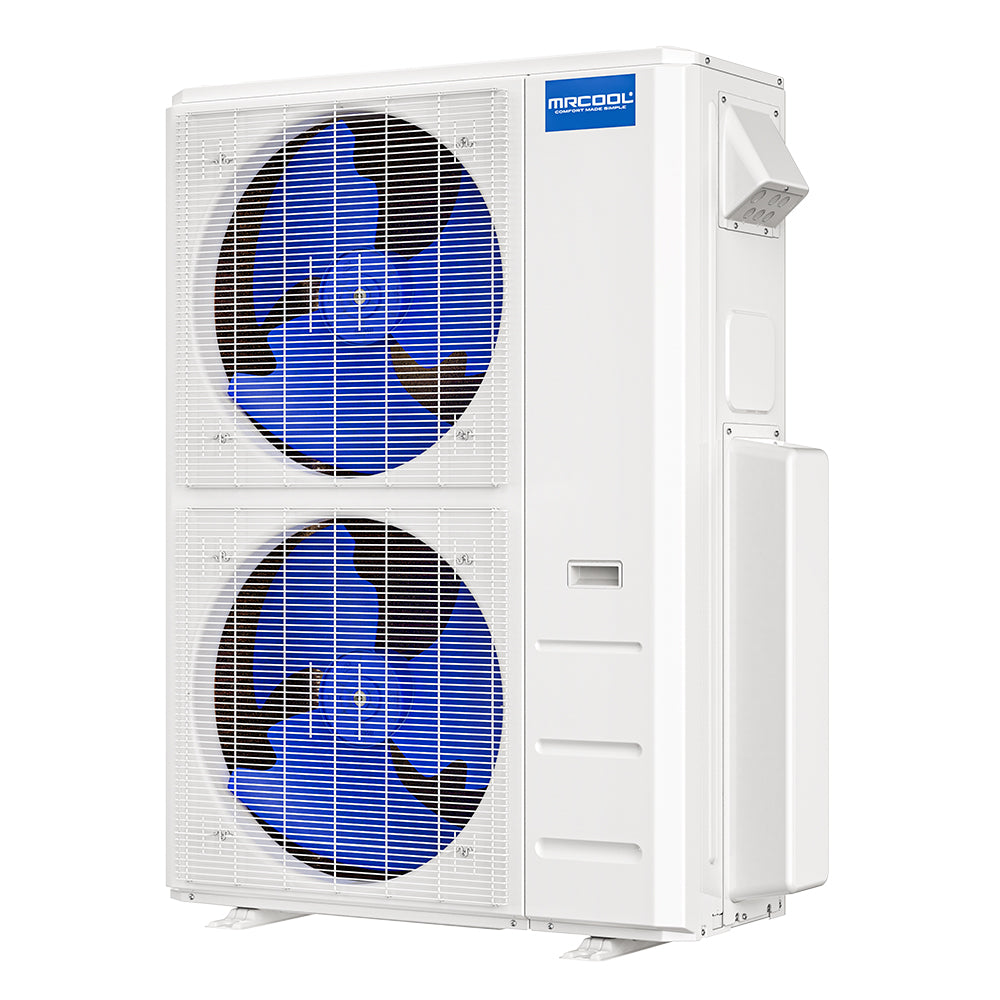

Condenser
- Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to 5°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 18K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

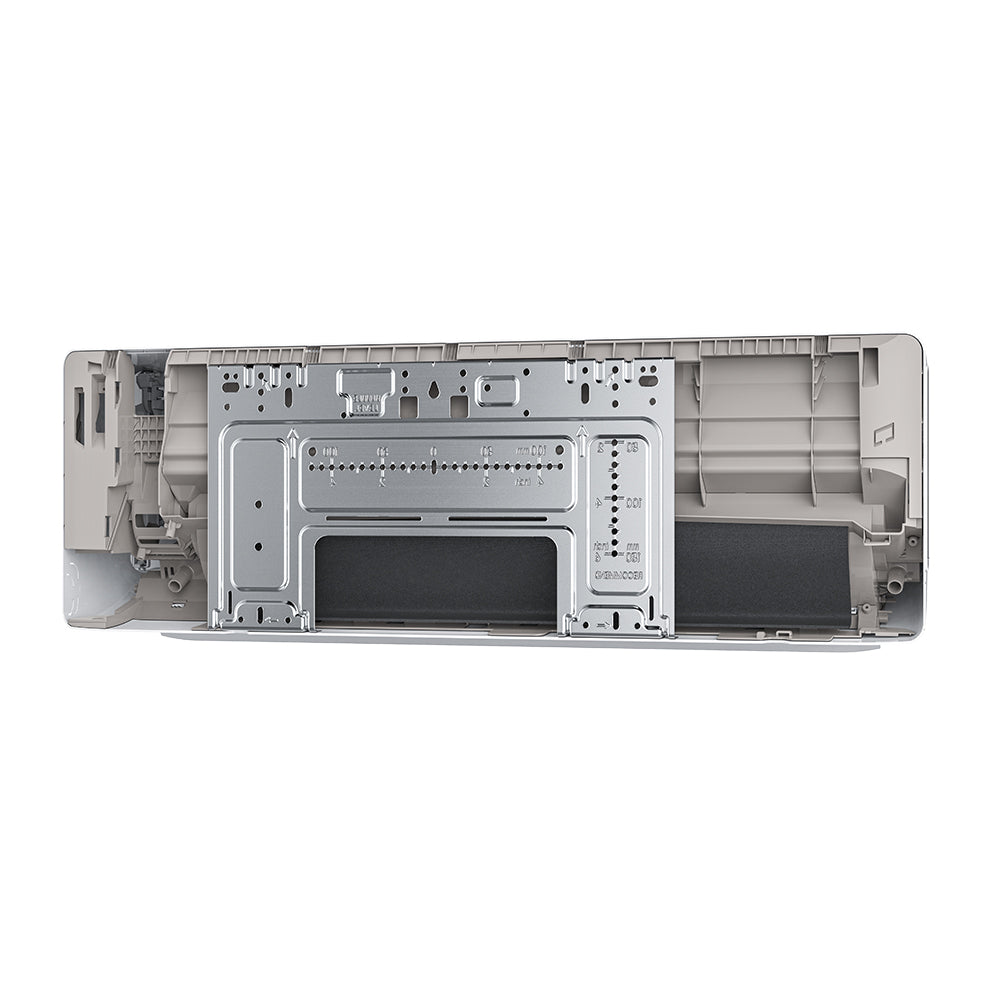

- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 36K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 1,500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Line Set 35 ft., Quantity 2
- This 35 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Condenser Specifications
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Min Ambient Cool | 5F ~ 122F |
| Min Ambient Heat | 5F ~ 75.2F |
| SEER | 20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 18K BTU
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 36K BTU
| Product Dimensions | 49.57"W x 11.10"D x 14.25"H |
| Mount Type | Wall |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity |
36,000 BTU |
|
5 Years Parts |
|
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
| Length | 35 Feet |
| Liquid Line Size |
3/8" |
| Suction Line Size | 5/8" |
Line Set
| Length | 35 Feet |
| Liquid Line Size |
1/4" |
| Suction Line Size | 1/2" |
Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
