  3. MRCOOL DIY Mini Split - 48,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM348HPW02C00

4th Gen New Release!

MRCOOL DIY Mini Split - 48,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM348HPW02C00

4.8 23 reviews
Model: DIYM348HPW02C00
$5,427.00
$5,427.00 $7,326.45
-26%
Shipping calculated at checkout.

Financing Options

Line set length: 16 ft.

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Oct 16 to Oct 22

$5,427.00
$5,427.00 $7,326.45

Product Overview

  • Zones: 3

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

What's Included

BETTER TOGETHER

DESCRIPTION

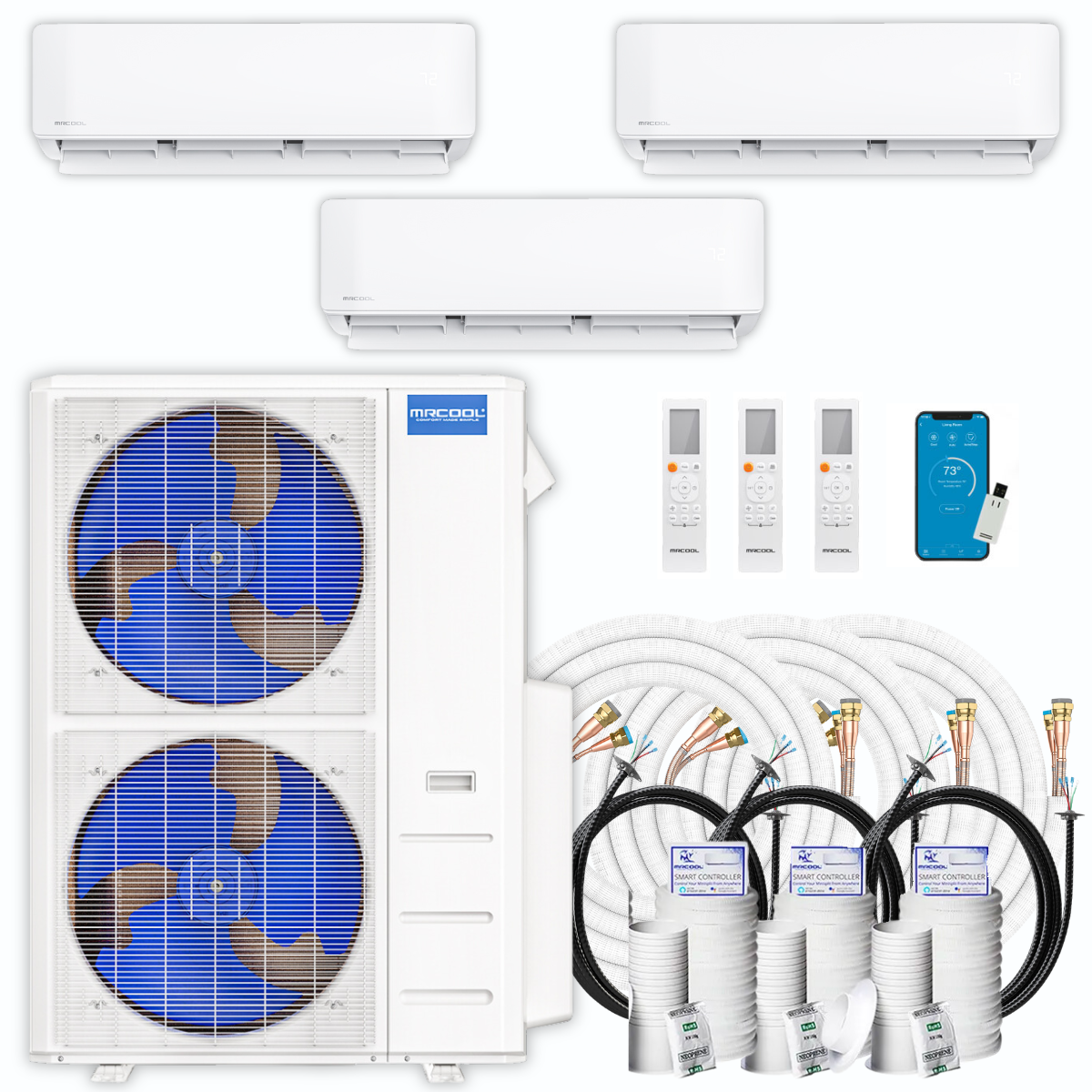

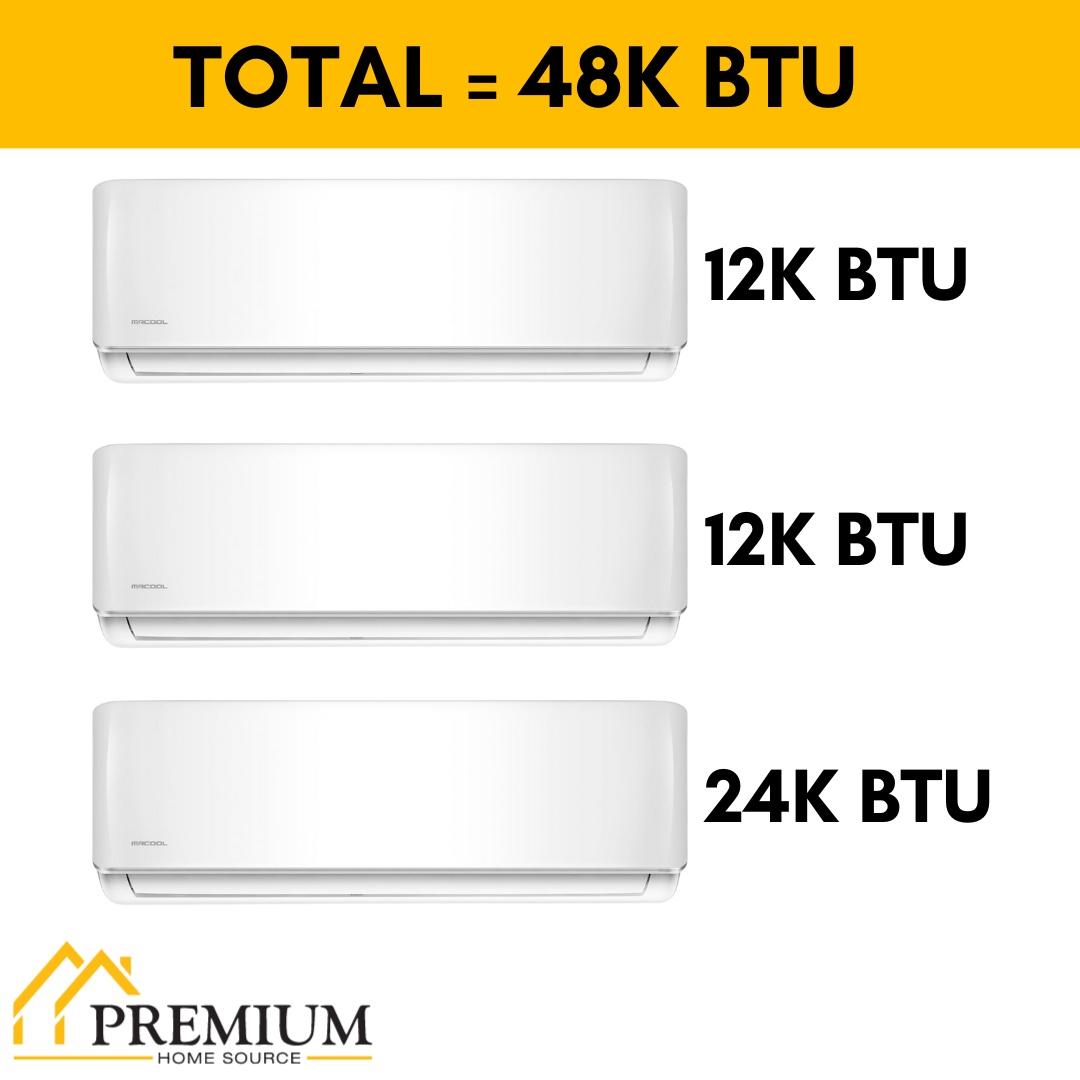

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 48,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handler, one 24,000 BTU Wall Mounted Air Handler, three Remotes, and three 16 ft. Installation Kits. The best part about all of this is that you can install it yourself!
Package Includes

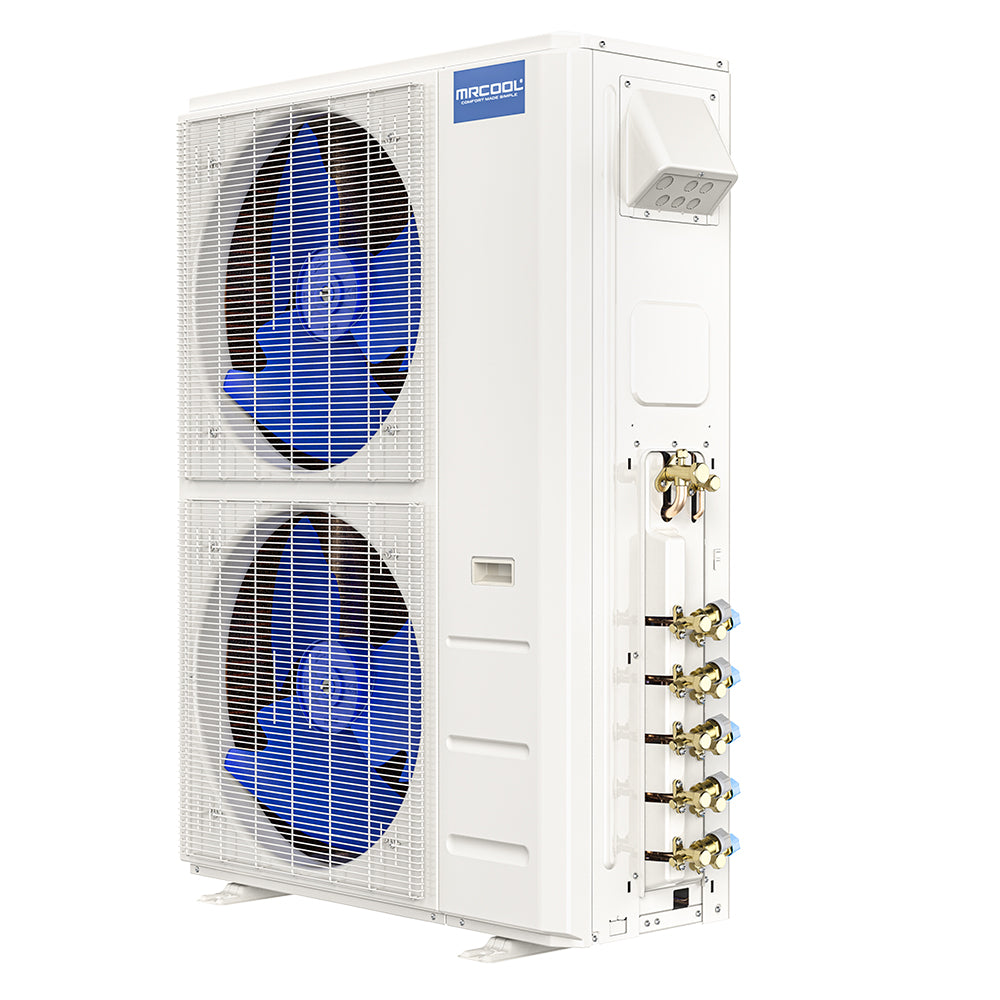

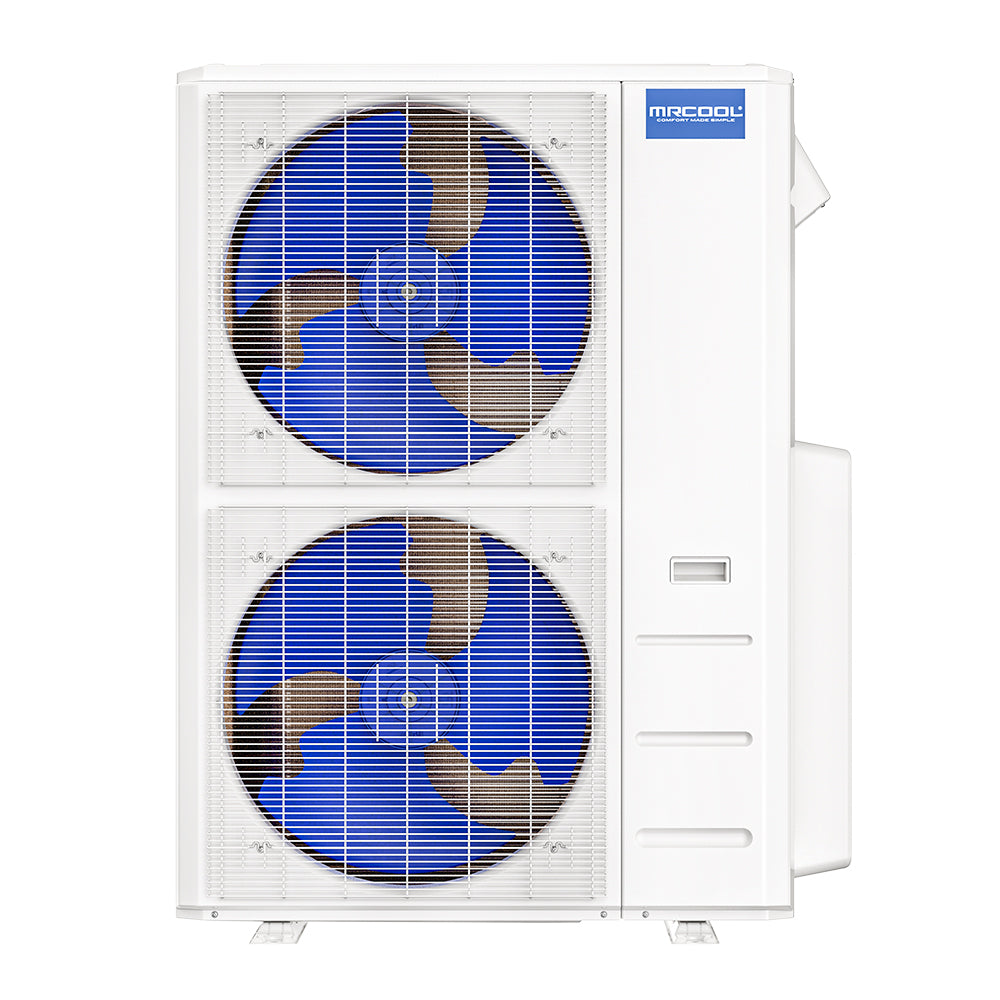

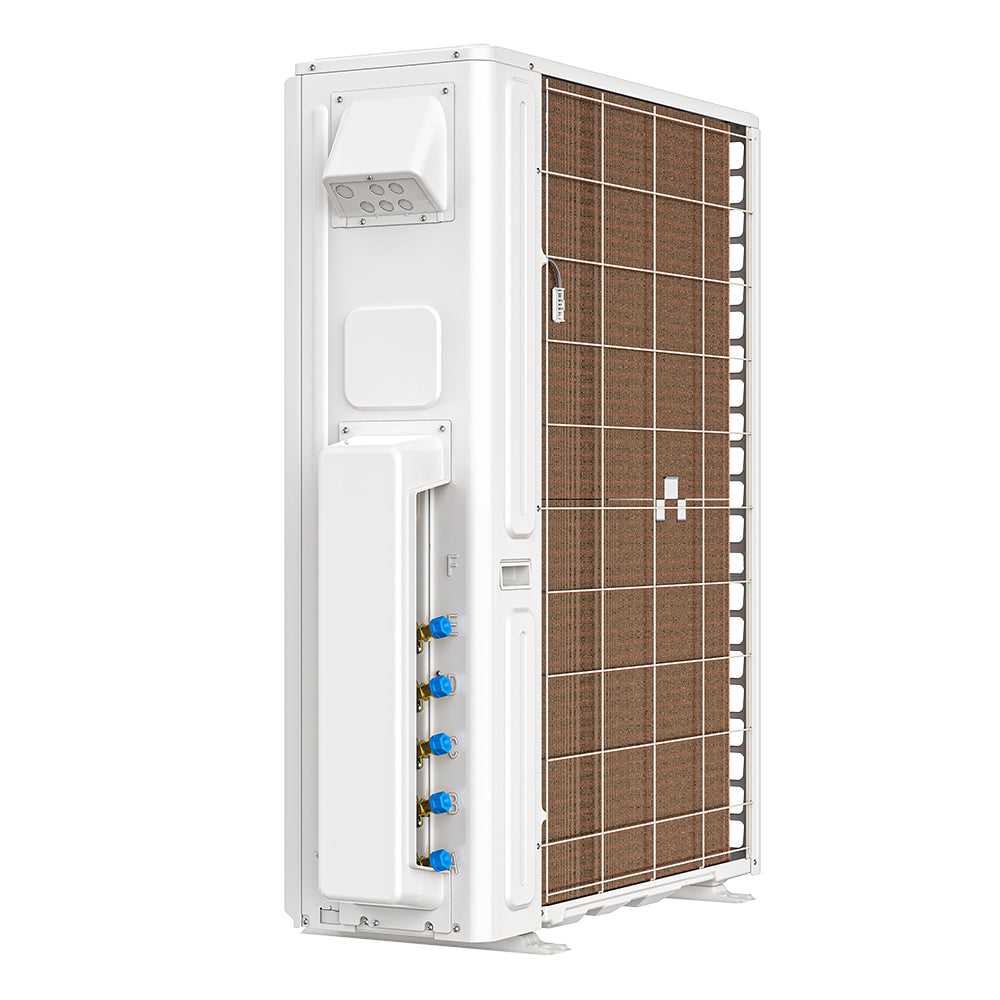

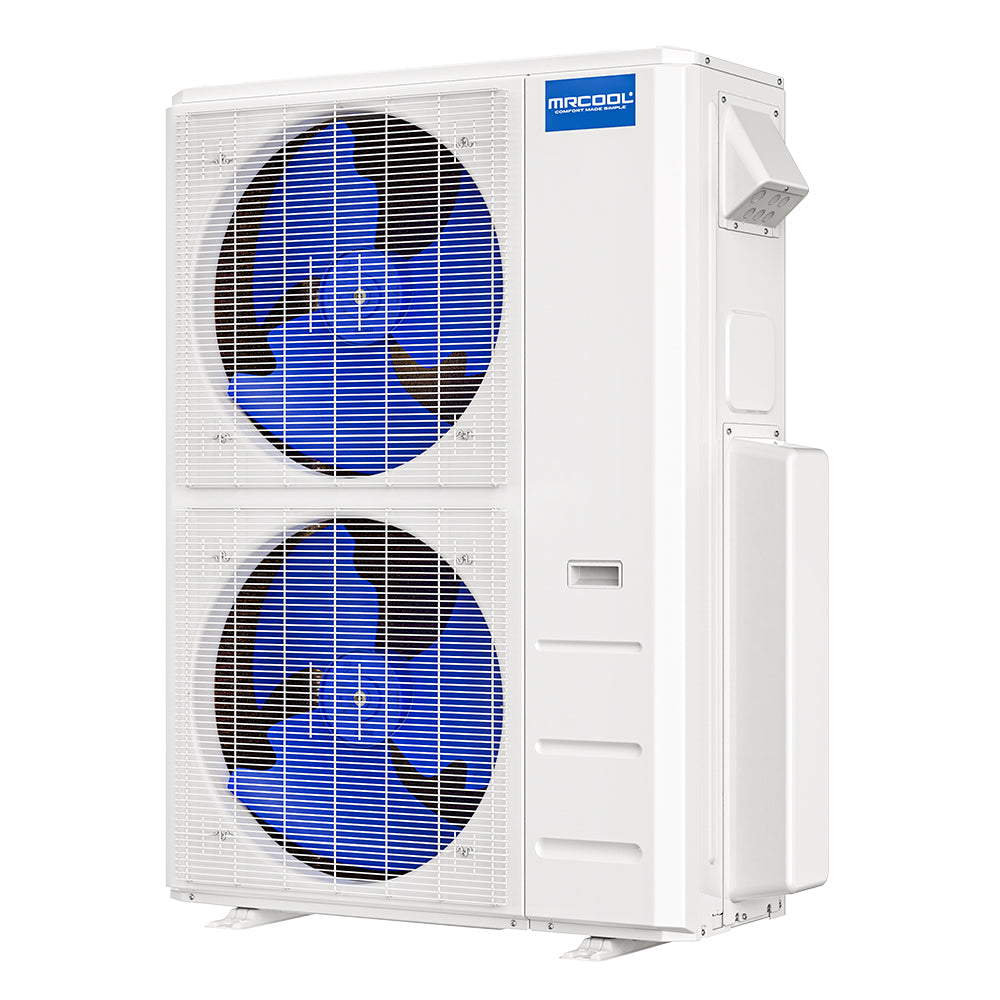

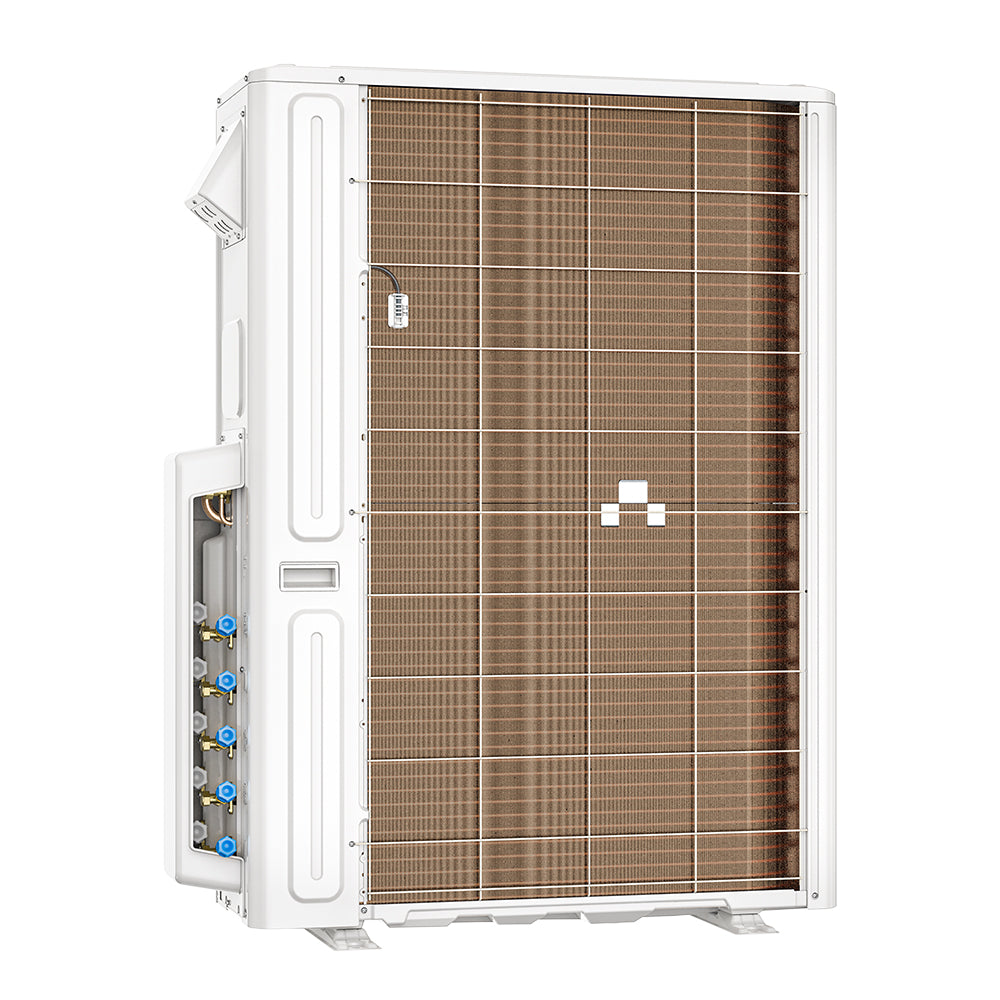

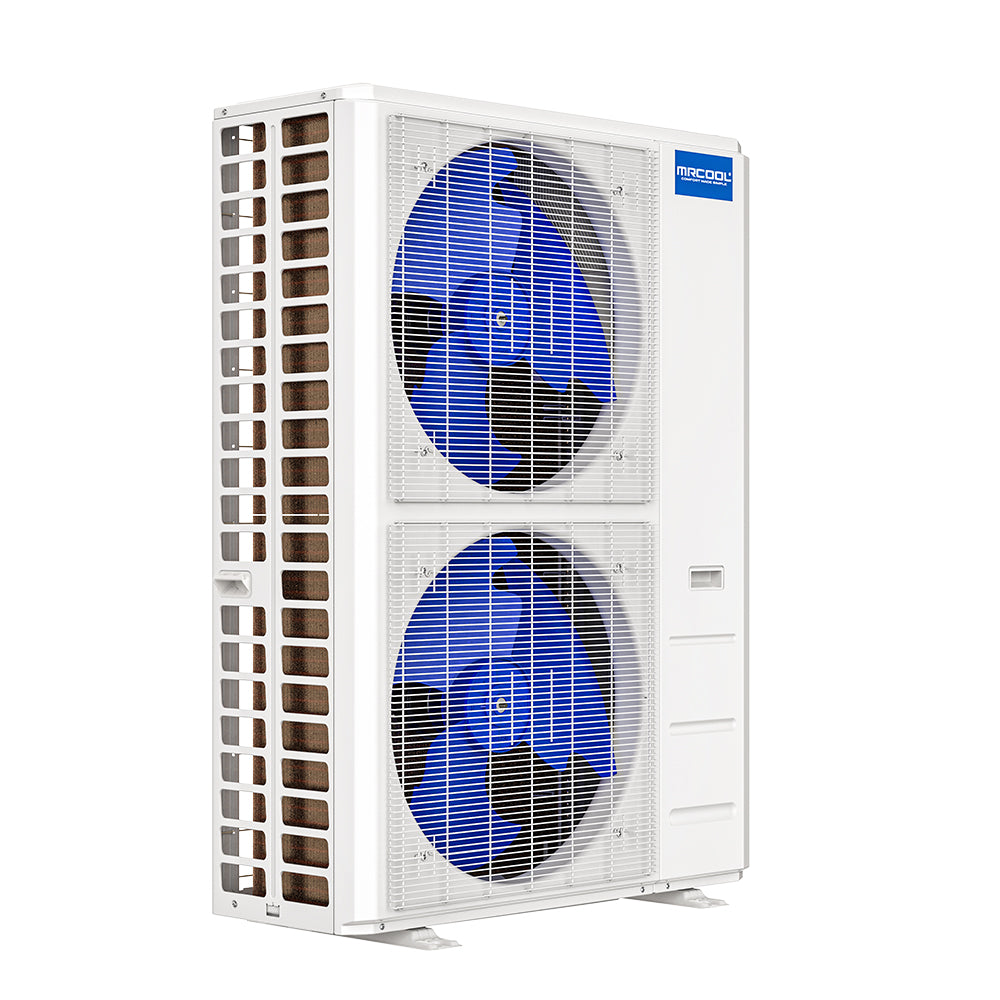

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

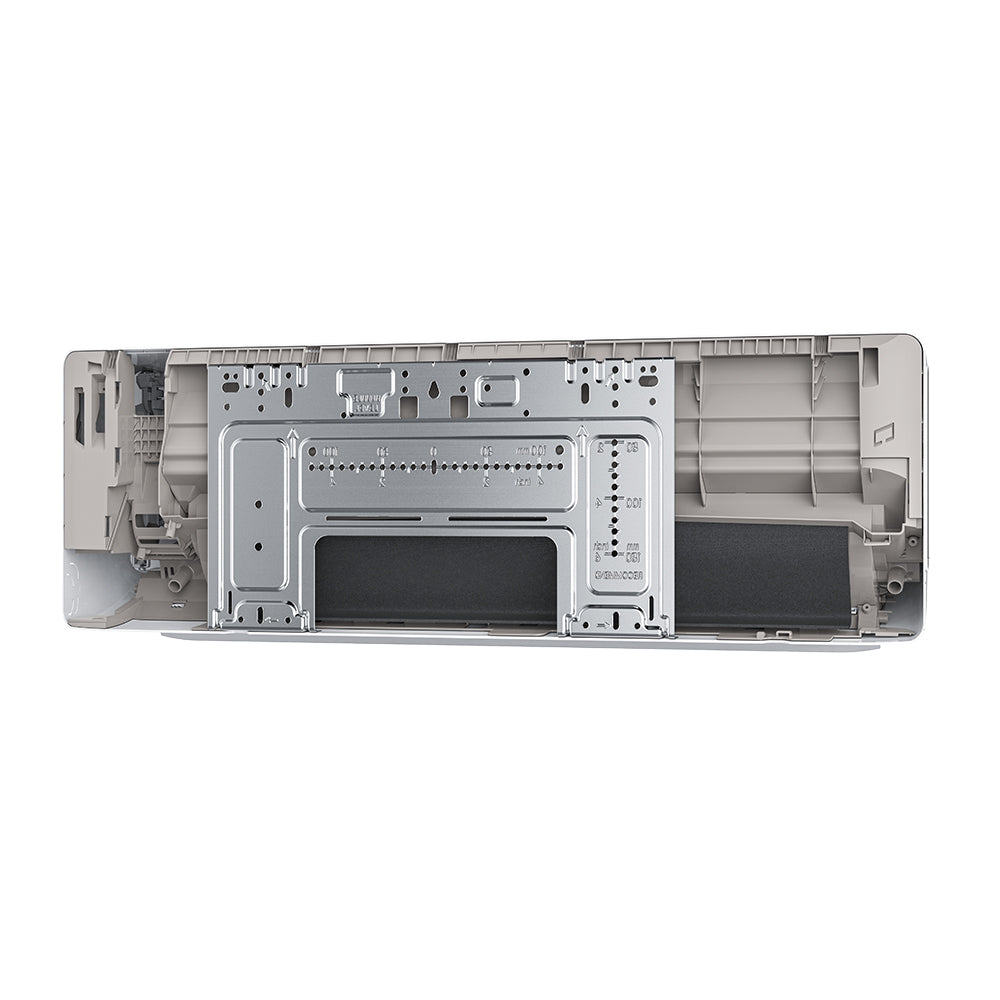

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 24K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 1,000 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      Line Set 16 ft., Quantity 3

      • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

          SPECIFICATIONS & DIMENSIONS

          • Condenser Specifications
          • Product Dimensions: 37.48"W x 16.34"D x 52.48"H
          • Cooling Capacity: 48,000 BTU
          • Heating Capacity: 48,000 BTU
          • Zone Capacity: 5
          • Cool Mode - Outdoor Operating Temperature Range: 5F ~ 122F
          • Min Ambient Heat: 5F ~ 75.2F
          • SEER: 20.5
          • EER: 11
          • Voltage: Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
          • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
          • Air Handler 12K BTU
          • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
          • Mount Type: Wall
          • Cooling Capacity: 12,000 BTU
          • Heating Capacity: 12,000 BTU
          • Registered Warranty: 5 Years Parts
          • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
          • Air Handler 24K BTU
          • Product Dimensions: 42.52"W x 8.90"D x 13.19"H
          • Mount Type: Wall
          • Cooling Capacity: 23,000 BTU
          • Heating Capacity: 25,000 BTU
          • Registered Warranty: 5 Years Parts
          • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
          • Line Set
          • Length: 16 Feet
          • Liquid Line Size: 3/8"
          • Suction Line Size: 5/8"
          • Line Set
          • Length: 16 Feet
          • Liquid Line Size: 1/4"
          • Suction Line Size: 1/2"

          INSTALLATION & GUIDES

          Installation Manual
          Product Brochure
          Performance Specifications
          Warranty
          Energy Guide
          AHRI Certificate

          COVERAGE AREA

          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          BTU  Square Feet
          9,000 BTU 180 - 375 Sq Ft.
          12,000 BTU 376 - 500 Sq Ft.
          18,000 BTU 501 - 750 Sq Ft.
          24,000 BTU 751 - 1,000 Sq Ft.
          36,000 BTU 1,001 - 1,500 Sq Ft.

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
