4th Gen New Release!
MRCOOL DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP091818
$4,704.00
$5,599.00
16% Off
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
4th Gen New Release!
MRCOOL DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP091818
This item is in stock! Estimated Arrival: Sep 20 to Sep 26
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Need help with choosing a Mini Split system or have other questions?
Talk with one of our trusted HVAC professionals today!
Product Overview
- Covers 1875 sq. ft.
- DIY Installation
- Wall Mounted
- Number of Zones: 3
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): 5°F to 75.2°F

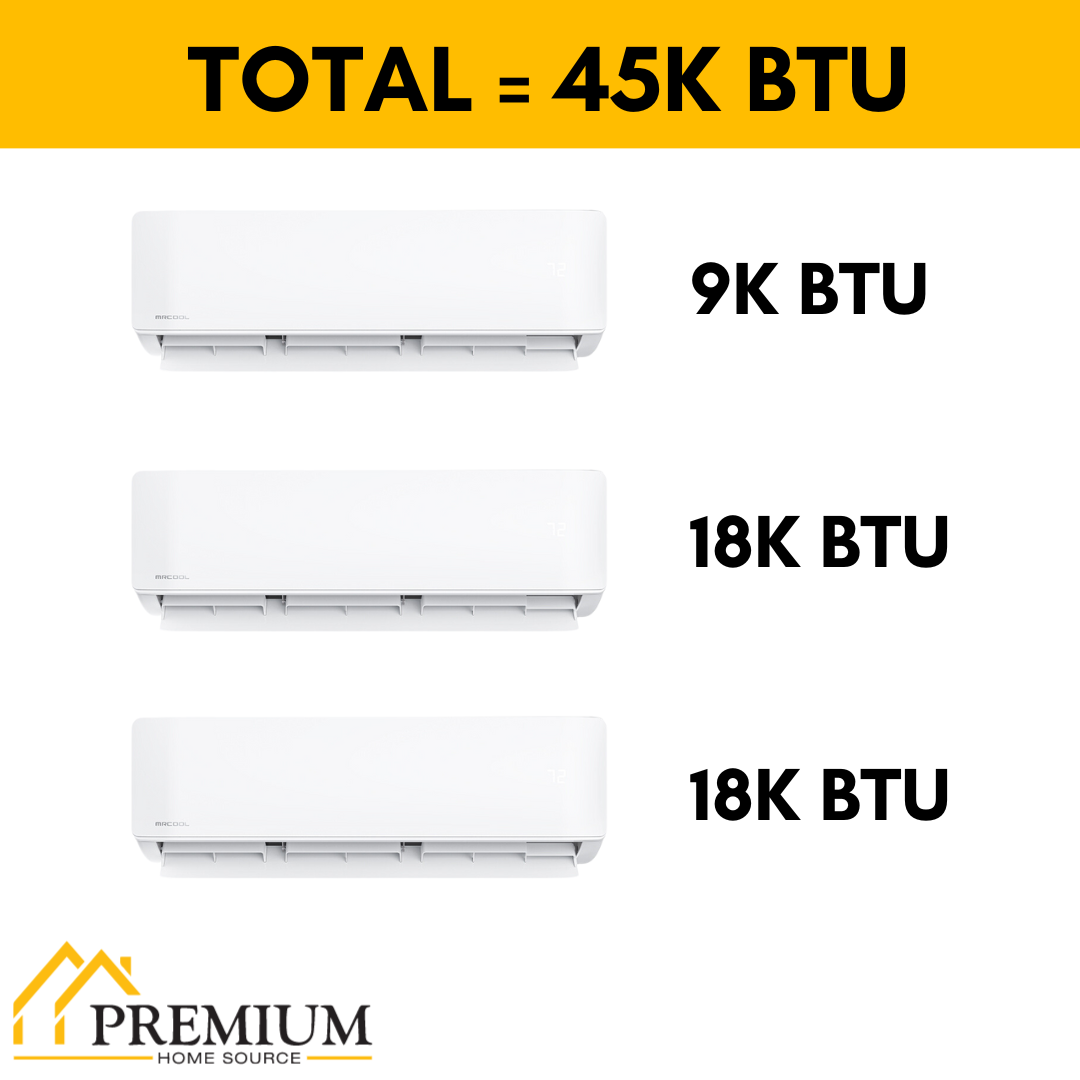

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, 9K BTU Wall Mount Air Handler and two 18K BTU Air Handlers. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.
-
MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25
- MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25 (x2)
This product does not have the lineset and communication wire for each air handler. Scroll up to add them!

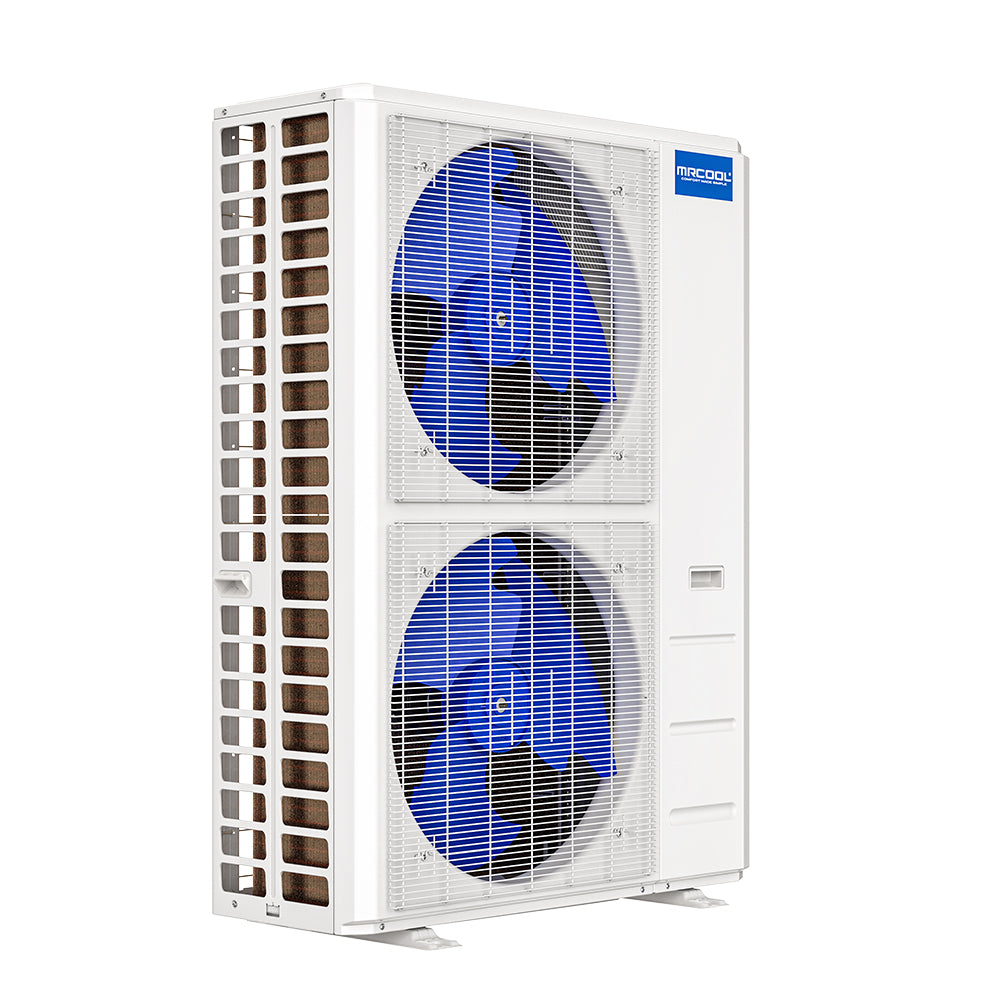

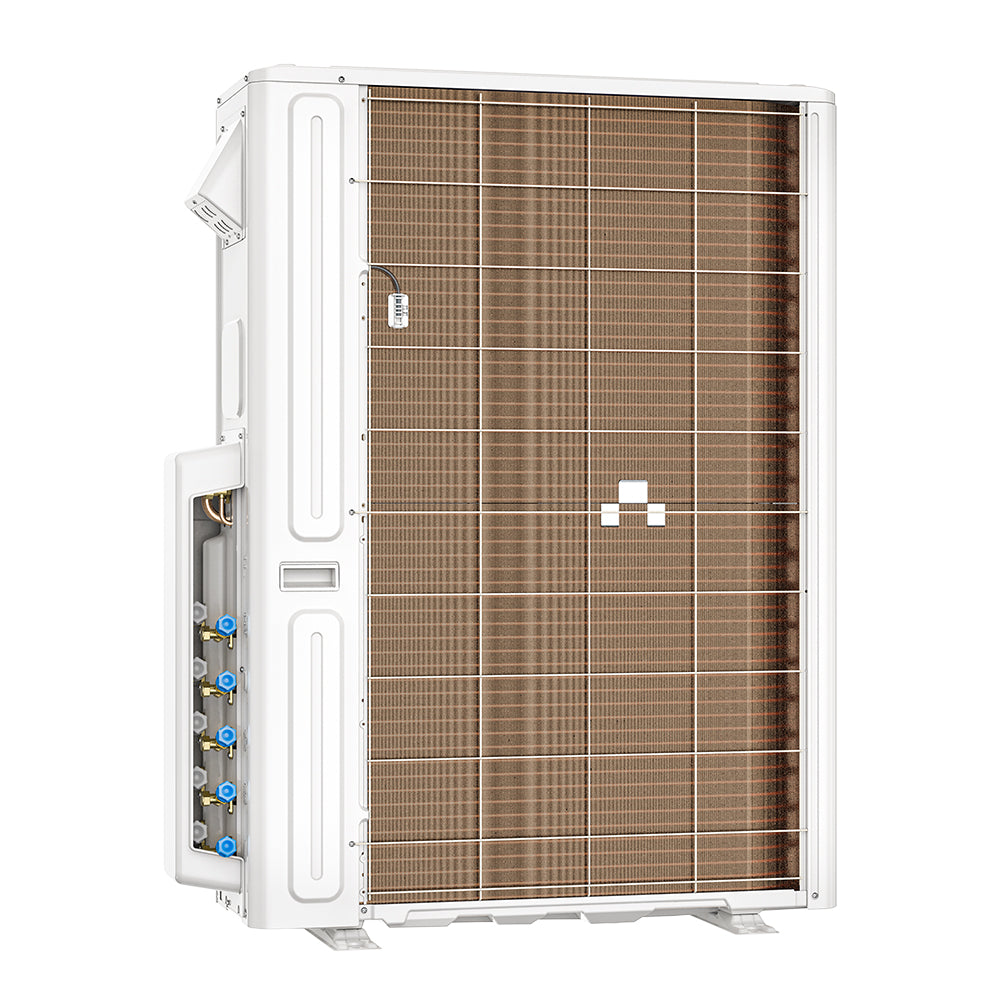

Condenser 48K BTU
- Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
- Works In Extreme Temperatures. The ability to heat even when temperatures drop to -5°F.
- Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler 9K BTU
- Large Coverage Area. The air handler covers an area between 180 to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler 18K BTU
- Large Coverage Area. The air handler covers an area between 375 to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Condenser
| Product Dimensions |
37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F ~ 75.2°F |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 18K BTU
| Product Dimensions | 34.61"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
