4th Gen New Release!

MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM236HPC01C13

5.0 6 reviews
Model: DIYM236HPC01C13
Regular price $5,381.00
Sale price $5,381.00 Regular price $7,265.00
-26%
Shipping calculated at checkout.

Financing Options


Mount type: Ceiling
Line set length: 35 ft.

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Nov 16 to Nov 22

Regular price $5,381.00
Sale price $5,381.00 Regular price $7,265.00

Product Overview

  • Zones: 2

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Collapsible content

BETTER TOGETHER

DESCRIPTION

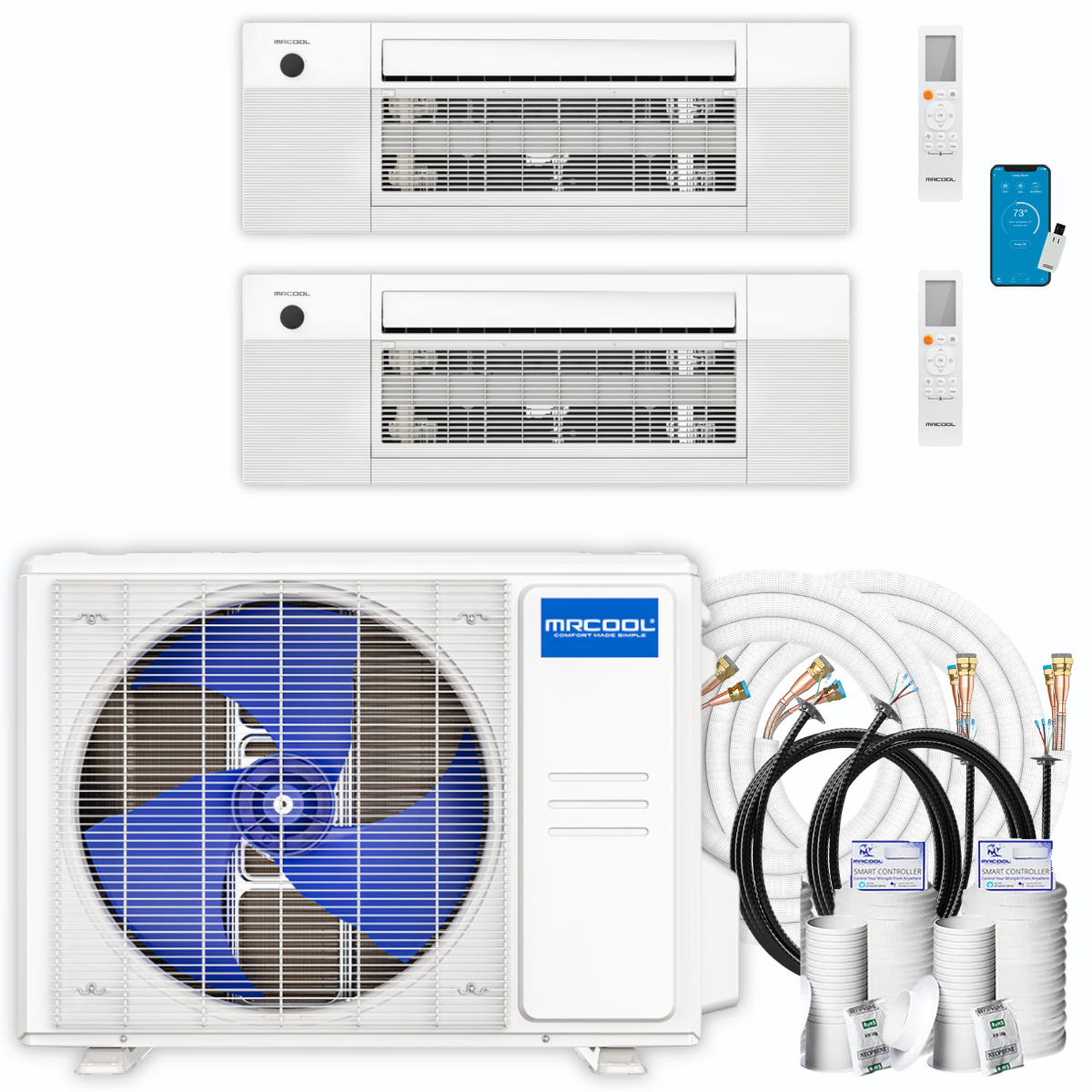

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 36K BTU Multi-Zone Condenser, Two 18K BTU Ceiling Cassette Air Handlers and a remote, lineset, communication wire for each air handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

Mini Split System Includes

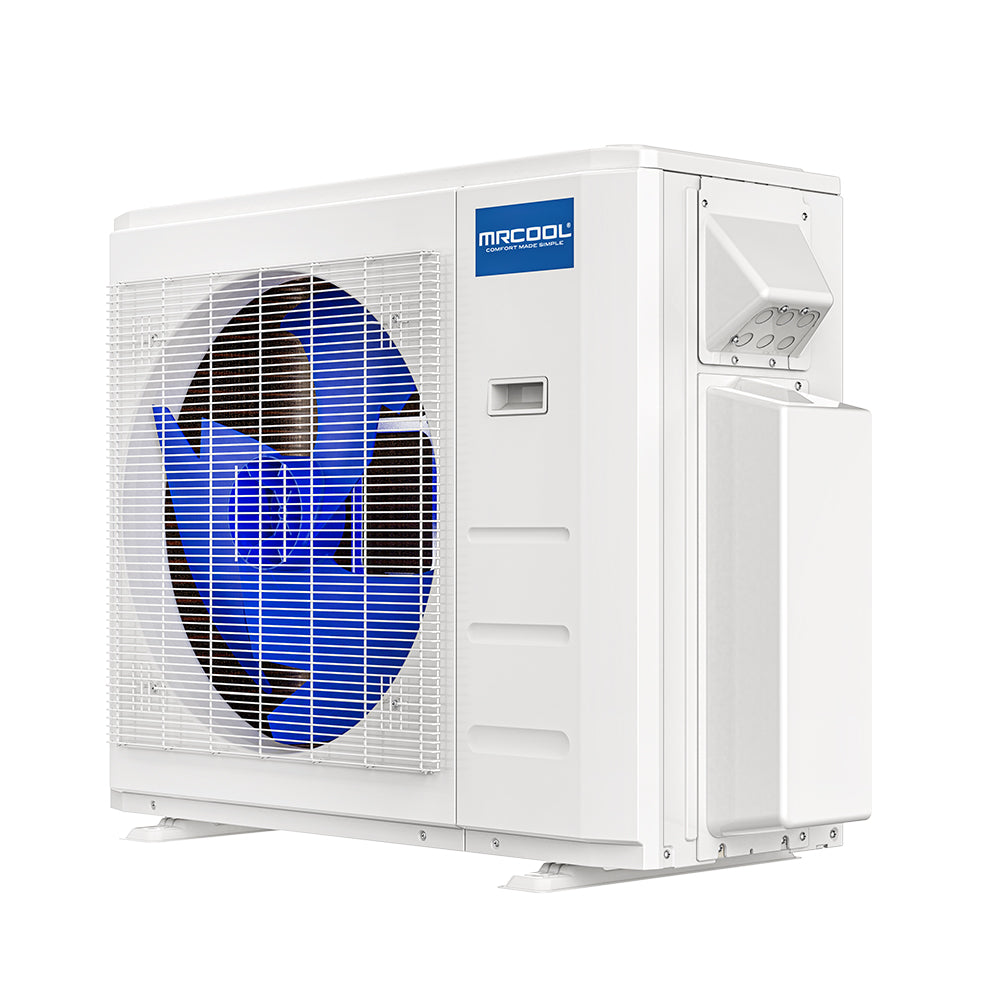

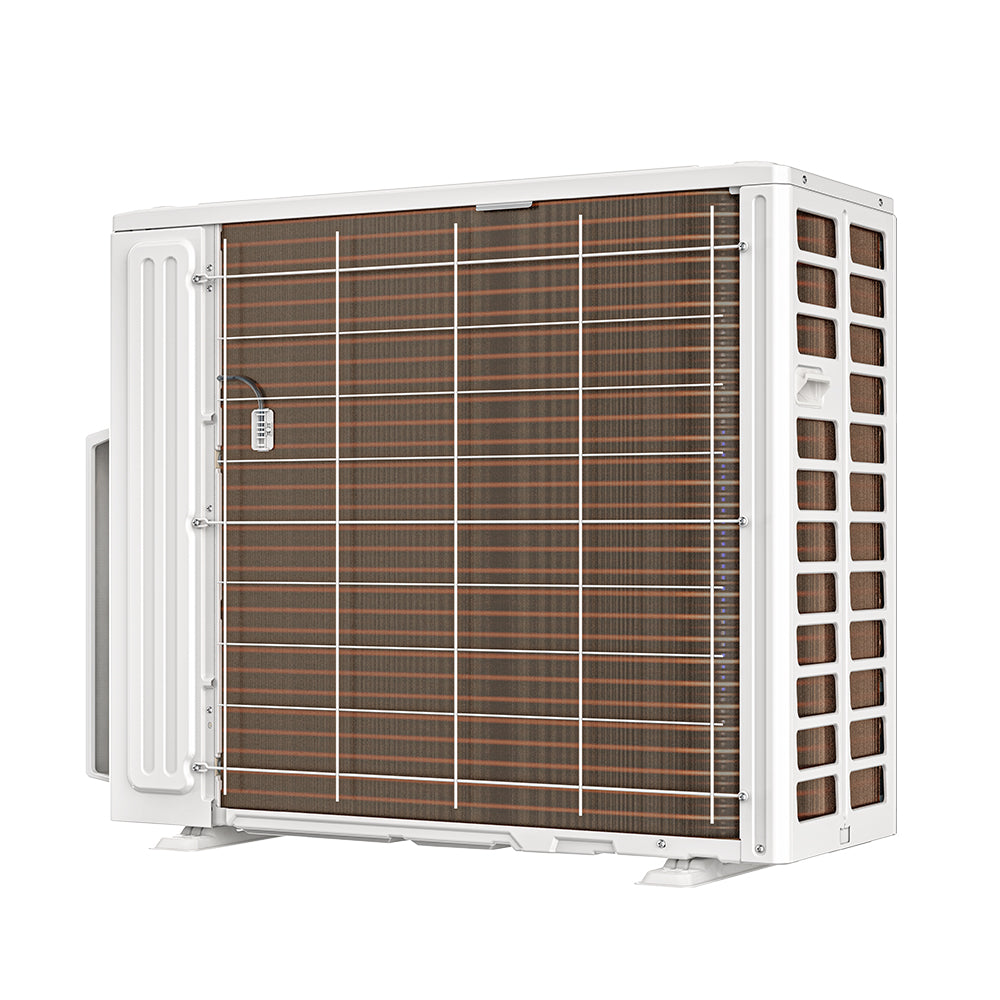

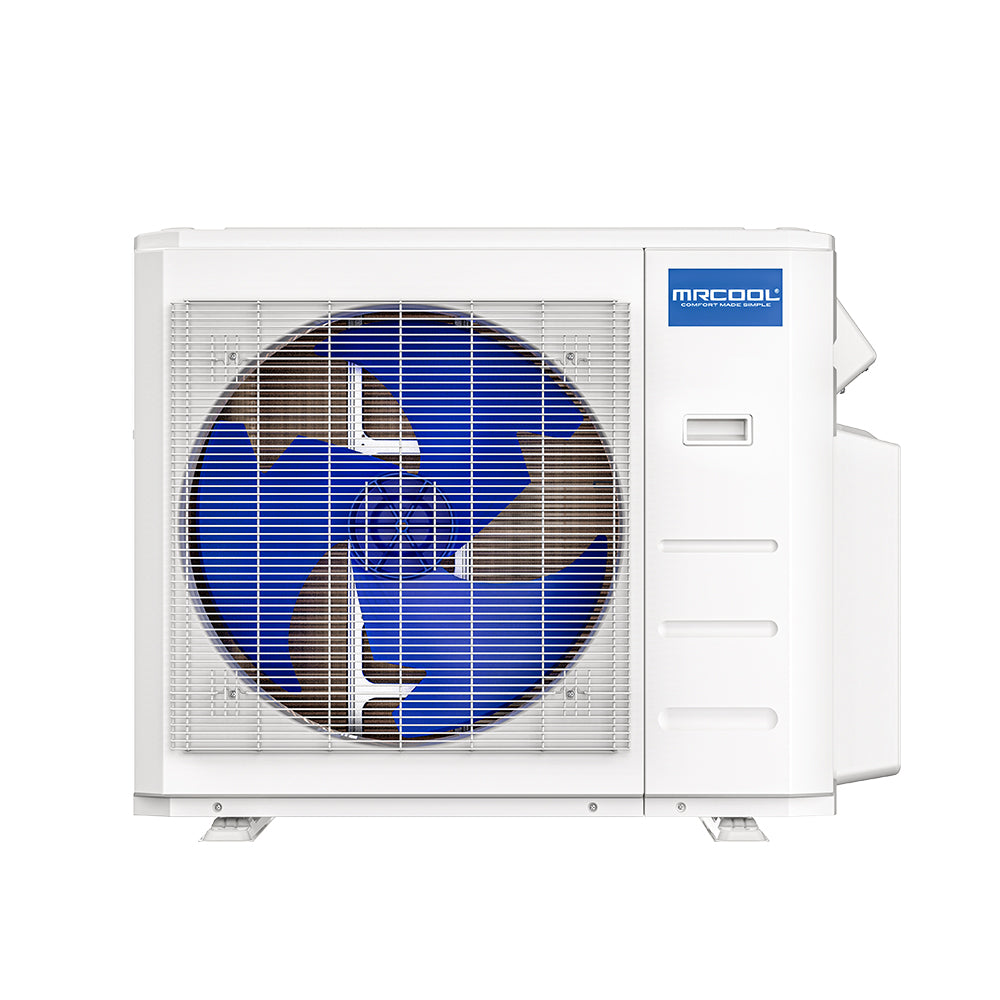

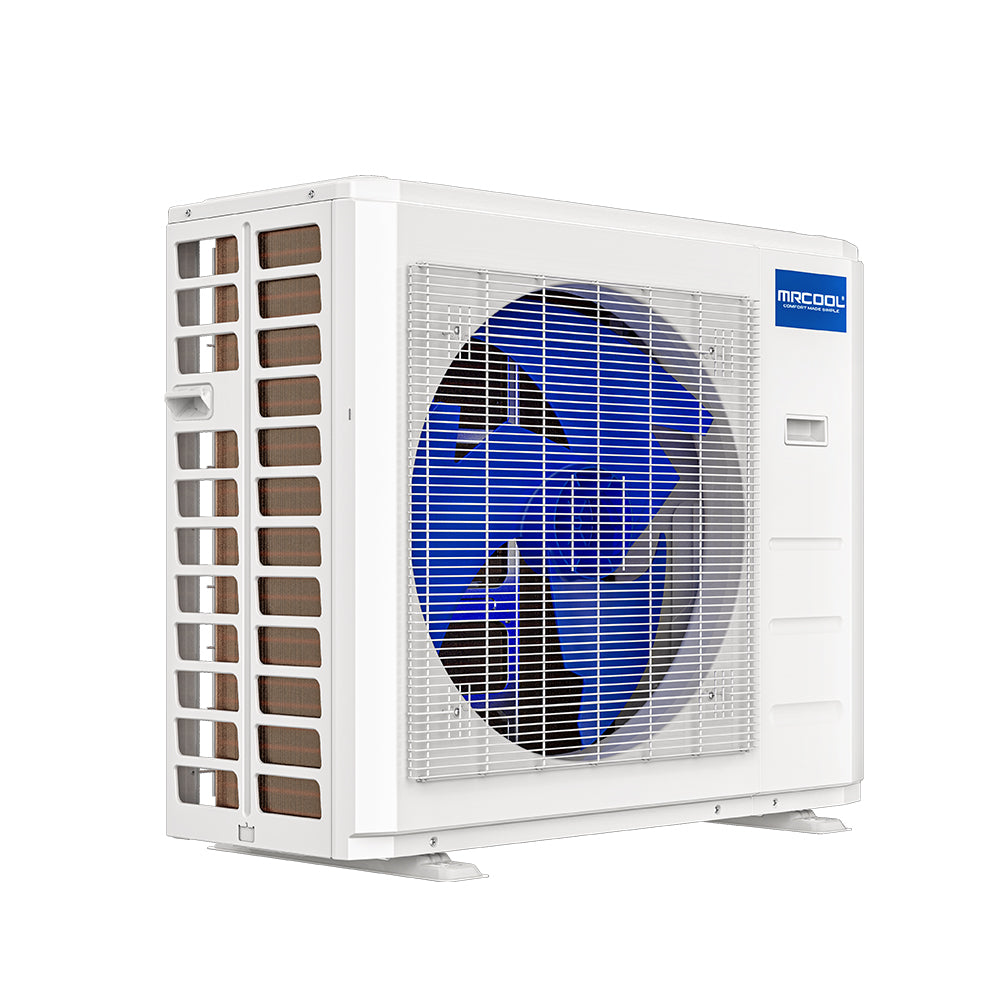

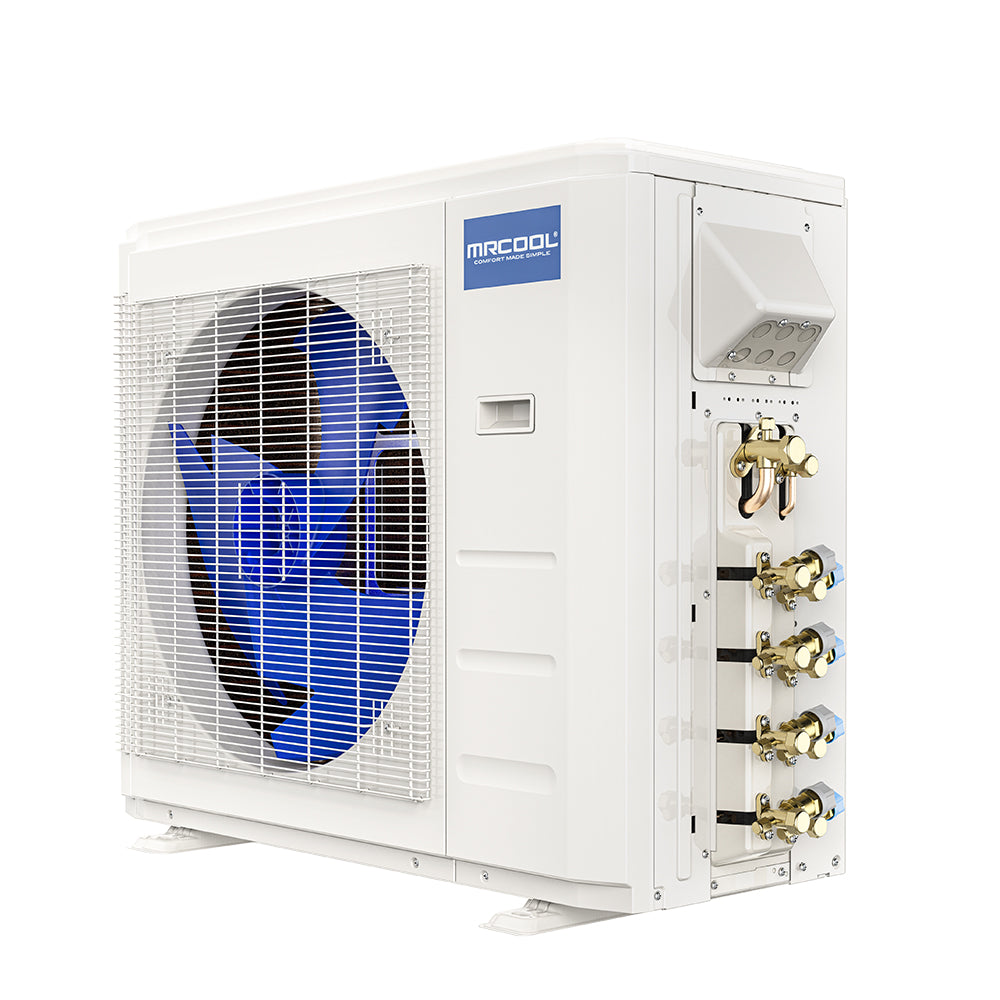

Condenser 36K BTU

  • Energy Efficient. This 36K BTU condenser is capable of producing up to an impressive 21.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
  • Works In Extreme Temperature. The ability to heat even when temperatures drop to -13°F.
  • Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

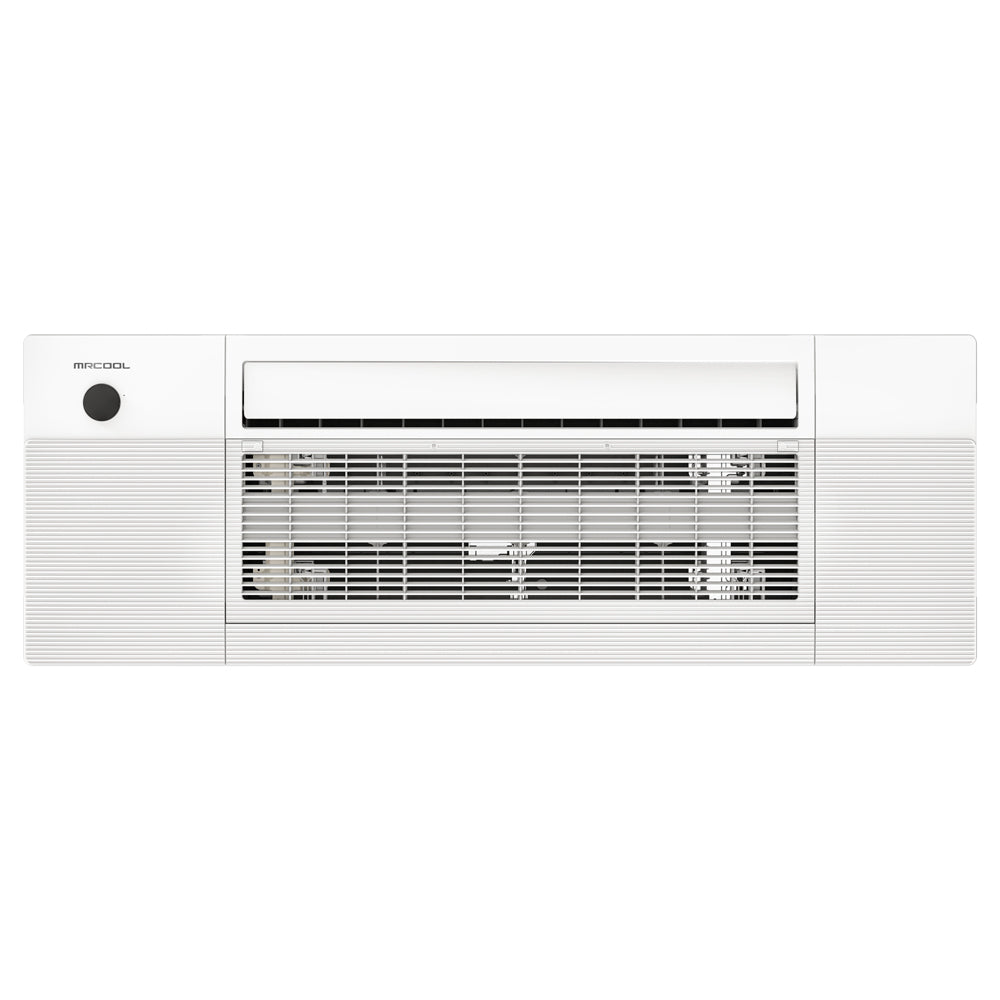

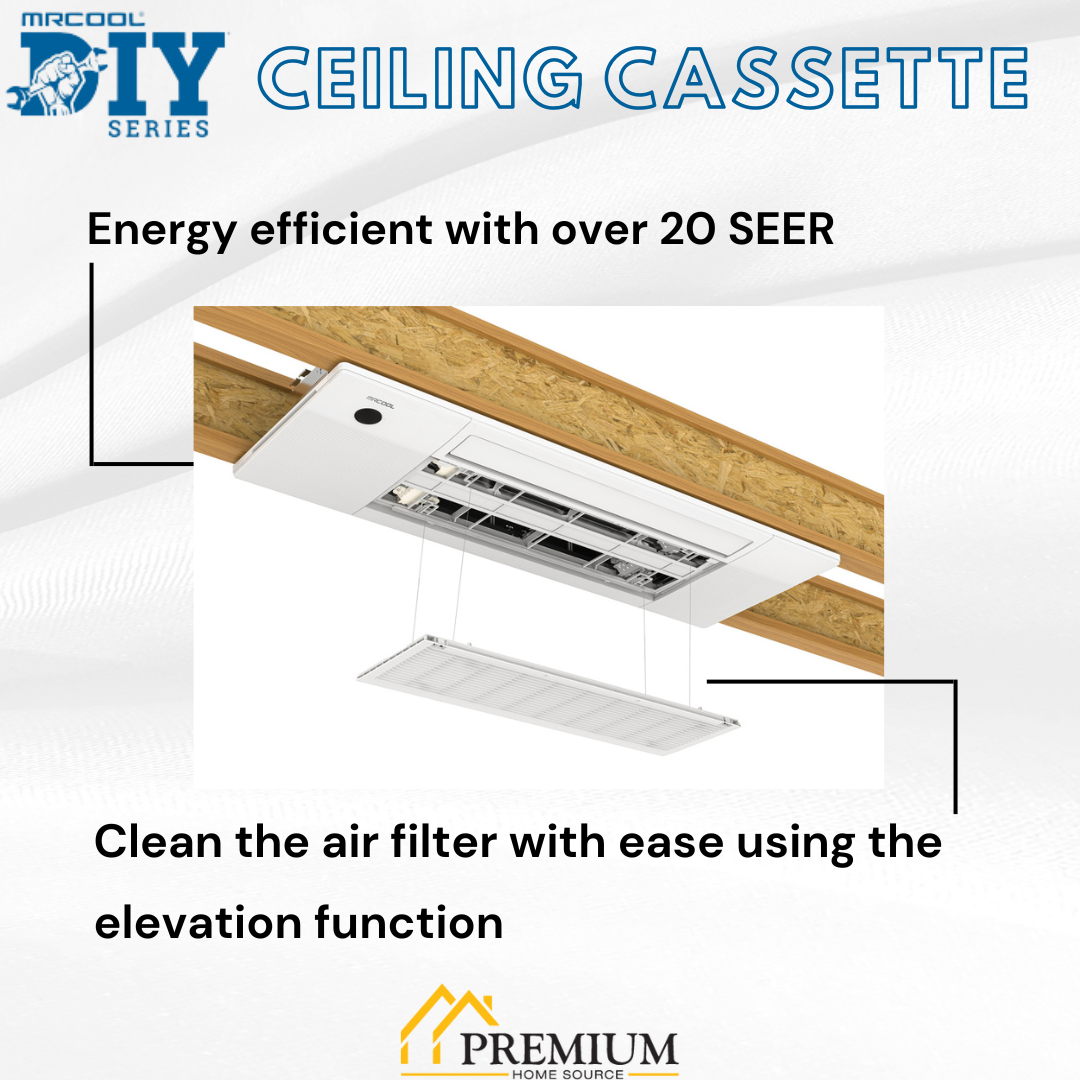

Air Handler 18K BTU

  • Vast Coverage Area. The cassette covers an area between 375 to 750 sq. ft.
  • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.

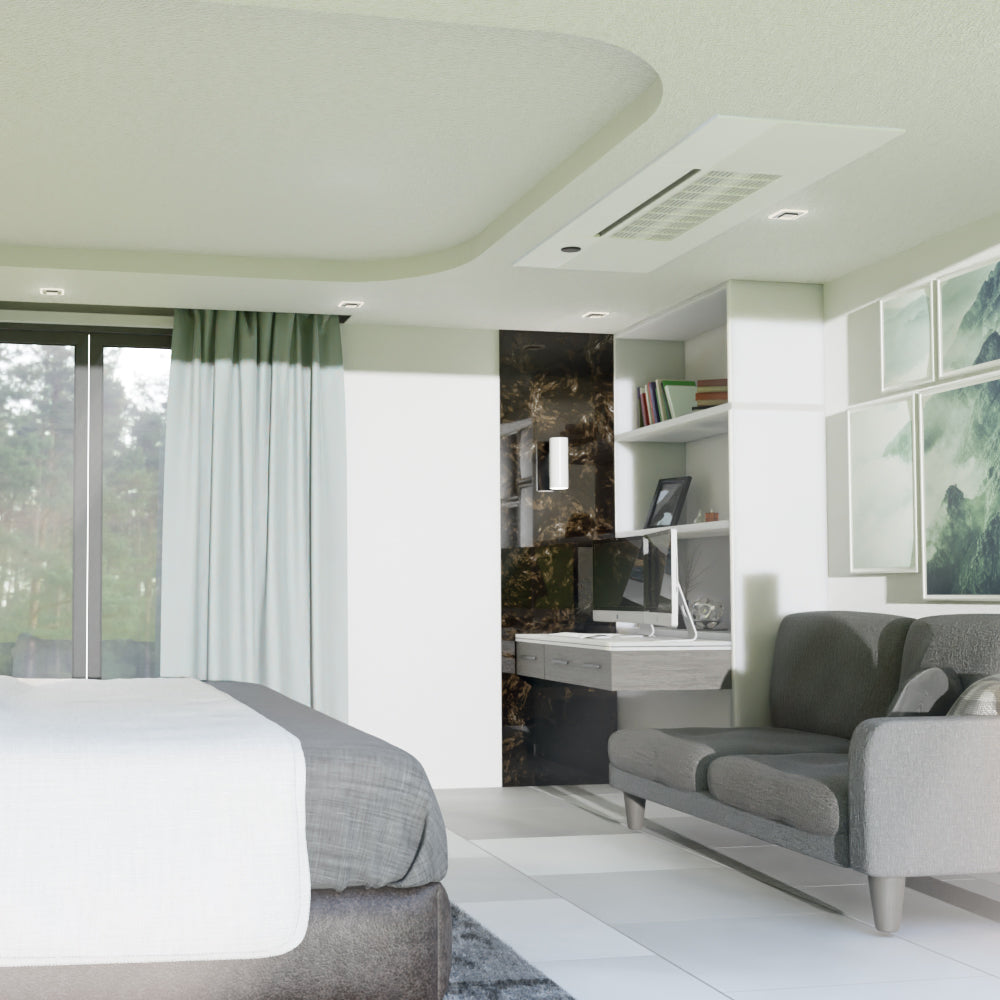

  • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

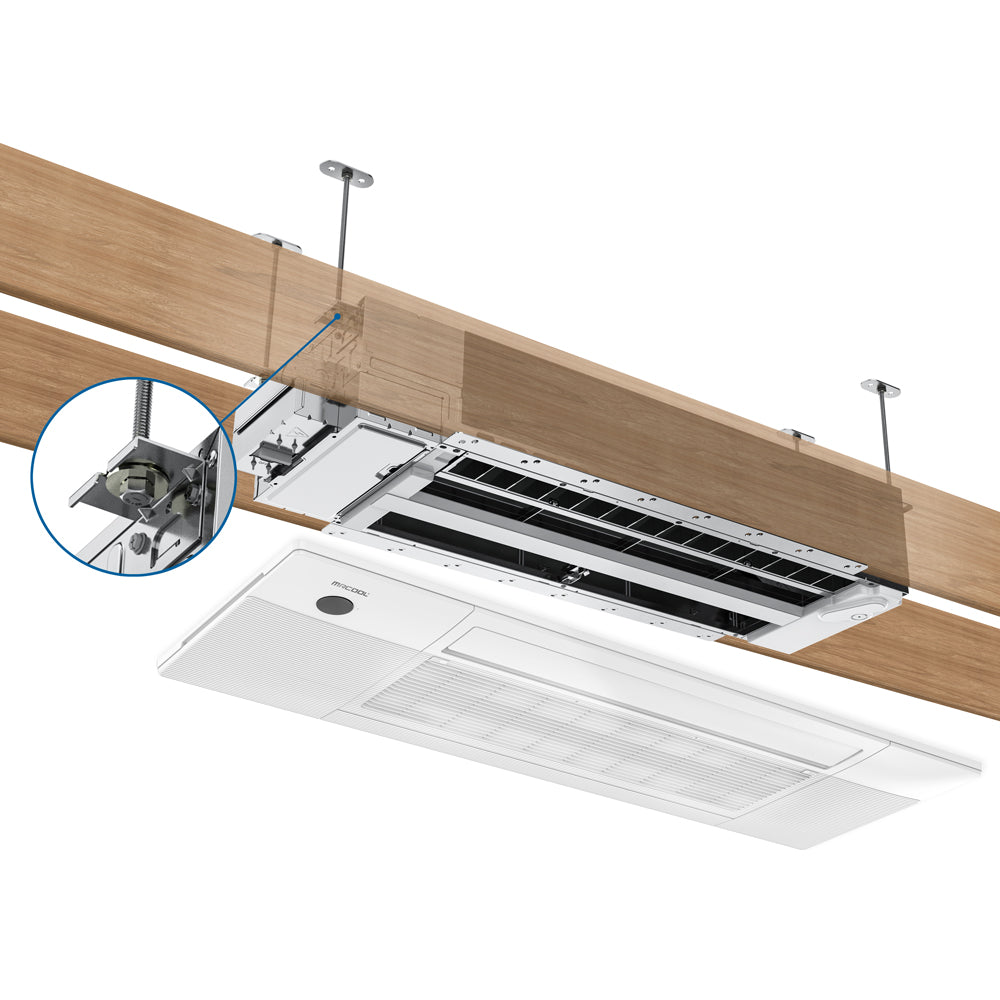

  • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

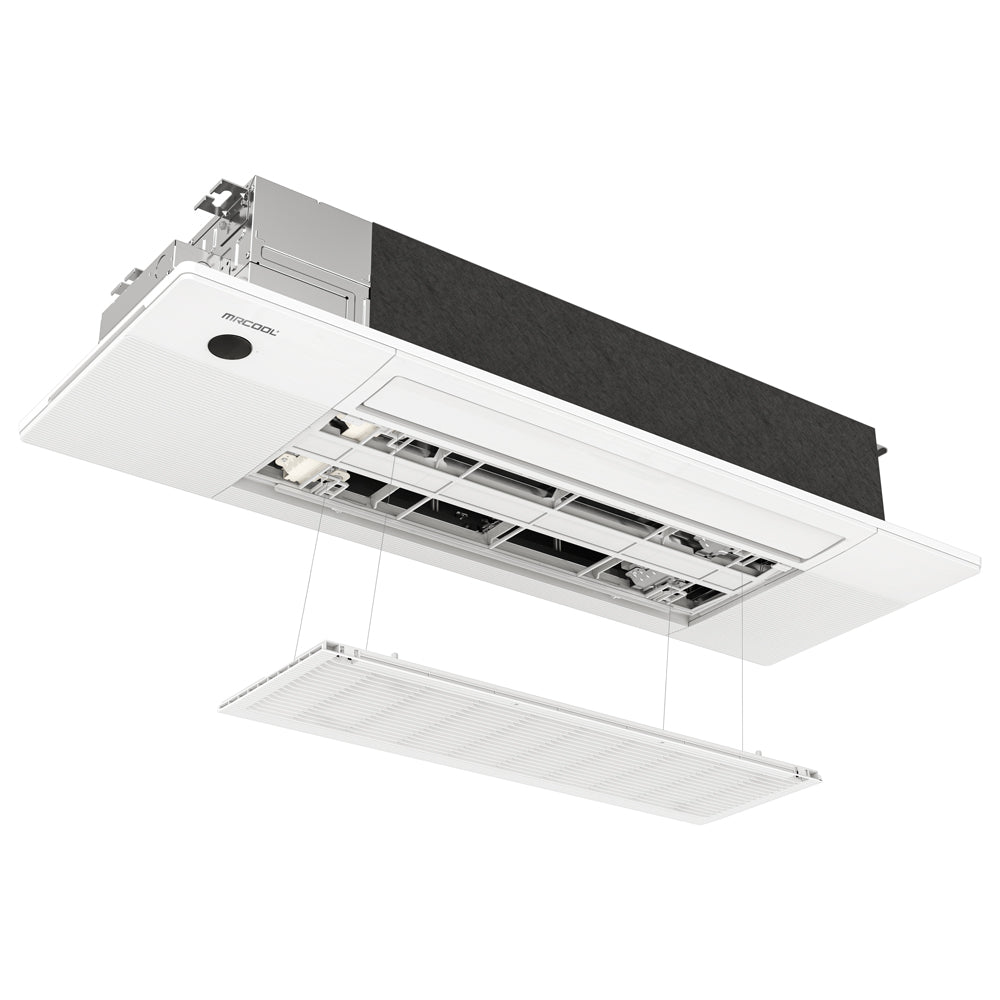

  • Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.

    Line Set

    • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
    • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        SPECIFICATIONS & DIMENSIONS

        • Condenser
        • Product Dimensions: 37.24"W x 16.14"D x 31.89"H
        • Cooling Capacity: 36000 BTU
        • Heating Capacity: 36000 BTU
        • Zone Capacity: Up to 4
        • Cool Mode - Outdoor Operating Temperature Range: 5°F ~ 122°F
        • Heat Mode - Outdoor Operating Temperature Range: -13°F ~ 75.2°F
        • SEER2: 21.5
        • EER2: 10.5
        • HSPF2: 8.8
        • Voltage: Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
        • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
        • Air Handler 18K BTU
        • Product Dimensions: 50.31"W x 13.19"D x 8.98"H
        • Mount Type: Ceiling Cassette
        • Cooling Capacity: 18,000 BTU
        • Heating Capacity: 18,000 BTU
        • Registered Warranty: 5 Years Parts
        • Modes: Auto (Auto selects Cool, Heat or Fan-Only) // Cool // Heat // Dry // Fan Only // Sleep
        • Line Set
        • Length: 35 Feet
        • Liquid Line Size: 1/4"
        • Suction Line Size: 1/2"

        INSTALLATION & GUIDES

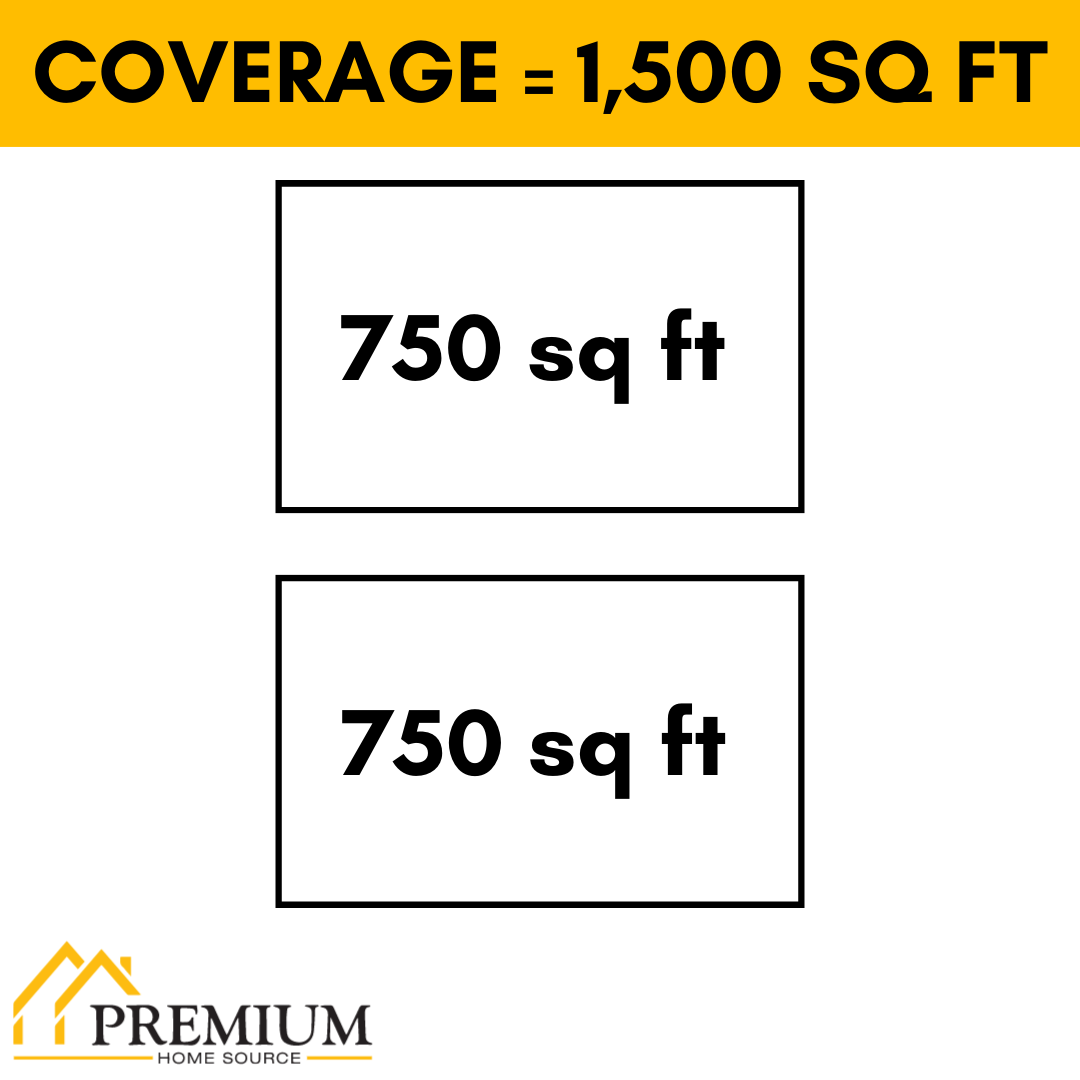

        COVERAGE AREA

        Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

        BTU  Square Feet
        9,000 BTU 180 - 375 Sq Ft.
        12,000 BTU 376 - 500 Sq Ft.
        18,000 BTU 501 - 750 Sq Ft.
        24,000 BTU 751 - 1,000 Sq Ft.
        36,000 BTU 1,001 - 1,500 Sq Ft.

        Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.

        Customer Reviews

        Based on 6 reviews
        100%
        (6)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        D
        Debralee Chowning
        "Mr Cool Mini Split: Unmatched Comfort and Efficiency!"

        I recently purchased the Mr Cool Mini Split System, and I'm thrilled with its performance! Premium Home Source was excellent with communication and delivery. The installation was a breeze, and the system quickly transformed my space into a comfortable oasis. The sleek design and quiet operation exceeded my expectations. It's energy-efficient and provides precise temperature control. I highly recommend the Mr Cool Mini Split for anyone looking for a reliable and efficient heating/cooling solution.

        B
        Brian Sharpe
        Mr Cool DIY 18k Heat Pump 4th Gen

        Ordered the system off the website, spoke to a couple agents on the phone with some questions to make sure I was getting the correct system for my needs, everyone was very nice and helpful. System arrived in about a week and everything was packaged up nicely on a pallet. My dad and myself installed this system with minimal issues. Was a super easy setup and within about 2 hours we had it up and running. Warms the house nicely and we are about to buy another system for our Airbnb.

        Brian

        J
        Joseph Dauphinais

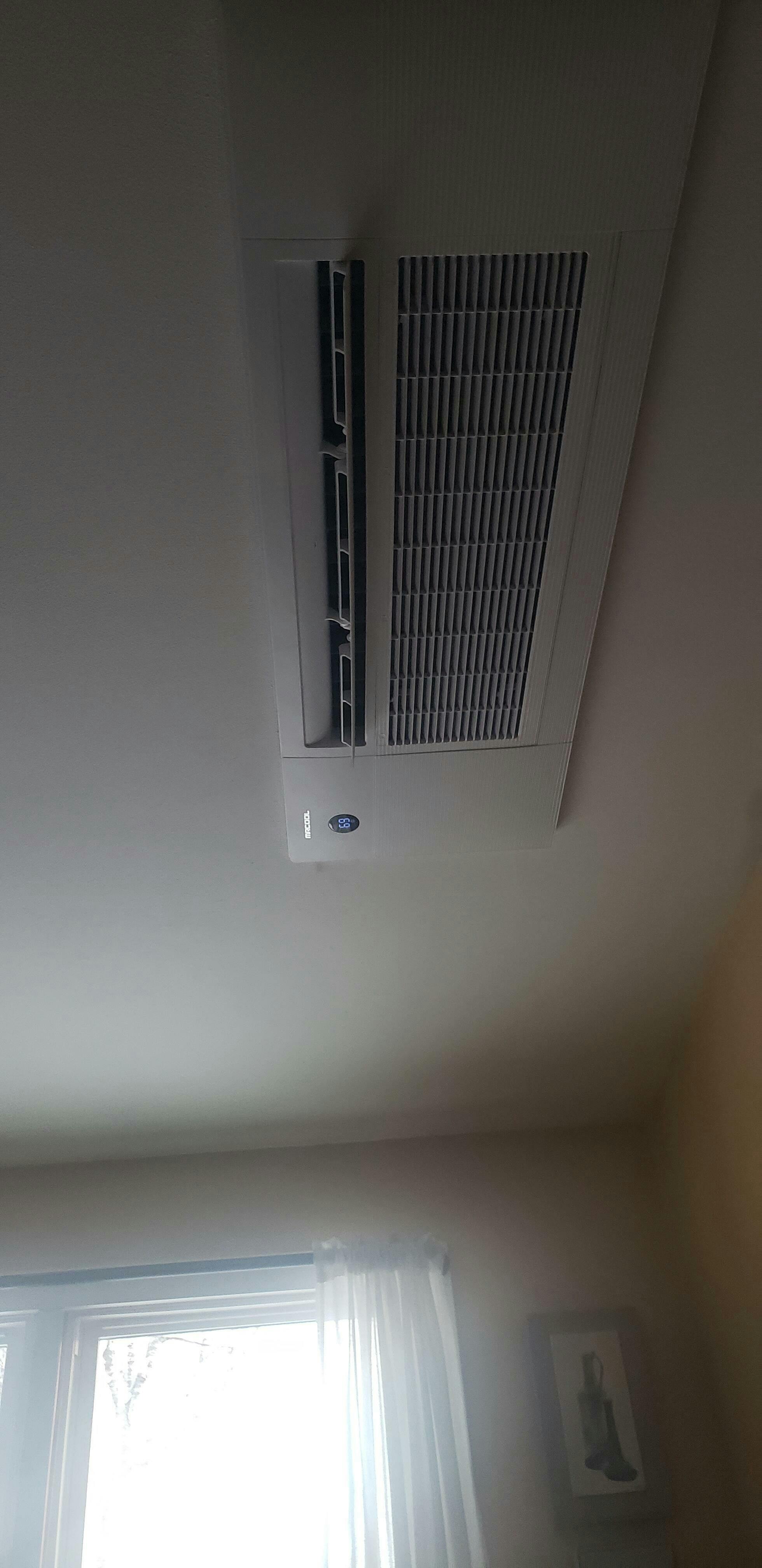

        DIY ceiling cassette.
