4th Gen New Release!

MRCOOL DIY Mini Split - 33,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW02C28

$3,989.00

$5,145.81

22% Off

4.8 28 reviews

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

4th Gen New Release!

MRCOOL DIY Mini Split - 33,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW02C28

See more from MRCOOL Model: DIYM327HPW02C28
4.8 28 reviews

Model: DIYM327HPW02C28

$3,989.00

$5,145.81

22% Off

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Jul 28 to Aug 03

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Professional
    Services

    Exclusive Offers Just For You!

    🔨Angi: Enjoy affordable installation services across the country. Schedule Now!

    🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!

Contact Us

Need help with choosing a Mini Split system or have other questions?

Talk with one of our trusted HVAC professionals today!

Product Overview

  • Covers 1375 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 3
  • voltage-240 Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

  • Air Handler
  • Condenser
  • Line Set
  • Wall Sleeve
  • Communication Wire
  • Remote Control

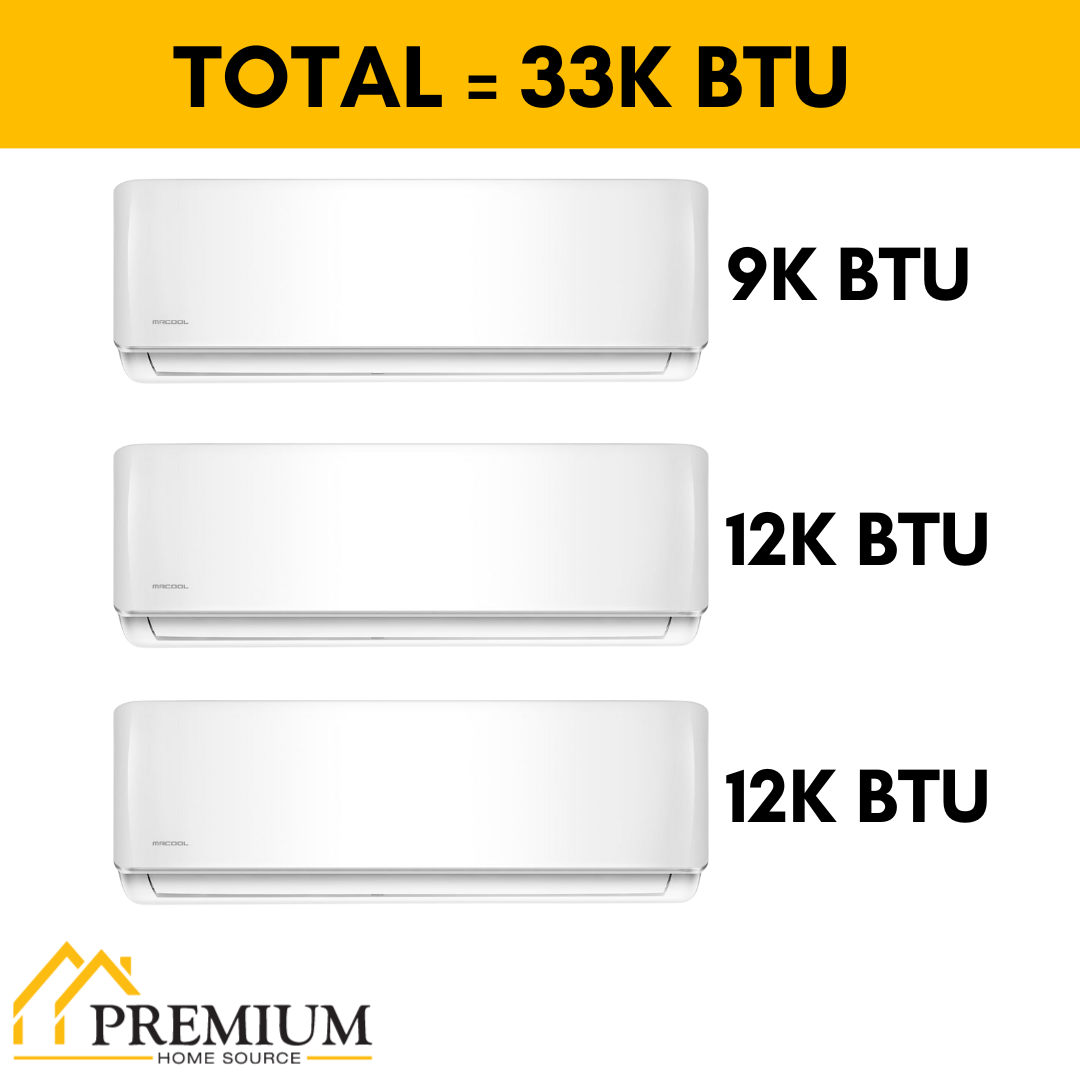

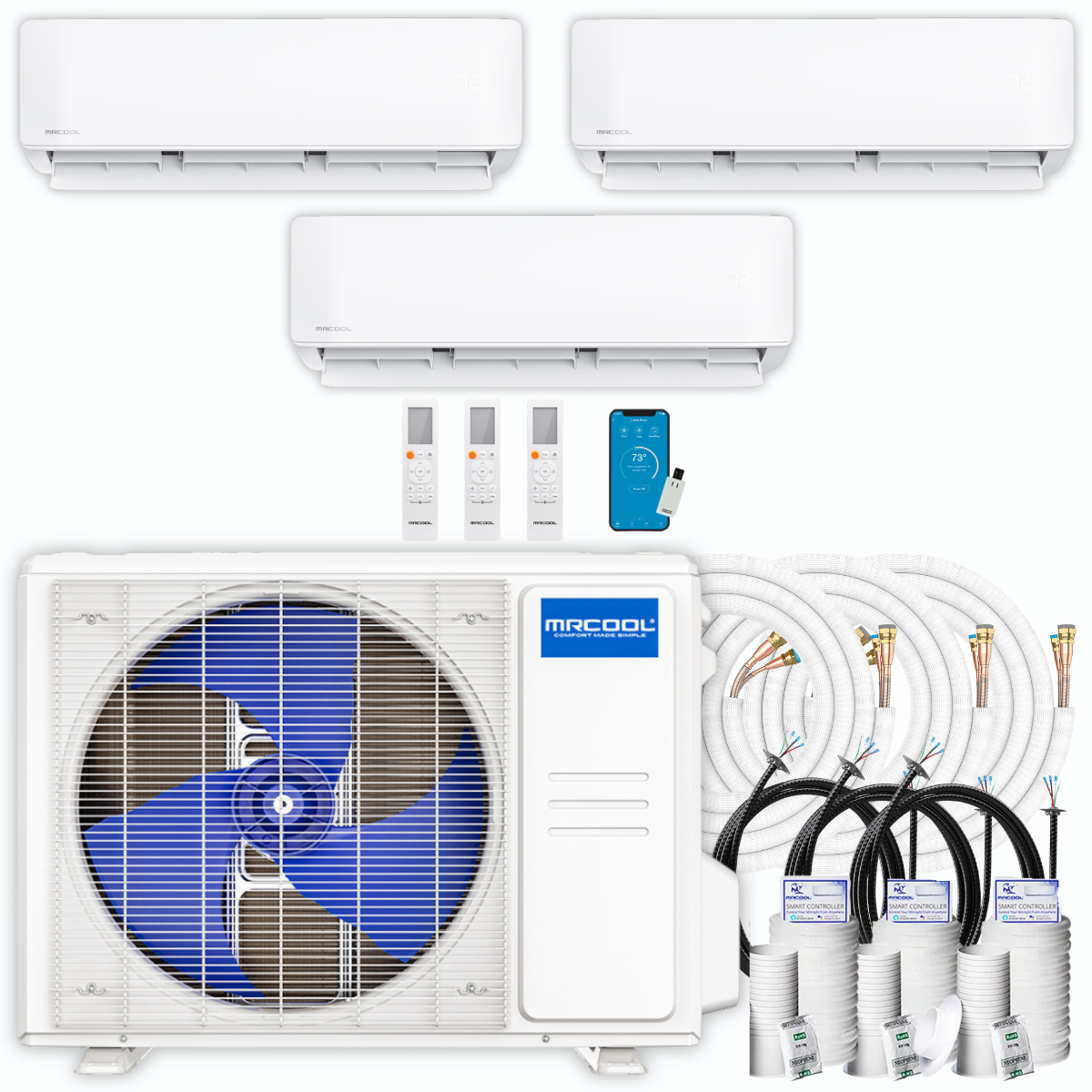

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, two 12,000 BTU Wall Mounted Air Handler, three Remotes, and three 25 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 27K BTU rating of the Condenser.

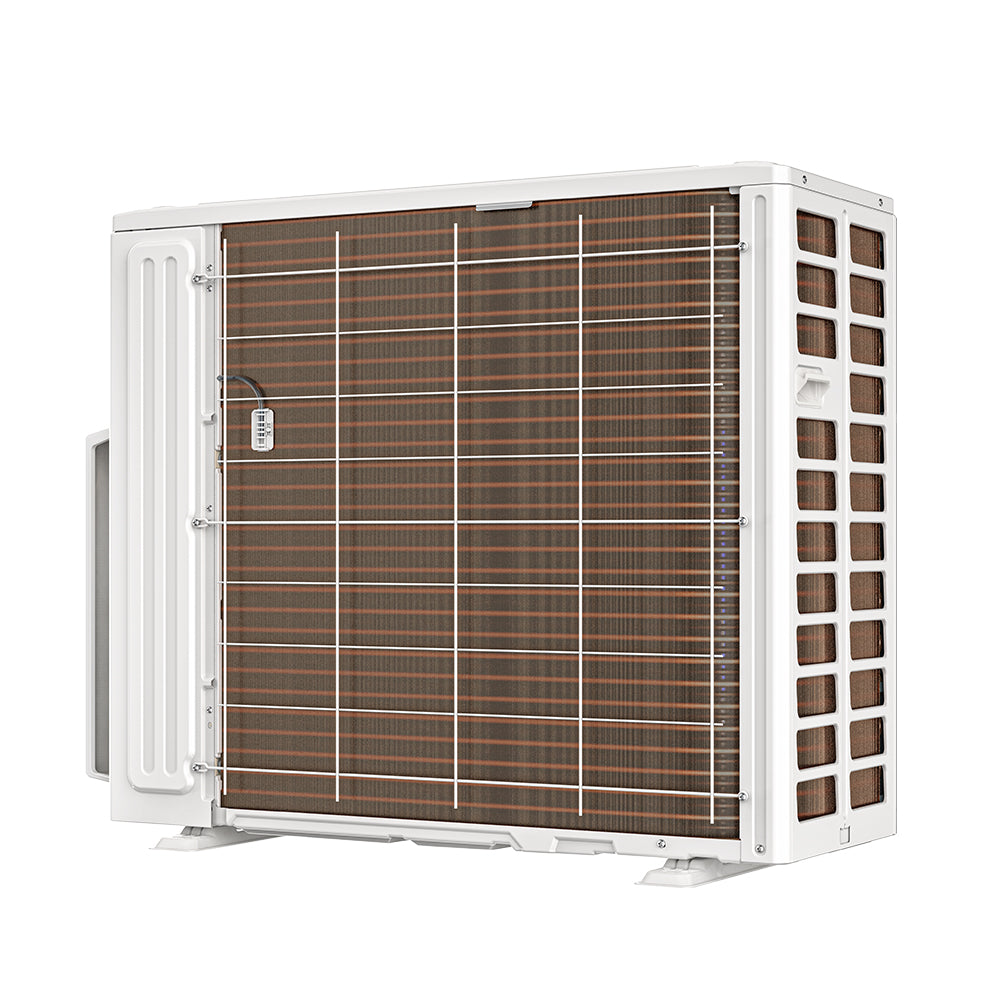

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      Line Set 25 ft., Quantity 3

      • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

      Additional Line Sets & Coupler

      If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

      What does this package include?

      This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.


          Condenser Specifications

          Product Dimensions 37.24"W x 16.14"D x 31.89"H
          Cooling Capacity 27,000 BTU
          Heating Capacity 27,000 BTU
          Zone Capacity 3
          Min Ambient Cool 5F ~ 122F
          Min Ambient Heat -13F ~ 75.2F
          SEER 22
          EER 12
          Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Compressor, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 12K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 12,000 BTU
          Heating Capacity 12,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Line Set

          Length 25 Feet
          Liquid Line Size 1/4"
          Suction Line Size 1/2"

          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          Square Feet: 180-375 | BTU = 9K
          Square Feet: 376-500 | BTU = 12K
          Square Feet: 501-750 | BTU = 18K
          Square Feet: 751-1,000 | BTU = 24K
          Square Feet: 1,001-1,500 | BTU = 36K

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.

          Customer Reviews

          Based on 28 reviews
          86%
          (24)
          11%
          (3)
          0%
          (0)
          4%
          (1)
          0%
          (0)
          D
          Debralee Chowning
          "Mr Cool Mini Split: Unmatched Comfort and Efficiency!"

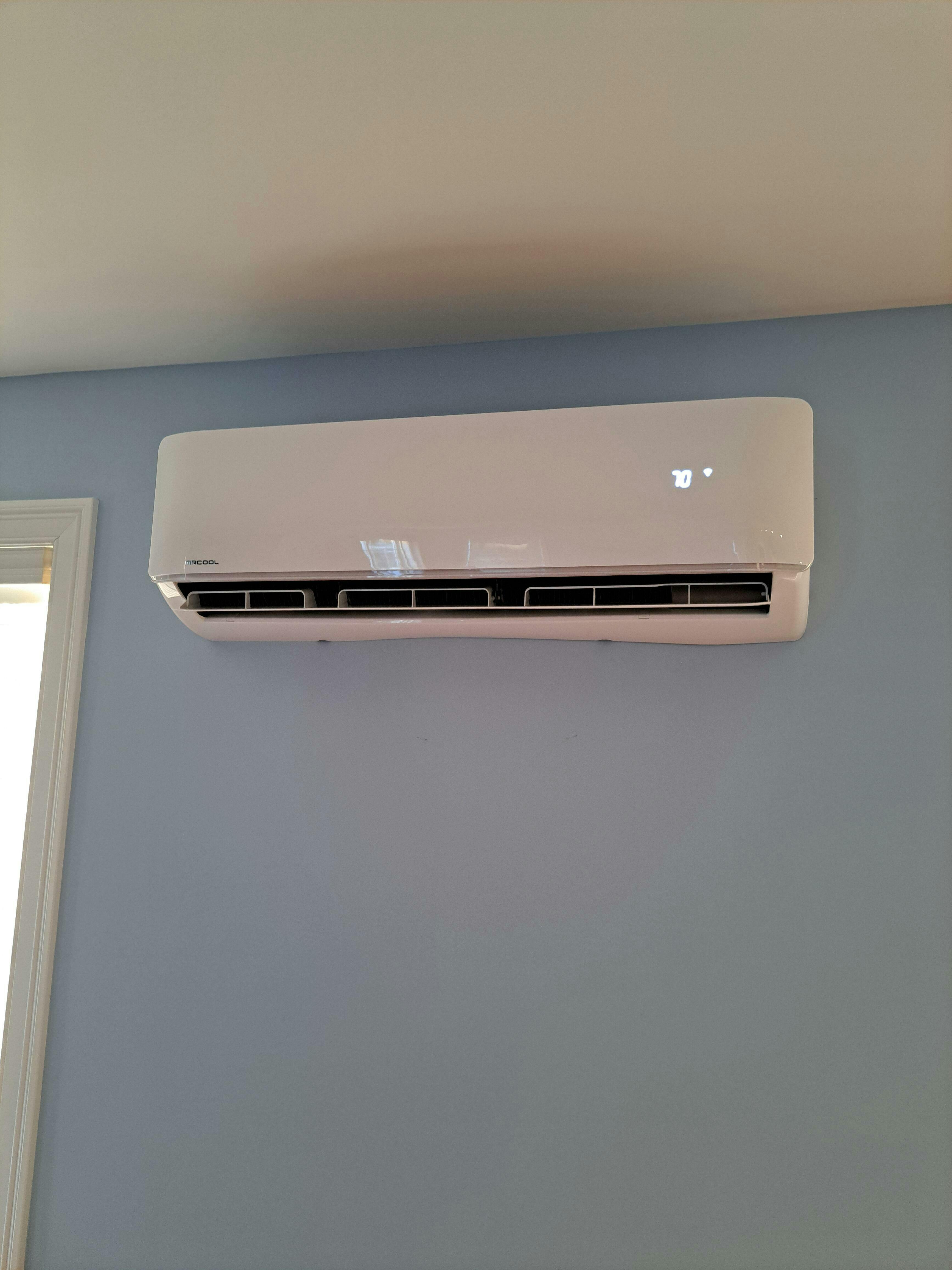

          I recently purchased the Mr Cool Mini Split System, and I'm thrilled with its performance! Premium Home Source was excellent with communication and delivery. The installation was a breeze, and the system quickly transformed my space into a comfortable oasis. The sleek design and quiet operation exceeded my expectations. It's energy-efficient and provides precise temperature control. I highly recommend the Mr Cool Mini Split for anyone looking for a reliable and efficient heating/cooling solution.

          B
          Brian Sharpe
          Mr Cool DIY 18k Heat Pump 4th Gen

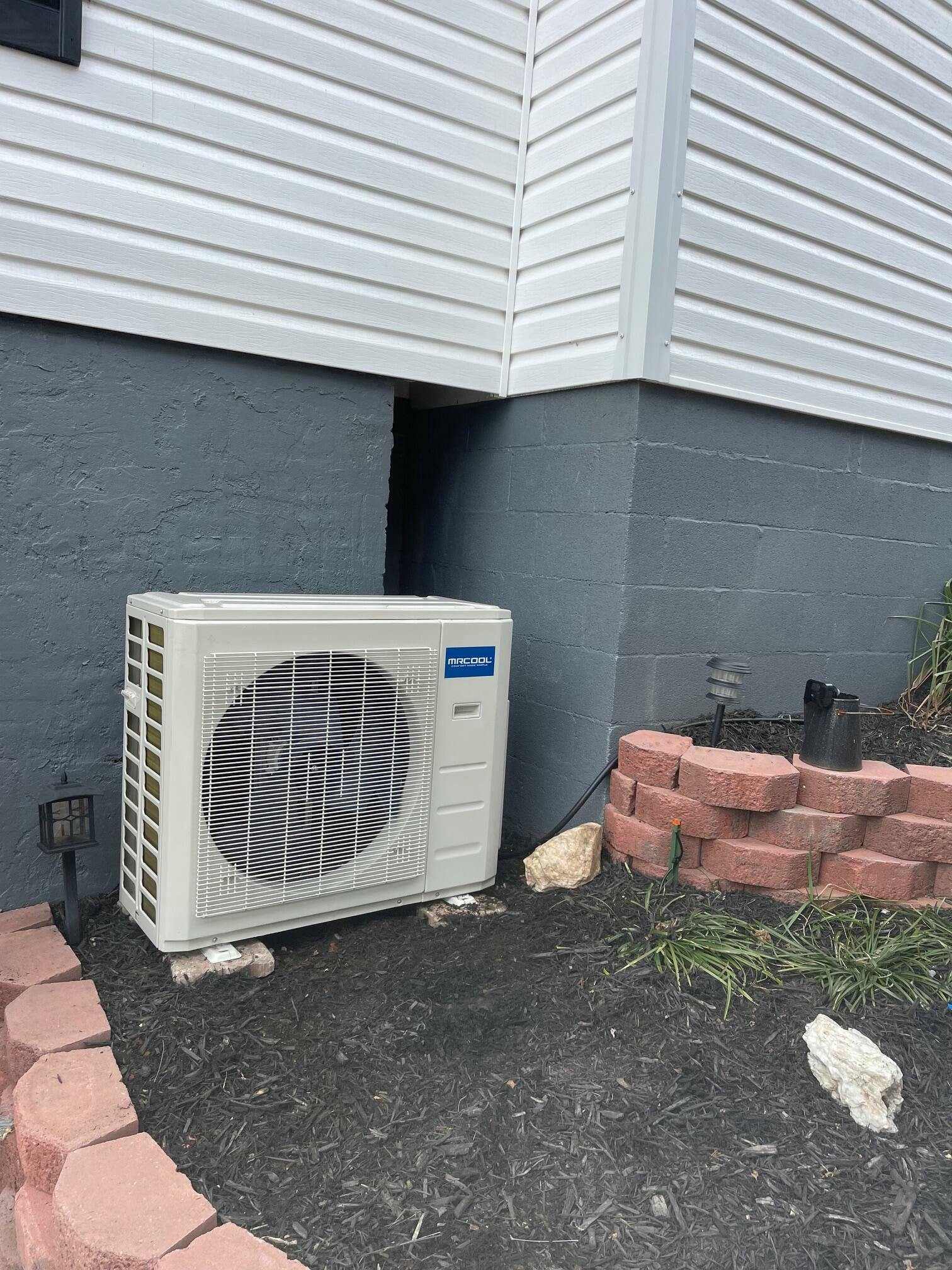

          Ordered the system off the website, spoke to a couple agents on the phone with some questions to make sure I was getting the correct system for my needs, everyone was very nice and helpful. System arrived in about a week and everything was packaged up nicely on a pallet. My dad and myself installed this system with minimal issues. Was a super easy setup and within about 2 hours we had it up and running. Warms the house nicely and we are about to buy another system for our Airbnb.
