MRCOOL DIY Mini Split - 33,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM336HPC03C00

5.0 6 reviews
Model: DIYM336HPC03C00
Regular price $6,271.00
Sale price $6,271.00 Regular price $8,465.85
-26%
Shipping calculated at checkout.

Financing Options


Mount type: Ceiling
Line set length: 16 ft.

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Dec 09 to Dec 15

Regular price $6,271.00
Sale price $6,271.00 Regular price $8,465.85

Product Overview

  • Zones: 3

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Collapsible content

BETTER TOGETHER

DESCRIPTION

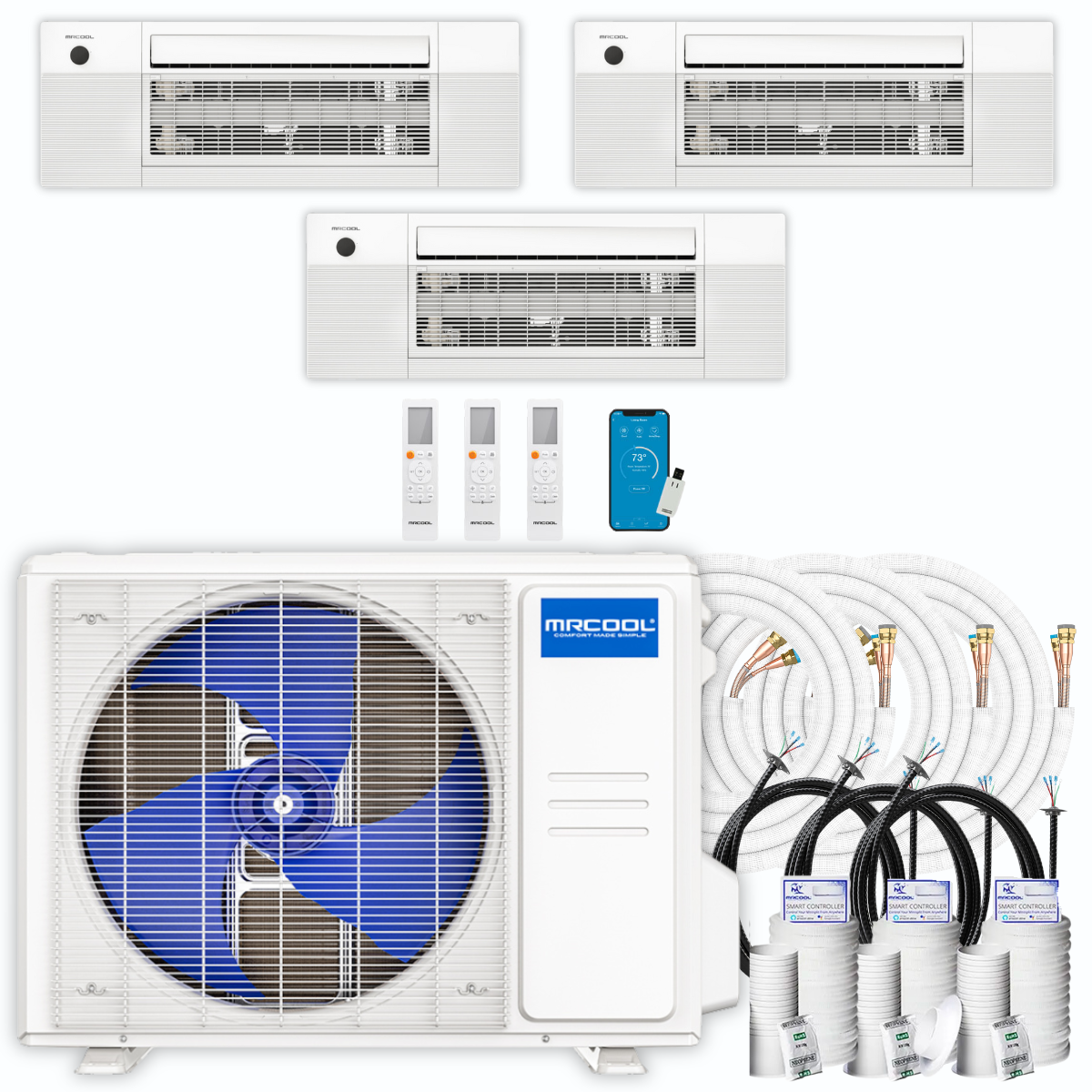

This 4th Generation MRCOOL Mini Split includes a DIY 36,000 BTU Multi-Zone Condenser, one 9,000 BTU Ceiling Cassette Air Handler, two 12,000 BTU Ceiling Cassette Air Handlers, three 16' Linesets, and three Remotes. The best part about all of this is that you can install it yourself!

Package Includes

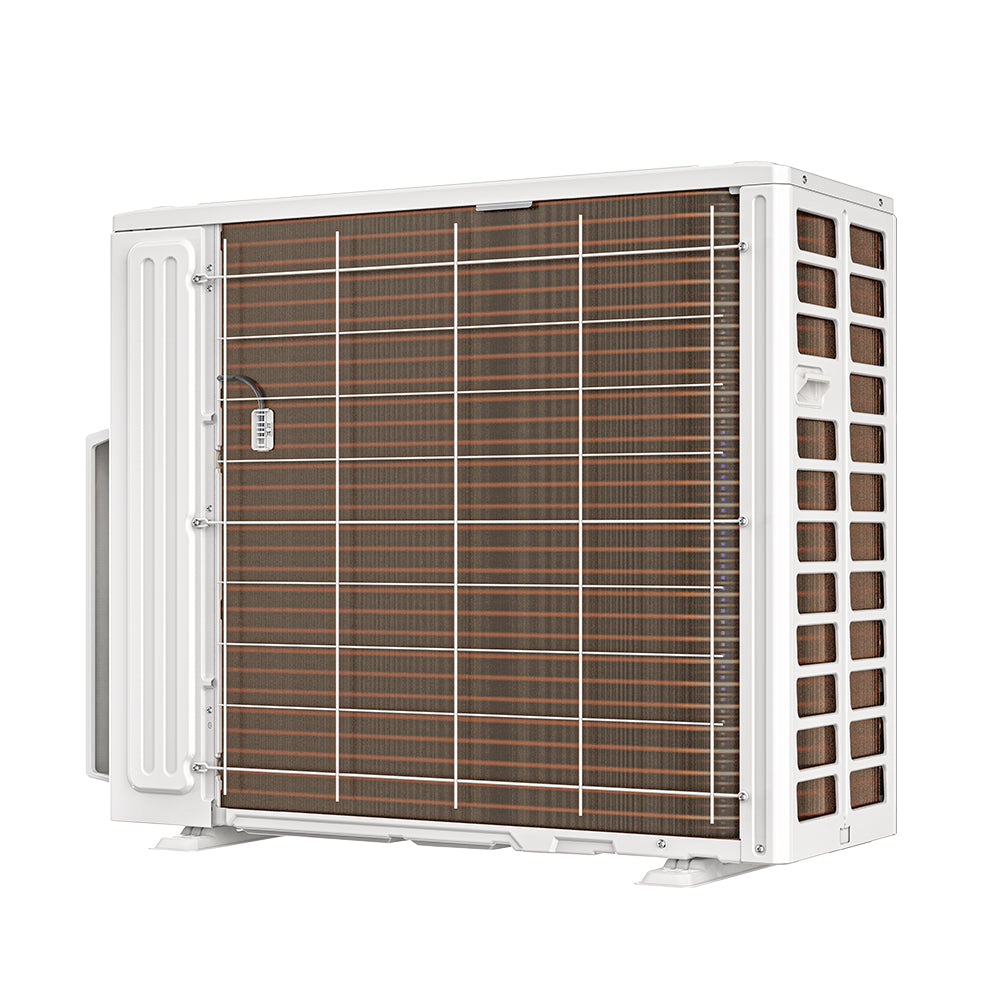

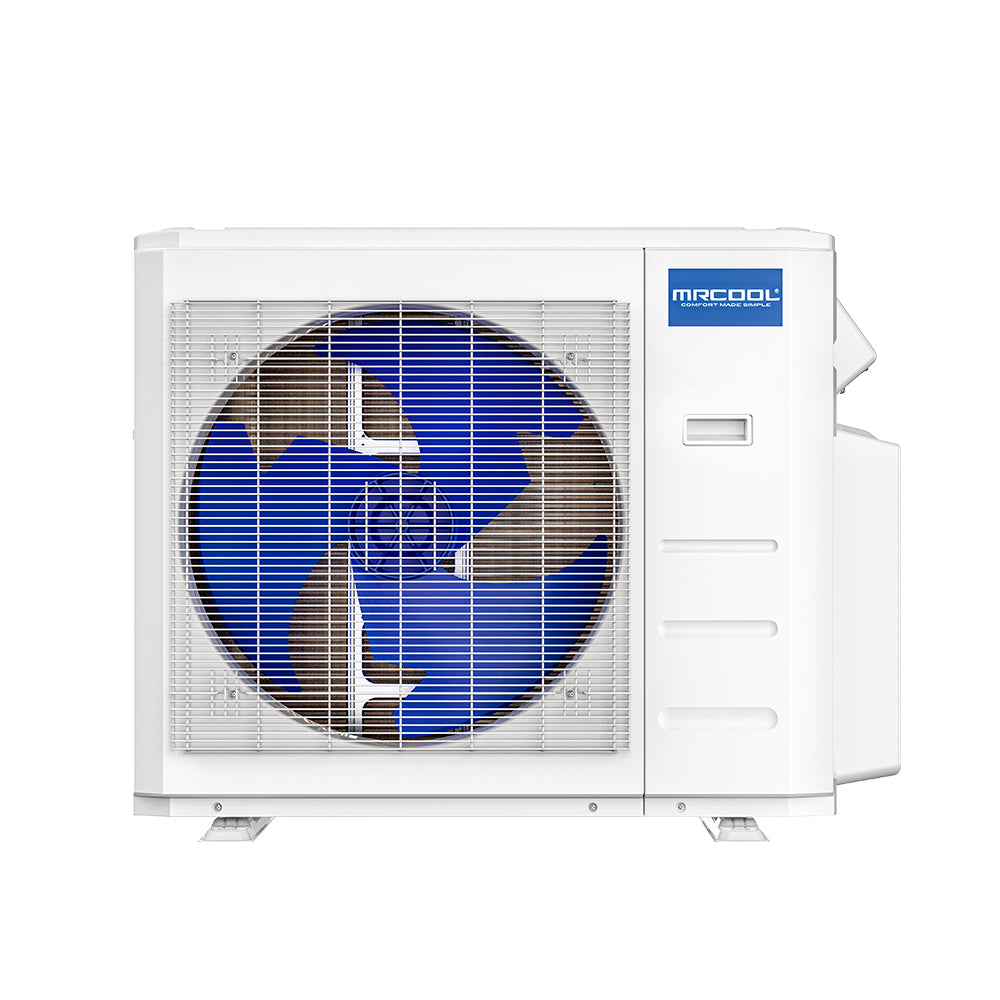

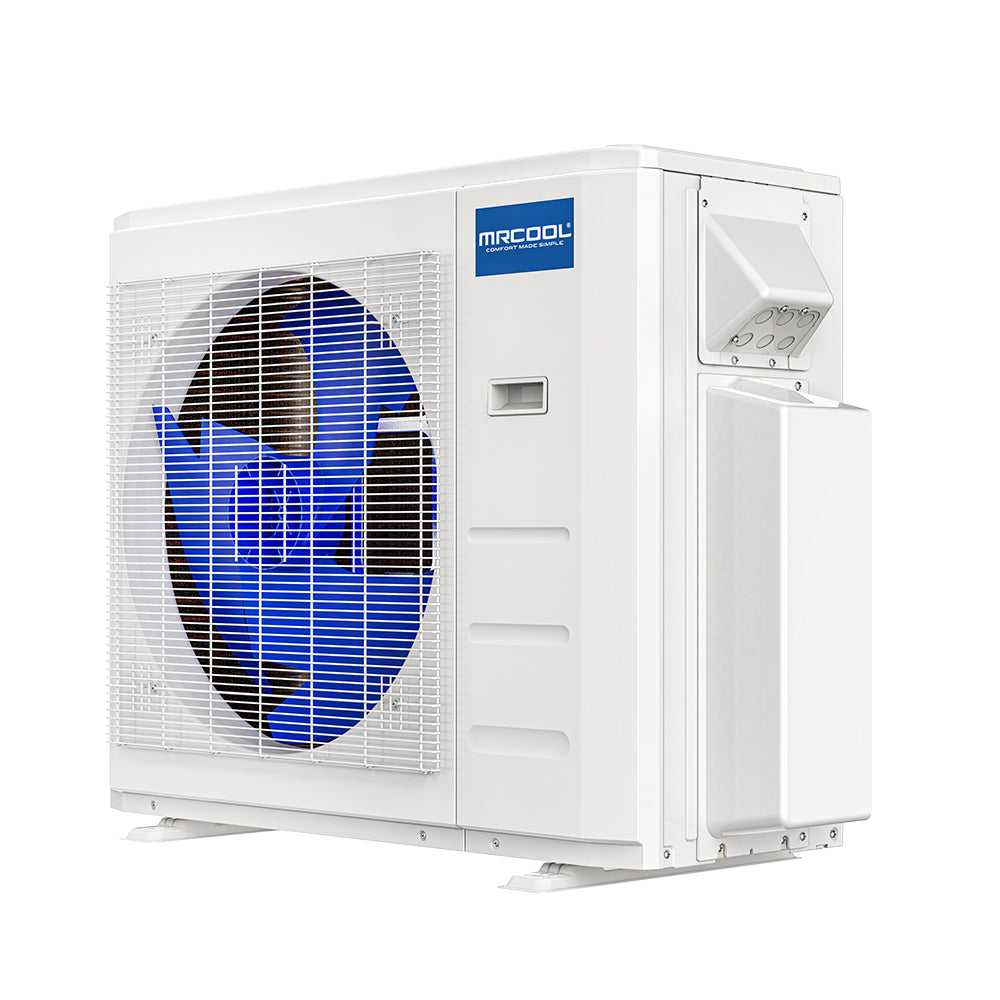

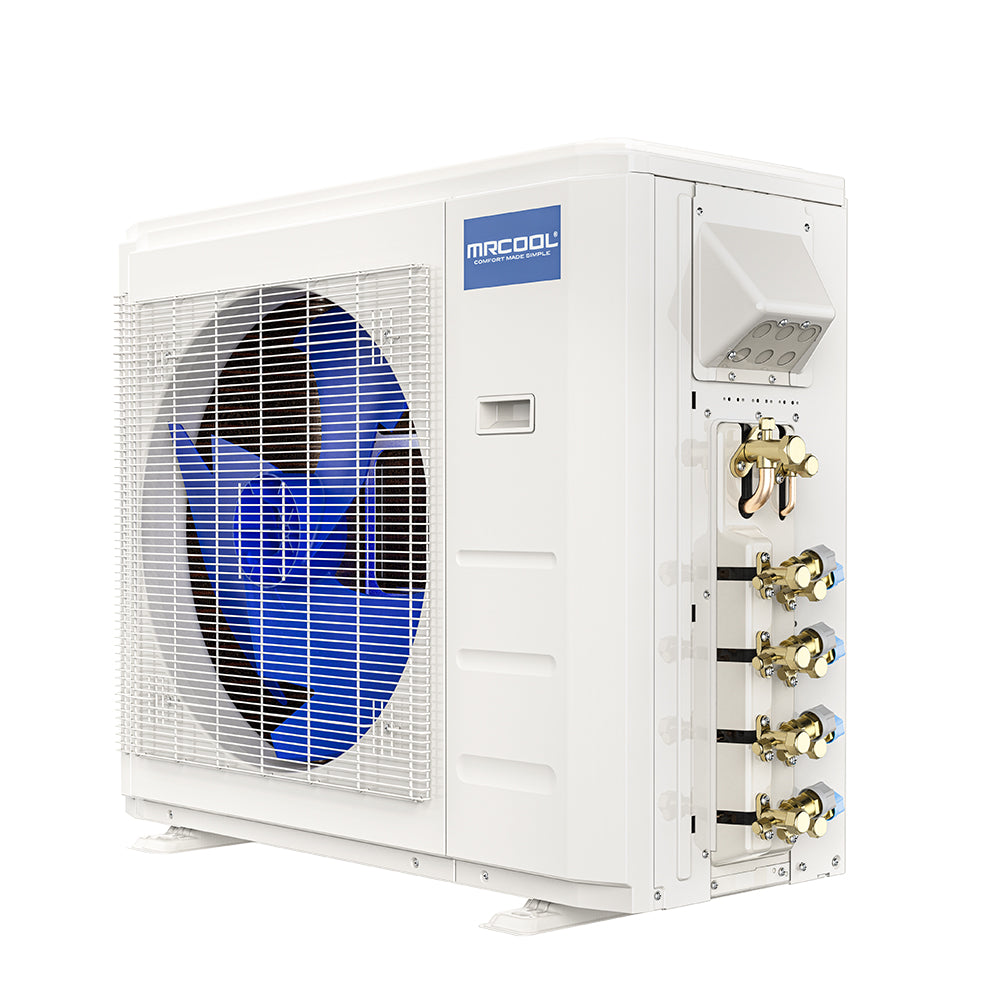

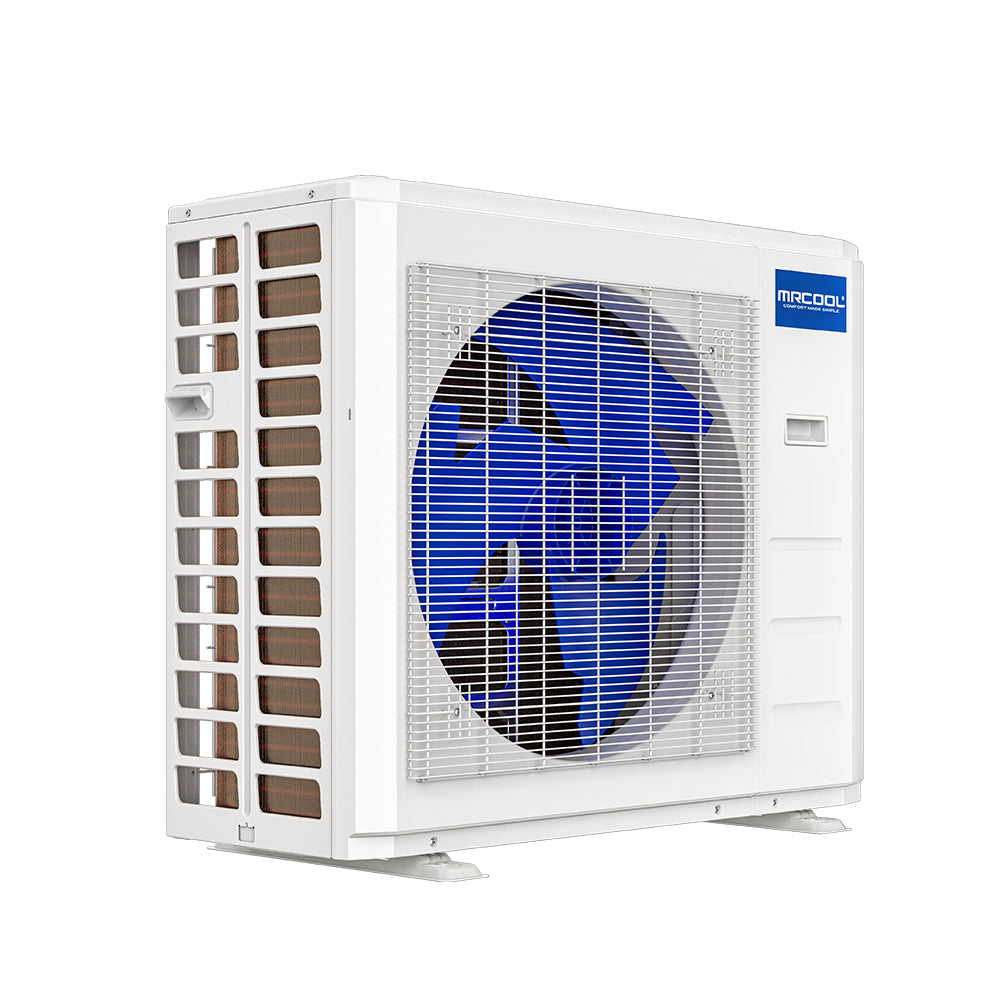

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

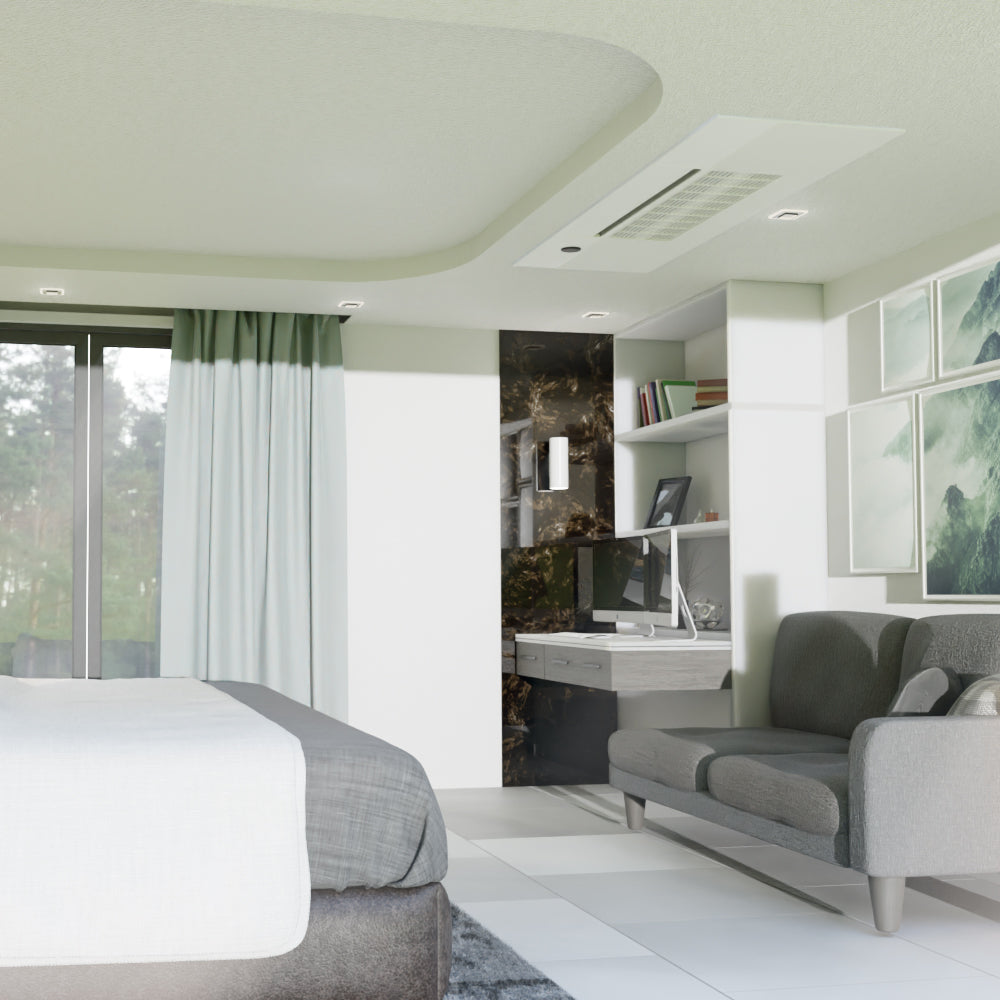

    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

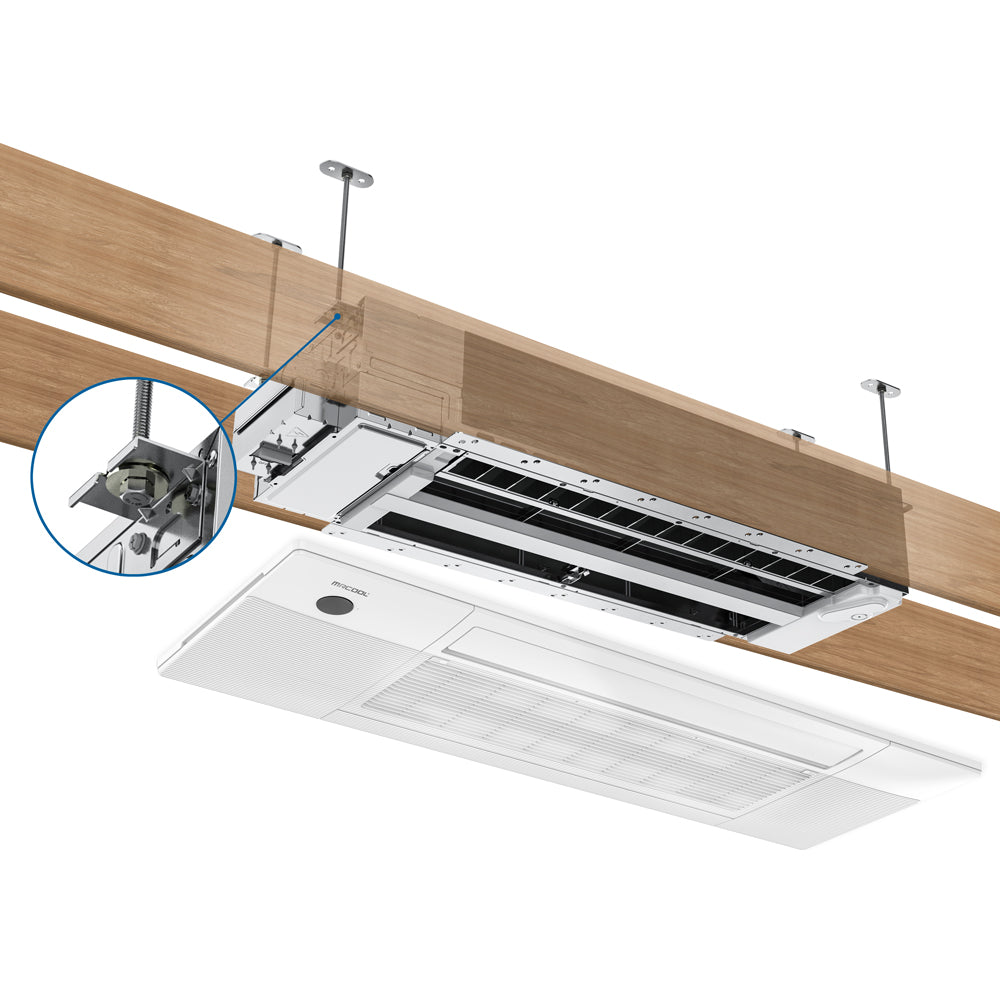

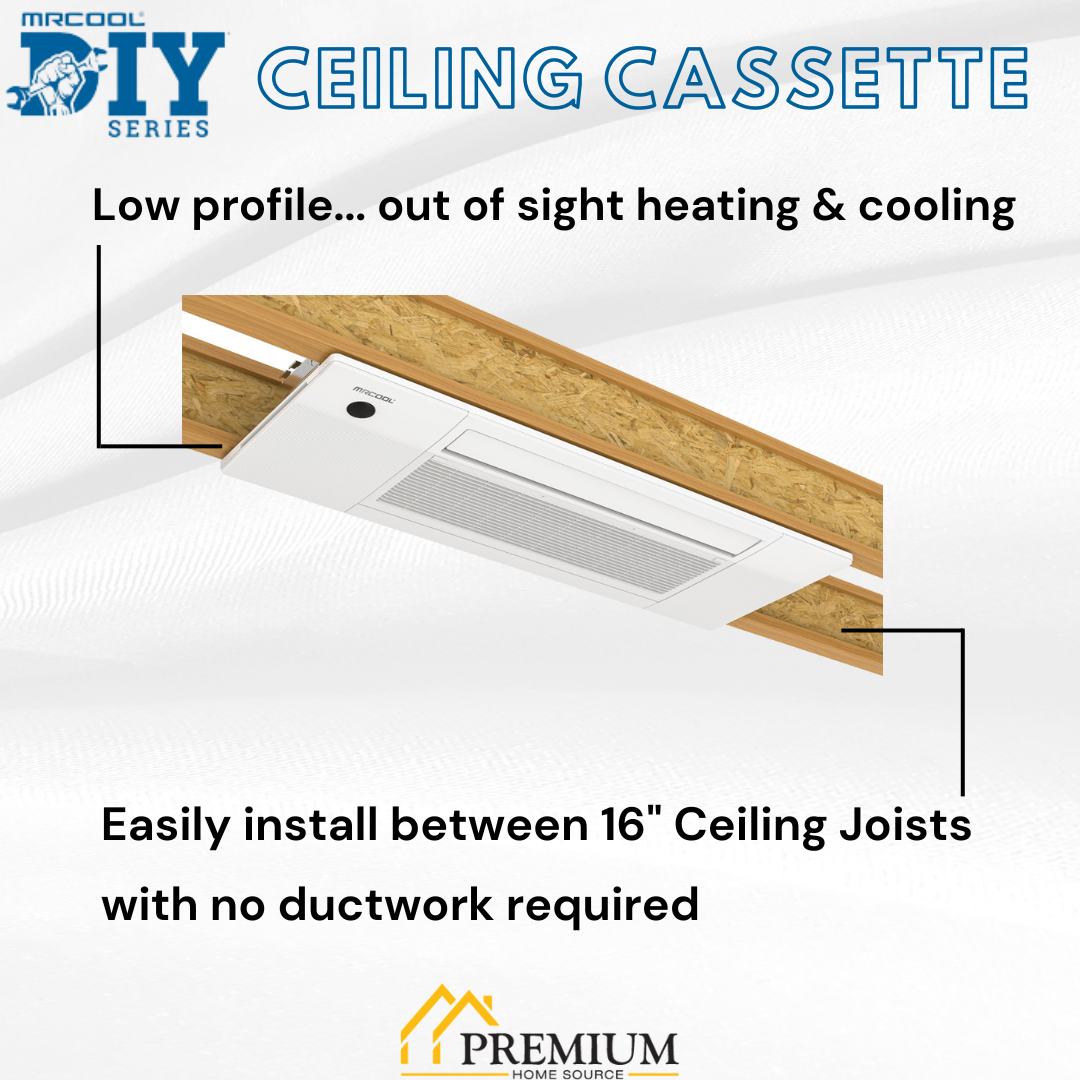

    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

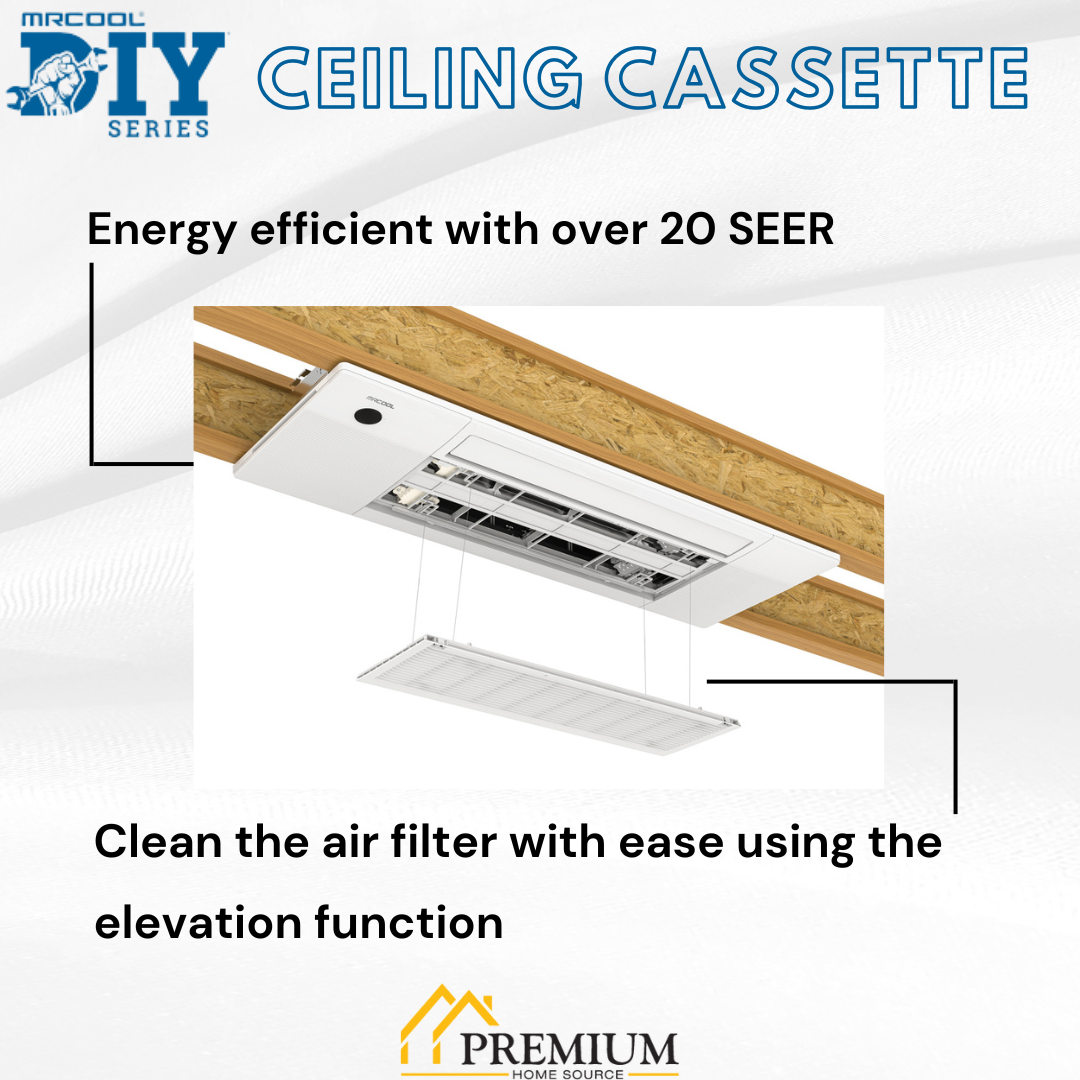

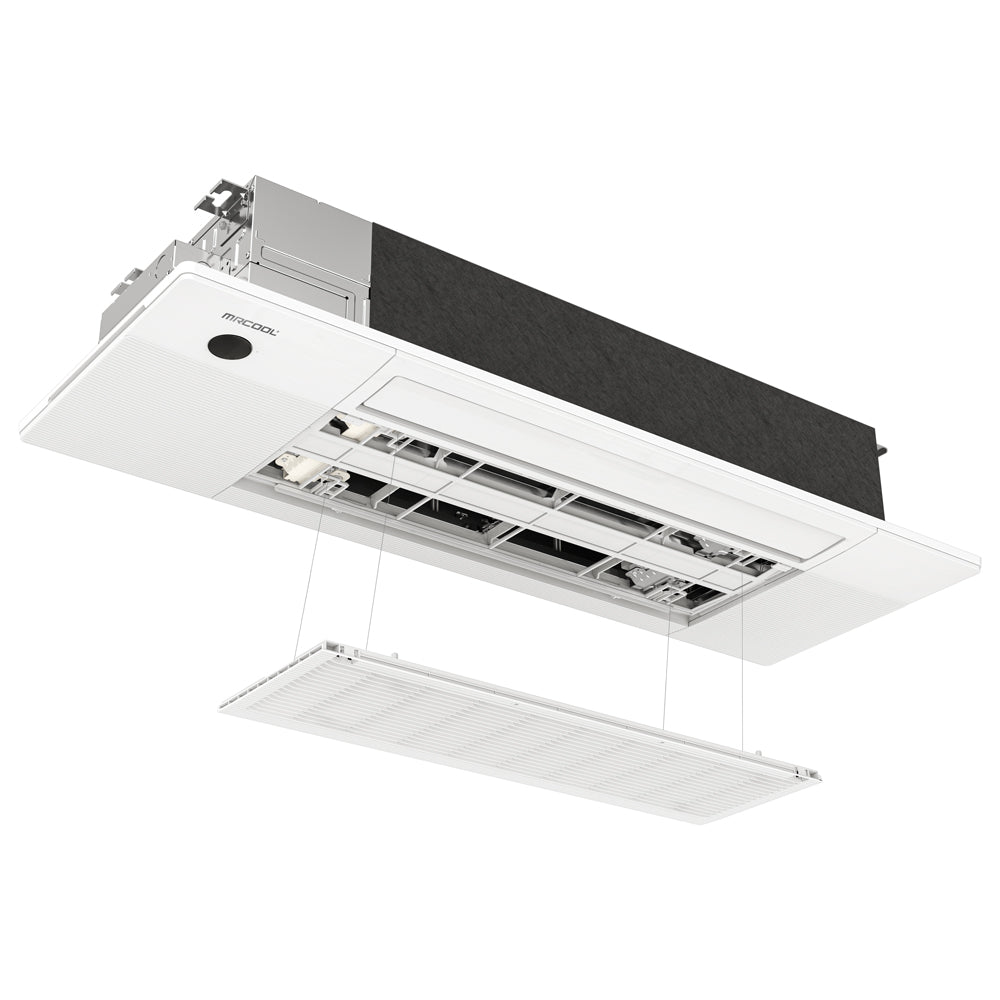

    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

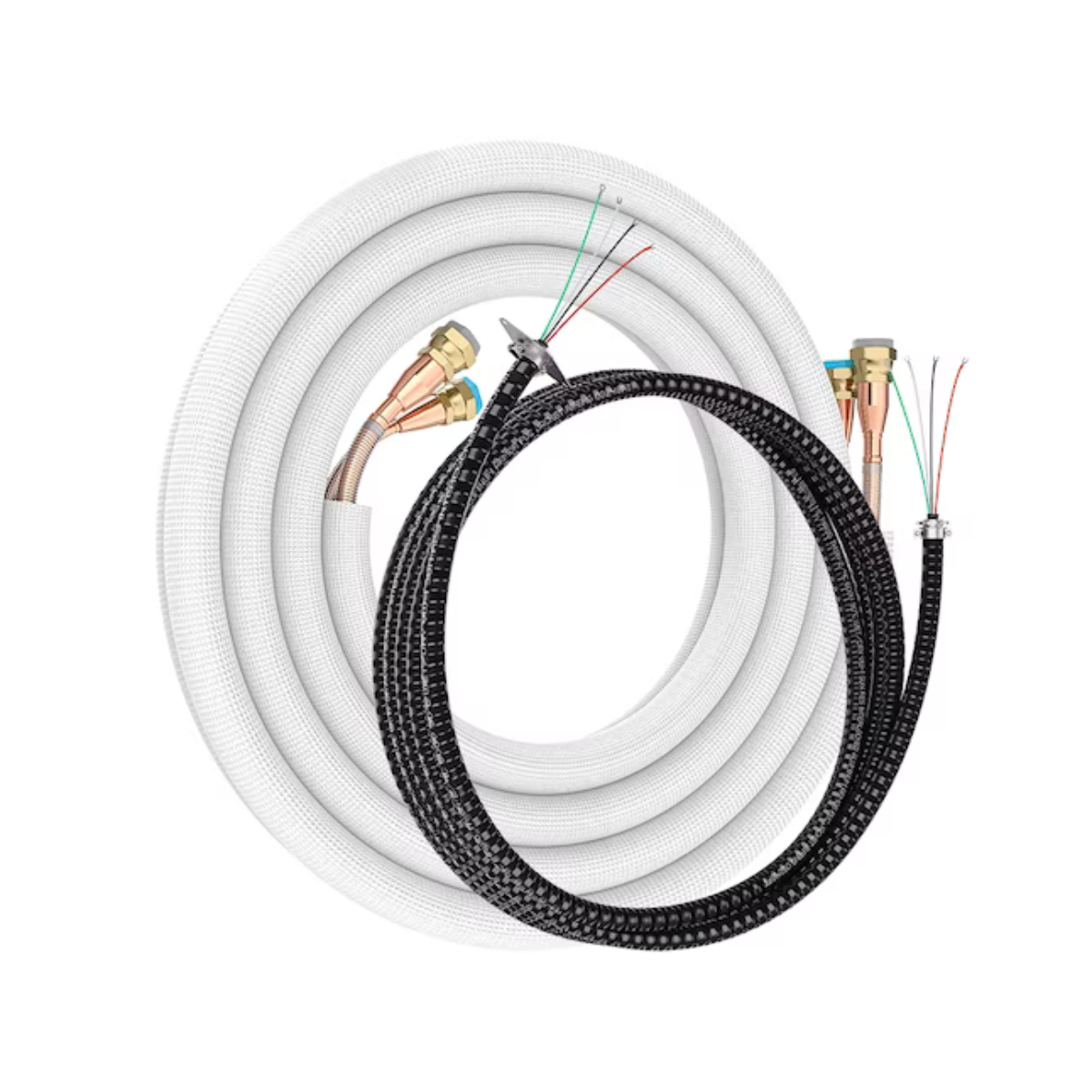

    Line Set 16 ft., Quantity 3

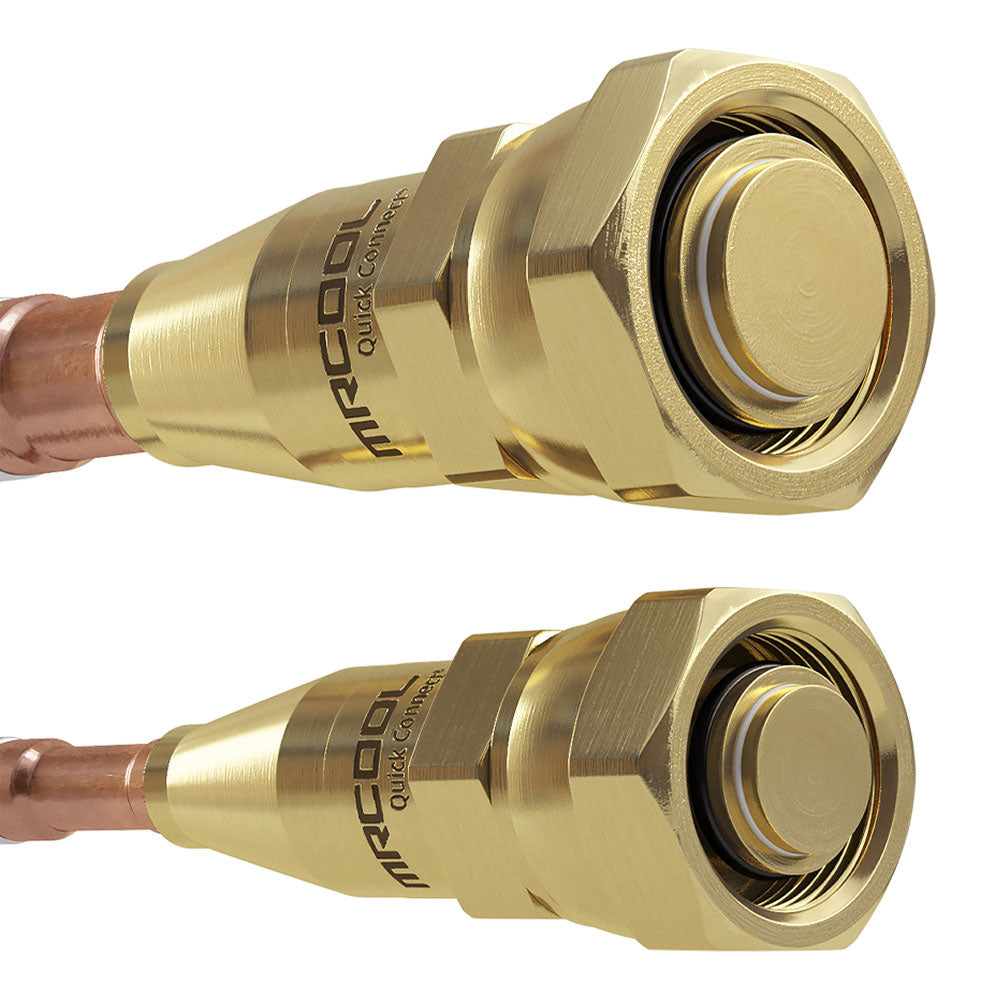

    • Pre-Charged. These copper line sets come pre-charged with the precise amount of R-410A refrigerant.
    • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

    SPECIFICATIONS & DIMENSIONS

    • Condenser
    • Product Dimensions: 37.24"W x 16.14"D x 31.89"H
    • Cooling Capacity: 36,000 BTU
    • Heating Capacity: 36,000 BTU
    • Zone Capacity: 4
    • Cool Mode - Outdoor Operating Temperature Range: 5F ~ 122F
    • Heat Mode - Outdoor Operating Temperature Range: -13F ~ 75.2F
    • SEER: 21.5
    • EER: 10.5
    • Voltage: Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
    • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts

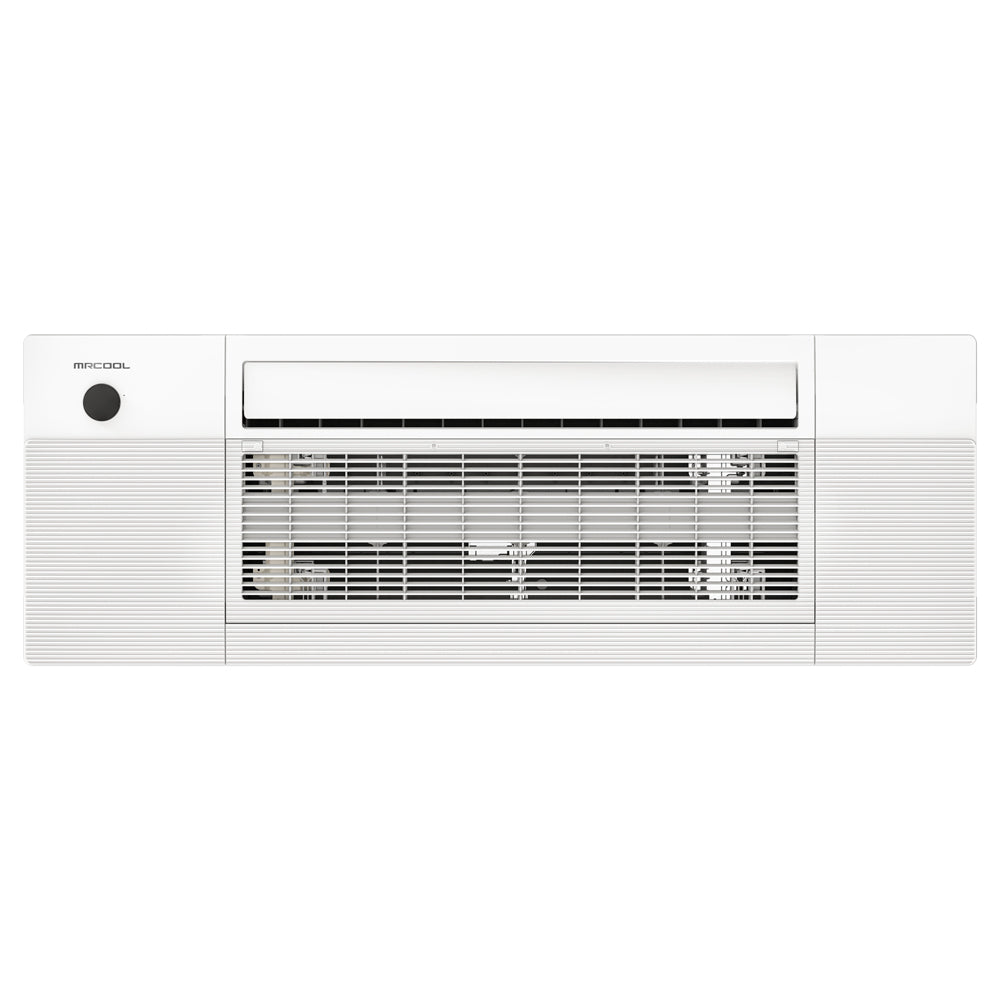

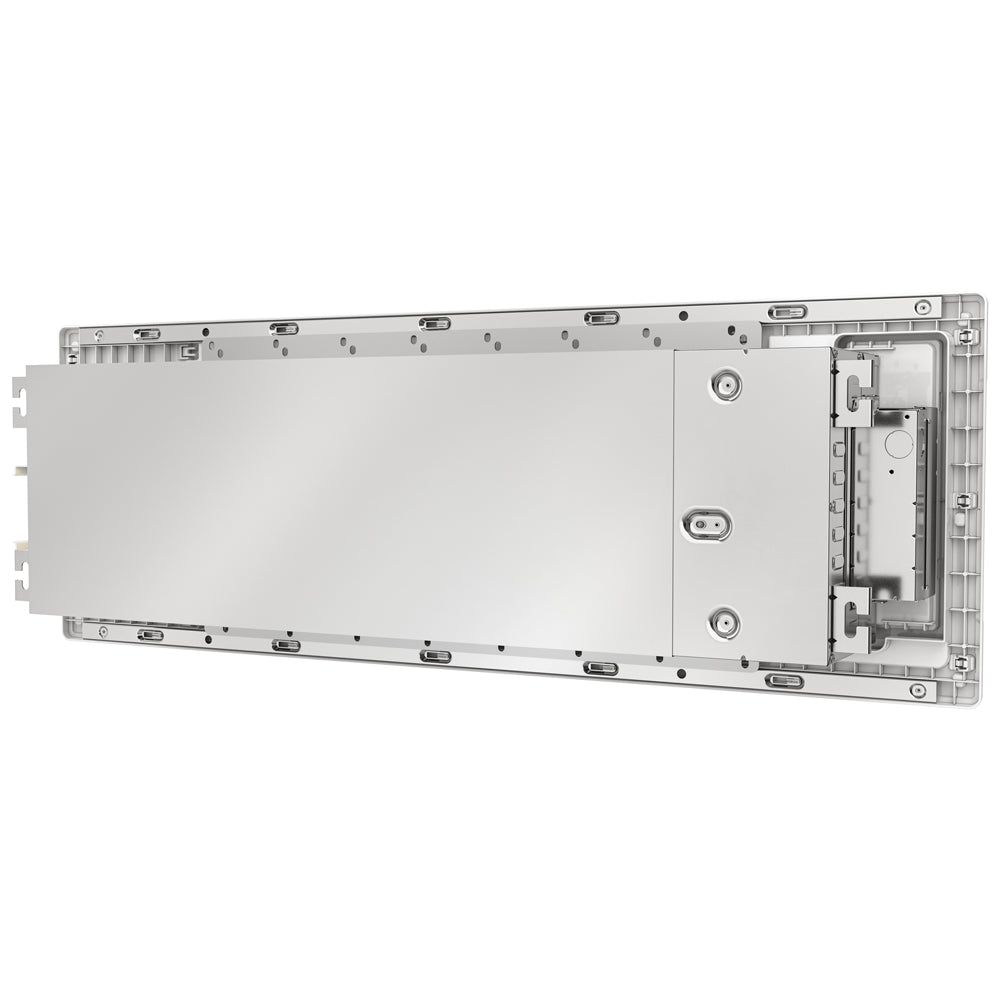

    • Air Handler 9K BTU
    • Product Dimensions: 50.31"W x 13.19"D x 8.98"H
    • Mount Type: Ceiling Cassette
    • Cooling Capacity: 9,000 BTU
    • Heating Capacity: 9,000 BTU
    • Registered Warranty: 5 Years Parts
    • Modes: Auto - Auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
    • Air Handler 12K BTU
    • Product Dimensions: 50.31"W x 13.19"D x 8.98"H
    • Mount Type: Ceiling Cassette
    • Cooling Capacity: 12,000 BTU
    • Heating Capacity: 12,000 BTU
    • Registered Warranty: 5 Years Parts
    • Modes: Auto - Auto selects from Cool, Heat or Fan-OnlyDry - dehumidifyCoolHeatFan OnlyQuietSleep
    • Line Set
    • Length: 16 Feet
    • Liquid Line Size: 1/4"
    • Suction Line Size: 1/2"

    INSTALLATION & GUIDES

    COVERAGE AREA

    Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

    BTU  Square Feet
    9,000 BTU 180 - 375 Sq Ft.
    12,000 BTU 376 - 500 Sq Ft.
    18,000 BTU 501 - 750 Sq Ft.
    24,000 BTU 751 - 1,000 Sq Ft.
    36,000 BTU 1,001 - 1,500 Sq Ft.

    Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
